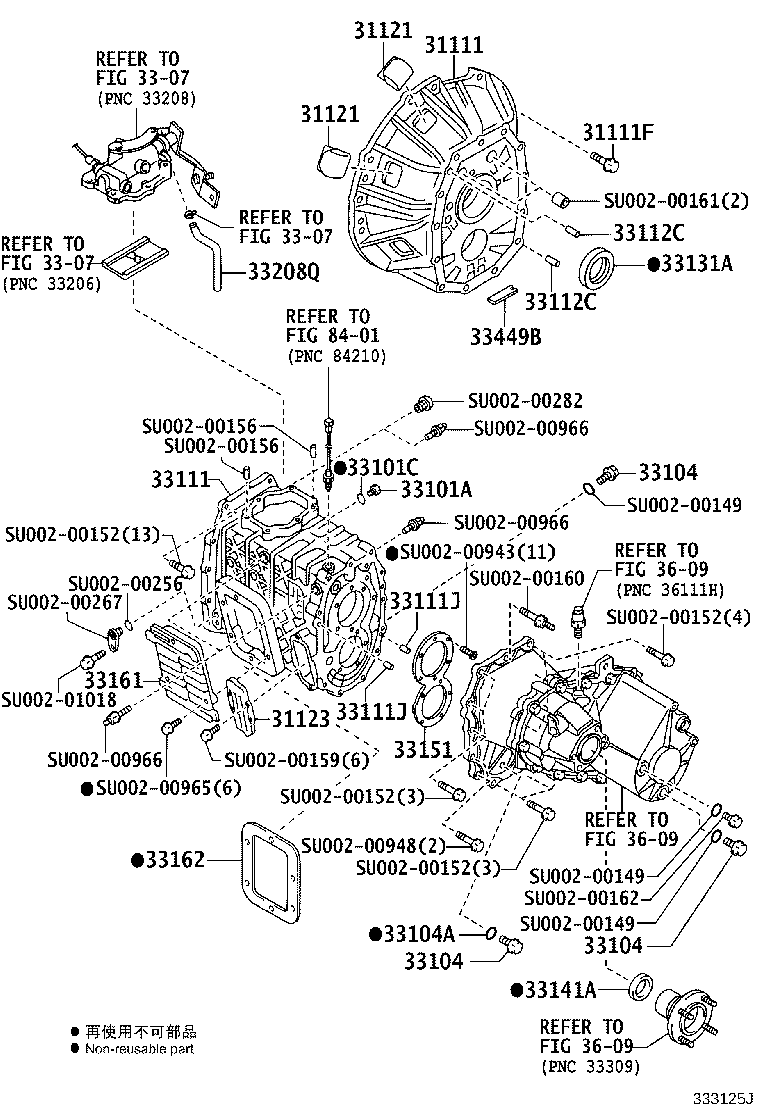

XZU368D-TWMMB3 (2006)
Toyota Dyna/Toyoace
(0610- )XZU368,378,388,568
MYY5A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| SU002-00526 |
XZU368,378,388,568 |
1 | ||
| 31111F - BOLT(FOR CLUTCH HOUSING & ENGINE SETTING) | ||||
| 90119-10898 |
XZU368,378,388,568 |
13 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
XZU30#,33#,34#..6F;BZU300,340,TRU300,340,500,XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
XZU30#,33#,34#..6F;BZU300,340,TRU300,340,500,XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| SU002-00158 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| SU002-00162 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| SU002-00149 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| SU002-00164 |
XZU368,378,388,568 |
3 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| SU002-00164 |
XZU368,378,388,568 |
3 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| SU002-00164 |
XZU368,378,388,568 |
3 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| SU002-00149 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| SU002-00367 |
XZU368,378,388,568 |
1 | ||
| 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) | ||||
| SU002-00155 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) | ||||
| SU002-00155 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| SU002-00148 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| SU002-00154 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| SU002-00168 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| SU002-00150 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| SU002-00147 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) |
1 | ||
| 33208Q - HOSE, BREATHER | ||||
| SU002-00265 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| SU002-00157 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| Common parts | ||||
| SU002-00149 | ||||
| SU002-00152 | ||||
| SU002-00156 | ||||
| SU002-00159 | ||||
| SU002-00160 | ||||
| SU002-00161 | ||||
| SU002-00162 | ||||
| SU002-00256 | ||||
| SU002-00267 | ||||
| SU002-00282 | ||||
| SU002-00943 | ||||
| SU002-00948 | ||||
| SU002-00965 | ||||
| SU002-00966 | ||||
| SU002-01018 | ||||
| Linked diagrams | ||||
| 3307 | ||||
| 3609 | ||||
| 8401 | ||||
