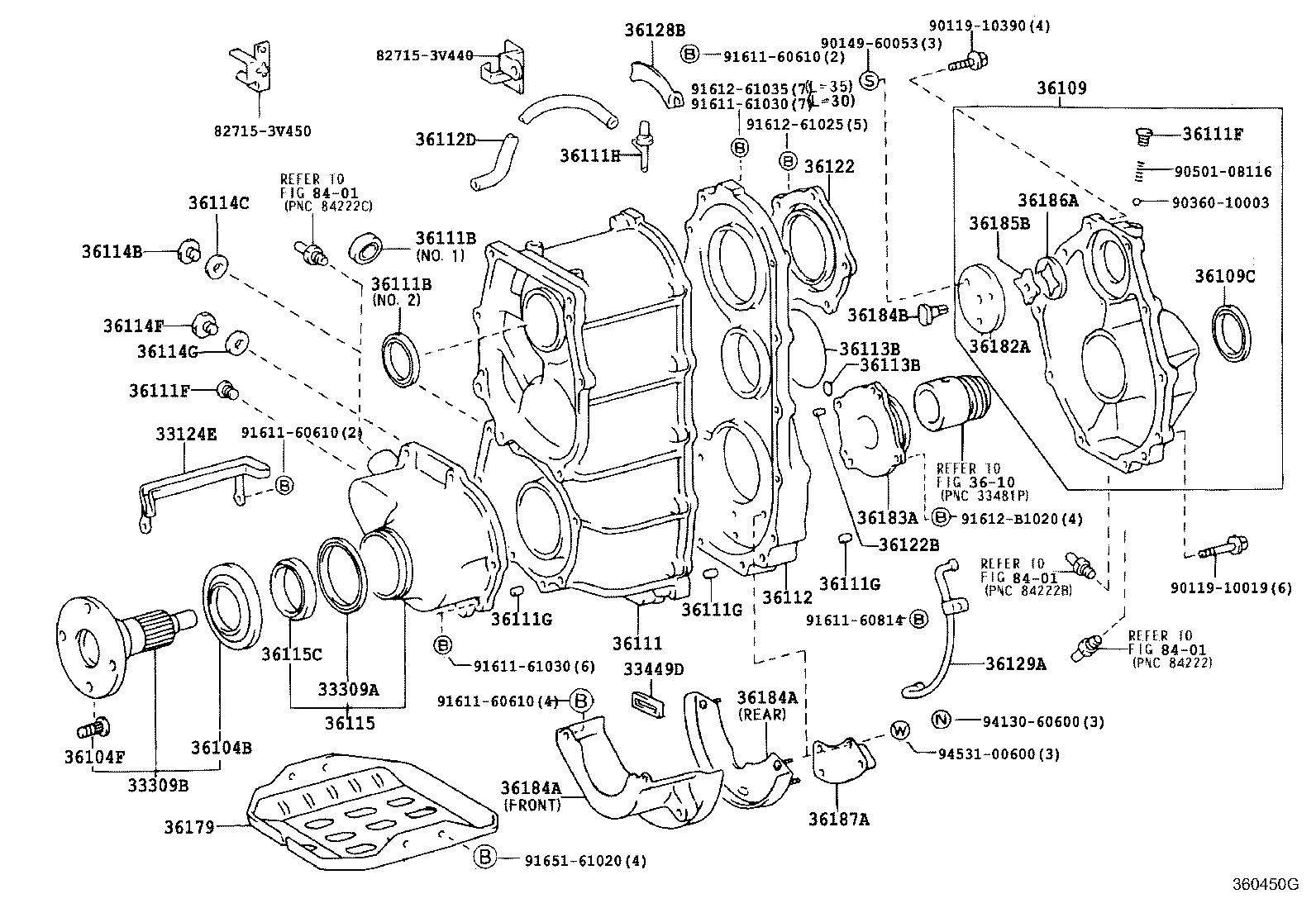

XZU362A-TMMMS3 (1999)
Toyota Dyna/Toyoace
(9907- )XZU362,371,372,382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-36050 |
XZU362,37#,382 |
1 | ||
| 33309A - DEFLECTOR, DUST | ||||
| 33325-60050 |
XZU362,37#,382 |
1 | ||
| 33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 36209-36010 |
XZU362,37#,382 |
1 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-60010 |
XZU362,37#,382 |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-60040 |
XZU362,37#,382 |
1 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-11003 |
XZU362,37#,382 |
4 | ||
| 36109 - HOUSING SUB-ASSY, TRANSFER EXTENSION | ||||
| 36109-36010 |
XZU362,37#,382 |
1 | ||
| 36109C - SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY) | ||||
| 90311-48011 |
XZU362,37#,382 |
1 | ||
| 36111 - CASE, TRANSFER | ||||
| 36111-36010 |
XZU362,37#,382 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-48018 |
XZU362,37#,382 NO.2 |
1 | ||
| 90310-16001 |
XZU362,37#,382 NO.1 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-48018 |
XZU362,37#,382 NO.2 |
1 | ||
| 90310-16001 |
XZU362,37#,382 NO.1 |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-12008 |
XZU362,37#,382 |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-12008 |
XZU362,37#,382 |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12002 |
XZU362,37#,382 長さ=16,外径=12 |
6 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12002 |
XZU362,37#,382 長さ=16,外径=12 |
6 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12002 |
XZU362,37#,382 長さ=16,外径=12 |
6 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03162 |
XZU362,37#,382 |
1 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-37010 |
XZU362,37#,382 |
1 | ||
| 36112D - HOSE, NO.3 (FOR TRANSFER REAR CASE) | ||||
| 90445-08351 |
XZU362,37#,382 |
1 | ||
| 36113B - RING, O (FOR TRANSFER CASE PLUG) | ||||
| 90301-87002 |
XZU362,37#,382 内径=87.9 |
1 | ||
| 90301-07012 |
XZU362,37#,382 内径=6.0 |
1 | ||
| 36113B - RING, O (FOR TRANSFER CASE PLUG) | ||||
| 90301-87002 |
XZU362,37#,382 内径=87.9 |
1 | ||
| 90301-07012 |
XZU362,37#,382 内径=6.0 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
XZU362,37#,382 |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
XZU362,37#,382 |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
XZU362,37#,382 |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 90430-18008 |
XZU362,37#,382 |
1 | ||
| 36115 - HOUSING, TRANSFER EXTENSION | ||||
| 36105-36010 |
XZU362,37#,382 |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-50014 |
XZU362,37#,382 |
1 | ||
| 36122 - COVER, TRANSFER CASE, NO.2 | ||||
| 36122-36010 |
XZU362,37#,382 |
1 | ||
| 36122B - PIN, STRAIGHT(FOR TRANSFER CASE COVER) | ||||
| 90250-05030 |
XZU362,37#,382 |
2 | ||
| 36128B - DEFLECTOR, BREATHER OIL | ||||
| 36128-60040 |
XZU362,37#,382 |
1 | ||
| 36129A - TUBE, TRANSFER OIL | ||||
| 36129-36010 |
XZU362,37#,382 |
1 | ||
| 36179 - PROTECTOR, TRANSFER CASE LOWER | ||||
| 36179-36010 |
XZU362,37#,382 |
1 | ||
| 36182A - COVER, TRANSFER OIL PUMP | ||||
| 36182-36010 |
XZU362,37#,382 |
1 | ||
| 36183A - PLATE, TRANSFER OIL PUMP | ||||
| 36183-36010 |
XZU362,37#,382 |
1 | ||
| 36184A - SEPARATOR, TRANSFER OIL | ||||
| 36184-36020 |
XZU362,37#,382 ﾘﾔ |
1 | ||
| 36184-36010 |
XZU362,37#,382 ﾌﾛﾝﾄ |
1 | ||
| 36184A - SEPARATOR, TRANSFER OIL | ||||
| 36184-36020 |
XZU362,37#,382 ﾘﾔ |
1 | ||
| 36184-36010 |
XZU362,37#,382 ﾌﾛﾝﾄ |
1 | ||
| 36184B - SHAFT, TRANSFER OIL PUMP DRIVE | ||||
| 36184-60060 |
XZU362,37#,382 |
1 | ||
| 36185B - ROTOR, TRANSFER OIL PUMP DRIVE | ||||
| 36185-60030 |
XZU362,37#,382 |
1 | ||
| 36186A - ROTOR, TRANSFER OIL PUMP DRIVEN | ||||
| 36186-60010 |
XZU362,37#,382 |
1 | ||
| 36187A - STRAINR, TRANSFER OIL, NO.1 | ||||
| 36187-36010 |
XZU362,37#,382 |
1 | ||
| Common parts | ||||
| 82715-3V440 | ||||
| 82715-3V450 | ||||
| 90119-10019 | ||||
| 90119-10390 | ||||
| 90149-60053 | ||||
| 90360-10003 | ||||
| 90501-08116 | ||||
| 91611-60610 | ||||
| 91611-60814 | ||||
| 91611-61030 | ||||
| 91612-61025 | ||||
| 91612-61035 | ||||
| 91612-B1020 | ||||
| 91651-61020 | ||||
| 94130-60600 | ||||
| 94531-00600 | ||||
| Linked diagrams | ||||
| 3610 | ||||
| 8401 | ||||
