XZU354H-TKMSD6 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )35T,40T

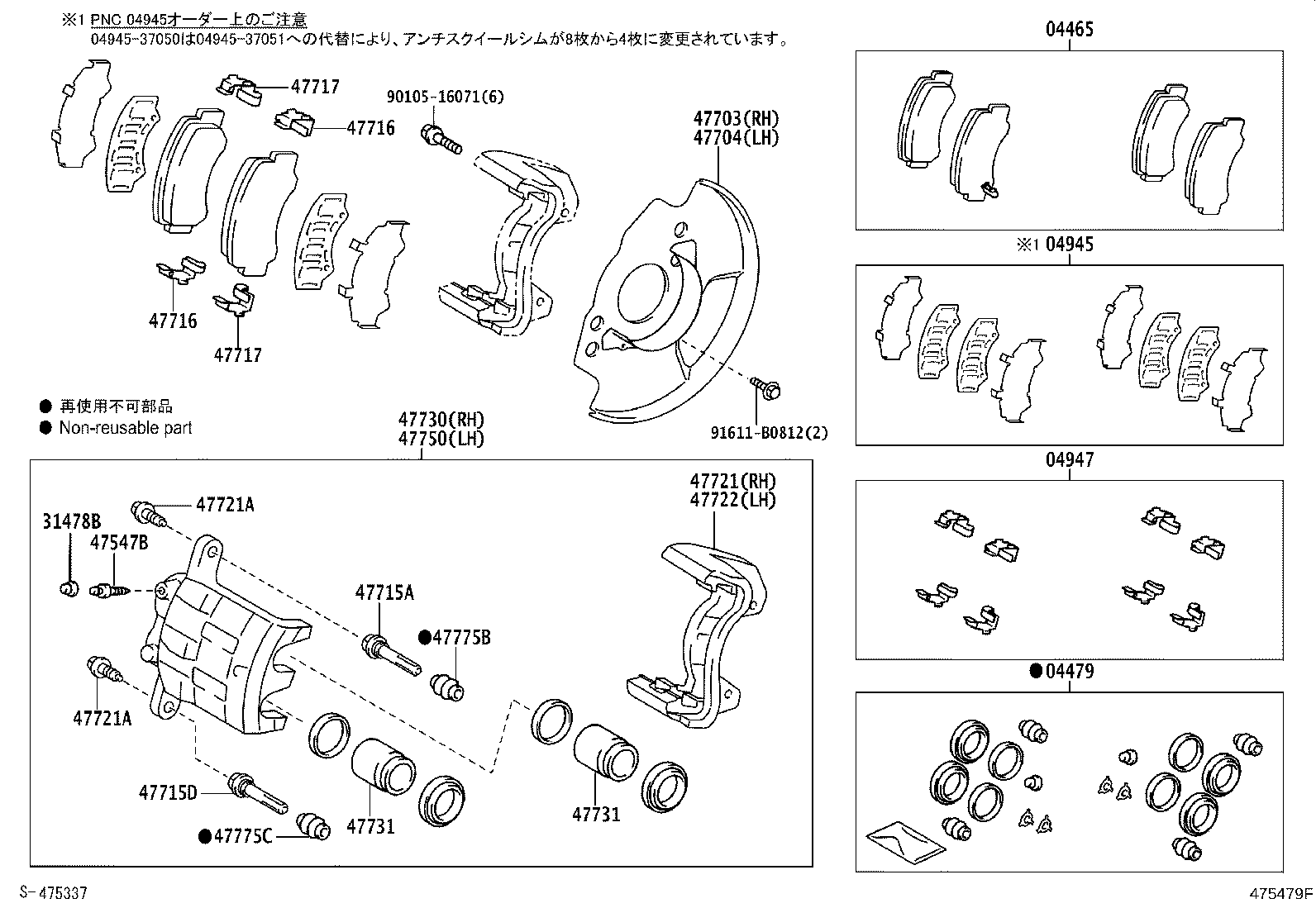

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47703 47704 47715A 47715D 47716 47716 47717 47717 47721 47721A 47721A 47722 47730 47731 47731 47750 47775B 47775C 9010516071 91611B0812
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-37090

XZU334,344,354..35T,40T

ﾏｰｸ NS174

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-37020

XZU334,344,354..35T,40T

 1
04478-37230

XZU334,344,354..35T,40T

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-37050

XZU334,344,354..35T,40T

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04948-37010

XZU334,344,354..35T,40T

 1
04948-37010

XZU334,344,354..35T,40T

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-37030

XZU334,344,354..35T,40T

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47847-37030

XZU334,344,354..35T,40T

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-37070

XZU334,344,354..35T,40T

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-37070

XZU334,344,354..35T,40T

 1
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47714-37120

XZU334,344,354..35T,40T

 2
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-37120

XZU334,344,354..35T,40T

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-37120

XZU334,344,354..35T,40T

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-37120

XZU334,344,354..35T,40T

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-37120

XZU334,344,354..35T,40T

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-37120

XZU334,344,354..35T,40T

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-37160

XZU334,344,354..35T,40T

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-37120

XZU334,344,354..35T,40T

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-37120

XZU334,344,354..35T,40T

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-37160

XZU334,344,354..35T,40T

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-37160

XZU334,344,354..35T,40T

 1
47730-37161

XZU334,344,354..35T,40T

 1
47731 - PISTON, FRONT DISC BRAKE
47731-37120

XZU334,344,354..35T,40T

 4
47731 - PISTON, FRONT DISC BRAKE
47731-37120

XZU334,344,354..35T,40T

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-37160

XZU334,344,354..35T,40T

 1
47750-37161

XZU334,344,354..35T,40T

 1
47775B - BOOT, BUSH DUST, NO.1
47775-37120

XZU334,344,354..35T,40T

 2
47775-37121

XZU334,344,354..35T,40T

 2
47775C - BOOT, BUSH DUST, NO.2
47775-37121

XZU334,344,354..35T,40T

 2
47775-37120

XZU334,344,354..35T,40T

 2
Common parts
90105-16071
91611-B0812
