XZU351D-TWMMS (2002)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 3(9905-0406)BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362
ﾌﾕ-ｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37020 |
XZU372..T3..20T;BU30#,XZU302,306,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77017-37020 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37040 |
XZU372..T3..20T;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,XZU302,307,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77018-37040 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6 |
2 | ||
| 95333-08030 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6 |
2 | ||
| 95333-08030 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6 |
2 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 90105-12116 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90105-12116 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI |
1 | ||
| 90430-12245 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90430-12245 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37200 |
XZU372..T3..20T;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,XZU302,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) 967X355X265,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77001-37201 |
XZU372..T3..20T;BU30#,XZU302,306,307,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) 967X355X265,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77001-37201 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) 967X355X265,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77001-37202 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) 967X355X265,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 90977-02001 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37010 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T |
1 | ||
| 77275B - PROTECTOR, FUEL LIQUID VAPOR SEPARATOR VALVE | ||||
| 77275-36020 |
XZU301,31#,321,35#,368..DM2,DM3,DM5,DM7 |
1 | ||
| 77275-36020 |
XZU301..20T..IV7;XZU301,302,31#,32#,351,352,362..SCB..(DM2,DM3,DM5,DM7,DM8) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36090 |
XZU372..T3..20T;BU30#,XZU302,306,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ﾌﾕ-ｴﾙ ﾀﾝｸ=355X265 |
2 | ||
| 77601-36090 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) ﾌﾕ-ｴﾙ ﾀﾝｸ=75L |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36090 |
XZU372..T3..20T;BU30#,XZU302,306,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ﾌﾕ-ｴﾙ ﾀﾝｸ=355X265 |
2 | ||
| 77601-36090 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) ﾌﾕ-ｴﾙ ﾀﾝｸ=75L |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T |
2 | ||
| 77629-36010 |
XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T |
2 | ||
| 77629-36010 |
XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL) |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36010 |
RZU300..SCB..(T2,T4)..20T;XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) |
2 | ||
| 77616-36030 |
XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-37110 |
XZU372..T3..20T;BU30#,XZU302,306,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ﾌﾕ-ｴﾙ ﾀﾝｸ=355X265 |
2 | ||
| 77633-37110 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-37110 |
XZU372..T3..20T;BU30#,XZU302,306,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ﾌﾕ-ｴﾙ ﾀﾝｸ=355X265 |
2 | ||
| 77633-37110 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) |
2 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06040 |
XZU312..4FC;XZU311..SCB..20T;XZU312..SCB..5F..20T..CBU;XZU351,352,372..(DM5,T3)..20T *H,L=360 |
1 | ||
| 95333-06040 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) *H,L=360 |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 91611-B0616 | ||||
| 91626-40616 | ||||
| 91642-81035 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94130-01002 | ||||
| 94612-11001 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 1 OF 3(9905-0406)
ﾌﾕ-ｴﾙ ﾀﾝｸ(ｻﾌﾞﾀﾝｸｱﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37020 |
XZU372..T3..20T;BU30#,XZU302,306,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77017-37020 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37040 |
XZU372..T3..20T;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,XZU302,307,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77018-37040 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6 |
2 | ||
| 95333-08030 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6 |
2 | ||
| 95333-08030 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6 |
2 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 90105-12116 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90105-12116 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI |
1 | ||
| 90430-12245 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90430-12245 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37200 |
XZU372..T3..20T;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,XZU302,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) 967X355X265,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77001-37201 |
XZU372..T3..20T;BU30#,XZU302,306,307,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) 967X355X265,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77001-37201 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) 967X355X265,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77001-37202 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) 967X355X265,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 90977-02001 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37010 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36090 |
XZU372..T3..20T;BU30#,XZU302,306,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ﾌﾕ-ｴﾙ ﾀﾝｸ=355X265 |
2 | ||
| 77601-36090 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) ﾌﾕ-ｴﾙ ﾀﾝｸ=75L |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T |
2 | ||
| 77629-36010 |
XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL) |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36010 |
RZU300..SCB..(T2,T4)..20T;XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) |
2 | ||
| 77616-36030 |
XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-37110 |
XZU372..T3..20T;BU30#,XZU302,306,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ﾌﾕ-ｴﾙ ﾀﾝｸ=355X265 |
2 | ||
| 77633-37110 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) |
2 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06040 |
XZU312..4FC;XZU311..SCB..20T;XZU312..SCB..5F..20T..CBU;XZU351,352,372..(DM5,T3)..20T *H,L=360 |
1 | ||
| 95333-06040 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) *H,L=360 |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 90202-09047 | ||||
| 90250-03031 | ||||
| 90386-08164 | ||||
| 90401-12007 | ||||
| 90405-10008 | ||||
| 90461-07033 | ||||
| 90467-15012 | ||||
| 90480-14006 | ||||
| 91626-40616 | ||||
| 91642-81035 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-15010 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| 96713-19017 | ||||
| 96713-24011 | ||||

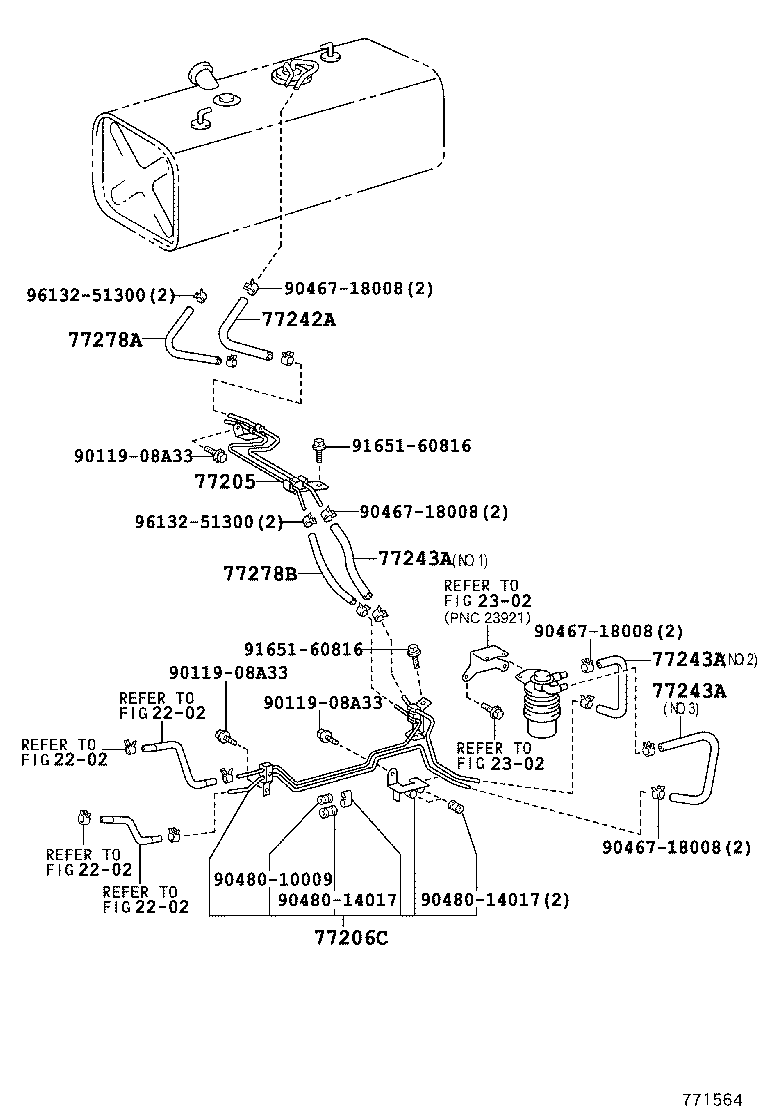

ILLUST NO. 2 OF 3(9905-0406)BU306,346,XZU306,321,322,347,351,352..DCB,SCB..DSL
ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ(LH ﾌﾚ-ﾑｾｼﾞﾒﾝﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37230 |
XZU31#,351,352..SCB |
1 | ||
| 77205-37230 |
XZU31#,351,352..SCB |
1 | ||
| 77205-37230 |
XZU31#,351,352..SCB |
1 | ||
| 77205-37A00 |
XZU31#,35#..4NO |
1 | ||
| 77205-37A00 |
XZU31#,35#..4NO |
1 | ||
| 77205-37A00 |
XZU31#,35#..4NO |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37320 |
XZU31#,351,352..SCB |
1 | ||
| 77206-37320 |
XZU31#,351,352..SCB |
1 | ||
| 77206-37320 |
XZU31#,351,352..SCB |
1 | ||
| 77206-37A20 |
XZU31#,35#..4NO |
1 | ||
| 77206-37A20 |
XZU31#,35#..4NO |
1 | ||
| 77206-37A20 |
XZU31#,35#..4NO |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12020 |
XZU347;XZU307..DCB..4FC;XZU31#,346,351,352..SCB *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU347;XZU307..DCB..4FC;XZU31#,346,351,352..SCB *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU347;XZU307..DCB..4FC;XZU31#,346,351,352..SCB *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU31#,35#..4NO *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU31#,35#..4NO *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU31#,35#..4NO *H,L=200,内径=12 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU31#,351,352 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU31#,351,352 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU31#,351,352 *H,L=160,内径=7.6 |
1 | ||
| Common parts | ||||
| 90467-18008 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2302 | ||||
ILLUST NO. 2 OF 3(9905-0406)XZU307,337..DCB,SCB..4FC ; (9905-0406)XZU31#,346..SCB..DM5,T4..DSL ; (99
ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ(LH ﾌﾚ-ﾑｾｼﾞﾒﾝﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37230 |
XZU31#,351,352..SCB |
1 | ||
| 77205-37230 |
XZU31#,351,352..SCB |
1 | ||
| 77205-37230 |
XZU31#,351,352..SCB |
1 | ||
| 77205-37A00 |
XZU31#,35#..4NO |
1 | ||
| 77205-37A00 |
XZU31#,35#..4NO |
1 | ||
| 77205-37A00 |
XZU31#,35#..4NO |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37320 |
XZU31#,351,352..SCB |
1 | ||
| 77206-37320 |
XZU31#,351,352..SCB |
1 | ||
| 77206-37320 |
XZU31#,351,352..SCB |
1 | ||
| 77206-37A20 |
XZU31#,35#..4NO |
1 | ||
| 77206-37A20 |
XZU31#,35#..4NO |
1 | ||
| 77206-37A20 |
XZU31#,35#..4NO |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12020 |
XZU347;XZU307..DCB..4FC;XZU31#,346,351,352..SCB *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU347;XZU307..DCB..4FC;XZU31#,346,351,352..SCB *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU347;XZU307..DCB..4FC;XZU31#,346,351,352..SCB *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU31#,35#..4NO *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU31#,35#..4NO *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU31#,35#..4NO *H,L=200,内径=12 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU31#,351,352 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU31#,351,352 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU31#,351,352 *H,L=160,内径=7.6 |
1 | ||
| Common parts | ||||
| 90467-18008 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2302 | ||||
ILLUST NO. 2 OF 3(9905-0406)XZU301,351..DSLL..IV3..4NO ; (9905-0406)XZU301,351,352..DM2,DM3,DM6,T3,T
ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ(RH ﾌﾚ-ﾑﾌﾛﾝﾄｾｼﾞﾒﾝﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37230 |
XZU31#,351,352..SCB |
1 | ||
| 77205-37230 |
XZU31#,351,352..SCB |
1 | ||
| 77205-37230 |
XZU31#,351,352..SCB |
1 | ||
| 77205-37A00 |
XZU31#,35#..4NO |
1 | ||
| 77205-37A00 |
XZU31#,35#..4NO |
1 | ||
| 77205-37A00 |
XZU31#,35#..4NO |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37320 |
XZU31#,351,352..SCB |
1 | ||
| 77206-37320 |
XZU31#,351,352..SCB |
1 | ||
| 77206-37320 |
XZU31#,351,352..SCB |
1 | ||
| 77206-37A20 |
XZU31#,35#..4NO |
1 | ||
| 77206-37A20 |
XZU31#,35#..4NO |
1 | ||
| 77206-37A20 |
XZU31#,35#..4NO |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12020 |
XZU347;XZU307..DCB..4FC;XZU31#,346,351,352..SCB *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU347;XZU307..DCB..4FC;XZU31#,346,351,352..SCB *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU347;XZU307..DCB..4FC;XZU31#,346,351,352..SCB *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU31#,35#..4NO *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU31#,35#..4NO *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU31#,35#..4NO *H,L=200,内径=12 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU31#,351,352 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU31#,351,352 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU31#,351,352 *H,L=160,内径=7.6 |
1 | ||
| Common parts | ||||
| 90467-13007 | ||||
| 90467-18002 | ||||
| 90467-18008 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2302 | ||||
ILLUST NO. 3 OF 3(9905-0406)
ﾌﾕ-ｴﾙ ｸﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90119-08A33 | ||||
| 90129-08007 | ||||
| 91626-60816 | ||||
| 91641-80816 | ||||
| 91642-81025 | ||||
| 91651-60816 | ||||
ILLUST NO. 2 OF 2(0406- )XZU31#,35#..4NO
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37230 |
XZU31#,351,352..SCB |
1 | ||
| 77205-37A00 |
XZU31#,35#..4NO |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37320 |
XZU31#,351,352..SCB |
1 | ||
| 77206-37A20 |
XZU31#,35#..4NO |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12020 |
XZU347;XZU307..DCB..4FC;XZU31#,346,351,352..SCB *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU31#,35#..4NO *H,L=200,内径=12 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU31#,351,352 *H,L=160,内径=7.6 |
1 | ||
| Common parts | ||||
| 90119-08A33 | ||||
| 90467-18008 | ||||
| 90480-10009 | ||||
| 90480-14017 | ||||
| 91651-60816 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 2 OF 2(0406- )XZU308,33#,354..SCB..T3,T4 ; (0406-)XZU301..6FC..20T..IV3..1NO ; (04
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37230 |
XZU31#,351,352..SCB |
1 | ||
| 77205-37A00 |
XZU31#,35#..4NO |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37230 |
XZU31#,351,352..SCB |
1 | ||
| 77205-37A00 |
XZU31#,35#..4NO |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37320 |
XZU31#,351,352..SCB |
1 | ||
| 77206-37A20 |
XZU31#,35#..4NO |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37320 |
XZU31#,351,352..SCB |
1 | ||
| 77206-37A20 |
XZU31#,35#..4NO |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12020 |
XZU347;XZU307..DCB..4FC;XZU31#,346,351,352..SCB *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU31#,35#..4NO *H,L=200,内径=12 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12020 |
XZU347;XZU307..DCB..4FC;XZU31#,346,351,352..SCB *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU31#,35#..4NO *H,L=200,内径=12 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12020 |
XZU347;XZU307..DCB..4FC;XZU31#,346,351,352..SCB *H,L=200,内径=12 |
1 | ||
| 95332-12020 |
XZU31#,35#..4NO *H,L=200,内径=12 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU31#,351,352..SCB *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12034 |
XZU31#,351,352..SCB *H,L=340,内径=12,NO.3 |
1 | ||
| 95332-12022 |
XZU306..DSLL..CBU;XZU31#,351,352..SCB;XZU306..4FC..DSLL..IV3 *H,L=220,内径=12,NO.2 |
1 | ||
| 95332-12015 |
XZU31#,351,352..SCB *H,L=150,内径=12,NO.1 |
1 | ||
| 95332-12022 |
XZU31#,35#..4NO *H,L=220,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12034 |
XZU31#,35#..4NO *H,L=340,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08030 |
XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU31#,351,352 *H,L=160,内径=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6 |
1 | ||
| 95333-08020 |
XZU31#,351,352 *H,L=160,内径=7.6 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90467-18008 | ||||
| 90480-10009 | ||||
| 90480-14017 | ||||
| 94130-00802 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 1 OF 2(0406- )XZU306,308,378..SCB..T3,T4,T5..CBU,IV3 ; (0406- )XZU31#,321,33#,34#,3
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37020 |
XZU372..T3..20T;BU30#,XZU302,306,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77017-37020 |
XZU372..T3..20T;BU30#,XZU302,306,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77017-37020 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) |
1 | ||
| 77017-37020 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37040 |
XZU372..T3..20T;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,XZU302,307,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77018-37040 |
XZU372..T3..20T;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,XZU302,307,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77018-37040 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) |
1 | ||
| 77018-37040 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6 |
2 | ||
| 95333-08030 |
XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6 |
2 | ||
| 95333-08030 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6 |
2 | ||
| 95333-08030 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6 |
2 | ||
| 95333-08030 |
XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6 |
2 | ||
| 95333-08030 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6 |
2 | ||
| 95333-08030 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6 |
2 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 90105-12116 |
BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 90105-12116 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90105-12116 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90105-12116 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90105-12116 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI |
1 | ||
| 90430-12245 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI |
1 | ||
| 90430-12245 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90430-12245 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90430-12245 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90430-12245 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37200 |
XZU372..T3..20T;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,XZU302,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) 967X355X265,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77001-37200 |
XZU372..T3..20T;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,XZU302,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) 967X355X265,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77001-37201 |
XZU372..T3..20T;BU30#,XZU302,306,307,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) 967X355X265,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77001-37201 |
XZU372..T3..20T;BU30#,XZU302,306,307,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) 967X355X265,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77001-37201 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) 967X355X265,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77001-37201 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) 967X355X265,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77001-37202 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) 967X355X265,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77001-37202 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) 967X355X265,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=75L) |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 90977-02001 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 90977-02001 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90977-02001 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37010 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T |
1 | ||
| 77244-37010 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T |
1 | ||
| 77275B - PROTECTOR, FUEL LIQUID VAPOR SEPARATOR VALVE | ||||
| 77275-36020 |
XZU301,31#,321,35#,368..DM2,DM3,DM5,DM7 |
1 | ||
| 77275-36020 |
XZU301,31#,321,35#,368..DM2,DM3,DM5,DM7 |
1 | ||
| 77275-36020 |
XZU301..20T..IV7;XZU301,302,31#,32#,351,352,362..SCB..(DM2,DM3,DM5,DM7,DM8) |
1 | ||
| 77275-36020 |
XZU301..20T..IV7;XZU301,302,31#,32#,351,352,362..SCB..(DM2,DM3,DM5,DM7,DM8) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36090 |
XZU372..T3..20T;BU30#,XZU302,306,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ﾌﾕ-ｴﾙ ﾀﾝｸ=355X265 |
2 | ||
| 77601-36090 |
XZU372..T3..20T;BU30#,XZU302,306,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ﾌﾕ-ｴﾙ ﾀﾝｸ=355X265 |
2 | ||
| 77601-36090 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) ﾌﾕ-ｴﾙ ﾀﾝｸ=75L |
2 | ||
| 77601-36090 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) ﾌﾕ-ｴﾙ ﾀﾝｸ=75L |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T |
2 | ||
| 77629-36010 |
XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL) |
2 | ||
| 77629-36010 |
XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL) |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36010 |
RZU300..SCB..(T2,T4)..20T;XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) |
2 | ||
| 77616-36010 |
RZU300..SCB..(T2,T4)..20T;XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) |
2 | ||
| 77616-36030 |
XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI) |
2 | ||
| 77616-36030 |
XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-37110 |
XZU372..T3..20T;BU30#,XZU302,306,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ﾌﾕ-ｴﾙ ﾀﾝｸ=355X265 |
2 | ||
| 77633-37110 |
XZU372..T3..20T;BU30#,XZU302,306,307,31#,351,352..SCB..(DM5,T4)..20T..(DSL,DSLL) ﾌﾕ-ｴﾙ ﾀﾝｸ=355X265 |
2 | ||
| 77633-37110 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) |
2 | ||
| 77633-37110 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) |
2 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06040 |
XZU312..4FC;XZU311..SCB..20T;XZU312..SCB..5F..20T..CBU;XZU351,352,372..(DM5,T3)..20T *H,L=360 |
1 | ||
| 95333-06040 |
XZU312..4FC;XZU311..SCB..20T;XZU312..SCB..5F..20T..CBU;XZU351,352,372..(DM5,T3)..20T *H,L=360 |
1 | ||
| 95333-06040 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) *H,L=360 |
1 | ||
| 95333-06040 |
XZU301,304,306,308,35#..SCB..(DM5,T4)..20T..(CBU,IV3) *H,L=360 |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 91611-B0616 | ||||
| 91626-40616 | ||||
| 91642-81025 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 1 OF 2(0406-0610)DCR ; (0406- )DCRL,DSL,DSLL
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08249 | ||||
| 90179-10015 | ||||
| 91611-B0616 | ||||
| 91626-40616 | ||||
| 91641-80825 | ||||
| 91642-81030 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
