Toyota Dyna/toyoace XZU347 SUSPENSION CROSSMEMBER & UNDER COVER

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU347-TQMMS3 (1999)
5152 - SUSPENSION CROSSMEMBER & UNDER COVER

XZU347-TQMMS3 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004

Engine S05C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9905-0206)XZU306,307,337,346,347

Click highlighted areas on diagram

Part #	Description	Period	Qty
51407A - COVER SUB-ASSY, ENGINE UNDER, NO.3
51407-37070	XZU30#,33#,34#..SCB..(T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/2001 - 06/2002	1
51407-37070	XZU301..5F..30T..IV6;XZU301..(T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV4,IV7);XZU300,302,306,307,33#,34#,350..(03S,T2,T3,T4,T5)..(DSL,DSLL) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 07/2000	1
51407-37070	XZU30#,33#,34#..(03S,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV4,IV7) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	07/2000 - 08/2001	1
51407B - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37090	XZU302..5F..DSL;XZU301..5F..20T..(DSL,DSLL)..(IV3,IV6)..1NO;XZU300,301,306,307,31#,33#,34#,35#..SCB..(DM2,DM3,DM5,T2,T3,T4,T5)..MTM..(DSL,DSLL)	05/1999 - 06/2002	1
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
51464 - SILENCER, TRANSMISSION UNDER, LH
51464-37040	XZU301..5F..30T..IV6;XZU301..(T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV4,IV7);XZU300,302,306,307,33#,34#,350..(03S,T2,T3,T4,T5)..(DSL,DSLL) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 07/2000	1
51464-37040	XZU30#,33#,34#..(03S,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV4,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	07/2000 - 08/2001	1
51464-37040	XZU30#,33#,34#..SCB..(T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/2001 - 06/2002	1
51470 - COVER ASSY, TRANSMISSION UNDER
51470-37070	XZU30#,33#,34#..SCB..(T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
51470-37290	XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 06/2004	1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37130	BU306,346,XZU307,337,346,347	05/1999 - 06/1999	1
51473-37131	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347	06/1999 - 06/2004	1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37090	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347	05/1999 - 10/2003	1
51474-37091	BU306,346,XZU306,307,337,346,347	10/2003 - 06/2004	1
51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH
51480-37020	XZU341,342..DSL;XZU300,301,302..T3..CBU;BU346,RZU300,340,XZU33#,340,346,347..SCB	05/1999 - 06/2002	1
51480-37020	RZU301..4FC;XZU341,342..DSL,DSLL;XZU300,301,302..T3..CBU;BU346,RZU300,XZU33#,340,346,347..SCB..(DSL,DSLL,LPG)	09/2002 - 06/2004	1
51480-37020	XZU300,301,302..T3..CBU;BU346,XZU33#,34#..SCB..DSL	06/2002 - 09/2002	1
51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH
51480-37020	XZU341,342..DSL;XZU300,301,302..T3..CBU;BU346,RZU300,340,XZU33#,340,346,347..SCB	05/1999 - 06/2002	1
51480-37020	RZU301..4FC;XZU341,342..DSL,DSLL;XZU300,301,302..T3..CBU;BU346,RZU300,XZU33#,340,346,347..SCB..(DSL,DSLL,LPG)	09/2002 - 06/2004	1
51480-37020	XZU300,301,302..T3..CBU;BU346,XZU33#,34#..SCB..DSL	06/2002 - 09/2002	1
Common parts
90467-09189
90467-11020
91651-B0814
91651-B0825
91651-B0830
94150-80800

ILLUST NO. 2 OF 2(9905-0406)

Click highlighted areas on diagram

ﾌﾂｸ

Part #	Description	Period	Qty
51961C - HOOK, FRONT
51961-37070	XZU306..DSL;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU301,302,307,337,342,346,347,351,352..(03S,06S,DM5,T2,T3,T4,T5)..20T..WT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
51962 - HOOK, NO.2
51961-36040	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
51962 - HOOK, NO.2
51961-36040	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37030	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37040	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
Common parts
90178-14007
91112-81460
91645-C1032
91672-01460
94130-01002
94130-01402
94130-01432
94622-41400

ILLUST NO. 1 OF 2(9905-0406)BU306,346 ; (0406- )XZU378..IV4 ;(0406- )XZU306,308,336,338,346,3

Click highlighted areas on diagram

Part #	Description	Period	Qty
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37130	BU306,346,XZU307,337,346,347	05/1999 - 06/1999	1
51473-37131	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347	06/1999 - 06/2004	1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37090	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347	05/1999 - 10/2003	1
51474-37091	BU306,346,XZU306,307,337,346,347	10/2003 - 06/2004	1
51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH
51480-37020	XZU341,342..DSL;XZU300,301,302..T3..CBU;BU346,RZU300,340,XZU33#,340,346,347..SCB	05/1999 - 06/2002	1
51480-37020	RZU301..4FC;XZU341,342..DSL,DSLL;XZU300,301,302..T3..CBU;BU346,RZU300,XZU33#,340,346,347..SCB..(DSL,DSLL,LPG)	09/2002 - 06/2004	1
51480-37020	XZU300,301,302..T3..CBU;BU346,XZU33#,34#..SCB..DSL	06/2002 - 09/2002	1
Common parts
90467-09189
91651-B0814
91651-B0825

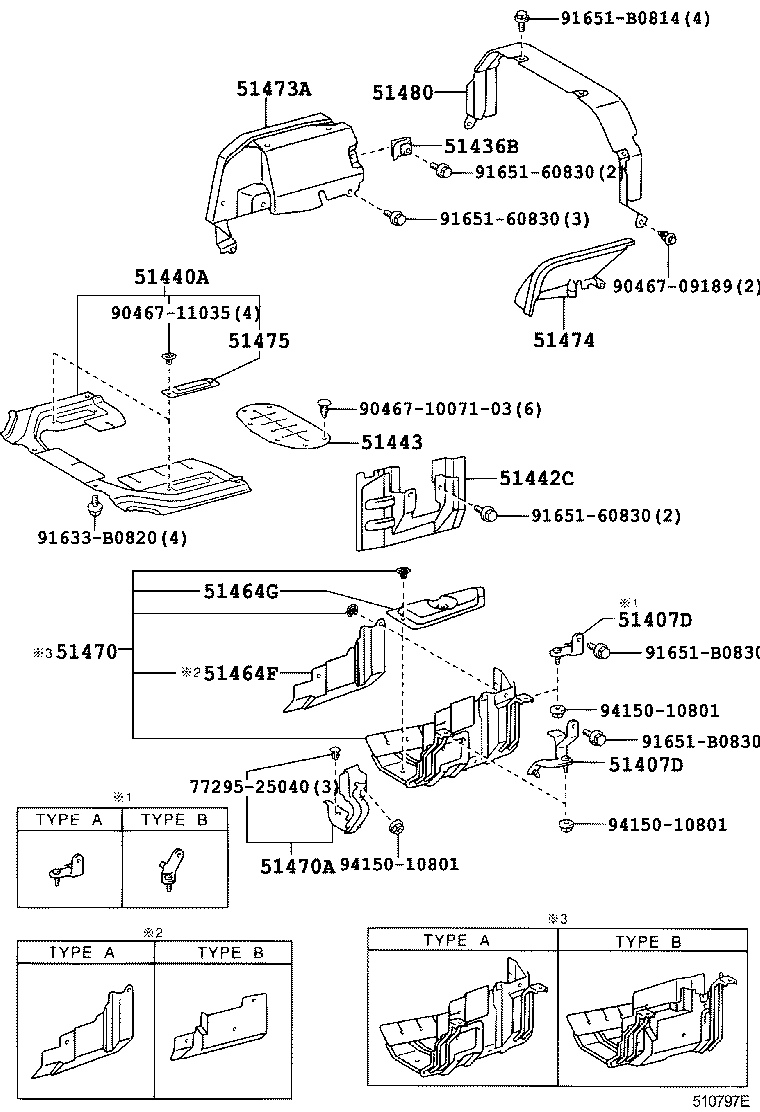

ILLUST NO. 1 OF 2(0206-0406)XZU346 ; (0206-0406)XZU306,307,337,347..DSL ; (0210-0406)XZU306..DSLL..C

Click highlighted areas on diagram

Part #	Description	Period	Qty
51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37350	XZU306,307,337,346,347..SCB..5F..DSL ﾌﾛﾝﾄ	06/2002 - 09/2002	1
51407-37070	XZU301..DSLL..4NO;XZU306,307..SCB..5F..CBU;RZU300,XZU347..SCB..5F..(DSL,EFI);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU340,XZU300,302,33#,340,341,342,346..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ	06/2002 - 06/2004	1
51407-37351	XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F ﾌﾛﾝﾄ	09/2002 - 06/2004	1
51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37350	XZU306,307,337,346,347..SCB..5F..DSL ﾌﾛﾝﾄ	06/2002 - 09/2002	1
51407-37070	XZU301..DSLL..4NO;XZU306,307..SCB..5F..CBU;RZU300,XZU347..SCB..5F..(DSL,EFI);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU340,XZU300,302,33#,340,341,342,346..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ	06/2002 - 06/2004	1
51407-37351	XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F ﾌﾛﾝﾄ	09/2002 - 06/2004	1
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
51440A - COVER ASSY, ENGINE UNDER
51440-37280	XZU306,307,337,346,347..SCB..5F..DSL	06/2002 - 10/2002	1
51440-37280	XZU306,307,337,346,347..SCB..5F	10/2002 - 06/2004	1
51442C - COVER, ENGINE UNDER, LH
51442-37050	XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F	06/2002 - 06/2004	1
51443 - COVER, ENGINE UNDER, REAR RH
51443-37050	XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F	06/2002 - 06/2004	1
51464F - SILENCER, TRANSMISSION UNDER
51464-37120	XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;RZU300,XZU306,307,347..SCB..5F..(DSL,EFI);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU340,XZU300,302,33#,340,341,342,346..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 06/2004	1
51464G - SILENCER, TRANSMISSION UNDER
51464-37140	XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;XZU341..MTM..(DSL,DSLL);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU300,XZU302,306,307,342,347..SCB..(T2,T3,T4,T5)..5F..(DSL,EFI);BZU300,340,RZU301,340,XZU300,33#,340,346..(T2,T3,T4)..MTM..(DSL,DSLL,EFI,LPG)	06/2002 - 06/2004	1
51470 - COVER ASSY, TRANSMISSION UNDER
51470-37070	XZU30#,33#,34#..SCB..(T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
51470-37290	XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 06/2004	1
51470A - COVER ASSY, TRANSMISSION UNDER, LH
51470-37210	XZU306,307,337,346,347..SCB..5F..DSL	06/2002 - 10/2002	1
51470-37210	XZU306,307,337,346,347..SCB..5F	10/2002 - 06/2004	1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37130	BU306,346,XZU307,337,346,347	05/1999 - 06/1999	1
51473-37131	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347	06/1999 - 06/2004	1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37090	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347	05/1999 - 10/2003	1
51474-37091	BU306,346,XZU306,307,337,346,347	10/2003 - 06/2004	1
51475 - SILENCER, ENGINE UNDER COVER, NO.5
51475-37030	XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F	06/2002 - 06/2004	2
51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH
51480-37020	XZU341,342..DSL;XZU300,301,302..T3..CBU;BU346,RZU300,340,XZU33#,340,346,347..SCB	05/1999 - 06/2002	1
51480-37020	RZU301..4FC;XZU341,342..DSL,DSLL;XZU300,301,302..T3..CBU;BU346,RZU300,XZU33#,340,346,347..SCB..(DSL,DSLL,LPG)	09/2002 - 06/2004	1
51480-37020	XZU300,301,302..T3..CBU;BU346,XZU33#,34#..SCB..DSL	06/2002 - 09/2002	1
Common parts
77295-25040
90467-09189
90467-1007103
90467-11035
91633-B0820
91651-60830
91651-B0814
91651-B0830
94150-10801

ILLUST NO. 1 OF 2(0206-0406)XZU301..DSLL..4NO ; (0206-0406)XZU301,331..CNG,DSL,LPG ; (0206-0406)XZU3

Click highlighted areas on diagram

Part #	Description	Period	Qty
51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37350	XZU306,307,337,346,347..SCB..5F..DSL ﾌﾛﾝﾄ	06/2002 - 09/2002	1
51407-37070	XZU301..DSLL..4NO;XZU306,307..SCB..5F..CBU;RZU300,XZU347..SCB..5F..(DSL,EFI);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU340,XZU300,302,33#,340,341,342,346..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ	06/2002 - 06/2004	1
51407-37351	XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F ﾌﾛﾝﾄ	09/2002 - 06/2004	1
51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37350	XZU306,307,337,346,347..SCB..5F..DSL ﾌﾛﾝﾄ	06/2002 - 09/2002	1
51407-37070	XZU301..DSLL..4NO;XZU306,307..SCB..5F..CBU;RZU300,XZU347..SCB..5F..(DSL,EFI);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU340,XZU300,302,33#,340,341,342,346..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ	06/2002 - 06/2004	1
51407-37351	XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F ﾌﾛﾝﾄ	09/2002 - 06/2004	1
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
51442C - COVER, ENGINE UNDER, LH
51442-37050	XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F	06/2002 - 06/2004	1
51464F - SILENCER, TRANSMISSION UNDER
51464-37120	XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;RZU300,XZU306,307,347..SCB..5F..(DSL,EFI);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU340,XZU300,302,33#,340,341,342,346..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 06/2004	1
51464G - SILENCER, TRANSMISSION UNDER
51464-37140	XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;XZU341..MTM..(DSL,DSLL);XZU301..(T3,T4,T5)..5F..DSL..(CBU,IV3,IV4,IV7);RZU300,XZU302,306,307,342,347..SCB..(T2,T3,T4,T5)..5F..(DSL,EFI);BZU300,340,RZU301,340,XZU300,33#,340,346..(T2,T3,T4)..MTM..(DSL,DSLL,EFI,LPG)	06/2002 - 06/2004	1
51470 - COVER ASSY, TRANSMISSION UNDER
51470-37070	XZU30#,33#,34#..SCB..(T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
51470-37290	XZU306..5F..DSL;XZU306..5F..DSLL..CBU;XZU307,337,346,347..SCB..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 06/2004	1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37130	BU306,346,XZU307,337,346,347	05/1999 - 06/1999	1
51473-37131	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347	06/1999 - 06/2004	1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37090	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347	05/1999 - 10/2003	1
51474-37091	BU306,346,XZU306,307,337,346,347	10/2003 - 06/2004	1
51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH
51480-37020	XZU341,342..DSL;XZU300,301,302..T3..CBU;BU346,RZU300,340,XZU33#,340,346,347..SCB	05/1999 - 06/2002	1
51480-37020	RZU301..4FC;XZU341,342..DSL,DSLL;XZU300,301,302..T3..CBU;BU346,RZU300,XZU33#,340,346,347..SCB..(DSL,DSLL,LPG)	09/2002 - 06/2004	1
51480-37020	XZU300,301,302..T3..CBU;BU346,XZU33#,34#..SCB..DSL	06/2002 - 09/2002	1
Common parts
90467-09189
90467-11035
91633-B0820
91651-B0814
91651-B0825
91651-B0830
91651-B1025
94150-10801

ILLUST NO. 2 OF 2(9905- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90178-14007
91672-01460
94125-41400
94130-01402
