XZU346-TGMMS (2004)
Toyota Dyna/Toyoace
(0505-0610)XZU331..T3..IV3 ; (0505- )DM3..IV3; (0505- )35T..IV3 ; (0505-
ﾕｿｳﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 52233-92300 | ||||
| 91162-81245 | ||||
| 94130-61200 | ||||
(9905-0610)RZU300,XZU331..SCB..5F,6FC..30T ; (0306-0406)BZU300..T4..LPG ; (0406-061
ﾚﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

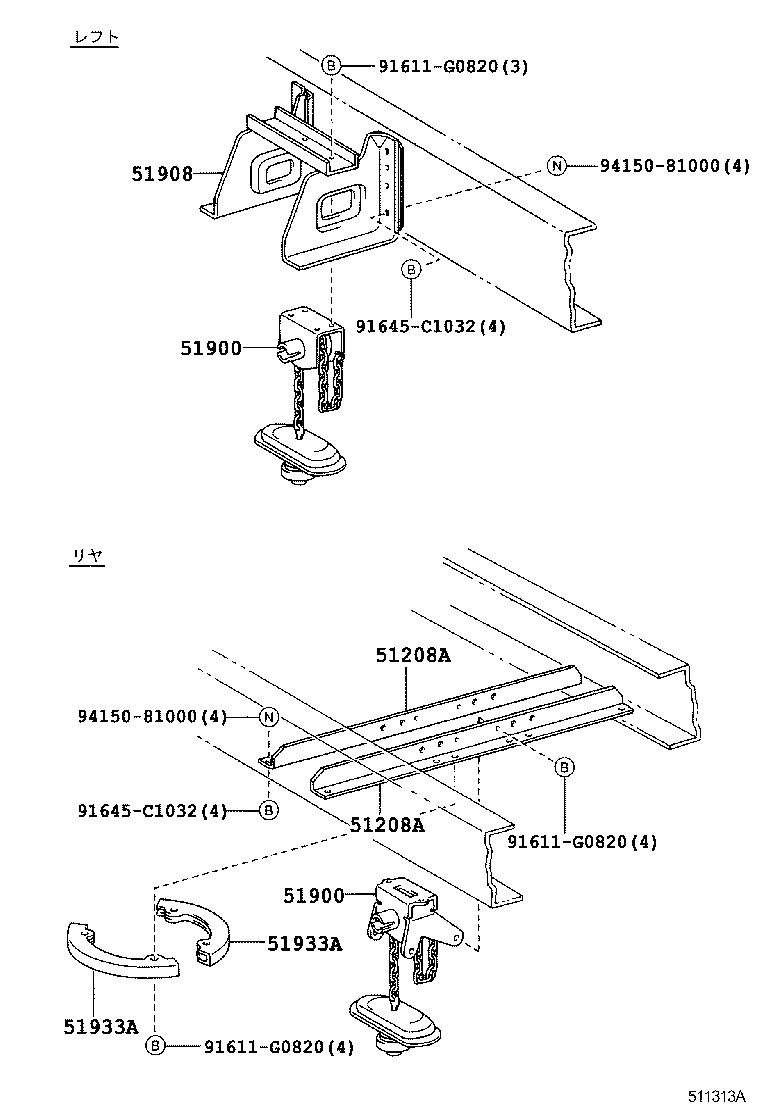

| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-37030 |
BU306,346,RZU300,XZU307,337,347,351,352..03S,06S,DM2,T2 |
2 | ||
| 51900-37030 |
BU306,346,RZU300,XZU307,337,347,351,352..03S,06S,DM2,T2 |
2 | ||
| 51900-37030 |
BU306,346,RZU300,XZU307,337,347,351,352..03S,06S,DM2,T2 |
2 | ||
| 51900-37100 |
XZU346,348..T2 |
2 | ||
| 51900-37100 |
XZU346,348..T2 |
2 | ||
| 51900-37100 |
XZU346,348..T2 |
2 | ||
| 51900-37120 |
XZU346,348..T2 ﾘﾔ |
1 | ||
| 51900-37120 |
XZU346,348..T2 ﾘﾔ |
1 | ||
| 51900-37120 |
XZU346,348..T2 ﾘﾔ |
1 | ||
| 51908 - BRACKET SUB-ASSY, SPARE WHEEL CARRIER | ||||
| 51908-37350 |
XZU346,348..T2 |
1 | ||
| 51908-37350 |
XZU346,348..T2 |
1 | ||
| 51908-37350 |
XZU346,348..T2 |
1 | ||
| 51908-37270 |
XZU346,348..T2 |
1 | ||
| 51908-37270 |
XZU346,348..T2 |
1 | ||
| 51908-37270 |
XZU346,348..T2 |
1 | ||
| Common parts | ||||
| 91611-G0820 | ||||
| 91645-C1032 | ||||
| 94150-81000 | ||||
(0505-0610)XZU346,348..T2
ﾚﾌﾄ & ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51208A - MEMBER SUB-ASSY, SPARE WHEEL SET | ||||
| 51261-37020 |
XZU346,348..T2 |
2 | ||
| 51261-37020 |
XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU346,XZU306,340,347..(T3,T4)..DSL;BZU300,RZU300,XZU302..(T2,T4)..20T;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG)..(CBU,IV3,IV7);BU30#,BZU340,RZU301,340,XZU307,33#,341,342,346,372,382..(03S,06S,T2,T3,T4)..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 51208A - MEMBER SUB-ASSY, SPARE WHEEL SET | ||||
| 51261-37020 |
XZU346,348..T2 |
2 | ||
| 51261-37020 |
XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU346,XZU306,340,347..(T3,T4)..DSL;BZU300,RZU300,XZU302..(T2,T4)..20T;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG)..(CBU,IV3,IV7);BU30#,BZU340,RZU301,340,XZU307,33#,341,342,346,372,382..(03S,06S,T2,T3,T4)..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-37030 |
BU306,346,RZU300,XZU307,337,347,351,352..03S,06S,DM2,T2 |
2 | ||
| 51900-37100 |
XZU346,348..T2 |
2 | ||
| 51900-37120 |
XZU346,348..T2 ﾘﾔ |
1 | ||
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-37030 |
BU306,346,RZU300,XZU307,337,347,351,352..03S,06S,DM2,T2 |
2 | ||
| 51900-37100 |
XZU346,348..T2 |
2 | ||
| 51900-37120 |
XZU346,348..T2 ﾘﾔ |
1 | ||
| 51908 - BRACKET SUB-ASSY, SPARE WHEEL CARRIER | ||||
| 51908-37350 |
XZU346,348..T2 |
1 | ||
| 51908-37270 |
XZU346,348..T2 |
1 | ||
| 51933A - STOPPER, SPARE WHEEL, NO.1 | ||||
| 51933-37020 |
XZU346,348..T2 |
2 | ||
| 51933A - STOPPER, SPARE WHEEL, NO.1 | ||||
| 51933-37020 |
XZU346,348..T2 |
2 | ||
| Common parts | ||||
| 91611-G0820 | ||||
| 91645-C1032 | ||||
| 94150-81000 | ||||
