XZU344-TQMQW3 (2003)
Toyota Dyna/Toyoace
(0310- )XZU344..T4..IV3

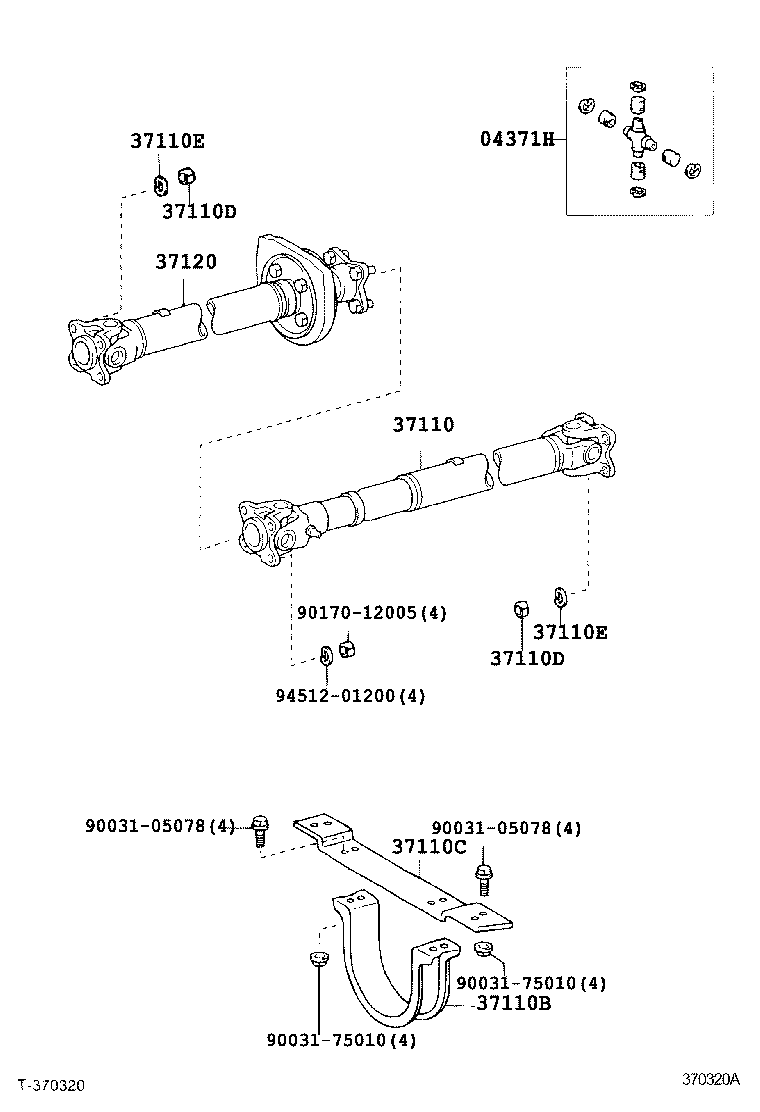

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37011 |
XZU304,305,344 |
2 | ||
| 04371-37011 |
XZU301..DM3..20T..CBU;XZU301..6FC..20T..4NO;XZU301..30T..(CBU,IV6);XZU301..(DM6,T5)..20T..WT;XZU306,336..(03S,T2)..6FC;XZU301..(T3,T4,T5)..30T..IV3;XZU306,336..(T4,T5)..(CBU,IV3);XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
3 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-37680 |
XZU344 |
1 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 37231-37020 |
XZU344 |
1 | ||
| 37231-37020 |
BZU340,XZU341,344,346,388 |
1 | ||
| 37110C - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51241-37060 |
BZU340,XZU344,388 |
1 | ||
| 51241-37060 |
XZU344 |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12018 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12018 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90032-04005 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90032-04005 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-37280 |
XZU344 |
1 | ||
| 37120-37280 |
XZU344 |
1 | ||
| Common parts | ||||
| 90031-05078 | ||||
| 90031-75010 | ||||
| 90170-12005 | ||||
| 94512-01200 | ||||
(0406- )BZU340,XZU341,344,346,388
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37011 |
XZU304,305,344 |
2 | ||
| 04371-37011 |
XZU301..DM3..20T..CBU;XZU301..6FC..20T..4NO;XZU301..30T..(CBU,IV6);XZU301..(DM6,T5)..20T..WT;XZU306,336..(03S,T2)..6FC;XZU301..(T3,T4,T5)..30T..IV3;XZU306,336..(T4,T5)..(CBU,IV3);XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
3 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 37231-37020 |
XZU344 |
1 | ||
| 37231-37020 |
BZU340,XZU341,344,346,388 |
1 | ||
| 37110C - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51241-37060 |
BZU340,XZU344,388 |
1 | ||
| 51241-37060 |
XZU344 |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12018 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12018 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90032-04005 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90032-04005 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-37680 |
XZU331,336..6FC;XZU334..5F..IV4;BZU340,XZU341,344,346 |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-37280 |
XZU344 |
1 | ||
| 37120-37280 |
XZU344 |
1 | ||
| 37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 | ||||
| 37235-37020 |
BZU340,XZU341,344,346,388 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37201-37010 |
BZU340,XZU341,344,346,388 |
1 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37010 |
BZU340,XZU341,344,346,388 厚さ=3.0 |
2 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37010 |
BZU340,XZU341,344,346,388 厚さ=3.0 |
2 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-37021 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-37020 |
BZU340,XZU341,344,346,388 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37020 |
XZU34# |
3 | ||
| 37315-37021 |
BZU340,XZU341,344,346 NO.1 & NO.2 |
3 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37020 |
XZU34# |
3 | ||
| 37315-37021 |
BZU340,XZU341,344,346 NO.1 & NO.2 |
3 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37020 |
XZU34# |
3 | ||
| 37315-37021 |
BZU340,XZU341,344,346 NO.1 & NO.2 |
3 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-37020 |
BZU340,XZU341,344,346,388 |
1 | ||
| 37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5 | ||||
| 37341-37020 |
BZU340,XZU341,344,346,388 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
BZU340,XZU341,344,346,388 |
12 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
BZU340,XZU341,344,346,388 |
12 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
BZU340,XZU341,344,346,388 |
12 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01191 | ||||
| 90031-05078 | ||||
| 90031-70075 | ||||
| 90031-75010 | ||||
| 90031-75011 | ||||
| 90034-08006 | ||||
| 90035-60057 | ||||
| 90170-12005 | ||||
| 94512-01200 | ||||
(0406- )XZU301..T4..30T ; (0406- )XZU301..6FC..20T..4NO ; (0406- )XZU306,3
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37011 |
XZU304,305,344 |
2 | ||
| 04371-37011 |
XZU304,305,344 |
2 | ||
| 04371-37011 |
XZU301..DM3..20T..CBU;XZU301..6FC..20T..4NO;XZU301..30T..(CBU,IV6);XZU301..(DM6,T5)..20T..WT;XZU306,336..(03S,T2)..6FC;XZU301..(T3,T4,T5)..30T..IV3;XZU306,336..(T4,T5)..(CBU,IV3);XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
3 | ||
| 04371-37011 |
XZU301..DM3..20T..CBU;XZU301..6FC..20T..4NO;XZU301..30T..(CBU,IV6);XZU301..(DM6,T5)..20T..WT;XZU306,336..(03S,T2)..6FC;XZU301..(T3,T4,T5)..30T..IV3;XZU306,336..(T4,T5)..(CBU,IV3);XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
3 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12018 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90170-12018 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12018 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90170-12018 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90032-04005 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90032-04005 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90032-04005 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90032-04005 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-37680 |
XZU331,336..6FC;XZU334..5F..IV4;BZU340,XZU341,344,346 |
1 | ||
| 37110-37680 |
XZU331,336..6FC;XZU334..5F..IV4;BZU340,XZU341,344,346 |
1 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-37021 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
1 | ||
| 37302-37021 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37020 |
XZU34# |
3 | ||
| 37315-37020 |
XZU34# |
3 | ||
| 37315-37021 |
BZU340,XZU341,344,346 NO.1 & NO.2 |
3 | ||
| 37315-37021 |
BZU340,XZU341,344,346 NO.1 & NO.2 |
3 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37020 |
XZU34# |
3 | ||
| 37315-37020 |
XZU34# |
3 | ||
| 37315-37021 |
BZU340,XZU341,344,346 NO.1 & NO.2 |
3 | ||
| 37315-37021 |
BZU340,XZU341,344,346 NO.1 & NO.2 |
3 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
BZU340,XZU341,344,346,388 |
12 | ||
| 37402-37020 |
BZU340,XZU341,344,346,388 |
12 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
BZU340,XZU341,344,346,388 |
12 | ||
| 37402-37020 |
BZU340,XZU341,344,346,388 |
12 | ||
| Common parts | ||||
| 90034-08006 | ||||
(9905-0406)DCB..T5 ; (9905-0406)XZU412..T2,T3,T4; (9905-0406)BU410,BZU410,XZU410,4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-01164 | ||||
| 90031-01165 | ||||
| 90031-01177 | ||||
| 90031-01191 | ||||
| 90031-70075 | ||||
| 90031-75011 | ||||
| 90032-01069 | ||||
| 90032-04005 | ||||
| 90032-04031 | ||||
| 90034-08006 | ||||
| 90035-60057 | ||||
| 90170-10028 | ||||
| 90170-12005 | ||||
| 90170-12018 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
