XZU344-TQMML3 (2003)
Toyota Dyna/Toyoace
Production
Oct 2003
-
Oct 2006
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

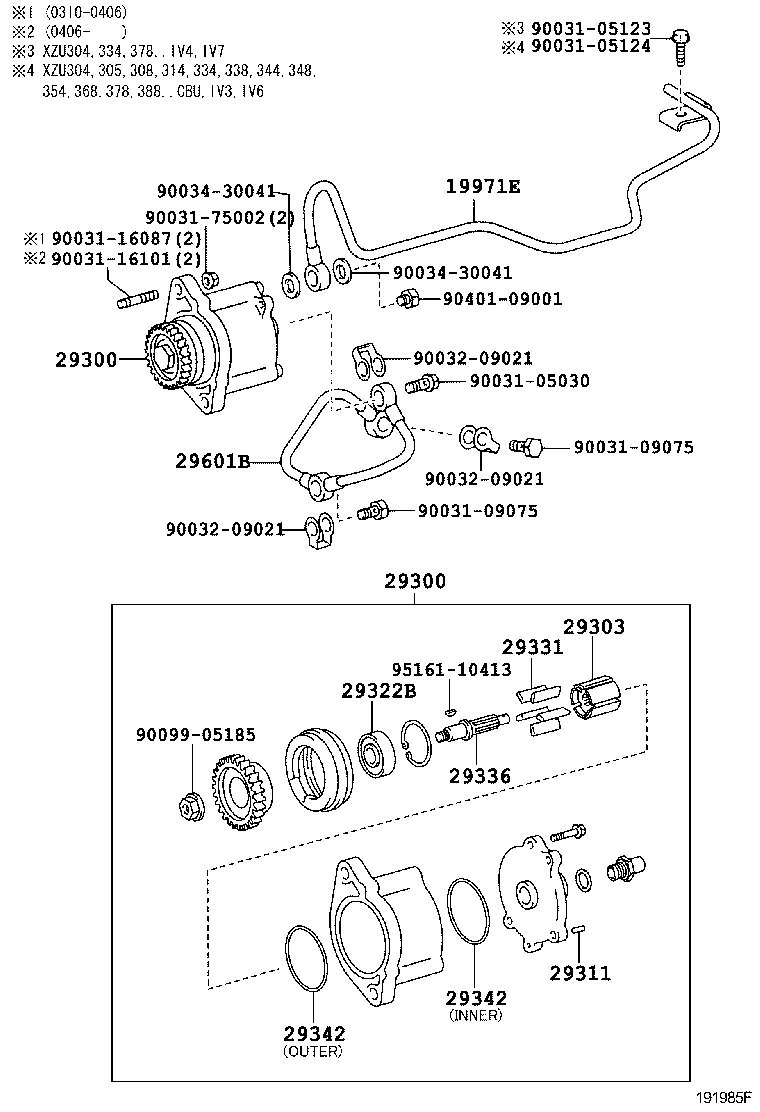

(0310- )N04C
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19971E - PIPE, VACUUM | ||||
| 19971-78170 |
N04C..XZU304,305,344 |
1 | ||
| 19971-78170 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6 |
1 | ||
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-78060 |
N04C..XZU304,305,344 |
1 | ||
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-78060 |
N04C..XZU304,305,344 |
1 | ||
| 29322B - BEARING, VACUUM PUMP | ||||
| 90099-10185 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| 29601B - PIPE SUB-ASSY, OIL(FOR VACUUM PUMP) | ||||
| 29601-78080 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| 29601-78080 |
N04C..XZU304,305,344 |
1 | ||
| Common parts | ||||
| 90031-05030 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-09075 | ||||
| 90031-16087 | ||||
| 90031-16101 | ||||
| 90031-75002 | ||||
| 90032-09021 | ||||
| 90034-30041 | ||||
| 90099-05185 | ||||
| 90401-09001 | ||||
| 95161-10413 | ||||

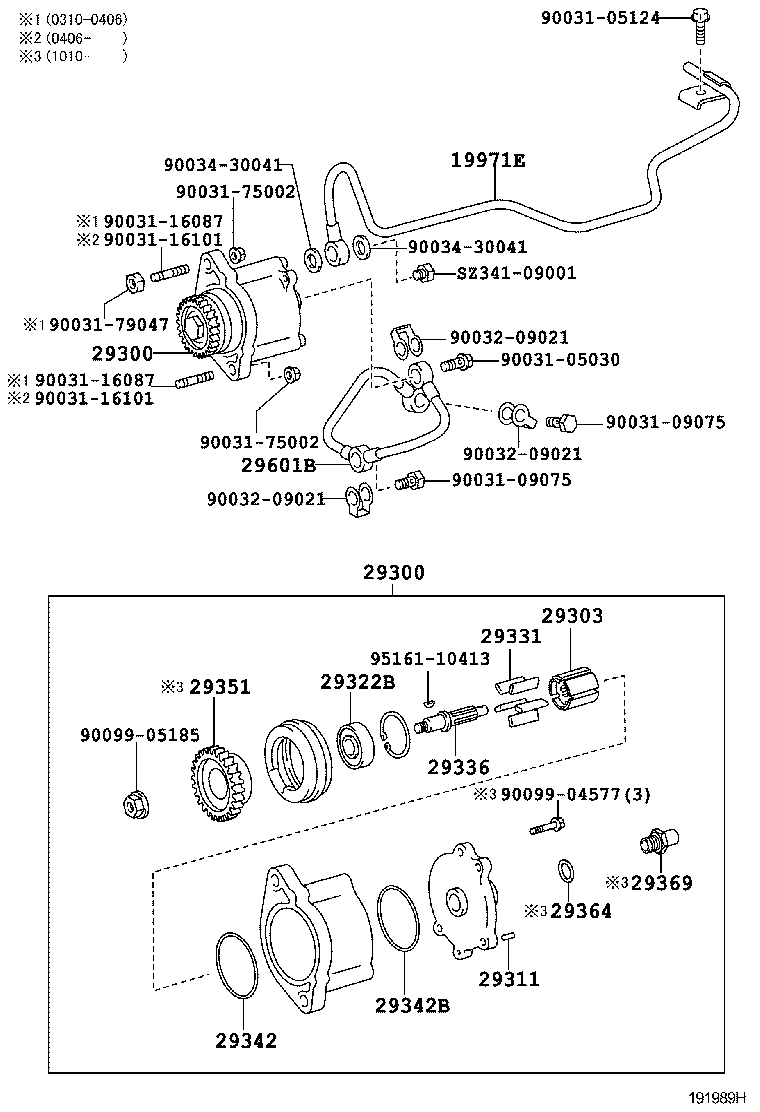

(0310- )N04C
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05030 | ||||
| 90031-05124 | ||||
| 90031-09075 | ||||
| 90031-16087 | ||||
| 90031-16101 | ||||
| 90031-75002 | ||||
| 90031-79047 | ||||
| 90032-09021 | ||||
| 90034-30041 | ||||
| 90099-04577 | ||||
| 90099-05185 | ||||
| 95161-10413 | ||||
| SZ341-09001 | ||||
