XZU344-TQMML3 (2003)
Toyota Dyna/Toyoace
Production
Oct 2003
-
Oct 2006
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0310- )N04C

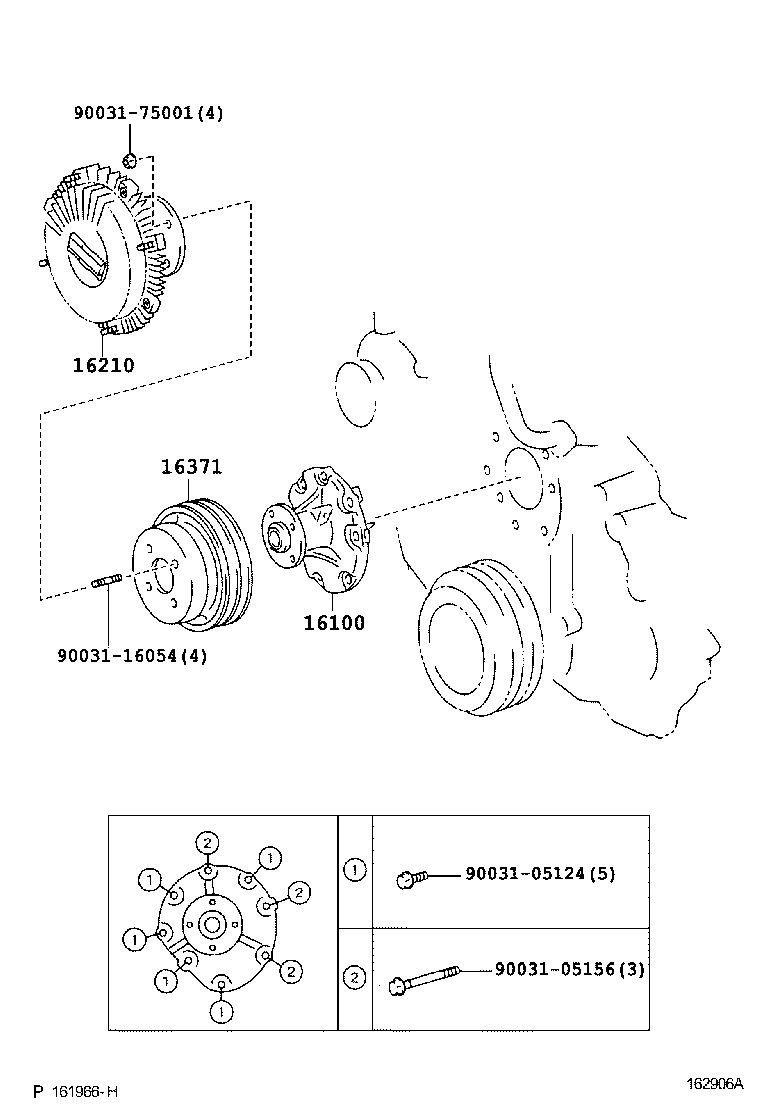

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-78080 |
N04C..XZU304,305,344 |
1 | ||
| 16100-78080 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16250-78110 |
N04C..XZU304,305,344 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16308-78030 |
N04C..XZU304,305,344 |
1 | ||
| Common parts | ||||
| 90031-05124 | ||||
| 90031-05156 | ||||
| 90031-16054 | ||||
| 90031-75001 | ||||
(0310- )N04C

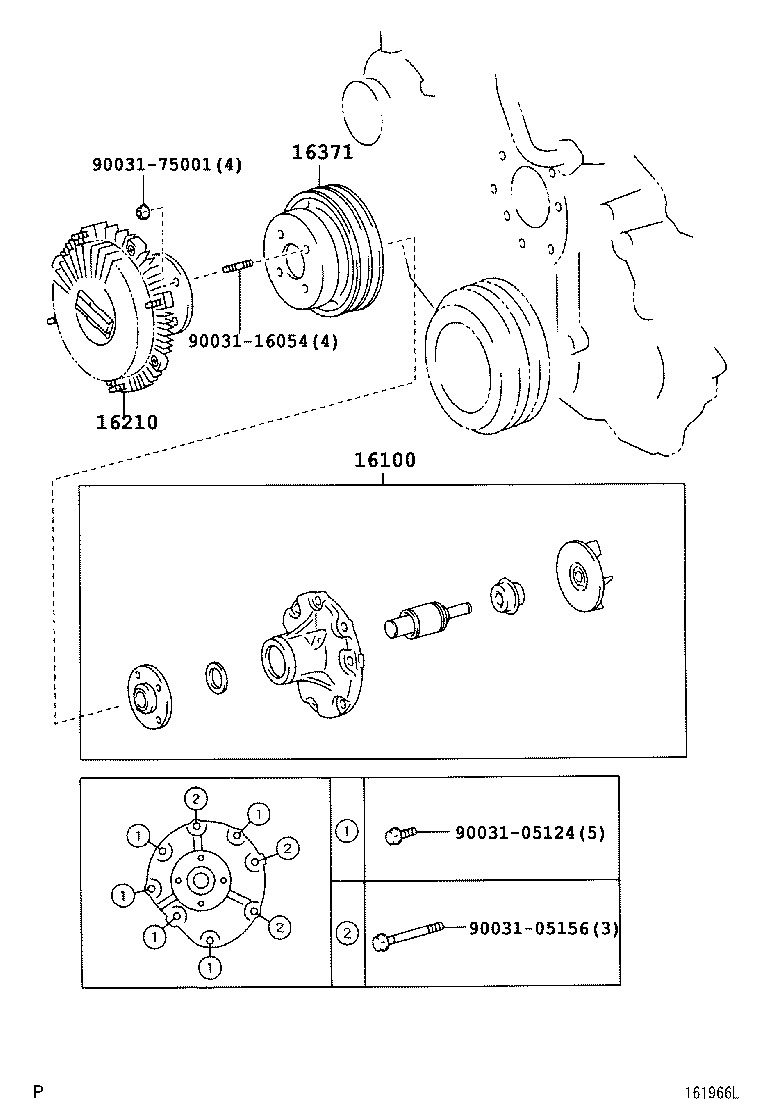

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05124 | ||||
| 90031-05156 | ||||
| 90031-16054 | ||||
| 90031-75001 | ||||
