XZU344-TQMMB3 (2006)
Toyota Dyna/Toyoace
ILLUST NO. 4 OF 4(0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44050-37040 |
XZU504..ST;XZU30#,314,324,33#,34#,354,368,378,388,568 |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-37030 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08676 | ||||
ILLUST NO. 1 OF 4(0610- )ST ; (0610- )6FC..30T..4NO ; (0610- )XZU344..20T,30T ; (0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37162 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37440 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37440 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02D83 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02D83 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37750 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37750 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37750 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37440 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37440 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B27 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 左側 |
1 | ||
| 90947-02A72 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B27 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 左側 |
1 | ||
| 90947-02A72 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37570 |
TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1 |
1 | ||
| 47321-37420 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1 |
1 | ||
| 47321-37420 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1 |
1 | ||
| 47321-37420 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47322-37580 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47322-37580 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47322-37580 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37620 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37240 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37240 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37380 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37130 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37050 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37150 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37160 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.1 |
1 | ||
| 47391-37300 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.2 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.1 |
1 | ||
| 47391-37300 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.2 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 47371-37080 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90464-00447 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01311 | ||||
| 90480-01628 | ||||
| 90959-01603 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 90959-01622 | ||||
| 91611-G0820 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 1 OF 4(0610- )XZU308,354..IV6 ; (0610- )XZU304..6FC..20T..IV3..1NO ; (0610- )XZU
ｱﾘ(ﾌﾞﾚｰｷ ﾛｯｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37162 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37440 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37440 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02D83 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02D83 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37750 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37750 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37750 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37440 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37440 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B27 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 左側 |
1 | ||
| 90947-02A72 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B27 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 左側 |
1 | ||
| 90947-02A72 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37570 |
TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1 |
1 | ||
| 47321-37420 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1 |
1 | ||
| 47321-37420 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1 |
1 | ||
| 47321-37420 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47322-37580 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47322-37580 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47322-37580 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37620 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37240 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37240 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37380 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37130 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37050 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37150 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37160 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.1 |
1 | ||
| 47391-37300 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.2 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.1 |
1 | ||
| 47391-37300 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.2 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 47371-37080 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01311 | ||||
| 90480-01628 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01602 | ||||
| 90959-01603 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91551-80814 | ||||
| 91611-G0820 | ||||
| 94130-00802 | ||||
| 94150-10801 | ||||
| Linked diagrams | ||||
| 3102 | ||||

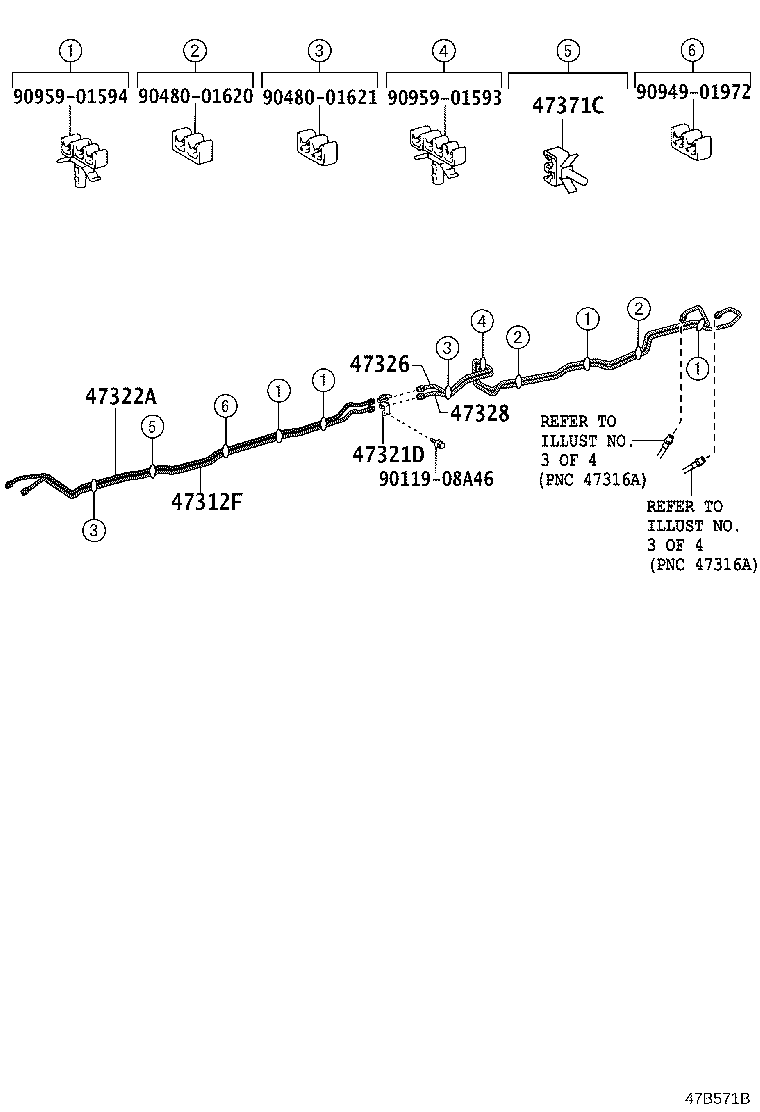

ILLUST NO. 2 OF 4(0610- )XZU34#,548..20T,30T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37860 |
XZU34#,548..20T,30T |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10229 |
XZU368,568;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,34#,354,378,388,548..1NO |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37860 |
XZU34#,548..20T,30T |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37490 |
XZU368,568..T4;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,34#,354,378,388,548..1NO |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37340 |
XZU368,568..T4;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,34#,354,378,388,548..1NO |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-37100 |
XZU34#,548..20T,30T |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90480-01620 | ||||
| 90480-01621 | ||||
| 90949-01972 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
ILLUST NO. 3 OF 4(0610- )BZU300,XZU304..T4..30T ; (0610- )BZU300,XZU30#..DM3,DM6,T5 ; (0610-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT |
2 | ||
| 90947-02B29 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT |
2 | ||
| 90947-02B29 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
2 | ||
| 90401-10015 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
2 | ||
| 90401-10015 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
4 | ||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
4 | ||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
4 | ||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
4 | ||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02F02 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
1 | ||
| 90947-02F02 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02F03 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
1 | ||
| 90947-02F03 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT |
1 | ||
| 90412-12051 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37730 |
XZU548..DCRUE;BZU300,TRU300,XZU304..T3;BZU340,XZU334,34#..(T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRTM,DCRUE,LPG) |
1 | ||
| 47327-37730 |
XZU548..DCRUE;BZU300,TRU300,XZU304..T3;BZU340,XZU334,34#..(T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRTM,DCRUE,LPG) |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37560 |
XZU548..DCRUE;BZU300,TRU300,XZU304..T3;BZU340,XZU334,34#..(T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRTM,DCRUE,LPG) |
1 | ||
| 47329-37560 |
XZU548..DCRUE;BZU300,TRU300,XZU304..T3;BZU340,XZU334,34#..(T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRTM,DCRUE,LPG) |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37110 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT |
1 | ||
| 47353-37110 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37240 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..(DCB,SCB)..WT |
1 | ||
| 47353-37240 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..(DCB,SCB)..WT |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 91612-B1020 | ||||
ILLUST NO. 3 OF 4(0610- )XZU548..DCRUE ; (0610- )BZU300,TRU300,XZU304..T3 ; (0610- )BZU340,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02F02 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02F03 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37730 |
XZU548..DCRUE;BZU300,TRU300,XZU304..T3;BZU340,XZU334,34#..(T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRTM,DCRUE,LPG) |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37560 |
XZU548..DCRUE;BZU300,TRU300,XZU304..T3;BZU340,XZU334,34#..(T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRTM,DCRUE,LPG) |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37110 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37240 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..(DCB,SCB)..WT |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 91612-B1020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
