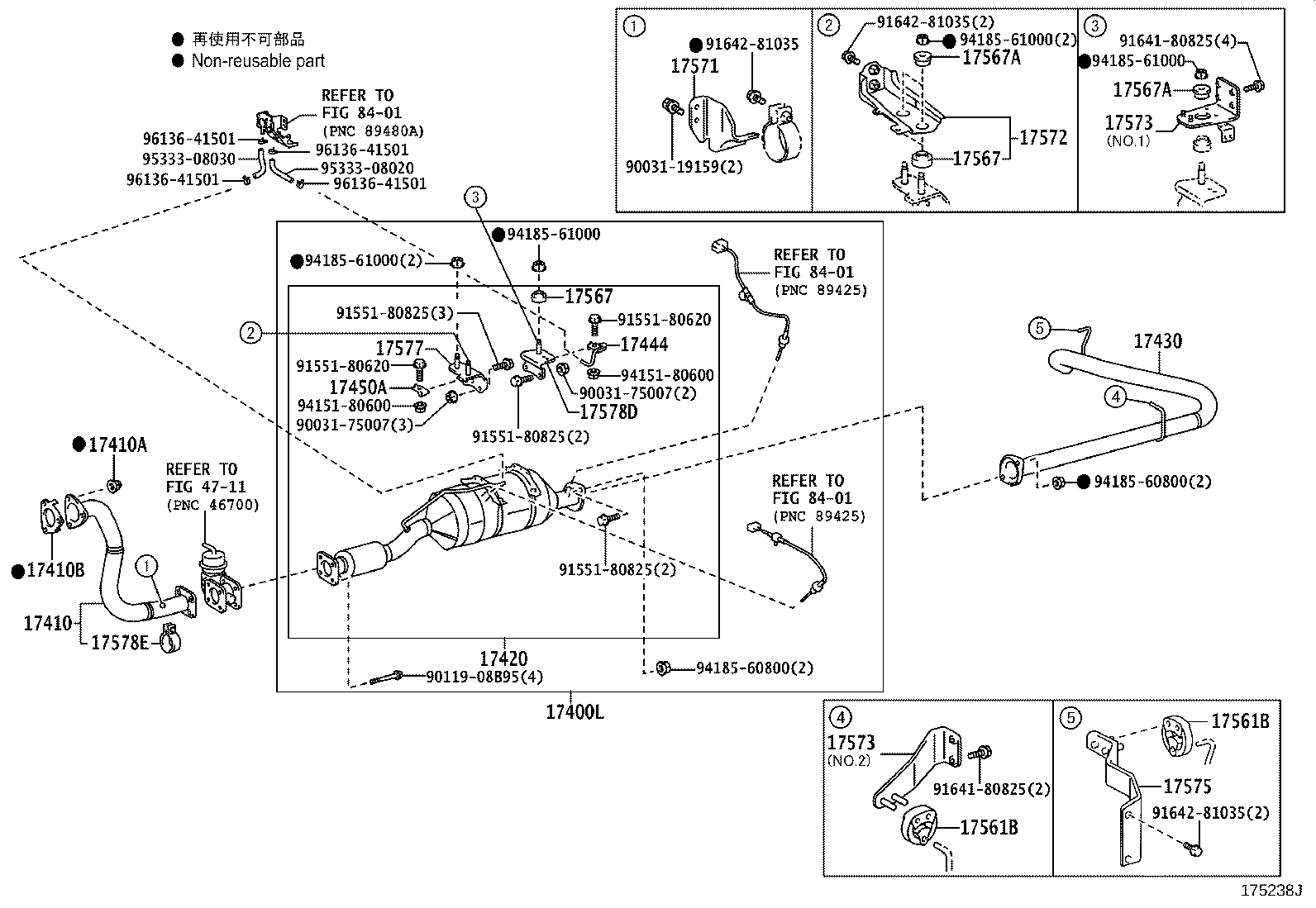

XZU344-TQMMB3 (2006)
Toyota Dyna/Toyoace
(0610-0908)N04C..XZU34#,548..DCRTH,DCRTJ,DCRTK,DCRUE..IV3 ; (0908- )N04C..XZU344
ﾃｰﾙﾊﾟｲﾌﾟ = ﾖｺﾀﾞｼ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400L - PIPE ASSY, EXHAUST | ||||
| 17400-78020 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-78050 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1BZFPE..BZU300,340;N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06087 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-78360 |
N04C..XZU504..ST..IV3;N04C..XZU548..6FC..IV3;N04C..XZU538..DCRUD..IV3;N04C..XZU334,344..T4..IV3;N04C..XZU538..6FC..DCRTH..IV3;N04C..XZU338,548..(DCRTH,DCRUE)..IV3;N04C..XZU348..(DCRTH,DCRTJ,DCRTK)..IV3;N04C..XZU308,338,344,508..(T2,T3)..20T..IV3 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78D50 |
N04C..XZU344..T4..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348,548..(DCRTH,DCRTJ,DCRTK,DCRUE)..IV3 |
1 | ||
| 17405-78D20 |
N04C..XZU524,554;N04C..XZU308..DCB..6FC..IV3;N04C..XZU304..(T4,T5)..20T..DCRTJ..IV3;N04C..XZU314,324,354..(DCRTJ,DCRTK)..4NO;N04C..XZU308..(T2,T5)..(DCRTJ,DCRTK)..IV3;N04C..XZU308..T4..5F..(DCRTH,DCRTJ,DCRTK)..IV3;N04C..XZU304..30T..(DCRTJ,DCRTK)..(IV3,IV7)..1NO;N04C..XZU33#,34#,388,50#,538,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 ｼｮｰﾄ ﾃｰﾙ ﾊﾟｲﾌﾟ |
1 | ||
| 17444 - PIPE, EXHAUST, NO.4 | ||||
| 17444-78030 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17450A - CLAMP, EXHAUST PIPE, NO.5 | ||||
| 17589-78021 |
N04C..XZU378..IV4;N04C..XZU30#,314,324,33#,34#,354,388,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-73020 |
N04C..XZU504..ST..IV3;N04C..XZU548..6FC..IV3;N04C..XZU538..DCRUD..IV3;N04C..XZU334,344..T4..IV3;N04C..XZU538..6FC..DCRTH..IV3;N04C..XZU338,548..(DCRTH,DCRUE)..IV3;N04C..XZU348..(DCRTH,DCRTJ,DCRTK)..IV3;N04C..XZU308,338,344,508..(T2,T3)..20T..IV3 |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-73020 |
N04C..XZU504..ST..IV3;N04C..XZU548..6FC..IV3;N04C..XZU538..DCRUD..IV3;N04C..XZU334,344..T4..IV3;N04C..XZU538..6FC..DCRTH..IV3;N04C..XZU338,548..(DCRTH,DCRUE)..IV3;N04C..XZU348..(DCRTH,DCRTJ,DCRTK)..IV3;N04C..XZU308,338,344,508..(T2,T3)..20T..IV3 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78040 |
N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE);N04C..XZU30#,314,324,33#,34#,354,368,378,388,568..5F,6FC |
3 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78040 |
N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE);N04C..XZU30#,314,324,33#,34#,354,368,378,388,568..5F,6FC |
3 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78030 |
N04C..XZU378..IV4;N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU30#,314,324,33#,34#,354,388..5F,6FC;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE) |
3 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78030 |
N04C..XZU378..IV4;N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU30#,314,324,33#,34#,354,388..5F,6FC;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE) |
3 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78050 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78210 |
N04C..XZU378..IV4;N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78210 |
N04C..XZU344..T4..IV3;N04C..XZU548..6FC..IV3;N04C..XZU548..DCRUE..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348..(DCRTH,DCRTJ,DCRTK)..IV3 NO.1 |
1 | ||
| 17573-78220 |
N04C..XZU344..T4..IV3;N04C..XZU548..6FC..IV3;N04C..XZU548..DCRUE..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348..(DCRTH,DCRTJ,DCRTK)..IV3 NO.2 |
1 | ||
| 17573-78210 |
N04C..XZU34#,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUE)..IV3 |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78210 |
N04C..XZU344..T4..IV3;N04C..XZU548..6FC..IV3;N04C..XZU548..DCRUE..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348..(DCRTH,DCRTJ,DCRTK)..IV3 NO.1 |
1 | ||
| 17573-78220 |
N04C..XZU344..T4..IV3;N04C..XZU548..6FC..IV3;N04C..XZU548..DCRUE..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348..(DCRTH,DCRTJ,DCRTK)..IV3 NO.2 |
1 | ||
| 17573-78210 |
N04C..XZU34#,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUE)..IV3 |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-78210 |
N04C..XZU548..6FC..IV3;N04C..XZU548..DCRUE..IV3;N04C..XZU334,344..T4..IV3;N04C..XZU344,504..(T3,T5)..20T..IV3;N04C..XZU348,388..(DCRTH,DCRTJ,DCRTK)..IV3 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 17577-78110 |
N04C..XZU378..IV4;N04C..XZU30#,314,324,33#,34#,354,388,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8 | ||||
| 17578-78190 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
1BZFPE..BZU300,340;N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| Common parts | ||||
| 90031-19159 | ||||
| 90031-75007 | ||||
| 90119-08B95 | ||||
| 91551-80620 | ||||
| 91551-80825 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 94151-80600 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| 95333-08020 | ||||
| 95333-08030 | ||||
| 96136-41501 | ||||
| Linked diagrams | ||||
| 4711 | ||||
| 8401 | ||||

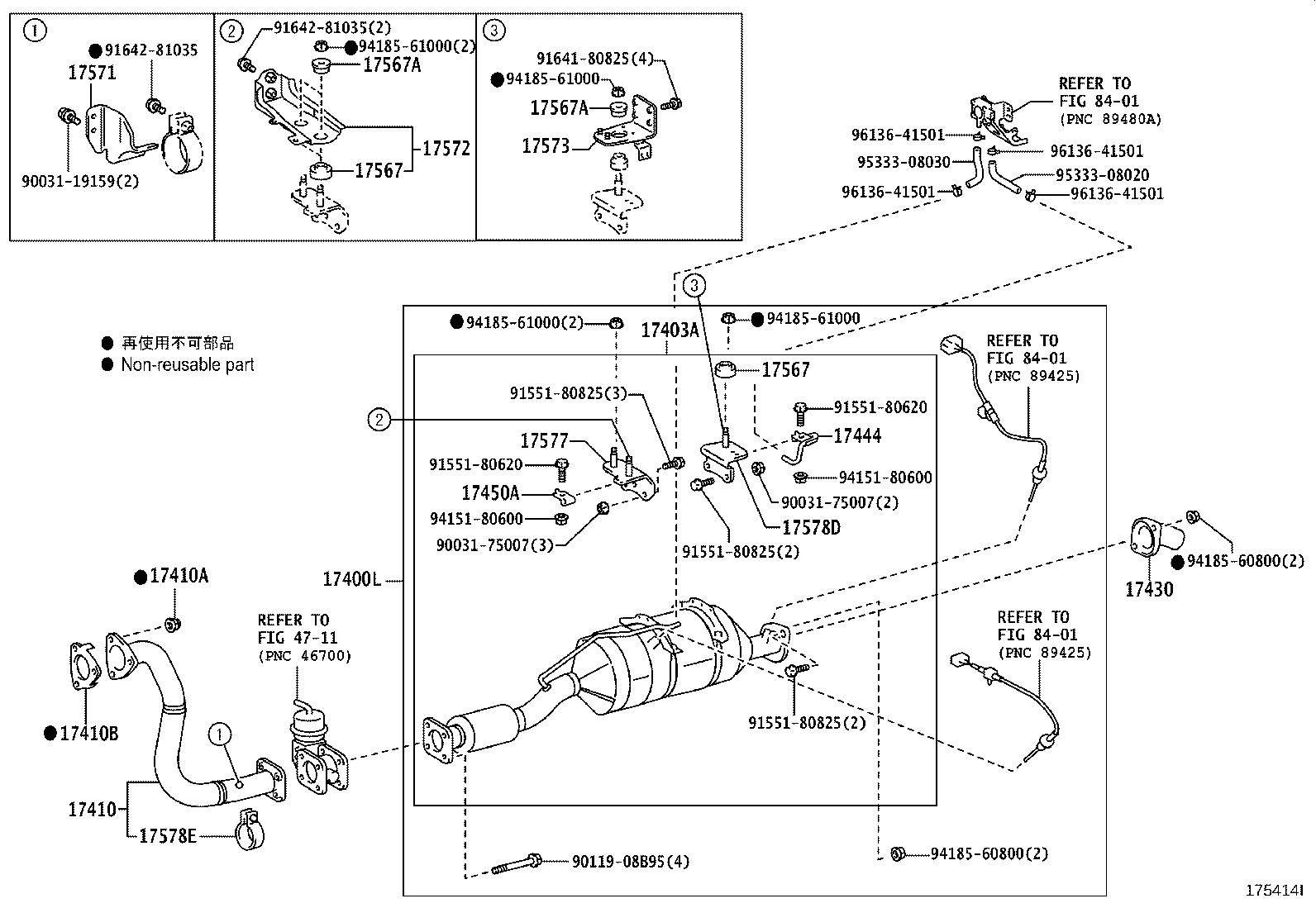

(0610- )N04C..XZU344..35T..IV3 ; (0610- )N04C..XZU34#,548..DCRTH,DCRTJ,DCRTK,
ｼｮｰﾄﾃｰﾙ ﾊﾟｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400L - PIPE ASSY, EXHAUST | ||||
| 17400-78020 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17400-78020 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17403A - PIPE SUB-ASSY, EXHAUST, CENTER NO.2 | ||||
| 17420-78360 |
N04C..XZU524,554;N04C..XZU308..DCB..6FC..IV3;N04C..XZU304..(T4,T5)..20T..DCRTJ..IV3;N04C..XZU314,324,354..(DCRTJ,DCRTK)..4NO;N04C..XZU308..(T2,T5)..(DCRTJ,DCRTK)..IV3;N04C..XZU308..T4..5F..(DCRTH,DCRTJ,DCRTK)..IV3;N04C..XZU304..30T..(DCRTJ,DCRTK)..(IV3,IV7)..1NO;N04C..XZU33#,34#,50#,538,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 |
1 | ||
| 17420-78360 |
N04C..XZU524,554;N04C..XZU308..DCB..6FC..IV3;N04C..XZU304..(T4,T5)..20T..DCRTJ..IV3;N04C..XZU314,324,354..(DCRTJ,DCRTK)..4NO;N04C..XZU308..(T2,T5)..(DCRTJ,DCRTK)..IV3;N04C..XZU308..T4..5F..(DCRTH,DCRTJ,DCRTK)..IV3;N04C..XZU304..30T..(DCRTJ,DCRTK)..(IV3,IV7)..1NO;N04C..XZU33#,34#,50#,538,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-78050 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17410-78050 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1BZFPE..BZU300,340;N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
3 | ||
| 90179-10070 |
1BZFPE..BZU300,340;N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06087 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 90917-06087 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78D50 |
N04C..XZU344..T4..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348,548..(DCRTH,DCRTJ,DCRTK,DCRUE)..IV3 |
1 | ||
| 17405-78D50 |
N04C..XZU344..T4..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348,548..(DCRTH,DCRTJ,DCRTK,DCRUE)..IV3 |
1 | ||
| 17405-78D20 |
N04C..XZU524,554;N04C..XZU308..DCB..6FC..IV3;N04C..XZU304..(T4,T5)..20T..DCRTJ..IV3;N04C..XZU314,324,354..(DCRTJ,DCRTK)..4NO;N04C..XZU308..(T2,T5)..(DCRTJ,DCRTK)..IV3;N04C..XZU308..T4..5F..(DCRTH,DCRTJ,DCRTK)..IV3;N04C..XZU304..30T..(DCRTJ,DCRTK)..(IV3,IV7)..1NO;N04C..XZU33#,34#,388,50#,538,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 ｼｮｰﾄ ﾃｰﾙ ﾊﾟｲﾌﾟ |
1 | ||
| 17405-78D20 |
N04C..XZU524,554;N04C..XZU308..DCB..6FC..IV3;N04C..XZU304..(T4,T5)..20T..DCRTJ..IV3;N04C..XZU314,324,354..(DCRTJ,DCRTK)..4NO;N04C..XZU308..(T2,T5)..(DCRTJ,DCRTK)..IV3;N04C..XZU308..T4..5F..(DCRTH,DCRTJ,DCRTK)..IV3;N04C..XZU304..30T..(DCRTJ,DCRTK)..(IV3,IV7)..1NO;N04C..XZU33#,34#,388,50#,538,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 ｼｮｰﾄ ﾃｰﾙ ﾊﾟｲﾌﾟ |
1 | ||
| 17444 - PIPE, EXHAUST, NO.4 | ||||
| 17444-78030 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17444-78030 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17450A - CLAMP, EXHAUST PIPE, NO.5 | ||||
| 17589-78021 |
N04C..XZU378..IV4;N04C..XZU30#,314,324,33#,34#,354,388,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17589-78021 |
N04C..XZU378..IV4;N04C..XZU30#,314,324,33#,34#,354,388,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78040 |
N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE);N04C..XZU30#,314,324,33#,34#,354,368,378,388,568..5F,6FC |
3 | ||
| 17567-78040 |
N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE);N04C..XZU30#,314,324,33#,34#,354,368,378,388,568..5F,6FC |
3 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78040 |
N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE);N04C..XZU30#,314,324,33#,34#,354,368,378,388,568..5F,6FC |
3 | ||
| 17567-78040 |
N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE);N04C..XZU30#,314,324,33#,34#,354,368,378,388,568..5F,6FC |
3 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78030 |
N04C..XZU378..IV4;N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU30#,314,324,33#,34#,354,388..5F,6FC;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE) |
3 | ||
| 17567-78030 |
N04C..XZU378..IV4;N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU30#,314,324,33#,34#,354,388..5F,6FC;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE) |
3 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78030 |
N04C..XZU378..IV4;N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU30#,314,324,33#,34#,354,388..5F,6FC;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE) |
3 | ||
| 17567-78030 |
N04C..XZU378..IV4;N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU30#,314,324,33#,34#,354,388..5F,6FC;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE) |
3 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78050 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17571-78050 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78210 |
N04C..XZU378..IV4;N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17572-78210 |
N04C..XZU378..IV4;N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78210 |
N04C..XZU344..T4..IV3;N04C..XZU548..6FC..IV3;N04C..XZU548..DCRUE..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348..(DCRTH,DCRTJ,DCRTK)..IV3 NO.1 |
1 | ||
| 17573-78210 |
N04C..XZU344..T4..IV3;N04C..XZU548..6FC..IV3;N04C..XZU548..DCRUE..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348..(DCRTH,DCRTJ,DCRTK)..IV3 NO.1 |
1 | ||
| 17573-78220 |
N04C..XZU344..T4..IV3;N04C..XZU548..6FC..IV3;N04C..XZU548..DCRUE..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348..(DCRTH,DCRTJ,DCRTK)..IV3 NO.2 |
1 | ||
| 17573-78220 |
N04C..XZU344..T4..IV3;N04C..XZU548..6FC..IV3;N04C..XZU548..DCRUE..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348..(DCRTH,DCRTJ,DCRTK)..IV3 NO.2 |
1 | ||
| 17573-78210 |
N04C..XZU34#,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUE)..IV3 |
1 | ||
| 17573-78210 |
N04C..XZU34#,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUE)..IV3 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 17577-78110 |
N04C..XZU378..IV4;N04C..XZU30#,314,324,33#,34#,354,388,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17577-78110 |
N04C..XZU378..IV4;N04C..XZU30#,314,324,33#,34#,354,388,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8 | ||||
| 17578-78190 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17578-78190 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
1BZFPE..BZU300,340;N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17578-78010 |
1BZFPE..BZU300,340;N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| Common parts | ||||
| 90031-19159 | ||||
| 90031-75007 | ||||
| 90119-08B95 | ||||
| 91551-80620 | ||||
| 91551-80825 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 94151-80600 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| 95333-08020 | ||||
| 95333-08030 | ||||
| 96136-41501 | ||||
| Linked diagrams | ||||
| 4711 | ||||
| 8401 | ||||
(0908- )N04C..XZU34#,548..DCRTH,DCRTJ,DCRTK,DCRUE..IV3
ｼｮｰﾄﾃｰﾙ ﾊﾟｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400L - PIPE ASSY, EXHAUST | ||||
| 17400-78020 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17400-78020 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17403A - PIPE SUB-ASSY, EXHAUST, CENTER NO.2 | ||||
| 17420-78360 |
N04C..XZU524,554;N04C..XZU308..DCB..6FC..IV3;N04C..XZU304..(T4,T5)..20T..DCRTJ..IV3;N04C..XZU314,324,354..(DCRTJ,DCRTK)..4NO;N04C..XZU308..(T2,T5)..(DCRTJ,DCRTK)..IV3;N04C..XZU308..T4..5F..(DCRTH,DCRTJ,DCRTK)..IV3;N04C..XZU304..30T..(DCRTJ,DCRTK)..(IV3,IV7)..1NO;N04C..XZU33#,34#,50#,538,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 |
1 | ||
| 17420-78360 |
N04C..XZU524,554;N04C..XZU308..DCB..6FC..IV3;N04C..XZU304..(T4,T5)..20T..DCRTJ..IV3;N04C..XZU314,324,354..(DCRTJ,DCRTK)..4NO;N04C..XZU308..(T2,T5)..(DCRTJ,DCRTK)..IV3;N04C..XZU308..T4..5F..(DCRTH,DCRTJ,DCRTK)..IV3;N04C..XZU304..30T..(DCRTJ,DCRTK)..(IV3,IV7)..1NO;N04C..XZU33#,34#,50#,538,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-78050 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17410-78050 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1BZFPE..BZU300,340;N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
3 | ||
| 90179-10070 |
1BZFPE..BZU300,340;N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06087 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 90917-06087 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78D50 |
N04C..XZU344..T4..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348,548..(DCRTH,DCRTJ,DCRTK,DCRUE)..IV3 |
1 | ||
| 17405-78D50 |
N04C..XZU344..T4..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348,548..(DCRTH,DCRTJ,DCRTK,DCRUE)..IV3 |
1 | ||
| 17405-78D20 |
N04C..XZU524,554;N04C..XZU308..DCB..6FC..IV3;N04C..XZU304..(T4,T5)..20T..DCRTJ..IV3;N04C..XZU314,324,354..(DCRTJ,DCRTK)..4NO;N04C..XZU308..(T2,T5)..(DCRTJ,DCRTK)..IV3;N04C..XZU308..T4..5F..(DCRTH,DCRTJ,DCRTK)..IV3;N04C..XZU304..30T..(DCRTJ,DCRTK)..(IV3,IV7)..1NO;N04C..XZU33#,34#,388,50#,538,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 ｼｮｰﾄ ﾃｰﾙ ﾊﾟｲﾌﾟ |
1 | ||
| 17405-78D20 |
N04C..XZU524,554;N04C..XZU308..DCB..6FC..IV3;N04C..XZU304..(T4,T5)..20T..DCRTJ..IV3;N04C..XZU314,324,354..(DCRTJ,DCRTK)..4NO;N04C..XZU308..(T2,T5)..(DCRTJ,DCRTK)..IV3;N04C..XZU308..T4..5F..(DCRTH,DCRTJ,DCRTK)..IV3;N04C..XZU304..30T..(DCRTJ,DCRTK)..(IV3,IV7)..1NO;N04C..XZU33#,34#,388,50#,538,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 ｼｮｰﾄ ﾃｰﾙ ﾊﾟｲﾌﾟ |
1 | ||
| 17444 - PIPE, EXHAUST, NO.4 | ||||
| 17444-78030 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17444-78030 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17450A - CLAMP, EXHAUST PIPE, NO.5 | ||||
| 17589-78021 |
N04C..XZU378..IV4;N04C..XZU30#,314,324,33#,34#,354,388,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17589-78021 |
N04C..XZU378..IV4;N04C..XZU30#,314,324,33#,34#,354,388,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78040 |
N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE);N04C..XZU30#,314,324,33#,34#,354,368,378,388,568..5F,6FC |
3 | ||
| 17567-78040 |
N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE);N04C..XZU30#,314,324,33#,34#,354,368,378,388,568..5F,6FC |
3 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78040 |
N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE);N04C..XZU30#,314,324,33#,34#,354,368,378,388,568..5F,6FC |
3 | ||
| 17567-78040 |
N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE);N04C..XZU30#,314,324,33#,34#,354,368,378,388,568..5F,6FC |
3 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78030 |
N04C..XZU378..IV4;N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU30#,314,324,33#,34#,354,388..5F,6FC;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE) |
3 | ||
| 17567-78030 |
N04C..XZU378..IV4;N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU30#,314,324,33#,34#,354,388..5F,6FC;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE) |
3 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78030 |
N04C..XZU378..IV4;N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU30#,314,324,33#,34#,354,388..5F,6FC;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE) |
3 | ||
| 17567-78030 |
N04C..XZU378..IV4;N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU30#,314,324,33#,34#,354,388..5F,6FC;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE) |
3 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78050 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17571-78050 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78210 |
N04C..XZU378..IV4;N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17572-78210 |
N04C..XZU378..IV4;N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78210 |
N04C..XZU344..T4..IV3;N04C..XZU548..6FC..IV3;N04C..XZU548..DCRUE..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348..(DCRTH,DCRTJ,DCRTK)..IV3 NO.1 |
1 | ||
| 17573-78210 |
N04C..XZU344..T4..IV3;N04C..XZU548..6FC..IV3;N04C..XZU548..DCRUE..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348..(DCRTH,DCRTJ,DCRTK)..IV3 NO.1 |
1 | ||
| 17573-78220 |
N04C..XZU344..T4..IV3;N04C..XZU548..6FC..IV3;N04C..XZU548..DCRUE..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348..(DCRTH,DCRTJ,DCRTK)..IV3 NO.2 |
1 | ||
| 17573-78220 |
N04C..XZU344..T4..IV3;N04C..XZU548..6FC..IV3;N04C..XZU548..DCRUE..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348..(DCRTH,DCRTJ,DCRTK)..IV3 NO.2 |
1 | ||
| 17573-78210 |
N04C..XZU34#,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUE)..IV3 |
1 | ||
| 17573-78210 |
N04C..XZU34#,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUE)..IV3 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 17577-78110 |
N04C..XZU378..IV4;N04C..XZU30#,314,324,33#,34#,354,388,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17577-78110 |
N04C..XZU378..IV4;N04C..XZU30#,314,324,33#,34#,354,388,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8 | ||||
| 17578-78190 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17578-78190 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
1BZFPE..BZU300,340;N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17578-78010 |
1BZFPE..BZU300,340;N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| Common parts | ||||
| 90031-19159 | ||||
| 90031-75007 | ||||
| 90119-08B95 | ||||
| 91551-80620 | ||||
| 91551-80825 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 94151-80600 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| 95333-08020 | ||||
| 95333-08030 | ||||
| 96136-41501 | ||||
| Linked diagrams | ||||
| 4711 | ||||
| 8401 | ||||
(0610- )N04C..XZU334..40T ; (0610- )N04C..XZU33#,538..CBU ; (0908- )N04C..
ｼｮｰﾄﾃｰﾙ ﾊﾟｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400L - PIPE ASSY, EXHAUST | ||||
| 17400-78020 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17403A - PIPE SUB-ASSY, EXHAUST, CENTER NO.2 | ||||
| 17420-78360 |
N04C..XZU524,554;N04C..XZU308..DCB..6FC..IV3;N04C..XZU304..(T4,T5)..20T..DCRTJ..IV3;N04C..XZU314,324,354..(DCRTJ,DCRTK)..4NO;N04C..XZU308..(T2,T5)..(DCRTJ,DCRTK)..IV3;N04C..XZU308..T4..5F..(DCRTH,DCRTJ,DCRTK)..IV3;N04C..XZU304..30T..(DCRTJ,DCRTK)..(IV3,IV7)..1NO;N04C..XZU33#,34#,50#,538,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-78050 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1BZFPE..BZU300,340;N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06087 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78D50 |
N04C..XZU344..T4..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348,548..(DCRTH,DCRTJ,DCRTK,DCRUE)..IV3 |
1 | ||
| 17405-78D20 |
N04C..XZU524,554;N04C..XZU308..DCB..6FC..IV3;N04C..XZU304..(T4,T5)..20T..DCRTJ..IV3;N04C..XZU314,324,354..(DCRTJ,DCRTK)..4NO;N04C..XZU308..(T2,T5)..(DCRTJ,DCRTK)..IV3;N04C..XZU308..T4..5F..(DCRTH,DCRTJ,DCRTK)..IV3;N04C..XZU304..30T..(DCRTJ,DCRTK)..(IV3,IV7)..1NO;N04C..XZU33#,34#,388,50#,538,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..IV3 ｼｮｰﾄ ﾃｰﾙ ﾊﾟｲﾌﾟ |
1 | ||
| 17444 - PIPE, EXHAUST, NO.4 | ||||
| 17444-78030 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17450A - CLAMP, EXHAUST PIPE, NO.5 | ||||
| 17589-78021 |
N04C..XZU378..IV4;N04C..XZU30#,314,324,33#,34#,354,388,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78040 |
N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE);N04C..XZU30#,314,324,33#,34#,354,368,378,388,568..5F,6FC |
3 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78040 |
N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE);N04C..XZU30#,314,324,33#,34#,354,368,378,388,568..5F,6FC |
3 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78030 |
N04C..XZU378..IV4;N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU30#,314,324,33#,34#,354,388..5F,6FC;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE) |
3 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78030 |
N04C..XZU378..IV4;N04C..XZU504..DCRTJ,DCRUD;N04C..XZU50#,538,548,554..6FC;N04C..XZU508..(03S,06S,T2)..5F;N04C..XZU508,538,548..DCRUD,DCRUE;N04C..XZU30#,314,324,33#,34#,354,388..5F,6FC;N04C..XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE) |
3 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78050 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78210 |
N04C..XZU378..IV4;N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78210 |
N04C..XZU344..T4..IV3;N04C..XZU548..6FC..IV3;N04C..XZU548..DCRUE..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348..(DCRTH,DCRTJ,DCRTK)..IV3 NO.1 |
1 | ||
| 17573-78220 |
N04C..XZU344..T4..IV3;N04C..XZU548..6FC..IV3;N04C..XZU548..DCRUE..IV3;N04C..XZU344..T3..20T..IV3;N04C..XZU348..(DCRTH,DCRTJ,DCRTK)..IV3 NO.2 |
1 | ||
| 17573-78210 |
N04C..XZU34#,548..(5F,6FC)..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUE)..IV3 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 17577-78110 |
N04C..XZU378..IV4;N04C..XZU30#,314,324,33#,34#,354,388,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8 | ||||
| 17578-78190 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
1BZFPE..BZU300,340;N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| Common parts | ||||
| 90031-19159 | ||||
| 90031-75007 | ||||
| 90119-08B95 | ||||
| 91551-80620 | ||||
| 91551-80825 | ||||
| 91642-81035 | ||||
| 94151-80600 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| 95333-08020 | ||||
| 95333-08030 | ||||
| 96136-41501 | ||||
| Linked diagrams | ||||
| 4711 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
