XZU341-TQPQS (1999)
Toyota Dyna/Toyoace

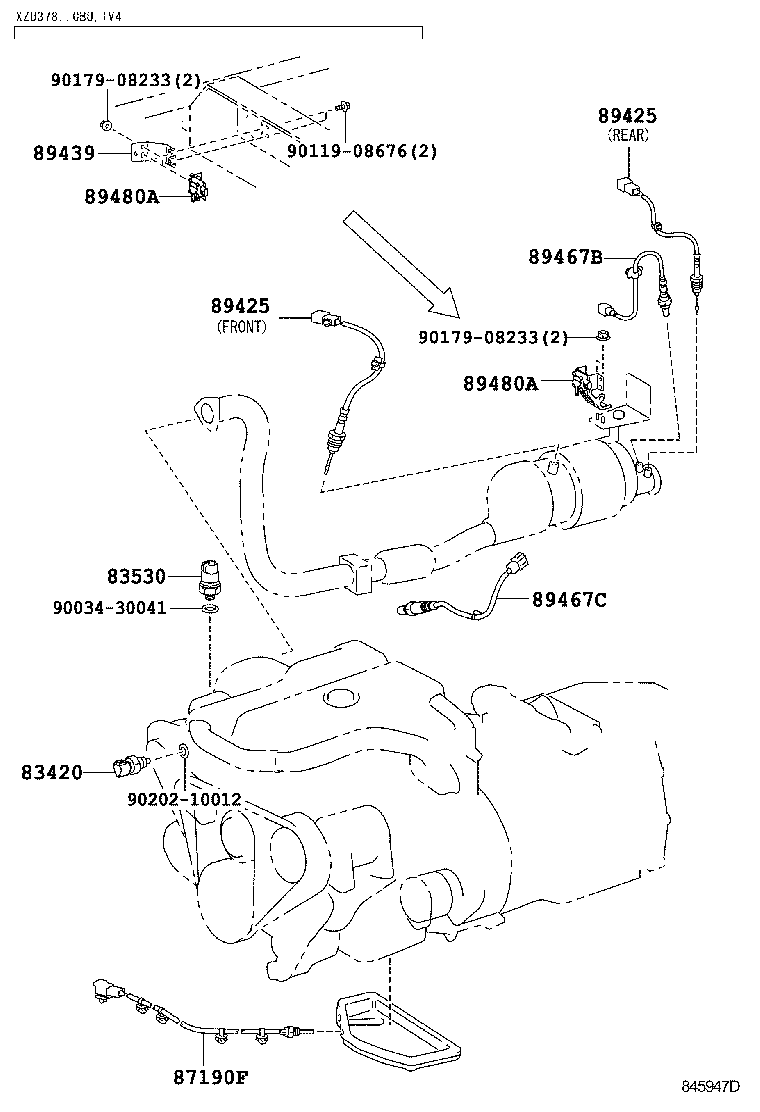

ILLUST NO. 1 OF10(9905-0406)XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-37020 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 89424B - SWITCH, INLET AIR TEMPERATURE | ||||
| 89424-12010 |
XZU341..6F..295T;XZU341..(20T,30T)..DSL;XZU301..T4..DSL..(CBU,IV3);XZU301,351,352..(DM2,DM3,DM6,T3,T5)..DSL;XZU302,306,307,31#,32#,331,337,342,346,347,362,37#,382..DSL |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-37040 |
XZU30#,31#,32#,33#,34#,351,352,362,37#,382..DSL,DSLL |
1 | ||
| Common parts | ||||
| 90031-05001 | ||||
| 90031-19110 | ||||
| 90034-01011 | ||||
| 90034-30041 | ||||
| 90202-10012 | ||||
| 90404-10024 | ||||
ILLUST NO. 2 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ﾄﾗﾝｽﾐﾂｼﾖﾝ & ﾄﾗﾝｽﾌｱ
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 4 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

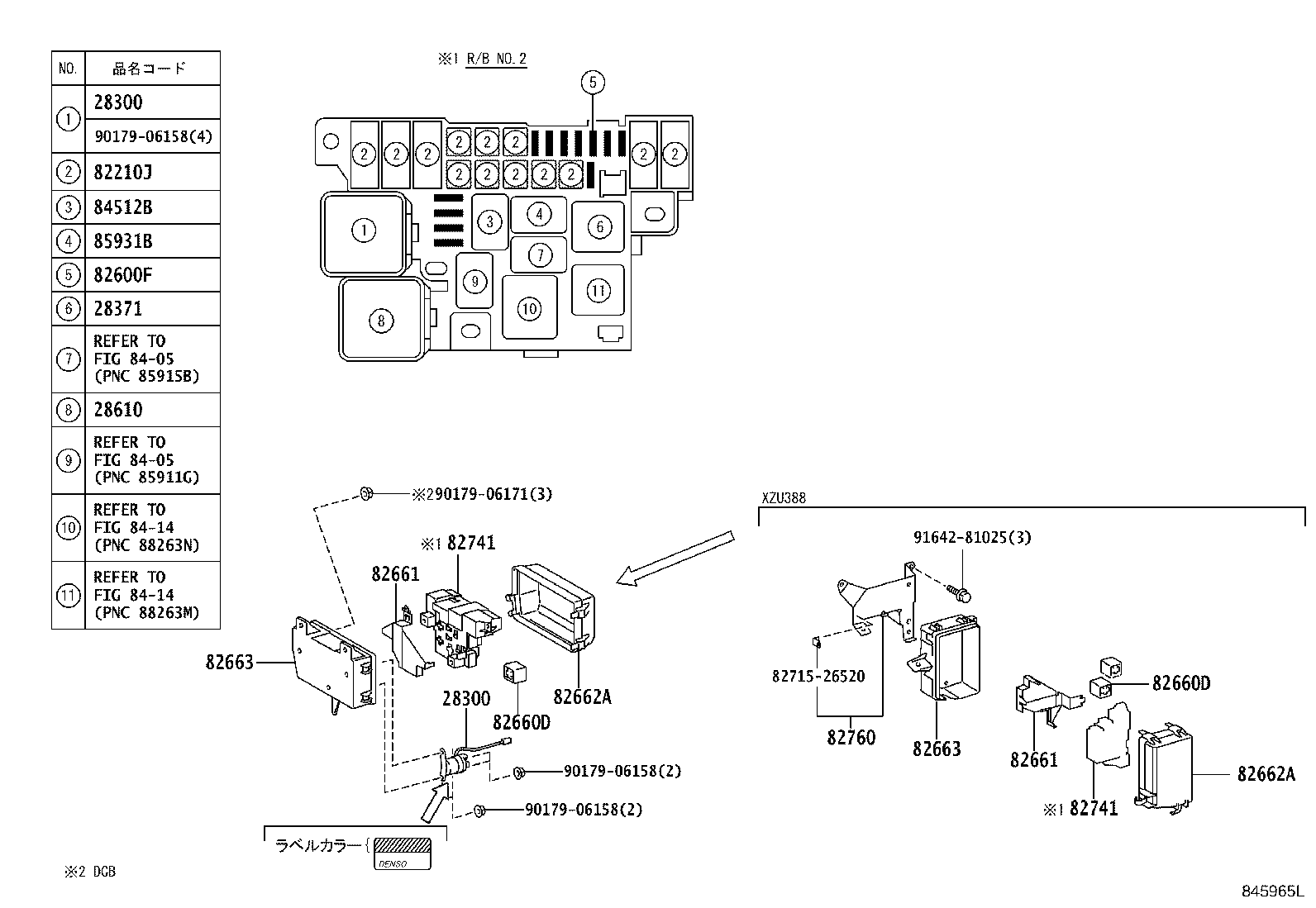

R/B NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02018 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#,4B..BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58230 |
S05D..XZU301..DSLL..4NO;S05D..XZU306..DSLL..CBU;S05D..XZU301,306,331..DSL;S05D..XZU306..4FC..DSLL..IV3;J05C,S05#,4B..BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09010 |
XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09008 |
XZU301..SCB..4FC..DSL;XZU301,331,37#,382..DCB..5F;XZU302,306,307,32#,331,337,341,347,352..(DCB,SCB)..4FC..(CBU,IV3) 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09009 |
XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,33#,340,346,347,35#,362,372,382..SCB 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
BU30#..DCB;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,306,372,382..SCB..DSL;XZU302,307,31#,32#,331,337,341,342,346,347,351,352,362..(DCB,SCB)..(DSL,DSLL)..(CBU,IV3) 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342,372,382..SCB..(DSL,DSLL);BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,33#,340,346,347,35#,362..(DCB,SCB)..(CBU,IV3,IV6) 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-37070 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-37070 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-37070 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-37020 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-37020 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-37020 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37070 |
XZU306,331..DSL;XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301,322..(DM3,DM6,T3,T4,T5)..4FC..DSL;XZU302,307,31#,320,321,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL ｱﾘ(ABS) |
1 | ||
| 82662-37071 |
XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37070 |
XZU306,331..DSL;XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301,322..(DM3,DM6,T3,T4,T5)..4FC..DSL;XZU302,307,31#,320,321,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL ｱﾘ(ABS) |
1 | ||
| 82662-37071 |
XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37070 |
XZU306,331..DSL;XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301,322..(DM3,DM6,T3,T4,T5)..4FC..DSL;XZU302,307,31#,320,321,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL ｱﾘ(ABS) |
1 | ||
| 82662-37071 |
XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37040 |
XZU312..SCB..5F;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,RZU300,340,XZU300,302,307,311,33#,34#,35#..SCB..(DSL,DSLL,EFI) |
1 | ||
| 82663-37070 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37040 |
XZU312..SCB..5F;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,RZU300,340,XZU300,302,307,311,33#,34#,35#..SCB..(DSL,DSLL,EFI) |
1 | ||
| 82663-37070 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37040 |
XZU312..SCB..5F;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,RZU300,340,XZU300,302,307,311,33#,34#,35#..SCB..(DSL,DSLL,EFI) |
1 | ||
| 82663-37070 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37040 |
XZU312..SCB..5F;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,RZU300,340,XZU300,302,307,311,33#,34#,35#..SCB..(DSL,DSLL,EFI) |
1 | ||
| 82663-37070 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37040 |
XZU312..SCB..5F;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,RZU300,340,XZU300,302,307,311,33#,34#,35#..SCB..(DSL,DSLL,EFI) |
1 | ||
| 82663-37070 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37040 |
XZU312..SCB..5F;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,RZU300,340,XZU300,302,307,311,33#,34#,35#..SCB..(DSL,DSLL,EFI) |
1 | ||
| 82663-37070 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-37011 |
XZU341..DSL,DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,302,306,331,342..DSL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-37011 |
XZU341..DSL,DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,302,306,331,342..DSL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-37011 |
XZU341..DSL,DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,302,306,331,342..DSL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382 |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,31#,32#,33#,340,346,347,35#..SCB |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,31#,32#,33#,340,346,347,35#..SCB |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,31#,32#,33#,340,346,347,35#..SCB |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,31#,32#,33#,340,346,347,35#..SCB |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,31#,32#,33#,340,346,347,35#..SCB |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,31#,32#,33#,340,346,347,35#..SCB |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02017 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| Common parts | ||||
| 82715-26520 | ||||
| 82717-37010 | ||||
| 82729-37160 | ||||
| 90179-06158 | ||||
| 90179-06171 | ||||
| 90179-08233 | ||||
| 90179-10015 | ||||
| 91512-81016 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8405 | ||||
| 8414 | ||||
