XZU341-TQPQS (1999)
Toyota Dyna/Toyoace
(9905-0406)BU346,XZU340,341,342,346,347,382..T3,T4..CBU

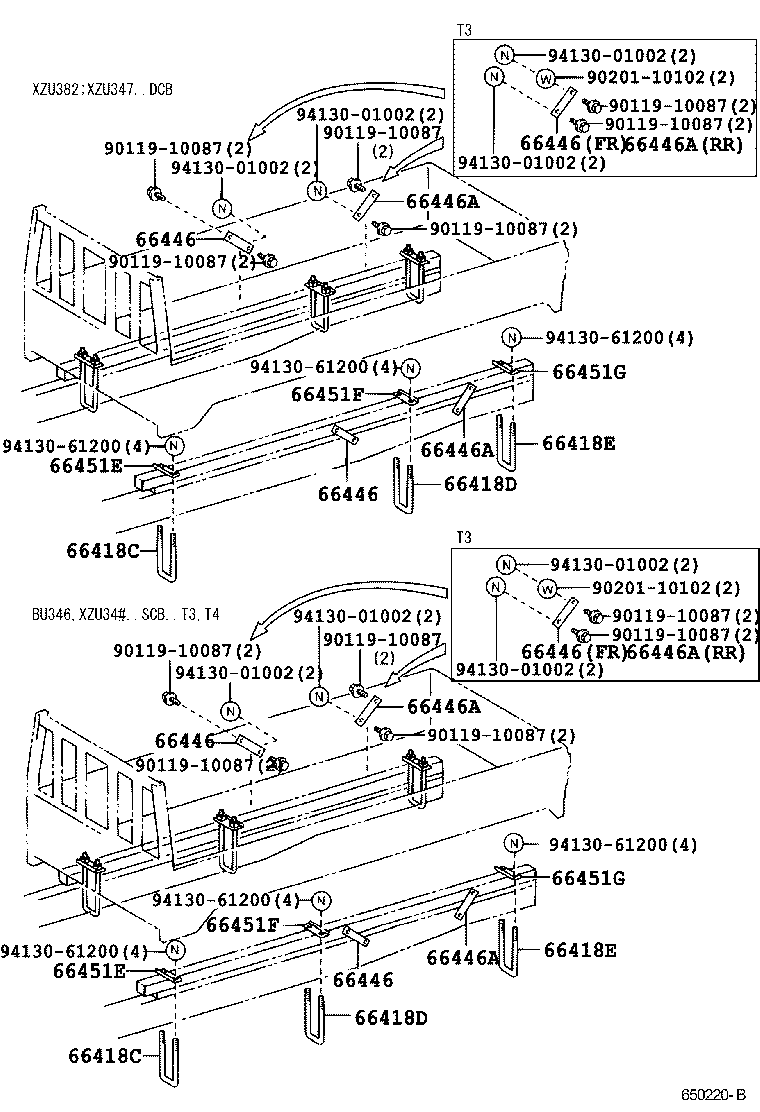

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66418C - BOLT, U, FRONT | ||||
| 90117-12037 |
XZU347..T4..CBU;RZU300,XZU300,301,302,331,340,341..SCB..(T2,T4)..CBU;BU30#,346,BZU300,340,RZU301,340,XZU306,307,337,342,346..SCB..T4..20T..CBU 長さ=288 |
2 | ||
| 66418C - BOLT, U, FRONT | ||||
| 90117-12037 |
XZU347..T4..CBU;RZU300,XZU300,301,302,331,340,341..SCB..(T2,T4)..CBU;BU30#,346,BZU300,340,RZU301,340,XZU306,307,337,342,346..SCB..T4..20T..CBU 長さ=288 |
2 | ||
| 66418D - BOLT, U, CENTER | ||||
| 90117-12037 |
XZU347..SCB..T4..CBU;XZU301,302..T4..CBU..4NO;RZU300,XZU340,341..(T2,T4)..CBU;BU30#,346,BZU300,340,RZU301,340,XZU306,307,342,346,362,372,382..T4..20T..CBU 長さ=288 |
2 | ||
| 66418D - BOLT, U, CENTER | ||||
| 90117-12037 |
XZU347..SCB..T4..CBU;XZU301,302..T4..CBU..4NO;RZU300,XZU340,341..(T2,T4)..CBU;BU30#,346,BZU300,340,RZU301,340,XZU306,307,342,346,362,372,382..T4..20T..CBU 長さ=288 |
2 | ||
| 66418E - BOLT, U, REAR | ||||
| 90117-12043 |
RZU300,XZU300,301,302,331,340,341..(T2,T4)..CBU;BU30#,346,BZU300,340,RZU301,340,XZU306,307,337,342,346,347..T4..20T..CBU 長さ=248 |
2 | ||
| 66418E - BOLT, U, REAR | ||||
| 90117-12043 |
RZU300,XZU300,301,302,331,340,341..(T2,T4)..CBU;BU30#,346,BZU300,340,RZU301,340,XZU306,307,337,342,346,347..T4..20T..CBU 長さ=248 |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-92701 |
XZU342..LPG;XZU382..T3..CBU;XZU372..SCB..CBU;BU346,BZU340,RZU340,XZU340,341,342,346,347..T4..CBU |
2 | ||
| 66446-92701 |
XZU382..T3..CBU;XZU372..SCB..CBU;BU346,RZU340,XZU34#..T4..CBU |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-92701 |
XZU342..LPG;XZU382..T3..CBU;XZU372..SCB..CBU;BU346,BZU340,RZU340,XZU340,341,342,346,347..T4..CBU |
2 | ||
| 66446-92701 |
XZU382..T3..CBU;XZU372..SCB..CBU;BU346,RZU340,XZU34#..T4..CBU |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-92701 |
XZU342..LPG;XZU382..T3..CBU;XZU372..SCB..CBU;BU346,BZU340,RZU340,XZU340,341,342,346,347..T4..CBU |
2 | ||
| 66446-92701 |
XZU382..T3..CBU;XZU372..SCB..CBU;BU346,RZU340,XZU34#..T4..CBU |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-92701 |
XZU342..LPG;XZU382..T3..CBU;XZU372..SCB..CBU;BU346,BZU340,RZU340,XZU340,341,342,346,347..T4..CBU |
2 | ||
| 66446-92701 |
XZU382..T3..CBU;XZU372..SCB..CBU;BU346,RZU340,XZU34#..T4..CBU |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-92701 |
XZU342..LPG;XZU382..T3..CBU;XZU372..SCB..CBU;BU346,BZU340,RZU340,XZU340,341,342,346,347..T4..CBU |
2 | ||
| 66446-92701 |
XZU382..T3..CBU;XZU372..SCB..CBU;BU346,RZU340,XZU34#..T4..CBU |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-92701 |
XZU342..LPG;XZU382..T3..CBU;XZU372..SCB..CBU;BU346,BZU340,RZU340,XZU340,341,342,346,347..T4..CBU |
2 | ||
| 66446-92701 |
XZU382..T3..CBU;XZU372..SCB..CBU;BU346,RZU340,XZU34#..T4..CBU |
2 | ||
| 66446A - BRACE, FRAME TO REAR BODY FLOOR | ||||
| 66446-92701 |
BU346,XZU34#..T4..CBU |
2 | ||
| 66446-92701 |
BU346,XZU34#,372..T4..CBU;RZU340,XZU362,382..(T3,T4)..CBU;BU306,XZU301,302,306,307..T5..20T..WT..CBU |
2 | ||
| 66446-92701 |
XZU342..LPG;RZU340,XZU362,382..(T3,T4)..CBU;BU306,XZU301,302,306,307..T5..20T..WT..CBU;BU346,BZU340,XZU340,341,342,346,347,372..T4..CBU |
2 | ||
| 66446A - BRACE, FRAME TO REAR BODY FLOOR | ||||
| 66446-92701 |
BU346,XZU34#..T4..CBU |
2 | ||
| 66446-92701 |
BU346,XZU34#,372..T4..CBU;RZU340,XZU362,382..(T3,T4)..CBU;BU306,XZU301,302,306,307..T5..20T..WT..CBU |
2 | ||
| 66446-92701 |
XZU342..LPG;RZU340,XZU362,382..(T3,T4)..CBU;BU306,XZU301,302,306,307..T5..20T..WT..CBU;BU346,BZU340,XZU340,341,342,346,347,372..T4..CBU |
2 | ||
| 66446A - BRACE, FRAME TO REAR BODY FLOOR | ||||
| 66446-92701 |
BU346,XZU34#..T4..CBU |
2 | ||
| 66446-92701 |
BU346,XZU34#,372..T4..CBU;RZU340,XZU362,382..(T3,T4)..CBU;BU306,XZU301,302,306,307..T5..20T..WT..CBU |
2 | ||
| 66446-92701 |
XZU342..LPG;RZU340,XZU362,382..(T3,T4)..CBU;BU306,XZU301,302,306,307..T5..20T..WT..CBU;BU346,BZU340,XZU340,341,342,346,347,372..T4..CBU |
2 | ||
| 66446A - BRACE, FRAME TO REAR BODY FLOOR | ||||
| 66446-92701 |
BU346,XZU34#..T4..CBU |
2 | ||
| 66446-92701 |
BU346,XZU34#,372..T4..CBU;RZU340,XZU362,382..(T3,T4)..CBU;BU306,XZU301,302,306,307..T5..20T..WT..CBU |
2 | ||
| 66446-92701 |
XZU342..LPG;RZU340,XZU362,382..(T3,T4)..CBU;BU306,XZU301,302,306,307..T5..20T..WT..CBU;BU346,BZU340,XZU340,341,342,346,347,372..T4..CBU |
2 | ||
| 66446A - BRACE, FRAME TO REAR BODY FLOOR | ||||
| 66446-92701 |
BU346,XZU34#..T4..CBU |
2 | ||
| 66446-92701 |
BU346,XZU34#,372..T4..CBU;RZU340,XZU362,382..(T3,T4)..CBU;BU306,XZU301,302,306,307..T5..20T..WT..CBU |
2 | ||
| 66446-92701 |
XZU342..LPG;RZU340,XZU362,382..(T3,T4)..CBU;BU306,XZU301,302,306,307..T5..20T..WT..CBU;BU346,BZU340,XZU340,341,342,346,347,372..T4..CBU |
2 | ||
| 66446A - BRACE, FRAME TO REAR BODY FLOOR | ||||
| 66446-92701 |
BU346,XZU34#..T4..CBU |
2 | ||
| 66446-92701 |
BU346,XZU34#,372..T4..CBU;RZU340,XZU362,382..(T3,T4)..CBU;BU306,XZU301,302,306,307..T5..20T..WT..CBU |
2 | ||
| 66446-92701 |
XZU342..LPG;RZU340,XZU362,382..(T3,T4)..CBU;BU306,XZU301,302,306,307..T5..20T..WT..CBU;BU346,BZU340,XZU340,341,342,346,347,372..T4..CBU |
2 | ||
| 66451E - PLATE, U BOLT, FRONT | ||||
| 66451-37030 |
XZU301..T4..LPG;RZU300..SCB..CBU;BZU300,340..T4..CNG;BU306,XZU307,372..SCB..(T3,T4,T5)..CBU;BU301,346,BZU300,340,RZU301,340,XZU300,301,302,306,33#,340,341,342,346,347,362,382..(T3,T4,T5)..CBU |
2 | ||
| 66451E - PLATE, U BOLT, FRONT | ||||
| 66451-37030 |
XZU301..T4..LPG;RZU300..SCB..CBU;BZU300,340..T4..CNG;BU306,XZU307,372..SCB..(T3,T4,T5)..CBU;BU301,346,BZU300,340,RZU301,340,XZU300,301,302,306,33#,340,341,342,346,347,362,382..(T3,T4,T5)..CBU |
2 | ||
| 66451F - PLATE, U BOLT, CENTER | ||||
| 66451-37030 |
BZU300,340..T4..CNG;BU346,BZU340,RZU340,XZU33#,340,341,342,346,347,362,372,382..(T3,T4)..CBU |
2 | ||
| 66451F - PLATE, U BOLT, CENTER | ||||
| 66451-37030 |
BZU300,340..T4..CNG;BU346,BZU340,RZU340,XZU33#,340,341,342,346,347,362,372,382..(T3,T4)..CBU |
2 | ||
| 66451G - PLATE, U BOLT, REAR | ||||
| 66451-37030 |
XZU301..T4..LPG;BZU300,340..T4..CNG;BU306,346,XZU307,337,347..(T3,T4,T5)..CBU;BU301,BZU300,340,RZU30#,340,XZU300,301,302,306,330,331,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66451G - PLATE, U BOLT, REAR | ||||
| 66451-37030 |
XZU301..T4..LPG;BZU300,340..T4..CNG;BU306,346,XZU307,337,347..(T3,T4,T5)..CBU;BU301,BZU300,340,RZU30#,340,XZU300,301,302,306,330,331,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| Common parts | ||||
| 90119-10087 | ||||
| 90201-10102 | ||||
| 94130-01002 | ||||
| 94130-61200 | ||||
