Toyota Dyna/toyoace XZU341 REAR BODY GUARD FRAME & TAIL GATE

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU341-TQPQS (1999)
6553 - REAR BODY GUARD FRAME & TAIL GATE

XZU341-TQPQS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004

Engine S05D

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9905-0406)BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,337,362..T2,T4,T5..CBU ;

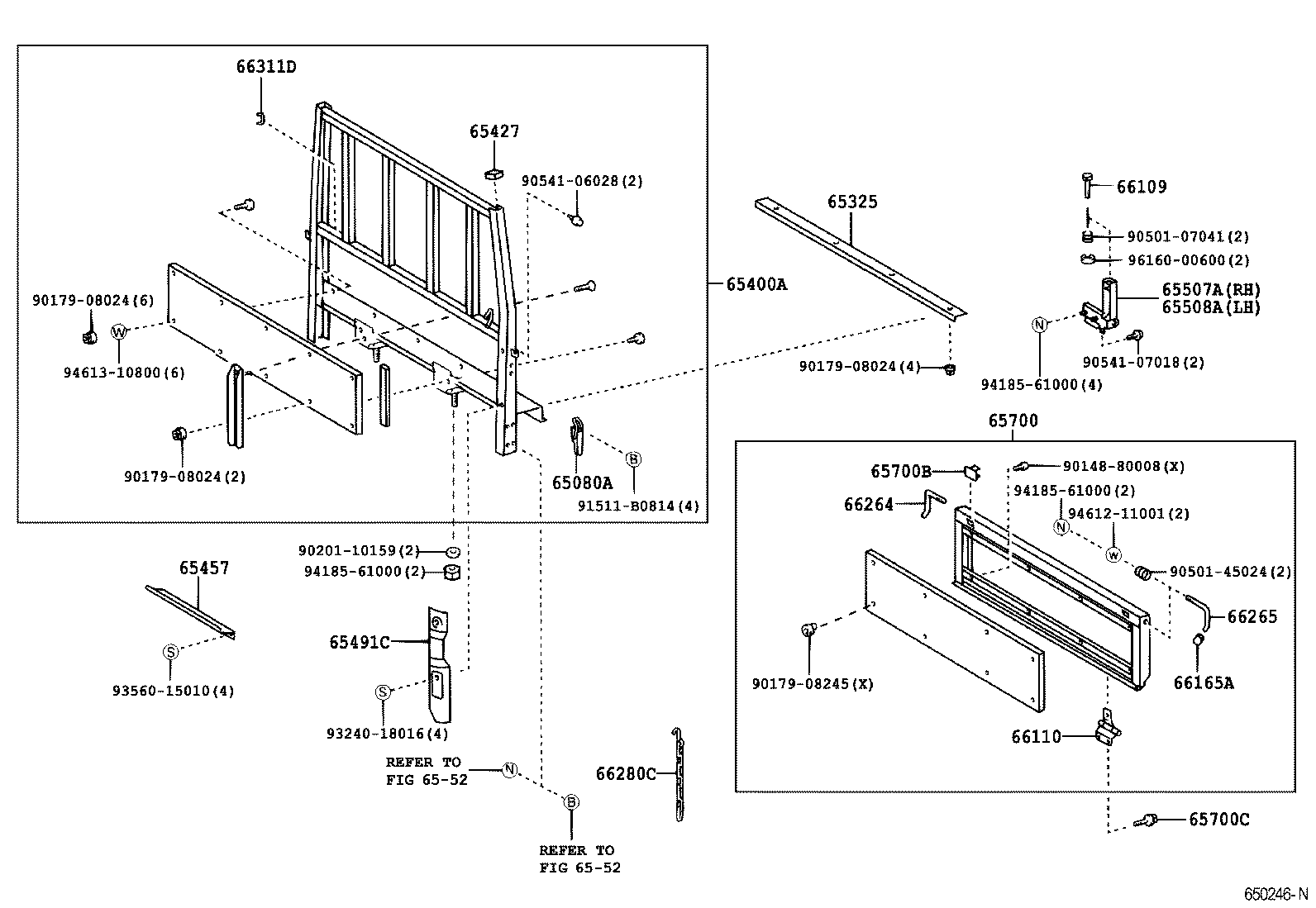

Click highlighted areas on diagram

Part #	Description	Period	Qty
65080A - HANDLE ASSY, SIDE GATE LATCH
65080-92701	XZU301..T4..LPG;BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
65080-92701	XZU301..T4..LPG;BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
65080-92701	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
65080-92701	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
65325 - PLATE, FLOOR BOARD, FRONT
65325-37030	BZU340..CNG;XZU342..CNG,LPG;XZU301,341..T3..LPG;BZU300,RZU300,XZU300..T3..CBU;BU346,BZU340,RZU340,XZU301,302,330,331,340,341,342,346,347,372,382..CBU..1NO	06/2002 - 06/2004	1
65325-37030	BZU340..CNG;XZU342..CNG,LPG;XZU301,341..T3..LPG;BZU300,RZU300,XZU300..T3..CBU;BU346,BZU340,RZU340,XZU301,302,330,331,340,341,342,346,347,372,382..CBU..1NO	06/2002 - 06/2004	1
65325-37030	RZU300,XZU300,301,302..T3..CBU;BU346,RZU340,XZU330,331,34#,372,382..CBU	05/1999 - 06/2002	1
65325-37030	RZU300,XZU300,301,302..T3..CBU;BU346,RZU340,XZU330,331,34#,372,382..CBU	05/1999 - 06/2002	1
65400A - GUARD ASSY, REAR BODY
65400-3V160	BU346,BZU340,RZU340,XZU331,341,342,346,347..SCB..T4..CBU	05/1999 - 06/2004	1
65400-3V160	BU346,BZU340,RZU340,XZU331,341,342,346,347..SCB..T4..CBU	05/1999 - 06/2004	1
65507A - SUPPORT SUB-ASSY, CORNER, RH
65507-37040	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	1
65507-37040	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	1
65508A - SUPPORT SUB-ASSY, CORNER, LH
65508-37040	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	1
65508-37040	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	1
65700 - GATE ASSY, REAR BODY TAIL
65700-37070	BZU340..CNG;XZU347..SCB..CBU;XZU347..DCB..5F..CBU;XZU347..DCB..T4..4FC..CBU;BZU300,RZU300,XZU300,301,302..T3..CBU;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,372,382..CBU	05/1999 - 06/2004	1
65700-37070	BZU340..CNG;XZU347..SCB..CBU;XZU347..DCB..5F..CBU;XZU347..DCB..T4..4FC..CBU;BZU300,RZU300,XZU300,301,302..T3..CBU;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,372,382..CBU	05/1999 - 06/2004	1
65700B - PLUG, HOLE(FOR TAIL GATE)
90950-01430	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
90950-01430	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
90950-01430	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
90950-01430	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
65700C - BOLT, W/WASHER(FOR TAIL GATE)
90119-08464	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
90119-08464	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
90119-08464	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
90119-08464	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
66109 - HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER
66193-37010	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	2
66193-37010	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	2
66110 - HINGE ASSY, TAIL GATE
66110-37010	BZU340..CNG;BZU300,RZU300,XZU300,301,302..T3..CBU;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,372,382..CBU	05/1999 - 06/2004	4
66110-37010	BZU340..CNG;BZU300,RZU300,XZU300,301,302..T3..CBU;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,372,382..CBU	05/1999 - 06/2004	4
66165A - CAP, GATE LATCH HANDLE
66165-92701	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
66165-92701	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
66165-92701	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
66165-92701	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
66264 - HANDLE, TAIL GATE LATCH, RH
66264-37010	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
66264-37010	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
66264-37010	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
66264-37010	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
66265 - HANDLE, TAIL GATE LATCH, LH
66265-37010	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
66265-37010	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
66265-37010	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
66265-37010	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
66280C - CHAIN ASSY, TAIL GATE
66280-37020	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
66280-37020	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
66280-37020	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
66280-37020	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
66311D - HOOK, ROPE
66312-37030	BU346,BZU340,RZU340,XZU331,341,342,346,347..SCB..T4..CBU	09/2003 - 06/2004	2
66312-37030	BU346,BZU340,RZU340,XZU331,341,342,346,347..SCB..T4..CBU	09/2003 - 06/2004	2
Common parts
90119-08913
90148-80008
90179-08024
90179-08245
90201-10159
90501-07041
90501-45024
90541-06028
90541-07018
91511-B0814
93560-15010
93560-54010
94185-61000
94612-11001
94613-10800
96160-00600
Linked diagrams
6552

(0206-0406)XZU301..T3..LPG ; (0206-0406)XZU341,342..CNG,LPG ; (0210-0406)XZU331,341

Click highlighted areas on diagram

Part #	Description	Period	Qty
65080A - HANDLE ASSY, SIDE GATE LATCH
65080-92701	XZU301..T4..LPG;BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
65080-92701	XZU301..T4..LPG;BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
65080-92701	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
65080-92701	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
65325 - PLATE, FLOOR BOARD, FRONT
65325-37030	BZU340..CNG;XZU342..CNG,LPG;XZU301,341..T3..LPG;BZU300,RZU300,XZU300..T3..CBU;BU346,BZU340,RZU340,XZU301,302,330,331,340,341,342,346,347,372,382..CBU..1NO	06/2002 - 06/2004	1
65325-37030	BZU340..CNG;XZU342..CNG,LPG;XZU301,341..T3..LPG;BZU300,RZU300,XZU300..T3..CBU;BU346,BZU340,RZU340,XZU301,302,330,331,340,341,342,346,347,372,382..CBU..1NO	06/2002 - 06/2004	1
65325-37030	RZU300,XZU300,301,302..T3..CBU;BU346,RZU340,XZU330,331,34#,372,382..CBU	05/1999 - 06/2002	1
65325-37030	RZU300,XZU300,301,302..T3..CBU;BU346,RZU340,XZU330,331,34#,372,382..CBU	05/1999 - 06/2002	1
65400A - GUARD ASSY, REAR BODY
65400-3V160	BU346,BZU340,RZU340,XZU331,341,342,346,347..SCB..T4..CBU	05/1999 - 06/2004	1
65400-3V160	BU346,BZU340,RZU340,XZU331,341,342,346,347..SCB..T4..CBU	05/1999 - 06/2004	1
65427 - COVER, GUARD FRAME
65427-92800	BZU340..CNG;XZU347..SCB..CBU;XZU347..DCB..5F..CBU;XZU347..DCB..T4..4FC..CBU;BZU300,RZU300,XZU300,301,302..T3..CBU;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,372,382..CBU	05/1999 - 06/2004	2
65427-92800	BZU340..CNG;XZU347..SCB..CBU;XZU347..DCB..5F..CBU;XZU347..DCB..T4..4FC..CBU;BZU300,RZU300,XZU300,301,302..T3..CBU;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,372,382..CBU	05/1999 - 06/2004	2
65491C - PROTECTOR, GUARD FLAME, LOWER
65481-37010	RZU300,XZU300,301,302..T3..CBU;BU346,RZU340,XZU330,331,34#,372,382..CBU 右側	05/1999 - 06/2002	1
65481-37010	RZU300,XZU300,301,302..T3..CBU;BU346,RZU340,XZU330,331,34#,372,382..CBU 右側	05/1999 - 06/2002	1
65482-37010	BZU340..CNG;XZU342..CNG,LPG;XZU301,341..T3..LPG;BZU300,RZU300,XZU300..T3..CBU;BU346,BZU340,RZU340,XZU301,302,330,331,340,341,342,346,347,372,382..CBU..1NO 左側	06/2002 - 06/2004	1
65482-37010	BZU340..CNG;XZU342..CNG,LPG;XZU301,341..T3..LPG;BZU300,RZU300,XZU300..T3..CBU;BU346,BZU340,RZU340,XZU301,302,330,331,340,341,342,346,347,372,382..CBU..1NO 左側	06/2002 - 06/2004	1
65481-37010	BZU340..CNG;XZU342..CNG,LPG;XZU301,341..T3..LPG;BZU300,RZU300,XZU300..T3..CBU;BU346,BZU340,RZU340,XZU301,302,330,331,340,341,342,346,347,372,382..CBU..1NO 右側	06/2002 - 06/2004	1
65481-37010	BZU340..CNG;XZU342..CNG,LPG;XZU301,341..T3..LPG;BZU300,RZU300,XZU300..T3..CBU;BU346,BZU340,RZU340,XZU301,302,330,331,340,341,342,346,347,372,382..CBU..1NO 右側	06/2002 - 06/2004	1
65482-37010	RZU300,XZU300,301,302..T3..CBU;BU346,RZU340,XZU330,331,34#,372,382..CBU 左側	05/1999 - 06/2002	1
65482-37010	RZU300,XZU300,301,302..T3..CBU;BU346,RZU340,XZU330,331,34#,372,382..CBU 左側	05/1999 - 06/2002	1
65507A - SUPPORT SUB-ASSY, CORNER, RH
65507-37040	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	1
65507-37040	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	1
65508A - SUPPORT SUB-ASSY, CORNER, LH
65508-37040	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	1
65508-37040	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	1
65700 - GATE ASSY, REAR BODY TAIL
65700-37070	BZU340..CNG;XZU347..SCB..CBU;XZU347..DCB..5F..CBU;XZU347..DCB..T4..4FC..CBU;BZU300,RZU300,XZU300,301,302..T3..CBU;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,372,382..CBU	05/1999 - 06/2004	1
65700-37070	BZU340..CNG;XZU347..SCB..CBU;XZU347..DCB..5F..CBU;XZU347..DCB..T4..4FC..CBU;BZU300,RZU300,XZU300,301,302..T3..CBU;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,372,382..CBU	05/1999 - 06/2004	1
65700B - PLUG, HOLE(FOR TAIL GATE)
90950-01430	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
90950-01430	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
90950-01430	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
90950-01430	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
65700C - BOLT, W/WASHER(FOR TAIL GATE)
90119-08464	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
90119-08464	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
90119-08464	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
90119-08464	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
66109 - HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER
66193-37010	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	2
66193-37010	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	2
66110 - HINGE ASSY, TAIL GATE
66110-37010	BZU340..CNG;BZU300,RZU300,XZU300,301,302..T3..CBU;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,372,382..CBU	05/1999 - 06/2004	4
66110-37010	BZU340..CNG;BZU300,RZU300,XZU300,301,302..T3..CBU;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,372,382..CBU	05/1999 - 06/2004	4
66165A - CAP, GATE LATCH HANDLE
66165-92701	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
66165-92701	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
66165-92701	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
66165-92701	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
66264 - HANDLE, TAIL GATE LATCH, RH
66264-37010	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
66264-37010	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
66264-37010	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
66264-37010	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
66265 - HANDLE, TAIL GATE LATCH, LH
66265-37010	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
66265-37010	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
66265-37010	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
66265-37010	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
66280C - CHAIN ASSY, TAIL GATE
66280-37020	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
66280-37020	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
66280-37020	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
66280-37020	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
66311D - HOOK, ROPE
66312-37030	BU346,BZU340,RZU340,XZU331,341,342,346,347..SCB..T4..CBU	09/2003 - 06/2004	2
66312-37030	BU346,BZU340,RZU340,XZU331,341,342,346,347..SCB..T4..CBU	09/2003 - 06/2004	2
Common parts
90148-80008
90179-08024
90179-08245
90201-10159
90501-07041
90501-45024
90541-06028
90541-07018
91511-B0814
93240-18016
93560-15010
94185-61000
94612-11001
94613-10800
96160-00600
Linked diagrams
6552

(9905-0406)BZU300,RZU300,XZU300,301,302..T3..CBU; (9905-0406)BU346,BZU340,RZU340,X

Click highlighted areas on diagram

Part #	Description	Period	Qty
65080A - HANDLE ASSY, SIDE GATE LATCH
65080-92701	XZU301..T4..LPG;BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
65080-92701	XZU301..T4..LPG;BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
65080-92701	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
65080-92701	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
65325 - PLATE, FLOOR BOARD, FRONT
65325-37030	BZU340..CNG;XZU342..CNG,LPG;XZU301,341..T3..LPG;BZU300,RZU300,XZU300..T3..CBU;BU346,BZU340,RZU340,XZU301,302,330,331,340,341,342,346,347,372,382..CBU..1NO	06/2002 - 06/2004	1
65325-37030	BZU340..CNG;XZU342..CNG,LPG;XZU301,341..T3..LPG;BZU300,RZU300,XZU300..T3..CBU;BU346,BZU340,RZU340,XZU301,302,330,331,340,341,342,346,347,372,382..CBU..1NO	06/2002 - 06/2004	1
65325-37030	RZU300,XZU300,301,302..T3..CBU;BU346,RZU340,XZU330,331,34#,372,382..CBU	05/1999 - 06/2002	1
65325-37030	RZU300,XZU300,301,302..T3..CBU;BU346,RZU340,XZU330,331,34#,372,382..CBU	05/1999 - 06/2002	1
65400A - GUARD ASSY, REAR BODY
65400-3V160	BU346,BZU340,RZU340,XZU331,341,342,346,347..SCB..T4..CBU	05/1999 - 06/2004	1
65400-3V160	BU346,BZU340,RZU340,XZU331,341,342,346,347..SCB..T4..CBU	05/1999 - 06/2004	1
65427 - COVER, GUARD FRAME
65427-92800	BZU340..CNG;XZU347..SCB..CBU;XZU347..DCB..5F..CBU;XZU347..DCB..T4..4FC..CBU;BZU300,RZU300,XZU300,301,302..T3..CBU;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,372,382..CBU	05/1999 - 06/2004	2
65427-92800	BZU340..CNG;XZU347..SCB..CBU;XZU347..DCB..5F..CBU;XZU347..DCB..T4..4FC..CBU;BZU300,RZU300,XZU300,301,302..T3..CBU;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,372,382..CBU	05/1999 - 06/2004	2
65491C - PROTECTOR, GUARD FLAME, LOWER
65481-37010	RZU300,XZU300,301,302..T3..CBU;BU346,RZU340,XZU330,331,34#,372,382..CBU 右側	05/1999 - 06/2002	1
65481-37010	RZU300,XZU300,301,302..T3..CBU;BU346,RZU340,XZU330,331,34#,372,382..CBU 右側	05/1999 - 06/2002	1
65482-37010	BZU340..CNG;XZU342..CNG,LPG;XZU301,341..T3..LPG;BZU300,RZU300,XZU300..T3..CBU;BU346,BZU340,RZU340,XZU301,302,330,331,340,341,342,346,347,372,382..CBU..1NO 左側	06/2002 - 06/2004	1
65482-37010	BZU340..CNG;XZU342..CNG,LPG;XZU301,341..T3..LPG;BZU300,RZU300,XZU300..T3..CBU;BU346,BZU340,RZU340,XZU301,302,330,331,340,341,342,346,347,372,382..CBU..1NO 左側	06/2002 - 06/2004	1
65481-37010	BZU340..CNG;XZU342..CNG,LPG;XZU301,341..T3..LPG;BZU300,RZU300,XZU300..T3..CBU;BU346,BZU340,RZU340,XZU301,302,330,331,340,341,342,346,347,372,382..CBU..1NO 右側	06/2002 - 06/2004	1
65481-37010	BZU340..CNG;XZU342..CNG,LPG;XZU301,341..T3..LPG;BZU300,RZU300,XZU300..T3..CBU;BU346,BZU340,RZU340,XZU301,302,330,331,340,341,342,346,347,372,382..CBU..1NO 右側	06/2002 - 06/2004	1
65482-37010	RZU300,XZU300,301,302..T3..CBU;BU346,RZU340,XZU330,331,34#,372,382..CBU 左側	05/1999 - 06/2002	1
65482-37010	RZU300,XZU300,301,302..T3..CBU;BU346,RZU340,XZU330,331,34#,372,382..CBU 左側	05/1999 - 06/2002	1
65507A - SUPPORT SUB-ASSY, CORNER, RH
65507-37040	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	1
65507-37040	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	1
65508A - SUPPORT SUB-ASSY, CORNER, LH
65508-37040	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	1
65508-37040	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	1
65700 - GATE ASSY, REAR BODY TAIL
65700-37070	BZU340..CNG;XZU347..SCB..CBU;XZU347..DCB..5F..CBU;XZU347..DCB..T4..4FC..CBU;BZU300,RZU300,XZU300,301,302..T3..CBU;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,372,382..CBU	05/1999 - 06/2004	1
65700-37070	BZU340..CNG;XZU347..SCB..CBU;XZU347..DCB..5F..CBU;XZU347..DCB..T4..4FC..CBU;BZU300,RZU300,XZU300,301,302..T3..CBU;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,372,382..CBU	05/1999 - 06/2004	1
65700B - PLUG, HOLE(FOR TAIL GATE)
90950-01430	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
90950-01430	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
90950-01430	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
90950-01430	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
65700C - BOLT, W/WASHER(FOR TAIL GATE)
90119-08464	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
90119-08464	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
90119-08464	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
90119-08464	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
66109 - HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER
66193-37010	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	2
66193-37010	XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2004	2
66110 - HINGE ASSY, TAIL GATE
66110-37010	BZU340..CNG;BZU300,RZU300,XZU300,301,302..T3..CBU;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,372,382..CBU	05/1999 - 06/2004	4
66110-37010	BZU340..CNG;BZU300,RZU300,XZU300,301,302..T3..CBU;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,372,382..CBU	05/1999 - 06/2004	4
66165A - CAP, GATE LATCH HANDLE
66165-92701	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
66165-92701	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
66165-92701	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
66165-92701	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
66264 - HANDLE, TAIL GATE LATCH, RH
66264-37010	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
66264-37010	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
66264-37010	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
66264-37010	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
66265 - HANDLE, TAIL GATE LATCH, LH
66265-37010	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
66265-37010	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	1
66265-37010	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
66265-37010	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	1
66280C - CHAIN ASSY, TAIL GATE
66280-37020	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
66280-37020	BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU	05/1999 - 06/2002	2
66280-37020	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
66280-37020	BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU	06/2002 - 06/2004	2
66311D - HOOK, ROPE
66312-37030	BU346,BZU340,RZU340,XZU331,341,342,346,347..SCB..T4..CBU	09/2003 - 06/2004	2
66312-37030	BU346,BZU340,RZU340,XZU331,341,342,346,347..SCB..T4..CBU	09/2003 - 06/2004	2
Common parts
90148-80008
90179-08024
90179-08245
90201-10159
90501-07041
90501-45024
90541-06028
90541-07018
91511-B0814
93240-18016
93560-15010
94185-61000
94612-11001
94613-10800
96160-00600
Linked diagrams
6552

(9905-0406)BU400,410,BZU410,XZU382,40#,410,411,412..20T,295T,30T,35T..CBU,IV5 ; (02

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-10155
90148-80008
90179-08024
90179-08245
90201-10159
90501-07041
90501-45024
90541-06028
90541-07018
91511-B0814
91642-81025
93240-18012
93560-14008
93560-14014
94184-01001
94185-61000
94612-11001
94613-10800
96160-00600

XZU341-TQPQS (1999)

(9905-0406)BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,337,362..T2,T4,T5..CBU ;

(0206-0406)XZU301..T3..LPG ; (0206-0406)XZU341,342..CNG,LPG ; (0210-0406)XZU331,341

(9905-0406)BZU300,RZU300,XZU300,301,302..T3..CBU; (9905-0406)BU346,BZU340,RZU340,X

(9905-0406)BU400,410,BZU410,XZU382,40#,410,411,412..20T,295T,30T,35T..CBU,IV5 ; (02

Part Price Details
