Toyota Dyna/toyoace XZU341 REAR BUMPER & BUMPER STAY

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU341-TQPQS (1999)
5253 - REAR BUMPER & BUMPER STAY

XZU341-TQPQS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004

Engine S05D

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

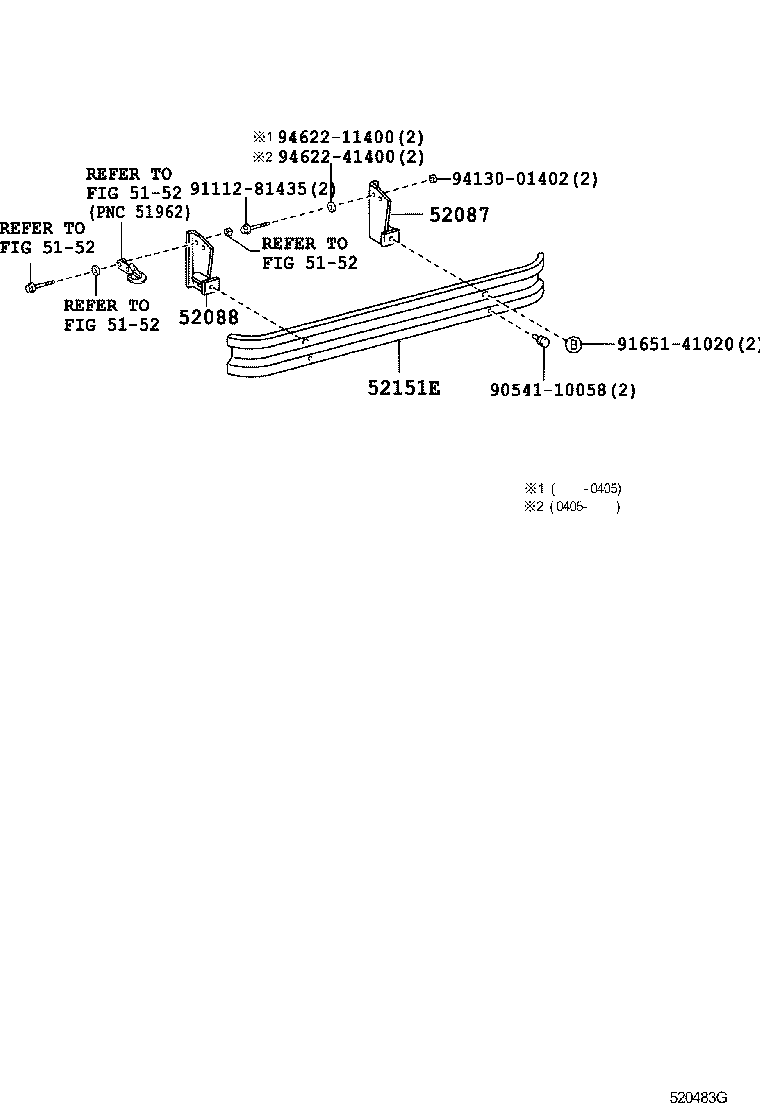

(9905-0505)BU346,BZU300,340,RZU30#,340,XZU300,301,302,33#,34#,372,378,38#..CBU..1NO

Click highlighted areas on diagram

TYPE A

Part #	Description	Period	Qty
52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH
52087-37120	BU346,XZU33#,34#,372,382..(T3,T4)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 03/2000	1
52087-37121	BZU340..CNG;XZU347..DCB..5F..CBU;XZU347..SCB..(T3,T4)..CBU;XZU347..DCB..T4..4FC..CBU;BU346,BZU340,RZU340,XZU33#,340,341,342,346,372,382..(T3,T4)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	03/2000 - 06/2004	1
52151-37060	XZU330..40T;BZU340,XZU340,382..30T,35T,40T;XZU341..(295T,30T)..(DSL,DSLL) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH
52152-37040	XZU330..40T;BZU340,XZU340,382..30T,35T,40T;XZU341..(295T,30T)..(DSL,DSLL) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52088-37120	BU346,XZU33#,34#,372,382..(T3,T4)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 03/2000	1
52088-37121	BZU340..CNG;XZU347..DCB..5F..CBU;XZU347..SCB..(T3,T4)..CBU;XZU347..DCB..T4..4FC..CBU;BU346,BZU340,RZU340,XZU33#,340,341,342,346,372,382..(T3,T4)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	03/2000 - 06/2004	1
52151E - BAR, REAR BUMPER
52105-37030	XZU330..40T;BZU340,XZU340,341,382..295T,30T,35T,40T 塗装不要,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52151-92805	BZU340..CNG;BZU300,RZU300,XZU300,301,302..SCB..(T2,T4)..CBU..1NO;BU346,BZU340,RZU301,340,XZU33#,340,341,342,346,347,372,382..CBU 塗装不要,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
Common parts
90541-10058
91112-81435
91651-41020
94130-01402
94622-11400
94622-41400
Linked diagrams
5152

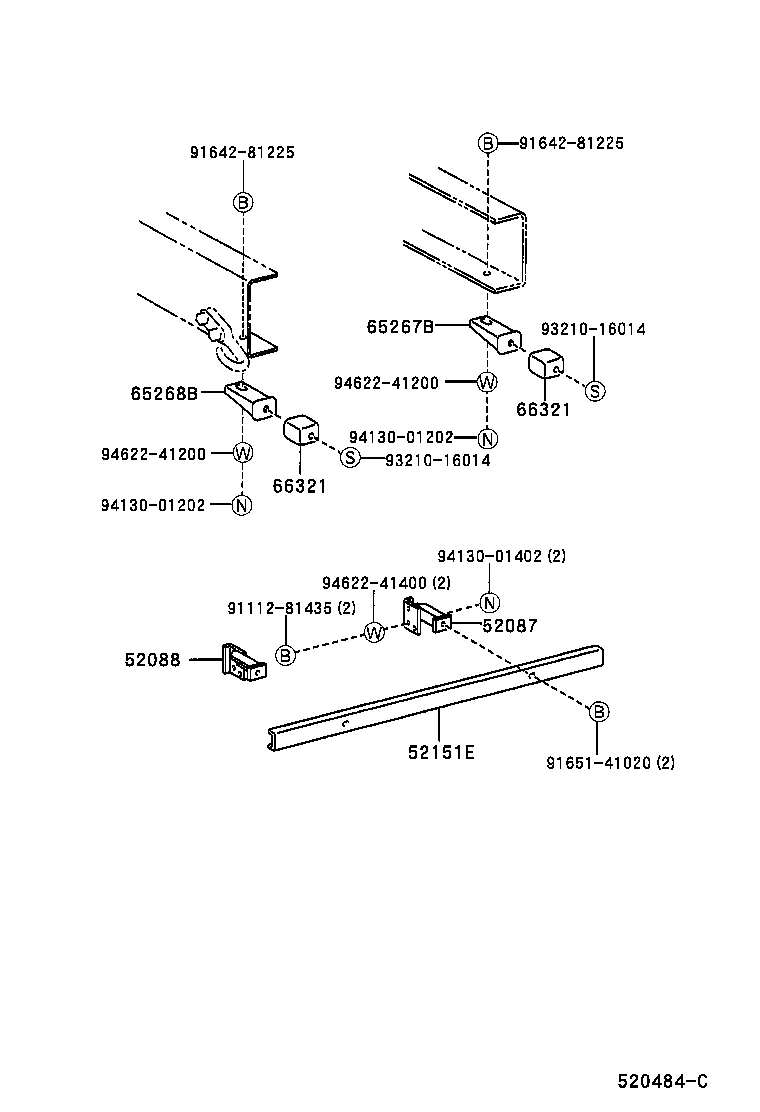

(9905-0505)BZU300,RZU300,XZU300,301,302..T3..CBU,IV4 ; (0206-0505)XZU301..T3..LPG ;

Click highlighted areas on diagram

TYPE D

Part #	Description	Period	Qty
52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH
52087-37120	BU346,XZU33#,34#,372,382..(T3,T4)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 03/2000	1
52087-37121	BZU340..CNG;XZU347..DCB..5F..CBU;XZU347..SCB..(T3,T4)..CBU;XZU347..DCB..T4..4FC..CBU;BU346,BZU340,RZU340,XZU33#,340,341,342,346,372,382..(T3,T4)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	03/2000 - 06/2004	1
52151-37060	XZU330..40T;BZU340,XZU340,382..30T,35T,40T;XZU341..(295T,30T)..(DSL,DSLL) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH
52088-37120	BU346,XZU33#,34#,372,382..(T3,T4)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 03/2000	1
52152-37040	XZU330..40T;BZU340,XZU340,382..30T,35T,40T;XZU341..(295T,30T)..(DSL,DSLL) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52088-37121	BZU340..CNG;XZU347..DCB..5F..CBU;XZU347..SCB..(T3,T4)..CBU;XZU347..DCB..T4..4FC..CBU;BU346,BZU340,RZU340,XZU33#,340,341,342,346,372,382..(T3,T4)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	03/2000 - 06/2004	1
52151E - BAR, REAR BUMPER
52105-37030	XZU330..40T;BZU340,XZU340,341,382..295T,30T,35T,40T 塗装不要,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52151-92805	BZU340..CNG;BZU300,RZU300,XZU300,301,302..SCB..(T2,T4)..CBU..1NO;BU346,BZU340,RZU301,340,XZU33#,340,341,342,346,347,372,382..CBU 塗装不要,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
Common parts
91112-81435
91642-81225
91651-41020
93210-16014
94130-01202
94130-01402
94622-41200
94622-41400

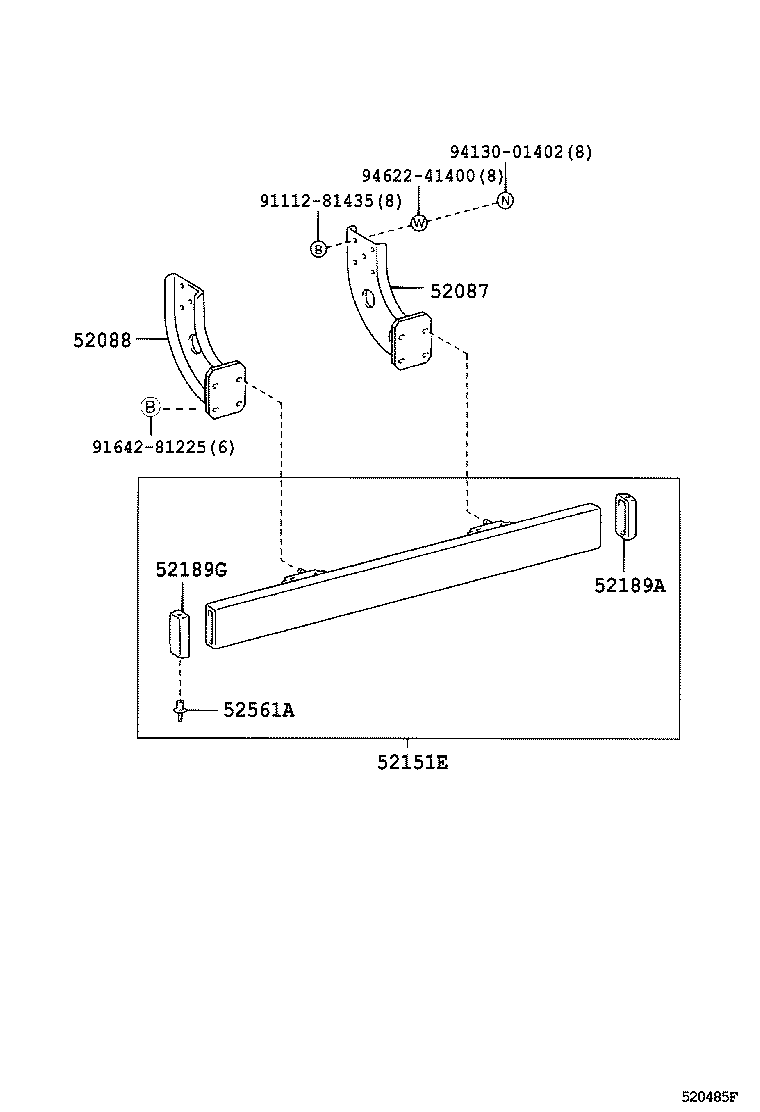

(9905-0505)BZU340,XZU330,334,340,341,344,38#..295T,30T,35T,40T

Click highlighted areas on diagram

TYPE B

Part #	Description	Period	Qty
52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH
52087-37120	BU346,XZU33#,34#,372,382..(T3,T4)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 03/2000	1
52087-37121	BZU340..CNG;XZU347..DCB..5F..CBU;XZU347..SCB..(T3,T4)..CBU;XZU347..DCB..T4..4FC..CBU;BU346,BZU340,RZU340,XZU33#,340,341,342,346,372,382..(T3,T4)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	03/2000 - 06/2004	1
52151-37060	XZU330..40T;BZU340,XZU340,382..30T,35T,40T;XZU341..(295T,30T)..(DSL,DSLL) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH
52152-37040	XZU330..40T;BZU340,XZU340,382..30T,35T,40T;XZU341..(295T,30T)..(DSL,DSLL) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52088-37120	BU346,XZU33#,34#,372,382..(T3,T4)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 03/2000	1
52088-37121	BZU340..CNG;XZU347..DCB..5F..CBU;XZU347..SCB..(T3,T4)..CBU;XZU347..DCB..T4..4FC..CBU;BU346,BZU340,RZU340,XZU33#,340,341,342,346,372,382..(T3,T4)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	03/2000 - 06/2004	1
52151E - BAR, REAR BUMPER
52105-37030	XZU330..40T;BZU340,XZU340,341,382..295T,30T,35T,40T 塗装不要,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52151-92805	BZU340..CNG;BZU300,RZU300,XZU300,301,302..SCB..(T2,T4)..CBU..1NO;BU346,BZU340,RZU301,340,XZU33#,340,341,342,346,347,372,382..CBU 塗装不要,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52189A - PROTECTOR, REAR BUMPER ARM EDGE, RH
52189-37010	XZU330..40T;BZU340,XZU340,341,382..295T,30T,35T,40T	05/1999 - 06/2004	1
52189G - PROTECTOR, REAR BUMPER ARM EDGE, LH
52189-37010	XZU330..40T;BZU340,XZU340,341,382..295T,30T,35T,40T	05/1999 - 06/2004	1
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-07043C0	XZU330..40T;BZU340,XZU340,382..30T,35T,40T;XZU341..(295T,30T)..(DSL,DSLL) BLACK,058 ,199 ,766 ,8P0	05/1999 - 06/2004	4
90467-07043B4	XZU330..40T;BZU340,XZU340,382..30T,35T,40T;XZU341..(295T,30T)..(DSL,DSLL) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	4
Common parts
91112-81435
91642-81225
94130-01402
94622-41400

(9905-0505)BZU410,XZU404 ; (9905-0505)BU410,420,430,XZU400,401,41#,42#,43#..T3,T4..

Click highlighted areas on diagram

TYPE B & TYPE C

Part #	Description	Period	Qty	Price
Common parts
91112-81435
94130-01202
94130-01402
94622-41200
94622-41400

(9905-0505)T2,T3,T4,T5..CBU ; (0206-0505)XZU412..CNG ; (0306-0505)CNG

Click highlighted areas on diagram

TYPE A

Part #	Description	Period	Qty	Price
Common parts
90031-19122
90179-08142
90540-10030
91112-81435
93210-18035
94130-01402
94622-41400

XZU341-TQPQS (1999)

(9905-0505)BU346,BZU300,340,RZU30#,340,XZU300,301,302,33#,34#,372,378,38#..CBU..1NO

(9905-0505)BZU300,RZU300,XZU300,301,302..T3..CBU,IV4 ; (0206-0505)XZU301..T3..LPG ;

(9905-0505)BZU340,XZU330,334,340,341,344,38#..295T,30T,35T,40T

(9905-0505)BZU410,XZU404 ; (9905-0505)BU410,420,430,XZU400,401,41#,42#,43#..T3,T4..

(9905-0505)T2,T3,T4,T5..CBU ; (0206-0505)XZU412..CNG ; (0306-0505)CNG
