XZU341-TQPQS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004
Engine S05D
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )XZU362..4NO ; (9905- )BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,

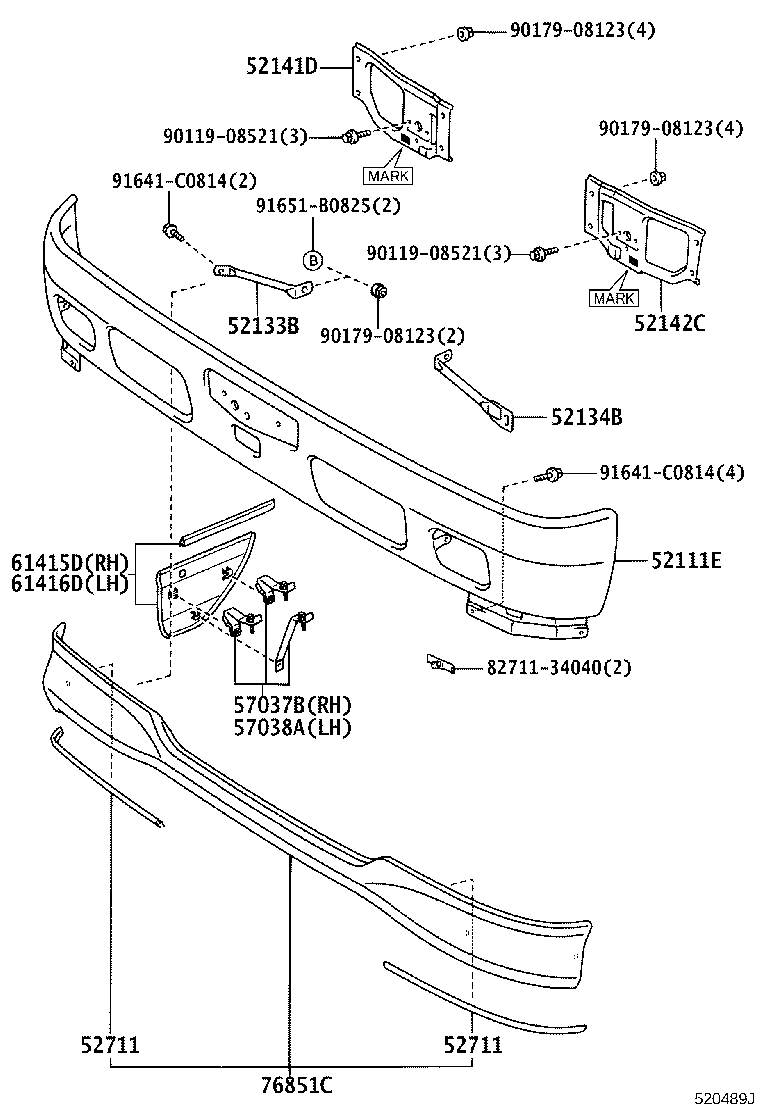

Click highlighted areas on diagram

ｽﾁｰﾙ ﾀｲﾌﾟ ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ)

diagram 52111E 52133B 52134B 52141D 52142C 52711 52711 57037B 57038A 61415D 61416D 76851C 8271134040 9011908521 9011908521 9017908123 9017908123 9017908123 91641C0814 91641C0814 91651B0825
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52101-37130B0

BU346..T2..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU346,XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..SCB..(T1,T2,T3,T4,T5)

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),SILVER ME.,199

 1
52101-37130A0

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),WHITE,058

 1
52101-37170J1

XZU306..T5..DSLL;XZU382..SCB..IV3;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..SCB..30T..DSL;XZU306..4FC..DSLL..IV3;XZU301,306..(20T,295T)..(CNG,DSL,LPG);XZU311,341,362..(DM5,T3,T4)..(DSL,DSLL);BU30#,346,RZU300,340..SCB..(DM6,T3,T4)..20T..IV3;BZU300,340,RZU301,XZU300,302,307,312,32#,33#,340,342,346,347,35#..SCB

BLUE,8P0

 1
52101-37140

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

ﾒｯｷ,ﾒﾂｷ ﾊﾞﾝﾊﾟ & ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ)

 1
52101-37130J1

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),BLUE,8P0

 1
52101-37180

XZU306..T5..DSLL;XZU382..SCB..IV3;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,306,331,362..(DM3,DM5,DM6,T3,T4,T5)..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#

ﾒｯｷ,ﾒﾂｷ ﾊﾞﾝﾊﾟ

 1
52101-37170H0

XZU306..T5..DSLL;XZU382..SCB..IV3;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..SCB..30T..DSL;XZU306..4FC..DSLL..IV3;XZU301,306..(20T,295T)..(CNG,DSL,LPG);XZU311,341,362..(DM5,T3,T4)..(DSL,DSLL);BU30#,346,RZU300,340..SCB..(DM6,T3,T4)..20T..IV3;BZU300,340,RZU301,XZU300,302,307,312,32#,33#,340,342,346,347,35#..SCB

TURQUOISE,766

 1
52101-37170B0

XZU341..DSL,DSLL;XZU306..T5..DSLL;XZU382..SCB..IV3;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(T3,T4,T5)..DSL;BU30#,346,RZU300,340..SCB..(T3,T4)..20T..IV3;BZU300,340,RZU301,XZU300,302,307,322,33#,340,342,346,347,350,362..SCB..(T2,T3,T4,T5)

SILVER ME.,199

 1
52101-37130H0

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),TURQUOISE,766

 1
52101-37170A0

XZU331..DSL;XZU382..SCB..IV3;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..4FC..30T..DSL;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301..5F..30T..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..30T..(CBU,IV4,IV6,IV7);XZU301,306..(20T,295T)..(CNG,DSL,LPG);XZU311,341,362..(DM5,T3,T4)..(DSL,DSLL);BU30#,346,RZU300,340..SCB..(DM6,T3,T4)..20T..IV3;BZU300,340,RZU301,XZU300,302,307,312,32#,330,337,340,342,346,347,35#..SCB

WHITE,058

 1
52111-37300

BU301;XZU382..SCB..IV3;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU307,31#,32#,33#,340,341,342,346,347,351,352..(20T,295T,30T)..(CBU,IV3);BU306,346,BZU300,340,RZU30#,340,XZU300,301,302,306,362..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)..(CBU,IV3)

塗装不要,ｼﾞﾕｼ ﾀｲﾌﾟ(ﾚｽ ｶﾗ-)

 1
52133B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, RH
52133-37060

XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

 1
52134B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, LH
52134-37060

XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

 1
52141D - STAY, FRONT BUMPER, RH
52141-37100

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,321,322,337,341,342,346,347,351,352

ﾏｰｸ=R1

 1
52141-37120

XZU341..6F..295T;BU30#,XZU341..(175T,20T,30T)..(DSL,LPG);BU346,RZU300,340,XZU301,302,306,307,322,331,337,342,346,347,362..(03S,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)..(CBU,IV3)

ﾏｰｸ=R3

 1
52141-37110

XZU341..6F..295T;BU30#,346,RZU300,340,XZU341..(175T,20T,30T)..(DSL,EFI,LPG);XZU300,301,302,306,307,322,33#,340,342,346,347..(03S,T2,T3,T4,T5)..(20T,295T,30T)..(CNG,DSL,LPG)..(CBU,IV3)

ﾏｰｸ=R2

 1
52142C - STAY, FRONT BUMPER, LH
52142-37080

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,321,322,337,341,342,346,347,351,352

ﾏｰｸ=L1

 1
52142-37100

XZU341..6F..295T;BU30#,XZU341..(175T,20T,30T)..(DSL,LPG);BU346,RZU300,340,XZU301,302,306,307,322,331,337,342,346,347,362..(03S,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)..(CBU,IV3)

ﾏｰｸ=L3

 1
52142-37090

XZU341..6F..295T;BU30#,346,RZU300,340,XZU341..(175T,20T,30T)..(DSL,EFI,LPG);XZU300,301,302,306,307,322,33#,340,342,346,347..(03S,T2,T3,T4,T5)..(20T,295T,30T)..(CNG,DSL,LPG)..(CBU,IV3)

ﾏｰｸ=L2

 1
52711 - MOULDING, FRONT BUMPER
52711-37020B0

XZU302..T3;BU346..T2..IV3;RZU300..30T..LPG;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;XZU306,322..T5..5F..DSL;XZU302..(T4,T5)..DSL..4NO;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..DSL..(CBU,IV3);BU346,XZU341,342..(T3,T4)..(DSL,DSLL);RZU300,XZU306..SCB..(T2,T3,T4)..(DSL,EFI);BU30#,BZU300,340,RZU301,340,XZU300,307,33#,340,346,347,362..SCB..(T1,T2,T3,T4,T5)

SILVER ME.,199

 2
52711-37020H0

XZU302..T3;XZU347..DCB..5F;RZU300..30T..LPG;XZU306..4FC..DSLL;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU306,322..T5..5F..DSL;XZU302..(T4,T5)..DSL..4NO;XZU301..T4..(CBU,IV3)..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;XZU301..(T3,T5)..DSL..(CBU,IV3);XZU306,347..SCB..(T2,T3,T4)..DSL;BU30#,346,BZU300,340,RZU301,340,XZU300,307,33#,340,346,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

TURQUOISE,766

 2
52711-37020A0

XZU302..T3;XZU347..DCB..5F;RZU300..30T..LPG;XZU306..4FC..DSLL;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU306,322..T5..5F..DSL;XZU302..(T4,T5)..DSL..4NO;XZU301..T4..(CBU,IV3)..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;XZU301..(T3,T5)..DSL..(CBU,IV3);XZU306,347..SCB..(T2,T3,T4)..DSL;BU30#,346,BZU300,340,RZU301,340,XZU300,307,33#,340,346,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

WHITE,058

 2
52711-37040

RZU300..30T..LPG;XZU341..6F..295T;XZU341..(20T,30T)..DSL;BU30#,346,RZU300,340,XZU301,302,306,307,322,331,337,342,346,347..(03S,06S,T1,T2,T3,T4,T5)..(DSL,EFI)..(CBU,IV3)

塗装不要,ｱﾘ(ﾒﾂｷ ﾊﾞﾝﾊﾟ)

 2
52711-37020J0

XZU302..T3;XZU347..DCB..5F;RZU300..30T..LPG;XZU306..4FC..DSLL;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU306,322..T5..5F..DSL;XZU302..(T4,T5)..DSL..4NO;XZU301..T4..(CBU,IV3)..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;XZU301..(T3,T5)..DSL..(CBU,IV3);XZU306,347..SCB..(T2,T3,T4)..DSL;BU30#,346,BZU300,340,RZU301,340,XZU300,307,33#,340,346,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

BLUE,8P0

 2
52711 - MOULDING, FRONT BUMPER
52711-37020B0

XZU302..T3;BU346..T2..IV3;RZU300..30T..LPG;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;XZU306,322..T5..5F..DSL;XZU302..(T4,T5)..DSL..4NO;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..DSL..(CBU,IV3);BU346,XZU341,342..(T3,T4)..(DSL,DSLL);RZU300,XZU306..SCB..(T2,T3,T4)..(DSL,EFI);BU30#,BZU300,340,RZU301,340,XZU300,307,33#,340,346,347,362..SCB..(T1,T2,T3,T4,T5)

SILVER ME.,199

 2
52711-37020H0

XZU302..T3;XZU347..DCB..5F;RZU300..30T..LPG;XZU306..4FC..DSLL;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU306,322..T5..5F..DSL;XZU302..(T4,T5)..DSL..4NO;XZU301..T4..(CBU,IV3)..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;XZU301..(T3,T5)..DSL..(CBU,IV3);XZU306,347..SCB..(T2,T3,T4)..DSL;BU30#,346,BZU300,340,RZU301,340,XZU300,307,33#,340,346,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

TURQUOISE,766

 2
52711-37020A0

XZU302..T3;XZU347..DCB..5F;RZU300..30T..LPG;XZU306..4FC..DSLL;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU306,322..T5..5F..DSL;XZU302..(T4,T5)..DSL..4NO;XZU301..T4..(CBU,IV3)..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;XZU301..(T3,T5)..DSL..(CBU,IV3);XZU306,347..SCB..(T2,T3,T4)..DSL;BU30#,346,BZU300,340,RZU301,340,XZU300,307,33#,340,346,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

WHITE,058

 2
52711-37040

RZU300..30T..LPG;XZU341..6F..295T;XZU341..(20T,30T)..DSL;BU30#,346,RZU300,340,XZU301,302,306,307,322,331,337,342,346,347..(03S,06S,T1,T2,T3,T4,T5)..(DSL,EFI)..(CBU,IV3)

塗装不要,ｱﾘ(ﾒﾂｷ ﾊﾞﾝﾊﾟ)

 2
52711-37020J0

XZU302..T3;XZU347..DCB..5F;RZU300..30T..LPG;XZU306..4FC..DSLL;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU306,322..T5..5F..DSL;XZU302..(T4,T5)..DSL..4NO;XZU301..T4..(CBU,IV3)..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;XZU301..(T3,T5)..DSL..(CBU,IV3);XZU306,347..SCB..(T2,T3,T4)..DSL;BU30#,346,BZU300,340,RZU301,340,XZU300,307,33#,340,346,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

BLUE,8P0

 2
57037B - STAY SUB-ASSY, FRONT STEP, RH
57037-37010

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU301,306..(SCB,VAN)..(03S,06S,T2,T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,T1,T2,T3,T4,T5)..(CBU,IV3)

 1
57038A - STAY SUB-ASSY, FRONT STEP, LH
57038-37060

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU301,306..(SCB,VAN)..(03S,06S,T2,T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,T1,T2,T3,T4,T5)..(CBU,IV3)

 1
61415D - PANEL, FRONT STEP UNDER, RH
61415-37020H0

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU301,306..(SCB,VAN)..(03S,06S,T2,T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,T1,T2,T3,T4,T5)..(CBU,IV3)

TURQUOISE,766

 1
61415-37020B0

BU346..T2..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU346,XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..SCB..(T1,T2,T3,T4,T5)

SILVER ME.,199

 1
61415-37030

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU301,306..(SCB,VAN)..(03S,06S,T2,T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,T1,T2,T3,T4,T5)..(CBU,IV3)

ﾒﾂｷ

 1
61415-37020A0

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU301,306..(SCB,VAN)..(03S,06S,T2,T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,T1,T2,T3,T4,T5)..(CBU,IV3)

WHITE,058

 1
61415-37020J0

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU301,306..(SCB,VAN)..(03S,06S,T2,T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,T1,T2,T3,T4,T5)..(CBU,IV3)

BLUE,8P0

 1
61416D - PANEL, FRONT STEP UNDER, LH
61416-37020B0

BU346..T2..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU346,XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..SCB..(T1,T2,T3,T4,T5)

SILVER ME.,199

 1
61416-37030

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU301,306..(SCB,VAN)..(03S,06S,T2,T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,T1,T2,T3,T4,T5)..(CBU,IV3)

ﾒﾂｷ

 1
61416-37020J0

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU301,306..(SCB,VAN)..(03S,06S,T2,T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,T1,T2,T3,T4,T5)..(CBU,IV3)

BLUE,8P0

 1
61416-37020H0

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU301,306..(SCB,VAN)..(03S,06S,T2,T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,T1,T2,T3,T4,T5)..(CBU,IV3)

TURQUOISE,766

 1
61416-37020A0

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU306,XZU301,306..(SCB,VAN)..(03S,06S,T2,T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,T1,T2,T3,T4,T5)..(CBU,IV3)

WHITE,058

 1
76851C - FRONT SPOILER
52102-37010A1

XZU302..T3;XZU347..DCB..5F;RZU300..30T..LPG;XZU306..4FC..DSLL;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU306,322..T5..5F..DSL;XZU302..(T4,T5)..DSL..4NO;XZU301..T4..(CBU,IV3)..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;XZU301..(T3,T5)..DSL..(CBU,IV3);XZU306,347..SCB..(T2,T3,T4)..DSL;BU30#,346,BZU300,340,RZU301,340,XZU300,307,33#,340,346,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

WHITE,058

 1
52102-37010J1

XZU302..T3;XZU347..DCB..5F;RZU300..30T..LPG;XZU306..4FC..DSLL;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU306,322..T5..5F..DSL;XZU302..(T4,T5)..DSL..4NO;XZU301..T4..(CBU,IV3)..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;XZU301..(T3,T5)..DSL..(CBU,IV3);XZU306,347..SCB..(T2,T3,T4)..DSL;BU30#,346,BZU300,340,RZU301,340,XZU300,307,33#,340,346,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

BLUE,8P0

 1
52102-37020

RZU300..30T..LPG;XZU341..6F..295T;XZU341..(20T,30T)..DSL;BU30#,346,RZU300,340,XZU301,302,306,307,322,331,337,342,346,347..(03S,06S,T1,T2,T3,T4,T5)..(DSL,EFI)..(CBU,IV3)

ﾒﾂｷ

 1
52102-37010B1

XZU302..T3;BU346..T2..IV3;RZU300..30T..LPG;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;XZU306,322..T5..5F..DSL;XZU302..(T4,T5)..DSL..4NO;XZU301..T4..(CBU,IV3)..4NO;XZU301..(T3,T5)..DSL..(CBU,IV3);BU346,XZU341,342..(T3,T4)..(DSL,DSLL);RZU300,XZU306..SCB..(T2,T3,T4)..(DSL,EFI);BU30#,BZU300,340,RZU301,340,XZU300,307,33#,340,346,347,362..SCB..(T1,T2,T3,T4,T5)

SILVER ME.,199

 1
52102-37010H1

XZU302..T3;XZU347..DCB..5F;RZU300..30T..LPG;XZU306..4FC..DSLL;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU306,322..T5..5F..DSL;XZU302..(T4,T5)..DSL..4NO;XZU301..T4..(CBU,IV3)..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;XZU301..(T3,T5)..DSL..(CBU,IV3);XZU306,347..SCB..(T2,T3,T4)..DSL;BU30#,346,BZU300,340,RZU301,340,XZU300,307,33#,340,346,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

TURQUOISE,766

 1
Common parts
82711-34040
90119-08521
90179-08123
91641-C0814
91651-B0825

(0206- )

Click highlighted areas on diagram

ｼﾞﾕｼ ﾀｲﾌﾟ

diagram 52011A 52012A 52111E 9011908521 9011908521 9011908699 9011908699 9017906127 9095003128 9095003128
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-37050

BU30#,346,RZU300,340,XZU302,306..(03S,06S,DM3,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG);XZU301,307,31#,32#,331,337,341,342,346,347,351,352..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3)

 1
52011-37051

XZU301..DSLL..4NO;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU30#,346,BZU300,340,XZU301,306..(03S,06S,DM3,T1,T2,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3);RZU30#,340,XZU302,307,31#,32#,331,337,341,342,346,347,351,352..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(CBU,IV3)

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-37050

XZU301..DSLL..4NO;XZU306..4FC..DSLL;XZU306..5F..DSLL..CBU;BU30#,346,BZU300,340,XZU301,306..(03S,06S,DM3,T1,T2,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3);RZU30#,340,XZU302,307,31#,32#,331,337,341,342,346,347,351,352..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(CBU,IV3)

 1
52111E - BAR, FRONT BUMPER
52101-37130B0

BU346..T2..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU346,XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..SCB..(T1,T2,T3,T4,T5)

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),SILVER ME.,199

 1
52101-37130A0

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),WHITE,058

 1
52101-37170J1

XZU306..T5..DSLL;XZU382..SCB..IV3;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..SCB..30T..DSL;XZU306..4FC..DSLL..IV3;XZU301,306..(20T,295T)..(CNG,DSL,LPG);XZU311,341,362..(DM5,T3,T4)..(DSL,DSLL);BU30#,346,RZU300,340..SCB..(DM6,T3,T4)..20T..IV3;BZU300,340,RZU301,XZU300,302,307,312,32#,33#,340,342,346,347,35#..SCB

BLUE,8P0

 1
52101-37140

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

ﾒｯｷ,ﾒﾂｷ ﾊﾞﾝﾊﾟ & ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ)

 1
52101-37130J1

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),BLUE,8P0

 1
52101-37180

XZU306..T5..DSLL;XZU382..SCB..IV3;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,306,331,362..(DM3,DM5,DM6,T3,T4,T5)..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#

ﾒｯｷ,ﾒﾂｷ ﾊﾞﾝﾊﾟ

 1
52101-37170H0

XZU306..T5..DSLL;XZU382..SCB..IV3;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..SCB..30T..DSL;XZU306..4FC..DSLL..IV3;XZU301,306..(20T,295T)..(CNG,DSL,LPG);XZU311,341,362..(DM5,T3,T4)..(DSL,DSLL);BU30#,346,RZU300,340..SCB..(DM6,T3,T4)..20T..IV3;BZU300,340,RZU301,XZU300,302,307,312,32#,33#,340,342,346,347,35#..SCB

TURQUOISE,766

 1
52101-37170B0

XZU341..DSL,DSLL;XZU306..T5..DSLL;XZU382..SCB..IV3;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(T3,T4,T5)..DSL;BU30#,346,RZU300,340..SCB..(T3,T4)..20T..IV3;BZU300,340,RZU301,XZU300,302,307,322,33#,340,342,346,347,350,362..SCB..(T2,T3,T4,T5)

SILVER ME.,199

 1
52101-37130H0

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),TURQUOISE,766

 1
52101-37170A0

XZU331..DSL;XZU382..SCB..IV3;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..4FC..30T..DSL;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301..5F..30T..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..30T..(CBU,IV4,IV6,IV7);XZU301,306..(20T,295T)..(CNG,DSL,LPG);XZU311,341,362..(DM5,T3,T4)..(DSL,DSLL);BU30#,346,RZU300,340..SCB..(DM6,T3,T4)..20T..IV3;BZU300,340,RZU301,XZU300,302,307,312,32#,330,337,340,342,346,347,35#..SCB

WHITE,058

 1
52111-37300

BU301;XZU382..SCB..IV3;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU307,31#,32#,33#,340,341,342,346,347,351,352..(20T,295T,30T)..(CBU,IV3);BU306,346,BZU300,340,RZU30#,340,XZU300,301,302,306,362..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)..(CBU,IV3)

塗装不要,ｼﾞﾕｼ ﾀｲﾌﾟ(ﾚｽ ｶﾗ-)

 1
Common parts
90119-08521
90119-08699
90179-06127
90950-03128

(9905- )XZU362..4NO ; (9905- )BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,

Click highlighted areas on diagram

ｽﾁｰﾙ ﾀｲﾌﾟ

diagram 52111E 52141D 52142C 9011908521 9011908521 9017908123 9017908123
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52101-37130B0

BU346..T2..IV3;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU346,XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..SCB..(T1,T2,T3,T4,T5)

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),SILVER ME.,199

 1
52101-37130A0

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),WHITE,058

 1
52101-37170J1

XZU306..T5..DSLL;XZU382..SCB..IV3;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..SCB..30T..DSL;XZU306..4FC..DSLL..IV3;XZU301,306..(20T,295T)..(CNG,DSL,LPG);XZU311,341,362..(DM5,T3,T4)..(DSL,DSLL);BU30#,346,RZU300,340..SCB..(DM6,T3,T4)..20T..IV3;BZU300,340,RZU301,XZU300,302,307,312,32#,33#,340,342,346,347,35#..SCB

BLUE,8P0

 1
52101-37140

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

ﾒｯｷ,ﾒﾂｷ ﾊﾞﾝﾊﾟ & ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ)

 1
52101-37130J1

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),BLUE,8P0

 1
52101-37180

XZU306..T5..DSLL;XZU382..SCB..IV3;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,306,331,362..(DM3,DM5,DM6,T3,T4,T5)..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#

ﾒｯｷ,ﾒﾂｷ ﾊﾞﾝﾊﾟ

 1
52101-37170H0

XZU306..T5..DSLL;XZU382..SCB..IV3;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..SCB..30T..DSL;XZU306..4FC..DSLL..IV3;XZU301,306..(20T,295T)..(CNG,DSL,LPG);XZU311,341,362..(DM5,T3,T4)..(DSL,DSLL);BU30#,346,RZU300,340..SCB..(DM6,T3,T4)..20T..IV3;BZU300,340,RZU301,XZU300,302,307,312,32#,33#,340,342,346,347,35#..SCB

TURQUOISE,766

 1
52101-37170B0

XZU341..DSL,DSLL;XZU306..T5..DSLL;XZU382..SCB..IV3;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(T3,T4,T5)..DSL;BU30#,346,RZU300,340..SCB..(T3,T4)..20T..IV3;BZU300,340,RZU301,XZU300,302,307,322,33#,340,342,346,347,350,362..SCB..(T2,T3,T4,T5)

SILVER ME.,199

 1
52101-37130H0

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),TURQUOISE,766

 1
52101-37170A0

XZU331..DSL;XZU382..SCB..IV3;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..4FC..30T..DSL;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301..5F..30T..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..30T..(CBU,IV4,IV6,IV7);XZU301,306..(20T,295T)..(CNG,DSL,LPG);XZU311,341,362..(DM5,T3,T4)..(DSL,DSLL);BU30#,346,RZU300,340..SCB..(DM6,T3,T4)..20T..IV3;BZU300,340,RZU301,XZU300,302,307,312,32#,330,337,340,342,346,347,35#..SCB

WHITE,058

 1
52111-37300

BU301;XZU382..SCB..IV3;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU307,31#,32#,33#,340,341,342,346,347,351,352..(20T,295T,30T)..(CBU,IV3);BU306,346,BZU300,340,RZU30#,340,XZU300,301,302,306,362..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)..(CBU,IV3)

塗装不要,ｼﾞﾕｼ ﾀｲﾌﾟ(ﾚｽ ｶﾗ-)

 1
52141D - STAY, FRONT BUMPER, RH
52141-37100

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,321,322,337,341,342,346,347,351,352

ﾏｰｸ=R1

 1
52141-37120

XZU341..6F..295T;BU30#,XZU341..(175T,20T,30T)..(DSL,LPG);BU346,RZU300,340,XZU301,302,306,307,322,331,337,342,346,347,362..(03S,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)..(CBU,IV3)

ﾏｰｸ=R3

 1
52141-37110

XZU341..6F..295T;BU30#,346,RZU300,340,XZU341..(175T,20T,30T)..(DSL,EFI,LPG);XZU300,301,302,306,307,322,33#,340,342,346,347..(03S,T2,T3,T4,T5)..(20T,295T,30T)..(CNG,DSL,LPG)..(CBU,IV3)

ﾏｰｸ=R2

 1
52142C - STAY, FRONT BUMPER, LH
52142-37080

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,321,322,337,341,342,346,347,351,352

ﾏｰｸ=L1

 1
52142-37100

XZU341..6F..295T;BU30#,XZU341..(175T,20T,30T)..(DSL,LPG);BU346,RZU300,340,XZU301,302,306,307,322,331,337,342,346,347,362..(03S,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)..(CBU,IV3)

ﾏｰｸ=L3

 1
52142-37090

XZU341..6F..295T;BU30#,346,RZU300,340,XZU341..(175T,20T,30T)..(DSL,EFI,LPG);XZU300,301,302,306,307,322,33#,340,342,346,347..(03S,T2,T3,T4,T5)..(20T,295T,30T)..(CNG,DSL,LPG)..(CBU,IV3)

ﾏｰｸ=L2

 1
Common parts
90119-08521
90179-08123

(9905- )

Click highlighted areas on diagram

diagram 52011A 52012A 52111E 52141D 52142C 52147E 52147E 52148E 52148E 9011908521 9011908521 9011908521 9011908521 9011908521 9011908521 9017908123 9017908123 91635G0835 91635G0835
Part # Description Qty Price
Common parts
90119-08521
90179-08123
91635-G0835

(9905- )

Click highlighted areas on diagram

ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ)

diagram 52011A 52012A 52111E 52133B 52134B 52141D 52142C 52711 52711 57037C 61415D 61416D 76851C 9011908521 9011908521 9017908123 9017908123 9017908123 9056010008 91621J0814 91635G0835 91635G0835 9165160818 9165160830 91651B0825
Part # Description Qty Price
Common parts
90119-08521
90179-08123
90560-10008
91621-J0814
91635-G0835
91651-60818
91651-60830
91651-B0825

(0206-0406)

Click highlighted areas on diagram

ｼﾞﾕｼﾀｲﾌﾟ(ﾚｽ ｶﾗ-)

diagram 52011A 52012A 52111E 52141D 52142C 52147E 52148E 9011908521 9011908521 9011908699 9011908699 9017906127 9095003128 9095003128 91635G0835 91635G0835
Part # Description Qty Price
Common parts
90119-08521
90119-08699
90179-06127
90950-03128
91635-G0835
