XZU341-TQPQS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004
Engine S05D
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

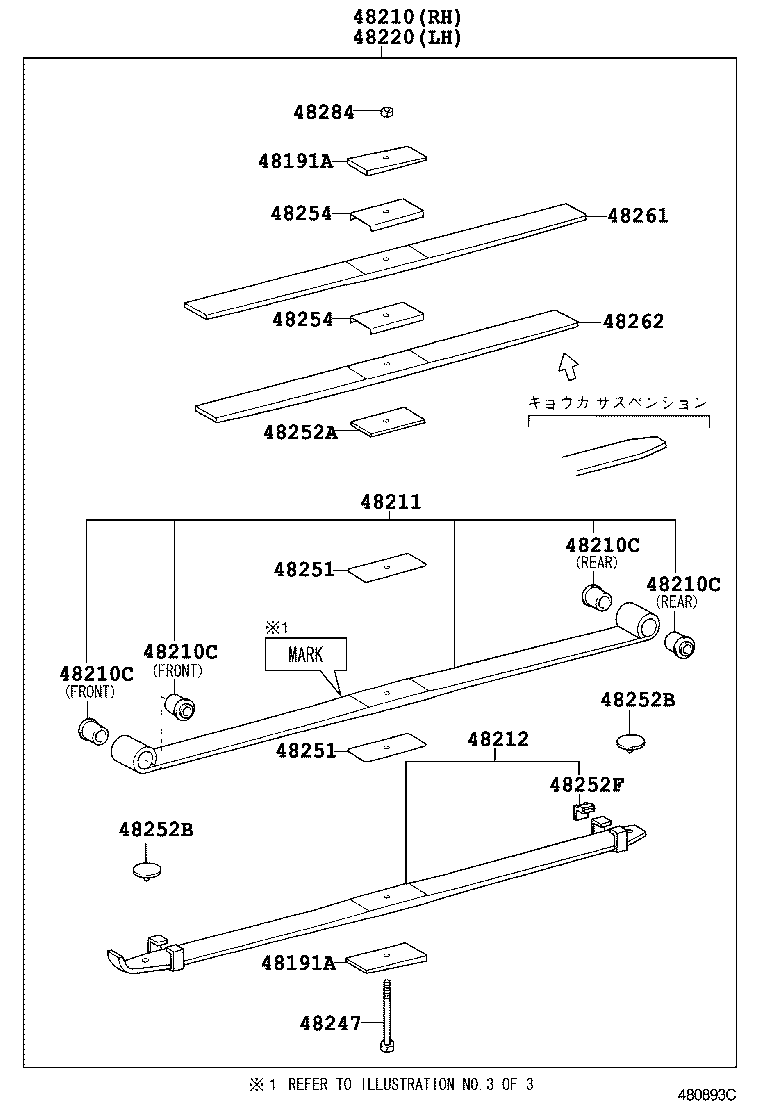

ILLUST NO. 2 OF 3(9905-0406)RZU300,XZU301..SCB..T3..DSLL,EFI ; (9905-0406)BU346,BZU340,RZU340,XZU341

Click highlighted areas on diagram

MAIN 2+HELPER 2-LEAF

diagram 48191A 48191A 48210 48210C 48210C 48210C 48210C 48211 48212 48220 48247 48251 48251 48252A 48252B 48252B 48252F 48254 48254 48261 48262 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37030

XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 4
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37030

XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 4
48210 - SPRING ASSY, REAR RH
48210-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 1
48210-37830

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 8
48211 - LEAF, REAR SPRING, NO.1
48201-37570

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48201-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48212 - LEAF, REAR SPRING, NO.2
48212-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48212-37570

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48220 - SPRING ASSY, REAR LH
48210-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 1
48210-37830

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 2
48251 - SPACER, REAR SPRING LEAF
48282-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 6
48251 - SPACER, REAR SPRING LEAF
48282-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 6
48252B - SILENCER, REAR SPRING, NO.1
48252-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 8
48254 - SPACER, REAR SPRING LEAF
48282-37711

XZU341..6F..295T;XZU301,331..5F..DSLL..IV4;XZU331,340,341..30T..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 4
48282-37710

XZU301,331..5F..DSLL..IV4;XZU331,340,341..(295T,30T)..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)

 4
48254 - SPACER, REAR SPRING LEAF
48282-37711

XZU341..6F..295T;XZU301,331..5F..DSLL..IV4;XZU331,340,341..30T..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 4
48282-37710

XZU301,331..5F..DSLL..IV4;XZU331,340,341..(295T,30T)..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)

 4
48261 - LEAF, REAR HELPER SPRING, NO.1
48261-37830

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48261-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48262-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48262-37830

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48284 - NUT, REAR SPRING CENTER BOLT
48155-3B470

XZU331..DSL;XZU340,341..4FC,6F;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,350,37#,382..T3..(295T,30T,40T)..(DSL,EFI,LPG)

 2

ILLUST NO. 1 OF 3(9905-0406)XZU341..LPG ; (9905-0406)XZU302..CNG,DSL ; (9905-0406)RZU300,XZU300,301,

Click highlighted areas on diagram

diagram 17515A 48042 48046 48046A 48046A 48047 48210Q 48210Q 48344 48344 48422A 48530 48530A 48530A 48530B 48530B 48533 48533A 48540 48740 9010120001 9010120002 9010516021 9010516075 9011908336 9011912088 9011912088 9017016016 9017016016 9017916030 9017920007 9020116035 9020116035 9020116035 91645C1032 9413061600 9418461001 9462242000 9462242000
Part # Description Qty Price
48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2
48042-37020

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 2
48042-37020

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48473-37180

XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG)

 1
48473-37180

XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG)

 1
48473-37180

BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T)

 1
48473-37180

BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T)

 1
48473-37180

XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T)

 1
48473-37180

XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T)

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-16024

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)

長さ=310

 4
90117-16024

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)

長さ=310

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-16024

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)

長さ=310

 4
90117-16024

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)

長さ=310

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48473-37180

BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T)

 1
48473-37180

BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T)

 1
48473-37180

XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG)

 1
48473-37180

XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG)

 1
48473-37180

XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T)

 1
48473-37180

XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T)

 1
48210Q - BUSH(FOR REAR SPRING SHACKLE)
90389-16026

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
90389-16026

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
48210Q - BUSH(FOR REAR SPRING SHACKLE)
90389-16026

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
90389-16026

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 4
48344 - STOPPER, BUMPER, REAR
48344-37200

XZU331,340,341..295T,30T;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)

 2
48344-37200

XZU331,340,341..295T,30T;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)

 2
48344 - STOPPER, BUMPER, REAR
48344-37200

XZU331,340,341..295T,30T;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)

 2
48344-37200

XZU331,340,341..295T,30T;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)

 2
48422A - SUPPORT, REAR SPRING PIN
48422-37010

BZU300,RZU300,XZU300,301,302..T3;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,37#,382..20T,295T,30T

 2
48422-37010

BZU300,RZU300,XZU300,301,302..T3;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,37#,382..20T,295T,30T

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80673

XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347..20T,295T,30T

ﾏｰｸ 48531−37010

 1
48531-80673

XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347..20T,295T,30T

ﾏｰｸ 48531−37010

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19011

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 4
90385-19011

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 4
90385-19011

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382

 4
90385-19011

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19011

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 4
90385-19011

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 4
90385-19011

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382

 4
90385-19011

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382

 4
90948-03011

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382

 4
90948-03011

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 4
90948-03011

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382

 4
90948-03011

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382

 4
90948-03011

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 4
90948-03011

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80673

XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347..20T,295T,30T

ﾏｰｸ 48531−37010

 1
48531-80673

XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347..20T,295T,30T

ﾏｰｸ 48531−37010

 1
Common parts
90101-20001
90101-20002
90105-16021
90105-16075
90119-08336
90119-12088
90170-16016
90179-16030
90179-20007
90201-16035
91645-C1032
94130-61600
94184-61001
94622-42000

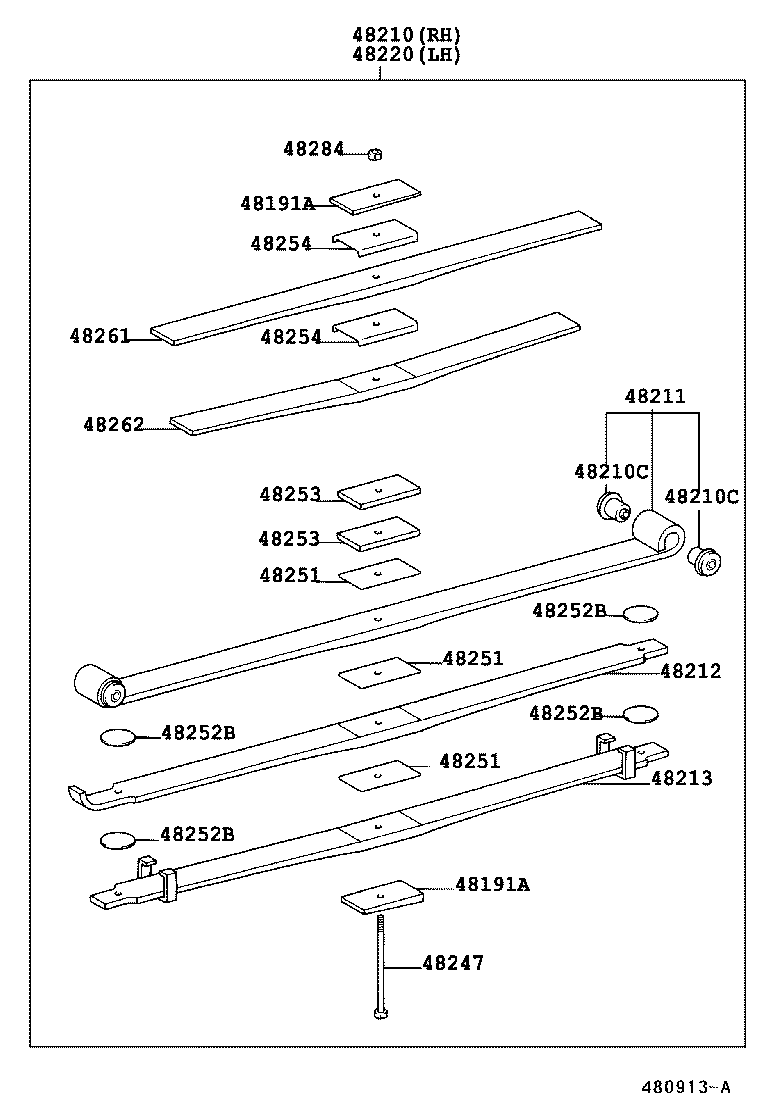

ILLUST NO. 2 OF 3(9905-0406)XZU344..30T ; (9905-0406)XZU331,340,341..20T,295T,30T

Click highlighted areas on diagram

MAIN 3+HELPER 2-LEAF

diagram 48191A 48191A 48210 48210C 48210C 48211 48212 48213 48220 48247 48251 48251 48251 48252B 48252B 48252B 48252B 48253 48253 48254 48254 48261 48262 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37030

XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 4
48192-37030

XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 4
48192-37030

XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 4
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37030

XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 4
48192-37030

XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 4
48192-37030

XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 4
48210 - SPRING ASSY, REAR RH
48210-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 1
48210-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 1
48210-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 1
48210-37830

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 1
48210-37830

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 1
48210-37830

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 8
90389-16026

XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 8
90389-16026

XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 8
90389-16026

XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 8
90389-16026

XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T

 8
48211 - LEAF, REAR SPRING, NO.1
48201-37570

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48201-37570

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48201-37570

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48201-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48201-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48201-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48212 - LEAF, REAR SPRING, NO.2
48212-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48212-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48212-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48212-37570

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48212-37570

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48212-37570

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48213 - LEAF, REAR SPRING, NO.3
48204-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48204-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48204-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48204-37570

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48204-37570

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48204-37570

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48220 - SPRING ASSY, REAR LH
48210-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 1
48210-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 1
48210-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 1
48210-37830

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 1
48210-37830

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 1
48210-37830

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 2
48247-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 2
48247-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 2
48251 - SPACER, REAR SPRING LEAF
48282-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 6
48282-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 6
48282-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 6
48251 - SPACER, REAR SPRING LEAF
48282-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 6
48282-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 6
48282-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 6
48251 - SPACER, REAR SPRING LEAF
48282-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 6
48282-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 6
48282-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 6
48252B - SILENCER, REAR SPRING, NO.1
48252-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 8
48252-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 8
48252-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 8
48252-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 8
48252-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 8
48252-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 8
48252-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 8
48252-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 8
48252-37570

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG)

 8
48253 - SPACER, REAR SPRING, NO.1
48263-37710

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 4
48263-37710

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 4
48263-37710

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 4
48253 - SPACER, REAR SPRING, NO.1
48263-37710

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 4
48263-37710

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 4
48263-37710

XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 4
48254 - SPACER, REAR SPRING LEAF
48282-37711

XZU341..6F..295T;XZU301,331..5F..DSLL..IV4;XZU331,340,341..30T..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 4
48282-37711

XZU341..6F..295T;XZU301,331..5F..DSLL..IV4;XZU331,340,341..30T..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 4
48282-37711

XZU341..6F..295T;XZU301,331..5F..DSLL..IV4;XZU331,340,341..30T..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 4
48282-37710

XZU301,331..5F..DSLL..IV4;XZU331,340,341..(295T,30T)..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)

 4
48282-37710

XZU301,331..5F..DSLL..IV4;XZU331,340,341..(295T,30T)..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)

 4
48282-37710

XZU301,331..5F..DSLL..IV4;XZU331,340,341..(295T,30T)..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)

 4
48254 - SPACER, REAR SPRING LEAF
48282-37711

XZU341..6F..295T;XZU301,331..5F..DSLL..IV4;XZU331,340,341..30T..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 4
48282-37711

XZU341..6F..295T;XZU301,331..5F..DSLL..IV4;XZU331,340,341..30T..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 4
48282-37711

XZU341..6F..295T;XZU301,331..5F..DSLL..IV4;XZU331,340,341..30T..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6)

 4
48282-37710

XZU301,331..5F..DSLL..IV4;XZU331,340,341..(295T,30T)..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)

 4
48282-37710

XZU301,331..5F..DSLL..IV4;XZU331,340,341..(295T,30T)..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)

 4
48282-37710

XZU301,331..5F..DSLL..IV4;XZU331,340,341..(295T,30T)..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)

 4
48261 - LEAF, REAR HELPER SPRING, NO.1
48261-37830

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48261-37830

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48261-37830

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48261-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48261-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48261-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48262-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48262-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48262-37710

XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T

MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48262-37830

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48262-37830

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48262-37830

XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T

ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ

 2
48284 - NUT, REAR SPRING CENTER BOLT
48155-3B470

XZU331..DSL;XZU340,341..4FC,6F;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,350,37#,382..T3..(295T,30T,40T)..(DSL,EFI,LPG)

 2
48155-3B470

XZU331..DSL;XZU340,341..4FC,6F;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,350,37#,382..T3..(295T,30T,40T)..(DSL,EFI,LPG)

 2
48155-3B470

XZU331..DSL;XZU340,341..4FC,6F;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,350,37#,382..T3..(295T,30T,40T)..(DSL,EFI,LPG)

 2

ILLUST NO. 3 OF 3(9905- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

ILLUST NO. 1 OF 2(9905-0406)BU400,410,420,430,BZU410,XZU40#,41#,42#,430

Click highlighted areas on diagram

ﾒﾀﾙﾌﾞｯｼｭﾀｲﾌﾟ

diagram 48042 48046 48046A 48046A 48047 48210Q 48323D 48323D 48323D 48323E 48323E 48323E 48344 48435 48435 48475R 48481 48516 48517 48530 48530A 48530A 48530B 48530B 48540 5151 9003101172 9003101172 9003179042 9003201143 9003204031 9003204031 9003204031 9010110081 9010110081 9011912088 9011912088 9017016016 9017916030 9020116035 9020116035 9111281025 9413001002 9413001002 9413001002 9418461001 9418461001 9418461001
Part # Description Qty Price
Common parts
90031-01172
90031-79042
90032-01143
90032-04031
90101-10081
90119-12088
90170-16016
90179-16030
90201-16035
91112-81025
94130-01002
94184-61001
Linked diagrams
5151

ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU

Click highlighted areas on diagram

MAIN 7+HELPER 6-LEAF

diagram 48191A 48210 48210C 48211 48212 48213 48214 48215 48216 48217 48220 48247 48251 48251 48251 48251 48251 48251 48251 48251 48251 48251 48251 48252A 48252A 48252A 48253 48253D 48254 48261 48262 48263 48264 48265 48266 48284
Part # Description Qty Price

ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU

Click highlighted areas on diagram

MAIN 7+HELPER 6-LEAF,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ

diagram 48191A 48210 48210C 48211 48212 48213 48214 48215 48216 48217 48220 48247 48251 48251 48251 48251 48251 48251 48251 48251 48251 48251 48251 48252A 48254 48254 48254 48254 48261 48262 48263 48264 48265 48266 48284
Part # Description Qty Price

ILLUST NO. 2 OF 2(0206-0406)BU410,420,BZU410,XZU402,410,412,414,421..T4,T5..20T..IV3 ; (0406-0610)XZ

Click highlighted areas on diagram

MAIN 2+HELPER 2-LEAF,TYPE:D

diagram 48191A 48210 48210C 48210C 48211 48212 48220 48247 48251 48251 48252 48252B 48252B 48253 48253 48253 48253 48253 48254 48254 48261 48262 48284
Part # Description Qty Price

ILLUST NO. 2 OF 2(9905-0406)BU410,420,430,BZU410,XZU401,410,411,412,42#..30T,35T..IV3 ; (0406-0705)X

Click highlighted areas on diagram

MAIN 2+HELPER 2-LEAF,TYPE:B

diagram 48191A 48210 48210C 48210C 48211 48212 48220 48247 48251 48251 48252 48252B 48252B 48253 48254 48254 48261 48262 48284
Part # Description Qty Price

ILLUST NO. 1 OF 2(9905-0406)BU400,410,420,430,BZU410,XZU40#,41#,42#,430

Click highlighted areas on diagram

ﾗﾊﾞｰﾌﾞｯｼｭﾀｲﾌﾟ

diagram 48042 48046 48046A 48046A 48047 48210Q 48210Q 48344 48422A 48435 48435 48475R 48481 48516 48517 48530 48530A 48530A 48530B 48530B 48540 9003179042 9003201143 9003204031 9010516021 9010516070 9010516075 9011912088 9011912088 9017016016 9017016016 9017916030 9020116035 9020116035 9020116035 9111281025 91651B0820 9413001002 9418461001 9418461001 9418461001
Part # Description Qty Price
Common parts
90031-79042
90032-01143
90032-04031
90105-16021
90105-16070
90105-16075
90119-12088
90170-16016
90179-16030
90201-16035
91112-81025
91651-B0820
94130-01002
94184-61001
