XZU341-TQPQS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004
Engine S05D
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0406)XZU341 ; (9905-0406)XZU300,301,302,306,307,31#,32#,33#,340,342,346,347,3

Click highlighted areas on diagram

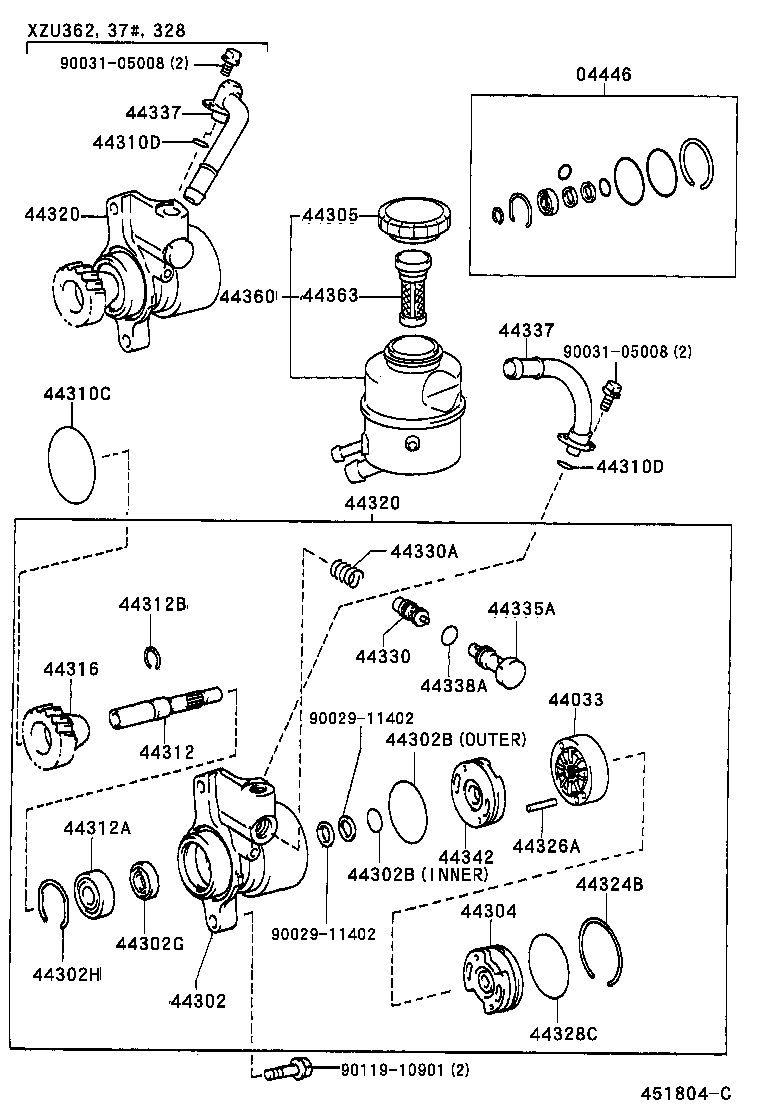

diagram 04446 44033 44302 44302B 44302B 44302G 44302H 44304 44305 44310C 44310D 44310D 44312 44312A 44312B 44316 44320 44320 44324B 44326A 44328C 44330 44330A 44335A 44337 44337 44338A 44342 44360 44363 9002911402 9002911402 9003105008 9003105008 9011910901
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-37010

XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
44033 - ROTOR SUB-ASSY, W/CAM & VANE
44033-60010

BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-37060

XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90029-20057

BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

外側

 1
90029-20056

BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

内側

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90029-20057

BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

外側

 1
90029-20056

BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

内側

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90029-21018

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90029-52010

XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-37060

XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-12030

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382

 1
44310C - RING, O(FOR VANE PUMP)
90301-60002

BU30#,346,BZU300,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
44310D - RING, O(FOR VANE PUMP UNION)
90301-15019

XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
44310D - RING, O(FOR VANE PUMP UNION)
90301-15019

XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
44312 - SHAFT, VANE PUMP
44312-60030

BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90029-36010

XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90029-52402

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
44316 - GEAR, VANE PUMP
44316-37010

XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
44320 - PUMP ASSY, VANE
44310-37060

XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..(20T,295T,30T)..(DSL,DSLL)

 1
44320 - PUMP ASSY, VANE
44310-37060

XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..(20T,295T,30T)..(DSL,DSLL)

 1
44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR)
90029-52012

XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90029-14205

BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

長さ=25.8

 2
44328C - RING, O(FOR PUMP HOUSING END)
90029-20058

BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
44330 - VALVE ASSY, FLOW CONTROL
40420-37060

BU301,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..(175T,20T,295T,30T)..(DSL,DSLL)

ﾏｰｸ B

 1
40410-37060

BU301,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..(175T,20T,295T,30T)..(DSL,DSLL)

ﾏｰｸ C

 1
44330-37060

BU301,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..(175T,20T,295T,30T)..(DSL,DSLL)

ﾏｰｸ D

 1
40430-37060

BU301,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..(175T,20T,295T,30T)..(DSL,DSLL)

ﾏｰｸ A

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90029-60013

BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
44335A - ORIFICE, FLOW CONTROL VALVE
44335-37010

XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-37080

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..DSL..(CBU,IV3);XZU300,302,307,31#,32#,33#,340,341,342,346,347,351,352..(DSL,DSLL)..(CBU,IV3)

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-37080

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..DSL..(CBU,IV3);XZU300,302,307,31#,32#,33#,340,341,342,346,347,351,352..(DSL,DSLL)..(CBU,IV3)

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
96711-19016

BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

外径=19.6,内径=15.8

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-37060

XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-37130

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#

 1
44363 - STRAINER, OIL(FOR VANE PUMP)
44363-37130

XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382

 1
Common parts
90029-11402
90031-05008
90119-10901

(9905-0206)DSL,DSLL ; (0206-0406)XZU382,40#,410,411,412,42#,430..SCB..DSL,DSLL

Click highlighted areas on diagram

diagram 04446 44033 44302 44302B 44302B 44302G 44302H 44304 44305 44310C 44310D 44310D 44312 44312A 44312B 44316 44320 44320 44324B 44326A 44328C 44330 44330A 44335A 44337 44337 44338A 44342 44360 44363 9002911402 9002911402 9003105008 9003105008 9003105009 9003105009 9011910901
Part # Description Qty Price
Common parts
90029-11402
90031-05008
90031-05009
90119-10901

(0310-0406)XZU414,415 ; (0406- )DCR,DCRL,DSL,DSLL ; (0610- )DCRTJ,DCRTK,DCRTL

Click highlighted areas on diagram

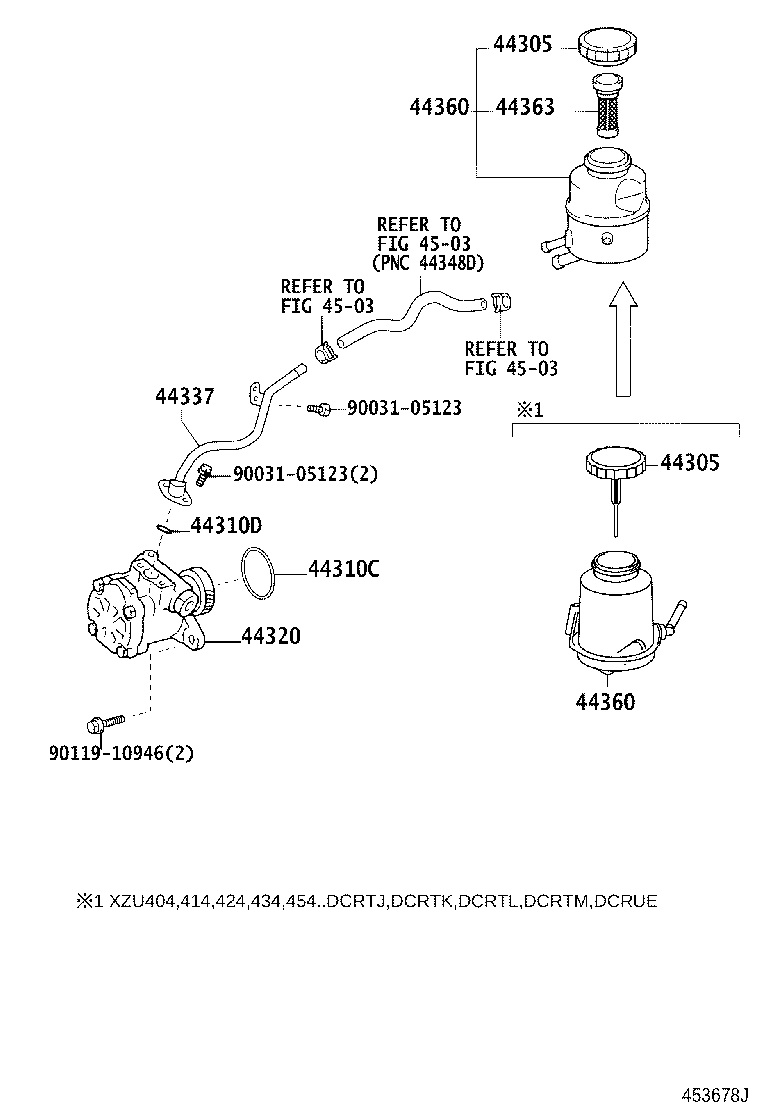

diagram 44305 44305 44310C 44310D 44320 44337 44360 44360 44363 4503 4503 4503 9003105123 9003105123 9011910946
Part # Description Qty Price
Common parts
90031-05123
90119-10946
Linked diagrams
4503
