XZU341-TQPQS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004
Engine S05D
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0406)XZU362..T4..CBU ; (9905-0406)XZU301,302,306,307,312,321,322,331,337,341,

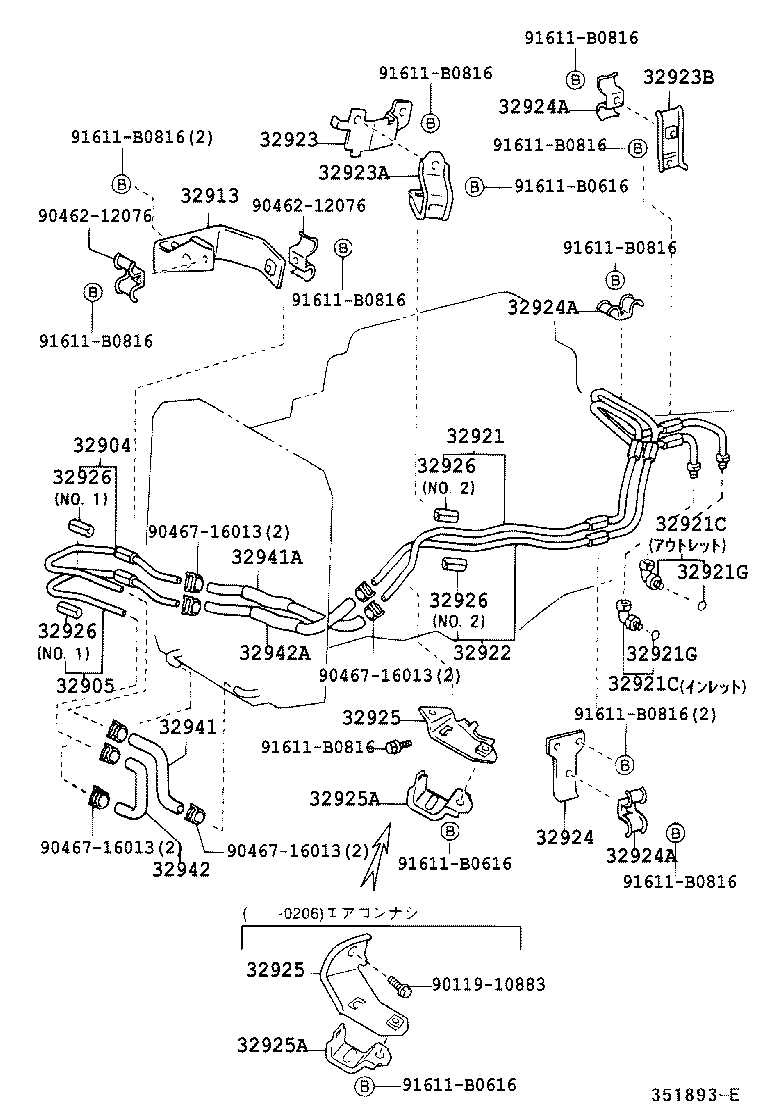

Click highlighted areas on diagram

A443E

diagram 32904 32905 32913 32921 32921C 32921C 32921G 32921G 32922 32923 32923A 32923B 32924 32924A 32924A 32924A 32925 32925 32925A 32925A 32926 32926 32926 32926 32941 32941A 32942 32942A 9011910883 9046212076 9046212076 9046716013 9046716013 9046716013 9046716013 91611B0616 91611B0616 91611B0616 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816
Part # Description Qty Price
32904 - TUBE SUB-ASSY, OIL COOLER INLET, NO.1
32906-37040

XZU301,302,306,307,312,321,322,331,337,341,347..4FC..(CBU,IV3,IV6)

 1
32906-37041

XZU301..SCB..4FC..DSL;XZU302,306,307,312,321,322,331,337,341,347,352..4FC..(CBU,IV3)

 1
32905 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1
32907-37030

XZU301..SCB..4FC..DSL;XZU302,306,307,312,321,322,331,337,341,347,352..4FC..(CBU,IV3)

 1
32913 - BRACKET, OIL COOLER
32913-37040

XZU301..SCB..4FC..DSL;XZU302,306,307,312,321,322,331,337,341,347,352..4FC..(CBU,IV3)

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-37050

XZU301..SCB..4FC..DSL;XZU302,306,307,312,321,322,331,337,341,347,352..4FC..(CBU,IV3)

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20008

RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

ｱｳﾄﾚｯﾄ

 1
90407-20006

XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

ｲﾝﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20008

RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

ｱｳﾄﾚｯﾄ

 1
90407-20006

XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

ｲﾝﾚｯﾄ

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

RZU301,XZU301,302,306,307,312,321,322,331,337,341,347,352..4FC

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-37050

XZU301..SCB..4FC..DSL;XZU302,306,307,312,321,322,331,337,341,347,352..4FC..(CBU,IV3)

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32927-37010

XZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32929-25020

XZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-25010

XZU301,331..4FC..DSL;RZU301,XZU302,306,307,312,321,322,337,341,347,352..4FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-37010

XZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

XZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC

 3
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

XZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC

 3
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

XZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC

 3
32925 - CLAMP, OIL COOLER TUBE, NO.3
32925-37030

XZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC

 1
32925-37040

XZU301,302,306,307,312,321,322,331,337,341,347..4FC

ﾅｼ(ｴｱｺﾝ)

 1
32925 - CLAMP, OIL COOLER TUBE, NO.3
32925-37030

XZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC

 1
32925-37040

XZU301,302,306,307,312,321,322,331,337,341,347..4FC

ﾅｼ(ｴｱｺﾝ)

 1
32925A - CLAMP, FLEXIBLE HOSE, NO.2
32929-25020

XZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC

 1
32925A - CLAMP, FLEXIBLE HOSE, NO.2
32929-25020

XZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

XZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC

長さ=45,内径=12

 10
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

XZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC

長さ=45,内径=12

 10
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

XZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC

長さ=45,内径=12

 10
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

XZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC

長さ=45,内径=12

 10
32941 - HOSE, OIL COOLER INLET, NO.1
32941-37051

XZU301..SCB..4FC..DSL;XZU302,306,307,312,321,322,331,337,341,347,352..4FC..(CBU,IV3)

 1
32941-37050

XZU301,302,306,307,312,321,322,331,337,341,347..4FC..(CBU,IV3,IV6)

 1
32941A - HOSE, OIL COOLER INLET, NO.2
32941-37060

XZU301..SCB..4FC..DSL;XZU302,306,307,312,321,322,331,337,341,347,352..4FC..(CBU,IV3)

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-37030

XZU301..SCB..4FC..DSL;XZU302,306,307,312,321,322,331,337,341,347,352..4FC..(CBU,IV3)

 1
32942A - HOSE, OIL COOLER OUTLET, NO.2
32942-37040

XZU301..SCB..4FC..DSL;XZU302,306,307,312,321,322,331,337,341,347,352..4FC..(CBU,IV3)

 1
Common parts
90119-10883
90462-12076
90467-16013
91611-B0616
91611-B0816
