Toyota Dyna/toyoace XZU341 ALTERNATOR

XZU341-TQPQS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004

Engine S05D

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9905-0406)J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#

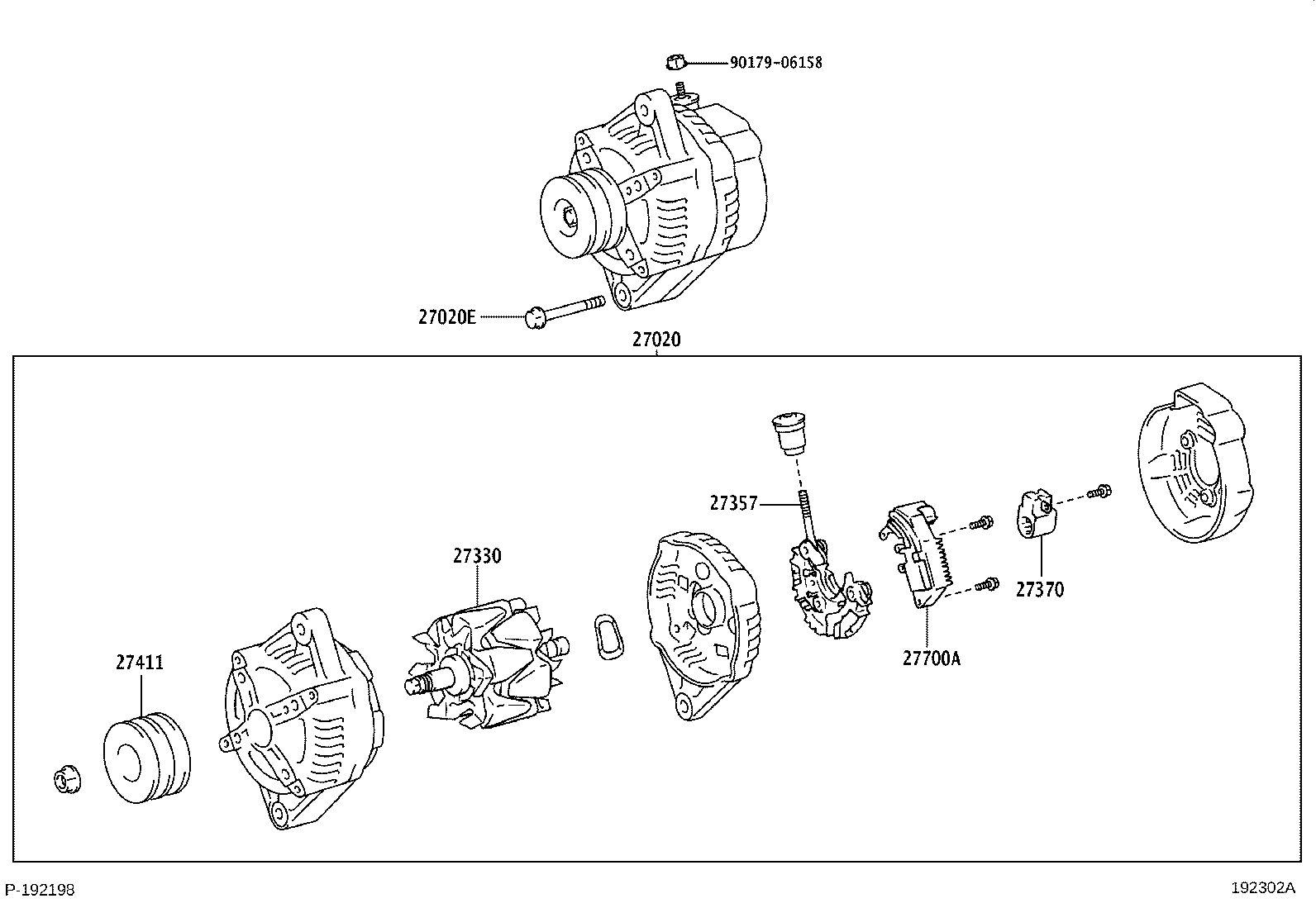

Click highlighted areas on diagram

24V 50A,60A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-78010	S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU301,306..SCB..DSL;S05D..XZU306..4FC..DSLL..IV3;J05C,S05#..XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6 24V 50A	05/1999 - 06/2004	1
27020E - BOLT(FOR ALTERNATOR)
90031-05027	S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU301,306..SCB..DSL;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU302,307,31#,321,322,331,337,341,342,346,347,351,352,362,372,382..CBU,IV3	05/1999 - 12/2002	1
90031-05093	S05D..XZU306..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU301,302,307,31#,32#,331,337,341,342,346,347,351,352..CBU,IV3,IV6,IV7	12/2002 - 06/2004	1
27039 - COVER, ALTERNATOR REAR END
27039-50090	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 24V 50A	05/1999 - 03/2001	1
27039-50090	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 24V 80A	03/2001 - 04/2001	1
27039-50090	S05D..XZU301..IV7;S05D..XZU301..295T;S05C..XZU322..T5..5F;S05C..XZU322..DM7,DM8;S05D..XZU301..4FC..20T;S05D..XZU301..IV6..4NO;S05C..XZU312,347..DCB..5F;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306..T4..5F..DSLL..IV3;S05D..XZU301..5F..DSLL..IV3..1NO;S05C..XZU302..T4..(295T,30T)..4NO;S05D..XZU331,341..SCB..(4FC,6F)..DSL;S05D..XZU301,351..(DM2,DM3)..5F..IV3;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05D..XZU301,306,321..(DM7,T4)..4FC..DSL..4NO;J05C,S05C..XZU300,307,330,337,340,342,350,352,362,372,382 24V 80A	04/2001 - 06/2004	1
27039A - COVER, ALTERNATOR REAR END, NO.2
27039-58330	15BLPG..XZU302,342;J05C,S05#,15BCNG..XZU30#,31#,32#,33#,34#,35#..CBU,IV3,IV6,IV7 24V 80A	03/2001 - 06/2002	1
27039-58330	J05C,S05#,15BCNG..XZU30#,31#,32#,33#,34#,35# 24V 80A	05/1999 - 03/2001	1
27039-58330	S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;S05D..XZU306,321,331,341..SCB..(4FC,6F)..DSL;J05C,S05C..XZU300,302,307,312,322,330,337,340,342,347,350,352 24V 80A	06/2002 - 06/2004	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 03/2001	1
27064-42010	J05C,15B#,4B..BU30#,346,XZU300,301;J05C,S05#,15B#..XZU301,302,306,307,31#,32#,33#,34#,35#,362,372,382..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7)	08/2002 - 10/2002	1
27064-42010	S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU306..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU321,331,341..SCB..(4FC,6F);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05C,4B..BU30#,346,XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382	06/2003 - 06/2004	1
27064-42010	J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7	03/2001 - 06/2002	1
27064-42010	J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..DSL..(CBU,IV3,IV6,IV7)	06/2002 - 08/2002	1
27064-42010	J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7	10/2002 - 06/2003	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192	S05#,4B..BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352 24V 50A, 60A	05/1999 - 06/2004	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	S05#,4B..BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352 24V 50A	05/1999 - 06/2004	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-17080	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 12V 100A	03/2001 - 06/2002	1
27357-17080	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 12V 100A	05/1999 - 03/2001	1
27357-17080	S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;S05D..XZU306,321,331,341..SCB..(4FC,6F)..DSL;J05C,S05C..XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382 12V 100A	06/2002 - 06/2004	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-58050	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 03/2001	1
27359-58050	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7	03/2001 - 06/2002	1
27359-58050	J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,372,382..DSL..(CBU,IV3,IV6,IV7)	06/2002 - 08/2002	1
27359-58050	J05C,15B#..XZU300,301;J05C,S05#,15B#..XZU301,302,306,307,31#,32#,33#,34#,35#,362,372,382..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7)	08/2002 - 10/2002	1
27359-58050	S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU306..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU321,331,341..SCB..(4FC,6F);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05C..XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382	10/2002 - 06/2004	1
27365 - PLATE, TERMINAL
27365-55080	J05C,15B#,4B..BU30#,346,XZU300,301;J05C,S05#,15B#..XZU301,302,306,307,31#,32#,33#,34#,35#,362,372,382..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7)	08/2002 - 10/2002	1
27365-55080	J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7	03/2001 - 06/2002	1
27365-55080	J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..DSL..(CBU,IV3,IV6,IV7)	06/2002 - 08/2002	1
27365-55080	S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU306..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU321,331,341..SCB..(4FC,6F);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05C,4B..BU30#,346,XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382	06/2003 - 06/2004	1
27365-55080	J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7	10/2002 - 06/2003	1
27365-55080	J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 03/2001	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 12V 100A	05/1999 - 03/2001	1
27370-75060	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 12V 100A	03/2001 - 06/2002	1
27370-75060	S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;S05D..XZU306,321,331,341..SCB..(4FC,6F)..DSL;J05C,S05C..XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382 12V 100A	06/2002 - 06/2004	1
27384 - WASHER
27384-50030	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 12V 100A	05/1999 - 03/2001	1
27384-50030	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 12V 100A	03/2001 - 06/2002	1
27384-50030	J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,372,382..DSL..(CBU,IV3,IV6,IV7) 12V 100A	06/2002 - 08/2002	1
27384-50030	S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;S05D..XZU306,321,331,341..SCB..(4FC,6F)..DSL;J05C,S05C..XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382 12V 100A	08/2002 - 06/2004	1
27387 - INSULATOR, TERMINAL
27387-42021	J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,372,382..DSL..(CBU,IV3,IV6,IV7) 12V 100A	06/2002 - 08/2002	1
27387-42021	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 12V 100A	05/1999 - 03/2001	1
27387-42021	S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;S05D..XZU306,321,331,341..SCB..(4FC,6F)..DSL;J05C,S05C..XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382 12V 100A	08/2002 - 06/2004	1
27387-42021	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 12V 100A	03/2001 - 06/2002	1
27388 - COVER, ALTERNATOR BRUSH
27388-46220	J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 03/2001	1
27388-46220	S05D..XZU301..IV7;S05D..XZU301..295T;S05C..XZU322..T5..5F;S05C..XZU322..DM7,DM8;S05D..XZU306..T4..DSLL;S05D..XZU301..4FC..20T;S05D..XZU301..IV6..4NO;S05D..XZU331..SCB..4FC;S05C..XZU312,347..DCB..5F;S05C..XZU302,347..SCB..20T;S05#..XZU312,341..295T,30T;S05C..XZU347..DCB..T4..4FC;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05C..XZU302..T4..(295T,30T)..4NO;S05D..XZU301,351..(DM2,DM3)..5F..IV3;S05D..XZU301,311,346,351..SCB..5F..DSLL;S05D..XZU301,306,321..(DM7,T4)..4FC..DSL..4NO;J05C,S05C,4B..BU30#,346,XZU300,307,330,337,340,342,350,352,362,372,382..03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5	03/2001 - 06/2004	1
27389 - INSULATOR, TERMINAL
27389-42010	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 12V 100A	05/1999 - 03/2001	4
27389-42010	J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,372,382..DSL..(CBU,IV3,IV6,IV7) 12V 100A	06/2002 - 08/2002	4
27389-42010	S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;S05D..XZU306,321,331,341..SCB..(4FC,6F)..DSL;J05C,S05C..XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382 12V 100A	08/2002 - 06/2004	4
27389-42010	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 12V 100A	03/2001 - 06/2002	4
27411 - PULLEY, ALTERNATOR
27411-89102	S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU301,306..SCB..DSL;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU302,307,31#,321,322,331,337,341,342,346,347,351,352..CBU,IV3 24V 50A	05/1999 - 06/2004	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 03/2001	1
27443-63020	J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..DSL..(CBU,IV3,IV6,IV7)	06/2002 - 08/2002	1
27443-63020	J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7	03/2001 - 06/2002	1
27443-63020	J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7	10/2002 - 06/2003	1
27443-63020	J05C,15B#,4B..BU30#,346,XZU300,301;J05C,S05#,15B#..XZU301,302,306,307,31#,32#,33#,34#,35#,362,372,382..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7)	08/2002 - 10/2002	1
27443-63020	S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU306..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU321,331,341..SCB..(4FC,6F);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05C,4B..BU30#,346,XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382	06/2003 - 06/2004	1
27446 - CLIP, ALTERNATOR CORD
27446-50260	S05D..XZU301..IV7;S05D..XZU301..295T;S05C..XZU322..T5..5F;S05C..XZU322..DM7,DM8;S05D..XZU306..T4..DSLL;S05D..XZU301..4FC..20T;S05D..XZU301..IV6..4NO;S05D..XZU331..SCB..4FC;S05C..XZU312,347..DCB..5F;S05C..XZU302,347..SCB..20T;S05#..XZU312,341..295T,30T;S05C..XZU347..DCB..T4..4FC;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05C..XZU302..T4..(295T,30T)..4NO;S05D..XZU301,351..(DM2,DM3)..5F..IV3;S05D..XZU301,311,346,351..SCB..5F..DSLL;S05D..XZU301,306,321..(DM7,T4)..4FC..DSL..4NO;J05C,S05C,4B..BU30#,346,XZU300,307,330,337,340,342,350,352,362,372,382..03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5	03/2001 - 06/2004	1
27446-50260	J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 03/2001	1
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90099-05267
90179-06158
93319-14025
Linked diagrams
1107

(9905-0406)S05C..XZU307,347,372,382..SCB..IV3 ;(9905-0406)J05C,S05#..XZU300,301,30

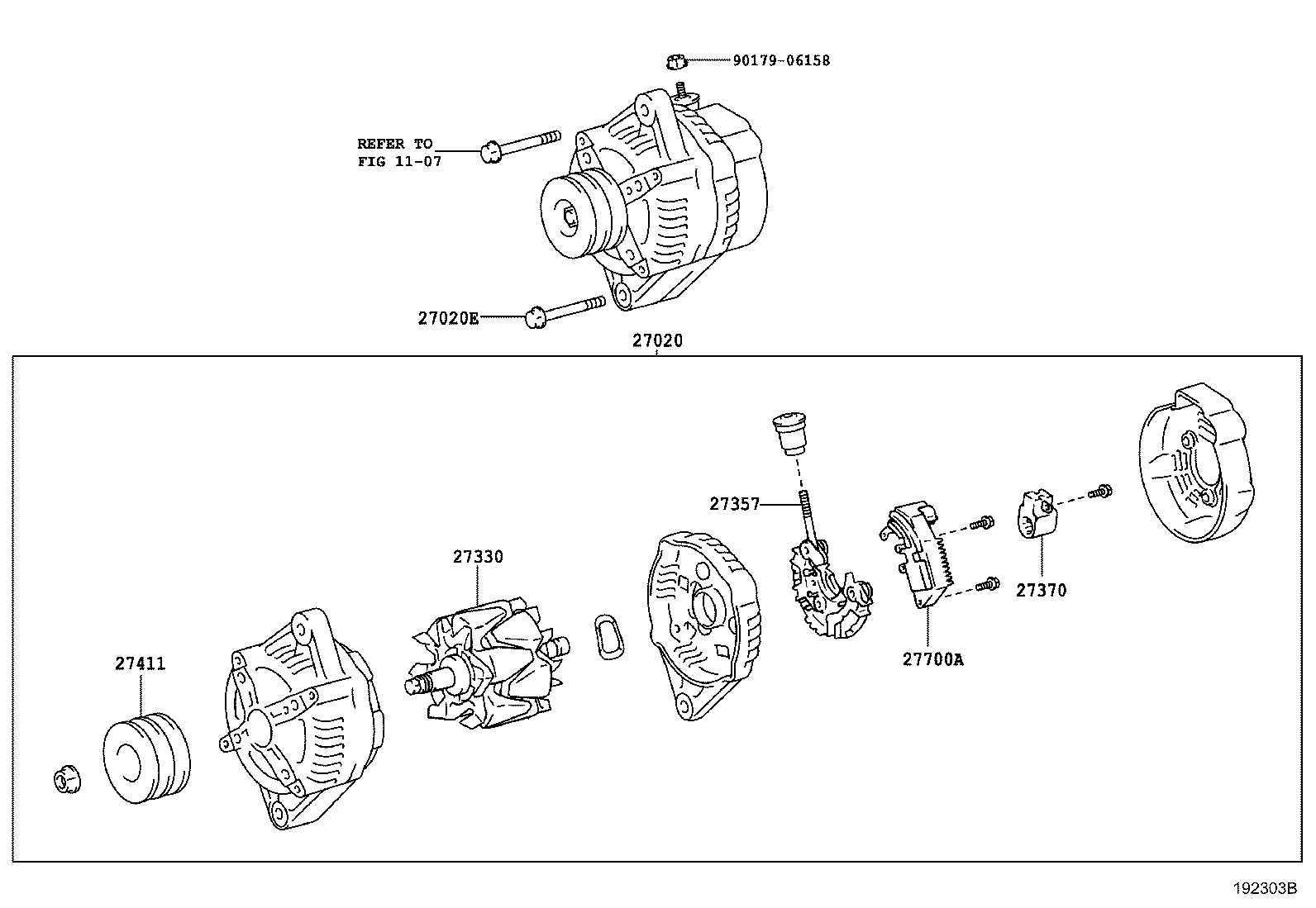

Click highlighted areas on diagram

24V 80A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-78010	S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU301,306..SCB..DSL;S05D..XZU306..4FC..DSLL..IV3;J05C,S05#..XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6 24V 50A	05/1999 - 06/2004	1
27060-78010	S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU301,306..SCB..DSL;S05D..XZU306..4FC..DSLL..IV3;J05C,S05#..XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6 24V 50A	05/1999 - 06/2004	1
27020E - BOLT(FOR ALTERNATOR)
90031-05027	S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU301,306..SCB..DSL;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU302,307,31#,321,322,331,337,341,342,346,347,351,352,362,372,382..CBU,IV3	05/1999 - 12/2002	1
90031-05027	S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU301,306..SCB..DSL;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU302,307,31#,321,322,331,337,341,342,346,347,351,352,362,372,382..CBU,IV3	05/1999 - 12/2002	1
90031-05093	S05D..XZU306..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU301,302,307,31#,32#,331,337,341,342,346,347,351,352..CBU,IV3,IV6,IV7	12/2002 - 06/2004	1
90031-05093	S05D..XZU306..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU301,302,307,31#,32#,331,337,341,342,346,347,351,352..CBU,IV3,IV6,IV7	12/2002 - 06/2004	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192	S05#,4B..BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352 24V 50A, 60A	05/1999 - 06/2004	1
90099-10192	S05#,4B..BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352 24V 50A, 60A	05/1999 - 06/2004	1
27411 - PULLEY, ALTERNATOR
27411-89102	S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU301,306..SCB..DSL;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU302,307,31#,321,322,331,337,341,342,346,347,351,352..CBU,IV3 24V 50A	05/1999 - 06/2004	1
27411-89102	S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU301,306..SCB..DSL;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU302,307,31#,321,322,331,337,341,342,346,347,351,352..CBU,IV3 24V 50A	05/1999 - 06/2004	1

(0310-0406)N04C ; (0406- )N04C,S05D

Click highlighted areas on diagram

24V 60A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-78010	S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU301,306..SCB..DSL;S05D..XZU306..4FC..DSLL..IV3;J05C,S05#..XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6 24V 50A	05/1999 - 06/2004	1
27020E - BOLT(FOR ALTERNATOR)
90031-05027	S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU301,306..SCB..DSL;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU302,307,31#,321,322,331,337,341,342,346,347,351,352,362,372,382..CBU,IV3	05/1999 - 12/2002	1
90031-05093	S05D..XZU306..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU301,302,307,31#,32#,331,337,341,342,346,347,351,352..CBU,IV3,IV6,IV7	12/2002 - 06/2004	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-17080	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 12V 100A	03/2001 - 06/2002	1
27357-17080	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 12V 100A	05/1999 - 03/2001	1
27357-17080	S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;S05D..XZU306,321,331,341..SCB..(4FC,6F)..DSL;J05C,S05C..XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382 12V 100A	06/2002 - 06/2004	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 12V 100A	05/1999 - 03/2001	1
27370-75060	J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 12V 100A	03/2001 - 06/2002	1
27370-75060	S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;S05D..XZU306,321,331,341..SCB..(4FC,6F)..DSL;J05C,S05C..XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382 12V 100A	06/2002 - 06/2004	1
27411 - PULLEY, ALTERNATOR
27411-89102	S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU301,306..SCB..DSL;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU302,307,31#,321,322,331,337,341,342,346,347,351,352..CBU,IV3 24V 50A	05/1999 - 06/2004	1
Common parts
90179-06158

(0610-1010)N04C..XZU378..IV4 ; (0610-1010)N04C..XZU304..T3,T4,T5..IV3,IV4 ; (0610-1

Click highlighted areas on diagram

24V 80A

Part #	Description	Period	Qty	Price
Common parts
90099-05171
90099-05284
90179-06158

(0310-0406)N04C ; (0406-1010)J05D,N04C,S05D

Click highlighted areas on diagram

24V 60A

Part #	Description	Period	Qty	Price
Common parts
90179-06158
Linked diagrams
1107
