XZU341-TKFQS3 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004
Engine S05D
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

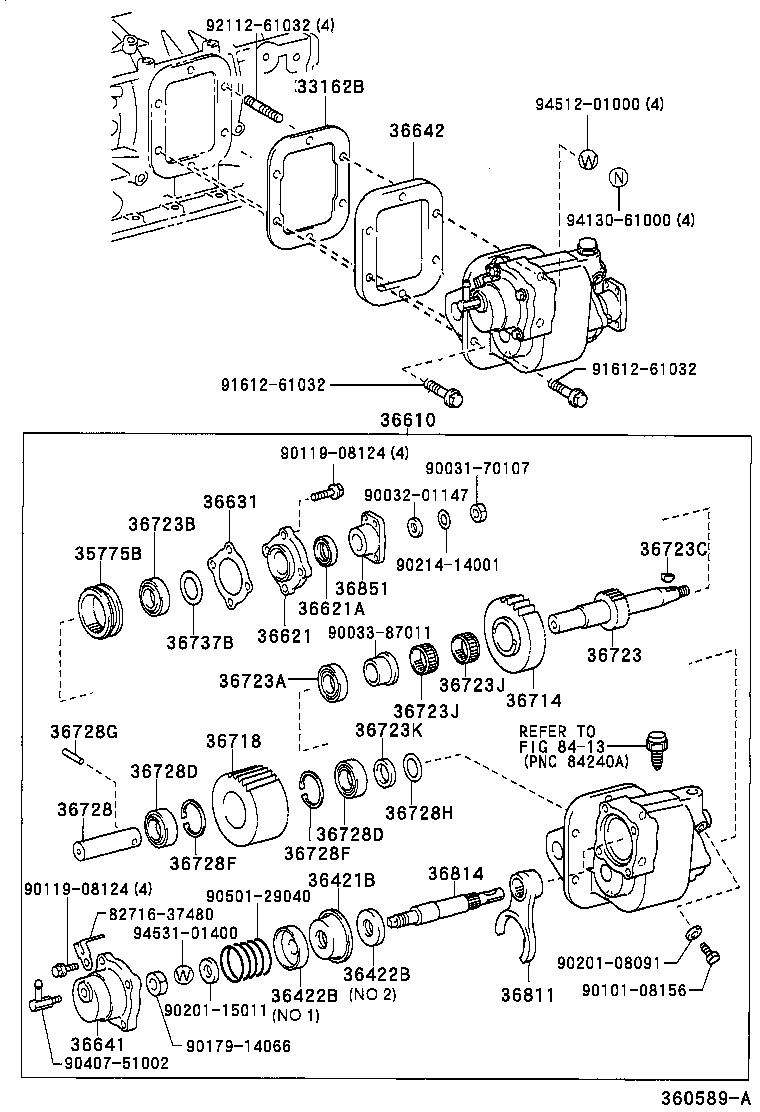

ILLUST NO. 1 OF 2(9905-0406)6F

Click highlighted areas on diagram

ﾊﾞｷﾕ-ﾑｼｷ

diagram 33162B 35775B 36421B 36422B 36422B 36610 36621 36621A 36631 36641 36642 36714 36718 36723 36723A 36723B 36723C 36723J 36723J 36723K 36728 36728D 36728D 36728F 36728F 36728G 36728H 36737B 36811 36814 36851 8271637480 8413 9003170107 9003201147 9003387011 9010108156 9011908124 9011908124 9017914066 9020108091 9020115011 9021414001 9040751002 9050129040 9161261032 9161261032 9211261032 9413061000 9451201000 9453101400
Part # Description Qty Price
33162B - GASKET, POWER TAKE-OFF COVER
33162-37030

XZU341..6F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,340,362,372,382..(DCB,SCB)..MTM

 1
33162-96300

XZU341..6F;BU306,346,XZU307,337..(DCB,SCB)..5F

 1
33162-37030

BZU300..DM6,T3;XZU302..DM3,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU340,341,342..MTM..(DSL,DSLL);XZU301..(DM3,T3)..5F..(20T,295T);BZU340,XZU300,306,31#,330,331,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 2
33162-37030

XZU340;XZU302..LPG;XZU302..DM3,T3;XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347,351,352..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 2
35775B - SLEEVE, OUTPUT SHAFT
35775-37010

XZU340,341..6F..(DSL,DSLL)

 1
36421B - DIAPHRAGM (FOR POWER TAKE-OFF)
36421-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
36421-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36421-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36421-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF)
36422-93101

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.2

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.1

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.2

 1
36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF)
36422-93101

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.2

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.1

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.2

 1
36610 - POWER TAKE-OFF ASSY
36610-37110

XZU340,341..6F

 1
36610-37220

XZU340,341..6F

 1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-93200

XZU340,341..6F..(DSL,DSLL)

 1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110

XZU340,341..6F..DSL

ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ)

 1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-93101

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

 1
36632-37030

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

 1
36632-93101

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36632-93101

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36641 - CAP, POWER TAKE-OFF SHIFT SHAFT
36641-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36641-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
36641-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36641-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
36642 - SPACER, POWER TAKE-OFF COVER
36642-37060

XZU340,341..6F

 1
36642-37060

XZU340,341..6F

 1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37100

XZU340,341..6F

 1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37050

XZU340,341..6F

 1
36718-37100

XZU340,341..6F

 1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37040

XZU340,341..6F

 1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
90366-22001

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
90366-22001

XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,306,322,330,331,34#,350..(T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3,IV6)

 1
90366-22001

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);BZU340,XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-25011

XZU340,341..6F

厚さ=14

 1
90366-25011

XZU340,341..6F

厚さ=14

 1
36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
90280-07011

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
90280-07011

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
90280-07011

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

 1
90280-07011

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020

XZU340,341..6F..(DSL,DSLL)

 2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020

XZU340,341..6F..(DSL,DSLL)

 2
36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT)
90560-25002

XZU340,341..6F

 1
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-93107

XZU340,341..6F..(DSL,DSLL)

 1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25006

XZU340,341..6F

 2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25006

XZU340,341..6F

 2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90035-21016

XZU340,341..6F

 2
90035-21016

XZU340,341..6F

 1
90035-21016

XZU340,341..6F

 2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90035-21016

XZU340,341..6F

 2
90035-21016

XZU340,341..6F

 1
90035-21016

XZU340,341..6F

 2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002

XZU340,341..6F..(DSL,DSLL)

 1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25003

XZU340,341..6F..(DSL,DSLL)

厚さ=0.2

 1
90564-25002

XZU340,341..6F..(DSL,DSLL)

厚さ=0.1

 1
90564-25004

XZU340,341..6F..(DSL,DSLL)

厚さ=0.5

 1
90564-25001

XZU340,341..6F..(DSL,DSLL)

厚さ=0.05

 1
36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
90564-42001

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.02−0.08

 1
90564-42002

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.07−0.13

 1
90564-42003

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.17−0.23

 1
90564-42004

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.47−0.53

 1
90564-42001

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.02−0.08

 1
90564-42002

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.07−0.13

 1
90564-42004

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.47−0.53

 1
90564-42001

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.02−0.08

 1
90564-42002

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.07−0.13

 1
90564-42003

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.17−0.23

 1
90564-42004

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.47−0.53

 1
90564-42003

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.17−0.23

 1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-93104

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36811-93104

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

 1
36811-93104

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
36811-93104

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37030

XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU300,306,322,330,331,34#..(T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36814-37030

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36814-37030

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36814-37030

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);BZU340,XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-37010

XZU340,341..6F..(DSL,DSLL)

 1
Common parts
82716-37480
90031-70107
90032-01147
90033-87011
90101-08156
90119-08124
90179-14066
90201-08091
90201-15011
90214-14001
90407-51002
90501-29040
91612-61032
92112-61032
94130-61000
94512-01000
94531-01400
Linked diagrams
8413

ILLUST NO. 1 OF 3(0206-0406)BZU340,XZU300,307,322,330,337,341,342,346,347,362,372,382..T2,T3,T4,T5..

Click highlighted areas on diagram

ﾊﾞｷﾕ-ﾑｼｷ

diagram 33162B 33162B 35775B 36421B 36422B 36422B 36610 36621 36621A 36631 36641 36642 36714 36718 36723 36723A 36723B 36723C 36723J 36723J 36728 36728D 36728D 36728F 36728F 36728G 36728H 36737B 36811 36814 36851 8271637480 8413 9003170107 9003201147 9003387011 9010108156 9011908124 9011908124 9011910337 9017914066 9020108091 9020115011 9021414001 9040751002 9050129040 9161261045 9211261045 9413061000 9451201000 9453101400
Part # Description Qty Price
33162B - GASKET, POWER TAKE-OFF COVER
33162-37030

XZU341..6F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,340,362,372,382..(DCB,SCB)..MTM

 1
33162-37030

XZU341..6F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,340,362,372,382..(DCB,SCB)..MTM

 1
33162-37030

XZU341..6F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,340,362,372,382..(DCB,SCB)..MTM

 1
33162-37030

XZU341..6F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,340,362,372,382..(DCB,SCB)..MTM

 1
33162-96300

XZU341..6F;BU306,346,XZU307,337..(DCB,SCB)..5F

 1
33162-96300

XZU341..6F;BU306,346,XZU307,337..(DCB,SCB)..5F

 1
33162-96300

XZU341..6F;BU306,346,XZU307,337..(DCB,SCB)..5F

 1
33162-96300

XZU341..6F;BU306,346,XZU307,337..(DCB,SCB)..5F

 1
33162-37030

BZU300..DM6,T3;XZU302..DM3,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU340,341,342..MTM..(DSL,DSLL);XZU301..(DM3,T3)..5F..(20T,295T);BZU340,XZU300,306,31#,330,331,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 2
33162-37030

BZU300..DM6,T3;XZU302..DM3,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU340,341,342..MTM..(DSL,DSLL);XZU301..(DM3,T3)..5F..(20T,295T);BZU340,XZU300,306,31#,330,331,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 2
33162-37030

BZU300..DM6,T3;XZU302..DM3,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU340,341,342..MTM..(DSL,DSLL);XZU301..(DM3,T3)..5F..(20T,295T);BZU340,XZU300,306,31#,330,331,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 2
33162-37030

BZU300..DM6,T3;XZU302..DM3,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU340,341,342..MTM..(DSL,DSLL);XZU301..(DM3,T3)..5F..(20T,295T);BZU340,XZU300,306,31#,330,331,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 2
33162-37030

XZU340;XZU302..LPG;XZU302..DM3,T3;XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347,351,352..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 2
33162-37030

XZU340;XZU302..LPG;XZU302..DM3,T3;XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347,351,352..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 2
33162-37030

XZU340;XZU302..LPG;XZU302..DM3,T3;XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347,351,352..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 2
33162-37030

XZU340;XZU302..LPG;XZU302..DM3,T3;XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347,351,352..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 2
33162B - GASKET, POWER TAKE-OFF COVER
33162-37030

XZU341..6F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,340,362,372,382..(DCB,SCB)..MTM

 1
33162-37030

XZU341..6F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,340,362,372,382..(DCB,SCB)..MTM

 1
33162-37030

XZU341..6F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,340,362,372,382..(DCB,SCB)..MTM

 1
33162-37030

XZU341..6F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,340,362,372,382..(DCB,SCB)..MTM

 1
33162-96300

XZU341..6F;BU306,346,XZU307,337..(DCB,SCB)..5F

 1
33162-96300

XZU341..6F;BU306,346,XZU307,337..(DCB,SCB)..5F

 1
33162-96300

XZU341..6F;BU306,346,XZU307,337..(DCB,SCB)..5F

 1
33162-96300

XZU341..6F;BU306,346,XZU307,337..(DCB,SCB)..5F

 1
33162-37030

BZU300..DM6,T3;XZU302..DM3,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU340,341,342..MTM..(DSL,DSLL);XZU301..(DM3,T3)..5F..(20T,295T);BZU340,XZU300,306,31#,330,331,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 2
33162-37030

BZU300..DM6,T3;XZU302..DM3,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU340,341,342..MTM..(DSL,DSLL);XZU301..(DM3,T3)..5F..(20T,295T);BZU340,XZU300,306,31#,330,331,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 2
33162-37030

BZU300..DM6,T3;XZU302..DM3,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU340,341,342..MTM..(DSL,DSLL);XZU301..(DM3,T3)..5F..(20T,295T);BZU340,XZU300,306,31#,330,331,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 2
33162-37030

BZU300..DM6,T3;XZU302..DM3,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU340,341,342..MTM..(DSL,DSLL);XZU301..(DM3,T3)..5F..(20T,295T);BZU340,XZU300,306,31#,330,331,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 2
33162-37030

XZU340;XZU302..LPG;XZU302..DM3,T3;XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347,351,352..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 2
33162-37030

XZU340;XZU302..LPG;XZU302..DM3,T3;XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347,351,352..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 2
33162-37030

XZU340;XZU302..LPG;XZU302..DM3,T3;XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347,351,352..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 2
33162-37030

XZU340;XZU302..LPG;XZU302..DM3,T3;XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347,351,352..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 2
35775B - SLEEVE, OUTPUT SHAFT
35775-37010

XZU340,341..6F..(DSL,DSLL)

 1
35775-37010

XZU340,341..6F..(DSL,DSLL)

 1
35775-37010

XZU340,341..6F..(DSL,DSLL)

 1
35775-37010

XZU340,341..6F..(DSL,DSLL)

 1
36421B - DIAPHRAGM (FOR POWER TAKE-OFF)
36421-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
36421-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
36421-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
36421-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
36421-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36421-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36421-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36421-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36421-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36421-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36421-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36421-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36421-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
36421-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
36421-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
36421-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF)
36422-93101

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.2

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.1

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.2

 1
36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF)
36422-93101

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.2

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.1

 1
36422-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

NO.1

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.2

 1
36422-93101

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

NO.2

 1
36610 - POWER TAKE-OFF ASSY
36610-37110

XZU340,341..6F

 1
36610-37110

XZU340,341..6F

 1
36610-37110

XZU340,341..6F

 1
36610-37110

XZU340,341..6F

 1
36610-37220

XZU340,341..6F

 1
36610-37220

XZU340,341..6F

 1
36610-37220

XZU340,341..6F

 1
36610-37220

XZU340,341..6F

 1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-93200

XZU340,341..6F..(DSL,DSLL)

 1
36621-93200

XZU340,341..6F..(DSL,DSLL)

 1
36621-93200

XZU340,341..6F..(DSL,DSLL)

 1
36621-93200

XZU340,341..6F..(DSL,DSLL)

 1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110

XZU340,341..6F..DSL

ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ)

 1
90311-25110

XZU340,341..6F..DSL

ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ)

 1
90311-25110

XZU340,341..6F..DSL

ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ)

 1
90311-25110

XZU340,341..6F..DSL

ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ)

 1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-93101

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

 1
36632-93101

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

 1
36632-93101

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

 1
36632-93101

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

 1
36632-37030

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

 1
36632-37030

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

 1
36632-37030

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

 1
36632-37030

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

 1
36632-93101

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36632-93101

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36632-93101

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36632-93101

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36632-93101

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36632-93101

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36632-93101

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36632-93101

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36641 - CAP, POWER TAKE-OFF SHIFT SHAFT
36641-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36641-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36641-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36641-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36641-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
36641-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
36641-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
36641-93100

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
36641-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36641-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36641-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36641-93100

XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36641-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
36641-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
36641-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
36641-93100

BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
36642 - SPACER, POWER TAKE-OFF COVER
36642-37060

XZU340,341..6F

 1
36642-37060

XZU340,341..6F

 1
36642-37060

XZU340,341..6F

 1
36642-37060

XZU340,341..6F

 1
36642-37060

XZU340,341..6F

 1
36642-37060

XZU340,341..6F

 1
36642-37060

XZU340,341..6F

 1
36642-37060

XZU340,341..6F

 1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37100

XZU340,341..6F

 1
36714-37100

XZU340,341..6F

 1
36714-37100

XZU340,341..6F

 1
36714-37100

XZU340,341..6F

 1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37050

XZU340,341..6F

 1
36718-37050

XZU340,341..6F

 1
36718-37050

XZU340,341..6F

 1
36718-37050

XZU340,341..6F

 1
36718-37100

XZU340,341..6F

 1
36718-37100

XZU340,341..6F

 1
36718-37100

XZU340,341..6F

 1
36718-37100

XZU340,341..6F

 1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37040

XZU340,341..6F

 1
36723-37040

XZU340,341..6F

 1
36723-37040

XZU340,341..6F

 1
36723-37040

XZU340,341..6F

 1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
90366-22001

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
90366-22001

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
90366-22001

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
90366-22001

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
90366-22001

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
90366-22001

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
90366-22001

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
90366-22001

XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,306,322,330,331,34#,350..(T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3,IV6)

 1
90366-22001

XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,306,322,330,331,34#,350..(T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3,IV6)

 1
90366-22001

XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,306,322,330,331,34#,350..(T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3,IV6)

 1
90366-22001

XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,306,322,330,331,34#,350..(T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3,IV6)

 1
90366-22001

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);BZU340,XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
90366-22001

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);BZU340,XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
90366-22001

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);BZU340,XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
90366-22001

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);BZU340,XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-25011

XZU340,341..6F

厚さ=14

 1
90366-25011

XZU340,341..6F

厚さ=14

 1
90366-25011

XZU340,341..6F

厚さ=14

 1
90366-25011

XZU340,341..6F

厚さ=14

 1
90366-25011

XZU340,341..6F

厚さ=14

 1
90366-25011

XZU340,341..6F

厚さ=14

 1
90366-25011

XZU340,341..6F

厚さ=14

 1
90366-25011

XZU340,341..6F

厚さ=14

 1
36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
90280-07011

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
90280-07011

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
90280-07011

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
90280-07011

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
90280-07011

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
90280-07011

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
90280-07011

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
90280-07011

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
90280-07011

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

 1
90280-07011

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

 1
90280-07011

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

 1
90280-07011

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

 1
90280-07011

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
90280-07011

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
90280-07011

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
90280-07011

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020

XZU340,341..6F..(DSL,DSLL)

 2
90364-28020

XZU340,341..6F..(DSL,DSLL)

 2
90364-28020

XZU340,341..6F..(DSL,DSLL)

 2
90364-28020

XZU340,341..6F..(DSL,DSLL)

 2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020

XZU340,341..6F..(DSL,DSLL)

 2
90364-28020

XZU340,341..6F..(DSL,DSLL)

 2
90364-28020

XZU340,341..6F..(DSL,DSLL)

 2
90364-28020

XZU340,341..6F..(DSL,DSLL)

 2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-93107

XZU340,341..6F..(DSL,DSLL)

 1
36728-93107

XZU340,341..6F..(DSL,DSLL)

 1
36728-93107

XZU340,341..6F..(DSL,DSLL)

 1
36728-93107

XZU340,341..6F..(DSL,DSLL)

 1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25006

XZU340,341..6F

 2
90366-25006

XZU340,341..6F

 2
90366-25006

XZU340,341..6F

 2
90366-25006

XZU340,341..6F

 2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25006

XZU340,341..6F

 2
90366-25006

XZU340,341..6F

 2
90366-25006

XZU340,341..6F

 2
90366-25006

XZU340,341..6F

 2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90035-21016

XZU340,341..6F

 2
90035-21016

XZU340,341..6F

 2
90035-21016

XZU340,341..6F

 2
90035-21016

XZU340,341..6F

 2
90035-21016

XZU340,341..6F

 1
90035-21016

XZU340,341..6F

 1
90035-21016

XZU340,341..6F

 1
90035-21016

XZU340,341..6F

 1
90035-21016

XZU340,341..6F

 2
90035-21016

XZU340,341..6F

 2
90035-21016

XZU340,341..6F

 2
90035-21016

XZU340,341..6F

 2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90035-21016

XZU340,341..6F

 2
90035-21016

XZU340,341..6F

 2
90035-21016

XZU340,341..6F

 2
90035-21016

XZU340,341..6F

 2
90035-21016

XZU340,341..6F

 1
90035-21016

XZU340,341..6F

 1
90035-21016

XZU340,341..6F

 1
90035-21016

XZU340,341..6F

 1
90035-21016

XZU340,341..6F

 2
90035-21016

XZU340,341..6F

 2
90035-21016

XZU340,341..6F

 2
90035-21016

XZU340,341..6F

 2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002

XZU340,341..6F..(DSL,DSLL)

 1
90254-04002

XZU340,341..6F..(DSL,DSLL)

 1
90254-04002

XZU340,341..6F..(DSL,DSLL)

 1
90254-04002

XZU340,341..6F..(DSL,DSLL)

 1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25003

XZU340,341..6F..(DSL,DSLL)

厚さ=0.2

 1
90564-25003

XZU340,341..6F..(DSL,DSLL)

厚さ=0.2

 1
90564-25003

XZU340,341..6F..(DSL,DSLL)

厚さ=0.2

 1
90564-25003

XZU340,341..6F..(DSL,DSLL)

厚さ=0.2

 1
90564-25002

XZU340,341..6F..(DSL,DSLL)

厚さ=0.1

 1
90564-25002

XZU340,341..6F..(DSL,DSLL)

厚さ=0.1

 1
90564-25002

XZU340,341..6F..(DSL,DSLL)

厚さ=0.1

 1
90564-25002

XZU340,341..6F..(DSL,DSLL)

厚さ=0.1

 1
90564-25004

XZU340,341..6F..(DSL,DSLL)

厚さ=0.5

 1
90564-25004

XZU340,341..6F..(DSL,DSLL)

厚さ=0.5

 1
90564-25004

XZU340,341..6F..(DSL,DSLL)

厚さ=0.5

 1
90564-25004

XZU340,341..6F..(DSL,DSLL)

厚さ=0.5

 1
90564-25001

XZU340,341..6F..(DSL,DSLL)

厚さ=0.05

 1
90564-25001

XZU340,341..6F..(DSL,DSLL)

厚さ=0.05

 1
90564-25001

XZU340,341..6F..(DSL,DSLL)

厚さ=0.05

 1
90564-25001

XZU340,341..6F..(DSL,DSLL)

厚さ=0.05

 1
36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
90564-42001

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.02−0.08

 1
90564-42001

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.02−0.08

 1
90564-42001

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.02−0.08

 1
90564-42001

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.02−0.08

 1
90564-42002

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.07−0.13

 1
90564-42002

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.07−0.13

 1
90564-42002

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.07−0.13

 1
90564-42002

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.07−0.13

 1
90564-42003

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.17−0.23

 1
90564-42003

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.17−0.23

 1
90564-42003

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.17−0.23

 1
90564-42003

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.17−0.23

 1
90564-42004

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.47−0.53

 1
90564-42004

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.47−0.53

 1
90564-42004

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.47−0.53

 1
90564-42004

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

厚さ=0.47−0.53

 1
90564-42001

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.02−0.08

 1
90564-42001

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.02−0.08

 1
90564-42001

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.02−0.08

 1
90564-42001

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.02−0.08

 1
90564-42002

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.07−0.13

 1
90564-42002

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.07−0.13

 1
90564-42002

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.07−0.13

 1
90564-42002

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.07−0.13

 1
90564-42004

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.47−0.53

 1
90564-42004

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.47−0.53

 1
90564-42004

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.47−0.53

 1
90564-42004

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.47−0.53

 1
90564-42001

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.02−0.08

 1
90564-42001

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.02−0.08

 1
90564-42001

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.02−0.08

 1
90564-42001

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.02−0.08

 1
90564-42002

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.07−0.13

 1
90564-42002

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.07−0.13

 1
90564-42002

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.07−0.13

 1
90564-42002

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.07−0.13

 1
90564-42003

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.17−0.23

 1
90564-42003

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.17−0.23

 1
90564-42003

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.17−0.23

 1
90564-42003

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

厚さ=0.17−0.23

 1
90564-42004

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.47−0.53

 1
90564-42004

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.47−0.53

 1
90564-42004

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.47−0.53

 1
90564-42004

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.47−0.53

 1
90564-42003

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.17−0.23

 1
90564-42003

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.17−0.23

 1
90564-42003

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.17−0.23

 1
90564-42003

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3)

厚さ=0.17−0.23

 1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-93104

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36811-93104

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36811-93104

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36811-93104

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36811-93104

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

 1
36811-93104

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

 1
36811-93104

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

 1
36811-93104

BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)

 1
36811-93104

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
36811-93104

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
36811-93104

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
36811-93104

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
36811-93104

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36811-93104

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36811-93104

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36811-93104

XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37030

XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU300,306,322,330,331,34#..(T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36814-37030

XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU300,306,322,330,331,34#..(T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36814-37030

XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU300,306,322,330,331,34#..(T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36814-37030

XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU300,306,322,330,331,34#..(T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36814-37030

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36814-37030

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36814-37030

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36814-37030

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
36814-37030

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36814-37030

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36814-37030

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36814-37030

XZU302..LPG;XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36814-37030

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);BZU340,XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36814-37030

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);BZU340,XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36814-37030

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);BZU340,XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36814-37030

XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);BZU340,XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-37010

XZU340,341..6F..(DSL,DSLL)

 1
36851-37010

XZU340,341..6F..(DSL,DSLL)

 1
36851-37010

XZU340,341..6F..(DSL,DSLL)

 1
36851-37010

XZU340,341..6F..(DSL,DSLL)

 1
Common parts
82716-37480
90031-70107
90032-01147
90033-87011
90101-08156
90119-08124
90119-10337
90179-14066
90201-08091
90201-15011
90214-14001
90407-51002
90501-29040
91612-61045
92112-61045
94130-61000
94512-01000
94531-01400
Linked diagrams
8413

ILLUST NO. 2 OF 3(9905-0406)30T..IV7 ; (9905-0406)BZU300..DM6,T3; (9905-0406)BZU300..T4..LPG ; (990

Click highlighted areas on diagram

ﾊﾞｷﾕ-ﾑｼｷ

diagram 27679C 27690J 44754H 44763E 44763F 44763H 44771G 44771H 44779J 4703 4737137040 4737137040 47393B 9011908676 9011908676 9413000802 9413000802 9413000802 9413000802 9413000802 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
27679C - BRACKET, POWER TAKE-OFF SOLENOID
27679-78040

J05C,S05#,4B..BU30#,346,XZU30#,33#,34#,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3)

 1
27679-78040

J05C,S05#,4B..BU30#,346,XZU30#,33#,34#,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3)

 1
27679-78040

J05C,S05#,4B..BU30#,346,XZU30#,33#,34#,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3)

 1
27679-78040

J05C,S05#,4B..BU30#,346,XZU30#,33#,34#,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3)

 1
27679-78041

S05D..XZU301..295T;S05D..XZU306..5F..DSL;S05D..XZU306..T5..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#,1BZFPE,4B..BU30#,346,BZU300,XZU331,337,340,341,342,346,347,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3);J05C,S05C,15BLPG,1BZFPE,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,330,341,342..(T2,T3,T4,T5)..MTM..(20T,295T,30T)

 1
27679-78041

S05D..XZU301..295T;S05D..XZU306..5F..DSL;S05D..XZU306..T5..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#,1BZFPE,4B..BU30#,346,BZU300,XZU331,337,340,341,342,346,347,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3);J05C,S05C,15BLPG,1BZFPE,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,330,341,342..(T2,T3,T4,T5)..MTM..(20T,295T,30T)

 1
27679-78041

S05D..XZU301..295T;S05D..XZU306..5F..DSL;S05D..XZU306..T5..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#,1BZFPE,4B..BU30#,346,BZU300,XZU331,337,340,341,342,346,347,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3);J05C,S05C,15BLPG,1BZFPE,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,330,341,342..(T2,T3,T4,T5)..MTM..(20T,295T,30T)

 1
27679-78041

S05D..XZU301..295T;S05D..XZU306..5F..DSL;S05D..XZU306..T5..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#,1BZFPE,4B..BU30#,346,BZU300,XZU331,337,340,341,342,346,347,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3);J05C,S05C,15BLPG,1BZFPE,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,330,341,342..(T2,T3,T4,T5)..MTM..(20T,295T,30T)

 1
27690J - SOLENOID ASSY, POWER TAKE-OFF
27690-78032

S05D..XZU301..295T;J05C,4B..BU30#,346,XZU340..DCB,SCB;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#..XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
27690-78032

S05D..XZU301..295T;J05C,4B..BU30#,346,XZU340..DCB,SCB;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#..XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
27690-78032

S05D..XZU301..295T;J05C,4B..BU30#,346,XZU340..DCB,SCB;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#..XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
27690-78032

S05D..XZU301..295T;J05C,4B..BU30#,346,XZU340..DCB,SCB;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#..XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
27690-78030

J05C,S05#,4B..BU30#,346,XZU30#,322,33#,34#,362,372,382..(DM6,T1,T2,T3,T4,T5)..MTM..(CBU,IV3)

 1
27690-78030

J05C,S05#,4B..BU30#,346,XZU30#,322,33#,34#,362,372,382..(DM6,T1,T2,T3,T4,T5)..MTM..(CBU,IV3)

 1
27690-78030

J05C,S05#,4B..BU30#,346,XZU30#,322,33#,34#,362,372,382..(DM6,T1,T2,T3,T4,T5)..MTM..(CBU,IV3)

 1
27690-78030

J05C,S05#,4B..BU30#,346,XZU30#,322,33#,34#,362,372,382..(DM6,T1,T2,T3,T4,T5)..MTM..(CBU,IV3)

 1
27690-78080

S05D..XZU301..295T;J05C,4B..BU30#,346,XZU340..DCB,SCB;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#..XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
27690-78080

S05D..XZU301..295T;J05C,4B..BU30#,346,XZU340..DCB,SCB;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#..XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
27690-78080

S05D..XZU301..295T;J05C,4B..BU30#,346,XZU340..DCB,SCB;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#..XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
27690-78080

S05D..XZU301..295T;J05C,4B..BU30#,346,XZU340..DCB,SCB;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#..XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
27690-78031

S05D..XZU301..295T;S05D..XZU306..T5..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05D,4B..BU30#,XZU306,340..(DCB,SCB)..MTM..DSL;J05C,S05#,4B..BU346,XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
27690-78031

S05D..XZU301..295T;S05D..XZU306..T5..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05D,4B..BU30#,XZU306,340..(DCB,SCB)..MTM..DSL;J05C,S05#,4B..BU346,XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
27690-78031

S05D..XZU301..295T;S05D..XZU306..T5..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05D,4B..BU30#,XZU306,340..(DCB,SCB)..MTM..DSL;J05C,S05#,4B..BU346,XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
27690-78031

S05D..XZU301..295T;S05D..XZU306..T5..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05D,4B..BU30#,XZU306,340..(DCB,SCB)..MTM..DSL;J05C,S05#,4B..BU346,XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)

 1
44763E - TUBE, HOSE TO HOSE, NO.1
44763-37160

XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU300,301,306,330,331,34#..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3)

 1
44763-37160

XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU300,301,306,330,331,34#..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3)

 1
44763-37160

XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU300,301,306,330,331,34#..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3)

 1
44763-37160

XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU300,301,306,330,331,34#..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3)

 1
44763-37160

XZU301..295T;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..DSL..(CBU,IV3)

 1
44763-37160

XZU301..295T;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..DSL..(CBU,IV3)

 1
44763-37160

XZU301..295T;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..DSL..(CBU,IV3)

 1
44763-37160

XZU301..295T;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..DSL..(CBU,IV3)

 1
44763-37160

XZU301..295T;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL)..(CBU,IV3)

 1
44763-37160

XZU301..295T;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL)..(CBU,IV3)

 1
44763-37160

XZU301..295T;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL)..(CBU,IV3)

 1
44763-37160

XZU301..295T;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL)..(CBU,IV3)

 1
44763F - TUBE, HOSE TO HOSE, NO.2
44763-37220

XZU30#,33#,34#..SCB..(T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3,IV7)

 1
44763-37220

XZU30#,33#,34#..SCB..(T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3,IV7)

 1
44763-37220

XZU30#,33#,34#..SCB..(T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3,IV7)

 1
44763-37220

XZU30#,33#,34#..SCB..(T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3,IV7)

 1
44763-37220

XZU340;XZU301..295T;XZU301..30T..IV7;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347..SCB..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL)

 1
44763-37220

XZU340;XZU301..295T;XZU301..30T..IV7;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347..SCB..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL)

 1
44763-37220

XZU340;XZU301..295T;XZU301..30T..IV7;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347..SCB..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL)

 1
44763-37220

XZU340;XZU301..295T;XZU301..30T..IV7;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347..SCB..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL)

 1
44763-37220

XZU340;XZU301..295T;XZU301..30T..IV7;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347..SCB..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..DSL

 1
44763-37220

XZU340;XZU301..295T;XZU301..30T..IV7;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347..SCB..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..DSL

 1
44763-37220

XZU340;XZU301..295T;XZU301..30T..IV7;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347..SCB..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..DSL

 1
44763-37220

XZU340;XZU301..295T;XZU301..30T..IV7;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347..SCB..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..DSL

 1
44763H - HOSE, VACUUM BRAKE
95446-09220

BU306,346,XZU30#,33#,34#..(T2,T3,T4,T5)..MTM

 1
95446-09220

BU306,346,XZU30#,33#,34#..(T2,T3,T4,T5)..MTM

 1
95446-09220

BU306,346,XZU30#,33#,34#..(T2,T3,T4,T5)..MTM

 1
95446-09220

BU306,346,XZU30#,33#,34#..(T2,T3,T4,T5)..MTM

 1
44771-37450

XZU340;XZU301..295T;XZU301..30T..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;BU30#,346,XZU300,302,306,307,33#,341,342,346,347..(T1,T2,T3,T4,T5)..MTM..(175T,20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
44771-37450

XZU340;XZU301..295T;XZU301..30T..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;BU30#,346,XZU300,302,306,307,33#,341,342,346,347..(T1,T2,T3,T4,T5)..MTM..(175T,20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
44771-37450

XZU340;XZU301..295T;XZU301..30T..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;BU30#,346,XZU300,302,306,307,33#,341,342,346,347..(T1,T2,T3,T4,T5)..MTM..(175T,20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
44771-37450

XZU340;XZU301..295T;XZU301..30T..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;BU30#,346,XZU300,302,306,307,33#,341,342,346,347..(T1,T2,T3,T4,T5)..MTM..(175T,20T,295T,30T)..(DSL,LPG)..(CBU,IV3)

 1
44771-37450

BU30#,346,RZU300,340,XZU30#,33#,34#..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
44771-37450

BU30#,346,RZU300,340,XZU30#,33#,34#..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
44771-37450

BU30#,346,RZU300,340,XZU30#,33#,34#..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
44771-37450

BU30#,346,RZU300,340,XZU30#,33#,34#..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
44771-37450

BU30#,346,XZU30#,33#,34#..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3)

 1
44771-37450

BU30#,346,XZU30#,33#,34#..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3)

 1
44771-37450

BU30#,346,XZU30#,33#,34#..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3)

 1
44771-37450

BU30#,346,XZU30#,33#,34#..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3)

 1
44771-37450

XZU301..295T;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340,341,342..(T3,T4,T5)..MTM..(DSL,DSLL);BU30#,346,BZU300,340,XZU300,306,307,33#,346,347..(T1,T2,T3,T4,T5)..5F..(175T,20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
44771-37450

XZU301..295T;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340,341,342..(T3,T4,T5)..MTM..(DSL,DSLL);BU30#,346,BZU300,340,XZU300,306,307,33#,346,347..(T1,T2,T3,T4,T5)..5F..(175T,20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
44771-37450

XZU301..295T;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340,341,342..(T3,T4,T5)..MTM..(DSL,DSLL);BU30#,346,BZU300,340,XZU300,306,307,33#,346,347..(T1,T2,T3,T4,T5)..5F..(175T,20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
44771-37450

XZU301..295T;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU302,340,341,342..(T3,T4,T5)..MTM..(DSL,DSLL);BU30#,346,BZU300,340,XZU300,306,307,33#,346,347..(T1,T2,T3,T4,T5)..5F..(175T,20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)

 1
44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1
44771-37290

XZU301,302,341,342..(DM6,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3);BU30#,346,RZU300,340,XZU300,306,307,33#,340,346,347..(DCB,SCB)..MTM..(CBU,IV3)

 1
44771-37290

XZU301,302,341,342..(DM6,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3);BU30#,346,RZU300,340,XZU300,306,307,33#,340,346,347..(DCB,SCB)..MTM..(CBU,IV3)

 1
44771-37290

XZU301,302,341,342..(DM6,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3);BU30#,346,RZU300,340,XZU300,306,307,33#,340,346,347..(DCB,SCB)..MTM..(CBU,IV3)

 1
44771-37290

XZU301,302,341,342..(DM6,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3);BU30#,346,RZU300,340,XZU300,306,307,33#,340,346,347..(DCB,SCB)..MTM..(CBU,IV3)

 1
44771-37290

XZU301..295T;XZU302,340,341,342..(T3,T4,T5)..MTM..DSL;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;BU30#,346,RZU300,340,XZU300,306,307,33#,346,347..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,EFI,LPG)..(CBU,IV3)

 1
44771-37290

XZU301..295T;XZU302,340,341,342..(T3,T4,T5)..MTM..DSL;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;BU30#,346,RZU300,340,XZU300,306,307,33#,346,347..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,EFI,LPG)..(CBU,IV3)

 1
44771-37290

XZU301..295T;XZU302,340,341,342..(T3,T4,T5)..MTM..DSL;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;BU30#,346,RZU300,340,XZU300,306,307,33#,346,347..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,EFI,LPG)..(CBU,IV3)

 1
44771-37290

XZU301..295T;XZU302,340,341,342..(T3,T4,T5)..MTM..DSL;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;BU30#,346,RZU300,340,XZU300,306,307,33#,346,347..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,EFI,LPG)..(CBU,IV3)

 1
44771-37290

XZU301..295T;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;RZU300,XZU302,340,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);BU30#,346,RZU301,340,XZU300,306,307,33#,346,347..(DCB,SCB)..5F..(175T,20T,30T)..(CBU,IV3)

 1
44771-37290

XZU301..295T;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;RZU300,XZU302,340,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);BU30#,346,RZU301,340,XZU300,306,307,33#,346,347..(DCB,SCB)..5F..(175T,20T,30T)..(CBU,IV3)

 1
44771-37290

XZU301..295T;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;RZU300,XZU302,340,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);BU30#,346,RZU301,340,XZU300,306,307,33#,346,347..(DCB,SCB)..5F..(175T,20T,30T)..(CBU,IV3)

 1
44771-37290

XZU301..295T;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;RZU300,XZU302,340,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);BU30#,346,RZU301,340,XZU300,306,307,33#,346,347..(DCB,SCB)..5F..(175T,20T,30T)..(CBU,IV3)

 1
44771H - HOSE, VACUUM TUBE CONNECTOR, NO.2
95446-09300

XZU301..295T;XZU301..30T..LPG;BU30#,346,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;RZU300,340,XZU300,302,306,307,33#,341,342,346,347..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,EFI,LPG)..(CBU,IV3)

 1
95446-09300

XZU301..295T;XZU301..30T..LPG;BU30#,346,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;RZU300,340,XZU300,302,306,307,33#,341,342,346,347..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,EFI,LPG)..(CBU,IV3)

 1
95446-09300

XZU301..295T;XZU301..30T..LPG;BU30#,346,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;RZU300,340,XZU300,302,306,307,33#,341,342,346,347..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,EFI,LPG)..(CBU,IV3)

 1
95446-09300

XZU301..295T;XZU301..30T..LPG;BU30#,346,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;RZU300,340,XZU300,302,306,307,33#,341,342,346,347..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,EFI,LPG)..(CBU,IV3)

 1
95446-09300

BU30#,346,RZU300,340,XZU30#,33#,34#..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
95446-09300

BU30#,346,RZU300,340,XZU30#,33#,34#..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
95446-09300

BU30#,346,RZU300,340,XZU30#,33#,34#..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
95446-09300

BU30#,346,RZU300,340,XZU30#,33#,34#..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
95446-09300

XZU301..295T;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;BU30#,RZU300,XZU302,340,341,342..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);BU346,BZU300,340,RZU301,340,XZU300,306,307,33#,346,347..(T2,T3,T4,T5)..5F..(20T,30T)..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
95446-09300

XZU301..295T;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;BU30#,RZU300,XZU302,340,341,342..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);BU346,BZU300,340,RZU301,340,XZU300,306,307,33#,346,347..(T2,T3,T4,T5)..5F..(20T,30T)..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
95446-09300

XZU301..295T;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;BU30#,RZU300,XZU302,340,341,342..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);BU346,BZU300,340,RZU301,340,XZU300,306,307,33#,346,347..(T2,T3,T4,T5)..5F..(20T,30T)..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
95446-09300

XZU301..295T;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;BU30#,RZU300,XZU302,340,341,342..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);BU346,BZU300,340,RZU301,340,XZU300,306,307,33#,346,347..(T2,T3,T4,T5)..5F..(20T,30T)..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
44779J - HOSE, CONNECTOR TUBE TO SOLENOID
44776-37180

XZU301..295T;XZU301..30T..IV7;XZU306..T5..DSLL;XZU306,340..MTM..DSL;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL)..(CBU,IV3);XZU300,302,307,33#,341,342,346,347..SCB..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL)

 1
44776-37180

XZU301..295T;XZU301..30T..IV7;XZU306..T5..DSLL;XZU306,340..MTM..DSL;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL)..(CBU,IV3);XZU300,302,307,33#,341,342,346,347..SCB..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL)

 1
44776-37180

XZU301..295T;XZU301..30T..IV7;XZU306..T5..DSLL;XZU306,340..MTM..DSL;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL)..(CBU,IV3);XZU300,302,307,33#,341,342,346,347..SCB..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL)

 1
44776-37180

XZU301..295T;XZU301..30T..IV7;XZU306..T5..DSLL;XZU306,340..MTM..DSL;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL)..(CBU,IV3);XZU300,302,307,33#,341,342,346,347..SCB..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL)

 1
Common parts
47371-37040
90119-08676
94130-00802
96133-41500
Linked diagrams
4703
