XZU340-TKFSS3 (1999)
Toyota Dyna/Toyoace

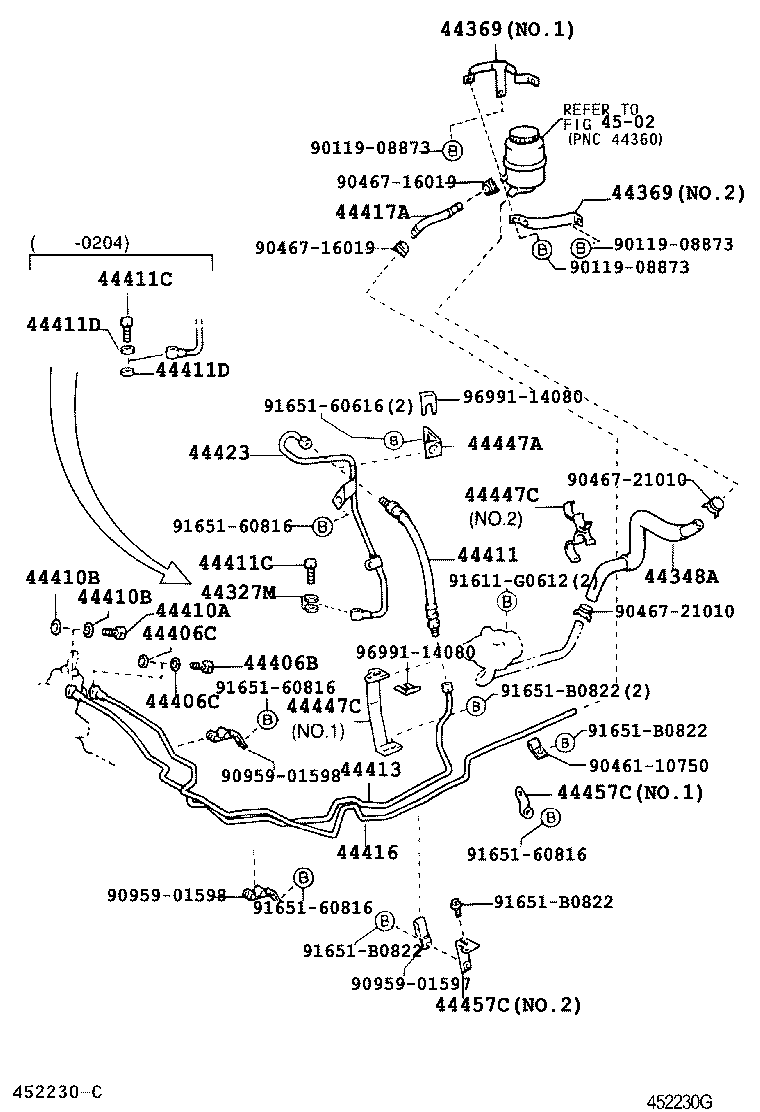

(9905-0406)XZU300,301,302,330,331,340,341,342,351,352..DM3,DM5,DM6,T3,T4,T5..DSL,DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327M - GASKET, PRESSURE PORT, NO.2 | ||||
| 44327-30030 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2 | ||||
| 44348-37140 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..DSL..(CBU,IV3);XZU300,302,307,31#,32#,33#,340,341,342,346,347,351,352..(DSL,DSLL)..(CBU,IV3) |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-37040 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,XZU300,320,330,340,350 NO.1 |
1 | ||
| 44369-37100 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,XZU300,320,330,340,350 NO.2 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-37040 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,XZU300,320,330,340,350 NO.1 |
1 | ||
| 44369-37100 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,XZU300,320,330,340,350 NO.2 |
1 | ||
| 44406B - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-14003 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
1 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-14003 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37100 |
XZU300,301,302,330,331,340,341..CBU,IV3 |
1 | ||
| 44411-37101 |
XZU300,301,302,330,331,340,341,342..(DSL,DSLL)..(CBU,IV3) |
1 | ||
| 44411-37200 |
RZU30#,340 |
1 | ||
| 44411-37141 |
BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 90404-16024 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#..CNG,DSL,LPG |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 90404-16024 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#..CNG,DSL,LPG |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
2 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-37070 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#..DSL,DSLL |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37280 |
XZU331..DSL;XZU301..4FC..DSL;XZU331..5F..DSLL;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU300,302,330,340,341,342,350..DSL,DSLL |
1 | ||
| 44416-37320 |
RZU30#,340 |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37020 |
BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG |
1 | ||
| 44447-37120 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,330,337,340,341,342,346,347,350..DSL,DSLL |
1 | ||
| 44447C - BRACKET, HOSE SUPPORT NO.2 | ||||
| 44447-37130 |
RZU30#,340 |
1 | ||
| 44447-37090 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#..DSL,DSLL |
1 | ||
| 44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2 | ||||
| 44457-37110 |
XZU300,301,302,31#,32#,330,331,340,341,342,35#..DSL,DSLL |
1 | ||
| 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 | ||||
| 44457-37090 |
XZU300,301,302,330,331,340,341,342,350..DSL,DSLL |
1 | ||
| 44457-37090 |
BU301,BZU300,340;XZU301,302,341,342..CNG,LPG NO.2 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90467-16019 | ||||
| 90467-21005 | ||||
| 90959-01597 | ||||
| 90959-01598 | ||||
| 90959-01600 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 4502 | ||||

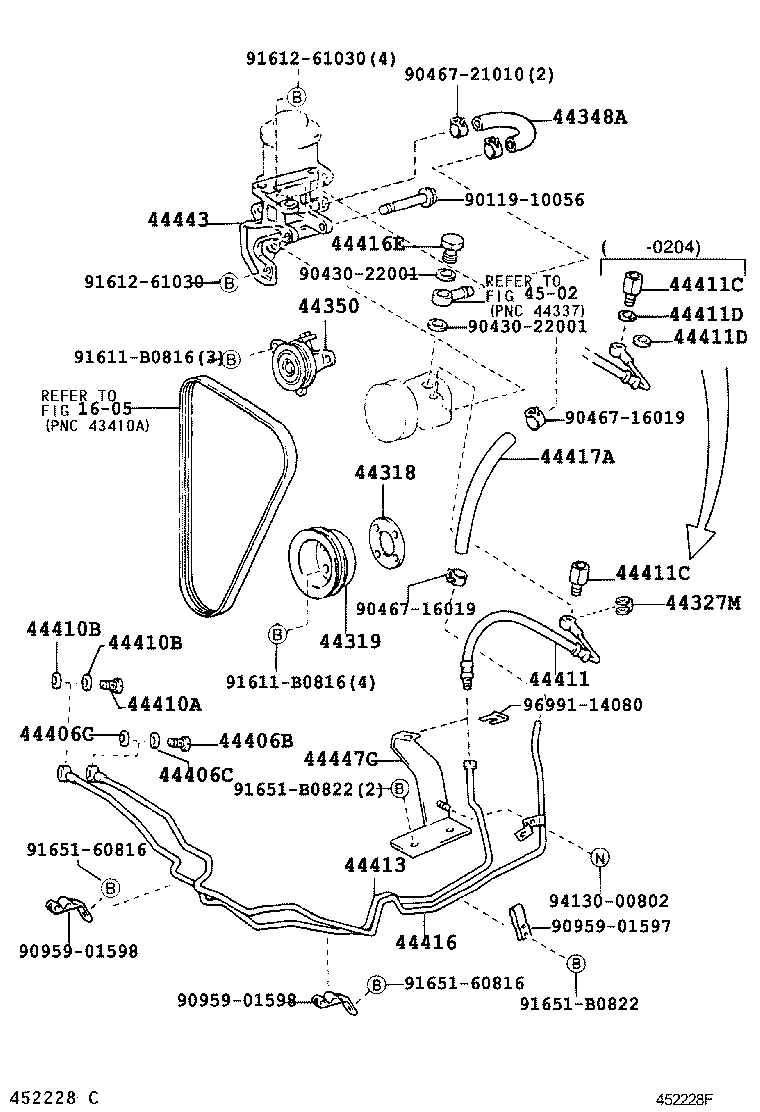

(0005- )RZU30#,340
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-26020 |
RZU30#,340 |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-34010 |
RZU30#,340 |
1 | ||
| 44327M - GASKET, PRESSURE PORT, NO.2 | ||||
| 44327-30030 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-37020 |
RZU30#,340 |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-34010 |
RZU30#,340 |
1 | ||
| 44406B - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-14003 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
1 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-14003 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37100 |
XZU300,301,302,330,331,340,341..CBU,IV3 |
1 | ||
| 44411-37101 |
XZU300,301,302,330,331,340,341,342..(DSL,DSLL)..(CBU,IV3) |
1 | ||
| 44411-37200 |
RZU30#,340 |
1 | ||
| 44411-37141 |
BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 90404-16024 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#..CNG,DSL,LPG |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 90404-16024 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#..CNG,DSL,LPG |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
2 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-37150 |
RZU30#,340 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37280 |
XZU331..DSL;XZU301..4FC..DSL;XZU331..5F..DSLL;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU300,302,330,340,341,342,350..DSL,DSLL |
1 | ||
| 44416-37320 |
RZU30#,340 |
1 | ||
| 44416E - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-22003 |
RZU30#,340 |
1 | ||
| 44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2) | ||||
| 44412-37110 |
RZU30#,340 |
1 | ||
| 44412-37120 |
BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-37021 |
RZU30#,340 |
1 | ||
| 44447C - BRACKET, HOSE SUPPORT NO.2 | ||||
| 44447-37130 |
RZU30#,340 |
1 | ||
| 44447-37090 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#..DSL,DSLL |
1 | ||
| Common parts | ||||
| 90119-10056 | ||||
| 90430-22001 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 90959-01597 | ||||
| 90959-01598 | ||||
| 91611-B0816 | ||||
| 91612-61030 | ||||
| 91651-60816 | ||||
| 91651-B0822 | ||||
| 94130-00802 | ||||
| 96991-14080 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 4502 | ||||
(0005-0406)XZU301,302,341,342..CNG,LPG ; (0005-)BZU300,340
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327M - GASKET, PRESSURE PORT, NO.2 | ||||
| 44327-30030 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-37020 |
RZU30#,340 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-37040 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,XZU300,320,330,340,350 NO.1 |
1 | ||
| 44369-37100 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,XZU300,320,330,340,350 NO.2 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-37040 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,XZU300,320,330,340,350 NO.1 |
1 | ||
| 44369-37100 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,XZU300,320,330,340,350 NO.2 |
1 | ||
| 44406B - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-14003 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
1 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-14003 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37100 |
XZU300,301,302,330,331,340,341..CBU,IV3 |
1 | ||
| 44411-37101 |
XZU300,301,302,330,331,340,341,342..(DSL,DSLL)..(CBU,IV3) |
1 | ||
| 44411-37200 |
RZU30#,340 |
1 | ||
| 44411-37141 |
BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 90404-16024 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#..CNG,DSL,LPG |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 90404-16024 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#..CNG,DSL,LPG |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
2 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-37150 |
RZU30#,340 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37280 |
XZU331..DSL;XZU301..4FC..DSL;XZU331..5F..DSLL;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU300,302,330,340,341,342,350..DSL,DSLL |
1 | ||
| 44416-37320 |
RZU30#,340 |
1 | ||
| 44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2) | ||||
| 44412-37110 |
RZU30#,340 |
1 | ||
| 44412-37120 |
BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37020 |
BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG |
1 | ||
| 44447-37120 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,330,337,340,341,342,346,347,350..DSL,DSLL |
1 | ||
| 44447C - BRACKET, HOSE SUPPORT NO.2 | ||||
| 44447-37130 |
RZU30#,340 |
1 | ||
| 44447-37090 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#..DSL,DSLL |
1 | ||
| 44447C - BRACKET, HOSE SUPPORT NO.2 | ||||
| 44447-37130 |
RZU30#,340 |
1 | ||
| 44447-37090 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#..DSL,DSLL |
1 | ||
| 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 | ||||
| 44457-37090 |
XZU300,301,302,330,331,340,341,342,350..DSL,DSLL |
1 | ||
| 44457-37090 |
BU301,BZU300,340;XZU301,302,341,342..CNG,LPG NO.2 |
1 | ||
| 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 | ||||
| 44457-37090 |
XZU300,301,302,330,331,340,341,342,350..DSL,DSLL |
1 | ||
| 44457-37090 |
BU301,BZU300,340;XZU301,302,341,342..CNG,LPG NO.2 |
1 | ||
| Common parts | ||||
| 90119-08873 | ||||
| 90461-10750 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 90959-01597 | ||||
| 90959-01598 | ||||
| 91611-G0612 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 91651-B0822 | ||||
| 96991-14080 | ||||
| Linked diagrams | ||||
| 4502 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
