XZU340-TKFSS3 (1999)
Toyota Dyna/Toyoace

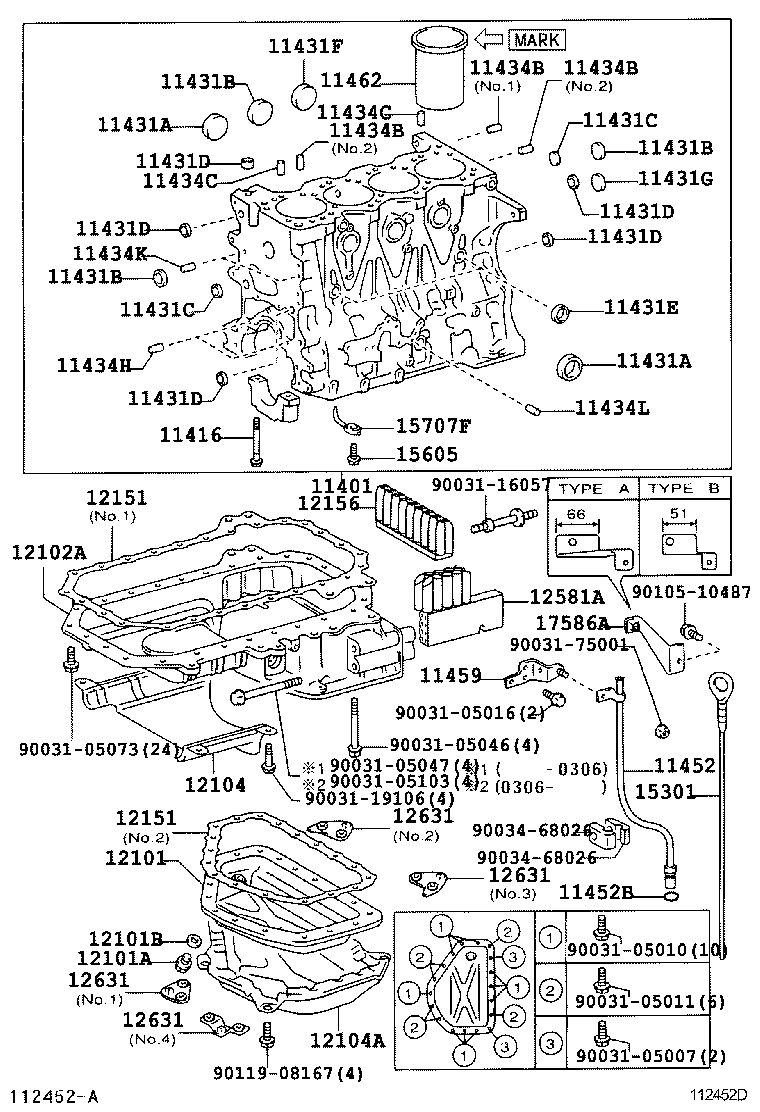

ILLUST NO. 1 OF 2(9905-0206)J05C,S05#..XZU30#,31#,32#,33#,34#,351,352,362,37#,382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-78071 |
J05C..XZU300,330,340,350 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90031-09052 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
10 | ||
| 90031-09052 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90033-31026 |
J05C..XZU300,320,330,340,350 外径=50 |
4 | ||
| 90331-50002 |
J05C..XZU300,320,330,340,350 外径=50 |
4 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90033-31026 |
J05C..XZU300,320,330,340,350 外径=50 |
4 | ||
| 90331-50002 |
J05C..XZU300,320,330,340,350 外径=50 |
4 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90033-31019 |
J05C..XZU300,320,330,340,350 外径=42 |
3 | ||
| 90033-31027 |
J05C..XZU300,320,330,340,350 外径=42 |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90033-31019 |
J05C..XZU300,320,330,340,350 外径=42 |
3 | ||
| 90033-31027 |
J05C..XZU300,320,330,340,350 外径=42 |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90033-31019 |
J05C..XZU300,320,330,340,350 外径=42 |
3 | ||
| 90033-31027 |
J05C..XZU300,320,330,340,350 外径=42 |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31018 |
J05C..XZU300,320,330,340,350 外径=22 |
2 | ||
| 90033-31021 |
J05C..XZU300,320,330,340,350 外径=22 |
2 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31018 |
J05C..XZU300,320,330,340,350 外径=22 |
2 | ||
| 90033-31021 |
J05C..XZU300,320,330,340,350 外径=22 |
2 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL NO.1,外径=17 |
5 | ||
| 90033-31016 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1,外径=17 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL NO.1,外径=17 |
5 | ||
| 90033-31016 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1,外径=17 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL NO.1,外径=17 |
5 | ||
| 90033-31016 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1,外径=17 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL NO.1,外径=17 |
5 | ||
| 90033-31016 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1,外径=17 |
5 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90033-31025 |
S05D..XZU306..T5..DSLL;S05C..XZU312..SCB..20T;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05C..XZU347..DCB..T3..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU301,331..5F..DSLL..IV4;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU300,311,320,321,330,340,350..1NO 外径=26 |
3 | ||
| 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) | ||||
| 90331-50002 |
J05C..XZU300,320,330,340,350 外径=50 |
1 | ||
| 90033-31026 |
J05C..XZU300,320,330,340,350 外径=50 |
1 | ||
| 11431G - PLUG, TIGHT | ||||
| 90033-31019 |
J05C..XZU300,320,330,340,350 外径=42 |
1 | ||
| 90033-31027 |
J05C..XZU300,320,330,340,350 外径=42 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08016 |
J05C..XZU300,330,340,350 長さ=16,外径=8 |
3 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08016 |
J05C..XZU300,330,340,350 長さ=16,外径=8 |
3 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08016 |
J05C..XZU300,330,340,350 長さ=16,外径=8 |
3 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08016 |
J05C..XZU300,330,340,350 長さ=16,外径=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08016 |
J05C..XZU300,330,340,350 長さ=16,外径=8 |
2 | ||
| 11434H - PIN, RING (FOR TIMING BELT COVER SET) | ||||
| 90250-08016 |
J05C..XZU300,330,340,350 |
2 | ||
| 11434K - PIN, STRAIGHT(FOR WATER PUMP) | ||||
| 90250-08016 |
J05C..XZU300,330,340,350 |
2 | ||
| 11434L - PIN, STRAIGHT(FOR ENGINE MOUNTING) | ||||
| 90250-08015 |
J05C..XZU300,330,340,350 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-78020 |
J05C..XZU300,320,330,340 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90033-01058 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 11462 - LINER, CYLINDER | ||||
| 11461-78060 |
J05C..XZU300,320,330,340,350 ﾏｰｸ A |
4 | ||
| 11461-78080 |
J05C..XZU300,320,330,340,350 ﾏｰｸ C |
4 | ||
| 11461-78070 |
J05C..XZU300,320,330,340,350 ﾏｰｸ B |
4 | ||
| 11461-78070 |
J05C..XZU300,330,340,350 ﾏｰｸ B |
4 | ||
| 11461-78080 |
J05C..XZU300,330,340,350 ﾏｰｸ C |
4 | ||
| 11461-78060 |
J05C..XZU300,330,340,350 ﾏｰｸ A |
4 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-78020 |
S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU301,306..SCB..DSL;S05D..XZU306..4FC..DSLL..IV3;J05C,S05#..XZU300,302,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90033-41020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90202-18002 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12111-78030 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352,362,37#,382 |
1 | ||
| 12101-78060 |
S05D..XZU301..DSLL..4NO;S05D..XZU306..DSLL..CBU;S05D..XZU301,306,331..DSL;S05D..XZU306..4FC..DSLL..IV3;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 12104 - COVER SUB-ASSY, OIL PAN, NO.1 | ||||
| 12104-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352,362,37#,382 |
1 | ||
| 12104-78011 |
S05D..XZU306..T5..DSLL;S05C..XZU312..SCB..20T;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05C..XZU347..DCB..T3..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU301,331..5F..DSLL..IV4;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU300,311,320,321,330,340..1NO |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352,362,37#,382 NO.1 |
1 | ||
| 12151-78020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382 NO.2 |
1 | ||
| 12151-78030 |
S05D..XZU301..DSLL..4NO;S05D..XZU306..DSLL..CBU;S05D..XZU301,306,331..DSL;S05D..XZU306..4FC..DSLL..IV3;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352,362,37#,382 NO.1 |
1 | ||
| 12151-78020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382 NO.2 |
1 | ||
| 12151-78030 |
S05D..XZU301..DSLL..4NO;S05D..XZU306..DSLL..CBU;S05D..XZU301,306,331..DSL;S05D..XZU306..4FC..DSLL..IV3;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 12156 - INSULATOR, OIL PAN | ||||
| 12156-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-78020 |
J05C..XZU300,320,330,340 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15703-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 15703-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
4 | ||
| 15707F - PIPE SUB-ASSY, OIL | ||||
| 11418-78050 |
J05C..XZU300,330,340,350 |
4 | ||
| 15707-89103 |
J05C..XZU300,330,340,350 |
4 | ||
| 17586A - BRACKET, HEAT INSULATOR | ||||
| 17586-78010 |
J05C..XZU300,330,340..IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 17586-78010 |
J05C..XZU300,330,340..IV3;S05D..XZU341..T3..4FC..IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 17586-78010 |
J05C..XZU340..IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 12144-78010 | ||||
| 82715-37400 | ||||
| 90031-05007 | ||||
| 90031-05009 | ||||
| 90031-05010 | ||||
| 90031-05011 | ||||
| 90031-05016 | ||||
| 90031-05045 | ||||
| 90031-05046 | ||||
| 90031-05047 | ||||
| 90031-05053 | ||||
| 90031-05071 | ||||
| 90031-05073 | ||||
| 90031-16057 | ||||
| 90031-19106 | ||||
| 90031-75001 | ||||
| 90033-85007 | ||||
| 90034-68026 | ||||
| 90035-60054 | ||||
| 90105-10487 | ||||
(0206-0406)J05C..XZU300,330,340
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-78071 |
J05C..XZU300,330,340,350 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90031-09052 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
10 | ||
| 90031-09052 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90033-31026 |
J05C..XZU300,320,330,340,350 外径=50 |
4 | ||
| 90331-50002 |
J05C..XZU300,320,330,340,350 外径=50 |
4 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90033-31026 |
J05C..XZU300,320,330,340,350 外径=50 |
4 | ||
| 90331-50002 |
J05C..XZU300,320,330,340,350 外径=50 |
4 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90033-31019 |
J05C..XZU300,320,330,340,350 外径=42 |
3 | ||
| 90033-31027 |
J05C..XZU300,320,330,340,350 外径=42 |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90033-31019 |
J05C..XZU300,320,330,340,350 外径=42 |
3 | ||
| 90033-31027 |
J05C..XZU300,320,330,340,350 外径=42 |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90033-31019 |
J05C..XZU300,320,330,340,350 外径=42 |
3 | ||
| 90033-31027 |
J05C..XZU300,320,330,340,350 外径=42 |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31018 |
J05C..XZU300,320,330,340,350 外径=22 |
2 | ||
| 90033-31021 |
J05C..XZU300,320,330,340,350 外径=22 |
2 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31018 |
J05C..XZU300,320,330,340,350 外径=22 |
2 | ||
| 90033-31021 |
J05C..XZU300,320,330,340,350 外径=22 |
2 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL NO.1,外径=17 |
5 | ||
| 90033-31016 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1,外径=17 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL NO.1,外径=17 |
5 | ||
| 90033-31016 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1,外径=17 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL NO.1,外径=17 |
5 | ||
| 90033-31016 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1,外径=17 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL NO.1,外径=17 |
5 | ||
| 90033-31016 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1,外径=17 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL NO.1,外径=17 |
5 | ||
| 90033-31016 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C..XZU300,320,330,340,350 外径=17 |
5 | ||
| 90033-31020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1,外径=17 |
5 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90033-31025 |
S05D..XZU306..T5..DSLL;S05C..XZU312..SCB..20T;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05C..XZU347..DCB..T3..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU301,331..5F..DSLL..IV4;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU300,311,320,321,330,340,350..1NO 外径=26 |
3 | ||
| 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) | ||||
| 90331-50002 |
J05C..XZU300,320,330,340,350 外径=50 |
1 | ||
| 90033-31026 |
J05C..XZU300,320,330,340,350 外径=50 |
1 | ||
| 11431G - PLUG, TIGHT | ||||
| 90033-31019 |
J05C..XZU300,320,330,340,350 外径=42 |
1 | ||
| 90033-31027 |
J05C..XZU300,320,330,340,350 外径=42 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08016 |
J05C..XZU300,330,340,350 長さ=16,外径=8 |
3 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08016 |
J05C..XZU300,330,340,350 長さ=16,外径=8 |
3 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08016 |
J05C..XZU300,330,340,350 長さ=16,外径=8 |
3 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08016 |
J05C..XZU300,330,340,350 長さ=16,外径=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08016 |
J05C..XZU300,330,340,350 長さ=16,外径=8 |
2 | ||
| 11434H - PIN, RING (FOR TIMING BELT COVER SET) | ||||
| 90250-08016 |
J05C..XZU300,330,340,350 |
2 | ||
| 11434K - PIN, STRAIGHT(FOR WATER PUMP) | ||||
| 90250-08016 |
J05C..XZU300,330,340,350 |
2 | ||
| 11434L - PIN, STRAIGHT(FOR ENGINE MOUNTING) | ||||
| 90250-08015 |
J05C..XZU300,330,340,350 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-78020 |
J05C..XZU300,320,330,340 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90033-01058 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 11462 - LINER, CYLINDER | ||||
| 11461-78060 |
J05C..XZU300,320,330,340,350 ﾏｰｸ A |
4 | ||
| 11461-78080 |
J05C..XZU300,320,330,340,350 ﾏｰｸ C |
4 | ||
| 11461-78070 |
J05C..XZU300,320,330,340,350 ﾏｰｸ B |
4 | ||
| 11461-78070 |
J05C..XZU300,330,340,350 ﾏｰｸ B |
4 | ||
| 11461-78080 |
J05C..XZU300,330,340,350 ﾏｰｸ C |
4 | ||
| 11461-78060 |
J05C..XZU300,330,340,350 ﾏｰｸ A |
4 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-78020 |
S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU301,306..SCB..DSL;S05D..XZU306..4FC..DSLL..IV3;J05C,S05#..XZU300,302,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90033-41020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90202-18002 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12111-78030 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352,362,37#,382 |
1 | ||
| 12101-78060 |
S05D..XZU301..DSLL..4NO;S05D..XZU306..DSLL..CBU;S05D..XZU301,306,331..DSL;S05D..XZU306..4FC..DSLL..IV3;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 12104 - COVER SUB-ASSY, OIL PAN, NO.1 | ||||
| 12104-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352,362,37#,382 |
1 | ||
| 12104-78011 |
S05D..XZU306..T5..DSLL;S05C..XZU312..SCB..20T;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05C..XZU347..DCB..T3..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU301,331..5F..DSLL..IV4;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU300,311,320,321,330,340..1NO |
1 | ||
| 12104A - COVER SUB-ASSY, OIL PAN, NO.2 | ||||
| 12104-78031 |
S05D..XZU301..SCB..DSL;S05D..XZU301..DSLL..4NO;J05C,S05#..XZU300,302,31#,32#,330,331,340,341,342,351,352..CBU,IV3 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352,362,37#,382 NO.1 |
1 | ||
| 12151-78020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382 NO.2 |
1 | ||
| 12151-78030 |
S05D..XZU301..DSLL..4NO;S05D..XZU306..DSLL..CBU;S05D..XZU301,306,331..DSL;S05D..XZU306..4FC..DSLL..IV3;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352,362,37#,382 NO.1 |
1 | ||
| 12151-78020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382 NO.2 |
1 | ||
| 12151-78030 |
S05D..XZU301..DSLL..4NO;S05D..XZU306..DSLL..CBU;S05D..XZU301,306,331..DSL;S05D..XZU306..4FC..DSLL..IV3;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 12156 - INSULATOR, OIL PAN | ||||
| 12156-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 12581A - INSULATOR, CYLINDER BLOCK, NO.1 | ||||
| 12581-78030 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352,362,37#,382..MTM..DSL |
1 | ||
| 12581-78030 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..MTM |
1 | ||
| 12631 - BRACKET, ENGINE COVER | ||||
| 12631-78030 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352..DSL..(CBU,IV3,IV6,IV7) NO.3 |
1 | ||
| 12631-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352..DSL..(CBU,IV3,IV6,IV7) NO.1 |
1 | ||
| 12631-78020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352..DSL..(CBU,IV3,IV6,IV7) NO.2 |
1 | ||
| 12631-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3,IV6,IV7 NO.1 |
1 | ||
| 12631-78050 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352..DSL..(CBU,IV3,IV6,IV7) NO.4 |
1 | ||
| 12631-78030 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3,IV6,IV7 NO.3 |
1 | ||
| 12631-78020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3,IV6,IV7 NO.2 |
1 | ||
| 12631-78050 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3,IV6,IV7 NO.4 |
1 | ||
| 12631 - BRACKET, ENGINE COVER | ||||
| 12631-78030 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352..DSL..(CBU,IV3,IV6,IV7) NO.3 |
1 | ||
| 12631-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352..DSL..(CBU,IV3,IV6,IV7) NO.1 |
1 | ||
| 12631-78020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352..DSL..(CBU,IV3,IV6,IV7) NO.2 |
1 | ||
| 12631-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3,IV6,IV7 NO.1 |
1 | ||
| 12631-78050 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352..DSL..(CBU,IV3,IV6,IV7) NO.4 |
1 | ||
| 12631-78030 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3,IV6,IV7 NO.3 |
1 | ||
| 12631-78020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3,IV6,IV7 NO.2 |
1 | ||
| 12631-78050 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3,IV6,IV7 NO.4 |
1 | ||
| 12631 - BRACKET, ENGINE COVER | ||||
| 12631-78030 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352..DSL..(CBU,IV3,IV6,IV7) NO.3 |
1 | ||
| 12631-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352..DSL..(CBU,IV3,IV6,IV7) NO.1 |
1 | ||
| 12631-78020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352..DSL..(CBU,IV3,IV6,IV7) NO.2 |
1 | ||
| 12631-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3,IV6,IV7 NO.1 |
1 | ||
| 12631-78050 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352..DSL..(CBU,IV3,IV6,IV7) NO.4 |
1 | ||
| 12631-78030 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3,IV6,IV7 NO.3 |
1 | ||
| 12631-78020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3,IV6,IV7 NO.2 |
1 | ||
| 12631-78050 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3,IV6,IV7 NO.4 |
1 | ||
| 12631 - BRACKET, ENGINE COVER | ||||
| 12631-78030 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352..DSL..(CBU,IV3,IV6,IV7) NO.3 |
1 | ||
| 12631-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352..DSL..(CBU,IV3,IV6,IV7) NO.1 |
1 | ||
| 12631-78020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352..DSL..(CBU,IV3,IV6,IV7) NO.2 |
1 | ||
| 12631-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3,IV6,IV7 NO.1 |
1 | ||
| 12631-78050 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352..DSL..(CBU,IV3,IV6,IV7) NO.4 |
1 | ||
| 12631-78030 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3,IV6,IV7 NO.3 |
1 | ||
| 12631-78020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3,IV6,IV7 NO.2 |
1 | ||
| 12631-78050 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3,IV6,IV7 NO.4 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-78020 |
J05C..XZU300,320,330,340 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15703-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 15703-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
4 | ||
| 15707F - PIPE SUB-ASSY, OIL | ||||
| 11418-78050 |
J05C..XZU300,330,340,350 |
4 | ||
| 15707-89103 |
J05C..XZU300,330,340,350 |
4 | ||
| 17586A - BRACKET, HEAT INSULATOR | ||||
| 17586-78010 |
J05C..XZU300,330,340..IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 17586-78010 |
J05C..XZU300,330,340..IV3;S05D..XZU341..T3..4FC..IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 17586-78010 |
J05C..XZU340..IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 90031-05007 | ||||
| 90031-05010 | ||||
| 90031-05011 | ||||
| 90031-05016 | ||||
| 90031-05046 | ||||
| 90031-05047 | ||||
| 90031-05073 | ||||
| 90031-05103 | ||||
| 90031-16057 | ||||
| 90031-19106 | ||||
| 90031-75001 | ||||
| 90034-68026 | ||||
| 90105-10487 | ||||
| 90119-08167 | ||||
(9905-0110)J05C,S05#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-37400 | ||||
| 90031-05007 | ||||
| 90031-05009 | ||||
| 90031-05010 | ||||
| 90031-05016 | ||||
| 90031-05045 | ||||
| 90031-05046 | ||||
| 90031-05047 | ||||
| 90031-05073 | ||||
| 90031-16057 | ||||
| 90031-19106 | ||||
| 90031-75001 | ||||
| 90033-85007 | ||||
| 90034-68026 | ||||
| 90035-60054 | ||||
| 90105-10487 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(0110-0206)J05C,S05#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 12144-78010 | ||||
| 82715-37400 | ||||
| 90031-05007 | ||||
| 90031-05009 | ||||
| 90031-05010 | ||||
| 90031-05016 | ||||
| 90031-05045 | ||||
| 90031-05046 | ||||
| 90031-05047 | ||||
| 90031-05073 | ||||
| 90031-16057 | ||||
| 90031-19106 | ||||
| 90031-75001 | ||||
| 90034-68026 | ||||
| 90105-10487 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(0206-0406)J05C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05007 | ||||
| 90031-05010 | ||||
| 90031-05011 | ||||
| 90031-05046 | ||||
| 90031-05047 | ||||
| 90031-05073 | ||||
| 90031-05103 | ||||
| 90031-16057 | ||||
| 90031-19106 | ||||
| 90031-75001 | ||||
| 90034-68026 | ||||
| 90105-10487 | ||||
| 90119-08167 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
