Toyota Dyna/toyoace XZU340 MOUNTING

XZU340-TKFQS (1999)

Toyota Dyna/Toyoace

Production Jun 1999 - Jun 2004

Engine J05C

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

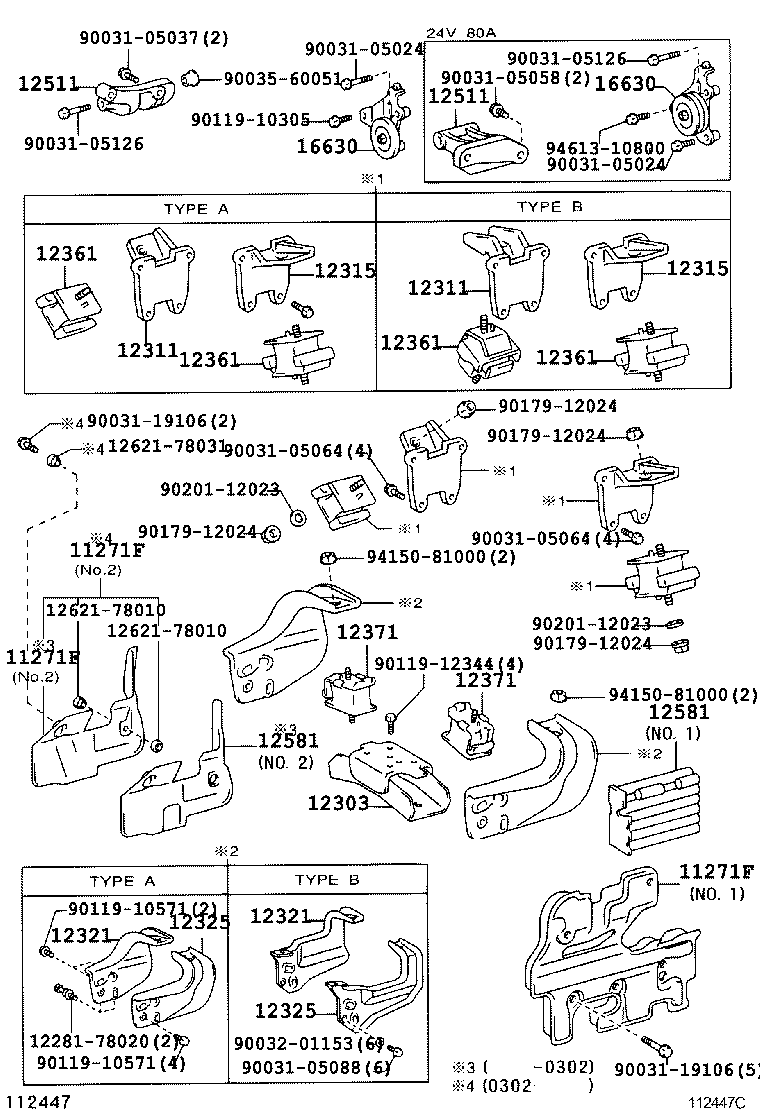

(9905-0110)J05C,S05#..XZU30#,31#,32#,33#,34#,35#

Click highlighted areas on diagram

Part #	Description	Period	Qty
11271F - COVER, CYLINDER BLOCK SIDE
11271-78030	J05C..XZU300,320,330,340,350	06/1999 - 10/2000	1
11271-78070	J05C..XZU300,330,340,350 NO.2	06/2002 - 02/2003	1
11271-78061	J05C..XZU300,330,340,350 NO.1	02/2003 - 06/2004	1
11271-78060	J05C..XZU300,330,340,350 NO.1	06/2002 - 02/2003	1
11271-78031	J05C..XZU300,320,330,340,350	10/2000 - 06/2002	1
11271-78092	J05C..XZU300,330,340,350 NO.2	02/2003 - 06/2004	1
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-78020	S05C..XZU302..DM3,DM6,T3;S05C..XZU302..(T4,T5)..(295T,30T);S05C..XZU302,307,337..(03S,T2,T4,T5)..4FC;J05C,S05#..XZU300,301,306,32#,330,331,340,341,342,346,347,350	05/1999 - 06/2004	1
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-78020	S05C..XZU302..DM3,DM6,T3;S05C..XZU302..(T4,T5)..(295T,30T);S05C..XZU302,307,337..(03S,T2,T4,T5)..4FC;J05C,S05#..XZU300,301,306,32#,330,331,340,341,342,346,347,350	05/1999 - 06/2004	1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-78030	J05C,S05#..XZU300,301,302,31#,32#,330,331,340,341,342,35# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-78030	J05C,S05#..XZU300,301,302,31#,32#,330,331,340,341,342,35# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-78010	J05C,S05#..XZU300,301,302,31#,32#,330,331,340,341,342,35# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-78010	J05C,S05#..XZU300,301,302,31#,32#,330,331,340,341,342,35# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78090	S05C..XZU302..(DM3,DM6,T3)..5F;S05C..XZU302..(T4,T5)..(295T,30T);J05C,S05#..XZU300,301,306,32#,330,331,34#,350..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
12321-78090	J05C..XZU340;S05C..XZU302..DM3,T3;S05D..XZU301..5F..IV4;S05C..XZU302..(T4,T5)..(295T,30T);S05D..XZU301..(DM3,T3)..5F..(20T,295T);S05D..XZU301..5F..(295T,30T)..DSL..4NO;J05C,S05#..XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 06/2004	1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78070	S05C..XZU302..(DM3,DM6,T3)..5F;S05C..XZU302..(T4,T5)..(295T,30T);J05C,S05#..XZU300,301,306,32#,330,331,34#,350..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
12325-78070	J05C..XZU340;S05C..XZU302..DM3,T3;S05D..XZU301..5F..IV4;S05C..XZU302..(T4,T5)..(295T,30T);S05D..XZU301..(DM3,T3)..5F..(20T,295T);S05D..XZU301..5F..(295T,30T)..DSL..4NO;J05C,S05#..XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 06/2004	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78060	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	06/1999 - 08/2002	1
12361-78031	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/2001 - 08/2002	1
12362-78010	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	08/2002 - 06/2004	1
12361-78100	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	08/2002 - 06/2004	1
12361-78030	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/1999 - 06/2001	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78060	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	06/1999 - 08/2002	1
12361-78031	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/2001 - 08/2002	1
12362-78010	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	08/2002 - 06/2004	1
12361-78100	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	08/2002 - 06/2004	1
12361-78030	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/1999 - 06/2001	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78060	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	06/1999 - 08/2002	1
12361-78031	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/2001 - 08/2002	1
12362-78010	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	08/2002 - 06/2004	1
12361-78100	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	08/2002 - 06/2004	1
12361-78030	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/1999 - 06/2001	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78060	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	06/1999 - 08/2002	1
12361-78031	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/2001 - 08/2002	1
12362-78010	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	08/2002 - 06/2004	1
12361-78100	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	08/2002 - 06/2004	1
12361-78030	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/1999 - 06/2001	1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010	J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010	J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
12511 - BRACKET, ALTERNATOR, NO.1
12501-78020	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	03/2001 - 06/2004	1
12501-78020	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
12511 - BRACKET, ALTERNATOR, NO.1
12501-78020	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	03/2001 - 06/2004	1
12501-78020	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
12581 - INSULATOR, CYLINDER BLOCK, NO.1
12581-78010	J05C..XZU300,320,330,340,350	06/1999 - 06/2004	1
12581-78010	J05C..XZU300,330,340,350 NO.1	06/2002 - 06/2004	1
12581-78040	J05C..XZU300,330,340,350 NO.2	06/2002 - 02/2003	1
16630 - PULLEY ASSY, IDLER
16630-78010	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
16630-78090	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	05/2004 - 06/2004	1
16630-78010	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	03/2001 - 05/2004	1
16630 - PULLEY ASSY, IDLER
16630-78010	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
16630-78090	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	05/2004 - 06/2004	1
16630-78010	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	03/2001 - 05/2004	1
Common parts
12281-78020
90031-05024
90031-05037
90031-05058
90031-05064
90031-05126
90031-19106
90033-85007
90035-60051
90035-60054
90119-10305
90119-10571
90119-12344
90179-12024
90201-12023
91642-H1022
94150-81000
94613-10800

(0110-0206)J05C,S05#..XZU30#,32#,33#,34#,350

Click highlighted areas on diagram

Part #	Description	Period	Qty
11271F - COVER, CYLINDER BLOCK SIDE
11271-78030	J05C..XZU300,320,330,340,350	06/1999 - 10/2000	1
11271-78070	J05C..XZU300,330,340,350 NO.2	06/2002 - 02/2003	1
11271-78061	J05C..XZU300,330,340,350 NO.1	02/2003 - 06/2004	1
11271-78060	J05C..XZU300,330,340,350 NO.1	06/2002 - 02/2003	1
11271-78031	J05C..XZU300,320,330,340,350	10/2000 - 06/2002	1
11271-78092	J05C..XZU300,330,340,350 NO.2	02/2003 - 06/2004	1
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-78020	S05C..XZU302..DM3,DM6,T3;S05C..XZU302..(T4,T5)..(295T,30T);S05C..XZU302,307,337..(03S,T2,T4,T5)..4FC;J05C,S05#..XZU300,301,306,32#,330,331,340,341,342,346,347,350	05/1999 - 06/2004	1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-78030	J05C,S05#..XZU300,301,302,31#,32#,330,331,340,341,342,35# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-78030	J05C,S05#..XZU300,301,302,31#,32#,330,331,340,341,342,35# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-78010	J05C,S05#..XZU300,301,302,31#,32#,330,331,340,341,342,35# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-78010	J05C,S05#..XZU300,301,302,31#,32#,330,331,340,341,342,35# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78090	S05C..XZU302..(DM3,DM6,T3)..5F;S05C..XZU302..(T4,T5)..(295T,30T);J05C,S05#..XZU300,301,306,32#,330,331,34#,350..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
12321-78090	J05C..XZU340;S05C..XZU302..DM3,T3;S05D..XZU301..5F..IV4;S05C..XZU302..(T4,T5)..(295T,30T);S05D..XZU301..(DM3,T3)..5F..(20T,295T);S05D..XZU301..5F..(295T,30T)..DSL..4NO;J05C,S05#..XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 06/2004	1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78090	S05C..XZU302..(DM3,DM6,T3)..5F;S05C..XZU302..(T4,T5)..(295T,30T);J05C,S05#..XZU300,301,306,32#,330,331,34#,350..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
12321-78090	J05C..XZU340;S05C..XZU302..DM3,T3;S05D..XZU301..5F..IV4;S05C..XZU302..(T4,T5)..(295T,30T);S05D..XZU301..(DM3,T3)..5F..(20T,295T);S05D..XZU301..5F..(295T,30T)..DSL..4NO;J05C,S05#..XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 06/2004	1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78070	S05C..XZU302..(DM3,DM6,T3)..5F;S05C..XZU302..(T4,T5)..(295T,30T);J05C,S05#..XZU300,301,306,32#,330,331,34#,350..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
12325-78070	J05C..XZU340;S05C..XZU302..DM3,T3;S05D..XZU301..5F..IV4;S05C..XZU302..(T4,T5)..(295T,30T);S05D..XZU301..(DM3,T3)..5F..(20T,295T);S05D..XZU301..5F..(295T,30T)..DSL..4NO;J05C,S05#..XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 06/2004	1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78070	S05C..XZU302..(DM3,DM6,T3)..5F;S05C..XZU302..(T4,T5)..(295T,30T);J05C,S05#..XZU300,301,306,32#,330,331,34#,350..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
12325-78070	J05C..XZU340;S05C..XZU302..DM3,T3;S05D..XZU301..5F..IV4;S05C..XZU302..(T4,T5)..(295T,30T);S05D..XZU301..(DM3,T3)..5F..(20T,295T);S05D..XZU301..5F..(295T,30T)..DSL..4NO;J05C,S05#..XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 06/2004	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78060	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	06/1999 - 08/2002	1
12361-78031	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/2001 - 08/2002	1
12362-78010	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	08/2002 - 06/2004	1
12361-78100	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	08/2002 - 06/2004	1
12361-78030	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/1999 - 06/2001	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78060	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	06/1999 - 08/2002	1
12361-78031	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/2001 - 08/2002	1
12362-78010	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	08/2002 - 06/2004	1
12361-78100	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	08/2002 - 06/2004	1
12361-78030	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/1999 - 06/2001	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78060	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	06/1999 - 08/2002	1
12361-78031	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/2001 - 08/2002	1
12362-78010	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	08/2002 - 06/2004	1
12361-78100	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	08/2002 - 06/2004	1
12361-78030	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/1999 - 06/2001	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78060	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	06/1999 - 08/2002	1
12361-78031	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/2001 - 08/2002	1
12362-78010	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	08/2002 - 06/2004	1
12361-78100	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	08/2002 - 06/2004	1
12361-78030	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/1999 - 06/2001	1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010	J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010	J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
12511 - BRACKET, ALTERNATOR, NO.1
12501-78020	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	03/2001 - 06/2004	1
12501-78020	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
12511 - BRACKET, ALTERNATOR, NO.1
12501-78020	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	03/2001 - 06/2004	1
12501-78020	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
12581 - INSULATOR, CYLINDER BLOCK, NO.1
12581-78010	J05C..XZU300,320,330,340,350	06/1999 - 06/2004	1
12581-78010	J05C..XZU300,330,340,350 NO.1	06/2002 - 06/2004	1
12581-78040	J05C..XZU300,330,340,350 NO.2	06/2002 - 02/2003	1
16630 - PULLEY ASSY, IDLER
16630-78010	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
16630-78090	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	05/2004 - 06/2004	1
16630-78010	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	03/2001 - 05/2004	1
16630 - PULLEY ASSY, IDLER
16630-78010	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
16630-78090	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	05/2004 - 06/2004	1
16630-78010	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	03/2001 - 05/2004	1
Common parts
12144-78010
12281-78020
90031-05024
90031-05037
90031-05058
90031-05064
90031-05088
90031-05126
90031-19106
90032-01153
90035-60051
90119-10305
90119-10571
90119-12344
90179-12024
90201-12023
94150-81000

(0206-0406)J05C

Click highlighted areas on diagram

Part #	Description	Period	Qty
11271F - COVER, CYLINDER BLOCK SIDE
11271-78060	J05C..XZU300,330,340,350 NO.1	06/2002 - 02/2003	1
11271-78030	J05C..XZU300,320,330,340,350	06/1999 - 10/2000	1
11271-78070	J05C..XZU300,330,340,350 NO.2	06/2002 - 02/2003	1
11271-78061	J05C..XZU300,330,340,350 NO.1	02/2003 - 06/2004	1
11271-78031	J05C..XZU300,320,330,340,350	10/2000 - 06/2002	1
11271-78092	J05C..XZU300,330,340,350 NO.2	02/2003 - 06/2004	1
11271F - COVER, CYLINDER BLOCK SIDE
11271-78030	J05C..XZU300,320,330,340,350	06/1999 - 10/2000	1
11271-78070	J05C..XZU300,330,340,350 NO.2	06/2002 - 02/2003	1
11271-78061	J05C..XZU300,330,340,350 NO.1	02/2003 - 06/2004	1
11271-78060	J05C..XZU300,330,340,350 NO.1	06/2002 - 02/2003	1
11271-78031	J05C..XZU300,320,330,340,350	10/2000 - 06/2002	1
11271-78092	J05C..XZU300,330,340,350 NO.2	02/2003 - 06/2004	1
11271F - COVER, CYLINDER BLOCK SIDE
11271-78030	J05C..XZU300,320,330,340,350	06/1999 - 10/2000	1
11271-78070	J05C..XZU300,330,340,350 NO.2	06/2002 - 02/2003	1
11271-78061	J05C..XZU300,330,340,350 NO.1	02/2003 - 06/2004	1
11271-78060	J05C..XZU300,330,340,350 NO.1	06/2002 - 02/2003	1
11271-78031	J05C..XZU300,320,330,340,350	10/2000 - 06/2002	1
11271-78092	J05C..XZU300,330,340,350 NO.2	02/2003 - 06/2004	1
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-78020	S05C..XZU302..DM3,DM6,T3;S05C..XZU302..(T4,T5)..(295T,30T);S05C..XZU302,307,337..(03S,T2,T4,T5)..4FC;J05C,S05#..XZU300,301,306,32#,330,331,340,341,342,346,347,350	05/1999 - 06/2004	1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-78030	J05C,S05#..XZU300,301,302,31#,32#,330,331,340,341,342,35# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-78030	J05C,S05#..XZU300,301,302,31#,32#,330,331,340,341,342,35# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-78010	J05C,S05#..XZU300,301,302,31#,32#,330,331,340,341,342,35# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-78010	J05C,S05#..XZU300,301,302,31#,32#,330,331,340,341,342,35# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78090	S05C..XZU302..(DM3,DM6,T3)..5F;S05C..XZU302..(T4,T5)..(295T,30T);J05C,S05#..XZU300,301,306,32#,330,331,34#,350..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
12321-78090	J05C..XZU340;S05C..XZU302..DM3,T3;S05D..XZU301..5F..IV4;S05C..XZU302..(T4,T5)..(295T,30T);S05D..XZU301..(DM3,T3)..5F..(20T,295T);S05D..XZU301..5F..(295T,30T)..DSL..4NO;J05C,S05#..XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 06/2004	1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78090	S05C..XZU302..(DM3,DM6,T3)..5F;S05C..XZU302..(T4,T5)..(295T,30T);J05C,S05#..XZU300,301,306,32#,330,331,34#,350..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
12321-78090	J05C..XZU340;S05C..XZU302..DM3,T3;S05D..XZU301..5F..IV4;S05C..XZU302..(T4,T5)..(295T,30T);S05D..XZU301..(DM3,T3)..5F..(20T,295T);S05D..XZU301..5F..(295T,30T)..DSL..4NO;J05C,S05#..XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 06/2004	1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78070	S05C..XZU302..(DM3,DM6,T3)..5F;S05C..XZU302..(T4,T5)..(295T,30T);J05C,S05#..XZU300,301,306,32#,330,331,34#,350..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
12325-78070	J05C..XZU340;S05C..XZU302..DM3,T3;S05D..XZU301..5F..IV4;S05C..XZU302..(T4,T5)..(295T,30T);S05D..XZU301..(DM3,T3)..5F..(20T,295T);S05D..XZU301..5F..(295T,30T)..DSL..4NO;J05C,S05#..XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 06/2004	1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78070	S05C..XZU302..(DM3,DM6,T3)..5F;S05C..XZU302..(T4,T5)..(295T,30T);J05C,S05#..XZU300,301,306,32#,330,331,34#,350..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
12325-78070	J05C..XZU340;S05C..XZU302..DM3,T3;S05D..XZU301..5F..IV4;S05C..XZU302..(T4,T5)..(295T,30T);S05D..XZU301..(DM3,T3)..5F..(20T,295T);S05D..XZU301..5F..(295T,30T)..DSL..4NO;J05C,S05#..XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2002 - 06/2004	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78060	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	06/1999 - 08/2002	1
12361-78031	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/2001 - 08/2002	1
12362-78010	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	08/2002 - 06/2004	1
12361-78100	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	08/2002 - 06/2004	1
12361-78030	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/1999 - 06/2001	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78060	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	06/1999 - 08/2002	1
12361-78031	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/2001 - 08/2002	1
12362-78010	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	08/2002 - 06/2004	1
12361-78100	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	08/2002 - 06/2004	1
12361-78030	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/1999 - 06/2001	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78060	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	06/1999 - 08/2002	1
12361-78031	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/2001 - 08/2002	1
12362-78010	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	08/2002 - 06/2004	1
12361-78100	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	08/2002 - 06/2004	1
12361-78030	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/1999 - 06/2001	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78060	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	06/1999 - 08/2002	1
12361-78031	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/2001 - 08/2002	1
12362-78010	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,左側	08/2002 - 06/2004	1
12361-78100	J05C..XZU300,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	08/2002 - 06/2004	1
12361-78030	J05C..XZU300,320,330,340,350 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/1999 - 06/2001	1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010	J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010	J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
12511 - BRACKET, ALTERNATOR, NO.1
12501-78020	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	03/2001 - 06/2004	1
12501-78020	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
12511 - BRACKET, ALTERNATOR, NO.1
12501-78020	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	03/2001 - 06/2004	1
12501-78020	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
12581 - INSULATOR, CYLINDER BLOCK, NO.1
12581-78010	J05C..XZU300,320,330,340,350	06/1999 - 06/2004	1
12581-78010	J05C..XZU300,330,340,350 NO.1	06/2002 - 06/2004	1
12581-78040	J05C..XZU300,330,340,350 NO.2	06/2002 - 02/2003	1
12581 - INSULATOR, CYLINDER BLOCK, NO.1
12581-78010	J05C..XZU300,330,340,350 NO.1	06/2002 - 06/2004	1
12581-78010	J05C..XZU300,320,330,340,350	06/1999 - 06/2004	1
12581-78040	J05C..XZU300,330,340,350 NO.2	06/2002 - 02/2003	1
16630 - PULLEY ASSY, IDLER
16630-78010	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
16630-78090	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	05/2004 - 06/2004	1
16630-78010	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	03/2001 - 05/2004	1
16630 - PULLEY ASSY, IDLER
16630-78010	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
16630-78090	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	05/2004 - 06/2004	1
16630-78010	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..CBU,IV3,IV6,IV7	03/2001 - 05/2004	1
Common parts
12281-78020
12621-78010
12621-78031
90031-05024
90031-05037
90031-05058
90031-05064
90031-05088
90031-05126
90031-19106
90032-01153
90035-60051
90119-10305
90119-10571
90119-12344
90179-12024
90201-12023
94150-81000
94613-10800

(0206-0406)J05C

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
12281-78020
12621-78010
12621-78031
90031-05058
90031-05064
90031-05126
90031-05144
90031-05147
90031-05154
90031-19106
90119-10571
90119-12344
90179-12024
90201-12023
94150-81000
94613-10800

XZU340-TKFQS (1999)

(9905-0110)J05C,S05#..XZU30#,31#,32#,33#,34#,35#

(0110-0206)J05C,S05#..XZU30#,32#,33#,34#,350

(0206-0406)J05C

(0206-0406)J05C

Part Price Details
