XZU337-TQMMS3 (1999)
Toyota Dyna/Toyoace

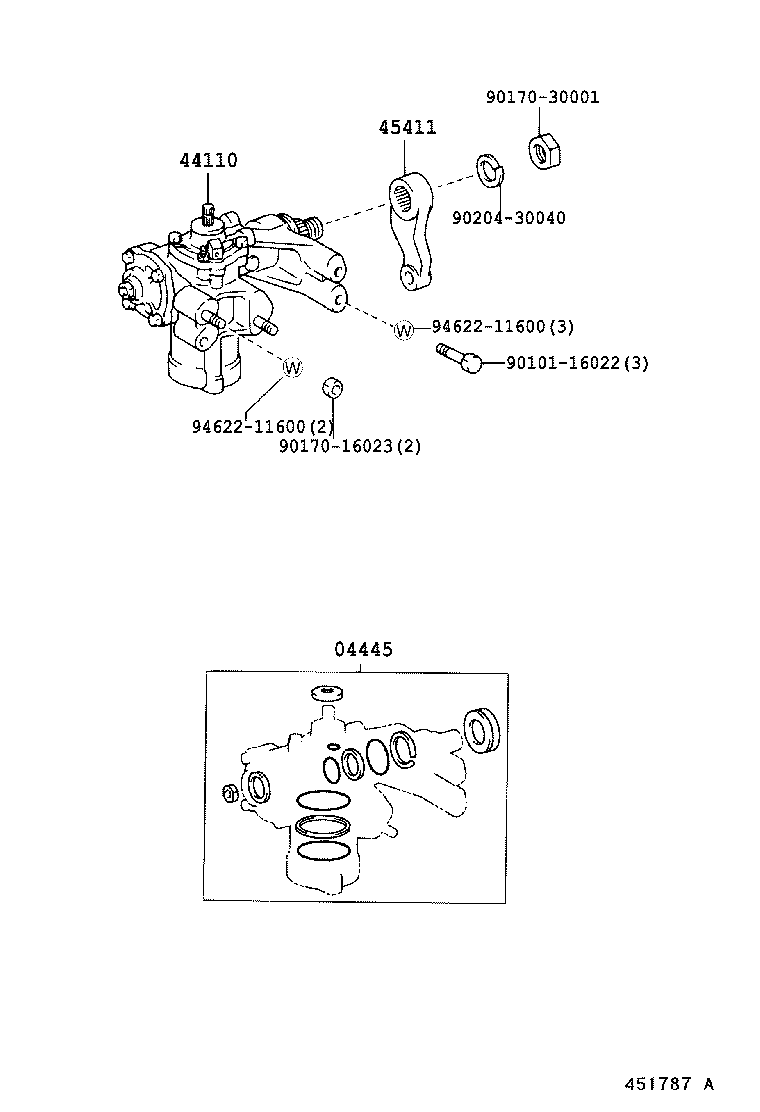

ILLUST NO. 1 OF 3(9907-0406)XZU362,37#,382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-37040 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-37152 |
XZU362,37#,382 |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37150 |
XZU362,37#,382 |
1 | ||
| Common parts | ||||
| 90101-16022 | ||||
| 90170-16023 | ||||
| 90170-30001 | ||||
| 90204-30040 | ||||
| 94622-11600 | ||||
ILLUST NO. 2 OF 3(9905-0406)BU306,346,XZU306,307,337,346,347
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-37030 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-43010 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-37030 |
XZU347;XZU306..IV3;XZU307..T2,T5;XZU306..T5..CBU;XZU307..SCB..T4..IV3;BU306,346,XZU337,346..SCB ｱﾘ(195/70R17.5 OR 195/85R16) |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39435 |
XZU362,37#,382 |
1 | ||
| 45046-39436 |
XZU362,37#,382 |
1 | ||
| 45046-39445 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16005 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
2 | ||
| 90171-18003 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16005 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
2 | ||
| 90171-18003 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39276 |
XZU362,37#,382 |
1 | ||
| 45046-39445 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 45047-39275 |
XZU362,37#,382 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-37020 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-60010 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| Common parts | ||||
| 90105-16066 | ||||
| 90119-14048 | ||||
| 90119-16007 | ||||
| 90170-19001 | ||||
| 90179-16015 | ||||
| 90252-04003 | ||||
| 90560-16027 | ||||
| 94130-01601 | ||||
| 94622-11600 | ||||
| 94622-41600 | ||||
ILLUST NO. 3 OF 3(9905-0406)BU306,346,XZU306,307,337,346,347
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-43010 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25027 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-37020 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
4 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90364-13003 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-37030 |
XZU347;XZU307..T2,T5;XZU306..T5..CBU;XZU306..T5..DSLL;XZU306..DSL..IV3;XZU307..SCB..T4..IV3;XZU306..4FC..DSLL..IV3;BU306,346,XZU337,346..SCB ｱﾘ(195/70R 17.5) |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-37020 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-48005 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 内側 |
1 | ||
| 90562-52001 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-48005 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 内側 |
1 | ||
| 90562-52001 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 外側 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-37020 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19013 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-60020 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-32010 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 45222-51010 |
BU306,346,XZU306,307,337,346,347 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-35013 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
2 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-35013 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
2 | ||
| 44253R - SPACER(FOR POWER STEERING RACK HOUSING) | ||||
| 90560-35014 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-37040 |
XZU347;XZU307..T2,T5;XZU306..T5..CBU;XZU306..T5..DSLL;XZU306..DSL..IV3;XZU307..SCB..T4..IV3;XZU306..4FC..DSLL..IV3;BU306,346,XZU337,346..SCB ｱﾘ(195/70R 17.5) |
1 | ||
| 44275E - RING, O(FOR RACK END GUIDE) | ||||
| 90301-52005 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-37010 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-37020 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-37020 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-39195 |
BU306,346,XZU306,307,337,346,347 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-39195 |
BU306,346,XZU306,307,337,346,347 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-18002 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 外径=47 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-18002 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 外径=47 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-37010 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23024 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-37010 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-48003 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-37010 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-37010 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-62006 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-62006 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| Common parts | ||||
| 90386-35002 | ||||
| 91511-60825 | ||||
| 96134-42300 | ||||
ILLUST NO. 1 OF 3(9905-0406)BU301,BZU300,340,RZU30#,340,XZU300,301,302,304,305,31#,32#,330,331,340,3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-37040 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-37152 |
XZU362,37#,382 |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37150 |
XZU362,37#,382 |
1 | ||
| Common parts | ||||
| 90101-14059 | ||||
| 90105-14106 | ||||
| 90170-14012 | ||||
| 90170-30001 | ||||
| 90204-30040 | ||||
| 94622-11400 | ||||

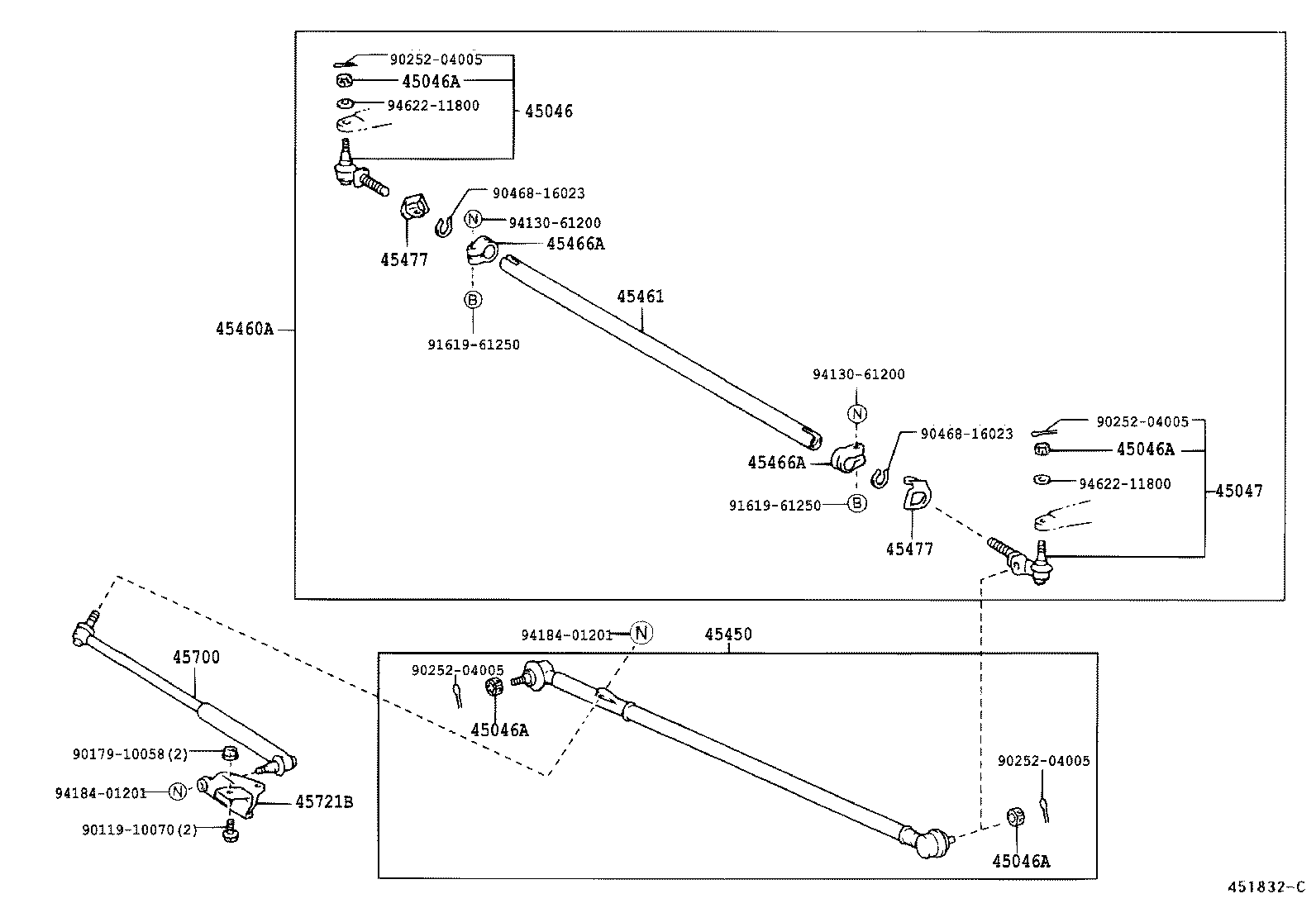

ILLUST NO. 3 OF 3(9907-0406)XZU362,37#,382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39435 |
XZU362,37#,382 |
1 | ||
| 45046-39436 |
XZU362,37#,382 |
1 | ||
| 45046-39445 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16005 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
2 | ||
| 90171-18003 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16005 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
2 | ||
| 90171-18003 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16005 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
2 | ||
| 90171-18003 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16005 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
2 | ||
| 90171-18003 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39276 |
XZU362,37#,382 |
1 | ||
| 45046-39445 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 45047-39275 |
XZU362,37#,382 |
1 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45450-39265 |
XZU362,37#,382 |
1 | ||
| 45450-39266 |
XZU362,37#,382 |
1 | ||
| 45460A - ROD ASSY, TIE | ||||
| 45460-39535 |
XZU362,37#,382 |
1 | ||
| 45460-39536 |
XZU362,37#,382 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-36060 |
XZU362,37#,382 |
1 | ||
| 45466A - CLAMP, RELAY ROD END | ||||
| 45466-36030 |
XZU362,37#,382 |
2 | ||
| 45466A - CLAMP, RELAY ROD END | ||||
| 45466-36030 |
XZU362,37#,382 |
2 | ||
| 45477 - PLATE, STOPPER | ||||
| 45477-36020 |
XZU362,37#,382 |
2 | ||
| 45477 - PLATE, STOPPER | ||||
| 45477-36020 |
XZU362,37#,382 |
2 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-36010 |
XZU362,37#,382 |
1 | ||
| 45700-37040 |
XZU362,37#,382 |
1 | ||
| 45721B - BRACKET, STEERING DAMPER, NO.3 | ||||
| 45721-37020 |
XZU362,37#,382 |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90179-10058 | ||||
| 90252-04005 | ||||
| 90468-16023 | ||||
| 91619-61250 | ||||
| 94130-61200 | ||||
| 94184-01201 | ||||
| 94622-11800 | ||||
ILLUST NO. 3 OF 3(9905- )BU301 ; (9905- )BZU300,340,RZU30#,340,XZU300,301,302,304,305,31#,32#,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39435 |
XZU362,37#,382 |
1 | ||
| 45046-39436 |
XZU362,37#,382 |
1 | ||
| 45046-39445 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16005 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
2 | ||
| 90171-18003 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16005 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
2 | ||
| 90171-18003 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39276 |
XZU362,37#,382 |
1 | ||
| 45046-39445 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 45047-39275 |
XZU362,37#,382 |
1 | ||
| 45460A - ROD ASSY, TIE | ||||
| 45460-39535 |
XZU362,37#,382 |
1 | ||
| 45460-39536 |
XZU362,37#,382 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-36060 |
XZU362,37#,382 |
1 | ||
| Common parts | ||||
| 90170-22005 | ||||
| 90170-22006 | ||||
| 90252-04005 | ||||
ILLUST NO. 2 OF 3(9905-0406)BU301,BZU300,340,RZU30#,340,XZU300,301,302,304,305,31#,32#,330,331,340,3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44011 - PISTON SUB-ASSY, POWER | ||||
| 44011-37150 |
XZU362,37#,382 |
1 | ||
| 44015 - SHAFT SUB-ASSY, SECTOR | ||||
| 44015-37150 |
XZU362,37#,382 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20047 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.1 |
1 | ||
| 90029-20006 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.2 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20047 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.1 |
1 | ||
| 90029-20006 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.2 |
1 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-37152 |
XZU362,37#,382 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20061 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-21023 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-01516 |
XZU362,37#,382 |
2 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-01516 |
XZU362,37#,382 |
2 | ||
| 44108F - SEAL, DUST(FOR SECTOR COVER) | ||||
| 90029-21023 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| 44142 - NUT, LOCK | ||||
| 94130-61400 |
XZU362,37#,382 |
1 | ||
| 44167 - COVER, SECTOR SHAFT DUST | ||||
| 44167-65010 |
XZU362,37#,382 |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 44168-25010 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 90029-02302 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 89110-99002 | ||||
| 90029-01001 | ||||
| 90029-34002 | ||||
| 96711-35042 | ||||

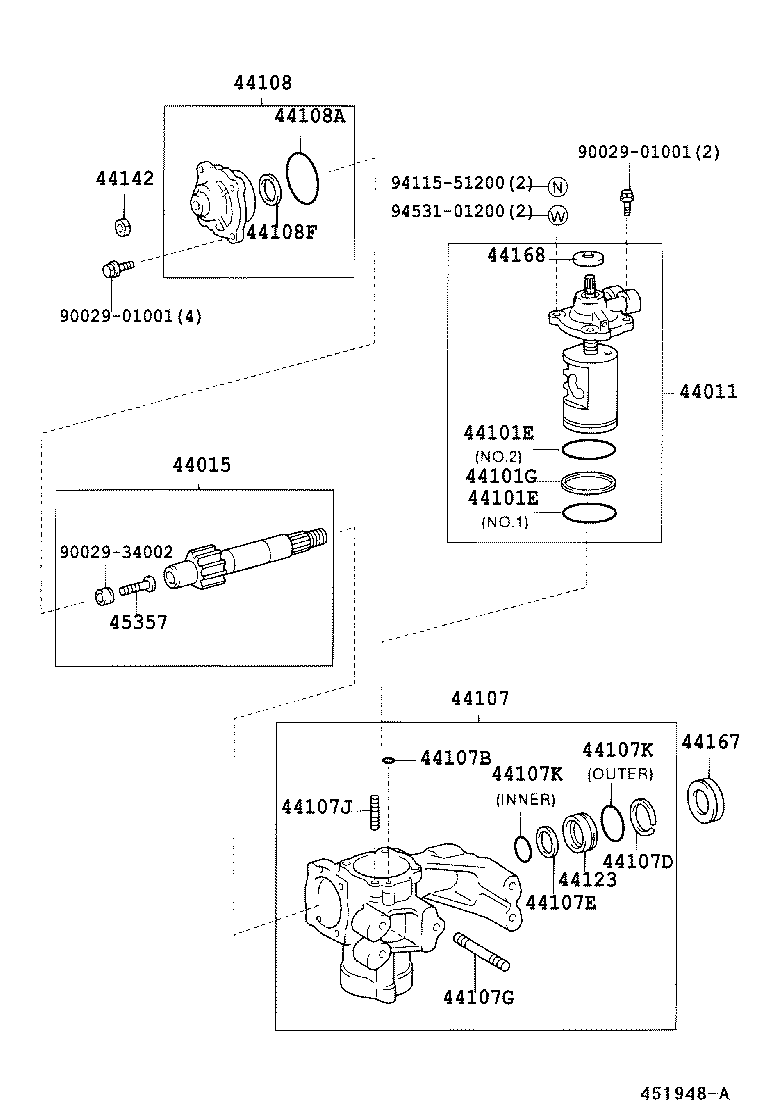

ILLUST NO. 2 OF 3(9907-0406)XZU362,37#,382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44011 - PISTON SUB-ASSY, POWER | ||||
| 44011-37150 |
XZU362,37#,382 |
1 | ||
| 44015 - SHAFT SUB-ASSY, SECTOR | ||||
| 44015-37150 |
XZU362,37#,382 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20047 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.1 |
1 | ||
| 90029-20006 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.2 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20047 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.1 |
1 | ||
| 90029-20006 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.2 |
1 | ||
| 44101G - SEAL, DUST(FOR STEERING WORM) | ||||
| 90029-20708 |
XZU362,37#,382 |
1 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-37152 |
XZU362,37#,382 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20061 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-52005 |
XZU362,37#,382 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-21023 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-01516 |
XZU362,37#,382 |
2 | ||
| 44107J - BOLT, STUD(FOR POWER STEERING VALVE HOUSING) | ||||
| 90029-01515 |
XZU362,37#,382 |
2 | ||
| 44107K - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-35042 |
XZU362,37#,382 内側 |
1 | ||
| 90029-20046 |
XZU362,37#,382 外側 |
1 | ||
| 44107K - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-35042 |
XZU362,37#,382 内側 |
1 | ||
| 90029-20046 |
XZU362,37#,382 外側 |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-37110 |
XZU362,37#,382 |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90029-20006 |
XZU362,37#,382 |
1 | ||
| 44108F - SEAL, DUST(FOR SECTOR COVER) | ||||
| 90029-21023 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| 44123 - ORIFICE, DUMPING | ||||
| 44123-65010 |
XZU362,37#,382 |
1 | ||
| 44142 - NUT, LOCK | ||||
| 94130-61400 |
XZU362,37#,382 |
1 | ||
| 44167 - COVER, SECTOR SHAFT DUST | ||||
| 44167-65010 |
XZU362,37#,382 |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 44168-25010 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 90029-02302 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 90029-01001 | ||||
| 90029-34002 | ||||
| 94115-51200 | ||||
| 94531-01200 | ||||
ILLUST NO. 1 OF 3(9905-0406)BU306,346,XZU306,307,337,346,347
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-37030 |
XZU347;XZU307..T2,T5;XZU306..T5..CBU;XZU306..T5..DSLL;XZU306..DSL..IV3;XZU307..SCB..T4..IV3;XZU306..4FC..DSLL..IV3;BU306,346,XZU337,346..SCB ｱﾘ(195/70R17.5 OR 195/85R16) |
1 | ||
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-37030 |
XZU347;XZU307..T2,T5;XZU306..T5..CBU;XZU306..T5..DSLL;XZU306..DSL..IV3;XZU307..SCB..T4..IV3;XZU306..4FC..DSLL..IV3;BU306,346,XZU337,346..SCB ｱﾘ(195/70R17.5 OR 195/85R16) |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-37030 |
XZU347;XZU306..IV3;XZU307..T2,T5;XZU306..T5..CBU;XZU307..SCB..T4..IV3;BU306,346,XZU337,346..SCB ｱﾘ(195/70R17.5 OR 195/85R16) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
