XZU337-TGPMS3 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004
Engine S05C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

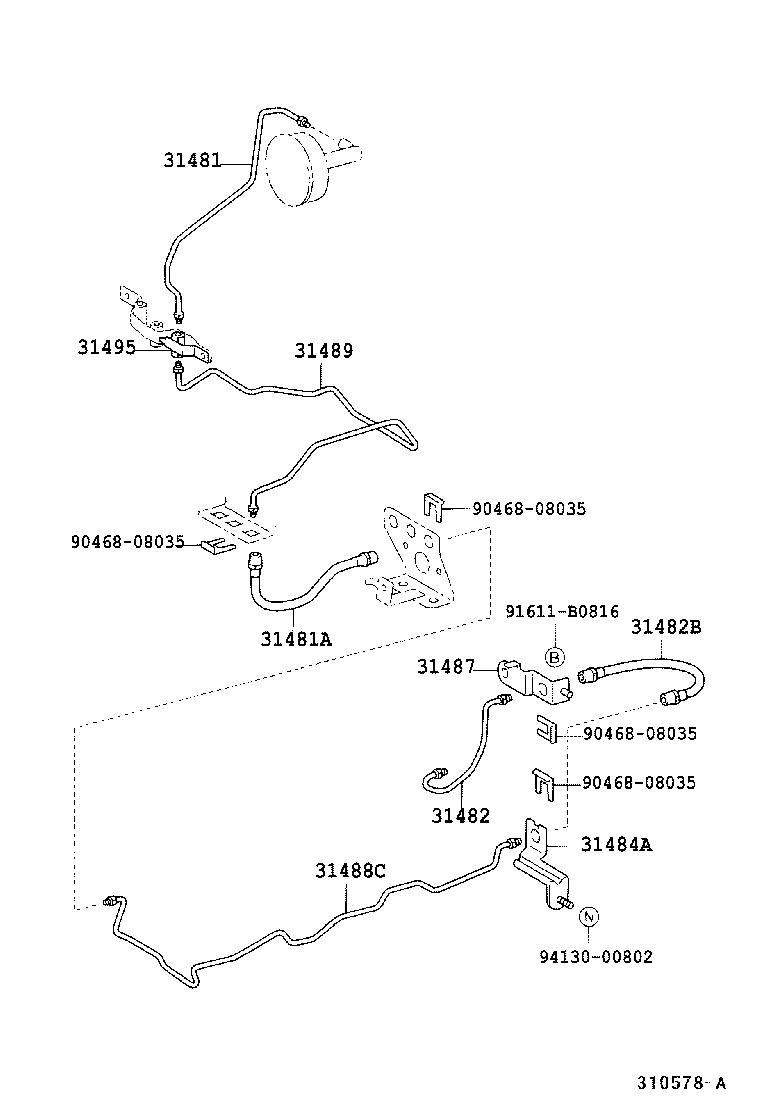

ILLUST NO. 2 OF 2(9905-0406)XZU362,37#,382

Click highlighted areas on diagram

diagram 31481 31481A 31482 31482B 31484A 31487 31488C 31489 31495 9046808035 9046808035 9046808035 9046808035 91611B0816 9413000802
Part # Description Qty Price
31481A - HOSE, CLUTCH, NO.1
90931-01141

XZU362,37#,382..1NO

 1
31487 - PLATE, RELEASE TUBE SET
31487-37090

XZU362,37#,382

 1
Common parts
90468-08035
91611-B0816
94130-00802

ILLUST NO. 2 OF 2(9905-0406)XZU301,302,342..5F..DSL,DSLL ; (9905-0406)XZU300,306,307,33#,340,341,346

Click highlighted areas on diagram

diagram 31481 31481A 31482 31482B 31484A 31484A 31487 31488C 31489 31495 4708 5251 9046808035 9046808035 9046808035 9046808035 91611B0816 9413000802
Part # Description Qty Price
31481A - HOSE, CLUTCH, NO.1
90931-01141

XZU362,37#,382..1NO

 1
31487 - PLATE, RELEASE TUBE SET
31487-37090

XZU362,37#,382

 1
Common parts
90468-08035
91611-B0816
94130-00802
Linked diagrams
4708
5251
