XZU337-TGMMS3 (1999)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(9905-0406)MTM ; (0406- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-37050 |
XZU362..1NO;XZU306..T5..DSLL;XZU301,306..5F..(CNG,DSL,LPG);XZU301,341..T4..MTM..DSLL..IV3;XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,341,342,346,347,35#,37#,382..5F ｶﾄｳｼｷ ｼﾌﾄﾚﾊﾞ- |
1 | ||
| 33055-37060 |
XZU362..1NO;XZU306..T5..DSLL;XZU301,306..5F..(CNG,DSL,LPG);XZU301,341..T4..MTM..DSLL..IV3;XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,341,342,346,347,35#,37#,382..5F ｺﾃｲｼｷ ｼﾌﾄﾚﾊﾞ- |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-37040B0 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,341,342,346,347,35#,362,37#,382..5F DK.CHARCOAL,TRIM1# |
1 | ||
| 33504-36051B1 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;RZU300,XZU301,302,306,342..5F..(DSL,EFI);BU30#,346,BZU300,340,RZU301,340,XZU300,307,31#,32#,33#,341,346,347,35#,362,37#,382..5F DK.CHARCOAL,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-37030 |
XZU362..1NO;BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382..MTM |
1 | ||
| 33506-37031 |
XZU362..1NO;XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,37#,382..MTM |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12056 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33577-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 33534 - BELLCRANK, SELECTING | ||||
| 33534-37060 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 33586A - STOPPER, CONTROL LEVER (FOR FLOOR SHIFT) | ||||
| 33586-37010 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
2 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
2 | ||
| 33602D - COLLAR (FOR SELECT LEVER) | ||||
| 90387-08063 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 33602E - SPRING, TORSION (FOR SELECT LEVER) | ||||
| 90949-03034 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT) | ||||
| 33602-37020 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 33769A - SPRING, CROSS SHAFT END | ||||
| 33769-37020 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| Common parts | ||||
| 33529-37020 | ||||
| 33529-37030 | ||||
| 90119-08190 | ||||
| 90179-08054 | ||||
| 90387-08159 | ||||
| 90389-11006 | ||||
| 91111-50840 | ||||
| 91611-B0614 | ||||
| 94512-00800 | ||||
| 94613-10601 | ||||
| 94613-10800 | ||||
| 96151-01700 | ||||
| Linked diagrams | ||||
| 5855 | ||||

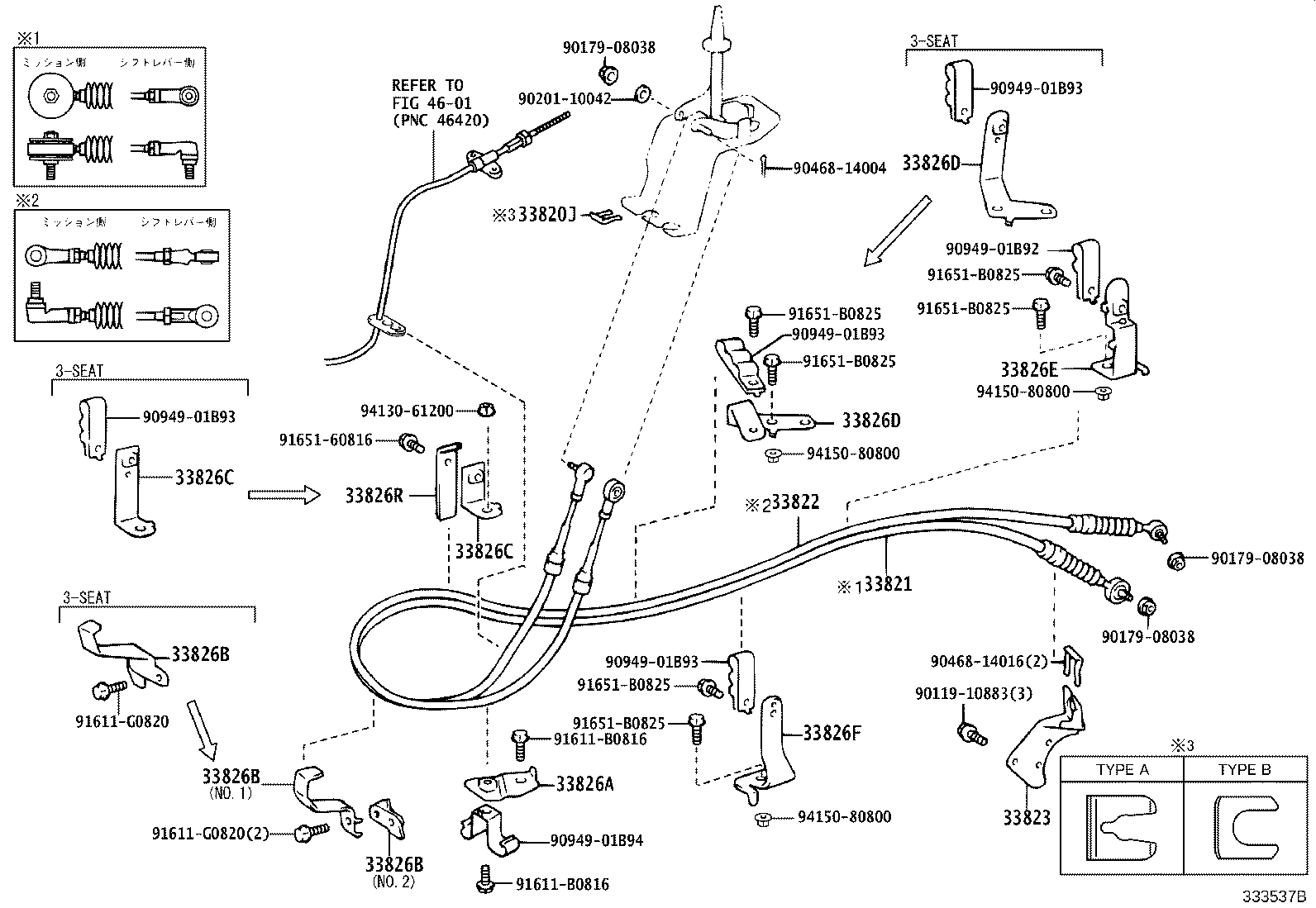

ILLUST NO. 2 OF 2(9905-0406)BU30#,346,XZU307,337..5F ; (9906-0406)XZU302..5F..ST ; (0005-0406)RZU300
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820J - CLIP(FOR TRANSMISSION CONTROL CABLE) | ||||
| 90468-17001 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 90468-14016 |
XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU302,306,321,340..(DM3,DM8,T3,T4,T5)..MTM..DSL;BU30#,346,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(175T,20T,295T,30T)..(DSL,DSLL) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-37690 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T PNC 33820J=TYPE A |
1 | ||
| 33820-37691 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T..DSL PNC 33820J=TYPE B |
1 | ||
| 33820-37692 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T..DSL |
1 | ||
| 33820-37693 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33820-37700 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T PNC 33820J=TYPE A |
1 | ||
| 33820-37701 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T..DSL PNC 33820J=TYPE B |
1 | ||
| 33820-37702 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T..DSL |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37400 |
XZU362,37#,382 |
1 | ||
| 33823-37390 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T..DSL |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37400 |
XZU362,37#,382 |
1 | ||
| 33823-37390 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T..DSL |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37400 |
XZU362,37#,382 |
1 | ||
| 33823-37390 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T..DSL |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37180 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,32#,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37210 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382 |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37560 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 33826-37370 |
XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ) |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37560 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 33826-37370 |
XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ) |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37240 |
XZU306..T4..DSL;XZU301..4FC..DSLL;XZU306..T5..5F..DSL;XZU301..5F..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 33826-3V010 |
XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN |
1 | ||
| 33826-37270 |
XZU306..5F..DSL;XZU306..T5..DSLL;XZU306,322..T5..4FC;XZU307,347..DCB..4FC;XZU306..5F..DSLL..CBU;XZU301..DM3..30T..IV3;XZU301..DSLL..IV3..4NO;XZU301..DM3..4FC..30T..CBU;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301,321..(DM7,T4)..4FC..1NO;XZU301..5F..(20T,295T)..DSL..IV3;XZU301..(T3,T4,T5)..5F..30T..DSL..IV3;BU30#,346,RZU30#,340,XZU300,31#,320,330,340,346,350,351..DCB,SCB;XZU302,307,321,322,331,337,341,342,347,352..(DCB,SCB)..MTM..(DSL,DSLL) ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 33826-37390 |
XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ) |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37240 |
XZU306..T4..DSL;XZU301..4FC..DSLL;XZU306..T5..5F..DSL;XZU301..5F..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 33826-3V010 |
XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN |
1 | ||
| 33826-37270 |
XZU306..5F..DSL;XZU306..T5..DSLL;XZU306,322..T5..4FC;XZU307,347..DCB..4FC;XZU306..5F..DSLL..CBU;XZU301..DM3..30T..IV3;XZU301..DSLL..IV3..4NO;XZU301..DM3..4FC..30T..CBU;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301,321..(DM7,T4)..4FC..1NO;XZU301..5F..(20T,295T)..DSL..IV3;XZU301..(T3,T4,T5)..5F..30T..DSL..IV3;BU30#,346,RZU30#,340,XZU300,31#,320,330,340,346,350,351..DCB,SCB;XZU302,307,321,322,331,337,341,342,347,352..(DCB,SCB)..MTM..(DSL,DSLL) ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 33826-37390 |
XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ) |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37240 |
XZU306..T4..DSL;XZU301..4FC..DSLL;XZU306..T5..5F..DSL;XZU301..5F..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 33826-3V010 |
XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN |
1 | ||
| 33826-37270 |
XZU306..5F..DSL;XZU306..T5..DSLL;XZU306,322..T5..4FC;XZU307,347..DCB..4FC;XZU306..5F..DSLL..CBU;XZU301..DM3..30T..IV3;XZU301..DSLL..IV3..4NO;XZU301..DM3..4FC..30T..CBU;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301,321..(DM7,T4)..4FC..1NO;XZU301..5F..(20T,295T)..DSL..IV3;XZU301..(T3,T4,T5)..5F..30T..DSL..IV3;BU30#,346,RZU30#,340,XZU300,31#,320,330,340,346,350,351..DCB,SCB;XZU302,307,321,322,331,337,341,342,347,352..(DCB,SCB)..MTM..(DSL,DSLL) ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 33826-37390 |
XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ) |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37240 |
XZU306..T4..DSL;XZU301..4FC..DSLL;XZU306..T5..5F..DSL;XZU301..5F..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 33826-3V010 |
XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN |
1 | ||
| 33826-37270 |
XZU306..5F..DSL;XZU306..T5..DSLL;XZU306,322..T5..4FC;XZU307,347..DCB..4FC;XZU306..5F..DSLL..CBU;XZU301..DM3..30T..IV3;XZU301..DSLL..IV3..4NO;XZU301..DM3..4FC..30T..CBU;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301,321..(DM7,T4)..4FC..1NO;XZU301..5F..(20T,295T)..DSL..IV3;XZU301..(T3,T4,T5)..5F..30T..DSL..IV3;BU30#,346,RZU30#,340,XZU300,31#,320,330,340,346,350,351..DCB,SCB;XZU302,307,321,322,331,337,341,342,347,352..(DCB,SCB)..MTM..(DSL,DSLL) ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 33826-37390 |
XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ) |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33826-37310 |
XZU362,37#,382..1NO |
1 | ||
| 33826-37251 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,337,341,342,346,347 |
1 | ||
| 33826-37250 |
XZU306..DSL;XZU306..T5..DSLL;BU30#,346,RZU300,340,XZU301,302,307,331,337,341,342,346,347 |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33826-37420 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BZU300,340,XZU300,302,307,330,337,340,341,342,346,347,350 |
1 | ||
| 33826-37490 |
XZU382..CBU;XZU362,37#..1NO;XZU382..T3..20T..IV3 |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37150 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,337,341,342,346,347 |
2 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37150 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,337,341,342,346,347 |
2 | ||
| Common parts | ||||
| 90105-10407 | ||||
| 90119-10883 | ||||
| 90179-08038 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01B93 | ||||
| 90949-01B94 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 91619-61250 | ||||
| 91651-60816 | ||||
| 91651-61025 | ||||
| 91651-B0825 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 4601 | ||||
ILLUST NO. 2 OF 2(9907-0406)XZU362,37#,382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820J - CLIP(FOR TRANSMISSION CONTROL CABLE) | ||||
| 90468-17001 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 90468-14016 |
XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU302,306,321,340..(DM3,DM8,T3,T4,T5)..MTM..DSL;BU30#,346,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(175T,20T,295T,30T)..(DSL,DSLL) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-37690 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T PNC 33820J=TYPE A |
1 | ||
| 33820-37691 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T..DSL PNC 33820J=TYPE B |
1 | ||
| 33820-37692 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T..DSL |
1 | ||
| 33820-37693 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33820-37700 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T PNC 33820J=TYPE A |
1 | ||
| 33820-37701 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T..DSL PNC 33820J=TYPE B |
1 | ||
| 33820-37702 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T..DSL |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37400 |
XZU362,37#,382 |
1 | ||
| 33823-37390 |
XZU302,307,337..(03S,T2,T4,T5)..5F..20T..DSL |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37180 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,32#,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37210 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37210 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37210 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382 |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37560 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 33826-37370 |
XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ) |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37560 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| 33826-37370 |
XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ) |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37240 |
XZU306..T4..DSL;XZU301..4FC..DSLL;XZU306..T5..5F..DSL;XZU301..5F..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 33826-3V010 |
XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN |
1 | ||
| 33826-37270 |
XZU306..5F..DSL;XZU306..T5..DSLL;XZU306,322..T5..4FC;XZU307,347..DCB..4FC;XZU306..5F..DSLL..CBU;XZU301..DM3..30T..IV3;XZU301..DSLL..IV3..4NO;XZU301..DM3..4FC..30T..CBU;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301,321..(DM7,T4)..4FC..1NO;XZU301..5F..(20T,295T)..DSL..IV3;XZU301..(T3,T4,T5)..5F..30T..DSL..IV3;BU30#,346,RZU30#,340,XZU300,31#,320,330,340,346,350,351..DCB,SCB;XZU302,307,321,322,331,337,341,342,347,352..(DCB,SCB)..MTM..(DSL,DSLL) ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 33826-37390 |
XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ) |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37240 |
XZU306..T4..DSL;XZU301..4FC..DSLL;XZU306..T5..5F..DSL;XZU301..5F..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 33826-3V010 |
XZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347..SCB,VAN |
1 | ||
| 33826-37270 |
XZU306..5F..DSL;XZU306..T5..DSLL;XZU306,322..T5..4FC;XZU307,347..DCB..4FC;XZU306..5F..DSLL..CBU;XZU301..DM3..30T..IV3;XZU301..DSLL..IV3..4NO;XZU301..DM3..4FC..30T..CBU;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301,321..(DM7,T4)..4FC..1NO;XZU301..5F..(20T,295T)..DSL..IV3;XZU301..(T3,T4,T5)..5F..30T..DSL..IV3;BU30#,346,RZU30#,340,XZU300,31#,320,330,340,346,350,351..DCB,SCB;XZU302,307,321,322,331,337,341,342,347,352..(DCB,SCB)..MTM..(DSL,DSLL) ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 33826-37390 |
XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ) |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33826-37310 |
XZU362,37#,382..1NO |
1 | ||
| 33826-37251 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,337,341,342,346,347 |
1 | ||
| 33826-37250 |
XZU306..DSL;XZU306..T5..DSLL;BU30#,346,RZU300,340,XZU301,302,307,331,337,341,342,346,347 |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33826-37420 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BZU300,340,XZU300,302,307,330,337,340,341,342,346,347,350 |
1 | ||
| 33826-37490 |
XZU382..CBU;XZU362,37#..1NO;XZU382..T3..20T..IV3 |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
XZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347 |
1 | ||
| Common parts | ||||
| 90119-10883 | ||||
| 90179-08038 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01B92 | ||||
| 90949-01B93 | ||||
| 90949-01B94 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91651-60816 | ||||
| 91651-B0825 | ||||
| 94130-61200 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 4601 | ||||
ILLUST NO. 1 OF 2(9905-0406)MTM
ｶﾄｳｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 33529-37020 | ||||
| 33529-37030 | ||||
| 90119-08190 | ||||
| 90179-08054 | ||||
| 90387-08159 | ||||
| 90389-11006 | ||||
| 91111-50840 | ||||
| 91611-B0614 | ||||
| 94512-00800 | ||||
| 94613-10601 | ||||
| 96151-01700 | ||||
| Linked diagrams | ||||
| 5855 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
