XZU334-TKMSW3 (2004)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 5(0406- )XZU301,304,305,331,334,341,344,354..DM3,DM6,T1,T3,T4,T5..CBU,IV3,IV4,IV6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37160 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 47311-37162 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47311-37161 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47391-37010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
2 | ||
| 90947-02D83 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
2 | ||
| 90947-02D83 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47312-37550 |
XZU334,344,354..35T,40T |
1 | ||
| 47312-37060 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37530 |
XZU306..IV6;BZU340..LPG..IV3;BZU300..T4..LPG..IV3;BZU300,XZU301,304,305,331,334,354..(DM6,T3)..5F..(IV3,IV6) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),NO.1 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47312-37550 |
XZU334,344,354..35T,40T |
1 | ||
| 47312-37060 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37530 |
XZU306..IV6;BZU340..LPG..IV3;BZU300..T4..LPG..IV3;BZU300,XZU301,304,305,331,334,354..(DM6,T3)..5F..(IV3,IV6) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),NO.1 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47312-37550 |
XZU334,344,354..35T,40T |
1 | ||
| 47312-37060 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37530 |
XZU306..IV6;BZU340..LPG..IV3;BZU300..T4..LPG..IV3;BZU300,XZU301,304,305,331,334,354..(DM6,T3)..5F..(IV3,IV6) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),NO.1 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D99 |
XZU334,344,354..35T,40T 右側 |
1 | ||
| 90947-02E00 |
XZU334,344,354..35T,40T 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D99 |
XZU334,344,354..35T,40T 右側 |
1 | ||
| 90947-02E00 |
XZU334,344,354..35T,40T 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 90401-10015 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 90401-10015 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37170 |
XZU306..DSL;XZU306..T5..DSLL;XZU301..20T..(IV6,IV7);BU30#,346,RZU300,340,XZU300,301,302,307,34#,350..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 47314-37180 |
XZU33#..SCB |
1 | ||
| 47314-37600 |
XZU334,344,354..35T,40T |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47321-37160 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 47321-37420 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47321-37160 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 47321-37420 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47321-37160 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 47321-37420 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37530 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37240 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37240 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37320 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37230 |
XZU334,344,354..35T,40T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37140 |
XZU334,344,354..35T,40T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37010 |
XZU334,344,354..35T,40T |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37050 |
XZU334,344,354..35T,40T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47371-37030 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37310 |
XZU30#,33#,34#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV6) NO.2 |
1 | ||
| 47391-37300 |
XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47391-37290 |
XZU304,306..(IV6,IV7)..4NO;XZU301,304,305,331,334,354..(DM6,T3)..5F..(IV3,IV6,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),NO.1 |
1 | ||
| 47391-37320 |
XZU304,306..(IV6,IV7)..4NO;XZU301,304,305,331,334,354..(DM6,T3)..5F..(IV3,IV6,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),NO.2 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37310 |
XZU30#,33#,34#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV6) NO.2 |
1 | ||
| 47391-37300 |
XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47391-37290 |
XZU304,306..(IV6,IV7)..4NO;XZU301,304,305,331,334,354..(DM6,T3)..5F..(IV3,IV6,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),NO.1 |
1 | ||
| 47391-37320 |
XZU304,306..(IV6,IV7)..4NO;XZU301,304,305,331,334,354..(DM6,T3)..5F..(IV3,IV6,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),NO.2 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 47371-37080 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01628 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01602 | ||||
| 90959-01603 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||

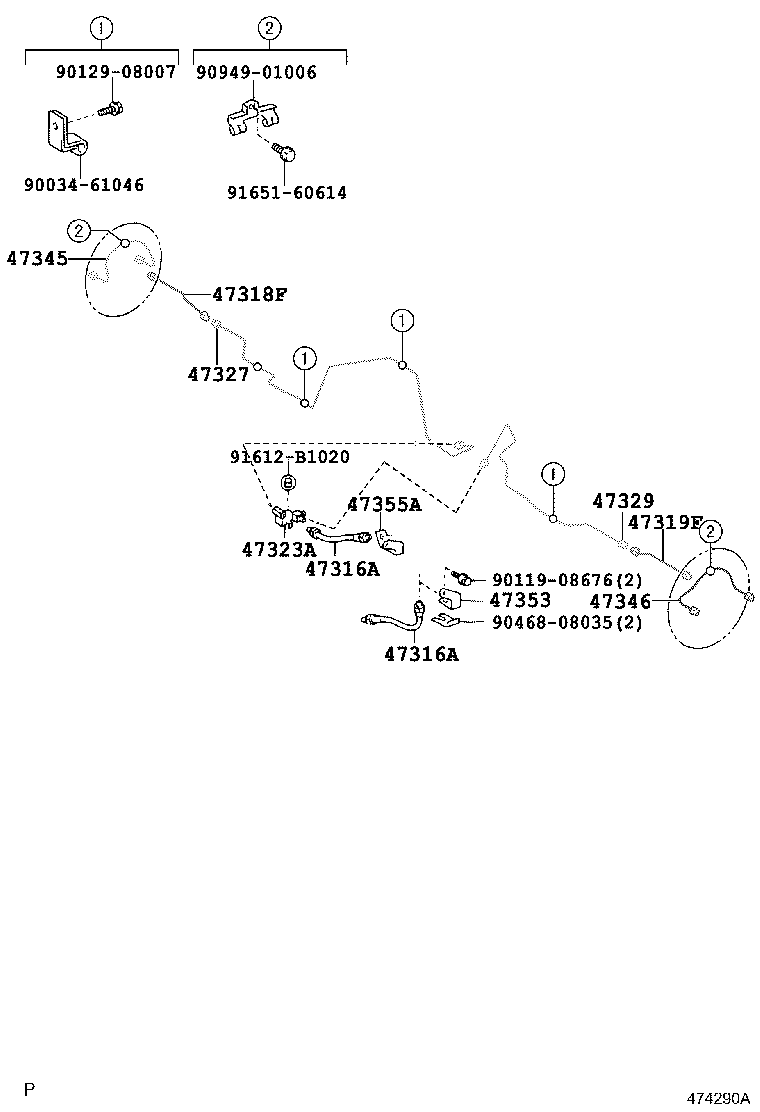

ILLUST NO. 2 OF 5(0406- )XZU30#,33#,34#,354..DM3,DM6,T1,T2,T3,T4,T5..CBU,IV3,IV6,IV7
W(ABS) 4X2 SHORT,S/LONG,LONG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37130 |
XZU33#..SCB |
1 | ||
| 47312-37600 |
XZU33#..SCB |
1 | ||
| 47312-37601 |
XZU33#..SCB |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37130 |
XZU33#..SCB |
1 | ||
| 47312-37600 |
XZU33#..SCB |
1 | ||
| 47312-37601 |
XZU33#..SCB |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37130 |
XZU33#..SCB |
1 | ||
| 47312-37600 |
XZU33#..SCB |
1 | ||
| 47312-37601 |
XZU33#..SCB |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10229 |
XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU301,XZU305,331,336,341,344,346,354,378,388..(5F,6FC)..1NO;XZU304,306,308,334,338,348,368..(DCB,SCB)..(CBU,IV3,IV4,IV7) NO.4 |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37180 |
XZU33#..SCB |
1 | ||
| 47322-37630 |
XZU33#..SCB |
1 | ||
| 47322-37631 |
XZU33#..SCB |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37180 |
XZU33#..SCB |
1 | ||
| 47322-37630 |
XZU33#..SCB |
1 | ||
| 47322-37631 |
XZU33#..SCB |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37180 |
XZU33#..SCB |
1 | ||
| 47322-37630 |
XZU33#..SCB |
1 | ||
| 47322-37631 |
XZU33#..SCB |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37170 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47326-37490 |
XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37010 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47328-37340 |
XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90464-00778 | ||||
| 90464-00833 | ||||
| 90480-01620 | ||||
| 90480-01621 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
ILLUST NO. 3 OF 5(0406- )03S..ATM ; (0406- )XZU306..SCB,VAN..03S,T4..5F..CBU,IV3 ; (0406- )
W/O(ABS) CLAMP:LH SIDE=2,RH SIDE=3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
2 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90412-12051 |
XZU301..(DM6,T3,T4,T5)..WT..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..WT..(CBU,IV6);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,368,378,388..(03S,06S,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) NO.4 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37670 |
XZU334,344,354..35T,40T |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37510 |
XZU334,344,354..35T,40T |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37240 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BZU300,RZU300,XZU301,302..(T2,T4,T5)..20T..WT;BU30#,346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47353-37240 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(DCB,SCB)..WT |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90949-01006 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
ILLUST NO. 4 OF 5(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44540-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44050-37040 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08676 | ||||
ILLUST NO. 3 OF 5(0406- )35T,40T
DISC BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02D84 |
XZU334,344,354..35T,40T |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02D85 |
XZU334,344,354..35T,40T |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90412-12051 |
XZU301..(DM6,T3,T4,T5)..WT..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..WT..(CBU,IV6);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,368,378,388..(03S,06S,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) NO.4 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37670 |
XZU334,344,354..35T,40T |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37510 |
XZU334,344,354..35T,40T |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37110 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 47353-37110 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37240 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BZU300,RZU300,XZU301,302..(T2,T4,T5)..20T..WT;BU30#,346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47353-37240 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(DCB,SCB)..WT |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90949-01006 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
