XZU334-TKFQG3 (2010)

Toyota Dyna/Toyoace

Production Mar 2010 - Jun 2011
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

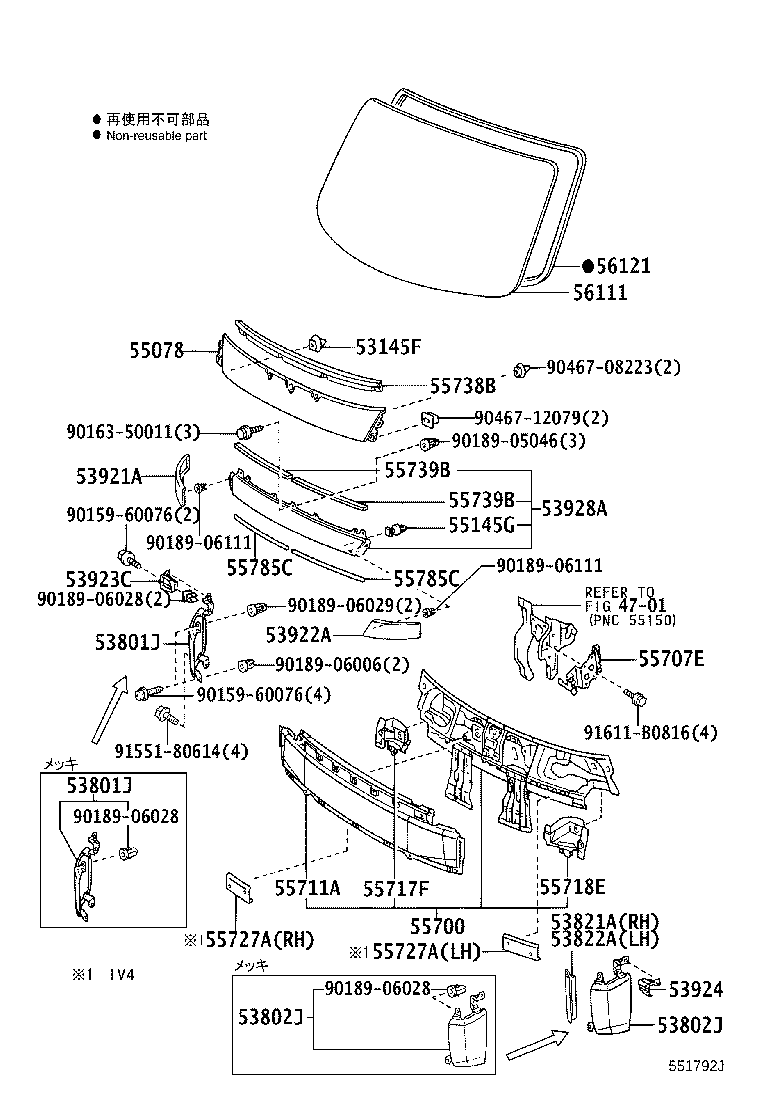

ILLUST NO. 1 OF 2(9905- )

Click highlighted areas on diagram

diagram 4701 53145F 53801J 53802J 53821A 53822A 53921A 53922A 53923C 53924A 53928A 55078 55145G 55211B 55212A 55700 55707E 55711A 55717F 55718E 55727A 55738B 55739B 55739B 55785C 55785C 56111 56121 9015960076 9015960076 9016350011 9018905046 9018906006 9018906028 9018906029 9018906111 9018906111 9046708214 9046708215 9046708223 9046712079 9095001181 9095001890 91611B0816 91621B0616
Part # Description Qty Price
Common parts
90159-60076
90163-50011
90189-05046
90189-06006
90189-06028
90189-06029
90189-06111
90467-08214
90467-08215
90467-08223
90467-12079
90950-01181
90950-01890
91611-B0816
91621-B0616
Linked diagrams
4701

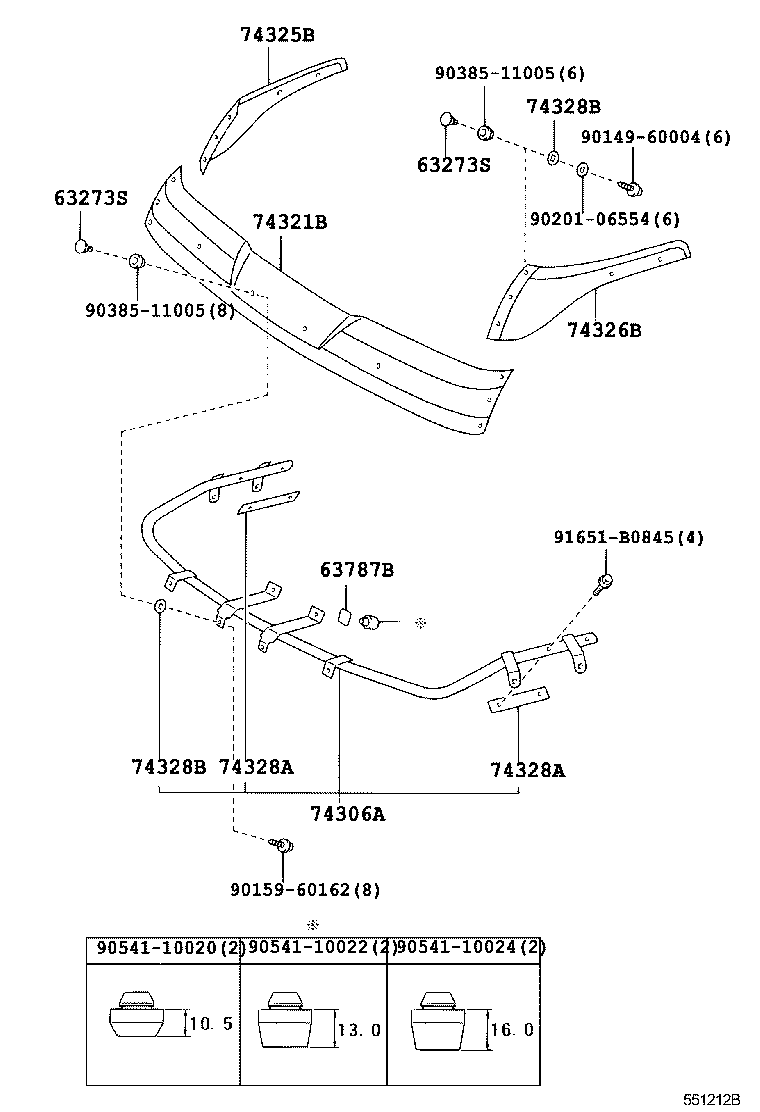

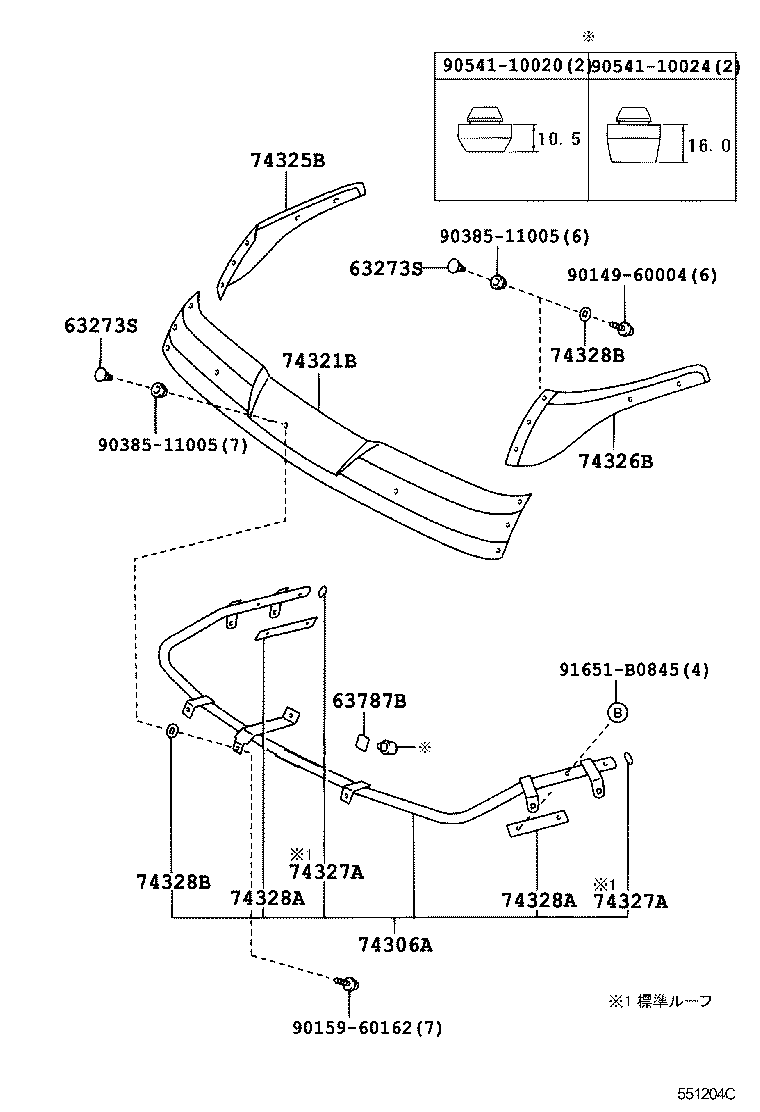

ILLUST NO. 2 OF 2(9905- )

Click highlighted areas on diagram

HINO

diagram 63273S 63273S 63787B 74306A 74321B 74325B 74326B 74327A 74327A 74328A 74328A 74328B 74328B 9014960004 9015960162 9038511005 9038511005 9054110020 9054110024 91651B0845
Part # Description Qty Price
Common parts
90149-60004
90159-60162
90385-11005
90541-10020
90541-10024
91651-B0845

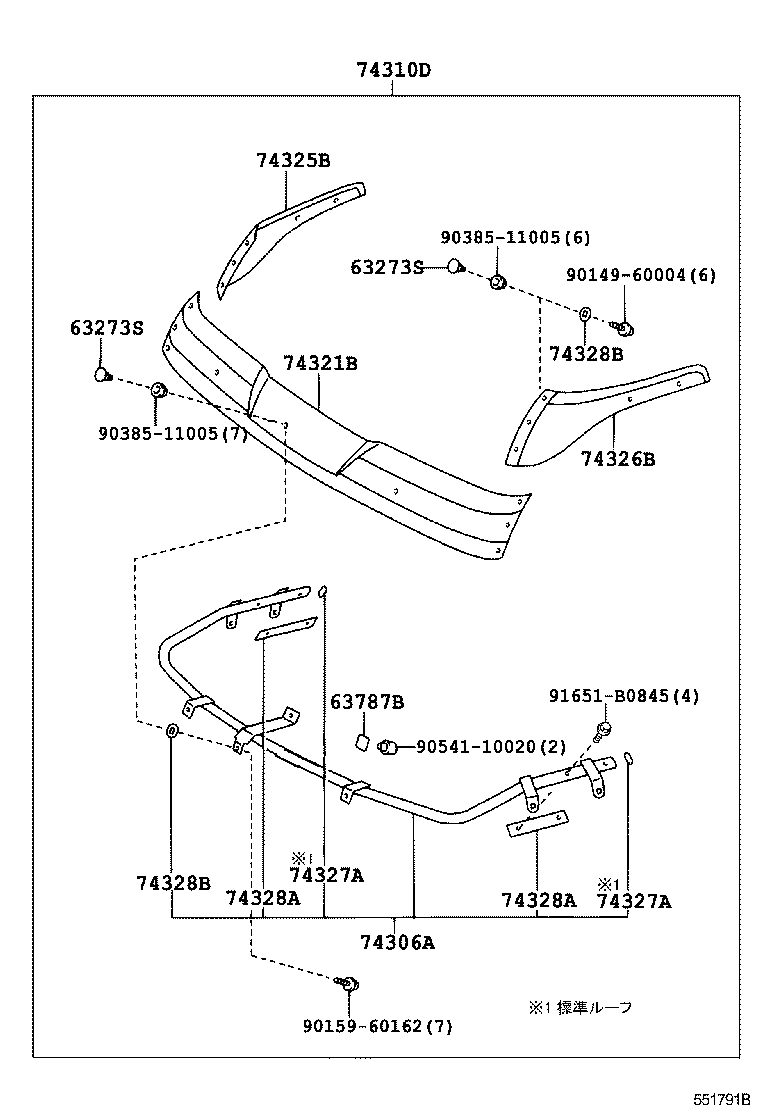

ILLUST NO. 2 OF 2(9905- )

Click highlighted areas on diagram

TOYOTA

diagram 63273S 63273S 63787B 74306A 74310D 74321B 74325B 74326B 74327A 74327A 74328A 74328A 74328B 74328B 9014960004 9015960162 9038511005 9038511005 9054110020 9054110024 91651B0845
Part # Description Qty Price
Common parts
90149-60004
90159-60162
90385-11005
90541-10020
90541-10024
91651-B0845

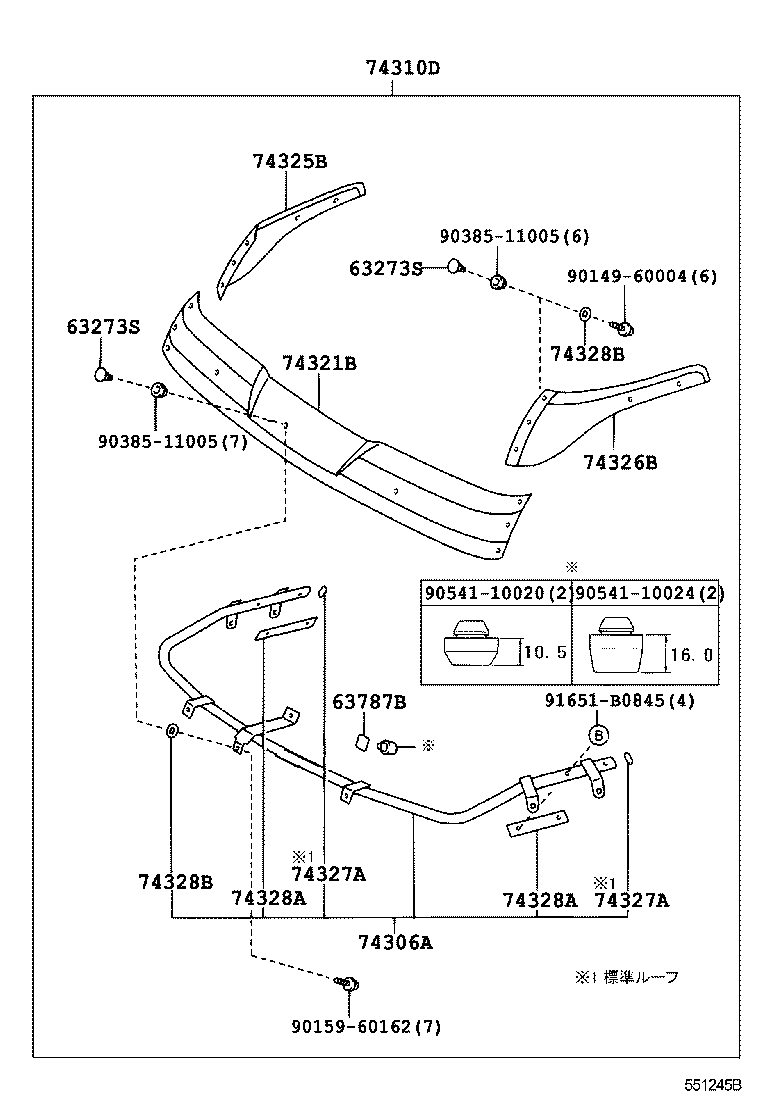

ILLUST NO. 2 OF 3(0610- )

Click highlighted areas on diagram

ﾌﾛﾝﾄｻﾝｼｪｰﾄﾞ(TOYOTA)

diagram 63273S 63273S 63787B 74306A 74310D 74321B 74325B 74326B 74327A 74327A 74328A 74328A 74328B 74328B 9014960004 9015960162 9038511005 9038511005 9054110020 91651B0845
Part # Description Qty Price
63273S - RETAINER, ROOF WINDOW HINGE
63273-28030

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 13
63273S - RETAINER, ROOF WINDOW HINGE
63273-28030

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 13
63787B - PAD, ROOF AIR DEFLECTOR, NO.1
63787-95400

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
74306A - SUPPORT SUB-ASSY, FRONT VISOR
74306-37040

TRU300..20T..CBU;XZU348..DCB..CBU;XZU304..DM3,DM6,T4,T5;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;XZU304,378,388..SCB..(T3,T4)..(IV3,IV6,IV7)..1NO;BZU300,340,TRU300,340,500,XZU33#,34#,538,548..IV3

 1
74306-37050

XZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO

ﾊｲﾙ-ﾌ

 1
74310D - VISOR ASSY
74310-37060

TRU300..20T..CBU;XZU348..DCB..CBU;XZU304..DM3,DM6,T4,T5;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;XZU304,378,388..SCB..(T3,T4)..(IV3,IV6,IV7)..1NO;BZU300,340,TRU300,340,500,XZU33#,34#,538,548..IV3

 1
74310-37150

XZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO

***

 1
74321B - VISOR, FRONT
74321-37010

TRU300..20T..CBU;XZU348..DCB..CBU;XZU304..DM3,DM6,T4,T5;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;XZU304,378,388..SCB..(T3,T4)..(IV3,IV6,IV7)..1NO;BZU300,340,TRU300,340,500,XZU33#,34#,538,548..IV3

TOYOTA

 1
74321-37020

TRU300..20T..CBU;XZU348..DCB..CBU;XZU304..DM3,DM6,T4,T5;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;XZU304,378,388..SCB..(T3,T4)..(IV3,IV6,IV7)..1NO;BZU300,340,TRU300,340,500,XZU33#,34#,538,548..IV3

HINO

 1
74321-37030

XZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO

ﾊｲﾙ-ﾌ,TOYOTA

 1
74321-37040

XZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO

ﾊｲﾙ-ﾌ,HINO

 1
74325B - SUPPORT, FRONT VISOR, RH
74325-37030

XZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO

ﾊｲﾙ-ﾌ

 1
74325-37020

TRU300..20T..CBU;XZU348..DCB..CBU;XZU304..DM3,DM6,T4,T5;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;XZU304,378,388..SCB..(T3,T4)..(IV3,IV6,IV7)..1NO;BZU300,340,TRU300,340,500,XZU33#,34#,538,548..IV3

 1
74326B - SUPPORT, FRONT VISOR, LH
74326-37020

TRU300..20T..CBU;XZU348..DCB..CBU;XZU304..DM3,DM6,T4,T5;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;XZU304,378,388..SCB..(T3,T4)..(IV3,IV6,IV7)..1NO;BZU300,340,TRU300,340,500,XZU33#,34#,538,548..IV3

 1
74326-37030

XZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO

ﾊｲﾙ-ﾌ

 1
74327A - PAD, FRONT VISOR
74327-37020

TRU300..20T..CBU;XZU348..DCB..CBU;XZU304..DM3,DM6,T4,T5;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;XZU304,378,388..SCB..(T3,T4)..(IV3,IV6,IV7)..1NO;BZU300,340,TRU300,340,500,XZU33#,34#,538,548..IV3

 2
74327A - PAD, FRONT VISOR
74327-37020

TRU300..20T..CBU;XZU348..DCB..CBU;XZU304..DM3,DM6,T4,T5;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;XZU304,378,388..SCB..(T3,T4)..(IV3,IV6,IV7)..1NO;BZU300,340,TRU300,340,500,XZU33#,34#,538,548..IV3

 2
74328A - PAD, FRONT VISOR, NO.2
74328-37010

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 2
74328A - PAD, FRONT VISOR, NO.2
74328-37010

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 2
74328B - PAD, FRONT VISOR, NO.2
74328-95400

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 15
74328B - PAD, FRONT VISOR, NO.2
74328-95400

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 15
Common parts
90149-60004
90159-60162
90385-11005
90541-10020
91651-B0845

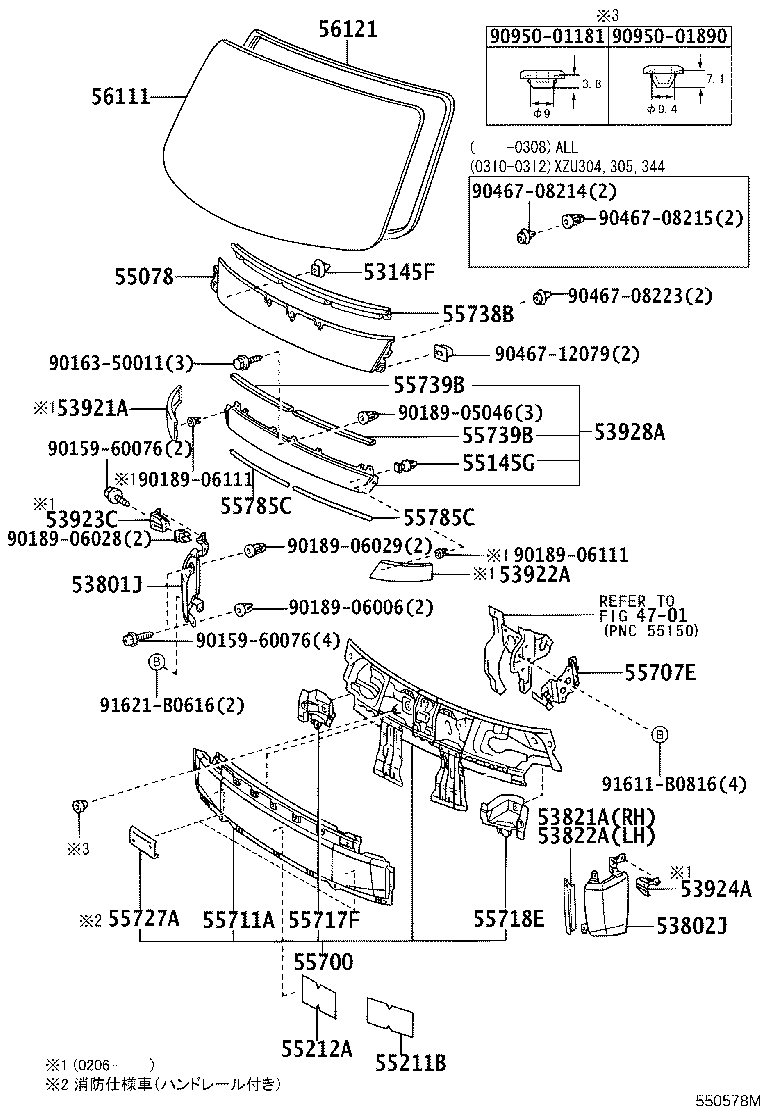

ILLUST NO. 1 OF 3(0610- )

Click highlighted areas on diagram

ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ=ｳｪｻﾞｰｽﾄﾘｯﾌﾟｸﾐﾂｹﾀｲﾌﾟ

diagram 4701 53145F 53801J 53801J 53802J 53802J 53821A 53822A 53921A 53922A 53923C 53924 53928A 55078 55145G 55700 55707E 55711A 55717F 55718E 55727A 55727A 55738B 55739B 55739B 55785C 55785C 56111 56121 9015960076 9015960076 9016350011 9018905046 9018906006 9018906028 9018906028 9018906028 9018906029 9018906111 9018906111 9046708223 9046712079 9155180614 91611B0816
Part # Description Qty Price
53145F - CLIP, RADIATOR GRILLE GARNISH
90467-08208

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 4
53801J - PANEL SUB-ASSY, FRONT SIDE, RH
53801-37041

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

ﾒﾂｷ

 1
53801-37021

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
53801J - PANEL SUB-ASSY, FRONT SIDE, RH
53801-37041

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

ﾒﾂｷ

 1
53801-37021

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
53802J - PANEL SUB-ASSY, FRONT SIDE, LH
53802-37021

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
53802-37041

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

ﾒﾂｷ

 1
53802J - PANEL SUB-ASSY, FRONT SIDE, LH
53802-37021

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
53802-37041

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

ﾒﾂｷ

 1
53821A - PROTECTOR, FRONT SIDE PANEL, NO.1 RH
53821-37070

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
53822A - PROTECTOR, FRONT SIDE PANEL, NO.1 LH
53821-37070

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
53921A - PANEL, FRONT VALANCE, RH
53921-25010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T

 1
53922A - PANEL, FRONT VALANCE, LH
53922-25010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T

 1
53923C - SUPPORT, FRONT SIDE GARNISH, RH
53923-25010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T

 1
53924 - PLATE, NOISE SHUTTER SUPPORT, NO.2
53924-25010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T

 1
53928A - GARNISH, FRONT PANEL, CENTER
53928-37011

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
55078 - COVER SUB-ASSY, FRONT PANEL
55078-37070

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
55145G - CLIP, RADIATOR GRILLE GARNISH
53145-27010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 7
55700 - PANEL ASSY, FRONT
55700-37111

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
55700-37310

XZU30#,314,324,33#,34#..6F

 1
55711A - PANEL, FRONT, LOWER
55711-37051

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
55717F - EXTENSION, FRONT PANEL REINFORCEMENT, RH
55717-37020

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
55718E - EXTENSION, FRONT PANEL REINFORCEMENT, LH
55718-37010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
55738B - PROTECTOR, FRONT PANEL COVER, NO.1
55738-37051

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
55739B - PROTECTOR, FRONT PANEL COVER, NO.2
55739-37070

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
55739B - PROTECTOR, FRONT PANEL COVER, NO.2
55739-37070

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
55785C - PAD, FRONT PANEL COVER
55785-37020

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
55785C - PAD, FRONT PANEL COVER
55785-37020

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
56111 - GLASS, WINDSHIELD
56101-89102

XZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU308,338,34#..SCB..DCRUE..CBU;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,344,504..SCB..(DCRTJ,DCRUE)..IV3;XZU304,334,504,548..(T3,T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3;XZU304,314,324,334,354,50#,524,538,548,554..(DM3,DM5,DM7,T3,T4,T5)..(DCRUD,DCRUE)..(CBU,IV3)

*LAM,T=5.76,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ｱﾘ(ﾄﾂﾌﾟ ｼｴ-ﾄﾞ)

 1
56111-37120

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

*LAM,T=5.76,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ

 1
56101-89101

XZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,34#..SCB..DCRUE..(CBU,IV6);XZU308,338,344,504..SCB..(DCRTJ,DCRUE)..IV3;XZU304,334,504,548..(T3,T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU304,314,324,334,354,50#,524,538,548,554..DCRUD,DCRUE;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3

*LAM,T=5.76,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ

 1
56111-37130

XZU314,324,33#,344,354,368,378..SCB..(CBU,IV3);XZU30#,348,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3)

*LAM,T=5.76,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ｱﾘ(ﾄﾂﾌﾟ ｼｴ-ﾄﾞ)

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-37040

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ)

 1
56121-37031

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ ﾉﾐ)

 1
56121-25040

XZU30#,314,324,33#,34#..6F

 1
Common parts
90159-60076
90163-50011
90189-05046
90189-06006
90189-06028
90189-06029
90189-06111
90467-08223
90467-12079
91551-80614
91611-B0816
Linked diagrams
4701

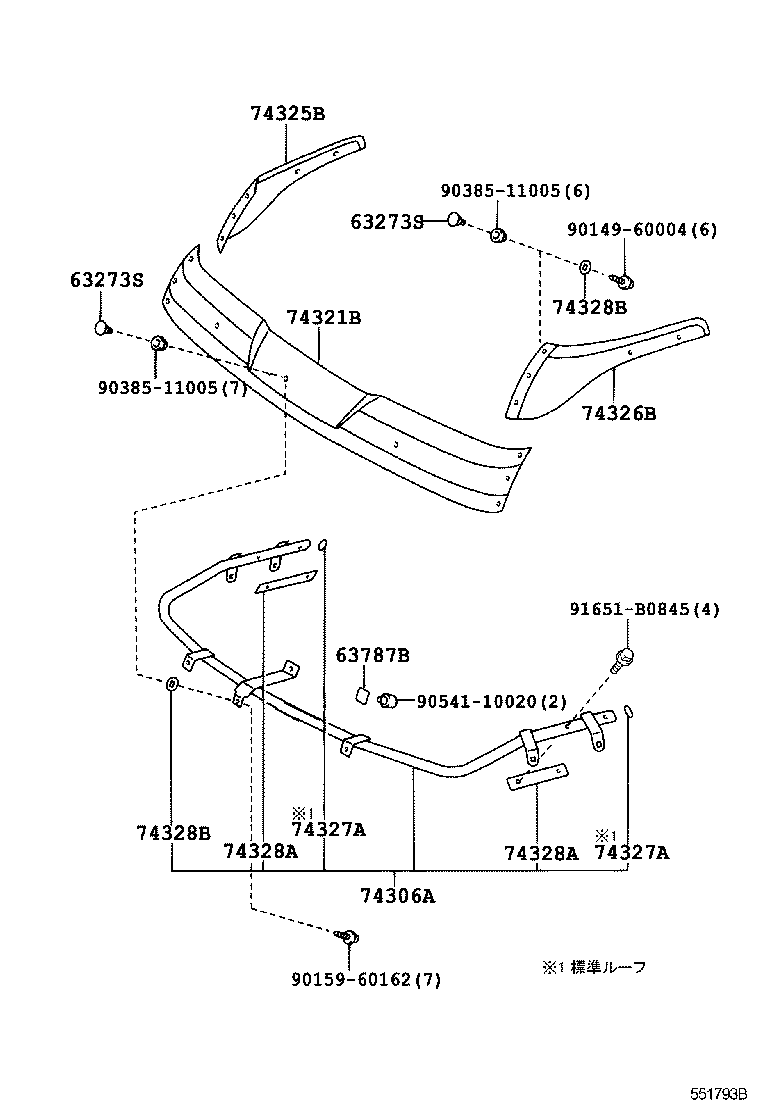

ILLUST NO. 2 OF 3(0610- )

Click highlighted areas on diagram

ﾌﾛﾝﾄｻﾝｼｪｰﾄﾞ(HINO)

diagram 63273S 63273S 63787B 74306A 74321B 74325B 74326B 74327A 74327A 74328A 74328A 74328B 74328B 9014960004 9015960162 9038511005 9038511005 9054110020 91651B0845
Part # Description Qty Price
63273S - RETAINER, ROOF WINDOW HINGE
63273-28030

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 13
63273S - RETAINER, ROOF WINDOW HINGE
63273-28030

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 13
63787B - PAD, ROOF AIR DEFLECTOR, NO.1
63787-95400

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
74306A - SUPPORT SUB-ASSY, FRONT VISOR
74306-37040

TRU300..20T..CBU;XZU348..DCB..CBU;XZU304..DM3,DM6,T4,T5;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;XZU304,378,388..SCB..(T3,T4)..(IV3,IV6,IV7)..1NO;BZU300,340,TRU300,340,500,XZU33#,34#,538,548..IV3

 1
74306-37050

XZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO

ﾊｲﾙ-ﾌ

 1
74321B - VISOR, FRONT
74321-37010

TRU300..20T..CBU;XZU348..DCB..CBU;XZU304..DM3,DM6,T4,T5;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;XZU304,378,388..SCB..(T3,T4)..(IV3,IV6,IV7)..1NO;BZU300,340,TRU300,340,500,XZU33#,34#,538,548..IV3

TOYOTA

 1
74321-37020

TRU300..20T..CBU;XZU348..DCB..CBU;XZU304..DM3,DM6,T4,T5;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;XZU304,378,388..SCB..(T3,T4)..(IV3,IV6,IV7)..1NO;BZU300,340,TRU300,340,500,XZU33#,34#,538,548..IV3

HINO

 1
74321-37030

XZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO

ﾊｲﾙ-ﾌ,TOYOTA

 1
74321-37040

XZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO

ﾊｲﾙ-ﾌ,HINO

 1
74325B - SUPPORT, FRONT VISOR, RH
74325-37030

XZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO

ﾊｲﾙ-ﾌ

 1
74325-37020

TRU300..20T..CBU;XZU348..DCB..CBU;XZU304..DM3,DM6,T4,T5;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;XZU304,378,388..SCB..(T3,T4)..(IV3,IV6,IV7)..1NO;BZU300,340,TRU300,340,500,XZU33#,34#,538,548..IV3

 1
74326B - SUPPORT, FRONT VISOR, LH
74326-37020

TRU300..20T..CBU;XZU348..DCB..CBU;XZU304..DM3,DM6,T4,T5;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;XZU304,378,388..SCB..(T3,T4)..(IV3,IV6,IV7)..1NO;BZU300,340,TRU300,340,500,XZU33#,34#,538,548..IV3

 1
74326-37030

XZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO

ﾊｲﾙ-ﾌ

 1
74327A - PAD, FRONT VISOR
74327-37020

TRU300..20T..CBU;XZU348..DCB..CBU;XZU304..DM3,DM6,T4,T5;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;XZU304,378,388..SCB..(T3,T4)..(IV3,IV6,IV7)..1NO;BZU300,340,TRU300,340,500,XZU33#,34#,538,548..IV3

 2
74327A - PAD, FRONT VISOR
74327-37020

TRU300..20T..CBU;XZU348..DCB..CBU;XZU304..DM3,DM6,T4,T5;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;XZU304,378,388..SCB..(T3,T4)..(IV3,IV6,IV7)..1NO;BZU300,340,TRU300,340,500,XZU33#,34#,538,548..IV3

 2
74328A - PAD, FRONT VISOR, NO.2
74328-37010

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 2
74328A - PAD, FRONT VISOR, NO.2
74328-37010

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 2
74328B - PAD, FRONT VISOR, NO.2
74328-95400

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 15
74328B - PAD, FRONT VISOR, NO.2
74328-95400

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 15
Common parts
90149-60004
90159-60162
90385-11005
90541-10020
91651-B0845

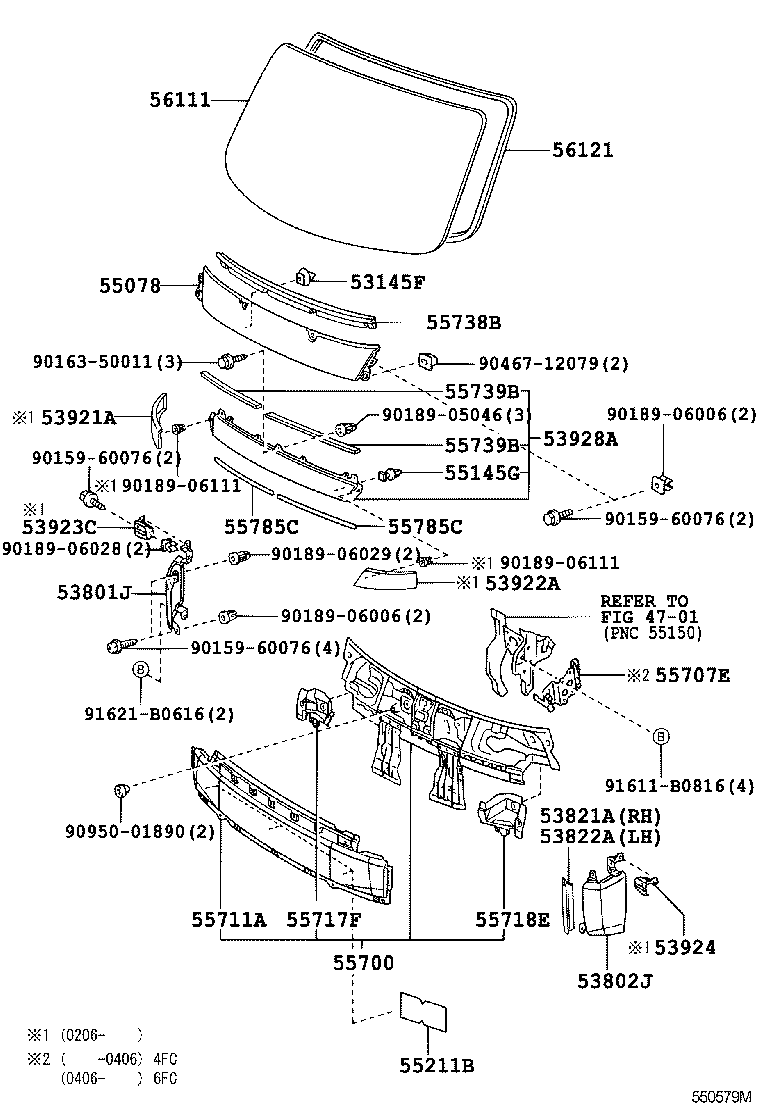

ILLUST NO. 1 OF 3(0610- )

Click highlighted areas on diagram

ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ=ｾｯﾁｬｸﾀｲﾌﾟ

diagram 4701 53145F 53801J 53801J 53802J 53802J 53821A 53822A 53921A 53922A 53923C 53924 53928A 55078 55145G 55700 55707E 55711A 55717F 55718E 55738B 55739B 55739B 55785C 55785C 56111 56114B 56114C 56114C 56115D 56115E 56115F 56117H 56117H 56153D 56153D 7552 7552 7552 7552 75631M 9015960076 9015960076 9016350011 9018905046 9018906006 9018906028 9018906028 9018906028 9018906029 9018906111 9018906111 9046706155 9046708223 9046712079 9155180614 91611B0816
Part # Description Qty Price
53145F - CLIP, RADIATOR GRILLE GARNISH
90467-08208

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 4
53801J - PANEL SUB-ASSY, FRONT SIDE, RH
53801-37041

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

ﾒﾂｷ

 1
53801-37021

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
53801J - PANEL SUB-ASSY, FRONT SIDE, RH
53801-37041

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

ﾒﾂｷ

 1
53801-37021

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
53802J - PANEL SUB-ASSY, FRONT SIDE, LH
53802-37021

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
53802-37041

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

ﾒﾂｷ

 1
53802J - PANEL SUB-ASSY, FRONT SIDE, LH
53802-37021

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
53802-37041

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

ﾒﾂｷ

 1
53821A - PROTECTOR, FRONT SIDE PANEL, NO.1 RH
53821-37070

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
53822A - PROTECTOR, FRONT SIDE PANEL, NO.1 LH
53821-37070

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
53921A - PANEL, FRONT VALANCE, RH
53921-25010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T

 1
53922A - PANEL, FRONT VALANCE, LH
53922-25010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T

 1
53923C - SUPPORT, FRONT SIDE GARNISH, RH
53923-25010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T

 1
53924 - PLATE, NOISE SHUTTER SUPPORT, NO.2
53924-25010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T

 1
53928A - GARNISH, FRONT PANEL, CENTER
53928-37011

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
55078 - COVER SUB-ASSY, FRONT PANEL
55078-37070

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
55145G - CLIP, RADIATOR GRILLE GARNISH
53145-27010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 7
55700 - PANEL ASSY, FRONT
55700-37111

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
55700-37310

XZU30#,314,324,33#,34#..6F

 1
55711A - PANEL, FRONT, LOWER
55711-37051

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
55717F - EXTENSION, FRONT PANEL REINFORCEMENT, RH
55717-37020

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
55718E - EXTENSION, FRONT PANEL REINFORCEMENT, LH
55718-37010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
55738B - PROTECTOR, FRONT PANEL COVER, NO.1
55738-37051

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
55739B - PROTECTOR, FRONT PANEL COVER, NO.2
55739-37070

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
55739B - PROTECTOR, FRONT PANEL COVER, NO.2
55739-37070

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
55785C - PAD, FRONT PANEL COVER
55785-37020

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
55785C - PAD, FRONT PANEL COVER
55785-37020

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
56111 - GLASS, WINDSHIELD
56101-89102

XZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU308,338,34#..SCB..DCRUE..CBU;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,344,504..SCB..(DCRTJ,DCRUE)..IV3;XZU304,334,504,548..(T3,T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3;XZU304,314,324,334,354,50#,524,538,548,554..(DM3,DM5,DM7,T3,T4,T5)..(DCRUD,DCRUE)..(CBU,IV3)

*LAM,T=5.76,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ｱﾘ(ﾄﾂﾌﾟ ｼｴ-ﾄﾞ)

 1
56111-37120

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

*LAM,T=5.76,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ

 1
56101-89101

XZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,34#..SCB..DCRUE..(CBU,IV6);XZU308,338,344,504..SCB..(DCRTJ,DCRUE)..IV3;XZU304,334,504,548..(T3,T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU304,314,324,334,354,50#,524,538,548,554..DCRUD,DCRUE;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3

*LAM,T=5.76,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ

 1
56111-37130

XZU314,324,33#,344,354,368,378..SCB..(CBU,IV3);XZU30#,348,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3)

*LAM,T=5.76,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ｱﾘ(ﾄﾂﾌﾟ ｼｴ-ﾄﾞ)

 1
56114B - RETAINER, WINDSHIELD GLASS
56114-89101

XZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,34#..SCB..DCRUE..(CBU,IV6);XZU308,338,344,504..SCB..(DCRTJ,DCRUE)..IV3;XZU304,334,504,548..(T3,T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU304,314,324,334,354,50#,524,538,548,554..DCRUD,DCRUE;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3

ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ

 1
56114C - RETAINER, WINDSHIELD GLASS
56114-89102

XZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,34#..SCB..DCRUE..(CBU,IV6);XZU308,338,344,504..SCB..(DCRTJ,DCRUE)..IV3;XZU304,334,504,548..(T3,T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU304,314,324,334,354,50#,524,538,548,554..DCRUD,DCRUE;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3

ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ

 2
56114C - RETAINER, WINDSHIELD GLASS
56114-89102

XZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,34#..SCB..DCRUE..(CBU,IV6);XZU308,338,344,504..SCB..(DCRTJ,DCRUE)..IV3;XZU304,334,504,548..(T3,T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU304,314,324,334,354,50#,524,538,548,554..DCRUD,DCRUE;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3

ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ

 2
56115D - STOPPER, WINDSHIELD GLASS
56115-89105

XZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,34#..SCB..DCRUE..(CBU,IV6);XZU308,338,344,504..SCB..(DCRTJ,DCRUE)..IV3;XZU304,334,504,548..(T3,T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU304,314,324,334,354,50#,524,538,548,554..DCRUD,DCRUE;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3

ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ

 2
56115E - STOPPER, WINDSHIELD GLASS
56115-89103

XZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,34#..SCB..DCRUE..(CBU,IV6);XZU308,338,344,504..SCB..(DCRTJ,DCRUE)..IV3;XZU304,334,504,548..(T3,T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU304,314,324,334,354,50#,524,538,548,554..DCRUD,DCRUE;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3

ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ

 1
56115F - STOPPER, WINDSHIELD GLASS
56115-89104

XZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,34#..SCB..DCRUE..(CBU,IV6);XZU308,338,344,504..SCB..(DCRTJ,DCRUE)..IV3;XZU304,334,504,548..(T3,T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU304,314,324,334,354,50#,524,538,548,554..DCRUD,DCRUE;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3

ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ

 1
56153D - MOULDING, FRONT WINDOW, INNER CENTER
56153-89105

XZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,34#..SCB..DCRUE..(CBU,IV6);XZU308,338,344,504..SCB..(DCRTJ,DCRUE)..IV3;XZU304,334,504,548..(T3,T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU304,314,324,334,354,50#,524,538,548,554..DCRUD,DCRUE;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3

ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ,下側

 1
56153-89104

XZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,34#..SCB..DCRUE..(CBU,IV6);XZU308,338,344,504..SCB..(DCRTJ,DCRUE)..IV3;XZU304,334,504,548..(T3,T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU304,314,324,334,354,50#,524,538,548,554..DCRUD,DCRUE;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3

ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ,上側

 1
56153D - MOULDING, FRONT WINDOW, INNER CENTER
56153-89105

XZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,34#..SCB..DCRUE..(CBU,IV6);XZU308,338,344,504..SCB..(DCRTJ,DCRUE)..IV3;XZU304,334,504,548..(T3,T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU304,314,324,334,354,50#,524,538,548,554..DCRUD,DCRUE;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3

ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ,下側

 1
56153-89104

XZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,34#..SCB..DCRUE..(CBU,IV6);XZU308,338,344,504..SCB..(DCRTJ,DCRUE)..IV3;XZU304,334,504,548..(T3,T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU304,314,324,334,354,50#,524,538,548,554..DCRUD,DCRUE;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3

ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ,上側

 1
75631M - GARNISH, ROOF TOP, FRONT
75631-89101

XZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,34#..SCB..DCRUE..(CBU,IV6);XZU308,338,344,504..SCB..(DCRTJ,DCRUE)..IV3;XZU304,334,504,548..(T3,T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU304,314,324,334,354,50#,524,538,548,554..DCRUD,DCRUE;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3

ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ

 1
Common parts
90159-60076
90163-50011
90189-05046
90189-06006
90189-06028
90189-06029
90189-06111
90467-06155
90467-08223
90467-12079
91551-80614
91611-B0816
Linked diagrams
4701
7552

ILLUST NO. 3 OF 3(0610- )

Click highlighted areas on diagram

ｻｲﾄﾞﾊﾞｲｻﾞ

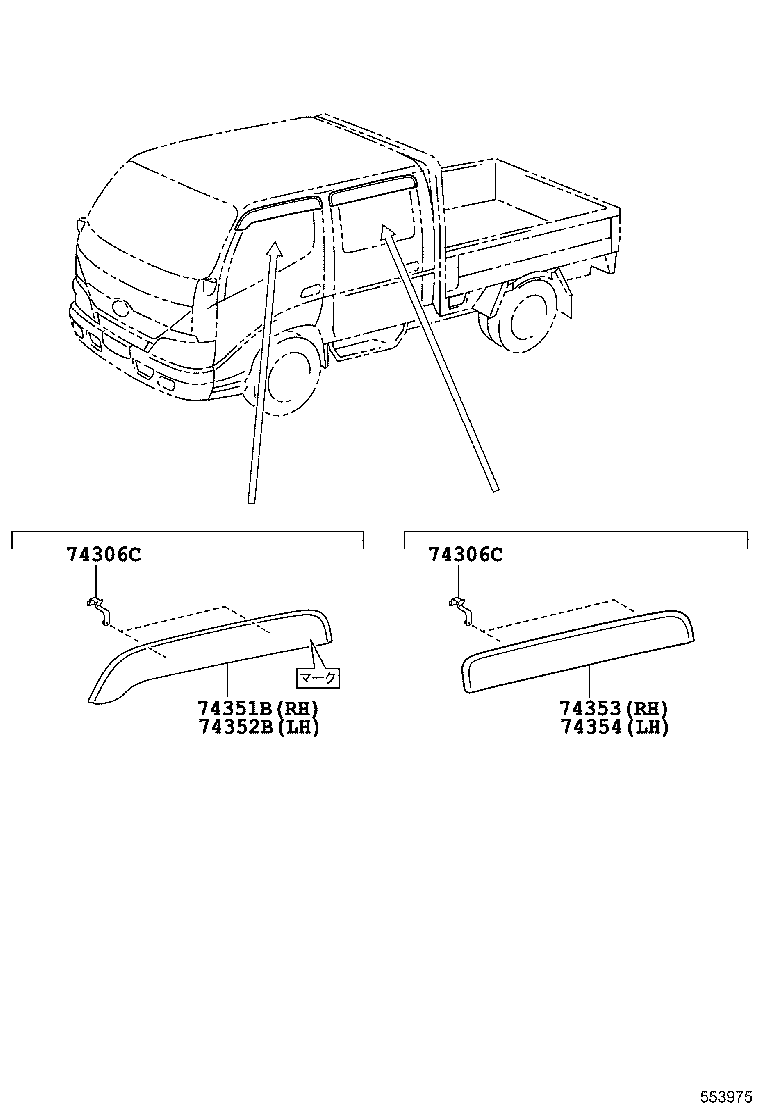

diagram 74306C 74306C 74351B 74352B 74353 74354
Part # Description Qty Price
74306C - SUPPORT SUB-ASSY, SIDE VISOR
74306-37020

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB,VAN

 2
74306C - SUPPORT SUB-ASSY, SIDE VISOR
74306-37020

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB,VAN

 2
74351B - COVER, VISOR
74351-37010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7

ﾏｰｸ HINO

 1
74351-37020

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7

ﾏｰｸ TOYOTA

 1
74352B - COVER, VISOR
74352-37020

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7

ﾏｰｸ TOYOTA

 1
74352-37010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7

ﾏｰｸ HINO

 1

(7708- )

Click highlighted areas on diagram

diagram 53123A 53123A 53123A 53933 53934 55071 55072 55358 55700 55711B 55718A 55719 55719A 5572795400 55729 55741 55741 55742 55742 55785A 55786A 55787A 56111 56121 9015950001 9015950035 9015950038 9015950080 9015950105 9015950184 9017905004 9017905145 9018305069 9018305069 9018905007 9018905008 9046708011 9048013314 9353055030 9359050512 9433115000
Part # Description Qty Price
Common parts
55727-95400
90159-50001
90159-50035
90159-50038
90159-50080
90159-50105
90159-50184
90179-05004
90179-05145
90183-05069
90189-05007
90189-05008
90467-08011
90480-13314
93530-55030
93590-50512
94331-15000

ILLUST NO. 1 OF 2(9905- )CNG,DCR,DCRL,DSL,DSLL,LPG,TDEFI

Click highlighted areas on diagram

diagram 4701 53145F 53801J 53802J 53821A 53822A 53921A 53922A 53923C 53924 53928A 55078 55145G 55211B 55700 55707E 55711A 55717F 55718E 55738B 55739B 55739B 55785C 55785C 56111 56121 9015960076 9015960076 9015960076 9016350011 9018905046 9018906006 9018906006 9018906028 9018906029 9018906111 9018906111 9046712079 9095001890 91611B0816 91621B0616
Part # Description Qty Price
Common parts
90159-60076
90163-50011
90189-05046
90189-06006
90189-06028
90189-06029
90189-06111
90467-12079
90950-01890
91611-B0816
91621-B0616
Linked diagrams
4701

ILLUST NO. 2 OF 2(9905- )

Click highlighted areas on diagram

HINO

diagram 63273S 63273S 63787B 74306A 74321B 74325B 74326B 74328A 74328A 74328B 74328B 9014960004 9015960162 9020106554 9038511005 9038511005 9054110020 9054110022 9054110024 91651B0845
Part # Description Qty Price
Common parts
90149-60004
90159-60162
90201-06554
90385-11005
90541-10020
90541-10022
90541-10024
91651-B0845

ILLUST NO. 2 OF 2(9905- )

Click highlighted areas on diagram

TOYOTA

diagram 63273S 63273S 63787B 74306A 74310D 74321B 74325B 74326B 74328A 74328A 74328B 74328B 9014960004 9015960162 9020106554 9038511005 9038511005 9054110020 9054110022 9054110024 91651B0845
Part # Description Qty Price
Common parts
90149-60004
90159-60162
90201-06554
90385-11005
90541-10020
90541-10022
90541-10024
91651-B0845
