XZU334-TKFQG3 (2010)

Toyota Dyna/Toyoace

Production Mar 2010 - Jun 2011
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

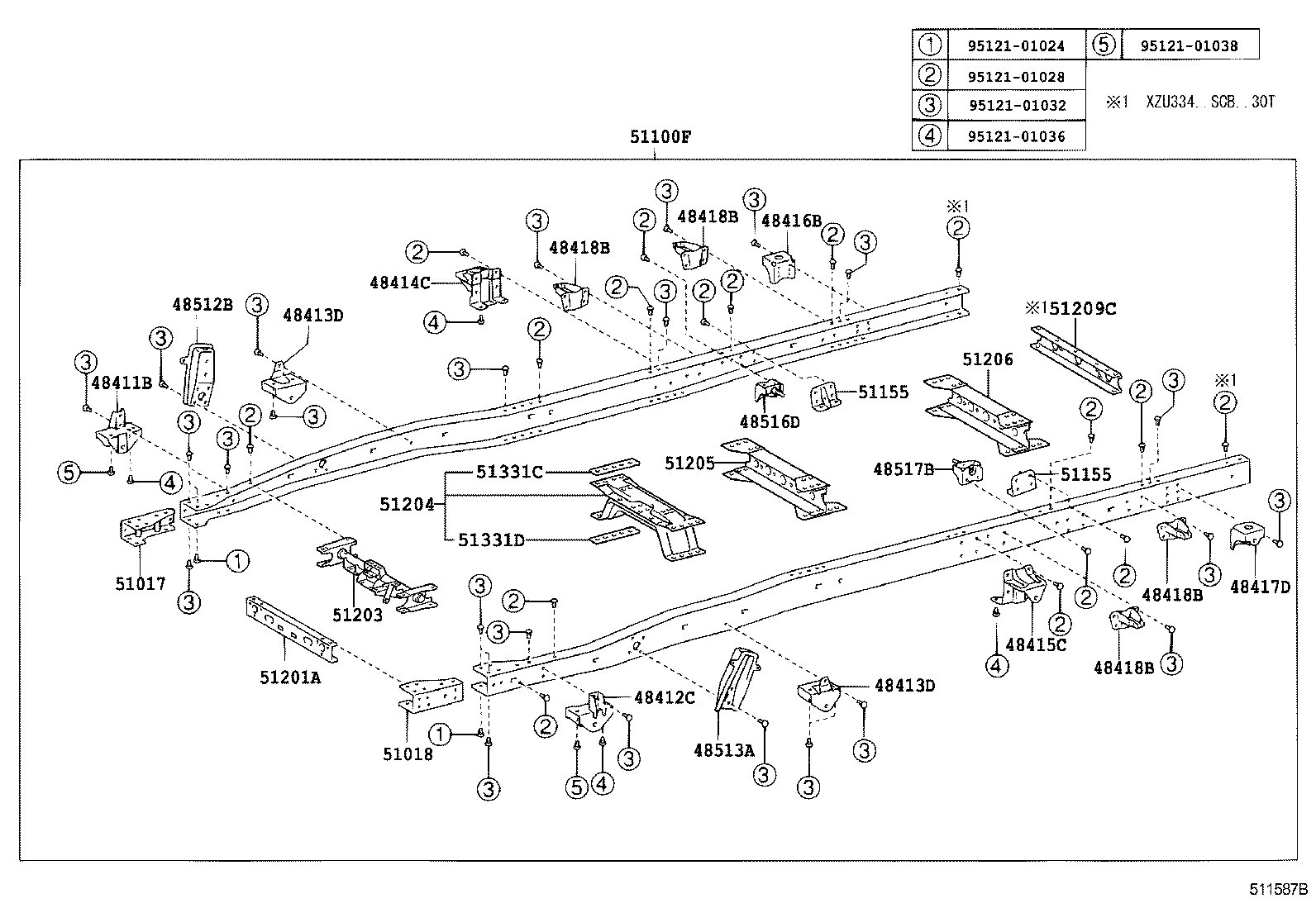

ILLUST NO. 2 OF 4(0610- )XZU334..SCB..30T ; (0610- )BZU300,TRU300,XZU304..T3

Click highlighted areas on diagram

diagram 48411B 48412C 48413D 48413D 48414C 48415C 48416B 48417D 48418B 48418B 48418B 48418B 48512B 48513A 48516D 48517B 51017 51018 51100F 51155 51155 51201A 51203 51204 51205 51206 51209C 51331C 51331D 9512101024 9512101028 9512101032 9512101036 9512101038
Part # Description Qty Price
48411B - BRACKET, SPRING, NO.1 RH
48411-37070

XZU354..1NO;BZU300,340,TRU300,340,500,XZU304,334,344,504

 1
48412C - BRACKET, SPRING, NO.1 LH
48412-37060

XZU354..1NO;BZU300,340,TRU300,340,500,XZU304,334,344,504

 1
48413D - BRACKET, SPRING, NO.2
48413-37060

XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354..1NO

 2
48413D - BRACKET, SPRING, NO.2
48413-37060

XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354..1NO

 2
48414C - BRACKET, SPRING, NO.3 RH
48414-37100

BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T

 1
48415C - BRACKET, SPRING, NO.3 LH
48415-37020

BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T

 1
48416B - BRACKET, SPRING, NO.4 RH
48416-37100

BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T

 1
48417D - BRACKET, SPRING, NO.4 LH
48416-37100

BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T

 1
48418B - BRACKET, SPRING, NO.6
48418-36090

BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548

 4
48418B - BRACKET, SPRING, NO.6
48418-36090

BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548

 4
48418B - BRACKET, SPRING, NO.6
48418-36090

BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548

 4
48418B - BRACKET, SPRING, NO.6
48418-36090

BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548

 4
48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH
48512-37050

BZU300..T3;BZU300..T4..20T;TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 1
48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH
48512-37130

TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48505-37010

XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT

 1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
48505-37010

XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT

 1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37130

XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354..1NO

 1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37021

XZU368,568;XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354,378,388..1NO

 1
51018-37140

XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T

 1
51100F - FRAME SUB-ASSY
51001-3VK00

XZU334..DCRUE

 1
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37060

XZU338,368,568..T4;BZU300,340,TRU300,340,500,XZU30#,334,378,388,50#,538..(20T,30T)..WT

 2
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37060

XZU338,368,568..T4;BZU300,340,TRU300,340,500,XZU30#,334,378,388,50#,538..(20T,30T)..WT

 2
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-37090

XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-37210

XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37300

XZU304..T5..20T;XZU308,338,34#..6F

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37140

XZU368,568..T4;XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU334,354,378..(CBU,IV3,IV6)..1NO

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51206-37030

XZU368,568..T4;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,34#,354,378,388,548..1NO

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51291-37040

BZU340,TRU340,XZU33#,34#,378,388,538,548

 1
51331C - GUSSET, FRAME NO.3 CROSSMEMBER
51331-37020

XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334..20T,30T

 2
51331D - GUSSET, FRAME NO.3 CROSSMEMBER
51331-37030

XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334..20T,30T

 2
Common parts
95121-01024
95121-01028
95121-01032
95121-01036
95121-01038

ILLUST NO. 1 OF 4(0610- )DCB,SCB

Click highlighted areas on diagram

diagram 51100F 51401 51402 51454D 51705A 51705D 51706D 51717C 9011912377 9017912070 9017912087 9046709101 9164281245
Part # Description Qty Price
51100F - FRAME SUB-ASSY
51001-3VK00

XZU334..DCRUE

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-37050

XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,XZU334..20T,30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-37110

XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,XZU334..20T,30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-37401

XZU304,314,334,344,354,504,554..SCB

 1
51705-37402

XZU304,314,334,344,354,504,554..SCB

 1
Common parts
90119-12377
90179-12070
90179-12087
90467-09101
91642-81245

ILLUST NO. 4 OF 4(0610- )

Click highlighted areas on diagram

ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ

diagram 51568 51568 51569 51569 51569 51569 9011908908 9011908908 9011908908 9011908908 9011908908 9011908908 9017908233
Part # Description Qty Price
51569 - GUARD, PROPELLER SHAFT
51569-37290

XZU338..T2;XZU308,334..(T2,T3,T4)..(20T,30T)..(CBU,IV3);TRU300,XZU304,314,354,378,50#,554..(DM5,T2,T3,T4)..(CBU,IV3,IV6,IV7)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51569 - GUARD, PROPELLER SHAFT
51569-37290

XZU338..T2;XZU308,334..(T2,T3,T4)..(20T,30T)..(CBU,IV3);TRU300,XZU304,314,354,378,50#,554..(DM5,T2,T3,T4)..(CBU,IV3,IV6,IV7)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51569 - GUARD, PROPELLER SHAFT
51569-37290

XZU338..T2;XZU308,334..(T2,T3,T4)..(20T,30T)..(CBU,IV3);TRU300,XZU304,314,354,378,50#,554..(DM5,T2,T3,T4)..(CBU,IV3,IV6,IV7)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51569 - GUARD, PROPELLER SHAFT
51569-37290

XZU338..T2;XZU308,334..(T2,T3,T4)..(20T,30T)..(CBU,IV3);TRU300,XZU304,314,354,378,50#,554..(DM5,T2,T3,T4)..(CBU,IV3,IV6,IV7)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
Common parts
90119-08908
90179-08233

ILLUST NO. 1 OF 2(7708- )

Click highlighted areas on diagram

diagram 51100 51100F 51202 51203 51204 51204 51205 51206 51207 51208 51209 51210 51211
Part # Description Qty Price

ILLUST NO. 2 OF 2(7708- )

Click highlighted areas on diagram

diagram 1702 51017 51018 51209A 51401 51402 51703A 51704A 51721 51731 51732 51733 51734 51741 51741A 51741A 5174336011 5175136020 5176936040 51881 51881 51882 51883 51884 51884 51943A 51947B 51947B 66103A 66104A 66176 66177 9010110096 9020110489 9020110489 9020112002 9111271030 9116171230 9411051000 9411551200 9418401000
Part # Description Qty Price
Common parts
51743-36011
51751-36020
51769-36040
90101-10096
90201-10489
90201-12002
91112-71030
91161-71230
94110-51000
94115-51200
94184-01000
Linked diagrams
1702
