XZU334-PKTQL4 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(0406- )RZU300,XZU306..SCB..T2,T3,T4,T5..CBU,IV3 ; (0406- )BZU300,340,RZU301,

Click highlighted areas on diagram

ｼﾞﾖｼﾕｾｷ

diagram 71072S 71074S 71131B 71236A 71491C 71512S 71552S 71640S 71739 72641 9011908C25 9011908C25 9356015030 9616000800
Part # Description Qty Price
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-37030

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI,LPG

 1
71131-37030

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI,LPG

 1
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-37010

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI,LPG

 1
71236-37010

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI,LPG

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-37140

RZU300,XZU304,306,308,334,346,378,388..DCB

 1
71502-37140

RZU300,XZU304,306,308,334,346,378,388..DCB

 1
71052-37020

RZU300,XZU304,306,308,334,346,378,388..DCB

ｱﾘ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ)

 1
71052-37020

RZU300,XZU304,306,308,334,346,378,388..DCB

ｱﾘ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ)

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37080

RZU300,XZU304,306,308,334,346,378,388..DCB

 1
71552-37080

RZU300,XZU304,306,308,334,346,378,388..DCB

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-37080

RZU300,XZU304,306,308,334,346,378,388..DCB

ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ)

 1
71014-37080

RZU300,XZU304,306,308,334,346,378,388..DCB

ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ)

 1
Common parts
90119-08C25
93560-15030
96160-00800

ILLUST NO. 2 OF 3(0406- )DCB

Click highlighted areas on diagram

ｼﾞﾖｼﾕｾｷ 2ﾆﾝｶﾞｹ & ｱﾘ(ｼｰﾄﾊﾞｯｸ ｺﾝｿｰﾙ)

diagram 5855 5855 71035S 71072S 71074S 71131B 71236A 71305S 71365S 71380 71395B 71397A 71512S 71552S 71640S 71812C 72213C 72526 73178B 8401 9011908079 9011908C25 9011908C25 9011910825 9016740044 9016740044 9017908039 9017910109 9018304048 9046706044
Part # Description Qty Price
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-37030

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI,LPG

 1
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-37010

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI,LPG

 1
71305S - FRAME SUB-ASSY, CENTER SEAT BACK
71305-37060

RZU300,XZU304,306,308,334,346,378,388..DCB

 1
71365S - PAD, CENTER SEAT BACK
71365-37050

RZU300,XZU304,306,308,334,346,378,388..DCB

 1
71380 - HINGE ASSY, CENTER SEAT, RH
71380-37010

RZU300,XZU304,306,308,334,346,378,388..DCB

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-37140

RZU300,XZU304,306,308,334,346,378,388..DCB

 1
71052-37020

RZU300,XZU304,306,308,334,346,378,388..DCB

ｱﾘ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ)

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37080

RZU300,XZU304,306,308,334,346,378,388..DCB

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-37080

RZU300,XZU304,306,308,334,346,378,388..DCB

ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ)

 1
73178B - CAP, SEAT BELT ANCHOR COVER
73178-95J00

BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 2
Common parts
90119-08079
90119-08C25
90119-10825
90167-40044
90179-08039
90179-10109
90183-04048
90467-06044
Linked diagrams
5855
8401

ILLUST NO. 3 OF 3(0406- )IV4

Click highlighted areas on diagram

ﾘﾔｼｰﾄ

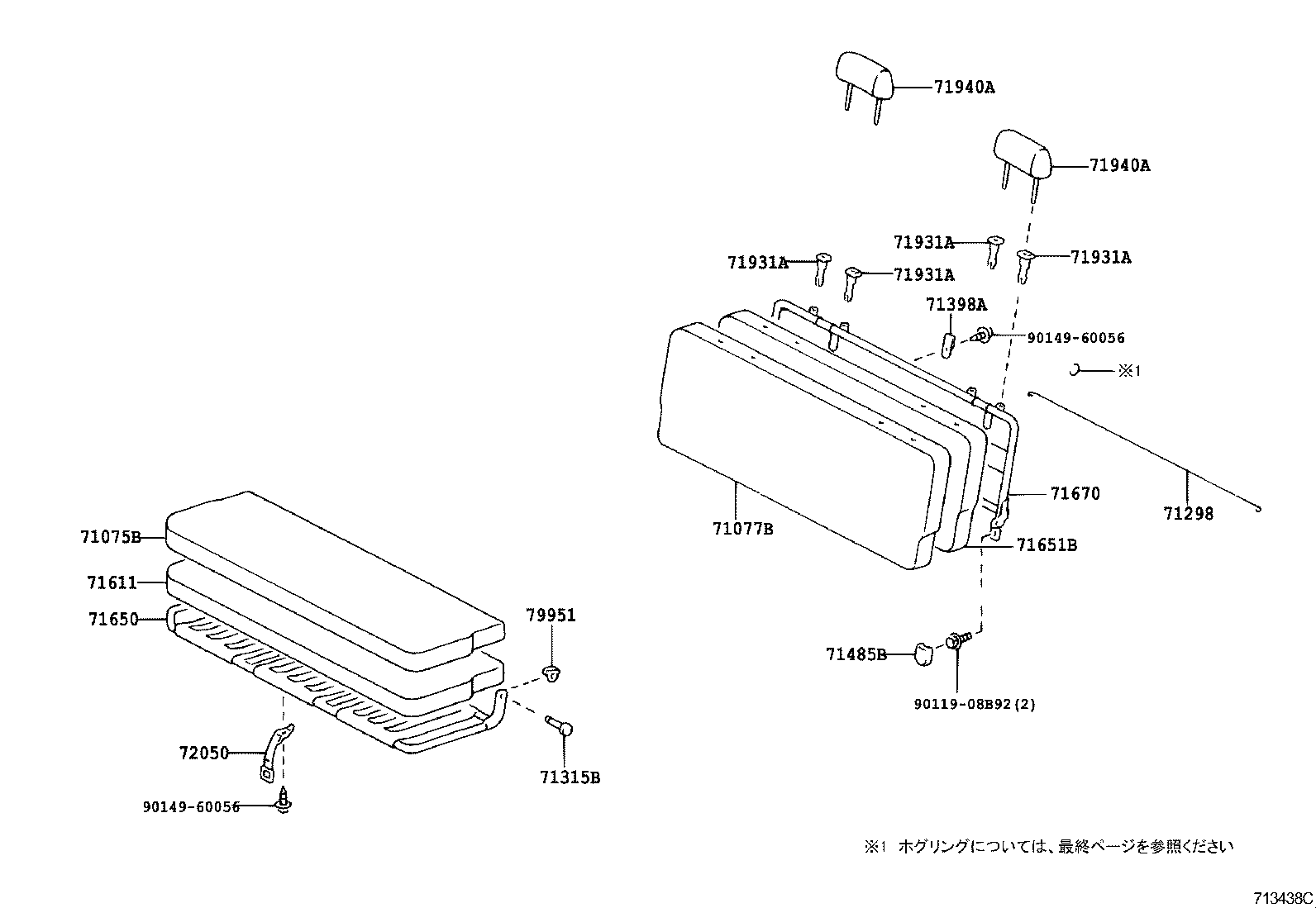

diagram 71075B 71077B 71298 71315B 71398A 71485B 71611 71650 71651B 71670 71931A 71931A 71931A 71931A 71940A 71940A 72050 79951 9011908B92 9014960056 9014960056
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-37290B0

XZU304,334,378..IV4

ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-37230B0

XZU304,334,378..IV4

ｱﾘ(ﾁﾙﾄ ｷｬﾌﾞ) & ｼｰﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71298 - WIRE, REAR SEAT BACK, LOWER
71298-37010

RZU300,XZU304,306,308,334,346,378,388..DCB

 1
71315B - PIN, REAR SEAT HINGE
90109-10175

XZU304,334,378..IV4

 4
71611 - PAD, REAR SEAT CUSHION
71611-37030

RZU300,XZU304,306,308,334,346,378,388..DCB

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-37030

XZU304,334,378..IV4

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-37020

RZU300,XZU304,306,308,334,346,378,388..DCB

 1
71651-37050

XZU304,334,378..IV4

ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ)

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-37020

RZU300,XZU304,306,308,334,346,378,388..DCB

ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ)

 1
71670-37050

XZU304,334,378..IV4

ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ)

 1
71670-37030

RZU300,XZU304,306,308,334,346,378,388..DCB

 1
79951 - COVER, NO.1 SEAT CUSHION
79951-37010

XZU304,334,378..IV4

 4
Common parts
90119-08B92
90149-60056

ILLUST NO. 3 OF 3(0406- )IV4

Click highlighted areas on diagram

ﾘﾔ ｼｰﾄ ｱﾘ(ﾁﾙﾄ ｷｬﾌﾞ)

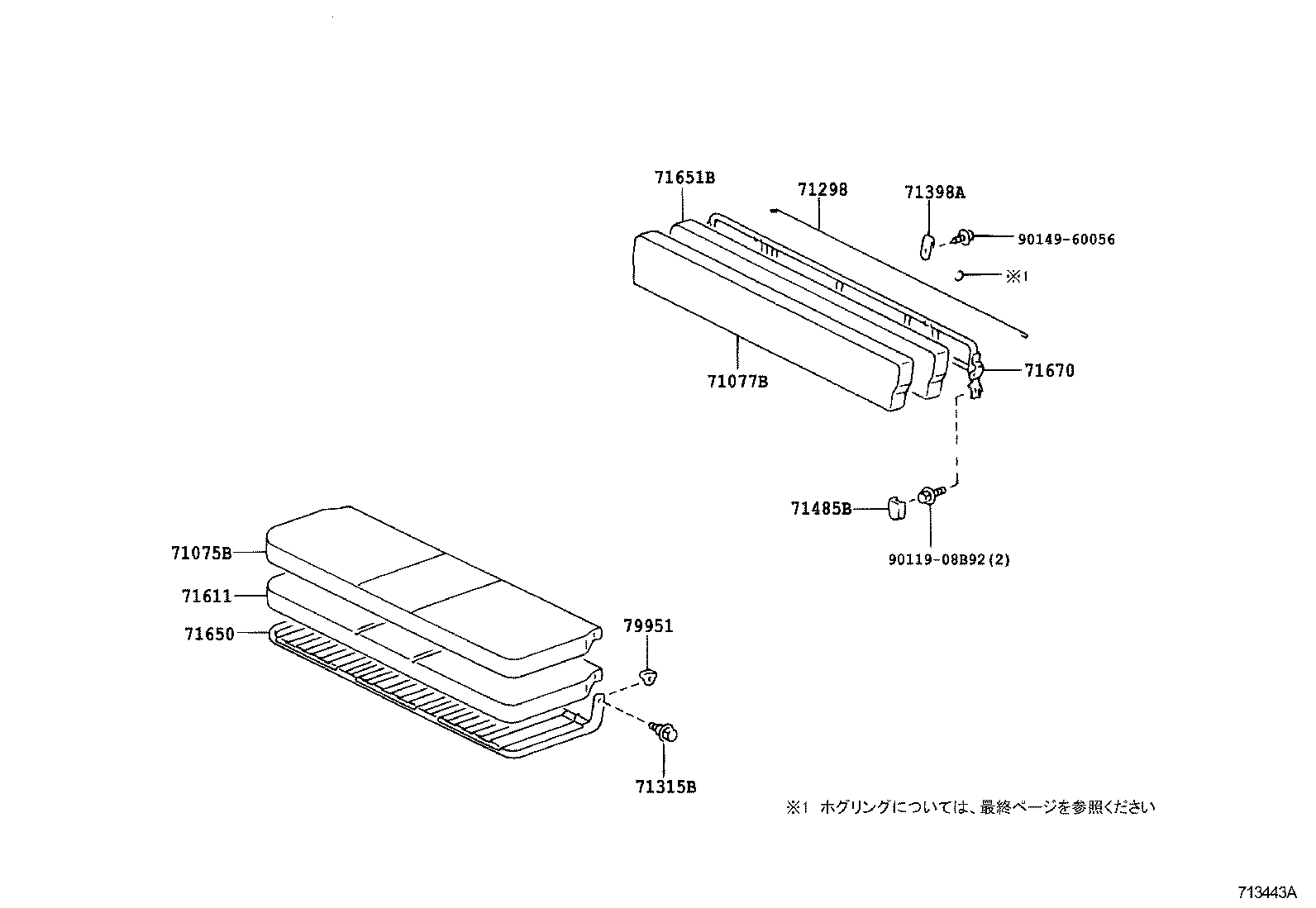

diagram 71075B 71077B 71298 71315B 71398A 71485B 71611 71650 71651B 71670 79951 9011908B92 9014960056
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-37290B0

XZU304,334,378..IV4

ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-37230B0

XZU304,334,378..IV4

ｱﾘ(ﾁﾙﾄ ｷｬﾌﾞ) & ｼｰﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71298 - WIRE, REAR SEAT BACK, LOWER
71298-37010

RZU300,XZU304,306,308,334,346,378,388..DCB

 1
71315B - PIN, REAR SEAT HINGE
90109-10175

XZU304,334,378..IV4

 4
71611 - PAD, REAR SEAT CUSHION
71611-37030

RZU300,XZU304,306,308,334,346,378,388..DCB

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-37030

XZU304,334,378..IV4

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-37020

RZU300,XZU304,306,308,334,346,378,388..DCB

 1
71651-37050

XZU304,334,378..IV4

ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ)

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-37020

RZU300,XZU304,306,308,334,346,378,388..DCB

ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ)

 1
71670-37050

XZU304,334,378..IV4

ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ)

 1
71670-37030

RZU300,XZU304,306,308,334,346,378,388..DCB

 1
79951 - COVER, NO.1 SEAT CUSHION
79951-37010

XZU304,334,378..IV4

 4
Common parts
90119-08B92
90149-60056

(0406- )DCB

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ

diagram 5855 5855 71035S 71072S 71074S 71305S 71332B 71365S 71512S 71552S 71640S 71812C 72526 72550B 73178B 9011908C25 9011908C25 9011910111 9011910229 9016740044 9017910109
Part # Description Qty Price
Common parts
90119-08C25
90119-10111
90119-10229
90167-40044
90179-10109
Linked diagrams
5855

(0406- )DCB

Click highlighted areas on diagram

ﾘﾔｼｰﾄ

diagram 71075B 71077B 71301C 71308C 71315B 71398A 71434 71485 71611 71650 71651B 71670 71931A 71931A 71931A 71931A 71940A 71940A 72050 79189 79199 79199 79951 9010908137 9011908B92 9011908B92 9014960056 9014960056 9020612035 9050623053 9052306017
Part # Description Qty Price
Common parts
90109-08137
90119-08B92
90149-60056
90206-12035
90506-23053
90523-06017
