XZU334-PKMQD4 (2006)
Toyota Dyna/Toyoace

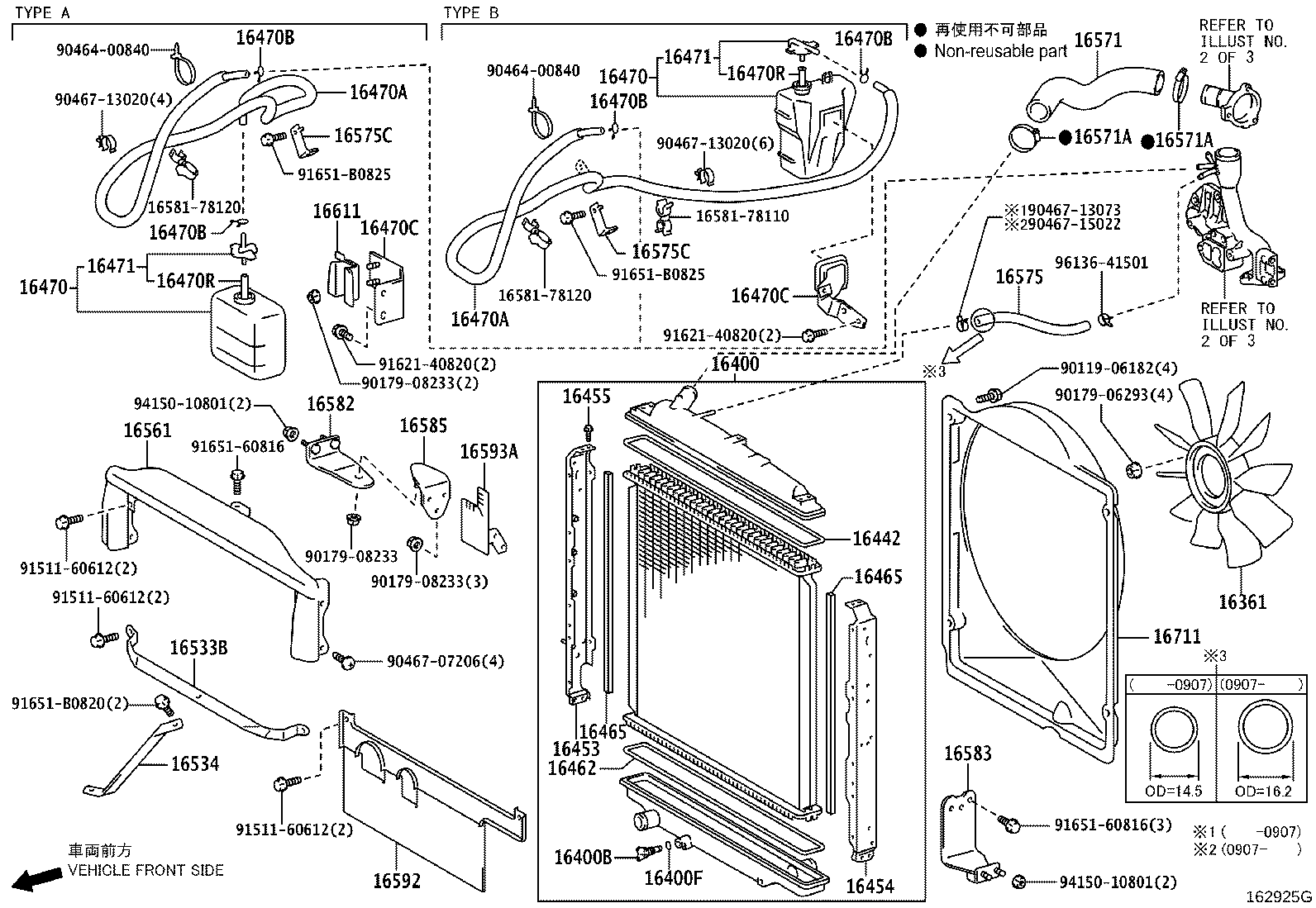

ILLUST NO. 1 OF 3(0610- )N04C..XZU304,334..IV4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-78100 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78671 |
N04C..XZU304,334..5F..IV4 |
1 | ||
| 16400-78670 |
N04C..XZU304,334..5F..IV4 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-78080 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78550 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78550 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
8 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-78080 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78020 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470-78040 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78020 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470-78040 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78200 |
N04C..XZU304,334..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16567-78260 |
N04C..XZU304,334..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78200 |
N04C..XZU304,334..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16567-78260 |
N04C..XZU304,334..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C..XZU308,348,378,388..SCB;N04C..XZU304,314,324,33#,344,354,368,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C..XZU308,348,378,388..SCB;N04C..XZU304,314,324,33#,344,354,368,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C..XZU308,348,378,388..SCB;N04C..XZU304,314,324,33#,344,354,368,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C..XZU308,348,378,388..SCB;N04C..XZU304,314,324,33#,344,354,368,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 53261-37030 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16402-78010 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 53261-37030 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16402-78010 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C..XZU30#,334,348,378,388,508..DCB,VAN *H,L=180 |
1 | ||
| 90445-12078 |
N04C..XZU304,334,378..IV4 *H,L=150 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C..XZU30#,334,348,378,388,508..DCB,VAN *H,L=180 |
1 | ||
| 90445-12078 |
N04C..XZU304,334,378..IV4 *H,L=150 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78040 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16405-78020 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78040 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16405-78020 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78100 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78060 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-78060 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78120 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78190 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 16581-78140 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 16581-78191 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78190 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 16581-78140 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 16581-78191 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-78041 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554 外径=16.2 |
1 | ||
| 16575-78040 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554 外径=14.5 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-78080 |
N04C..XZU304,334..IV4 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-78080 |
N04C..XZU304,334..IV4 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78080 |
N04C..XZU304..(T4,T5)..20T;N04C..XZU308,338,34#,50#,538,548..20T,30T |
1 | ||
| 16582-78060 |
N04C..XZU344..35T;N04C..XZU304..30T..4NO;N04C..XZU304..DM3,DM6,T3;N04C..XZU314,324,334,354,368,378,388,524,554,568 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78061 |
N04C..XZU344..35T;N04C..XZU304..30T..4NO;N04C..XZU304..DM3,DM6,T3;N04C..XZU314,324,334,354,368,378,388,524,554,568 |
1 | ||
| 16583-78080 |
N04C..XZU304..(T4,T5)..20T;N04C..XZU308,338,34#,50#,538,548..20T,30T |
1 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78060 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-78020 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16592-78100 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16593A - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-78091 |
N04C..XZU368,378,388..DCRTK;N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-61020 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78100 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 16711-78280 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| Common parts | ||||
| 16581-78110 | ||||
| 16581-78120 | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08233 | ||||
| 90464-00840 | ||||
| 90467-07206 | ||||
| 90467-13020 | ||||
| 90467-13073 | ||||
| 90467-15022 | ||||
| 91511-60612 | ||||
| 91621-40820 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
| 96136-41501 | ||||

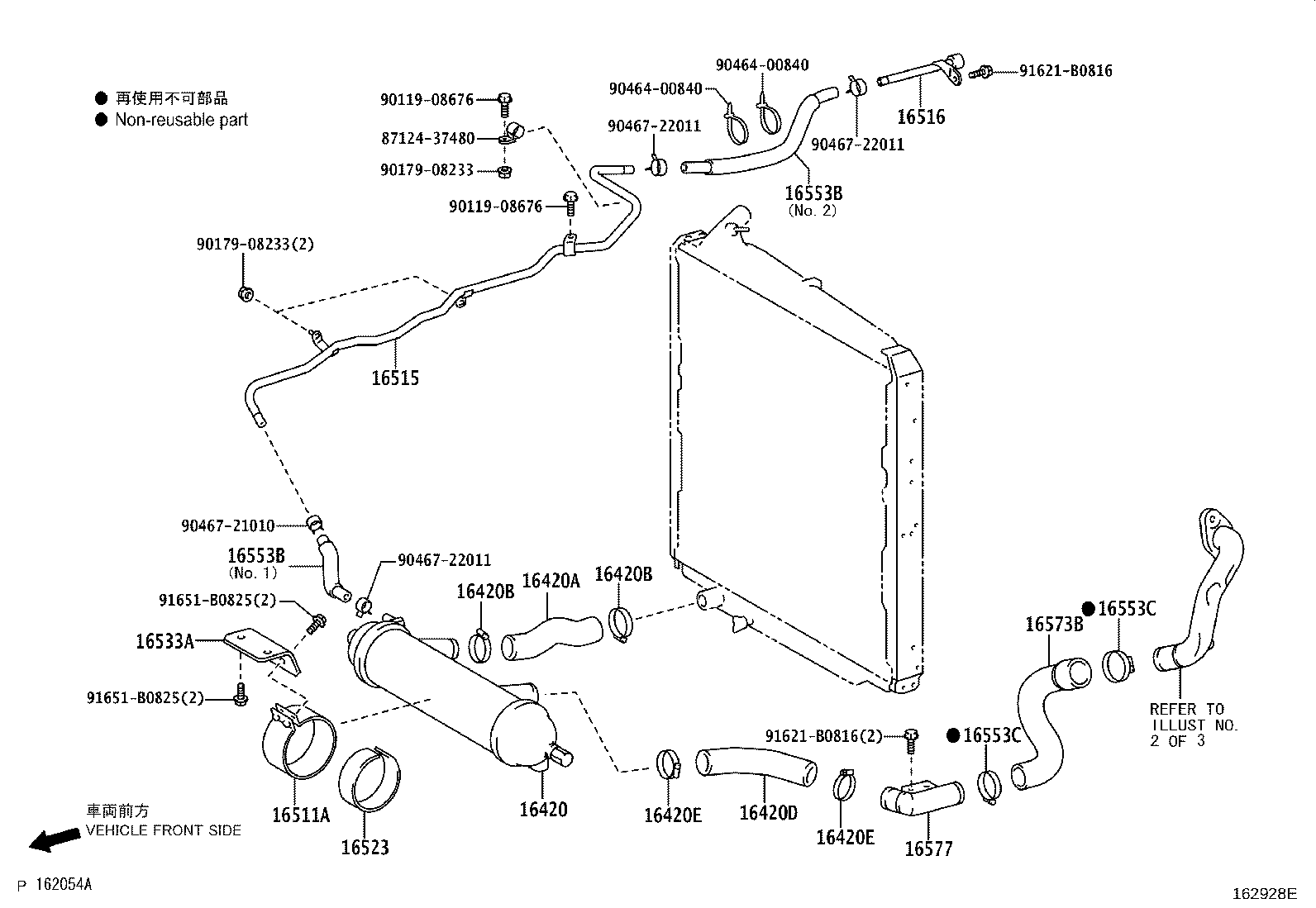

ILLUST NO. 2 OF 3(0610- )N04C..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16895-78040 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
1 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 90034-01010 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
2 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 90034-01010 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
2 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE |
4 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16895-78050 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 16895-78130 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 16028A - BOLT, UNION(FOR TURBO WATER PIPE NO.2) | ||||
| 90034-01010 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16028B - GASKET(FOR TURBO WATER PIPE NO.2) | ||||
| 90202-14004 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 16028B - GASKET(FOR TURBO WATER PIPE NO.2) | ||||
| 90202-14004 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 16028C - RING, O(FOR TURBO WATER PIPE) | ||||
| 90301-09006 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-78400 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16206-78221 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16206A - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16206-78030 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-78170 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 長さ=59 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90034-67027 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90034-67027 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-78150 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90034-67033 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90034-67033 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 90034-45083 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-78160 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90034-67033 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90034-67033 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-78070 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 16304-78071 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-78070 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 16304-78071 |
N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90038-33015 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 *WAX 82−95 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16545-78012 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16545-78011 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16545-78010 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-78132 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16303-E0213 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16303-78131 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90301-19005 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
3 | ||
| 90033-01068 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.1 |
1 | ||
| 90033-01101 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
3 | ||
| 90033-01068 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.1 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90301-19005 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
3 | ||
| 90033-01068 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.1 |
1 | ||
| 90033-01101 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
3 | ||
| 90033-01068 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.1 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90301-19005 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
3 | ||
| 90033-01068 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.1 |
1 | ||
| 90033-01101 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
3 | ||
| 90033-01068 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.1 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90301-19005 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
3 | ||
| 90033-01068 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.1 |
1 | ||
| 90033-01101 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
3 | ||
| 90033-01068 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.1 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90301-19005 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
3 | ||
| 90033-01068 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.1 |
1 | ||
| 90033-01101 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2 |
3 | ||
| 90033-01068 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.1 |
3 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-78030 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-78060 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| Common parts | ||||
| 90031-05048 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05132 | ||||
| 90031-05134 | ||||
| 90031-75001 | ||||
| 90034-68028 | ||||
| 91651-B0825 | ||||
| 96732-31040 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 2501 | ||||
| 8716 | ||||
ILLUST NO. 3 OF 3(0610- )N04C..XZU304,334..IV4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16420 - RADIATOR ASSY, SUB | ||||
| 16510-78041 |
N04C..XZU304,334..IV4 |
1 | ||
| 16420A - HOSE, SUB RADIATOR, INLET | ||||
| 16551-78012 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16420B - CLAMP, SUB RADIATOR INLET HOSE | ||||
| 16581-78140 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78190 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78191 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16420B - CLAMP, SUB RADIATOR INLET HOSE | ||||
| 16581-78140 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78190 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78191 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16420D - HOSE, SUB RADIATOR, NO.2 | ||||
| 16552-78012 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16420E - CLAMP OR CLIP, SUB RADIATOR HOSE | ||||
| 16581-78190 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78140 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78191 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16420E - CLAMP OR CLIP, SUB RADIATOR HOSE | ||||
| 16581-78190 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78140 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78191 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16511A - BRACKET, SUB-RADIATOR | ||||
| 16511-58010 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16515 - PIPE, SUB RADIATOR, NO.1 | ||||
| 16515-78020 |
N04C..XZU304,334..IV4 |
1 | ||
| 16516 - PIPE, SUB RADIATOR, NO.2 | ||||
| 16516-78030 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16523 - CUSHION, SUB-RADIATOR SUPPORT | ||||
| 16523-58010 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16533A - SUPPORT, SUB-RADIATOR | ||||
| 16533-78060 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16553B - HOSE, SUB RADIATOR, NO.3 | ||||
| 16553-78060 |
N04C..XZU304,334..IV4 NO.1 |
1 | ||
| 16553-78050 |
N04C..XZU304,334..IV4 NO.2 |
1 | ||
| 16553B - HOSE, SUB RADIATOR, NO.3 | ||||
| 16553-78060 |
N04C..XZU304,334..IV4 NO.1 |
1 | ||
| 16553-78050 |
N04C..XZU304,334..IV4 NO.2 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-78140 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78190 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78191 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-78140 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78190 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78191 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-78040 |
N04C..XZU304,334..IV4 |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-78040 |
N04C..XZU304,334..IV4 |
1 | ||
| Common parts | ||||
| 87124-37480 | ||||
| 90119-08676 | ||||
| 90179-08233 | ||||
| 90464-00840 | ||||
| 90467-21010 | ||||
| 90467-22011 | ||||
| 91621-B0816 | ||||
| 91651-B0825 | ||||
ILLUST NO. 2 OF 2(0610- )N04C..DCRTJ,DCRTK,DCRTL,DCRUE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05048 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05132 | ||||
| 90031-05134 | ||||
| 90031-75001 | ||||
| 90034-68028 | ||||
| 91651-B0825 | ||||
| 96732-31040 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 2501 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
