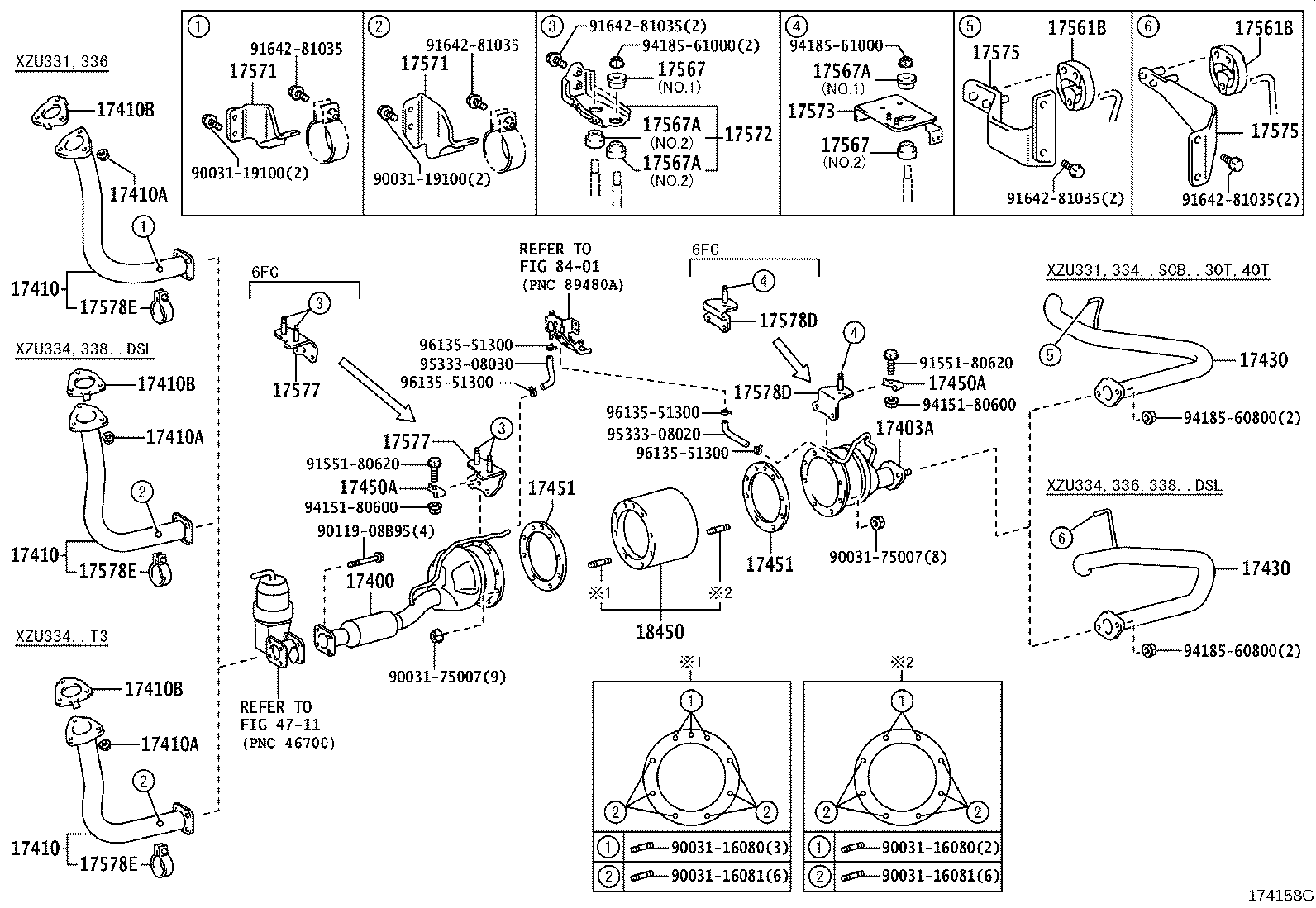

XZU331-TQTQS3 (2004)
Toyota Dyna/Toyoace
(0406- )N04C,S05D..XZU33#..SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 17406-78220 |
S05D..XZU301,306,331,336,341,346,351..6FC |
1 | ||
| 17403A - PIPE SUB-ASSY, EXHAUST, CENTER NO.2 | ||||
| 17403-78500 |
S05D..XZU301..6FC..20T..IV6;S05D..XZU301,306,331,336,341,346,351..6FC..(CBU,IV3) |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78060 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352 |
1 | ||
| 17401-78090 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78060 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352 |
1 | ||
| 17401-78090 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78060 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352 |
1 | ||
| 17401-78090 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
S05D..XZU301..20T..DSLL;S05D..XZU301..DM3,T3,T4,T5;S05D..XZU301..20T..(IV6,IV7);S05D..XZU301..5F..20T..DSL..IV3..1NO;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU306,311,321,331,341,346,351,371;J05C,S05C,15B#,3RZFPE..RZU301,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
3 | ||
| 90179-10070 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
S05D..XZU301..20T..DSLL;S05D..XZU301..DM3,T3,T4,T5;S05D..XZU301..20T..(IV6,IV7);S05D..XZU301..5F..20T..DSL..IV3..1NO;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU306,311,321,331,341,346,351,371;J05C,S05C,15B#,3RZFPE..RZU301,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
3 | ||
| 90179-10070 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
S05D..XZU301..20T..DSLL;S05D..XZU301..DM3,T3,T4,T5;S05D..XZU301..20T..(IV6,IV7);S05D..XZU301..5F..20T..DSL..IV3..1NO;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU306,311,321,331,341,346,351,371;J05C,S05C,15B#,3RZFPE..RZU301,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
3 | ||
| 90179-10070 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06087 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90917-06087 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06087 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90917-06087 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06087 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90917-06087 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78130 |
J05C,S05D..XZU330,331 |
1 | ||
| 17405-78A60 |
N04C,S05D..XZU331,334..SCB..(30T,40T) |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78130 |
J05C,S05D..XZU330,331 |
1 | ||
| 17405-78A60 |
N04C,S05D..XZU331,334..SCB..(30T,40T) |
1 | ||
| 17450A - CLAMP, EXHAUST PIPE, NO.5 | ||||
| 17589-78020 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388 |
2 | ||
| 17589-78021 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388 |
2 | ||
| 17450A - CLAMP, EXHAUST PIPE, NO.5 | ||||
| 17589-78020 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388 |
2 | ||
| 17589-78021 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-78020 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-78020 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388 |
2 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78010 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,382 |
1 | ||
| 17561-73020 |
S05D..XZU301..20T..IV6;N04C,S05D..XZU301,354..CBU,IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,368,378,388 |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78010 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,382 |
1 | ||
| 17561-73020 |
S05D..XZU301..20T..IV6;N04C,S05D..XZU301,354..CBU,IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,368,378,388 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78030 |
N04C..XZU354;N04C..XZU378..IV4;S05D..XZU301..CBU,IV6;S05D..XZU301..(DM6,T3,T4,T5)..IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,388..CBU,IV3,IV7 NO.1 |
2 | ||
| 17567-78010 |
4B..BU30#,346;J05C,S05#,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,37#,382 |
2 | ||
| 17567-78040 |
N04C..XZU354;N04C..XZU378..IV4;S05D..XZU301..CBU,IV6;S05D..XZU301..(DM6,T3,T4,T5)..IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,388..CBU,IV3,IV7 NO.2 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78030 |
N04C..XZU354;N04C..XZU378..IV4;S05D..XZU301..CBU,IV6;S05D..XZU301..(DM6,T3,T4,T5)..IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,388..CBU,IV3,IV7 NO.1 |
2 | ||
| 17567-78010 |
4B..BU30#,346;J05C,S05#,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,37#,382 |
2 | ||
| 17567-78040 |
N04C..XZU354;N04C..XZU378..IV4;S05D..XZU301..CBU,IV6;S05D..XZU301..(DM6,T3,T4,T5)..IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,388..CBU,IV3,IV7 NO.2 |
1 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,33#,35#,362,37#,382 |
2 | ||
| 17567-78030 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 NO.1 |
1 | ||
| 17567-78040 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 NO.2 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,33#,35#,362,37#,382 |
2 | ||
| 17567-78030 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 NO.1 |
1 | ||
| 17567-78040 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 NO.2 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,33#,35#,362,37#,382 |
2 | ||
| 17567-78030 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 NO.1 |
1 | ||
| 17567-78040 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 NO.2 |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78030 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 17571-78030 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78030 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 17571-78030 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,33#,34#,350..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 17572-78210 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,33#,34#,354..(03S,06S,DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78070 |
J05C,S05#..XZU33#..DSL;S05D..XZU331..5F..DSLL |
1 | ||
| 17573-78250 |
N04C,S05D..XZU33# |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-78210 |
N04C,S05D..XZU34#,388;N04C,S05D..XZU301,304..T5..ST;N04C..XZU304..(T1,T3)..(CBU,IV3,IV7);N04C,S05D..XZU301,331,334..(30T,40T)..(CBU,IV3)..1NO |
1 | ||
| 17575-78020 |
S05D..XZU306..DSLL..CBU;S05D..XZU301..T3..4FC..DSL;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU306,307,331,337..DSL;S05D..XZU301..T3..5F..DSL..IV3;S05D..XZU301..T3..5F..(CBU,IV4,IV6);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05C,15BLPG,1BZFPE,3RZFE..BZU300,RZU300,XZU300,301,302..T3;J05C,S05#,15BLPG,1BZFPE,4B,3RZFE..BU346,BZU340,RZU340,XZU330,340,341,342,347,37#,382..T3,T4;S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,340,RZU30#,XZU301,302,342,346..(03S,06S,T1,T2,T3,T4,T5)..(175T,20T) |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-78210 |
N04C,S05D..XZU34#,388;N04C,S05D..XZU301,304..T5..ST;N04C..XZU304..(T1,T3)..(CBU,IV3,IV7);N04C,S05D..XZU301,331,334..(30T,40T)..(CBU,IV3)..1NO |
1 | ||
| 17575-78020 |
S05D..XZU306..DSLL..CBU;S05D..XZU301..T3..4FC..DSL;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU306,307,331,337..DSL;S05D..XZU301..T3..5F..DSL..IV3;S05D..XZU301..T3..5F..(CBU,IV4,IV6);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05C,15BLPG,1BZFPE,3RZFE..BZU300,RZU300,XZU300,301,302..T3;J05C,S05#,15BLPG,1BZFPE,4B,3RZFE..BU346,BZU340,RZU340,XZU330,340,341,342,347,37#,382..T3,T4;S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,340,RZU30#,XZU301,302,342,346..(03S,06S,T1,T2,T3,T4,T5)..(175T,20T) |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 17577-78070 |
N04C..XZU388;N04C..XZU378..IV4;S05D..XZU301,306,331,336,341,346,351..6FC |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 17577-78070 |
N04C..XZU388;N04C..XZU378..IV4;S05D..XZU301,306,331,336,341,346,351..6FC |
1 | ||
| 17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8 | ||||
| 17578-78130 |
S05D..XZU301,306,331,336,341,346,351..6FC |
1 | ||
| 17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8 | ||||
| 17578-78130 |
S05D..XZU301,306,331,336,341,346,351..6FC |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D,1BZ#..BZU300,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 17578-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU311,321,341,346,351,371;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05C,15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,307,312,322,337,341,342,347,352,362,372,382 |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D,1BZ#..BZU300,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 17578-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU311,321,341,346,351,371;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05C,15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,307,312,322,337,341,342,347,352,362,372,382 |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D,1BZ#..BZU300,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 17578-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU311,321,341,346,351,371;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05C,15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,307,312,322,337,341,342,347,352,362,372,382 |
1 | ||
| 18450 - CONVERTER ASSY, MONOLITHIC | ||||
| 18450-78020 |
N04C..XZU378..IV4;N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,306,308,31#,321,33#,34#,35#,388 |
1 | ||
| Common parts | ||||
| 90031-16080 | ||||
| 90031-16081 | ||||
| 90031-19100 | ||||
| 90031-75007 | ||||
| 90119-08B95 | ||||
| 91551-80620 | ||||
| 91642-81035 | ||||
| 94151-80600 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| 95333-08020 | ||||
| 95333-08030 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 4711 | ||||
| 8401 | ||||
