Toyota Dyna/toyoace XZU331 FUEL TANK & TUBE

XZU331-TKMQS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Oct 2006

Engine S05D

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

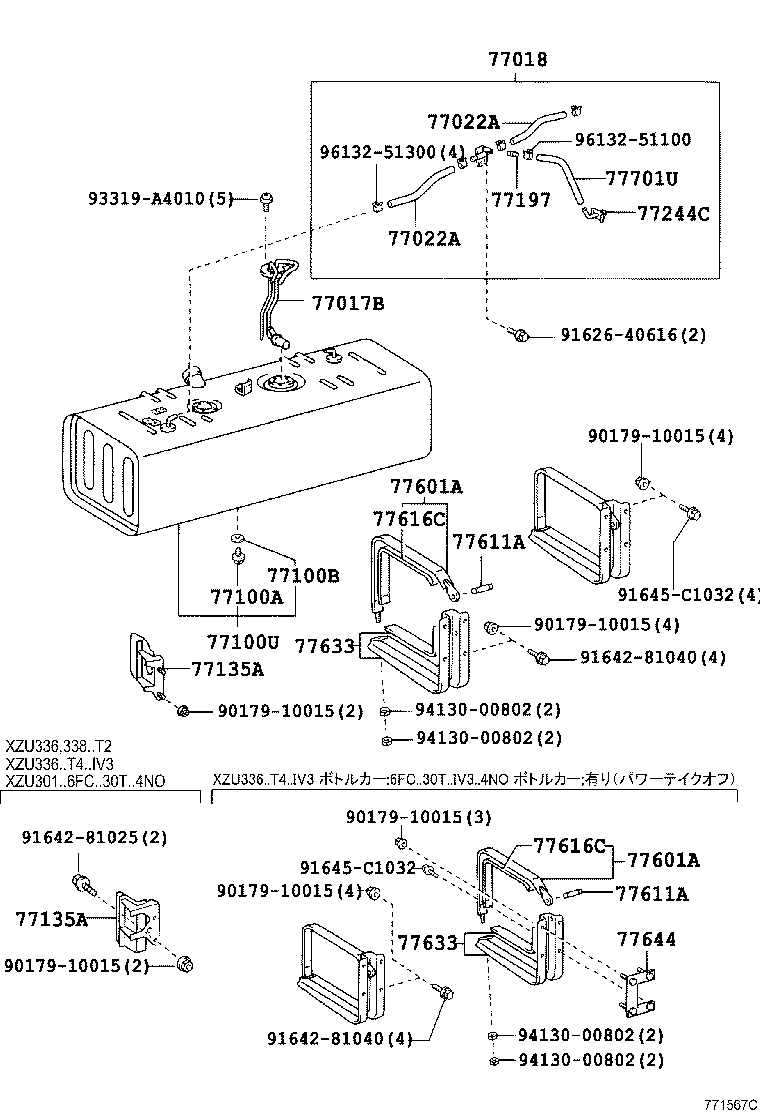

ILLUST NO. 1 OF 3(9905-0406)BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010	XZU347,382;XZU31#..30T;XZU352..DM2..CBU;BU30#,346,XZU362..SCB;XZU312,352..SCB..5F..20T..IV3;XZU300,301,302,306,307,32#,33#,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) ｱﾘ(ﾌﾕｰｴﾙﾀﾝｸ=70L OR 80L OR 100L)	05/1999 - 06/2004	1
77017-37010	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU33#,34#,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..(DM3,DM5,DM6,DM7,T1,T2,T3,T5)..(20T,30T)	06/2004 - 12/2999	1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37050	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,352..5F..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;XZU301,352..(DM2,DM3,DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU30#,XZU300,302,307,32#,330,337,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
77018-37050	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU346,348,368..DM5,T3,T4;XZU33#,341,344,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..DM3,DM5,DM6,DM7,T2,T3,T5	06/2004 - 12/2999	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
77100A - PLUG(FOR FUEL TANK)
90105-12116	BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI	05/1999 - 06/2004	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100U - TANK SUB-ASSY, FUEL
77001-37220	XZU372..SCB;BU346,XZU33#,34#,382..(T3,T4)..(DSL,DSLL)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	05/1999 - 01/2003	1
77001-37221	XZU372..SCB;BU346,XZU33#,340,341,342,346,347,382..(T3,T4)..(DSL,DSLL)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	01/2003 - 06/2004	1
77001-37211	XZU352..5F..IV3;XZU301,352..(DM2,DM6)..(CBU,IV7);XZU301,351..(DM2,DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,31#,32#,350,362..SCB..(DM3,DM5,DM7,DM8,T3,T4,T5)..(DSL,DSLL) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	01/2003 - 06/2004	1
77001-37211	XZU351..DM2;XZU351..5F..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	06/2004 - 01/2006	1
77001-37221	XZU378..SCB;XZU33#,34#,388..(T3,T4)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 01/2006	1
77001-37212	XZU351..DM2;XZU351..5F..IV3;XZU331,378..T3..30T..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	02/2006 - 10/2006	1
77001-37222	XZU378..SCB;XZU33#,34#,388..(T3,T4)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	02/2006 - 10/2006	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37040	XZU33#..SCB..(T3,T4)	05/1999 - 06/2004	1
77135-37040	XZU33#..SCB	06/2004 - 10/2006	1
77197 - ORIFICE, FUEL VAPOR
90977-02001	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
90977-02001	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
77244C - JOINT, FUEL TUBE, NO.2
77244-37010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140	XZU382..T3..20T..CBU;XZU301,362..(DM6,T4)..20T..(CBU,IV7);BU30#,XZU300,301,302,306,307,330,331..(T3,T5)..CBU;BU346,XZU340,341,342,346,347,362..(DM5,DM7,T3)..(20T,295T,30T,35T)..DSL ﾌﾕ-ｴﾙﾀﾝｸ=385X310 & ｱﾘ(ｻﾌﾞﾀﾝｸ)	05/1999 - 06/2004	2
77601-36140	XZU304..IV7..4NO;XZU388..T3..20T..CBU;XZU301,304,306,308,331,334,341,344,346..(T3,T5)..CBU	06/2004 - 10/2006	2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140	XZU382..T3..20T..CBU;XZU301,362..(DM6,T4)..20T..(CBU,IV7);BU30#,XZU300,301,302,306,307,330,331..(T3,T5)..CBU;BU346,XZU340,341,342,346,347,362..(DM5,DM7,T3)..(20T,295T,30T,35T)..DSL ﾌﾕ-ｴﾙﾀﾝｸ=385X310 & ｱﾘ(ｻﾌﾞﾀﾝｸ)	05/1999 - 06/2004	2
77601-36140	XZU304..IV7..4NO;XZU388..T3..20T..CBU;XZU301,304,306,308,331,334,341,344,346..(T3,T5)..CBU	06/2004 - 10/2006	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	2
77629-36010	XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL)	05/1999 - 06/2004	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	2
77629-36010	XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL)	05/1999 - 06/2004	2
77616C - SEAT, FUEL TANK BAND
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI)	10/2002 - 06/2004	2
77616-36030	XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI)	05/1999 - 06/2002	2
77616-36030	XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T)	06/2004 - 12/2999	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI)	06/2002 - 10/2002	2
77633 - STAY, FUEL TANK
77633-37100	XZU382..T3..20T..CBU;XZU301,362..(DM6,T4)..20T..(CBU,IV7);BU30#,XZU300,301,302,306,307,330,331..(T3,T5)..CBU;BU346,XZU340,341,342,346,347,362..(DM5,DM7,T3)..(20T,295T,30T,35T)..DSL ﾌﾕ-ｴﾙﾀﾝｸ=385X310 & ｱﾘ(ｻﾌﾞﾀﾝｸ)	05/1999 - 06/2004	2
77633-37100	XZU304..IV7..4NO;XZU388..T3..20T..CBU;XZU301,304,306,308,331,334,341,344,346..(T3,T5)..CBU	06/2004 - 10/2006	2
77501-37080	XZU306..IV6;XZU346..IV3;XZU341,344..T4;XZU334..20T,40T;XZU304..T5..IV3;XZU301..DM3,DM6;XZU304,331..T4..30T;XZU301..T4..30T..CBU;XZU346..(T2,T4)..CBU;XZU304..SCB..(DM6,T1,T3)..(DSL,DSLL);XZU301,334..(T3,T4,T5)..30T..(IV3,IV6);XZU306,308,35#..(DM2,T2,T3)..(CBU,IV6);XZU305,31#,321,336,338,348,378,388..SCB;XZU301,306,308,388..(T2,T3,T5)..20T..IV3;XZU304,331,341,344..(DM6,T3)..(DCRL,DSL)..(IV3,IV7)	06/2004 - 12/2999	2
77633 - STAY, FUEL TANK
77633-37100	XZU382..T3..20T..CBU;XZU301,362..(DM6,T4)..20T..(CBU,IV7);BU30#,XZU300,301,302,306,307,330,331..(T3,T5)..CBU;BU346,XZU340,341,342,346,347,362..(DM5,DM7,T3)..(20T,295T,30T,35T)..DSL ﾌﾕ-ｴﾙﾀﾝｸ=385X310 & ｱﾘ(ｻﾌﾞﾀﾝｸ)	05/1999 - 06/2004	2
77633-37100	XZU304..IV7..4NO;XZU388..T3..20T..CBU;XZU301,304,306,308,331,334,341,344,346..(T3,T5)..CBU	06/2004 - 10/2006	2
77501-37080	XZU306..IV6;XZU346..IV3;XZU341,344..T4;XZU334..20T,40T;XZU304..T5..IV3;XZU301..DM3,DM6;XZU304,331..T4..30T;XZU301..T4..30T..CBU;XZU346..(T2,T4)..CBU;XZU304..SCB..(DM6,T1,T3)..(DSL,DSLL);XZU301,334..(T3,T4,T5)..30T..(IV3,IV6);XZU306,308,35#..(DM2,T2,T3)..(CBU,IV6);XZU305,31#,321,336,338,348,378,388..SCB;XZU301,306,308,388..(T2,T3,T5)..20T..IV3;XZU304,331,341,344..(DM6,T3)..(DCRL,DSL)..(IV3,IV7)	06/2004 - 12/2999	2
77644 - BOLT, FUEL TANK
77644-37101	XZU301..IV6;XZU336..IV3;XZU306..SCB..5F;XZU336..5F..CBU;XZU308..SCB..T4..IV3;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU301,304,306..SCB..(DM6,T4)..ATM..IV3;XZU304,305,331,334,354,378..(DM6,T1,T3,T4,T5)..5F..(20T,30T,40T)..(CBU,IV3,IV6)	06/2004 - 12/2999	1
77644 - BOLT, FUEL TANK
77644-37101	XZU301..IV6;XZU336..IV3;XZU306..SCB..5F;XZU336..5F..CBU;XZU308..SCB..T4..IV3;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU301,304,306..SCB..(DM6,T4)..ATM..IV3;XZU304,305,331,334,354,378..(DM6,T1,T3,T4,T5)..5F..(20T,30T,40T)..(CBU,IV3,IV6)	06/2004 - 12/2999	1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU312..SCB..5F..20T..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;BU30#,XZU300,302,307,32#,330,337,340,341,342,346,35#,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) *H,L=400	05/1999 - 06/2004	1
95333-06040	XZU378..IV4;XZU351..5F..IV3;XZU346,348..T3,T4;XZU306,308,35#,378..SCB..(DM2,T2,T3,T4,T5);XZU301,304,305,31#,321,33#,341,344,368,388..DM3,DM5,DM6,DM7,T2,T3,T4,T5 *H,L=400	06/2004 - 12/2999	1
Common parts
90179-10015
91611-B0616
91626-40616
91642-81035
91642-81040
91645-C1032
93319-A4010
94130-00802
94130-01002
94612-11001
96132-51100
96132-51300

ILLUST NO. 1 OF 3(9905-0406)

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾀﾝｸ(ｻﾌﾞﾀﾝｸｱﾘ)

Part #	Description	Period	Qty
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010	XZU347,382;XZU31#..30T;XZU352..DM2..CBU;BU30#,346,XZU362..SCB;XZU312,352..SCB..5F..20T..IV3;XZU300,301,302,306,307,32#,33#,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) ｱﾘ(ﾌﾕｰｴﾙﾀﾝｸ=70L OR 80L OR 100L)	05/1999 - 06/2004	1
77017-37010	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU33#,34#,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..(DM3,DM5,DM6,DM7,T1,T2,T3,T5)..(20T,30T)	06/2004 - 12/2999	1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37050	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,352..5F..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;XZU301,352..(DM2,DM3,DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU30#,XZU300,302,307,32#,330,337,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
77018-37050	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU346,348,368..DM5,T3,T4;XZU33#,341,344,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..DM3,DM5,DM6,DM7,T2,T3,T5	06/2004 - 12/2999	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
77100A - PLUG(FOR FUEL TANK)
90105-12116	BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI	05/1999 - 06/2004	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100U - TANK SUB-ASSY, FUEL
77001-37220	XZU372..SCB;BU346,XZU33#,34#,382..(T3,T4)..(DSL,DSLL)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	05/1999 - 01/2003	1
77001-37221	XZU372..SCB;BU346,XZU33#,340,341,342,346,347,382..(T3,T4)..(DSL,DSLL)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	01/2003 - 06/2004	1
77001-37211	XZU352..5F..IV3;XZU301,352..(DM2,DM6)..(CBU,IV7);XZU301,351..(DM2,DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,31#,32#,350,362..SCB..(DM3,DM5,DM7,DM8,T3,T4,T5)..(DSL,DSLL) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	01/2003 - 06/2004	1
77001-37211	XZU351..DM2;XZU351..5F..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	06/2004 - 01/2006	1
77001-37221	XZU378..SCB;XZU33#,34#,388..(T3,T4)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 01/2006	1
77001-37212	XZU351..DM2;XZU351..5F..IV3;XZU331,378..T3..30T..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	02/2006 - 10/2006	1
77001-37222	XZU378..SCB;XZU33#,34#,388..(T3,T4)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	02/2006 - 10/2006	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37040	XZU33#..SCB..(T3,T4)	05/1999 - 06/2004	1
77135-37040	XZU33#..SCB	06/2004 - 10/2006	1
77197 - ORIFICE, FUEL VAPOR
90977-02001	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
90977-02001	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
77244C - JOINT, FUEL TUBE, NO.2
77244-37010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140	XZU382..T3..20T..CBU;XZU301,362..(DM6,T4)..20T..(CBU,IV7);BU30#,XZU300,301,302,306,307,330,331..(T3,T5)..CBU;BU346,XZU340,341,342,346,347,362..(DM5,DM7,T3)..(20T,295T,30T,35T)..DSL ﾌﾕ-ｴﾙﾀﾝｸ=385X310 & ｱﾘ(ｻﾌﾞﾀﾝｸ)	05/1999 - 06/2004	2
77601-36140	XZU304..IV7..4NO;XZU388..T3..20T..CBU;XZU301,304,306,308,331,334,341,344,346..(T3,T5)..CBU	06/2004 - 10/2006	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	2
77629-36010	XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL)	05/1999 - 06/2004	2
77616C - SEAT, FUEL TANK BAND
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI)	10/2002 - 06/2004	2
77616-36030	XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI)	05/1999 - 06/2002	2
77616-36030	XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T)	06/2004 - 12/2999	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI)	06/2002 - 10/2002	2
77633 - STAY, FUEL TANK
77633-37100	XZU382..T3..20T..CBU;XZU301,362..(DM6,T4)..20T..(CBU,IV7);BU30#,XZU300,301,302,306,307,330,331..(T3,T5)..CBU;BU346,XZU340,341,342,346,347,362..(DM5,DM7,T3)..(20T,295T,30T,35T)..DSL ﾌﾕ-ｴﾙﾀﾝｸ=385X310 & ｱﾘ(ｻﾌﾞﾀﾝｸ)	05/1999 - 06/2004	2
77633-37100	XZU304..IV7..4NO;XZU388..T3..20T..CBU;XZU301,304,306,308,331,334,341,344,346..(T3,T5)..CBU	06/2004 - 10/2006	2
77501-37080	XZU306..IV6;XZU346..IV3;XZU341,344..T4;XZU334..20T,40T;XZU304..T5..IV3;XZU301..DM3,DM6;XZU304,331..T4..30T;XZU301..T4..30T..CBU;XZU346..(T2,T4)..CBU;XZU304..SCB..(DM6,T1,T3)..(DSL,DSLL);XZU301,334..(T3,T4,T5)..30T..(IV3,IV6);XZU306,308,35#..(DM2,T2,T3)..(CBU,IV6);XZU305,31#,321,336,338,348,378,388..SCB;XZU301,306,308,388..(T2,T3,T5)..20T..IV3;XZU304,331,341,344..(DM6,T3)..(DCRL,DSL)..(IV3,IV7)	06/2004 - 12/2999	2
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU312..SCB..5F..20T..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;BU30#,XZU300,302,307,32#,330,337,340,341,342,346,35#,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) *H,L=400	05/1999 - 06/2004	1
95333-06040	XZU378..IV4;XZU351..5F..IV3;XZU346,348..T3,T4;XZU306,308,35#,378..SCB..(DM2,T2,T3,T4,T5);XZU301,304,305,31#,321,33#,341,344,368,388..DM3,DM5,DM6,DM7,T2,T3,T4,T5 *H,L=400	06/2004 - 12/2999	1
Common parts
90179-10015
90202-09047
90250-03031
90386-08164
90401-12007
90405-10008
90461-07033
90467-15012
90480-14006
91626-40616
91642-81035
91642-81040
91645-C1032
93319-15010
93319-A4010
94130-00802
96132-51100
96132-51300
96713-19017
96713-24011

ILLUST NO. 2 OF 3(9905-0406)XZU307,337..DCB,SCB..4FC ; (9905-0406)XZU31#,346..SCB..DM5,T4..DSL ; (99

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾁﾕ-ﾌﾞ(LH ﾌﾚ-ﾑｾｼﾞﾒﾝﾀ)

Part #	Description	Period	Qty
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37350	XZU301..20T..IV7;XZU302,307..T5..4FC..CBU;XZU302..(T3,T5)..30T..CBU;XZU300,301,306,330,331..(T3,T5)..CBU	05/1999 - 06/2004	1
77205-37350	XZU301..20T..IV7;XZU302,307..T5..4FC..CBU;XZU302..(T3,T5)..30T..CBU;XZU300,301,306,330,331..(T3,T5)..CBU	05/1999 - 06/2004	1
77205-37350	XZU301..20T..IV7;XZU302,307..T5..4FC..CBU;XZU302..(T3,T5)..30T..CBU;XZU300,301,306,330,331..(T3,T5)..CBU	05/1999 - 06/2004	1
77205-37340	XZU304..IV7..4NO;XZU301,304,306,308,331,334..(T3,T5)..CBU	06/2004 - 10/2006	1
77205-37340	XZU304..IV7..4NO;XZU301,304,306,308,331,334..(T3,T5)..CBU	06/2004 - 10/2006	1
77205-37340	XZU304..IV7..4NO;XZU301,304,306,308,331,334..(T3,T5)..CBU	06/2004 - 10/2006	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37480	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7)	05/1999 - 06/2004	1
77206-37480	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7)	05/1999 - 06/2004	1
77206-37480	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7)	05/1999 - 06/2004	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
Common parts
90467-18008
96132-51300
Linked diagrams
2302

ILLUST NO. 2 OF 3(9905-0406)BU30#,346,XZU300,302,306,307,31#,32#,330,331,340,341,342,346,347,350,362

Click highlighted areas on diagram

ﾌﾕ-ｴﾙﾁﾕ-ﾌﾞ(RH ﾌﾚ-ﾑﾌﾛﾝﾄｾｼﾞﾒﾝﾀ)

Part #	Description	Period	Qty
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37350	XZU301..20T..IV7;XZU302,307..T5..4FC..CBU;XZU302..(T3,T5)..30T..CBU;XZU300,301,306,330,331..(T3,T5)..CBU	05/1999 - 06/2004	1
77205-37350	XZU301..20T..IV7;XZU302,307..T5..4FC..CBU;XZU302..(T3,T5)..30T..CBU;XZU300,301,306,330,331..(T3,T5)..CBU	05/1999 - 06/2004	1
77205-37350	XZU301..20T..IV7;XZU302,307..T5..4FC..CBU;XZU302..(T3,T5)..30T..CBU;XZU300,301,306,330,331..(T3,T5)..CBU	05/1999 - 06/2004	1
77205-37340	XZU304..IV7..4NO;XZU301,304,306,308,331,334..(T3,T5)..CBU	06/2004 - 10/2006	1
77205-37340	XZU304..IV7..4NO;XZU301,304,306,308,331,334..(T3,T5)..CBU	06/2004 - 10/2006	1
77205-37340	XZU304..IV7..4NO;XZU301,304,306,308,331,334..(T3,T5)..CBU	06/2004 - 10/2006	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37480	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7)	05/1999 - 06/2004	1
77206-37480	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7)	05/1999 - 06/2004	1
77206-37480	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7)	05/1999 - 06/2004	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
Common parts
90467-13007
90467-18002
90467-18008
96132-51300
Linked diagrams
2302

ILLUST NO. 3 OF 3(9905-0406)

Click highlighted areas on diagram

ﾌﾕ-ｴﾙｸﾗﾝﾌﾟ

Part #	Description	Period	Qty	Price
Common parts
90119-08676
90119-08830
90119-08A33
90129-08007
91626-60816
91641-80816
91642-81025
91651-60816

ILLUST NO. 1 OF 2(0406- )6FC..30T..4NO ; (0406- )XZU33#,34#,388..T3,T4..CBU,IV3

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010	XZU347,382;XZU31#..30T;XZU352..DM2..CBU;BU30#,346,XZU362..SCB;XZU312,352..SCB..5F..20T..IV3;XZU300,301,302,306,307,32#,33#,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) ｱﾘ(ﾌﾕｰｴﾙﾀﾝｸ=70L OR 80L OR 100L)	05/1999 - 06/2004	1
77017-37010	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU33#,34#,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..(DM3,DM5,DM6,DM7,T1,T2,T3,T5)..(20T,30T)	06/2004 - 12/2999	1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37050	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,352..5F..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;XZU301,352..(DM2,DM3,DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU30#,XZU300,302,307,32#,330,337,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
77018-37050	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU346,348,368..DM5,T3,T4;XZU33#,341,344,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..DM3,DM5,DM6,DM7,T2,T3,T5	06/2004 - 12/2999	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
77100A - PLUG(FOR FUEL TANK)
90105-12116	BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI	05/1999 - 06/2004	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100U - TANK SUB-ASSY, FUEL
77001-37220	XZU372..SCB;BU346,XZU33#,34#,382..(T3,T4)..(DSL,DSLL)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	05/1999 - 01/2003	1
77001-37221	XZU372..SCB;BU346,XZU33#,340,341,342,346,347,382..(T3,T4)..(DSL,DSLL)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	01/2003 - 06/2004	1
77001-37211	XZU352..5F..IV3;XZU301,352..(DM2,DM6)..(CBU,IV7);XZU301,351..(DM2,DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,31#,32#,350,362..SCB..(DM3,DM5,DM7,DM8,T3,T4,T5)..(DSL,DSLL) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	01/2003 - 06/2004	1
77001-37211	XZU351..DM2;XZU351..5F..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	06/2004 - 01/2006	1
77001-37221	XZU378..SCB;XZU33#,34#,388..(T3,T4)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 01/2006	1
77001-37212	XZU351..DM2;XZU351..5F..IV3;XZU331,378..T3..30T..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	02/2006 - 10/2006	1
77001-37222	XZU378..SCB;XZU33#,34#,388..(T3,T4)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	02/2006 - 10/2006	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37040	XZU33#..SCB..(T3,T4)	05/1999 - 06/2004	1
77135-37040	XZU33#..SCB	06/2004 - 10/2006	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37040	XZU33#..SCB..(T3,T4)	05/1999 - 06/2004	1
77135-37040	XZU33#..SCB	06/2004 - 10/2006	1
77197 - ORIFICE, FUEL VAPOR
90977-02001	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
90977-02001	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
77244C - JOINT, FUEL TUBE, NO.2
77244-37010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140	XZU304..IV7..4NO;XZU388..T3..20T..CBU;XZU301,304,306,308,331,334,341,344,346..(T3,T5)..CBU	06/2004 - 10/2006	2
77601-36140	XZU382..T3..20T..CBU;XZU301,362..(DM6,T4)..20T..(CBU,IV7);BU30#,XZU300,301,302,306,307,330,331..(T3,T5)..CBU;BU346,XZU340,341,342,346,347,362..(DM5,DM7,T3)..(20T,295T,30T,35T)..DSL ﾌﾕ-ｴﾙﾀﾝｸ=385X310 & ｱﾘ(ｻﾌﾞﾀﾝｸ)	05/1999 - 06/2004	2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140	XZU304..IV7..4NO;XZU388..T3..20T..CBU;XZU301,304,306,308,331,334,341,344,346..(T3,T5)..CBU	06/2004 - 10/2006	2
77601-36140	XZU382..T3..20T..CBU;XZU301,362..(DM6,T4)..20T..(CBU,IV7);BU30#,XZU300,301,302,306,307,330,331..(T3,T5)..CBU;BU346,XZU340,341,342,346,347,362..(DM5,DM7,T3)..(20T,295T,30T,35T)..DSL ﾌﾕ-ｴﾙﾀﾝｸ=385X310 & ｱﾘ(ｻﾌﾞﾀﾝｸ)	05/1999 - 06/2004	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	2
77629-36010	XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL)	05/1999 - 06/2004	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	2
77629-36010	XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL)	05/1999 - 06/2004	2
77616C - SEAT, FUEL TANK BAND
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI)	10/2002 - 06/2004	2
77616-36030	XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI)	05/1999 - 06/2002	2
77616-36030	XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T)	06/2004 - 12/2999	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI)	06/2002 - 10/2002	2
77616C - SEAT, FUEL TANK BAND
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI)	10/2002 - 06/2004	2
77616-36030	XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI)	05/1999 - 06/2002	2
77616-36030	XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T)	06/2004 - 12/2999	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI)	06/2002 - 10/2002	2
77633 - STAY, FUEL TANK
77633-37100	XZU382..T3..20T..CBU;XZU301,362..(DM6,T4)..20T..(CBU,IV7);BU30#,XZU300,301,302,306,307,330,331..(T3,T5)..CBU;BU346,XZU340,341,342,346,347,362..(DM5,DM7,T3)..(20T,295T,30T,35T)..DSL ﾌﾕ-ｴﾙﾀﾝｸ=385X310 & ｱﾘ(ｻﾌﾞﾀﾝｸ)	05/1999 - 06/2004	2
77633-37100	XZU304..IV7..4NO;XZU388..T3..20T..CBU;XZU301,304,306,308,331,334,341,344,346..(T3,T5)..CBU	06/2004 - 10/2006	2
77501-37080	XZU306..IV6;XZU346..IV3;XZU341,344..T4;XZU334..20T,40T;XZU304..T5..IV3;XZU301..DM3,DM6;XZU304,331..T4..30T;XZU301..T4..30T..CBU;XZU346..(T2,T4)..CBU;XZU304..SCB..(DM6,T1,T3)..(DSL,DSLL);XZU301,334..(T3,T4,T5)..30T..(IV3,IV6);XZU306,308,35#..(DM2,T2,T3)..(CBU,IV6);XZU305,31#,321,336,338,348,378,388..SCB;XZU301,306,308,388..(T2,T3,T5)..20T..IV3;XZU304,331,341,344..(DM6,T3)..(DCRL,DSL)..(IV3,IV7)	06/2004 - 12/2999	2
77633 - STAY, FUEL TANK
77633-37100	XZU382..T3..20T..CBU;XZU301,362..(DM6,T4)..20T..(CBU,IV7);BU30#,XZU300,301,302,306,307,330,331..(T3,T5)..CBU;BU346,XZU340,341,342,346,347,362..(DM5,DM7,T3)..(20T,295T,30T,35T)..DSL ﾌﾕ-ｴﾙﾀﾝｸ=385X310 & ｱﾘ(ｻﾌﾞﾀﾝｸ)	05/1999 - 06/2004	2
77633-37100	XZU304..IV7..4NO;XZU388..T3..20T..CBU;XZU301,304,306,308,331,334,341,344,346..(T3,T5)..CBU	06/2004 - 10/2006	2
77501-37080	XZU306..IV6;XZU346..IV3;XZU341,344..T4;XZU334..20T,40T;XZU304..T5..IV3;XZU301..DM3,DM6;XZU304,331..T4..30T;XZU301..T4..30T..CBU;XZU346..(T2,T4)..CBU;XZU304..SCB..(DM6,T1,T3)..(DSL,DSLL);XZU301,334..(T3,T4,T5)..30T..(IV3,IV6);XZU306,308,35#..(DM2,T2,T3)..(CBU,IV6);XZU305,31#,321,336,338,348,378,388..SCB;XZU301,306,308,388..(T2,T3,T5)..20T..IV3;XZU304,331,341,344..(DM6,T3)..(DCRL,DSL)..(IV3,IV7)	06/2004 - 12/2999	2
77644 - BOLT, FUEL TANK
77644-37101	XZU301..IV6;XZU336..IV3;XZU306..SCB..5F;XZU336..5F..CBU;XZU308..SCB..T4..IV3;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU301,304,306..SCB..(DM6,T4)..ATM..IV3;XZU304,305,331,334,354,378..(DM6,T1,T3,T4,T5)..5F..(20T,30T,40T)..(CBU,IV3,IV6)	06/2004 - 12/2999	1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU312..SCB..5F..20T..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;BU30#,XZU300,302,307,32#,330,337,340,341,342,346,35#,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) *H,L=400	05/1999 - 06/2004	1
95333-06040	XZU378..IV4;XZU351..5F..IV3;XZU346,348..T3,T4;XZU306,308,35#,378..SCB..(DM2,T2,T3,T4,T5);XZU301,304,305,31#,321,33#,341,344,368,388..DM3,DM5,DM6,DM7,T2,T3,T4,T5 *H,L=400	06/2004 - 12/2999	1
Common parts
90179-10015
91626-40616
91642-81025
91642-81040
91645-C1032
93319-A4010
94130-00802
96132-51100
96132-51300

ILLUST NO. 2 OF 2(0406- )XZU308,33#,354..SCB..T3,T4 ; (0406-)XZU301..6FC..20T..IV3..1NO ; (04

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

Part #	Description	Period	Qty
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37350	XZU301..20T..IV7;XZU302,307..T5..4FC..CBU;XZU302..(T3,T5)..30T..CBU;XZU300,301,306,330,331..(T3,T5)..CBU	05/1999 - 06/2004	1
77205-37340	XZU304..IV7..4NO;XZU301,304,306,308,331,334..(T3,T5)..CBU	06/2004 - 10/2006	1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37350	XZU301..20T..IV7;XZU302,307..T5..4FC..CBU;XZU302..(T3,T5)..30T..CBU;XZU300,301,306,330,331..(T3,T5)..CBU	05/1999 - 06/2004	1
77205-37340	XZU304..IV7..4NO;XZU301,304,306,308,331,334..(T3,T5)..CBU	06/2004 - 10/2006	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37480	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7)	05/1999 - 06/2004	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37480	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7)	05/1999 - 06/2004	1
77206-37840	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022	XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL *H,L=220,内径=12	05/1999 - 06/2004	1
95332-12022	XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=220,内径=12	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020	XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2	06/1999 - 05/2001	2
95332-12030	XZU301,302,331..DM3,T3,T4 *H,L=300,内径=12,NO.3	05/1999 - 06/1999	2
95332-12022	XZU301,302,331..DM3,T3,T4 *H,L=220,内径=12	05/1999 - 06/1999	1
95332-12030	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3	06/1999 - 06/2004	1
95332-12018	XZU301..20T..IV7;XZU301..DSLL..4NO;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2	05/2001 - 06/2004	1
95332-12020	XZU301..20T..IV7;BU301,XZU301,302,331..SCB..(DM3,T1,T3,T4,T5)..DSL..(CBU,IV3,IV7) *H,L=200,内径=12,NO.1	05/2001 - 06/2004	1
95332-12016	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12030	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
95332-12018	XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照	06/2004 - 10/2006	1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030	XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL) *H,L=240,内径=7.6	05/1999 - 06/2004	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020	XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	05/1999 - 06/2002	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	10/2002 - 06/2004	1
95333-08020	XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6	06/2004 - 12/2999	1
95333-08020	XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7) *H,L=200,内径=7.6	06/2002 - 10/2002	1
Common parts
90119-08676
90119-08830
90467-18008
90480-10009
90480-14017
94130-00802
96132-51300
Linked diagrams
2202
2302

ILLUST NO. 1 OF 2(0406- )XZU306,308,378..SCB..T3,T4,T5..CBU,IV3 ; (0406- )XZU31#,321,33#,34#,3

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010	XZU347,382;XZU31#..30T;XZU352..DM2..CBU;BU30#,346,XZU362..SCB;XZU312,352..SCB..5F..20T..IV3;XZU300,301,302,306,307,32#,33#,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) ｱﾘ(ﾌﾕｰｴﾙﾀﾝｸ=70L OR 80L OR 100L)	05/1999 - 06/2004	1
77017-37010	XZU347,382;XZU31#..30T;XZU352..DM2..CBU;BU30#,346,XZU362..SCB;XZU312,352..SCB..5F..20T..IV3;XZU300,301,302,306,307,32#,33#,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) ｱﾘ(ﾌﾕｰｴﾙﾀﾝｸ=70L OR 80L OR 100L)	05/1999 - 06/2004	1
77017-37010	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU33#,34#,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..(DM3,DM5,DM6,DM7,T1,T2,T3,T5)..(20T,30T)	06/2004 - 12/2999	1
77017-37010	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU33#,34#,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..(DM3,DM5,DM6,DM7,T1,T2,T3,T5)..(20T,30T)	06/2004 - 12/2999	1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37050	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,352..5F..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;XZU301,352..(DM2,DM3,DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU30#,XZU300,302,307,32#,330,337,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
77018-37050	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,352..5F..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;XZU301,352..(DM2,DM3,DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU30#,XZU300,302,307,32#,330,337,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
77018-37050	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU346,348,368..DM5,T3,T4;XZU33#,341,344,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..DM3,DM5,DM6,DM7,T2,T3,T5	06/2004 - 12/2999	1
77018-37050	XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU346,348,368..DM5,T3,T4;XZU33#,341,344,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..DM3,DM5,DM6,DM7,T2,T3,T5	06/2004 - 12/2999	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL) *H,L=280,内径=7.6	05/1999 - 06/2004	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
95333-08030	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6	06/2004 - 12/2999	2
77100A - PLUG(FOR FUEL TANK)
90105-12116	BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
90105-12116	BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)	05/1999 - 06/2004	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
90105-12116	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI	05/1999 - 06/2004	1
90430-12245	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI	05/1999 - 06/2004	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	02/2006 - 12/2999	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
90430-12245	RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI	06/2004 - 01/2006	1
77100U - TANK SUB-ASSY, FUEL
77001-37220	XZU372..SCB;BU346,XZU33#,34#,382..(T3,T4)..(DSL,DSLL)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	05/1999 - 01/2003	1
77001-37220	XZU372..SCB;BU346,XZU33#,34#,382..(T3,T4)..(DSL,DSLL)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	05/1999 - 01/2003	1
77001-37221	XZU372..SCB;BU346,XZU33#,340,341,342,346,347,382..(T3,T4)..(DSL,DSLL)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	01/2003 - 06/2004	1
77001-37221	XZU372..SCB;BU346,XZU33#,340,341,342,346,347,382..(T3,T4)..(DSL,DSLL)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	01/2003 - 06/2004	1
77001-37211	XZU352..5F..IV3;XZU301,352..(DM2,DM6)..(CBU,IV7);XZU301,351..(DM2,DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,31#,32#,350,362..SCB..(DM3,DM5,DM7,DM8,T3,T4,T5)..(DSL,DSLL) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	01/2003 - 06/2004	1
77001-37211	XZU352..5F..IV3;XZU301,352..(DM2,DM6)..(CBU,IV7);XZU301,351..(DM2,DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,31#,32#,350,362..SCB..(DM3,DM5,DM7,DM8,T3,T4,T5)..(DSL,DSLL) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	01/2003 - 06/2004	1
77001-37211	XZU351..DM2;XZU351..5F..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	06/2004 - 01/2006	1
77001-37211	XZU351..DM2;XZU351..5F..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	06/2004 - 01/2006	1
77001-37221	XZU378..SCB;XZU33#,34#,388..(T3,T4)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 01/2006	1
77001-37221	XZU378..SCB;XZU33#,34#,388..(T3,T4)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	06/2004 - 01/2006	1
77001-37212	XZU351..DM2;XZU351..5F..IV3;XZU331,378..T3..30T..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	02/2006 - 10/2006	1
77001-37212	XZU351..DM2;XZU351..5F..IV3;XZU331,378..T3..30T..IV3;XZU301,304,306,308,31#,321,368..SCB..(DM3,DM5,DM7,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)	02/2006 - 10/2006	1
77001-37222	XZU378..SCB;XZU33#,34#,388..(T3,T4)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	02/2006 - 10/2006	1
77001-37222	XZU378..SCB;XZU33#,34#,388..(T3,T4)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)	02/2006 - 10/2006	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37040	XZU33#..SCB..(T3,T4)	05/1999 - 06/2004	1
77135-37040	XZU33#..SCB..(T3,T4)	05/1999 - 06/2004	1
77135-37040	XZU33#..SCB	06/2004 - 10/2006	1
77135-37040	XZU33#..SCB	06/2004 - 10/2006	1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37040	XZU33#..SCB..(T3,T4)	05/1999 - 06/2004	1
77135-37040	XZU33#..SCB..(T3,T4)	05/1999 - 06/2004	1
77135-37040	XZU33#..SCB	06/2004 - 10/2006	1
77135-37040	XZU33#..SCB	06/2004 - 10/2006	1
77197 - ORIFICE, FUEL VAPOR
90977-02001	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
90977-02001	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
90977-02001	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
90977-02001	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
77244C - JOINT, FUEL TUBE, NO.2
77244-37010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	1
77244-37010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140	XZU382..T3..20T..CBU;XZU301,362..(DM6,T4)..20T..(CBU,IV7);BU30#,XZU300,301,302,306,307,330,331..(T3,T5)..CBU;BU346,XZU340,341,342,346,347,362..(DM5,DM7,T3)..(20T,295T,30T,35T)..DSL ﾌﾕ-ｴﾙﾀﾝｸ=385X310 & ｱﾘ(ｻﾌﾞﾀﾝｸ)	05/1999 - 06/2004	2
77601-36140	XZU382..T3..20T..CBU;XZU301,362..(DM6,T4)..20T..(CBU,IV7);BU30#,XZU300,301,302,306,307,330,331..(T3,T5)..CBU;BU346,XZU340,341,342,346,347,362..(DM5,DM7,T3)..(20T,295T,30T,35T)..DSL ﾌﾕ-ｴﾙﾀﾝｸ=385X310 & ｱﾘ(ｻﾌﾞﾀﾝｸ)	05/1999 - 06/2004	2
77601-36140	XZU304..IV7..4NO;XZU388..T3..20T..CBU;XZU301,304,306,308,331,334,341,344,346..(T3,T5)..CBU	06/2004 - 10/2006	2
77601-36140	XZU304..IV7..4NO;XZU388..T3..20T..CBU;XZU301,304,306,308,331,334,341,344,346..(T3,T5)..CBU	06/2004 - 10/2006	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	2
77629-36010	XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T	06/2004 - 12/2999	2
77629-36010	XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL)	05/1999 - 06/2004	2
77629-36010	XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL)	05/1999 - 06/2004	2
77616C - SEAT, FUEL TANK BAND
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI)	10/2002 - 06/2004	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI)	10/2002 - 06/2004	2
77616-36030	XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI)	05/1999 - 06/2002	2
77616-36030	XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI)	05/1999 - 06/2002	2
77616-36030	XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T)	06/2004 - 12/2999	2
77616-36030	XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T)	06/2004 - 12/2999	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI)	06/2002 - 10/2002	2
77616-36030	RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI)	06/2002 - 10/2002	2
77633 - STAY, FUEL TANK
77633-37100	XZU382..T3..20T..CBU;XZU301,362..(DM6,T4)..20T..(CBU,IV7);BU30#,XZU300,301,302,306,307,330,331..(T3,T5)..CBU;BU346,XZU340,341,342,346,347,362..(DM5,DM7,T3)..(20T,295T,30T,35T)..DSL ﾌﾕ-ｴﾙﾀﾝｸ=385X310 & ｱﾘ(ｻﾌﾞﾀﾝｸ)	05/1999 - 06/2004	2
77633-37100	XZU382..T3..20T..CBU;XZU301,362..(DM6,T4)..20T..(CBU,IV7);BU30#,XZU300,301,302,306,307,330,331..(T3,T5)..CBU;BU346,XZU340,341,342,346,347,362..(DM5,DM7,T3)..(20T,295T,30T,35T)..DSL ﾌﾕ-ｴﾙﾀﾝｸ=385X310 & ｱﾘ(ｻﾌﾞﾀﾝｸ)	05/1999 - 06/2004	2
77633-37100	XZU304..IV7..4NO;XZU388..T3..20T..CBU;XZU301,304,306,308,331,334,341,344,346..(T3,T5)..CBU	06/2004 - 10/2006	2
77633-37100	XZU304..IV7..4NO;XZU388..T3..20T..CBU;XZU301,304,306,308,331,334,341,344,346..(T3,T5)..CBU	06/2004 - 10/2006	2
77501-37080	XZU306..IV6;XZU346..IV3;XZU341,344..T4;XZU334..20T,40T;XZU304..T5..IV3;XZU301..DM3,DM6;XZU304,331..T4..30T;XZU301..T4..30T..CBU;XZU346..(T2,T4)..CBU;XZU304..SCB..(DM6,T1,T3)..(DSL,DSLL);XZU301,334..(T3,T4,T5)..30T..(IV3,IV6);XZU306,308,35#..(DM2,T2,T3)..(CBU,IV6);XZU305,31#,321,336,338,348,378,388..SCB;XZU301,306,308,388..(T2,T3,T5)..20T..IV3;XZU304,331,341,344..(DM6,T3)..(DCRL,DSL)..(IV3,IV7)	06/2004 - 12/2999	2
77501-37080	XZU306..IV6;XZU346..IV3;XZU341,344..T4;XZU334..20T,40T;XZU304..T5..IV3;XZU301..DM3,DM6;XZU304,331..T4..30T;XZU301..T4..30T..CBU;XZU346..(T2,T4)..CBU;XZU304..SCB..(DM6,T1,T3)..(DSL,DSLL);XZU301,334..(T3,T4,T5)..30T..(IV3,IV6);XZU306,308,35#..(DM2,T2,T3)..(CBU,IV6);XZU305,31#,321,336,338,348,378,388..SCB;XZU301,306,308,388..(T2,T3,T5)..20T..IV3;XZU304,331,341,344..(DM6,T3)..(DCRL,DSL)..(IV3,IV7)	06/2004 - 12/2999	2
77644 - BOLT, FUEL TANK
77644-37101	XZU301..IV6;XZU336..IV3;XZU306..SCB..5F;XZU336..5F..CBU;XZU308..SCB..T4..IV3;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU301,304,306..SCB..(DM6,T4)..ATM..IV3;XZU304,305,331,334,354,378..(DM6,T1,T3,T4,T5)..5F..(20T,30T,40T)..(CBU,IV3,IV6)	06/2004 - 12/2999	1
77644-37101	XZU301..IV6;XZU336..IV3;XZU306..SCB..5F;XZU336..5F..CBU;XZU308..SCB..T4..IV3;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU301,304,306..SCB..(DM6,T4)..ATM..IV3;XZU304,305,331,334,354,378..(DM6,T1,T3,T4,T5)..5F..(20T,30T,40T)..(CBU,IV3,IV6)	06/2004 - 12/2999	1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU312..SCB..5F..20T..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;BU30#,XZU300,302,307,32#,330,337,340,341,342,346,35#,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) *H,L=400	05/1999 - 06/2004	1
95333-06040	XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU312..SCB..5F..20T..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;BU30#,XZU300,302,307,32#,330,337,340,341,342,346,35#,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) *H,L=400	05/1999 - 06/2004	1
95333-06040	XZU378..IV4;XZU351..5F..IV3;XZU346,348..T3,T4;XZU306,308,35#,378..SCB..(DM2,T2,T3,T4,T5);XZU301,304,305,31#,321,33#,341,344,368,388..DM3,DM5,DM6,DM7,T2,T3,T4,T5 *H,L=400	06/2004 - 12/2999	1
95333-06040	XZU378..IV4;XZU351..5F..IV3;XZU346,348..T3,T4;XZU306,308,35#,378..SCB..(DM2,T2,T3,T4,T5);XZU301,304,305,31#,321,33#,341,344,368,388..DM3,DM5,DM6,DM7,T2,T3,T4,T5 *H,L=400	06/2004 - 12/2999	1
Common parts
90179-10015
91611-B0616
91626-40616
91642-81025
91642-81040
91645-C1032
93319-A4010
94130-00802
96132-51100
96132-51300

ILLUST NO. 1 OF 2(0406-0610)DCR ; (0406- )DCRL,DSL,DSLL

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

Part #	Description	Period	Qty	Price
Common parts
90179-08249
90179-10015
91611-B0616
91626-40616
91641-80825
91642-81030
91642-81040
91645-C1032
93319-A4010
94130-00802
96132-51100
96132-51300

XZU331-TKMQS (1999)

ILLUST NO. 1 OF 3(9905-0406)BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362

ILLUST NO. 1 OF 3(9905-0406)

ILLUST NO. 2 OF 3(9905-0406)XZU307,337..DCB,SCB..4FC ; (9905-0406)XZU31#,346..SCB..DM5,T4..DSL ; (99

ILLUST NO. 2 OF 3(9905-0406)BU30#,346,XZU300,302,306,307,31#,32#,330,331,340,341,342,346,347,350,362

ILLUST NO. 3 OF 3(9905-0406)

ILLUST NO. 1 OF 2(0406- )6FC..30T..4NO ; (0406- )XZU33#,34#,388..T3,T4..CBU,IV3

ILLUST NO. 2 OF 2(0406- )XZU308,33#,354..SCB..T3,T4 ; (0406-)XZU301..6FC..20T..IV3..1NO ; (04

ILLUST NO. 1 OF 2(0406- )XZU306,308,378..SCB..T3,T4,T5..CBU,IV3 ; (0406- )XZU31#,321,33#,34#,3

ILLUST NO. 1 OF 2(0406-0610)DCR ; (0406- )DCRL,DSL,DSLL

Part Price Details
