XZU331-TKMQS (1999)
Toyota Dyna/Toyoace

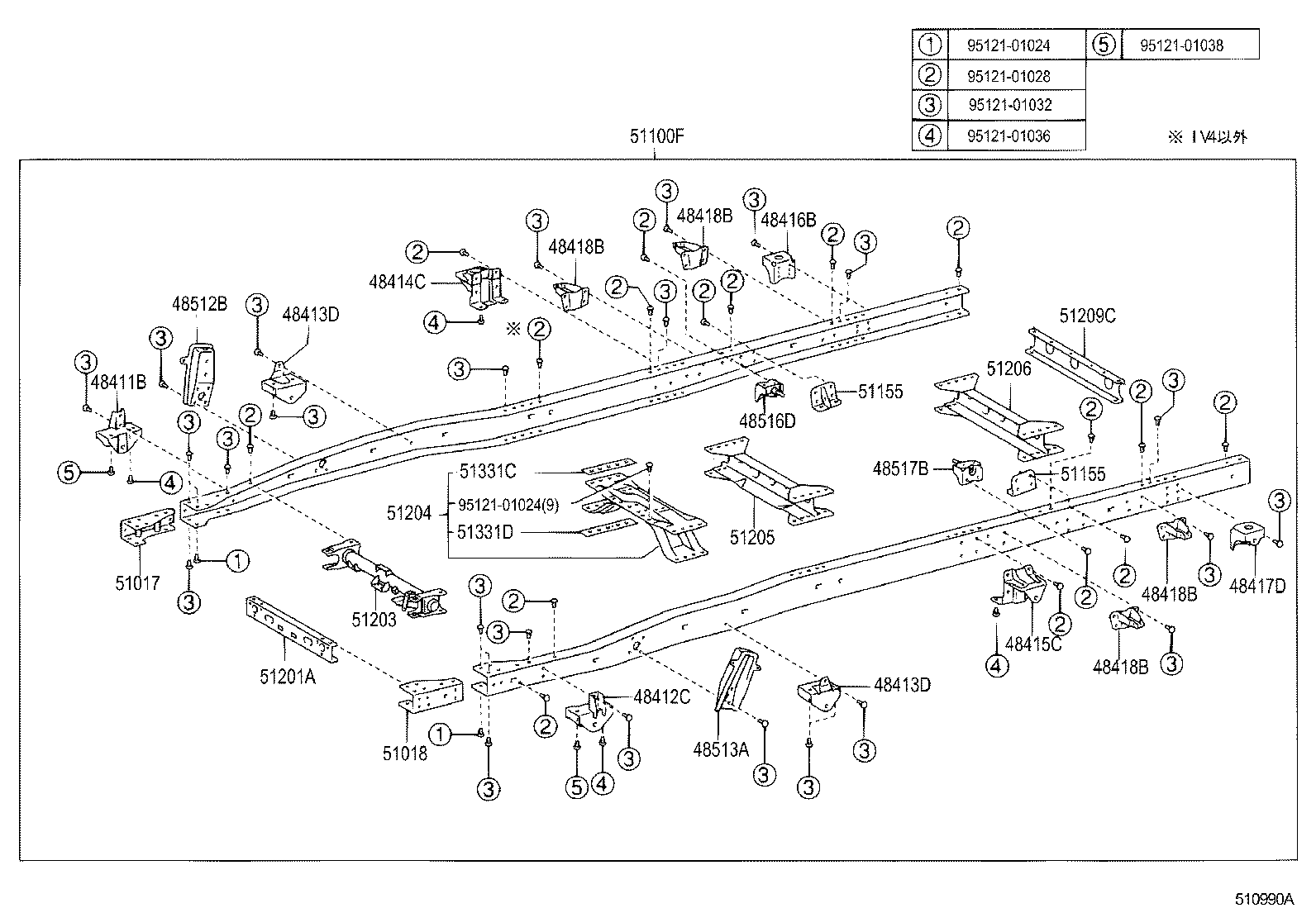

ILLUST NO. 1 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ﾌﾚ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51002-37700 |
XZU330,331..SCB..30T |
1 | ||
| 51002-3V350 |
XZU330,331..SCB..30T |
1 | ||
| 51001-37J50 |
XZU331 |
1 | ||
| 51001-37J51 |
XZU331 |
1 | ||
ILLUST NO. 3 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ｻｽﾍﾟﾝｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10446 | ||||
| 90105-14065 | ||||
| 90119-10740 | ||||
| 90119-14100 | ||||
| 90119-14104 | ||||
| 90119-14107 | ||||
| 90119-16008 | ||||
| 90119-16012 | ||||
| 90179-14061 | ||||
| 90179-16029 | ||||
| 90182-10003 | ||||
| 91612-61030 | ||||
| 91642-81235 | ||||
| 94622-11400 | ||||
| 94622-41400 | ||||
| 94622-41600 | ||||
ILLUST NO. 4 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ﾌﾟﾛﾍﾟﾗｼﾔﾌﾄ ｶﾞ-ﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37160 |
RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51568-37560 |
XZU33#;XZU304..IV4;XZU301,304..20T..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37160 |
RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51568-37560 |
XZU33#;XZU304..IV4;XZU301,304..20T..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37160 |
RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51568-37560 |
XZU33#;XZU304..IV4;XZU301,304..20T..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37160 |
RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51568-37560 |
XZU33#;XZU304..IV4;XZU301,304..20T..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37160 |
RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51568-37560 |
XZU33#;XZU304..IV4;XZU301,304..20T..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37160 |
RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51568-37560 |
XZU33#;XZU304..IV4;XZU301,304..20T..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37160 |
RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51568-37560 |
XZU33#;XZU304..IV4;XZU301,304..20T..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 90119-08908 | ||||
ILLUST NO. 2 OF 4(9905-0406)BU30#,RZU340,XZU330,331,37#..T1,T2,T3,T4,T5..175T,20T,30T
ﾌﾚ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37070 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48411-37070 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48411-37070 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48411-37070 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37070 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48411-37070 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48411-37070 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48411-37070 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37060 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48412-37060 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48412-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37060 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48412-37060 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48412-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37060 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
2 | ||
| 48413-37060 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
2 | ||
| 48413-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
2 | ||
| 48413-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
2 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37060 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
2 | ||
| 48413-37060 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
2 | ||
| 48413-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
2 | ||
| 48413-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
2 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48414-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48414-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48414-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48414-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48414-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48414-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48415-37020 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48415-37020 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48415-37020 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48415-37020 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48415-37020 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48415-37020 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48415-37020 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48415-37020 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48416-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48416-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48416-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48416-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48416-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48416-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48416-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48416-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48416-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48416-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48416-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48416-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XZU301..T3..DSL;XZU347..DCB..5F;XZU347..DCB..T4..4FC;BZU300,RZU300,XZU300,302..T3;XZU341,342,346,347..SCB..(DSL,DSLL);BU346,BZU340,RZU340,XZU330,331,340,350,37#,382..CNG,DSL,EFI,LPG |
4 | ||
| 48418-36090 |
XZU301..T3..DSL;XZU347..DCB..5F;XZU347..DCB..T4..4FC;BZU300,RZU300,XZU300,302..T3;XZU341,342,346,347..SCB..(DSL,DSLL);BU346,BZU340,RZU340,XZU330,331,340,350,37#,382..CNG,DSL,EFI,LPG |
4 | ||
| 48418-36090 |
BZU340,RZU340,XZU331,34#,378,388;BZU300,RZU300,XZU301,304,334,354..T3 |
4 | ||
| 48418-36090 |
BZU340,RZU340,XZU331,34#,378,388;BZU300,RZU300,XZU301,304,334,354..T3 |
4 | ||
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37050 |
XZU301,302..T3..DSL;XZU301..30T..DSLL..IV3;XZU331,340,341,342..DSL;XZU301,331..4FC..DSLL..IV4;XZU301,302..(T4,T5)..20T..DSL;BU301,XZU300,330,350..T1,T3,T5;XZU301..(DM6,T4)..(CNG,DSLL,LPG) |
1 | ||
| 48512-37050 |
XZU301,302..T3..DSL;XZU301..30T..DSLL..IV3;XZU331,340,341,342..DSL;XZU301,331..4FC..DSLL..IV4;XZU301,302..(T4,T5)..20T..DSL;BU301,XZU300,330,350..T1,T3,T5;XZU301..(DM6,T4)..(CNG,DSLL,LPG) |
1 | ||
| 48512-37050 |
XZU301..T3..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU301,302..(T4,T5)..20T..DSL;BU301,XZU300,330,350..T1,T3,T5;BZU300,340,XZU331,340..CNG,DSL,LPG;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO |
2 | ||
| 48512-37050 |
XZU301..T3..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU301,302..(T4,T5)..20T..DSL;BU301,XZU300,330,350..T1,T3,T5;BZU300,340,XZU331,340..CNG,DSL,LPG;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO |
2 | ||
| 48512-37050 |
BU301,XZU330,350..T1,T3,T5;BZU300,340,XZU300,301,302,331,340,341,342 |
1 | ||
| 48512-37050 |
BU301,XZU330,350..T1,T3,T5;BZU300,340,XZU300,301,302,331,340,341,342 |
1 | ||
| 48512-37050 |
RZU300..DM5;BZU300,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48512-37050 |
RZU300..DM5;BZU300,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37050 |
XZU301,302..T3..DSL;XZU301..30T..DSLL..IV3;XZU331,340,341,342..DSL;XZU301,331..4FC..DSLL..IV4;XZU301,302..(T4,T5)..20T..DSL;BU301,XZU300,330,350..T1,T3,T5;XZU301..(DM6,T4)..(CNG,DSLL,LPG) |
1 | ||
| 48512-37050 |
XZU301,302..T3..DSL;XZU301..30T..DSLL..IV3;XZU331,340,341,342..DSL;XZU301,331..4FC..DSLL..IV4;XZU301,302..(T4,T5)..20T..DSL;BU301,XZU300,330,350..T1,T3,T5;XZU301..(DM6,T4)..(CNG,DSLL,LPG) |
1 | ||
| 48512-37050 |
XZU301..T3..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU301,302..(T4,T5)..20T..DSL;BU301,XZU300,330,350..T1,T3,T5;BZU300,340,XZU331,340..CNG,DSL,LPG;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO |
2 | ||
| 48512-37050 |
XZU301..T3..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU301,302..(T4,T5)..20T..DSL;BU301,XZU300,330,350..T1,T3,T5;BZU300,340,XZU331,340..CNG,DSL,LPG;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO |
2 | ||
| 48512-37050 |
BU301,XZU330,350..T1,T3,T5;BZU300,340,XZU300,301,302,331,340,341,342 |
1 | ||
| 48512-37050 |
BU301,XZU330,350..T1,T3,T5;BZU300,340,XZU300,301,302,331,340,341,342 |
1 | ||
| 48512-37050 |
RZU300..DM5;BZU300,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48512-37050 |
RZU300..DM5;BZU300,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37130 |
XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48512-37130 |
XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48512-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342,350 |
1 | ||
| 48512-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342,350 |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37130 |
XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48512-37130 |
XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48512-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342,350 |
1 | ||
| 48512-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342,350 |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 48505-37010 |
RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 48505-37010 |
RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 48505-37010 |
RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 48505-37010 |
RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37020 |
BU301,RZU300,340,XZU300,301,302,330,331,340,341,342,350 |
1 | ||
| 51017-37020 |
BU301,RZU300,340,XZU300,301,302,330,331,340,341,342,350 |
1 | ||
| 51017-37130 |
XZU341,342..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 51017-37130 |
XZU341,342..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 51017-37130 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 51017-37130 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37020 |
BU301,RZU300,340,XZU300,301,302,330,331,340,341,342,350 |
1 | ||
| 51017-37020 |
BU301,RZU300,340,XZU300,301,302,330,331,340,341,342,350 |
1 | ||
| 51017-37130 |
XZU341,342..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 51017-37130 |
XZU341,342..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 51017-37130 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 51017-37130 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37020 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350 |
1 | ||
| 51018-37020 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350 |
1 | ||
| 51018-37021 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350 |
1 | ||
| 51018-37021 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350 |
1 | ||
| 51018-37021 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388 |
1 | ||
| 51018-37021 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37020 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350 |
1 | ||
| 51018-37020 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350 |
1 | ||
| 51018-37021 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350 |
1 | ||
| 51018-37021 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350 |
1 | ||
| 51018-37021 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388 |
1 | ||
| 51018-37021 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388 |
1 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,362,37#,382..(20T,30T)..WT |
2 | ||
| 51155-37060 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,362,37#,382..(20T,30T)..WT |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,362,37#,382..(20T,30T)..WT |
2 | ||
| 51155-37060 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,362,37#,382..(20T,30T)..WT |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37090 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350 |
1 | ||
| 51211-37090 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350 |
1 | ||
| 51211-37090 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34# |
1 | ||
| 51211-37090 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34# |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37090 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350 |
1 | ||
| 51211-37090 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350 |
1 | ||
| 51211-37090 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34# |
1 | ||
| 51211-37090 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37080 |
BU30#,346,RZU300,340,XZU30#,33#,34#,350 |
1 | ||
| 51202-37080 |
BU30#,346,RZU300,340,XZU30#,33#,34#,350 |
1 | ||
| 51202-37120 |
XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU341,342,346..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU30#,346,BZU300,340,RZU301,340,XZU306,307,33#,340,347,350..CNG,DSL,EFI,LPG |
1 | ||
| 51202-37120 |
XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU341,342,346..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU30#,346,BZU300,340,RZU301,340,XZU306,307,33#,340,347,350..CNG,DSL,EFI,LPG |
1 | ||
| 51202-37150 |
XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5 |
1 | ||
| 51202-37150 |
XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37080 |
BU30#,346,RZU300,340,XZU30#,33#,34#,350 |
1 | ||
| 51202-37080 |
BU30#,346,RZU300,340,XZU30#,33#,34#,350 |
1 | ||
| 51202-37120 |
XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU341,342,346..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU30#,346,BZU300,340,RZU301,340,XZU306,307,33#,340,347,350..CNG,DSL,EFI,LPG |
1 | ||
| 51202-37120 |
XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU341,342,346..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU30#,346,BZU300,340,RZU301,340,XZU306,307,33#,340,347,350..CNG,DSL,EFI,LPG |
1 | ||
| 51202-37150 |
XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5 |
1 | ||
| 51202-37150 |
XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37130 |
XZU300..T3;XZU301..T5..20T;XZU302..4FC..4NO;XZU301..DM3..4FC..30T;XZU301..(DM6,T4)..(CNG,LPG);XZU301..SCB..(295T,30T)..DSL..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;BZU300,340,XZU330,331,340..SCB..(20T,30T) |
1 | ||
| 51203-37130 |
XZU300..T3;XZU301..T5..20T;XZU302..4FC..4NO;XZU301..DM3..4FC..30T;XZU301..(DM6,T4)..(CNG,LPG);XZU301..SCB..(295T,30T)..DSL..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;BZU300,340,XZU330,331,340..SCB..(20T,30T) |
1 | ||
| 51203-37120 |
RZU30#,340,XZU301,304,305,331,334,341,344..(175T,20T,30T)..(CBU,IV3,IV6,IV7) |
1 | ||
| 51203-37120 |
RZU30#,340,XZU301,304,305,331,334,341,344..(175T,20T,30T)..(CBU,IV3,IV6,IV7) |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37130 |
XZU300..T3;XZU301..T5..20T;XZU302..4FC..4NO;XZU301..DM3..4FC..30T;XZU301..(DM6,T4)..(CNG,LPG);XZU301..SCB..(295T,30T)..DSL..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;BZU300,340,XZU330,331,340..SCB..(20T,30T) |
1 | ||
| 51203-37130 |
XZU300..T3;XZU301..T5..20T;XZU302..4FC..4NO;XZU301..DM3..4FC..30T;XZU301..(DM6,T4)..(CNG,LPG);XZU301..SCB..(295T,30T)..DSL..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;BZU300,340,XZU330,331,340..SCB..(20T,30T) |
1 | ||
| 51203-37120 |
RZU30#,340,XZU301,304,305,331,334,341,344..(175T,20T,30T)..(CBU,IV3,IV6,IV7) |
1 | ||
| 51203-37120 |
RZU30#,340,XZU301,304,305,331,334,341,344..(175T,20T,30T)..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300..T3;XZU302..(T4,T5)..20T..WT..DSL;BZU300,RZU300,XZU301..(T2,T4,T5)..20T;XZU301,302..SCB..(295T,30T)..DSL..1NO;BU30#,RZU301,XZU306,307,33#,350,362,372..WT..(DSL,LPG)..(CBU,IV3,IV6) |
1 | ||
| 51205-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300..T3;XZU302..(T4,T5)..20T..WT..DSL;BZU300,RZU300,XZU301..(T2,T4,T5)..20T;XZU301,302..SCB..(295T,30T)..DSL..1NO;BU30#,RZU301,XZU306,307,33#,350,362,372..WT..(DSL,LPG)..(CBU,IV3,IV6) |
1 | ||
| 51205-37060 |
XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205-37060 |
XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300..T3;XZU302..(T4,T5)..20T..WT..DSL;BZU300,RZU300,XZU301..(T2,T4,T5)..20T;XZU301,302..SCB..(295T,30T)..DSL..1NO;BU30#,RZU301,XZU306,307,33#,350,362,372..WT..(DSL,LPG)..(CBU,IV3,IV6) |
1 | ||
| 51205-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300..T3;XZU302..(T4,T5)..20T..WT..DSL;BZU300,RZU300,XZU301..(T2,T4,T5)..20T;XZU301,302..SCB..(295T,30T)..DSL..1NO;BU30#,RZU301,XZU306,307,33#,350,362,372..WT..(DSL,LPG)..(CBU,IV3,IV6) |
1 | ||
| 51205-37060 |
XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205-37060 |
XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37010 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..WT |
1 | ||
| 51206-37010 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..WT |
1 | ||
| 51206-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51206-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37010 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..WT |
1 | ||
| 51206-37010 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..WT |
1 | ||
| 51206-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51206-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37040 |
BZU340,RZU340,XZU33#,34#,378,388 |
1 | ||
| 51291-37040 |
BZU340,RZU340,XZU33#,34#,378,388 |
1 | ||
| 51291-37040 |
XZU347..DCB..5F;XZU347..DCB..T4..4FC;XZU341,342,346,347..SCB..(DSL,DSLL);BU346,BZU340,RZU340,XZU33#,340,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 51291-37040 |
XZU347..DCB..5F;XZU347..DCB..T4..4FC;XZU341,342,346,347..SCB..(DSL,DSLL);BU346,BZU340,RZU340,XZU33#,340,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 51331C - GUSSET, FRAME NO.3 CROSSMEMBER | ||||
| 51331-37020 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 51331-37020 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 51331-37020 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331-37020 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331C - GUSSET, FRAME NO.3 CROSSMEMBER | ||||
| 51331-37020 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 51331-37020 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 51331-37020 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331-37020 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331D - GUSSET, FRAME NO.3 CROSSMEMBER | ||||
| 51331-37030 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331-37030 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331-37030 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 51331-37030 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 51331D - GUSSET, FRAME NO.3 CROSSMEMBER | ||||
| 51331-37030 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331-37030 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331-37030 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 51331-37030 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37090 |
XZU331..DSL;XZU301..DSL..IV3;XZU331..5F..DSLL;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301..4FC..DSL..(CBU,IV4,IV6);XZU300,302,330,340,341,342..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 51421-37090 |
XZU331..DSL;XZU301..DSL..IV3;XZU331..5F..DSLL;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301..4FC..DSL..(CBU,IV4,IV6);XZU300,302,330,340,341,342..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 51421-37090 |
XZU301,331,341 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51421-37090 |
XZU301,331,341 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37090 |
XZU331..DSL;XZU301..DSL..IV3;XZU331..5F..DSLL;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301..4FC..DSL..(CBU,IV4,IV6);XZU300,302,330,340,341,342..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 51421-37090 |
XZU331..DSL;XZU301..DSL..IV3;XZU331..5F..DSLL;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301..4FC..DSL..(CBU,IV4,IV6);XZU300,302,330,340,341,342..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 51421-37090 |
XZU301,331,341 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51421-37090 |
XZU301,331,341 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37070 |
XZU331..DSL;XZU301..DSL..IV3;XZU331..5F..DSLL;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301..4FC..DSL..(CBU,IV4,IV6);XZU300,302,330,340,341,342..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 51422-37070 |
XZU331..DSL;XZU301..DSL..IV3;XZU331..5F..DSLL;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301..4FC..DSL..(CBU,IV4,IV6);XZU300,302,330,340,341,342..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 51422-37070 |
XZU301,331,341 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51422-37070 |
XZU301,331,341 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37070 |
XZU331..DSL;XZU301..DSL..IV3;XZU331..5F..DSLL;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301..4FC..DSL..(CBU,IV4,IV6);XZU300,302,330,340,341,342..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 51422-37070 |
XZU331..DSL;XZU301..DSL..IV3;XZU331..5F..DSLL;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301..4FC..DSL..(CBU,IV4,IV6);XZU300,302,330,340,341,342..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 51422-37070 |
XZU301,331,341 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51422-37070 |
XZU301,331,341 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37070 |
XZU302..20T..DSL;XZU312,331..SCB..30T;XZU301..4FC..20T..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU301..SCB..(DM3,DM6,T3,T5)..5F..DSL;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;BU301,XZU341,342,351,352..SCB..(DM2,DM5,T1,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 51705-37070 |
XZU302..20T..DSL;XZU312,331..SCB..30T;XZU301..4FC..20T..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU301..SCB..(DM3,DM6,T3,T5)..5F..DSL;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;BU301,XZU341,342,351,352..SCB..(DM2,DM5,T1,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37070 |
XZU302..20T..DSL;XZU312,331..SCB..30T;XZU301..4FC..20T..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU301..SCB..(DM3,DM6,T3,T5)..5F..DSL;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;BU301,XZU341,342,351,352..SCB..(DM2,DM5,T1,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 51705-37070 |
XZU302..20T..DSL;XZU312,331..SCB..30T;XZU301..4FC..20T..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU301..SCB..(DM3,DM6,T3,T5)..5F..DSL;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;BU301,XZU341,342,351,352..SCB..(DM2,DM5,T1,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37070 |
XZU302..20T..DSL;XZU312,331..SCB..30T;XZU301..4FC..20T..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU301..SCB..(DM3,DM6,T3,T5)..5F..DSL;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;BU301,XZU341,342,351,352..SCB..(DM2,DM5,T1,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 51705-37070 |
XZU302..20T..DSL;XZU312,331..SCB..30T;XZU301..4FC..20T..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU301..SCB..(DM3,DM6,T3,T5)..5F..DSL;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;BU301,XZU341,342,351,352..SCB..(DM2,DM5,T1,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| Common parts | ||||
| 90119-12135 | ||||
| 90119-12377 | ||||
| 90179-12070 | ||||
| 90179-12087 | ||||
| 90201-12056 | ||||
| 91112-81440 | ||||
| 91642-81245 | ||||
| 94130-01202 | ||||
| 94130-01402 | ||||
| 94622-11400 | ||||
| 94622-41200 | ||||
| 95121-01024 | ||||
| 95121-01026 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01036 | ||||
| 95121-01038 | ||||
| 95121-01042 | ||||
ILLUST NO. 2 OF 4(9905-0406)XZU347,382 ; (9905-0406)RZU300..DCB ;(9905-0406)BZU300,RZU300,XZU300,30
ﾌﾚ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37070 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48411-37070 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48411-37070 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48411-37070 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37070 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48411-37070 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48411-37070 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48411-37070 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37060 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48412-37060 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48412-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37060 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48412-37060 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48412-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37060 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
2 | ||
| 48413-37060 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
2 | ||
| 48413-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
2 | ||
| 48413-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
2 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48414-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48414-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48414-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48415-37020 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48415-37020 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48415-37020 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48415-37020 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48416-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48416-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48416-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48416-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48416-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48416-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XZU301..T3..DSL;XZU347..DCB..5F;XZU347..DCB..T4..4FC;BZU300,RZU300,XZU300,302..T3;XZU341,342,346,347..SCB..(DSL,DSLL);BU346,BZU340,RZU340,XZU330,331,340,350,37#,382..CNG,DSL,EFI,LPG |
4 | ||
| 48418-36090 |
XZU301..T3..DSL;XZU347..DCB..5F;XZU347..DCB..T4..4FC;BZU300,RZU300,XZU300,302..T3;XZU341,342,346,347..SCB..(DSL,DSLL);BU346,BZU340,RZU340,XZU330,331,340,350,37#,382..CNG,DSL,EFI,LPG |
4 | ||
| 48418-36090 |
BZU340,RZU340,XZU331,34#,378,388;BZU300,RZU300,XZU301,304,334,354..T3 |
4 | ||
| 48418-36090 |
BZU340,RZU340,XZU331,34#,378,388;BZU300,RZU300,XZU301,304,334,354..T3 |
4 | ||
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37050 |
XZU301,302..T3..DSL;XZU301..30T..DSLL..IV3;XZU331,340,341,342..DSL;XZU301,331..4FC..DSLL..IV4;XZU301,302..(T4,T5)..20T..DSL;BU301,XZU300,330,350..T1,T3,T5;XZU301..(DM6,T4)..(CNG,DSLL,LPG) |
1 | ||
| 48512-37050 |
XZU301,302..T3..DSL;XZU301..30T..DSLL..IV3;XZU331,340,341,342..DSL;XZU301,331..4FC..DSLL..IV4;XZU301,302..(T4,T5)..20T..DSL;BU301,XZU300,330,350..T1,T3,T5;XZU301..(DM6,T4)..(CNG,DSLL,LPG) |
1 | ||
| 48512-37050 |
XZU301..T3..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU301,302..(T4,T5)..20T..DSL;BU301,XZU300,330,350..T1,T3,T5;BZU300,340,XZU331,340..CNG,DSL,LPG;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO |
2 | ||
| 48512-37050 |
XZU301..T3..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU301,302..(T4,T5)..20T..DSL;BU301,XZU300,330,350..T1,T3,T5;BZU300,340,XZU331,340..CNG,DSL,LPG;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO |
2 | ||
| 48512-37050 |
BU301,XZU330,350..T1,T3,T5;BZU300,340,XZU300,301,302,331,340,341,342 |
1 | ||
| 48512-37050 |
BU301,XZU330,350..T1,T3,T5;BZU300,340,XZU300,301,302,331,340,341,342 |
1 | ||
| 48512-37050 |
RZU300..DM5;BZU300,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48512-37050 |
RZU300..DM5;BZU300,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37130 |
XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48512-37130 |
XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48512-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342,350 |
1 | ||
| 48512-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342,350 |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 48505-37010 |
RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 48505-37010 |
RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37020 |
BU301,RZU300,340,XZU300,301,302,330,331,340,341,342,350 |
1 | ||
| 51017-37020 |
BU301,RZU300,340,XZU300,301,302,330,331,340,341,342,350 |
1 | ||
| 51017-37130 |
XZU341,342..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 51017-37130 |
XZU341,342..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 51017-37130 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 51017-37130 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37020 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350 |
1 | ||
| 51018-37020 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350 |
1 | ||
| 51018-37021 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350 |
1 | ||
| 51018-37021 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350 |
1 | ||
| 51018-37021 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388 |
1 | ||
| 51018-37021 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388 |
1 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,362,37#,382..(20T,30T)..WT |
2 | ||
| 51155-37060 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,362,37#,382..(20T,30T)..WT |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,362,37#,382..(20T,30T)..WT |
2 | ||
| 51155-37060 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,362,37#,382..(20T,30T)..WT |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37090 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350 |
1 | ||
| 51211-37090 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350 |
1 | ||
| 51211-37090 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34# |
1 | ||
| 51211-37090 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37080 |
BU30#,346,RZU300,340,XZU30#,33#,34#,350 |
1 | ||
| 51202-37080 |
BU30#,346,RZU300,340,XZU30#,33#,34#,350 |
1 | ||
| 51202-37120 |
XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU341,342,346..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU30#,346,BZU300,340,RZU301,340,XZU306,307,33#,340,347,350..CNG,DSL,EFI,LPG |
1 | ||
| 51202-37120 |
XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU341,342,346..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU30#,346,BZU300,340,RZU301,340,XZU306,307,33#,340,347,350..CNG,DSL,EFI,LPG |
1 | ||
| 51202-37150 |
XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5 |
1 | ||
| 51202-37150 |
XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37130 |
XZU300..T3;XZU301..T5..20T;XZU302..4FC..4NO;XZU301..DM3..4FC..30T;XZU301..(DM6,T4)..(CNG,LPG);XZU301..SCB..(295T,30T)..DSL..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;BZU300,340,XZU330,331,340..SCB..(20T,30T) |
1 | ||
| 51203-37130 |
XZU300..T3;XZU301..T5..20T;XZU302..4FC..4NO;XZU301..DM3..4FC..30T;XZU301..(DM6,T4)..(CNG,LPG);XZU301..SCB..(295T,30T)..DSL..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;BZU300,340,XZU330,331,340..SCB..(20T,30T) |
1 | ||
| 51203-37120 |
RZU30#,340,XZU301,304,305,331,334,341,344..(175T,20T,30T)..(CBU,IV3,IV6,IV7) |
1 | ||
| 51203-37120 |
RZU30#,340,XZU301,304,305,331,334,341,344..(175T,20T,30T)..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300..T3;XZU302..(T4,T5)..20T..WT..DSL;BZU300,RZU300,XZU301..(T2,T4,T5)..20T;XZU301,302..SCB..(295T,30T)..DSL..1NO;BU30#,RZU301,XZU306,307,33#,350,362,372..WT..(DSL,LPG)..(CBU,IV3,IV6) |
1 | ||
| 51205-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300..T3;XZU302..(T4,T5)..20T..WT..DSL;BZU300,RZU300,XZU301..(T2,T4,T5)..20T;XZU301,302..SCB..(295T,30T)..DSL..1NO;BU30#,RZU301,XZU306,307,33#,350,362,372..WT..(DSL,LPG)..(CBU,IV3,IV6) |
1 | ||
| 51205-37060 |
XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205-37060 |
XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300..T3;XZU302..(T4,T5)..20T..WT..DSL;BZU300,RZU300,XZU301..(T2,T4,T5)..20T;XZU301,302..SCB..(295T,30T)..DSL..1NO;BU30#,RZU301,XZU306,307,33#,350,362,372..WT..(DSL,LPG)..(CBU,IV3,IV6) |
1 | ||
| 51205-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300..T3;XZU302..(T4,T5)..20T..WT..DSL;BZU300,RZU300,XZU301..(T2,T4,T5)..20T;XZU301,302..SCB..(295T,30T)..DSL..1NO;BU30#,RZU301,XZU306,307,33#,350,362,372..WT..(DSL,LPG)..(CBU,IV3,IV6) |
1 | ||
| 51205-37060 |
XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205-37060 |
XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37010 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..WT |
1 | ||
| 51206-37010 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..WT |
1 | ||
| 51206-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51206-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37040 |
BZU340,RZU340,XZU33#,34#,378,388 |
1 | ||
| 51291-37040 |
BZU340,RZU340,XZU33#,34#,378,388 |
1 | ||
| 51291-37040 |
XZU347..DCB..5F;XZU347..DCB..T4..4FC;XZU341,342,346,347..SCB..(DSL,DSLL);BU346,BZU340,RZU340,XZU33#,340,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 51291-37040 |
XZU347..DCB..5F;XZU347..DCB..T4..4FC;XZU341,342,346,347..SCB..(DSL,DSLL);BU346,BZU340,RZU340,XZU33#,340,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37040 |
BZU340,RZU340,XZU33#,34#,378,388 |
1 | ||
| 51291-37040 |
BZU340,RZU340,XZU33#,34#,378,388 |
1 | ||
| 51291-37040 |
XZU347..DCB..5F;XZU347..DCB..T4..4FC;XZU341,342,346,347..SCB..(DSL,DSLL);BU346,BZU340,RZU340,XZU33#,340,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 51291-37040 |
XZU347..DCB..5F;XZU347..DCB..T4..4FC;XZU341,342,346,347..SCB..(DSL,DSLL);BU346,BZU340,RZU340,XZU33#,340,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 51331C - GUSSET, FRAME NO.3 CROSSMEMBER | ||||
| 51331-37020 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 51331-37020 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 51331-37020 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331-37020 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331D - GUSSET, FRAME NO.3 CROSSMEMBER | ||||
| 51331-37030 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331-37030 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331-37030 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 51331-37030 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37090 |
XZU331..DSL;XZU301..DSL..IV3;XZU331..5F..DSLL;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301..4FC..DSL..(CBU,IV4,IV6);XZU300,302,330,340,341,342..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 51421-37090 |
XZU331..DSL;XZU301..DSL..IV3;XZU331..5F..DSLL;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301..4FC..DSL..(CBU,IV4,IV6);XZU300,302,330,340,341,342..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 51421-37090 |
XZU301,331,341 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51421-37090 |
XZU301,331,341 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37070 |
XZU331..DSL;XZU301..DSL..IV3;XZU331..5F..DSLL;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301..4FC..DSL..(CBU,IV4,IV6);XZU300,302,330,340,341,342..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 51422-37070 |
XZU331..DSL;XZU301..DSL..IV3;XZU331..5F..DSLL;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301..4FC..DSL..(CBU,IV4,IV6);XZU300,302,330,340,341,342..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 51422-37070 |
XZU301,331,341 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51422-37070 |
XZU301,331,341 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37070 |
XZU302..20T..DSL;XZU312,331..SCB..30T;XZU301..4FC..20T..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU301..SCB..(DM3,DM6,T3,T5)..5F..DSL;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;BU301,XZU341,342,351,352..SCB..(DM2,DM5,T1,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 51705-37070 |
XZU302..20T..DSL;XZU312,331..SCB..30T;XZU301..4FC..20T..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU301..SCB..(DM3,DM6,T3,T5)..5F..DSL;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;BU301,XZU341,342,351,352..SCB..(DM2,DM5,T1,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37070 |
XZU302..20T..DSL;XZU312,331..SCB..30T;XZU301..4FC..20T..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU301..SCB..(DM3,DM6,T3,T5)..5F..DSL;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;BU301,XZU341,342,351,352..SCB..(DM2,DM5,T1,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 51705-37070 |
XZU302..20T..DSL;XZU312,331..SCB..30T;XZU301..4FC..20T..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU301..SCB..(DM3,DM6,T3,T5)..5F..DSL;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;BU301,XZU341,342,351,352..SCB..(DM2,DM5,T1,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| Common parts | ||||
| 90119-12135 | ||||
| 90119-12377 | ||||
| 90179-08200 | ||||
| 90179-12070 | ||||
| 90179-12087 | ||||
| 90201-12056 | ||||
| 90467-09181C1 | ||||
| 91112-81440 | ||||
| 91642-81245 | ||||
| 94130-01202 | ||||
| 94130-01402 | ||||
| 94622-11200 | ||||
| 94622-11400 | ||||
| 95121-01024 | ||||
| 95121-01026 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01036 | ||||
| 95121-01038 | ||||
| 95121-01040 | ||||
| 95121-01042 | ||||
ILLUST NO. 2 OF 4(0406-0610)XZU331 ; (0406- )BZU300,XZU301,304,334..T3..30T
ﾌﾚｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37070 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48411-37070 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37060 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 48412-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37060 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
2 | ||
| 48413-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
2 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37060 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
2 | ||
| 48413-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
2 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48414-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48415-37020 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48415-37020 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48416-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37100 |
XZU331..DSL;XZU331..5F..DSLL;XZU341,342..DSL,DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..DSL..IV3;BZU300,RZU300,XZU300,302..T3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,346,347,37#,382..20T,30T |
1 | ||
| 48416-37100 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
1 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XZU301..T3..DSL;XZU347..DCB..5F;XZU347..DCB..T4..4FC;BZU300,RZU300,XZU300,302..T3;XZU341,342,346,347..SCB..(DSL,DSLL);BU346,BZU340,RZU340,XZU330,331,340,350,37#,382..CNG,DSL,EFI,LPG |
4 | ||
| 48418-36090 |
BZU340,RZU340,XZU331,34#,378,388;BZU300,RZU300,XZU301,304,334,354..T3 |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XZU301..T3..DSL;XZU347..DCB..5F;XZU347..DCB..T4..4FC;BZU300,RZU300,XZU300,302..T3;XZU341,342,346,347..SCB..(DSL,DSLL);BU346,BZU340,RZU340,XZU330,331,340,350,37#,382..CNG,DSL,EFI,LPG |
4 | ||
| 48418-36090 |
BZU340,RZU340,XZU331,34#,378,388;BZU300,RZU300,XZU301,304,334,354..T3 |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XZU301..T3..DSL;XZU347..DCB..5F;XZU347..DCB..T4..4FC;BZU300,RZU300,XZU300,302..T3;XZU341,342,346,347..SCB..(DSL,DSLL);BU346,BZU340,RZU340,XZU330,331,340,350,37#,382..CNG,DSL,EFI,LPG |
4 | ||
| 48418-36090 |
BZU340,RZU340,XZU331,34#,378,388;BZU300,RZU300,XZU301,304,334,354..T3 |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XZU301..T3..DSL;XZU347..DCB..5F;XZU347..DCB..T4..4FC;BZU300,RZU300,XZU300,302..T3;XZU341,342,346,347..SCB..(DSL,DSLL);BU346,BZU340,RZU340,XZU330,331,340,350,37#,382..CNG,DSL,EFI,LPG |
4 | ||
| 48418-36090 |
BZU340,RZU340,XZU331,34#,378,388;BZU300,RZU300,XZU301,304,334,354..T3 |
4 | ||
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37050 |
XZU301,302..T3..DSL;XZU301..30T..DSLL..IV3;XZU331,340,341,342..DSL;XZU301,331..4FC..DSLL..IV4;XZU301,302..(T4,T5)..20T..DSL;BU301,XZU300,330,350..T1,T3,T5;XZU301..(DM6,T4)..(CNG,DSLL,LPG) |
1 | ||
| 48512-37050 |
XZU301..T3..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU301,302..(T4,T5)..20T..DSL;BU301,XZU300,330,350..T1,T3,T5;BZU300,340,XZU331,340..CNG,DSL,LPG;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO |
2 | ||
| 48512-37050 |
BU301,XZU330,350..T1,T3,T5;BZU300,340,XZU300,301,302,331,340,341,342 |
1 | ||
| 48512-37050 |
RZU300..DM5;BZU300,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37130 |
XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48512-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342,350 |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
RZU300,XZU300..T3;XZU306..DSLL..CBU;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU302..(T4,T5)..20T..WT..DSL;XZU306,331..(T3,T5)..5F..DSLL;BZU300,XZU306,331..CNG,DSL,LPG;RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU30#,346,BZU340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..(03S,06S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37020 |
BU301,RZU300,340,XZU300,301,302,330,331,340,341,342,350 |
1 | ||
| 51017-37130 |
XZU341,342..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU301,BZU300,340,RZU301,340,XZU330,331,340,350..CNG,DSL,EFI,LPG |
1 | ||
| 51017-37130 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37020 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350 |
1 | ||
| 51018-37021 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350 |
1 | ||
| 51018-37021 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388 |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51002-37700 |
XZU330,331..SCB..30T |
1 | ||
| 51002-3V350 |
XZU330,331..SCB..30T |
1 | ||
| 51001-37J50 |
XZU331 |
1 | ||
| 51001-37J51 |
XZU331 |
1 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,362,37#,382..(20T,30T)..WT |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,362,37#,382..(20T,30T)..WT |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37090 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350 |
1 | ||
| 51211-37090 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37080 |
BU30#,346,RZU300,340,XZU30#,33#,34#,350 |
1 | ||
| 51202-37120 |
XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU341,342,346..DSL,DSLL;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;RZU300,XZU300,301,302..T3..(DSL,EFI);BU30#,346,BZU300,340,RZU301,340,XZU306,307,33#,340,347,350..CNG,DSL,EFI,LPG |
1 | ||
| 51202-37150 |
XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37130 |
XZU300..T3;XZU301..T5..20T;XZU302..4FC..4NO;XZU301..DM3..4FC..30T;XZU301..(DM6,T4)..(CNG,LPG);XZU301..SCB..(295T,30T)..DSL..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;BZU300,340,XZU330,331,340..SCB..(20T,30T) |
1 | ||
| 51203-37120 |
RZU30#,340,XZU301,304,305,331,334,341,344..(175T,20T,30T)..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300..T3;XZU302..(T4,T5)..20T..WT..DSL;BZU300,RZU300,XZU301..(T2,T4,T5)..20T;XZU301,302..SCB..(295T,30T)..DSL..1NO;BU30#,RZU301,XZU306,307,33#,350,362,372..WT..(DSL,LPG)..(CBU,IV3,IV6) |
1 | ||
| 51205-37060 |
XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37010 |
XZU331..DSL;XZU306..DSLL..CBU;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T4)..(CNG,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..20T..WT..DSL;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;RZU300,XZU301,306..(T2,T4,T5)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU307,330,337,340,346,347,350,362,37#,382..WT |
1 | ||
| 51206-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37040 |
BZU340,RZU340,XZU33#,34#,378,388 |
1 | ||
| 51291-37040 |
XZU347..DCB..5F;XZU347..DCB..T4..4FC;XZU341,342,346,347..SCB..(DSL,DSLL);BU346,BZU340,RZU340,XZU33#,340,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 51331C - GUSSET, FRAME NO.3 CROSSMEMBER | ||||
| 51331-37020 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| 51331-37020 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331D - GUSSET, FRAME NO.3 CROSSMEMBER | ||||
| 51331-37030 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331-37030 |
XZU331..5F..DSLL;RZU300,XZU300..T3;XZU301..T4..4FC..1NO;XZU302..(T4,T5)..20T..DSL;XZU301..(DM6,T4)..(CNG,LPG);RZU300,XZU301..(T2,T4,T5)..20T;XZU301..(DM3,T3)..4FC..30T..DSL;XZU301..5F..(295T,30T)..DSL..IV3..1NO;XZU302,341,342..(T3,T4)..(DSL,DSLL)..1NO;XZU301..5F..(295T,30T)..(CBU,IV4,IV6,IV7)..1NO;BU301,BZU300,340,RZU301,340,XZU330,331,340..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
2 | ||
| Common parts | ||||
| 95121-01024 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01036 | ||||
| 95121-01038 | ||||
ILLUST NO. 1 OF 4(0406- )BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#,368,378
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51002-37700 |
XZU330,331..SCB..30T |
1 | ||
| 51002-3V350 |
XZU330,331..SCB..30T |
1 | ||
| 51001-37J50 |
XZU331 |
1 | ||
| 51001-37J51 |
XZU331 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37090 |
XZU331..DSL;XZU301..DSL..IV3;XZU331..5F..DSLL;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301..4FC..DSL..(CBU,IV4,IV6);XZU300,302,330,340,341,342..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 51421-37090 |
XZU301,331,341 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37070 |
XZU331..DSL;XZU301..DSL..IV3;XZU331..5F..DSLL;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301..4FC..DSL..(CBU,IV4,IV6);XZU300,302,330,340,341,342..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 51422-37070 |
XZU301,331,341 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37070 |
XZU302..20T..DSL;XZU312,331..SCB..30T;XZU301..4FC..20T..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU301..SCB..(DM3,DM6,T3,T5)..5F..DSL;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;BU301,XZU341,342,351,352..SCB..(DM2,DM5,T1,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| Common parts | ||||
| 90119-12377 | ||||
| 90179-08200 | ||||
| 90179-12070 | ||||
| 90179-12087 | ||||
| 90467-09101 | ||||
| 91642-81245 | ||||
ILLUST NO. 4 OF 4(0406- )
ﾌﾟﾛﾍﾟﾗｼﾔﾌﾄｶﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37160 |
RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51568-37560 |
XZU33#;XZU304..IV4;XZU301,304..20T..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37160 |
RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51568-37560 |
XZU33#;XZU304..IV4;XZU301,304..20T..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37160 |
RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51568-37560 |
XZU33#;XZU304..IV4;XZU301,304..20T..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37160 |
RZU300..DCB;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T);XZU301,302..(CNG,DSLL,LPG)..4NO;RZU301,XZU302,307,337..(DCB,SCB)..4FC;BZU300,XZU300,301,306,330,331,350..SCB..(T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51568-37560 |
XZU33#;XZU304..IV4;XZU301,304..20T..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37140 |
XZU321..1NO;XZU322..T5..4FC;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,RZU300,XZU300,302,307,31#,320,330,337,35#..DCB,SCB;XZU301,306,321,331..(DM3,DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG) |
1 | ||
| 51569-37141 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,33#,35#..DCB,SCB |
1 | ||
| 51569-37310 |
XZU33#;XZU304..IV4;XZU301,304..ST TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 90119-08908 | ||||
| 90179-08233 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
