XZU331-TKMQS (1999)
Toyota Dyna/Toyoace

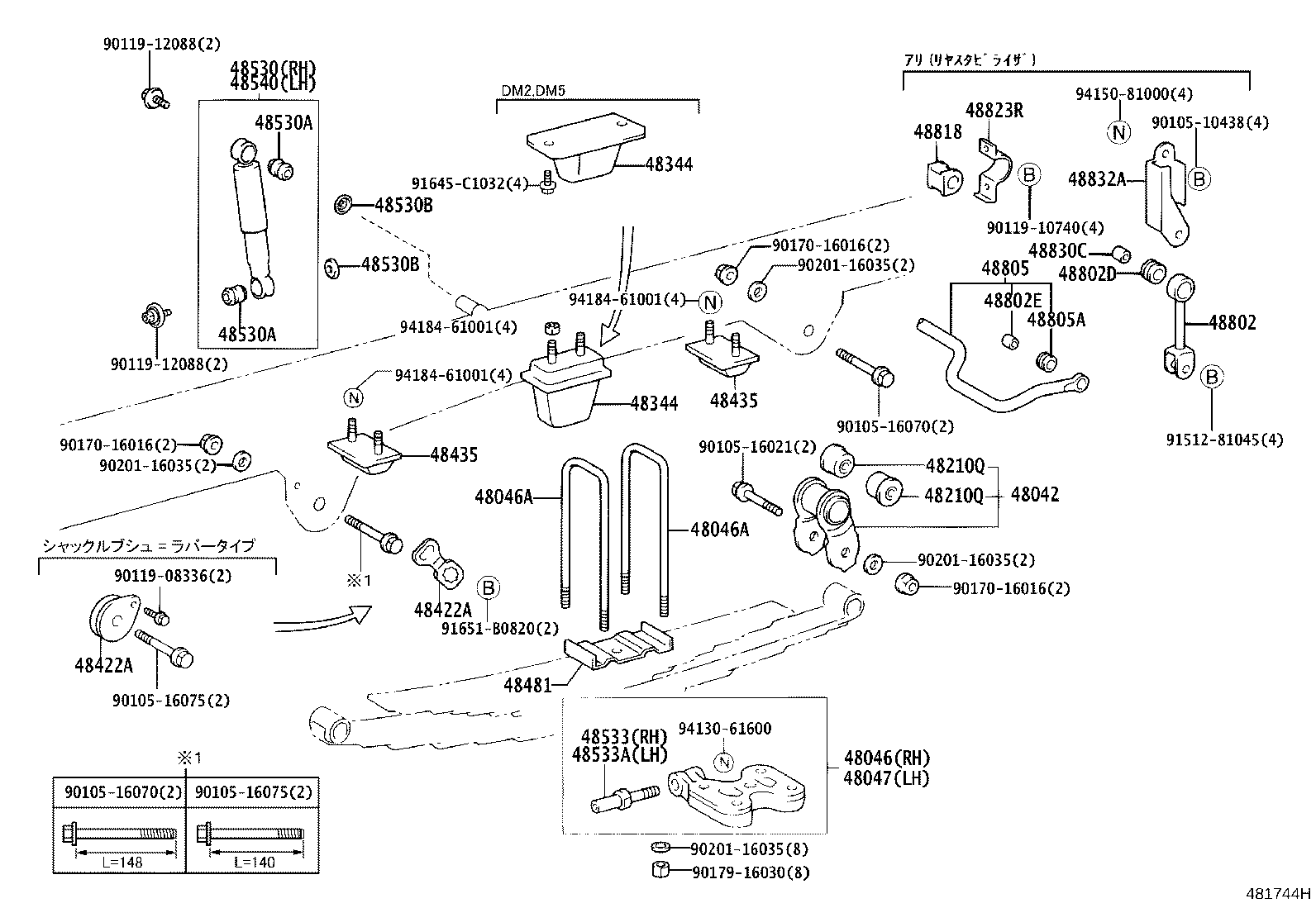

ILLUST NO. 1 OF 3(9905-0406)XZU341..LPG ; (9905-0406)XZU302..CNG,DSL ; (9905-0406)RZU300,XZU300,301,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 48042-37020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 48042-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
2 | ||
| 48042-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37180 |
XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG) |
1 | ||
| 48473-37180 |
XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG) |
1 | ||
| 48473-37180 |
BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T) |
1 | ||
| 48473-37180 |
BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T) |
1 | ||
| 48473-37180 |
XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T) |
1 | ||
| 48473-37180 |
XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T) |
1 | ||
| 48473-37180 |
BZU300,RZU300,XZU301,304,334,354..T3;BZU340,XZU331,341,344,346,378,388..T3,T4 |
1 | ||
| 48473-37180 |
BZU300,RZU300,XZU301,304,334,354..T3;BZU340,XZU331,341,344,346,378,388..T3,T4 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16024 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG) 長さ=310 |
4 | ||
| 90117-16024 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG) 長さ=310 |
4 | ||
| 90117-16024 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T 長さ=310 |
4 | ||
| 90117-16024 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T 長さ=310 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16024 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG) 長さ=310 |
4 | ||
| 90117-16024 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG) 長さ=310 |
4 | ||
| 90117-16024 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T 長さ=310 |
4 | ||
| 90117-16024 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T 長さ=310 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37180 |
BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T) |
1 | ||
| 48473-37180 |
BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T) |
1 | ||
| 48473-37180 |
XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG) |
1 | ||
| 48473-37180 |
XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG) |
1 | ||
| 48473-37180 |
XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T) |
1 | ||
| 48473-37180 |
XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T) |
1 | ||
| 48473-37180 |
BZU300,RZU300,XZU301,304,334,354..T3;BZU340,XZU331,341,344,346,378,388..T3,T4 |
1 | ||
| 48473-37180 |
BZU300,RZU300,XZU301,304,334,354..T3;BZU340,XZU331,341,344,346,378,388..T3,T4 |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37200 |
XZU331,340,341..295T,30T;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T) |
2 | ||
| 48344-37200 |
XZU331,340,341..295T,30T;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T) |
2 | ||
| 48344-37200 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T |
2 | ||
| 48344-37200 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37200 |
XZU331,340,341..295T,30T;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T) |
2 | ||
| 48344-37200 |
XZU331,340,341..295T,30T;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T) |
2 | ||
| 48344-37200 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T |
2 | ||
| 48344-37200 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-37010 |
BZU300,RZU300,XZU300,301,302..T3;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,37#,382..20T,295T,30T |
2 | ||
| 48422-37010 |
BZU300,RZU300,XZU300,301,302..T3;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,37#,382..20T,295T,30T |
2 | ||
| 48422-37010 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
2 | ||
| 48422-37010 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80673 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347..20T,295T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48531-80673 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347..20T,295T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48531-80673 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48531-80673 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80673 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347..20T,295T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48531-80673 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347..20T,295T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48531-80673 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48531-80673 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T ﾏｰｸ 48531−37010 |
1 | ||
| Common parts | ||||
| 90101-20001 | ||||
| 90101-20002 | ||||
| 90105-16021 | ||||
| 90105-16075 | ||||
| 90119-08336 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90179-20007 | ||||
| 90201-16035 | ||||
| 91645-C1032 | ||||
| 94130-61600 | ||||
| 94184-61001 | ||||
| 94622-42000 | ||||
ILLUST NO. 2 OF 3(9905-0406)XZU344..30T ; (9905-0406)XZU331,340,341..20T,295T,30T
MAIN 3+HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37030 |
XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
4 | ||
| 48192-37030 |
XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
4 | ||
| 48192-37030 |
XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
4 | ||
| 48192-37030 |
RZU300,XZU334..T3..30T;BZU340,RZU340,XZU301,304,331,34#..(T2,T3,T4)..(20T,30T)..1NO |
4 | ||
| 48192-37030 |
RZU300,XZU334..T3..30T;BZU340,RZU340,XZU301,304,331,34#..(T2,T3,T4)..(20T,30T)..1NO |
4 | ||
| 48192-37030 |
RZU300,XZU334..T3..30T;BZU340,RZU340,XZU301,304,331,34#..(T2,T3,T4)..(20T,30T)..1NO |
4 | ||
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37030 |
XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
4 | ||
| 48192-37030 |
XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
4 | ||
| 48192-37030 |
XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
4 | ||
| 48192-37030 |
RZU300,XZU334..T3..30T;BZU340,RZU340,XZU301,304,331,34#..(T2,T3,T4)..(20T,30T)..1NO |
4 | ||
| 48192-37030 |
RZU300,XZU334..T3..30T;BZU340,RZU340,XZU301,304,331,34#..(T2,T3,T4)..(20T,30T)..1NO |
4 | ||
| 48192-37030 |
RZU300,XZU334..T3..30T;BZU340,RZU340,XZU301,304,331,34#..(T2,T3,T4)..(20T,30T)..1NO |
4 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37830 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37830 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37830 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37830 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37830 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37830 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
8 | ||
| 90389-16026 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
8 | ||
| 90389-16026 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
8 | ||
| 90389-16026 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
8 | ||
| 90389-16026 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
8 | ||
| 90389-16026 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
8 | ||
| 90389-16026 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
8 | ||
| 90389-16026 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
8 | ||
| 90389-16026 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
8 | ||
| 90389-16026 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
8 | ||
| 90389-16026 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37570 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-37570 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-37570 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-37570 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-37570 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-37570 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-37570 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-37570 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-37570 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-37570 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-37570 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-37570 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48204-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48204-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48204-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48204-37570 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48204-37570 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48204-37570 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48204-37570 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48204-37570 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48204-37570 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48204-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48204-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48204-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37830 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37830 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37830 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37830 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37830 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37830 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
2 | ||
| 48247-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
2 | ||
| 48247-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
2 | ||
| 48247-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) |
2 | ||
| 48247-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) |
2 | ||
| 48247-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
6 | ||
| 48282-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
6 | ||
| 48282-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
6 | ||
| 48282-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
6 | ||
| 48282-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
6 | ||
| 48282-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
6 | ||
| 48282-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
6 | ||
| 48282-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
6 | ||
| 48282-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
6 | ||
| 48282-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
6 | ||
| 48282-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
6 | ||
| 48282-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
6 | ||
| 48282-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
6 | ||
| 48282-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
6 | ||
| 48282-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
6 | ||
| 48282-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
6 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
8 | ||
| 48252-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
8 | ||
| 48252-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
8 | ||
| 48252-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
8 | ||
| 48252-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
8 | ||
| 48252-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
8 | ||
| 48252-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
8 | ||
| 48252-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
8 | ||
| 48252-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
8 | ||
| 48252-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
8 | ||
| 48252-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
8 | ||
| 48252-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
8 | ||
| 48252-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
8 | ||
| 48252-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
8 | ||
| 48252-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
8 | ||
| 48252-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
8 | ||
| 48252-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
8 | ||
| 48252-37570 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,37#,382..T3..(295T,30T)..(DSL,EFI,LPG) |
8 | ||
| 48252-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
8 | ||
| 48252-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
8 | ||
| 48252-37570 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48263-37710 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
4 | ||
| 48263-37710 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
4 | ||
| 48263-37710 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
4 | ||
| 48263-37710 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) |
4 | ||
| 48263-37710 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) |
4 | ||
| 48263-37710 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48263-37710 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
4 | ||
| 48263-37710 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
4 | ||
| 48263-37710 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
4 | ||
| 48263-37710 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) |
4 | ||
| 48263-37710 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) |
4 | ||
| 48263-37710 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48282-37711 |
XZU341..6F..295T;XZU301,331..5F..DSLL..IV4;XZU331,340,341..30T..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
4 | ||
| 48282-37711 |
XZU341..6F..295T;XZU301,331..5F..DSLL..IV4;XZU331,340,341..30T..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
4 | ||
| 48282-37711 |
XZU341..6F..295T;XZU301,331..5F..DSLL..IV4;XZU331,340,341..30T..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
4 | ||
| 48282-37710 |
XZU301,331..5F..DSLL..IV4;XZU331,340,341..(295T,30T)..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG) |
4 | ||
| 48282-37710 |
XZU301,331..5F..DSLL..IV4;XZU331,340,341..(295T,30T)..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG) |
4 | ||
| 48282-37710 |
XZU301,331..5F..DSLL..IV4;XZU331,340,341..(295T,30T)..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG) |
4 | ||
| 48282-37711 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
4 | ||
| 48282-37711 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
4 | ||
| 48282-37711 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48282-37711 |
XZU341..6F..295T;XZU301,331..5F..DSLL..IV4;XZU331,340,341..30T..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
4 | ||
| 48282-37711 |
XZU341..6F..295T;XZU301,331..5F..DSLL..IV4;XZU331,340,341..30T..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
4 | ||
| 48282-37711 |
XZU341..6F..295T;XZU301,331..5F..DSLL..IV4;XZU331,340,341..30T..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
4 | ||
| 48282-37710 |
XZU301,331..5F..DSLL..IV4;XZU331,340,341..(295T,30T)..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG) |
4 | ||
| 48282-37710 |
XZU301,331..5F..DSLL..IV4;XZU331,340,341..(295T,30T)..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG) |
4 | ||
| 48282-37710 |
XZU301,331..5F..DSLL..IV4;XZU331,340,341..(295T,30T)..(DSL,LPG);RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG) |
4 | ||
| 48282-37711 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
4 | ||
| 48282-37711 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
4 | ||
| 48282-37711 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,378,388..T3..30T |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-37830 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48261-37830 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48261-37830 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48261-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48261-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48261-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48261-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48261-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48261-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48261-37830 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48261-37830 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48261-37830 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48262-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48262-37710 |
XZU331..DSL;XZU340,341..30T;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;XZU301..T3..5F..30T..DSL..IV3;XZU301..T3..5F..30T..(CBU,IV4,IV6);BZU340,RZU300,XZU300,302,330..T3..30T MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48262-37830 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48262-37830 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48262-37830 |
XZU331,340,341..SCB..30T;XZU301..T3..30T..DSL..(CBU,IV3);BZU340,RZU300,XZU300,302,330..T3..30T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48262-37830 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48262-37830 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48262-37830 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3) ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=48210-37830:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48262-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48262-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48262-37710 |
XZU331,341,344..30T;BZU340,RZU300,XZU301,304,334..T3..30T..(CBU,IV3,IV4,IV6) MARK=48210-37710:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=136:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48155-3B470 |
XZU331..DSL;XZU340,341..4FC,6F;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,350,37#,382..T3..(295T,30T,40T)..(DSL,EFI,LPG) |
2 | ||
| 48155-3B470 |
XZU331..DSL;XZU340,341..4FC,6F;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,350,37#,382..T3..(295T,30T,40T)..(DSL,EFI,LPG) |
2 | ||
| 48155-3B470 |
XZU331..DSL;XZU340,341..4FC,6F;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330,350,37#,382..T3..(295T,30T,40T)..(DSL,EFI,LPG) |
2 | ||
| 48155-3B470 |
XZU331,341,344..30T,35T;BZU300,340,RZU300,XZU301,304,334,354,378,388..T3..(30T,40T) |
2 | ||
| 48155-3B470 |
XZU331,341,344..30T,35T;BZU300,340,RZU300,XZU301,304,334,354,378,388..T3..(30T,40T) |
2 | ||
| 48155-3B470 |
XZU331,341,344..30T,35T;BZU300,340,RZU300,XZU301,304,334,354,378,388..T3..(30T,40T) |
2 | ||
ILLUST NO. 1 OF 3(0406- )XZU301,304,306,308,31#,334,35#..03S,06S,DM2,DM5,T3..20T,30T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 48042-37020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 48042-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
2 | ||
| 48042-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37180 |
XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG) |
1 | ||
| 48473-37180 |
XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG) |
1 | ||
| 48473-37180 |
BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T) |
1 | ||
| 48473-37180 |
BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T) |
1 | ||
| 48473-37180 |
XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T) |
1 | ||
| 48473-37180 |
XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T) |
1 | ||
| 48473-37180 |
BZU300,RZU300,XZU301,304,334,354..T3;BZU340,XZU331,341,344,346,378,388..T3,T4 |
1 | ||
| 48473-37180 |
BZU300,RZU300,XZU301,304,334,354..T3;BZU340,XZU331,341,344,346,378,388..T3,T4 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16024 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG) 長さ=310 |
4 | ||
| 90117-16024 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG) 長さ=310 |
4 | ||
| 90117-16024 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T 長さ=310 |
4 | ||
| 90117-16024 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T 長さ=310 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16024 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG) 長さ=310 |
4 | ||
| 90117-16024 |
XZU331..DSL;XZU340,341..295T,30T;XZU301,331..5F..DSLL..IV4;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T)..(DSL,EFI,LPG) 長さ=310 |
4 | ||
| 90117-16024 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T 長さ=310 |
4 | ||
| 90117-16024 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T 長さ=310 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37180 |
BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T) |
1 | ||
| 48473-37180 |
BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T) |
1 | ||
| 48473-37180 |
XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG) |
1 | ||
| 48473-37180 |
XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG) |
1 | ||
| 48473-37180 |
XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T) |
1 | ||
| 48473-37180 |
XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T) |
1 | ||
| 48473-37180 |
BZU300,RZU300,XZU301,304,334,354..T3;BZU340,XZU331,341,344,346,378,388..T3,T4 |
1 | ||
| 48473-37180 |
BZU300,RZU300,XZU301,304,334,354..T3;BZU340,XZU331,341,344,346,378,388..T3,T4 |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37200 |
XZU331,340,341..295T,30T;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T) |
2 | ||
| 48344-37200 |
XZU331,340,341..295T,30T;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T) |
2 | ||
| 48344-37200 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T |
2 | ||
| 48344-37200 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37200 |
XZU331,340,341..295T,30T;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T) |
2 | ||
| 48344-37200 |
XZU331,340,341..295T,30T;BZU300,340,RZU300,XZU300,301,302,330..T3..(295T,30T) |
2 | ||
| 48344-37200 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T |
2 | ||
| 48344-37200 |
XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334..T3..30T |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-37010 |
BZU300,RZU300,XZU300,301,302..T3;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,37#,382..20T,295T,30T |
2 | ||
| 48422-37010 |
BZU300,RZU300,XZU300,301,302..T3;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,37#,382..20T,295T,30T |
2 | ||
| 48422-37010 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
2 | ||
| 48422-37010 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-37010 |
BZU300,RZU300,XZU300,301,302..T3;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,37#,382..20T,295T,30T |
2 | ||
| 48422-37010 |
BZU300,RZU300,XZU300,301,302..T3;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,37#,382..20T,295T,30T |
2 | ||
| 48422-37010 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
2 | ||
| 48422-37010 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BZU300,RZU300,XZU300,301,302..T3;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,350,37#,382 |
4 | ||
| 48435-36050 |
BZU300,RZU300,XZU300,301,302..T3;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,350,37#,382 |
4 | ||
| 48435-36050 |
BZU340,RZU340,XZU331,34#,378,388;BZU300,RZU300,XZU301,304,334,354..T3 |
4 | ||
| 48435-36050 |
BZU340,RZU340,XZU331,34#,378,388;BZU300,RZU300,XZU301,304,334,354..T3 |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BZU300,RZU300,XZU300,301,302..T3;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,350,37#,382 |
4 | ||
| 48435-36050 |
BZU300,RZU300,XZU300,301,302..T3;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,350,37#,382 |
4 | ||
| 48435-36050 |
BZU340,RZU340,XZU331,34#,378,388;BZU300,RZU300,XZU301,304,334,354..T3 |
4 | ||
| 48435-36050 |
BZU340,RZU340,XZU331,34#,378,388;BZU300,RZU300,XZU301,304,334,354..T3 |
4 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37081 |
XZU331,34#,372,382..(T3,T4)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,350,371..T3..(DSL,EFI,LPG) |
2 | ||
| 48481-37081 |
XZU331,34#,372,382..(T3,T4)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,350,371..T3..(DSL,EFI,LPG) |
2 | ||
| 48481-37080 |
BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T) |
2 | ||
| 48481-37080 |
BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T) |
2 | ||
| 48481-37081 |
BZU340,XZU331,340,341,342,346,347,372,382..T3,T4;BU346,BZU300,RZU300,XZU300,301,302,330,350,371..T3 |
2 | ||
| 48481-37081 |
BZU340,XZU331,340,341,342,346,347,372,382..T3,T4;BU346,BZU300,RZU300,XZU300,301,302,330,350,371..T3 |
2 | ||
| 48481-37081 |
BZU300,RZU300,XZU301,304,334,354..T3;BZU340,XZU331,341,344,346,378,388..T3,T4 |
2 | ||
| 48481-37081 |
BZU300,RZU300,XZU301,304,334,354..T3;BZU340,XZU331,341,344,346,378,388..T3,T4 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80673 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347..20T,295T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48531-80673 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347..20T,295T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48531-80673 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48531-80673 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80673 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347..20T,295T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48531-80673 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347..20T,295T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48531-80673 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48531-80673 |
BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T ﾏｰｸ 48531−37010 |
1 | ||
| Common parts | ||||
| 90105-10438 | ||||
| 90105-16021 | ||||
| 90105-16070 | ||||
| 90105-16075 | ||||
| 90119-08336 | ||||
| 90119-10740 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91512-81045 | ||||
| 91645-C1032 | ||||
| 91651-B0820 | ||||
| 94130-61600 | ||||
| 94150-81000 | ||||
| 94184-61001 | ||||
ILLUST NO. 3 OF 3(9905- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU
MAIN 7+HELPER 6-LEAF
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU
MAIN 7+HELPER 6-LEAF,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0206-0406)BU410,420,BZU410,XZU402,410,412,414,421..T4,T5..20T..IV3 ; (0406-0610)XZ
MAIN 2+HELPER 2-LEAF,TYPE:D
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0406-0610)XZU413,414,421,424..20T..IV3 ; (0406-0610)XZU401,411,423..T4..20T..IV3 ;
MAIN 2+HELPER 2-LEAF,TYPE:D
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9905-0406)BU410,420,430,BZU410,XZU401,410,411,412,42#..30T,35T..IV3 ; (0406-0705)X
MAIN 2+HELPER 2-LEAF,TYPE:B
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0406-0610)XZU40#,411,413,414,42#,433..T4..30T,35T ; (0406-0705)BZU410..30T ; (0610
MAIN 2+HEALPER 2-LEAF,TYPE:A
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
