XZU331-TKMQS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Oct 2006
Engine S05D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0406- )XZU301..5F..CBU,IV6 ; (0406- )XZU301..DM6,T3,T4,T5..5F..IV3 ; (0406-

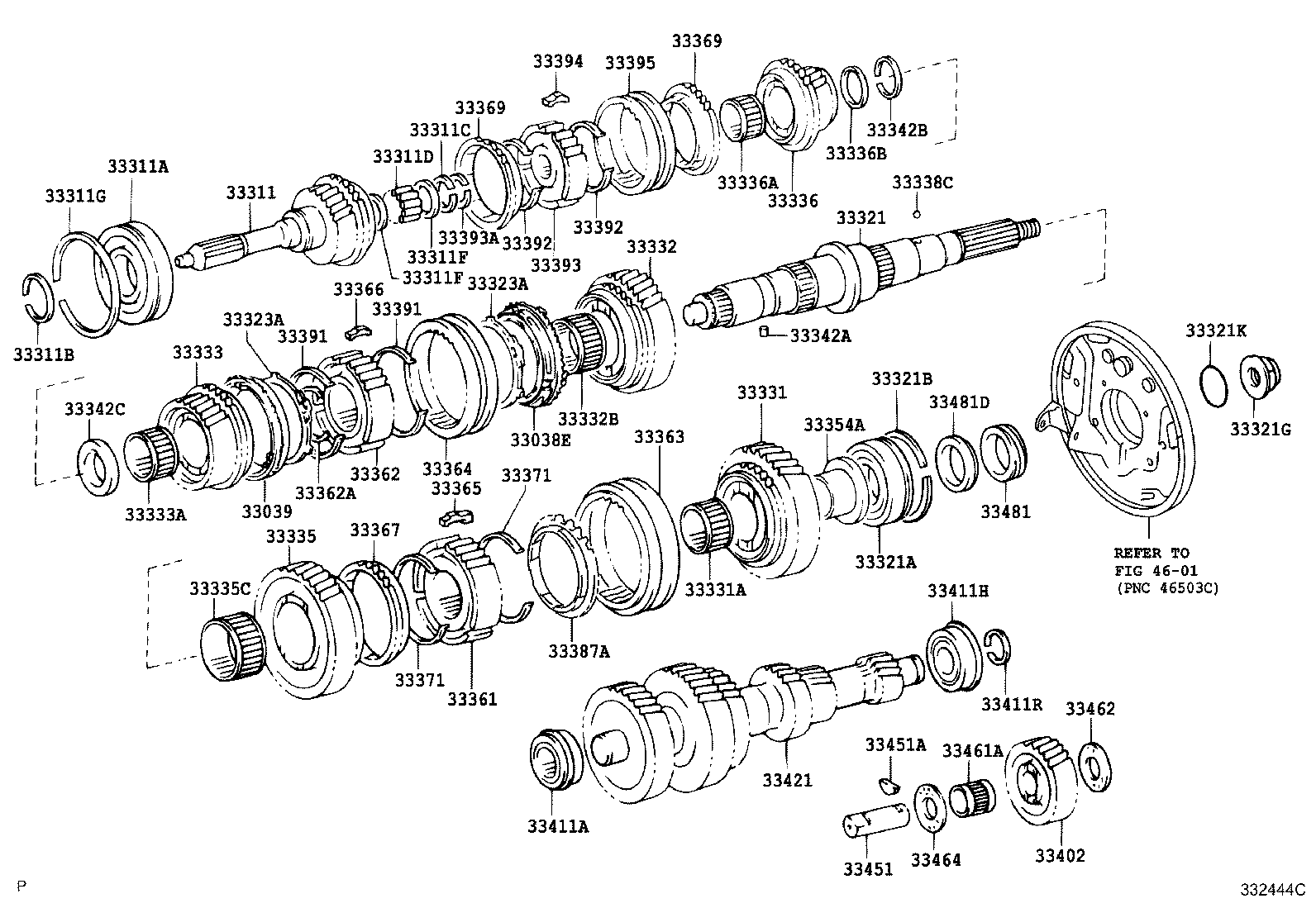

Click highlighted areas on diagram

M155

diagram 33038E 33039 33311 33311A 33311B 33311C 33311D 33311F 33311F 33311G 33321 33321A 33321B 33321G 33321K 33323A 33323A 33331 33331A 33332 33332B 33333 33333A 33335 33335C 33336 33336A 33336B 33338C 33342A 33342B 33342C 33354A 33361 33362 33362A 33363 33364 33365 33366 33367 33369 33369 33371 33371 33387A 33391 33391 33392 33392 33393 33393A 33394 33395 33402 33411A 33411H 33411R 33421 33451 33451A 33461A 33462 33464 33481 33481D 4601
Part # Description Qty Price
33038E - RING SET, SYNCHRONIZER, NO.2
33037-37021

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU300,306,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)

 1
33037-37022

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33039 - RING SET, SYNCHRONIZER, NO.3
33038-37011

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU300,306,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)

 1
33038-37012

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33311 - SHAFT, INPUT
33301-37150

XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL)

 1
33301-37200

XZU302..DM3,T3;XZU301..5F..IV4;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL)

 1
33311-37280

XZU301,306,331,336,341,346..5F

 1
33311A - BEARING (FOR INPUT SHAFT FRONT)
90363-50007

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-99010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.36−2.46

 1
33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER)
96151-04500

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 1
33311D - BEARING, INPUT SHAFT
90361-09002

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 12
33311F - SPACER (FOR INPUT SHAFT)
90560-38004

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 2
33311F - SPACER (FOR INPUT SHAFT)
90560-38004

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 2
33321 - SHAFT, OUTPUT
33321-37060

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33302-37020

XZU304,334..5F..(DCRL,DSLL);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F

 1
33321A - BEARING (FOR OUTPUT SHAFT REAR)
90363-38007

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
90179-24008

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321,340..MTM..1NO;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,BZU300,XZU31#,320..(DM5,DM6,DM7,T1,T4,T5)..5F;RZU300,XZU300,302,330,331,341..(DM3,T2,T3,T4,T5)..MTM..(20T,295T,30T);BU306,346,BZU340,RZU301,340,XZU306,307,321,337,342,346,347,351,352..(03S,06S,DM2,DM5,DM8,T2,T3,T4,T5)..5F..20T

 1
33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NU
90301-31003

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321,340..MTM..1NO;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,BZU300,XZU31#,320..(DM5,DM6,DM7,T1,T4,T5)..5F;RZU300,XZU300,302,330,331,341..(DM3,T2,T3,T4,T5)..MTM..(20T,295T,30T);BU306,346,BZU340,RZU301,340,XZU306,307,321,337,342,346,347,351,352..(03S,06S,DM2,DM5,DM8,T2,T3,T4,T5)..5F..20T

 1
33331 - GEAR, REVERSE
33331-37050

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33331A - BEARING (FOR REVERSE GEAR)
90364-47008

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33332 - GEAR, 2ND
33033-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
90364-50003

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33333 - GEAR, 3RD
33034-37030

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33034-37050

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33044-37010

XZU334..T3..5F;XZU304..IV7..4NO;XZU304..30T..CBU;XZU304..30T..DCRL..IV3..4NO;XZU304..(DM6,T3,T4)..5F..(DCRL,DSLL)..(IV3,IV4,IV7);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F

 1
33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
90364-58007

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33335 - GEAR, 1ST
33335-37080

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
90364-44004

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33336 - GEAR, 5TH
33036-37040

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33036-37050

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33336-37060

XZU304,334..5F..(DCRL,DSLL);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F

 1
33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR)
90364-38020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33354A - RACE, REVERSE GEAR BEARING, INNER
33354-37010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33361 - HUB, TRANSMISSION CLUTCH, NO.1
33361-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33362 - HUB, TRANSMISSION CLUTCH, NO.2
33361-37040

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
90520-28054

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=1.90−1.95,ﾏｰｸ 4

 1
90520-28057

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.05−2.10,ﾏｰｸ 7

 1
90520-28058

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.10−2.15,ﾏｰｸ 8

 1
90520-28055

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=1.95−2.00,ﾏｰｸ 5

 1
90520-28056

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.00−2.05,ﾏｰｸ 6

 1
90520-28059

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.15−2.20,ﾏｰｸ 9

 1
33363 - SLEEVE, TRANSMISSION HUB, NO.1
33363-37040

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33364 - SLEEVE, TRANSMISSION HUB, NO.2
33364-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU300,306,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)

 1
33364-37031

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 3
33366 - KEY, SYNCHROMESH SHIFTING, NO.2
33365-60010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 3
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33371-60010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33371-60010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33393 - HUB, TRANSMISSION CLUTCH, NO.3
33393-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33395 - SLEEVE, TRANSMISSION HUB, NO.3
33395-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
90365-30030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33411R - RING, SNAP, COUNTER GEAR REAR BEARING
90520-29034

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.50−2.55,ﾏｰｸ C

 1
90520-29033

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.45−2.50,ﾏｰｸ B

 1
90520-29035

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.55−2.60,ﾏｰｸ D

 1
90520-29032

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.40−2.45,ﾏｰｸ A

 1
90520-29038

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.70−2.75,ﾏｰｸ G

 1
90520-29036

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.60−2.65,ﾏｰｸ E

 1
90520-29037

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.65−2.70,ﾏｰｸ F

 1
33421 - GEAR, COUNTER
33421-37070

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33421-37120

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33451 - SHAFT, REVERSE IDLER GEAR
33451-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
90280-03002

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 1
33462 - WASHER, REVERSE IDLER THRUST
33462-60020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-36150

XZU312..SCB..5F..20T..IV3;XZU301..(DM3,T3)..5F..(20T,295T);RZU301,XZU301..5F..(CNG,LPG)..IV3;BU306,XZU302..SCB..(T4,T5)..5F..20T..WT;BZU300,XZU307,337..(03S,DM6,T2,T4,T5)..5F;XZU301..(T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU300,330,331,347..5F..(20T,30T)..(CBU,IV3);BU301,346,BZU340,XZU306,321,341,342,346,351,352..(DM5,DM8,T1,T3,T4,T5)..5F..(175T,20T)

歯数=6,ﾏｰｸ 6X20−22

 1
33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR)
33487-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
