2501 - EXHAUST GAS RECIRCULATION SYSTEM

XZU331-TKMQS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Oct 2006

Engine S05D

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9905-0406)J05C,S05#..DSL

Click highlighted areas on diagram

Part #	Description	Period	Qty
25601 - PIPE SUB-ASSY, EGR, NO.1
25610-78010	J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,372,382	05/1999 - 08/1999	1
25601-78060	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
25601-78010	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	08/1999 - 06/2004	1
25620 - VALVE ASSY, EGR
25620-78050	S05D..XZU301,306,311,321,331,336,341,346,351	05/2005 - 08/2005	1
25620-78041	J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL	10/2000 - 06/2002	1
25620-78040	J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL	05/1999 - 10/2000	1
25620-78042	S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL	06/2002 - 06/2004	1
25620-78030	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 05/2005	1
25620-78051	S05D..XZU301,306,311,321,331,336,341,346,351	08/2005 - 08/2006	1
25620-78052	S05D..XZU301,306,311,321,331,336,341,346,351	08/2006 - 10/2006	1
25627 - GASKET, EGR VALVE
25627-78010	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
25628 - GASKET, EGR INLET
17173-78030	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
Common parts
90031-05033
90031-05035
90031-05053
90031-05054
90031-16065
90031-16066
90031-16070
90031-75001
90031-75007
Linked diagrams
1708

(0406-0610)S05D

Click highlighted areas on diagram

Part #	Description	Period	Qty
25601 - PIPE SUB-ASSY, EGR, NO.1
25610-78010	J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,372,382	05/1999 - 08/1999	1
25601-78060	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
25601-78010	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	08/1999 - 06/2004	1
25608 - COOLER SUB-ASSY, EGR
25608-78040	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
25620 - VALVE ASSY, EGR
25620-78050	S05D..XZU301,306,311,321,331,336,341,346,351	05/2005 - 08/2005	1
25620-78041	J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL	10/2000 - 06/2002	1
25620-78040	J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL	05/1999 - 10/2000	1
25620-78042	S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL	06/2002 - 06/2004	1
25620-78030	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 05/2005	1
25620-78051	S05D..XZU301,306,311,321,331,336,341,346,351	08/2005 - 08/2006	1
25620-78052	S05D..XZU301,306,311,321,331,336,341,346,351	08/2006 - 10/2006	1
25625 - BRACKET, EGR VALVE
23849-78121	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
25627 - GASKET, EGR VALVE
25627-78010	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
25685 - GASKET, EGR COOLER, NO.1
25685-78010	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	3
25685 - GASKET, EGR COOLER, NO.1
25685-78010	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	3
25685 - GASKET, EGR COOLER, NO.1
25685-78010	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	3
Common parts
90031-05081
90031-05123
90031-05133
90031-05143
90031-05164
90031-75001
90031-75006
90034-45094
90034-45101
90034-67027
90034-68031
90034-68032
94613-10800
Linked diagrams
1603
1701

(0406-0610)N04C..XZU304..DSLL ; (0406-0610)N04C..XZU304..T3,T4,T5..DCRL ; (0406-061

Click highlighted areas on diagram

Part #	Description	Period	Qty

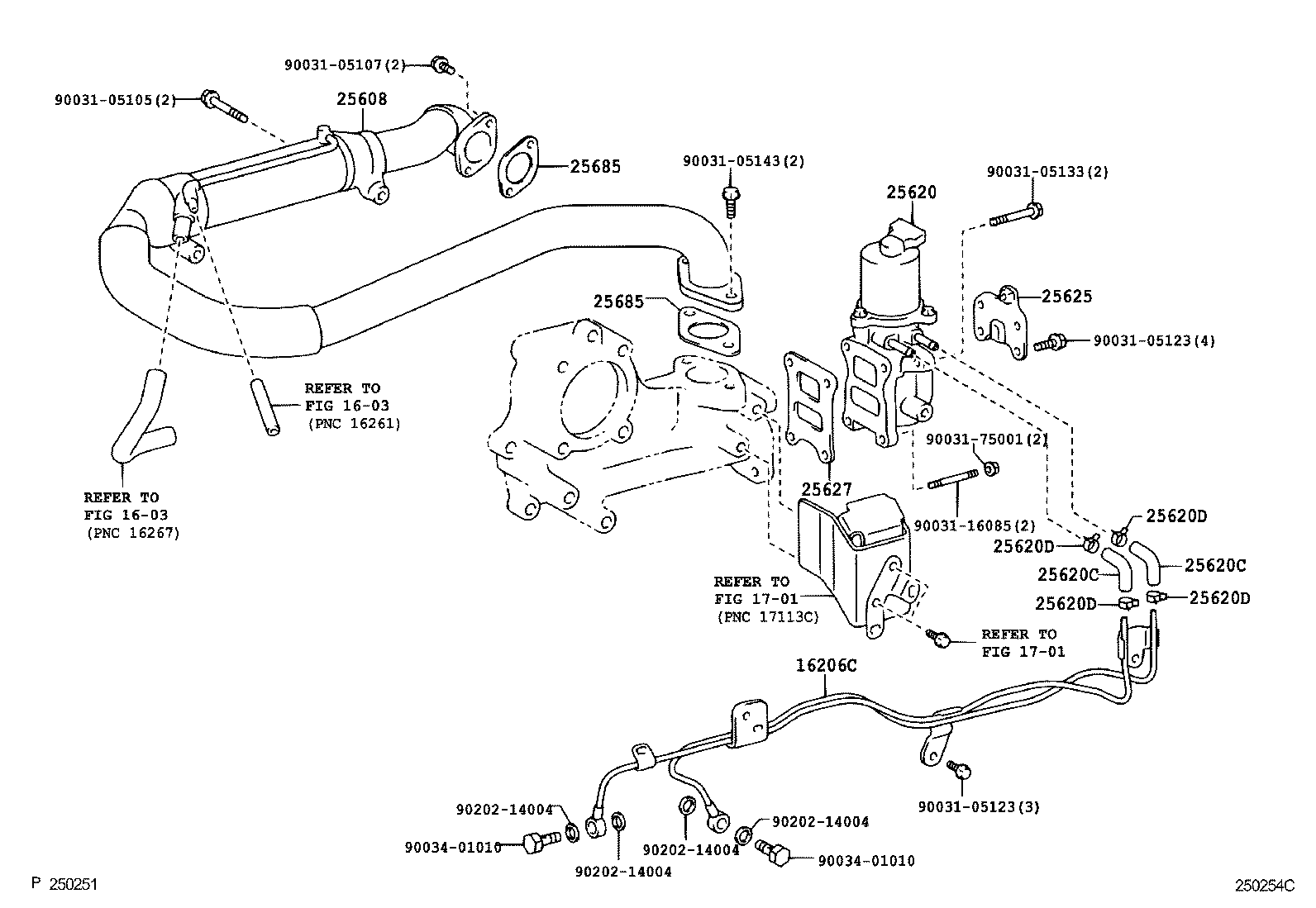

25608 - COOLER SUB-ASSY, EGR
25608-78040	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
25620 - VALVE ASSY, EGR
25620-78050	S05D..XZU301,306,311,321,331,336,341,346,351	05/2005 - 08/2005	1
25620-78041	J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL	10/2000 - 06/2002	1
25620-78040	J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL	05/1999 - 10/2000	1
25620-78042	S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL	06/2002 - 06/2004	1
25620-78030	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 05/2005	1
25620-78051	S05D..XZU301,306,311,321,331,336,341,346,351	08/2005 - 08/2006	1
25620-78052	S05D..XZU301,306,311,321,331,336,341,346,351	08/2006 - 10/2006	1
25625 - BRACKET, EGR VALVE
23849-78121	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
25627 - GASKET, EGR VALVE
25627-78010	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
25685 - GASKET, EGR COOLER, NO.1
25685-78010	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	3
25685 - GASKET, EGR COOLER, NO.1
25685-78010	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	3
Common parts
90031-05105
90031-05107
90031-05123
90031-05133
90031-05143
90031-16085
90031-75001
90034-01010
90202-14004
Linked diagrams
1603
1701

(9905-0406)J05C,S05#..DSL

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90031-05033
90031-05035
90031-05053
90031-05054
90031-16065
90031-16066
90031-16070
90031-75001
90031-75007
Linked diagrams
1708

(0406-0610)S05D

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90031-05081
90031-05123
90031-05133
90031-05143
90031-05164
90031-75001
90031-75006
90034-45101
90034-67027
90034-68031
90034-68032
94613-10800
Linked diagrams
1603
1701
