8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

XZU331-PKPQL4 (2000)

Toyota Dyna/Toyoace

Production May 2000 - Jun 2004

Engine S05D

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9905- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ- ﾏﾆｭｱﾙｴｱｺﾝ

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-37140	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
87104-37140	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
87104-37140	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3	10/2002 - 06/2004	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-37030	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3	10/2002 - 06/2004	1
87105-37030	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
87105-37030	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
87106A - SERVO SUB-ASSY, DAMPER
87106-37010	XZU347..DCB..5F;XZU306..T4..DSLL;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL..IV4;XZU307,312,372,382..DCB,VAN;BU30#,346..03S,06S,T1,T2,T3,T4,T5	05/1999 - 06/2002	1
87106-37010	XZU311;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU301,XZU300,320,330,337,340,341,342,346,371..(DSL,DSLL)..1NO;XZU302,307,312,321,322,347,351,352,362,372,382..SCB..(DSL,DSLL)	05/1999 - 06/2004	1
87106-37010	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3	10/2002 - 06/2004	1
87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-37020	XZU347..DCB..5F;XZU306..T4..DSLL;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL..IV4;XZU307,312,372,382..DCB,VAN;BU30#,346..03S,06S,T1,T2,T3,T4,T5	05/1999 - 06/2002	1
87106-37020	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3	10/2002 - 06/2004	1
87106-37020	XZU311;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU301,XZU300,320,330,337,340,341,342,346,371..(DSL,DSLL)..1NO;XZU302,307,312,321,322,347,351,352,362,372,382..SCB..(DSL,DSLL)	05/1999 - 06/2004	1
87106M - SERVO SUB-ASSY, DAMPER, NO.2
87106-37030	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3	10/2002 - 06/2004	1
87106-37030	XZU311;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU301,XZU300,320,330,337,340,341,342,346,371..(DSL,DSLL)..1NO;XZU302,307,312,321,322,347,351,352,362,372,382..SCB..(DSL,DSLL)	05/1999 - 06/2004	1
87106-37030	XZU347..DCB..5F;XZU306..T4..DSLL;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU307,312,372,382..DCB,VAN;BU30#,346..03S,06S,T1,T2,T3,T4,T5	05/1999 - 06/2002	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-37040	XZU347..DCB..5F;XZU306..T4..DSLL;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL..IV4;XZU307,312,372,382..DCB,VAN;BU30#,346..03S,06S,T1,T2,T3,T4,T5 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37250,識別記号 = D	05/1999 - 06/2002	1
87107-37040	XZU331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;RZU300,XZU306..20T..(DSL,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37200,識別記号 = A OR W	05/1999 - 06/2004	1
87107-37040	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37250,識別記号 = D	10/2002 - 06/2004	1
87107-37040	XZU311;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU301,XZU300,320,330,337,340,341,342,346,371..(DSL,DSLL)..1NO;XZU302,307,312,321,322,347,351,352,362,372,382..SCB..(DSL,DSLL) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37250,識別記号 = D	05/1999 - 06/2004	1
87107-37040	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-25010,識別記号 = J OR V	10/2002 - 06/2004	1
87107-37040	XZU301,302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU301,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37190,識別記号=J	05/2003 - 06/2004	1
87107-37040	XZU301,302,342;BU30#,346,BZU300,340,RZU30#,340,XZU300,306,307,31#,32#,33#,340,341,346,347,35#,362,37#,382..DSL,DSLL,EFI,LPG ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37280,識別記号 = A	05/2003 - 06/2004	1
87107-37040	XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306,331..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-25010,識別記号 = J OR V	06/2002 - 06/2004	1
87107-37040	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37200,識別記号 = A OR W	10/2002 - 06/2004	1
87107-37040	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37200,識別記号 = A OR W	05/1999 - 06/2002	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37120	XZU347..DCB..5F;XZU306..T4..DSLL;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU307,312,372,382..DCB,VAN;BU30#,346..03S,06S,T1,T2,T3,T4,T5 ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷﾏﾆﾕｱﾙｴｱｺﾝ)	05/1999 - 06/2002	1
87130-37100	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 ｱﾘ(ﾚﾊﾞ-ｼｷﾏﾆﾕｱﾙｴｱｺﾝ) OR ﾅｼ(ｴｱｺﾝ)	05/1999 - 06/2002	1
87130-37100	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 ｱﾘ(ﾚﾊﾞ-ｼｷﾏﾆﾕｱﾙｴｱｺﾝ) OR ﾅｼ(ｴｱｺﾝ)	10/2002 - 06/2004	1
87130-37100	XZU301..4FC..DSL;XZU341..6F..295T;XZU301..5F..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..T4..5F..DSL..CBU..4NO;XZU301..T4..5F..(CBU,IV6)..1NO;XZU341,351,352..(DM2,T3,T4)..(20T,30T)..DSL;XZU301..(DM3,DM6,T3,T5)..5F..(CBU,IV4,IV6,IV7);BU30#,346,XZU300,302,306,307,31#,32#,33#,340,342,346,347,350,362,37#,382..DSL ｱﾘ(ﾚﾊﾞ-ｼｷﾏﾆﾕｱﾙｴｱｺﾝ) OR ﾅｼ(ｴｱｺﾝ)	05/1999 - 06/2004	1
87130-37120	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷﾏﾆﾕｱﾙｴｱｺﾝ)	10/2002 - 06/2004	1
87130-37120	XZU311;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU301,XZU300,320,330,337,340,341,342,346,371..(DSL,DSLL)..1NO;XZU302,307,312,321,322,347,351,352,362,372,382..SCB..(DSL,DSLL) ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷﾏﾆﾕｱﾙｴｱｺﾝ)	05/1999 - 06/2004	1
87150 - RADIATOR ASSY, HEATER
87150-37200	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37200,識別記号 = A OR W	05/1999 - 06/2002	1
87150-37250	XZU347..DCB..5F;XZU306..T4..DSLL;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL..IV4;XZU307,312,372,382..DCB,VAN;BU30#,346..03S,06S,T1,T2,T3,T4,T5 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37250,識別記号 = D	05/1999 - 06/2002	1
87150-25010	XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306,331..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-25010,識別記号 = J OR V	06/2002 - 06/2004	1
87150-37250	XZU311;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU301,XZU300,320,330,337,340,341,342,346,371..(DSL,DSLL)..1NO;XZU302,307,312,321,322,347,351,352,362,372,382..SCB..(DSL,DSLL) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37250,識別記号 = D	05/1999 - 06/2004	1
87150-25010	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-25010,識別記号 = J OR V	10/2002 - 06/2004	1
87150-37200	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37200,識別記号 = A OR W	10/2002 - 06/2004	1
87150-37250	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37250,識別記号 = D	10/2002 - 06/2004	1
87150-37190	XZU301,302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU301,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37190,識別記号=J	05/2003 - 06/2004	1
87150-37200	XZU331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;RZU300,XZU306..20T..(DSL,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37200,識別記号 = A OR W	05/1999 - 06/2004	1
87150-37280	XZU301,302,342;BU30#,346,BZU300,340,RZU30#,340,XZU300,306,307,31#,32#,33#,340,341,346,347,35#,362,37#,382..DSL,DSLL,EFI,LPG ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37280,識別記号 = A	05/2003 - 06/2004	1
87441A - FILTER, HEATER AIR
87441-37010	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3	10/2002 - 06/2004	1
87441-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
87441D - FILTER, HEATER AIR, NO.2
87441-37031	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	10/2001 - 06/2004	1
87441-37030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 10/2001	1
87441-37031	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	10/2001 - 06/2002	1
87441-37031	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3	10/2002 - 06/2004	1
Common parts
90179-06274
90179-08057
90480-01529
91626-40620

ILLUST NO. 1 OF 2(9905- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ - ｵｰﾄｴｱｺﾝ

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-37140	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
87104-37140	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
87104-37140	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3	10/2002 - 06/2004	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-37030	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3	10/2002 - 06/2004	1
87105-37030	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
87105-37030	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
87106A - SERVO SUB-ASSY, DAMPER
87106-37010	XZU347..DCB..5F;XZU306..T4..DSLL;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL..IV4;XZU307,312,372,382..DCB,VAN;BU30#,346..03S,06S,T1,T2,T3,T4,T5	05/1999 - 06/2002	1
87106-37010	XZU311;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU301,XZU300,320,330,337,340,341,342,346,371..(DSL,DSLL)..1NO;XZU302,307,312,321,322,347,351,352,362,372,382..SCB..(DSL,DSLL)	05/1999 - 06/2004	1
87106-37010	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3	10/2002 - 06/2004	1
87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-37020	XZU347..DCB..5F;XZU306..T4..DSLL;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL..IV4;XZU307,312,372,382..DCB,VAN;BU30#,346..03S,06S,T1,T2,T3,T4,T5	05/1999 - 06/2002	1
87106-37020	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3	10/2002 - 06/2004	1
87106-37020	XZU311;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU301,XZU300,320,330,337,340,341,342,346,371..(DSL,DSLL)..1NO;XZU302,307,312,321,322,347,351,352,362,372,382..SCB..(DSL,DSLL)	05/1999 - 06/2004	1
87106M - SERVO SUB-ASSY, DAMPER, NO.2
87106-37030	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3	10/2002 - 06/2004	1
87106-37030	XZU311;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU301,XZU300,320,330,337,340,341,342,346,371..(DSL,DSLL)..1NO;XZU302,307,312,321,322,347,351,352,362,372,382..SCB..(DSL,DSLL)	05/1999 - 06/2004	1
87106-37030	XZU347..DCB..5F;XZU306..T4..DSLL;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU307,312,372,382..DCB,VAN;BU30#,346..03S,06S,T1,T2,T3,T4,T5	05/1999 - 06/2002	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-37040	XZU347..DCB..5F;XZU306..T4..DSLL;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL..IV4;XZU307,312,372,382..DCB,VAN;BU30#,346..03S,06S,T1,T2,T3,T4,T5 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37250,識別記号 = D	05/1999 - 06/2002	1
87107-37040	XZU331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;RZU300,XZU306..20T..(DSL,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37200,識別記号 = A OR W	05/1999 - 06/2004	1
87107-37040	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37250,識別記号 = D	10/2002 - 06/2004	1
87107-37040	XZU311;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU301,XZU300,320,330,337,340,341,342,346,371..(DSL,DSLL)..1NO;XZU302,307,312,321,322,347,351,352,362,372,382..SCB..(DSL,DSLL) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37250,識別記号 = D	05/1999 - 06/2004	1
87107-37040	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-25010,識別記号 = J OR V	10/2002 - 06/2004	1
87107-37040	XZU301,302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU301,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37190,識別記号=J	05/2003 - 06/2004	1
87107-37040	XZU301,302,342;BU30#,346,BZU300,340,RZU30#,340,XZU300,306,307,31#,32#,33#,340,341,346,347,35#,362,37#,382..DSL,DSLL,EFI,LPG ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37280,識別記号 = A	05/2003 - 06/2004	1
87107-37040	XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306,331..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-25010,識別記号 = J OR V	06/2002 - 06/2004	1
87107-37040	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37200,識別記号 = A OR W	10/2002 - 06/2004	1
87107-37040	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37200,識別記号 = A OR W	05/1999 - 06/2002	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37120	XZU347..DCB..5F;XZU306..T4..DSLL;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU307,312,372,382..DCB,VAN;BU30#,346..03S,06S,T1,T2,T3,T4,T5 ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷﾏﾆﾕｱﾙｴｱｺﾝ)	05/1999 - 06/2002	1
87130-37100	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 ｱﾘ(ﾚﾊﾞ-ｼｷﾏﾆﾕｱﾙｴｱｺﾝ) OR ﾅｼ(ｴｱｺﾝ)	05/1999 - 06/2002	1
87130-37100	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 ｱﾘ(ﾚﾊﾞ-ｼｷﾏﾆﾕｱﾙｴｱｺﾝ) OR ﾅｼ(ｴｱｺﾝ)	10/2002 - 06/2004	1
87130-37100	XZU301..4FC..DSL;XZU341..6F..295T;XZU301..5F..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..T4..5F..DSL..CBU..4NO;XZU301..T4..5F..(CBU,IV6)..1NO;XZU341,351,352..(DM2,T3,T4)..(20T,30T)..DSL;XZU301..(DM3,DM6,T3,T5)..5F..(CBU,IV4,IV6,IV7);BU30#,346,XZU300,302,306,307,31#,32#,33#,340,342,346,347,350,362,37#,382..DSL ｱﾘ(ﾚﾊﾞ-ｼｷﾏﾆﾕｱﾙｴｱｺﾝ) OR ﾅｼ(ｴｱｺﾝ)	05/1999 - 06/2004	1
87130-37120	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷﾏﾆﾕｱﾙｴｱｺﾝ)	10/2002 - 06/2004	1
87130-37120	XZU311;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU301,XZU300,320,330,337,340,341,342,346,371..(DSL,DSLL)..1NO;XZU302,307,312,321,322,347,351,352,362,372,382..SCB..(DSL,DSLL) ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷﾏﾆﾕｱﾙｴｱｺﾝ)	05/1999 - 06/2004	1
87150 - RADIATOR ASSY, HEATER
87150-37200	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37200,識別記号 = A OR W	05/1999 - 06/2002	1
87150-37250	XZU347..DCB..5F;XZU306..T4..DSLL;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL..IV4;XZU307,312,372,382..DCB,VAN;BU30#,346..03S,06S,T1,T2,T3,T4,T5 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37250,識別記号 = D	05/1999 - 06/2002	1
87150-25010	XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306,331..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-25010,識別記号 = J OR V	06/2002 - 06/2004	1
87150-37250	XZU311;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU301,XZU300,320,330,337,340,341,342,346,371..(DSL,DSLL)..1NO;XZU302,307,312,321,322,347,351,352,362,372,382..SCB..(DSL,DSLL) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37250,識別記号 = D	05/1999 - 06/2004	1
87150-25010	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-25010,識別記号 = J OR V	10/2002 - 06/2004	1
87150-37200	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37200,識別記号 = A OR W	10/2002 - 06/2004	1
87150-37250	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37250,識別記号 = D	10/2002 - 06/2004	1
87150-37190	XZU301,302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU301,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37190,識別記号=J	05/2003 - 06/2004	1
87150-37200	XZU331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;RZU300,XZU306..20T..(DSL,LPG);XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37200,識別記号 = A OR W	05/1999 - 06/2004	1
87150-37280	XZU301,302,342;BU30#,346,BZU300,340,RZU30#,340,XZU300,306,307,31#,32#,33#,340,341,346,347,35#,362,37#,382..DSL,DSLL,EFI,LPG ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=87150-37280,識別記号 = A	05/2003 - 06/2004	1
87441A - FILTER, HEATER AIR
87441-37010	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3	10/2002 - 06/2004	1
87441-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
87441D - FILTER, HEATER AIR, NO.2
87441-37031	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	10/2001 - 06/2004	1
87441-37030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 10/2001	1
87441-37031	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	10/2001 - 06/2002	1
87441-37031	XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3	10/2002 - 06/2004	1
Common parts
90179-06274
90179-08057
90480-01529
91626-40620

ILLUST NO. 1 OF 2(0610- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ

Part #	Description	Period	Qty	Price
Common parts
87128-37050
90179-06274
90179-08184
90480-01529
91554-80614

ILLUST NO. 1 OF 2(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
87116-12190
90099-00932
90099-02133
90099-02134
90099-02135
90099-02210
90099-05164
90119-06191
90179-08123
90950-01004
90950-01006
90950-01047
90950-01269
91611-41014
93540-15025
94115-40500
96111-10250
Linked diagrams
8715

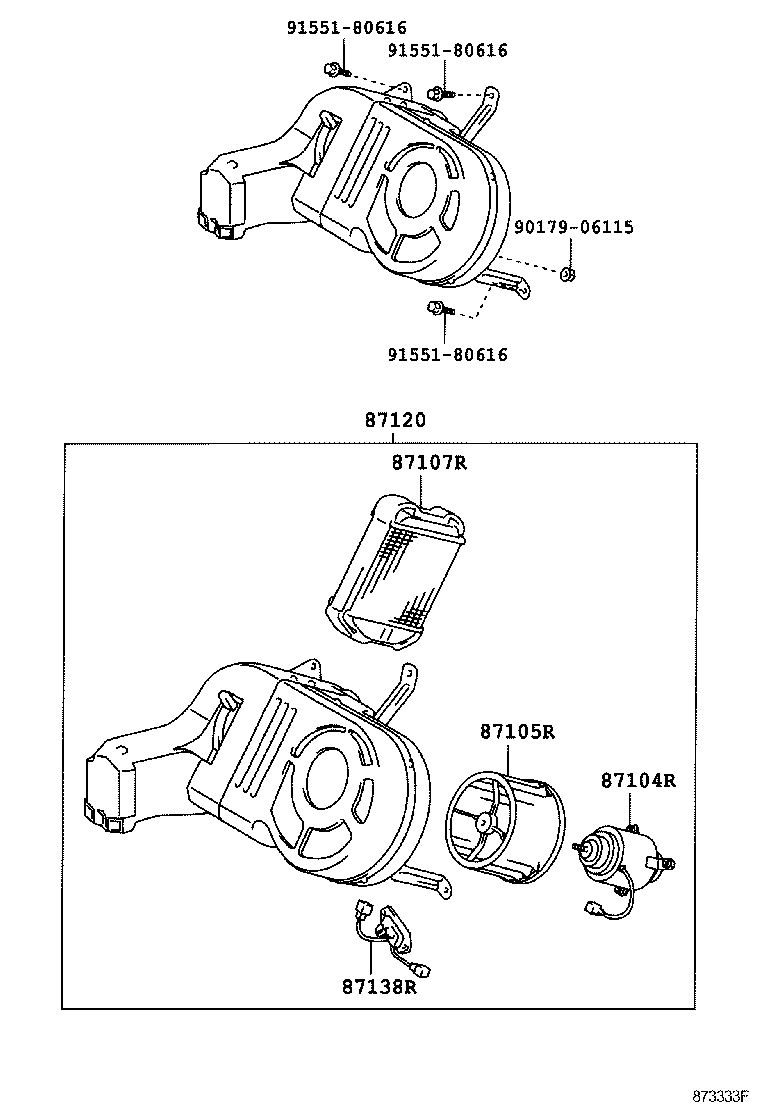

ILLUST NO. 2 OF 2(9905- )DCB

Click highlighted areas on diagram

ﾘﾔ

Part #	Description	Period	Qty	Price
Common parts
90179-06115
91551-80616

ILLUST NO. 1 OF 2(9905- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ - ﾏﾆｭｱﾙｴｱｺﾝ

Part #	Description	Period	Qty	Price
Common parts
90179-06274
90179-08057
90480-01529
91554-80614
91626-40620

ILLUST NO. 1 OF 2(9905- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ - ｵｰﾄｴｱｺﾝ

Part #	Description	Period	Qty	Price
Common parts
90179-06274
90179-08057
90480-01529
91554-80614
91626-40620
