Toyota Dyna/toyoace XZU331 SEAT & SEAT TRACK

XZU331-PKPQL4 (2000)

Toyota Dyna/Toyoace

Production May 2000 - Jun 2004

Engine S05D

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71610-37030	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 PLANT NO.C11,C21-C26,E11	05/1999 - 06/2002	1
71610-37030	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382 PLANT NO.C11,C21-C26,E11	05/1999 - 06/2004	1
71610-37030	XZU301,331..30T..DSLL..1NO PLANT NO.C11,C21-C26,E11	09/2003 - 06/2004	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-37550B4	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71071-37680B0	XZU301,331..DSLL..IV4 PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71071-37680B0	XZU301..295T..1NO;XZU300,302,330..T3..30T;XZU301..4FC..30T..(CBU,IV3)..1NO;XZU331,340,341..(20T,295T,30T)..DSL;BU301,RZU300,XZU301,37#,382..DCB..(DSL,EFI);BU30#,346,XZU301,302,306,307,312,337,342,346,347..(03S,06S,DM5,T2,T3,T4,T5)..20T..WT..DSL PLANT NO.A11 & ｼｰﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-37620B2	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	05/1999 - 12/2000	1
71073-37620B4	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	12/2000 - 07/2001	1
71073-37620B4	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	07/2001 - 06/2002	1
71073-37790B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..(DCB,VAN)..(DSL,EFI) ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71073-37790B0	XZU301,331..DSLL..IV4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
90386-12051	XZU301,331..4FC..DSLL..IV4;XZU301,306..(T3,T4)..DSLL..IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
90386-12051	XZU301,331..DSLL..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2003 - 06/2004	1
90386-12051	XZU300,302..T3;XZU301..295T..1NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301,302..(T4,T5)..20T..WT..DSL;XZU301..T3..4FC..DSL..(CBU,IV3,IV4);BU301,RZU300,XZU301,312,372,382..DCB..5F;BU30#,346,XZU306,307,33#,340,341,342,346,347,371..(03S,06S,T2,T3,T4,T5)..(20T,295T,30T)..WT..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
90386-12051	XZU301,331..4FC..DSLL..IV4;XZU301,306..(T3,T4)..DSLL..IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
90386-12051	XZU301,331..DSLL..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2003 - 06/2004	1
90386-12051	XZU300,302..T3;XZU301..295T..1NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301,302..(T4,T5)..20T..WT..DSL;XZU301..T3..4FC..DSL..(CBU,IV3,IV4);BU301,RZU300,XZU301,312,372,382..DCB..5F;BU30#,346,XZU306,307,33#,340,341,342,346,347,371..(03S,06S,T2,T3,T4,T5)..(20T,295T,30T)..WT..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-37710B2	BU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3) **,ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71410-37710	BU30#,RZU300,XZU307,31#,347..DCB **,ｼ-ﾄ = TYPE B-104	05/1999 - 06/2002	1
71410-3V020B1	BU30#,RZU300,XZU301,307,312,331,347,37#,382..(DCB,VAN)..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 08/2003	1
71410-3V020	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104	09/2003 - 06/2004	1
71410-3V020	BU30#,RZU300,XZU301,307,312,331,347,37#,382..(DCB,VAN)..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104	08/2003 - 06/2004	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-37860B0	BU30#,RZU300,XZU307,31#,347..DCB **,ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71040-37240B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71040-37240B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-37080	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71511-37080	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
71511-37080	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-37110	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71551-37100	XZU331..4FC..IV4;XZU347..DCB..T4..4FC;XZU301..4FC..DSLL..IV4;XZU307,312,372,382..DCB;XZU331,347..DCB..5F..DSL;XZU301,302..20T..DSL..IV3..1NO;XZU301..(DM6,T3)..DSL..(IV4,IV6,IV7);BU30#,346,RZU300,340,XZU350,371..T1,T2,T3,T4,T5;XZU301,302,306,341,342..(DM6,T3,T4)..(CNG,DSLL,LPG)..IV3 ｱﾘ(ｼ-ﾄﾊﾞﾂｸｻｽﾍﾟﾝｼﾖﾝ)	05/1999 - 06/2002	1
71551-37110	XZU301,331..30T..DSLL..1NO	09/2003 - 06/2004	1
71551-37110	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-37030	XZU301,331..4FC..DSLL..IV4;XZU301,306..(T3,T4)..DSLL..IV3 PLANT NO.C11,C21-C26,E11	05/1999 - 06/2002	1
71587-37030	XZU301,331..DSLL..IV4 PLANT NO.C11,C21-C26,E11	09/2003 - 06/2004	1
71587-37030	XZU300,302..T3;XZU301..295T..1NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301,302..(T4,T5)..20T..WT..DSL;XZU301..T3..4FC..DSL..(CBU,IV3,IV4);BU301,RZU300,XZU301,31#,372,382..DCB..5F;BU30#,346,XZU306,307,33#,340,341,342,346,347,371..(03S,06S,T2,T3,T4,T5)..(20T,295T,30T)..WT..DSL PLANT NO.C11,C21-C26,E11	05/1999 - 06/2004	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-37050	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DCB,SCB ｱﾘ(ｼ-ﾄﾊﾞﾂｸｻｽﾍﾟﾝｼﾖﾝ)	05/1999 - 06/2002	1
71630-37060	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
71630-37060	XZU301,331..30T..DSLL..1NO	09/2003 - 06/2004	1
71630-37060	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DCB,SCB	05/1999 - 06/2004	1
71811C - COVER, RECLINING ADJUSTER, RH
71811-37010B0	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
71811-37010B0	XZU301,331..30T..DSLL..1NO MD.CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71811-37010B0	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71848B - CAP, SEAT ADJUSTER COVER, RH
71848-89101	BU30#,RZU300,XZU307,31#,347..DCB,VAN	05/1999 - 06/2004	2
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-37020	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
72110-37020	XZU301,331..30T..DSLL..1NO	09/2003 - 06/2004	1
72110-37020	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-37020	XZU301,331..30T..DSLL..1NO	09/2003 - 06/2004	1
72130-37020	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
72130-37020	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH
72301-37030	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 PLANT NO.P11	05/1999 - 06/2002	1
72301-37030	XZU301,331..30T..DSLL..1NO PLANT NO.P11	09/2003 - 06/2004	1
72301-37030	XZU301..IV6..1NO;XZU306..T5..DSLL;XZU341..6F..295T;XZU351,352,362..DM2,DM7;XZU301,331..5F..DSLL..IV4;XZU341..(20T,30T)..(DSL,LPG);XZU301..(CNG,DSL,LPG)..(CBU,IV3,IV4,IV7);BU30#,346,RZU300,340,XZU300,302,306,307,31#,32#,33#,340,342,346,347,350,37#,382..CNG,DSL,EFI,LPG PLANT NO.P11	05/1999 - 06/2004	1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-37020	XZU301,331..30T..DSLL..1NO	09/2003 - 06/2004	1
72510-37020	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
72510-37020	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DCB,SCB	05/1999 - 06/2004	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-37010B0	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
72525-37010B0	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
72525-37010B0	XZU301,331..30T..DSLL..1NO MD.CHARCOAL,TRIM1#	09/2003 - 06/2004	1
73178B - CAP, SEAT BELT ANCHOR COVER
73178-95J00	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 10/1999	2
72137-37010	BU30#,RZU300,XZU301,307,312,331,347,37#,382..(DCB,VAN)..(DSL,EFI)	06/2002 - 06/2004	1
72137-37010	XZU301,331..DSLL..IV4	10/2002 - 06/2004	1
Common parts
90119-08134
90119-10111
90119-10229
90119-10825
90167-40044
90179-08149
90179-11010
90520-01274
91651-60614
Linked diagrams
7152

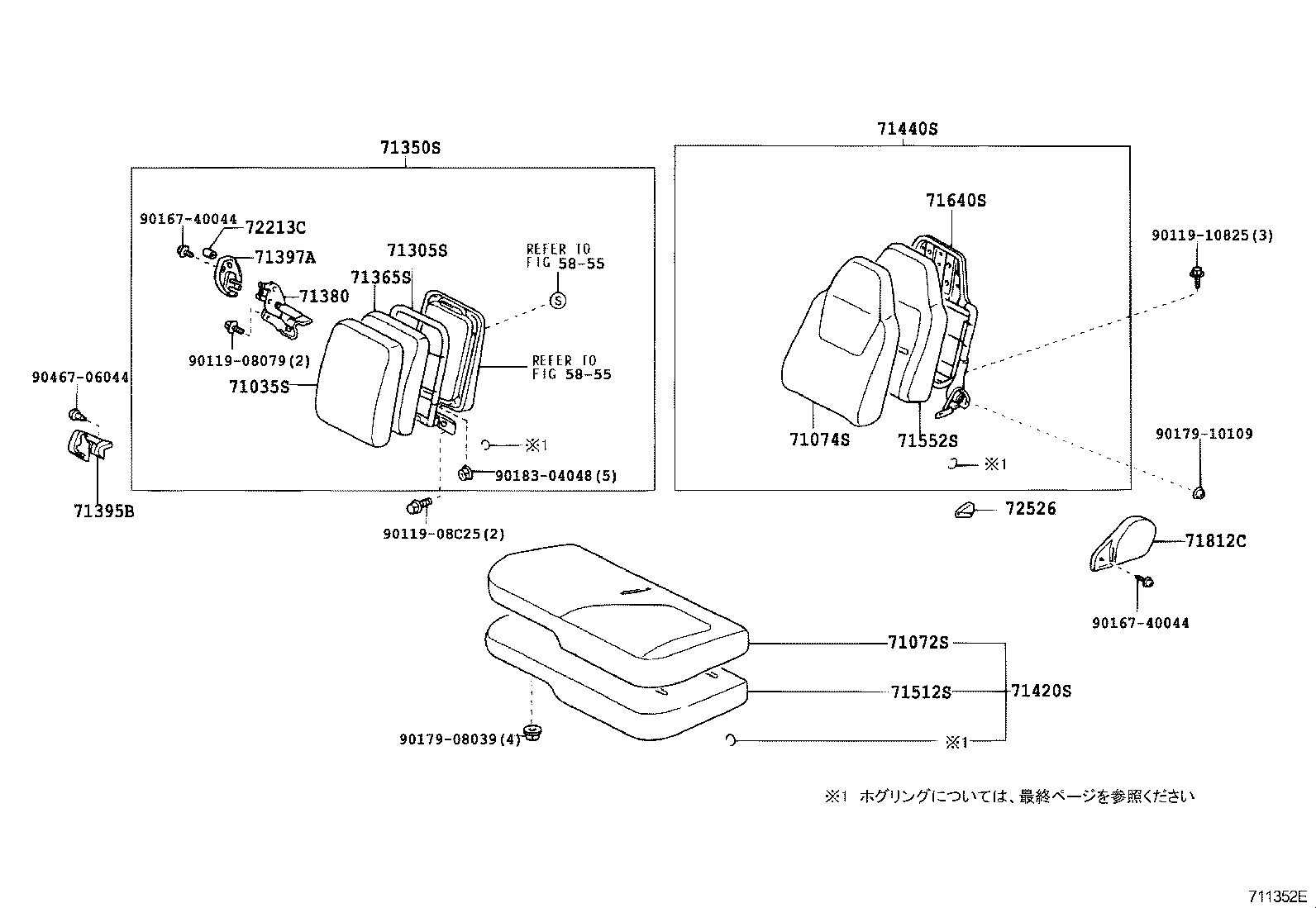

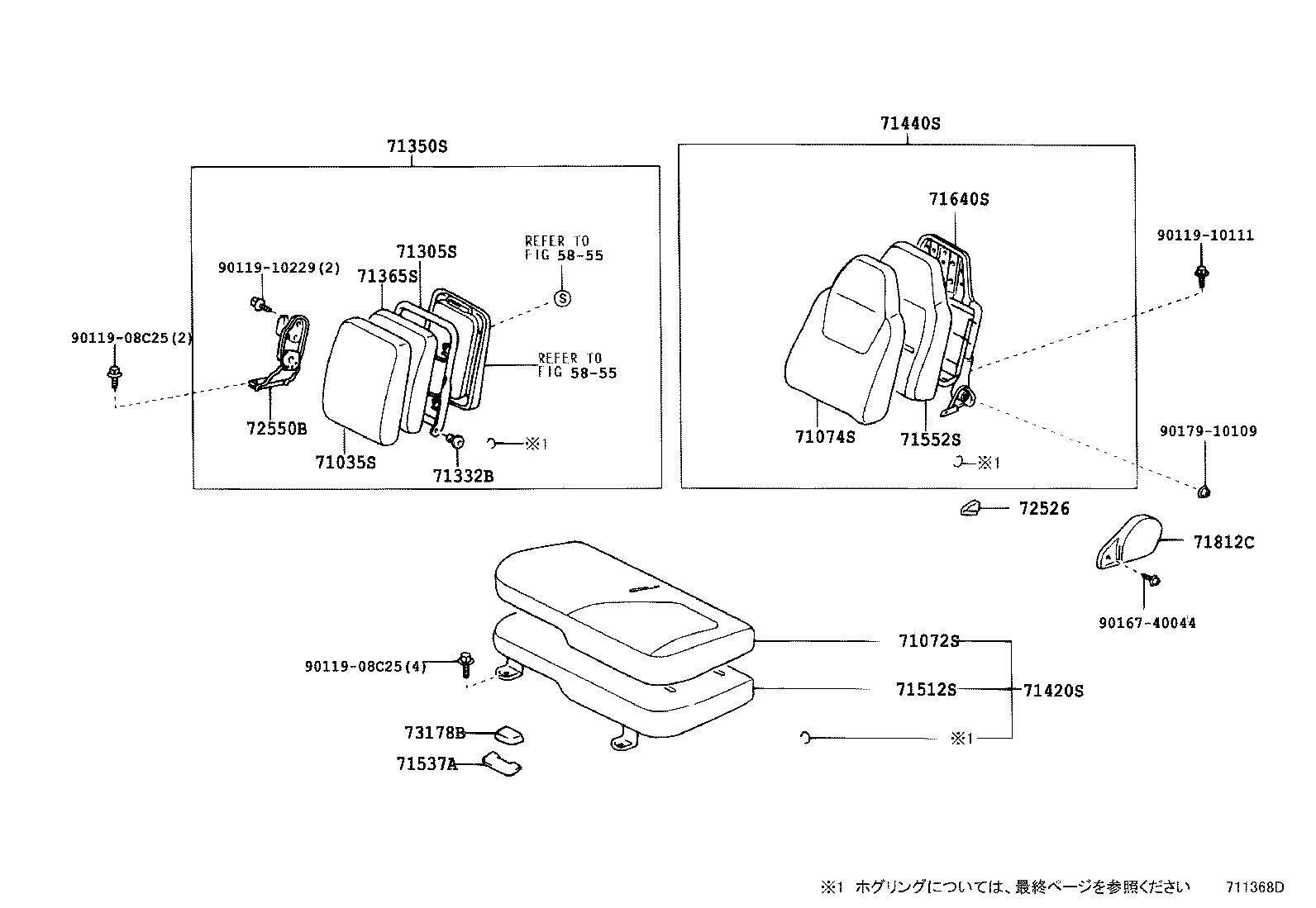

ILLUST NO. 2 OF 3(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ｼﾞﾖｼﾕｾｷ (ﾘｸﾗｲﾆﾝｸﾞｼｰﾄ)

Part #	Description	Period	Qty
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-37770B1	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71072-3V250B0	XZU301,331..DSLL..IV4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71072-3V250B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-37800B2	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	05/1999 - 12/2000	1
71074-37780B4	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	12/2000 - 07/2001	1
71074-37800B2	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	12/2000 - 05/2001	1
71074-37780B4	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	07/2001 - 06/2002	1
71074-37800B4	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	05/2001 - 06/2002	1
70169-37200B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
70169-37200B0	XZU301,331..DSLL..IV4 PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
90386-12051	XZU301,331..4FC..DSLL..IV4;XZU301,306..(T3,T4)..DSLL..IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
90386-12051	XZU301,331..DSLL..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2003 - 06/2004	1
90386-12051	XZU300,302..T3;XZU301..295T..1NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301,302..(T4,T5)..20T..WT..DSL;XZU301..T3..4FC..DSL..(CBU,IV3,IV4);BU301,RZU300,XZU301,312,372,382..DCB..5F;BU30#,346,XZU306,307,33#,340,341,342,346,347,371..(03S,06S,T2,T3,T4,T5)..(20T,295T,30T)..WT..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-3V130B0	BU30#,RZU300,XZU307,31#,347..DCB **,E ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71420-3V120B0	BU30#,RZU300,XZU307,31#,347..DCB **,E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71420-3V150B0	XZU301,331..DSLL..IV4;BU30#,RZU300,XZU307,347..DCB **,PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/2000 - 06/2002	1
71420-3V160B0	XZU301,331..DSLL..IV4;BU30#,RZU300,XZU307,347..DCB **,ｱﾘ(ﾋﾞﾆ-ﾙﾚｻﾞ- ｼ-ﾄ) & ｱﾘ(80) & ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#	05/2000 - 06/2002	1
71420-3V770B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71420-3V760B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71420-3V760B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71420-3V770B0	XZU301,331..DSLL..IV4 **,ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71070-37520B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71070-37210B0	BU30#,RZU300,XZU307,31#,347..DCB **,ｼｰﾄ = TYPE B-104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71070-37520B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-37140	XZU311..DCB;XZU347..DCB..T3..4FC;XZU301,331..DSLL..IV4	05/1999 - 06/2002	1
71052-37020	XZU301,331..DSLL..IV4 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ)	09/2003 - 06/2004	1
71502-37140	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71502-37140	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37080	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
71552-37080	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71552-37080	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-37040	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ)	05/1999 - 06/2002	1
71014-37080	XZU301,331..4FC..DSLL..IV4 ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	05/1999 - 06/2002	1
71014-37080	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	05/1999 - 06/2004	1
71014-37080	XZU301,331..DSLL..IV4 ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	09/2003 - 06/2004	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-37020B0	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71812-37020B0	XZU301,331..4FC..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71812-37020B0	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-37010B0	XZU301,331..4FC..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
72526-37010B0	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	1
72526-37010B0	XZU362..4NO;XZU382..IV3;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;XZU301,382..DCB..5F..(CBU,IV4);BU30#,RZU300,XZU307,31#,331,347,37#..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
Common parts
90119-08134
90119-08C25
90119-10111
90119-10229
90167-40044
90179-08149

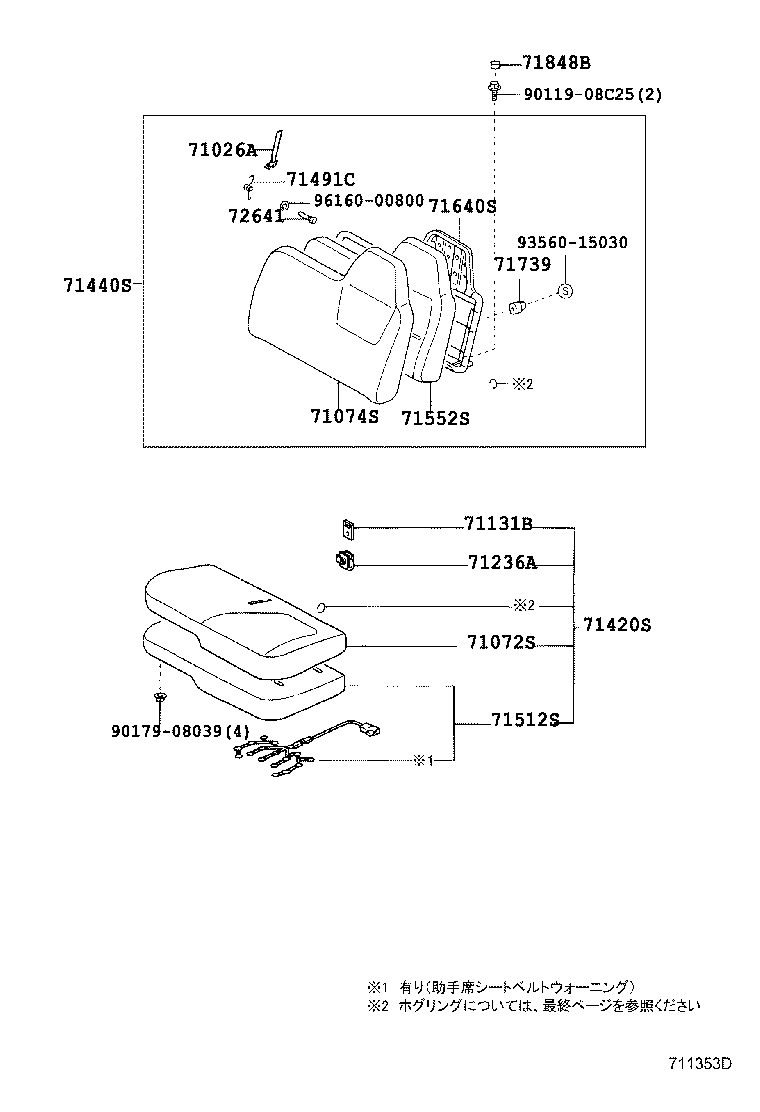

ILLUST NO. 2 OF 3(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ｼﾞﾖｼﾕｾｷ

Part #	Description	Period	Qty
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-37770B1	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71072-3V250B0	XZU301,331..DSLL..IV4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71072-3V250B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-37800B2	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	05/1999 - 12/2000	1
71074-37780B4	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	12/2000 - 07/2001	1
71074-37800B2	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	12/2000 - 05/2001	1
71074-37780B4	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	07/2001 - 06/2002	1
71074-37800B4	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	05/2001 - 06/2002	1
70169-37200B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
70169-37200B0	XZU301,331..DSLL..IV4 PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-37030	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
71131-37030	XZU301,331..30T..DSLL..1NO	09/2003 - 06/2004	1
71131-37030	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301,306..DSL,LPG;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382..DSL,DSLL,EFI,LPG	05/1999 - 06/2004	1
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-37010	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
71236-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301,306..DSL,LPG;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382..DSL,DSLL,EFI,LPG	05/1999 - 06/2004	1
71236-37010	XZU301,331..30T..DSLL..1NO	09/2003 - 06/2004	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-3V130B0	BU30#,RZU300,XZU307,31#,347..DCB **,E ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71420-3V120B0	BU30#,RZU300,XZU307,31#,347..DCB **,E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71420-3V150B0	XZU301,331..DSLL..IV4;BU30#,RZU300,XZU307,347..DCB **,PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/2000 - 06/2002	1
71420-3V160B0	XZU301,331..DSLL..IV4;BU30#,RZU300,XZU307,347..DCB **,ｱﾘ(ﾋﾞﾆ-ﾙﾚｻﾞ- ｼ-ﾄ) & ｱﾘ(80) & ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#	05/2000 - 06/2002	1
71420-3V770B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71420-3V760B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71420-3V760B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71420-3V770B0	XZU301,331..DSLL..IV4 **,ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71070-37520B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71070-37210B0	BU30#,RZU300,XZU307,31#,347..DCB **,ｼｰﾄ = TYPE B-104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71070-37520B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-37140	XZU311..DCB;XZU347..DCB..T3..4FC;XZU301,331..DSLL..IV4	05/1999 - 06/2002	1
71052-37020	XZU301,331..DSLL..IV4 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ)	09/2003 - 06/2004	1
71502-37140	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71502-37140	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37080	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
71552-37080	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71552-37080	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-37040	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ)	05/1999 - 06/2002	1
71014-37080	XZU301,331..4FC..DSLL..IV4 ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	05/1999 - 06/2002	1
71014-37080	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	05/1999 - 06/2004	1
71014-37080	XZU301,331..DSLL..IV4 ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	09/2003 - 06/2004	1
Common parts
90119-08C25
93560-15030
96160-00800

ILLUST NO. 2 OF 3(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ｼﾞﾖｼﾕｾｷ 2ﾆﾝｶﾞｹ & ｱﾘ(ｼｰﾄﾊﾞｯｸｺﾝｿｰﾙ)

Part #	Description	Period	Qty
71035S - COVER, FRONT SEAT BACK, CENTER
71095-37270B1	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	08/2002 - 04/2003	1
71095-37270B1	XZU301,331..DSLL..IV4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71095-37270B1	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	04/2003 - 06/2004	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-37770B1	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71072-3V250B0	XZU301,331..DSLL..IV4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71072-3V250B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-37800B2	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	05/1999 - 12/2000	1
71074-37780B4	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	12/2000 - 07/2001	1
71074-37800B2	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	12/2000 - 05/2001	1
71074-37780B4	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	07/2001 - 06/2002	1
71074-37800B4	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	05/2001 - 06/2002	1
70169-37200B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
70169-37200B0	XZU301,331..DSLL..IV4 PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-37030	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
71131-37030	XZU301,331..30T..DSLL..1NO	09/2003 - 06/2004	1
71131-37030	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301,306..DSL,LPG;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382..DSL,DSLL,EFI,LPG	05/1999 - 06/2004	1
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-37010	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
71236-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301,306..DSL,LPG;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382..DSL,DSLL,EFI,LPG	05/1999 - 06/2004	1
71236-37010	XZU301,331..30T..DSLL..1NO	09/2003 - 06/2004	1
71305S - FRAME SUB-ASSY, CENTER SEAT BACK
71305-37060	XZU311..DCB;XZU347..DCB..T3..4FC;XZU301,331..DSLL..IV4	05/1999 - 06/2002	1
71305-37060	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71305-37060	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71350S - BACK ASSY, FRONT SEAT, CENTER
71350-37480B1	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	06/2002 - 04/2003	1
71365S - PAD, CENTER SEAT BACK
71365-37050	XZU311..DCB;XZU347..DCB..T3..4FC;XZU301,331..DSLL..IV4	05/1999 - 06/2002	1
71365-37050	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71365-37050	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-3V130B0	BU30#,RZU300,XZU307,31#,347..DCB **,E ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71420-3V120B0	BU30#,RZU300,XZU307,31#,347..DCB **,E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71420-3V150B0	XZU301,331..DSLL..IV4;BU30#,RZU300,XZU307,347..DCB **,PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/2000 - 06/2002	1
71420-3V160B0	XZU301,331..DSLL..IV4;BU30#,RZU300,XZU307,347..DCB **,ｱﾘ(ﾋﾞﾆ-ﾙﾚｻﾞ- ｼ-ﾄ) & ｱﾘ(80) & ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#	05/2000 - 06/2002	1
71420-3V770B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71420-3V760B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71420-3V760B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71420-3V770B0	XZU301,331..DSLL..IV4 **,ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71070-37520B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71070-37210B0	BU30#,RZU300,XZU307,31#,347..DCB **,ｼｰﾄ = TYPE B-104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71070-37520B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-37140	XZU311..DCB;XZU347..DCB..T3..4FC;XZU301,331..DSLL..IV4	05/1999 - 06/2002	1
71052-37020	XZU301,331..DSLL..IV4 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ)	09/2003 - 06/2004	1
71502-37140	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71502-37140	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37080	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
71552-37080	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71552-37080	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-37040	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ)	05/1999 - 06/2002	1
71014-37080	XZU301,331..4FC..DSLL..IV4 ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	05/1999 - 06/2002	1
71014-37080	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	05/1999 - 06/2004	1
71014-37080	XZU301,331..DSLL..IV4 ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	09/2003 - 06/2004	1
71848B - CAP, SEAT ADJUSTER COVER, RH
71848-89101	BU30#,RZU300,XZU307,31#,347..DCB,VAN	05/1999 - 06/2004	2
71848B - CAP, SEAT ADJUSTER COVER, RH
71848-89101	BU30#,RZU300,XZU307,31#,347..DCB,VAN	05/1999 - 06/2004	2
Common parts
71739-37050
90105-08298
90119-06077
90119-08C25
90167-40044
90183-04048
93560-15016
93560-15030
96160-00800
Linked diagrams
5855

ILLUST NO. 2 OF 3(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ｼﾞﾖｼﾕｾｷ 2ﾆﾝｶﾞｹ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ

Part #	Description	Period	Qty
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-37770B1	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71072-3V250B0	XZU301,331..DSLL..IV4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71072-3V250B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-37800B2	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	05/1999 - 12/2000	1
71074-37780B4	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	12/2000 - 07/2001	1
71074-37800B2	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	12/2000 - 05/2001	1
71074-37780B4	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	07/2001 - 06/2002	1
71074-37800B4	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	05/2001 - 06/2002	1
70169-37200B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
70169-37200B0	XZU301,331..DSLL..IV4 PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-37030	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
71131-37030	XZU301,331..30T..DSLL..1NO	09/2003 - 06/2004	1
71131-37030	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301,306..DSL,LPG;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382..DSL,DSLL,EFI,LPG	05/1999 - 06/2004	1
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-37010	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
71236-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301,306..DSL,LPG;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382..DSL,DSLL,EFI,LPG	05/1999 - 06/2004	1
71236-37010	XZU301,331..30T..DSLL..1NO	09/2003 - 06/2004	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-3V130B0	BU30#,RZU300,XZU307,31#,347..DCB **,E ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71420-3V120B0	BU30#,RZU300,XZU307,31#,347..DCB **,E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71420-3V150B0	XZU301,331..DSLL..IV4;BU30#,RZU300,XZU307,347..DCB **,PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/2000 - 06/2002	1
71420-3V160B0	XZU301,331..DSLL..IV4;BU30#,RZU300,XZU307,347..DCB **,ｱﾘ(ﾋﾞﾆ-ﾙﾚｻﾞ- ｼ-ﾄ) & ｱﾘ(80) & ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#	05/2000 - 06/2002	1
71420-3V770B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71420-3V760B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71420-3V760B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71420-3V770B0	XZU301,331..DSLL..IV4 **,ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71070-37520B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71070-37210B0	BU30#,RZU300,XZU307,31#,347..DCB **,ｼｰﾄ = TYPE B-104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71070-37520B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-37140	XZU311..DCB;XZU347..DCB..T3..4FC;XZU301,331..DSLL..IV4	05/1999 - 06/2002	1
71052-37020	XZU301,331..DSLL..IV4 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ)	09/2003 - 06/2004	1
71502-37140	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71502-37140	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37080	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
71552-37080	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71552-37080	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-37040	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ)	05/1999 - 06/2002	1
71014-37080	XZU301,331..4FC..DSLL..IV4 ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	05/1999 - 06/2002	1
71014-37080	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	05/1999 - 06/2004	1
71014-37080	XZU301,331..DSLL..IV4 ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	09/2003 - 06/2004	1
71848B - CAP, SEAT ADJUSTER COVER, RH
71848-89101	BU30#,RZU300,XZU307,31#,347..DCB,VAN	05/1999 - 06/2004	2
71848B - CAP, SEAT ADJUSTER COVER, RH
71848-89101	BU30#,RZU300,XZU307,31#,347..DCB,VAN	05/1999 - 06/2004	2
Common parts
90119-08C25
93560-15030
96160-00800

ILLUST NO. 2 OF 3(9905-0406)DCB,VAN

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ & ｱﾘ(ｼｰﾄﾊﾞｯｸｺﾝｿｰﾙ)

Part #	Description	Period	Qty
71035S - COVER, FRONT SEAT BACK, CENTER
71095-37270B1	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	08/2002 - 04/2003	1
71095-37270B1	XZU301,331..DSLL..IV4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71095-37270B1	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	04/2003 - 06/2004	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-37770B1	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71072-3V250B0	XZU301,331..DSLL..IV4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71072-3V250B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-37800B2	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	05/1999 - 12/2000	1
71074-37780B4	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	12/2000 - 07/2001	1
71074-37800B2	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	12/2000 - 05/2001	1
71074-37780B4	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	07/2001 - 06/2002	1
71074-37800B4	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	05/2001 - 06/2002	1
70169-37200B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
70169-37200B0	XZU301,331..DSLL..IV4 PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71305S - FRAME SUB-ASSY, CENTER SEAT BACK
71305-37060	XZU311..DCB;XZU347..DCB..T3..4FC;XZU301,331..DSLL..IV4	05/1999 - 06/2002	1
71305-37060	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71305-37060	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71350S - BACK ASSY, FRONT SEAT, CENTER
71350-37480B1	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	06/2002 - 04/2003	1
71365S - PAD, CENTER SEAT BACK
71365-37050	XZU311..DCB;XZU347..DCB..T3..4FC;XZU301,331..DSLL..IV4	05/1999 - 06/2002	1
71365-37050	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71365-37050	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71380 - HINGE ASSY, CENTER SEAT, RH
71380-37010	XZU311..DCB;XZU347..DCB..T3..4FC;XZU301,331..DSLL..IV4	05/1999 - 06/2002	1
71380-37010	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71380-37010	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71395B - COVER, CENTER SEAT HINGE, RH
71395-37010B0	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
71395-37010B0	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71395-37010B0	XZU301,331..4FC..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71397A - COVER, CENTER SEAT HINGE
71397-37010B0	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71397-37010B0	XZU311..DCB;XZU347..DCB..T3..4FC;XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71397-37010B0	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331,37#,382..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-3V130B0	BU30#,RZU300,XZU307,31#,347..DCB **,E ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71420-3V120B0	BU30#,RZU300,XZU307,31#,347..DCB **,E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71420-3V150B0	XZU301,331..DSLL..IV4;BU30#,RZU300,XZU307,347..DCB **,PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/2000 - 06/2002	1
71420-3V160B0	XZU301,331..DSLL..IV4;BU30#,RZU300,XZU307,347..DCB **,ｱﾘ(ﾋﾞﾆ-ﾙﾚｻﾞ- ｼ-ﾄ) & ｱﾘ(80) & ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#	05/2000 - 06/2002	1
71420-3V770B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71420-3V760B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71420-3V760B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71420-3V770B0	XZU301,331..DSLL..IV4 **,ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71070-37520B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71070-37210B0	BU30#,RZU300,XZU307,31#,347..DCB **,ｼｰﾄ = TYPE B-104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71070-37520B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-37140	XZU311..DCB;XZU347..DCB..T3..4FC;XZU301,331..DSLL..IV4	05/1999 - 06/2002	1
71052-37020	XZU301,331..DSLL..IV4 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ)	09/2003 - 06/2004	1
71502-37140	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71502-37140	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37080	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
71552-37080	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71552-37080	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-37040	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ)	05/1999 - 06/2002	1
71014-37080	XZU301,331..4FC..DSLL..IV4 ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	05/1999 - 06/2002	1
71014-37080	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	05/1999 - 06/2004	1
71014-37080	XZU301,331..DSLL..IV4 ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	09/2003 - 06/2004	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-37020B0	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71812-37020B0	XZU301,331..4FC..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71812-37020B0	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
72213C - KNOB, SEAT TRACK ADJUSTING HANDLE, LH
72213-95J00B2	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	09/2003 - 06/2004	1
72213-95J00B2	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331,37#,382..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
72213-95J00B2	XZU311..DCB;XZU347..DCB..T3..4FC;XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-37010B0	XZU301,331..4FC..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
72526-37010B0	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	1
72526-37010B0	XZU362..4NO;XZU382..IV3;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;XZU301,382..DCB..5F..(CBU,IV4);BU30#,RZU300,XZU307,31#,331,347,37#..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
Common parts
90119-08079
90119-08C25
90119-10825
90167-40044
90179-08039
90179-10109
90183-04048
90467-06044
Linked diagrams
5855

ILLUST NO. 2 OF 3(9905-0406)DCB,VAN

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ

Part #	Description	Period	Qty
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-37770B1	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71072-3V250B0	XZU301,331..DSLL..IV4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71072-3V250B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-37800B2	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	05/1999 - 12/2000	1
71074-37780B4	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	12/2000 - 07/2001	1
71074-37800B2	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	12/2000 - 05/2001	1
71074-37780B4	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	07/2001 - 06/2002	1
71074-37800B4	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MEDIUM CHARCOAL,TRIM1#	05/2001 - 06/2002	1
70169-37200B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
70169-37200B0	XZU301,331..DSLL..IV4 PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-37030	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
71131-37030	XZU301,331..30T..DSLL..1NO	09/2003 - 06/2004	1
71131-37030	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301,306..DSL,LPG;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382..DSL,DSLL,EFI,LPG	05/1999 - 06/2004	1
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-37010	XZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3	05/1999 - 06/2002	1
71236-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301,306..DSL,LPG;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382..DSL,DSLL,EFI,LPG	05/1999 - 06/2004	1
71236-37010	XZU301,331..30T..DSLL..1NO	09/2003 - 06/2004	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-3V130B0	BU30#,RZU300,XZU307,31#,347..DCB **,E ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71420-3V120B0	BU30#,RZU300,XZU307,31#,347..DCB **,E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71420-3V150B0	XZU301,331..DSLL..IV4;BU30#,RZU300,XZU307,347..DCB **,PLANT NO.C11,C21-C26,E11 & ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/2000 - 06/2002	1
71420-3V160B0	XZU301,331..DSLL..IV4;BU30#,RZU300,XZU307,347..DCB **,ｱﾘ(ﾋﾞﾆ-ﾙﾚｻﾞ- ｼ-ﾄ) & ｱﾘ(80) & ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#	05/2000 - 06/2002	1
71420-3V770B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71420-3V760B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71420-3V760B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71420-3V770B0	XZU301,331..DSLL..IV4 **,ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71070-37520B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71070-37210B0	BU30#,RZU300,XZU307,31#,347..DCB **,ｼｰﾄ = TYPE B-104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ),MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71070-37520B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	09/2003 - 06/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-37140	XZU311..DCB;XZU347..DCB..T3..4FC;XZU301,331..DSLL..IV4	05/1999 - 06/2002	1
71052-37020	XZU301,331..DSLL..IV4 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ)	09/2003 - 06/2004	1
71502-37140	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71502-37140	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37080	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
71552-37080	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71552-37080	XZU301,331..DSLL..IV4	09/2003 - 06/2004	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-37040	BU30#,RZU300,XZU307,31#,347..DCB,VAN ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ & ｼｰﾄﾊﾞｯｸｲｯﾀｲﾀｲﾌﾟ)	05/1999 - 06/2002	1
71014-37080	XZU301,331..4FC..DSLL..IV4 ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	05/1999 - 06/2002	1
71014-37080	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	05/1999 - 06/2004	1
71014-37080	XZU301,331..DSLL..IV4 ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	09/2003 - 06/2004	1
71848B - CAP, SEAT ADJUSTER COVER, RH
71848-89101	BU30#,RZU300,XZU307,31#,347..DCB,VAN	05/1999 - 06/2004	2
Common parts
90119-08C25
90179-08039
93560-15030
96160-00800

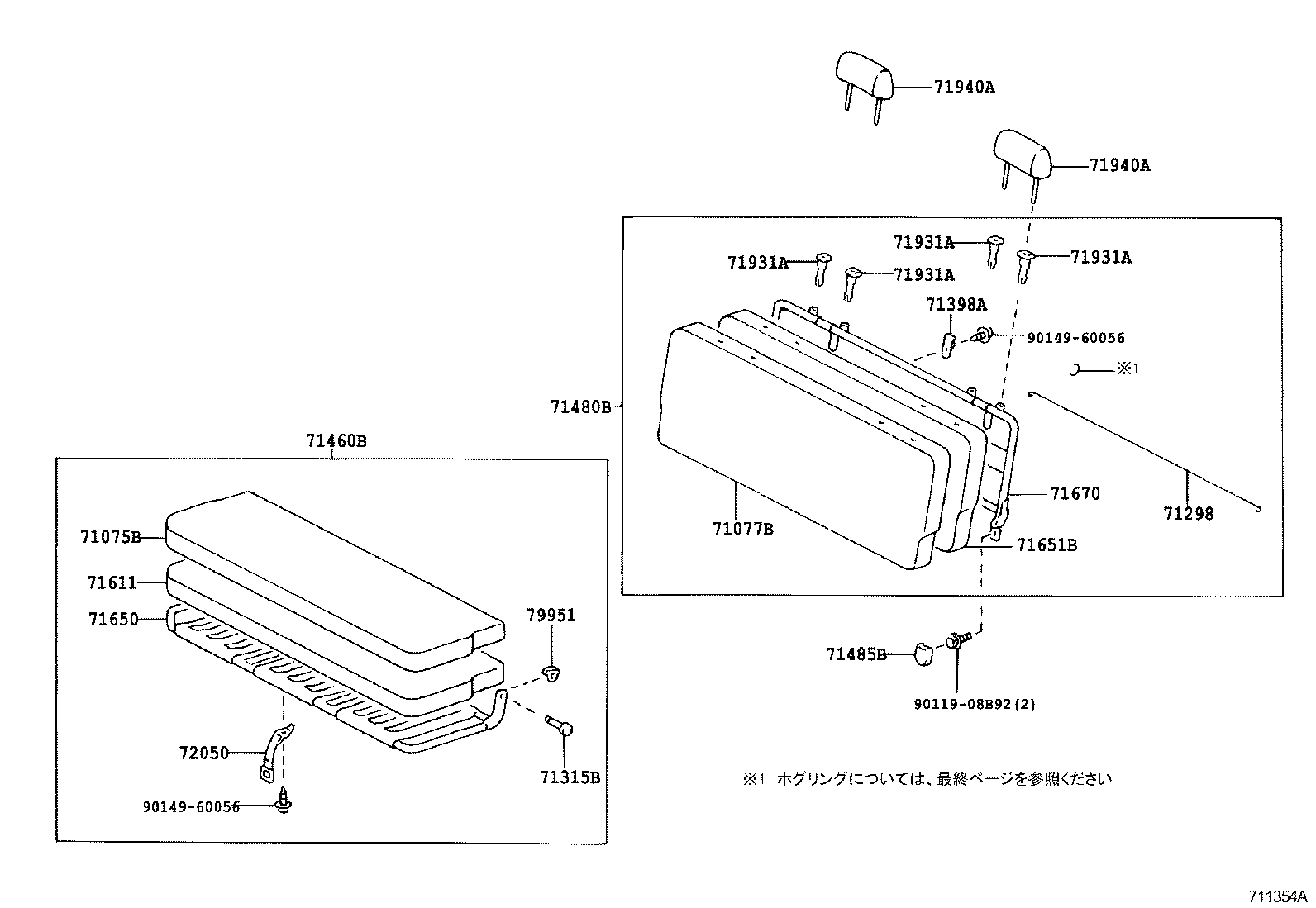

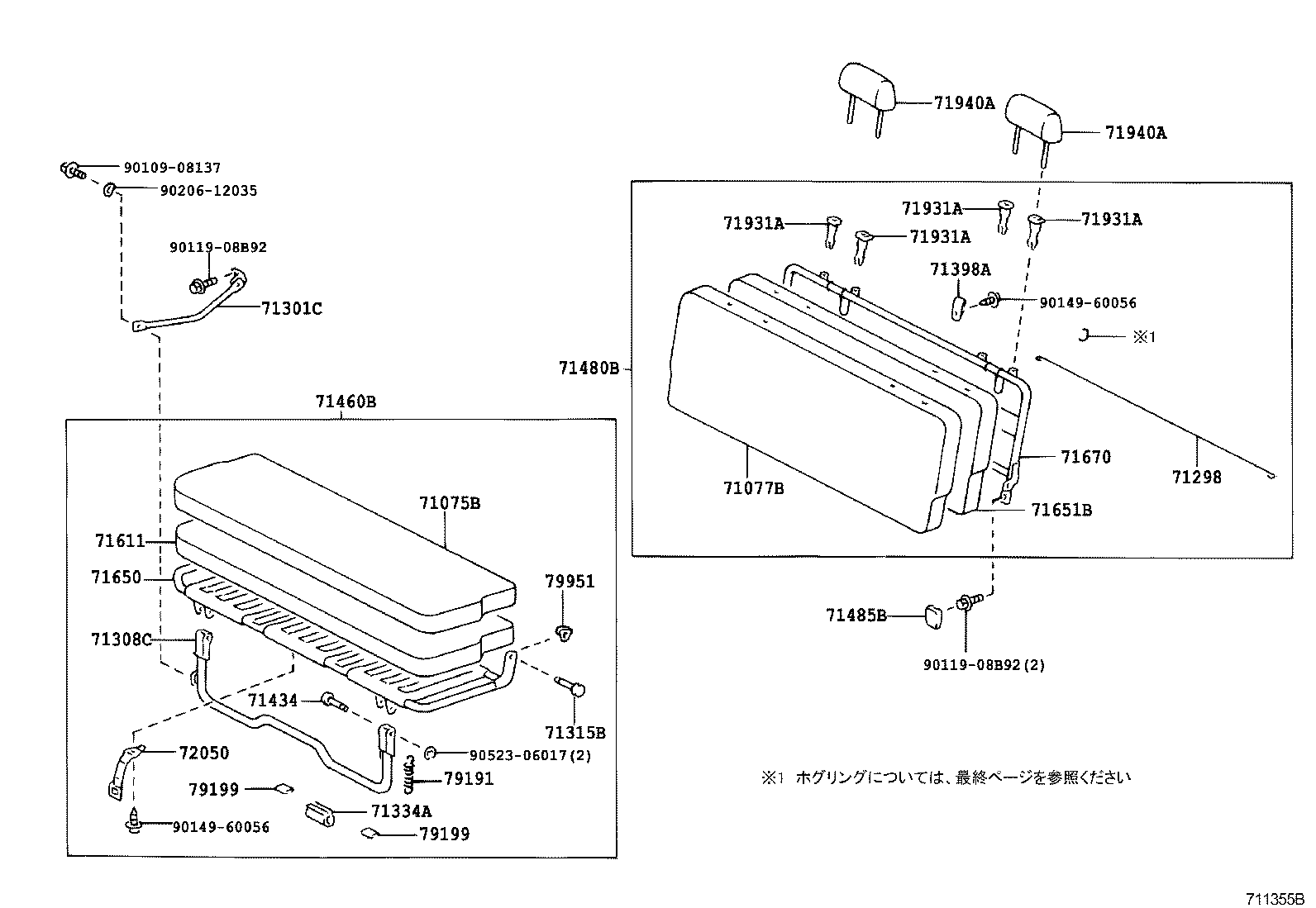

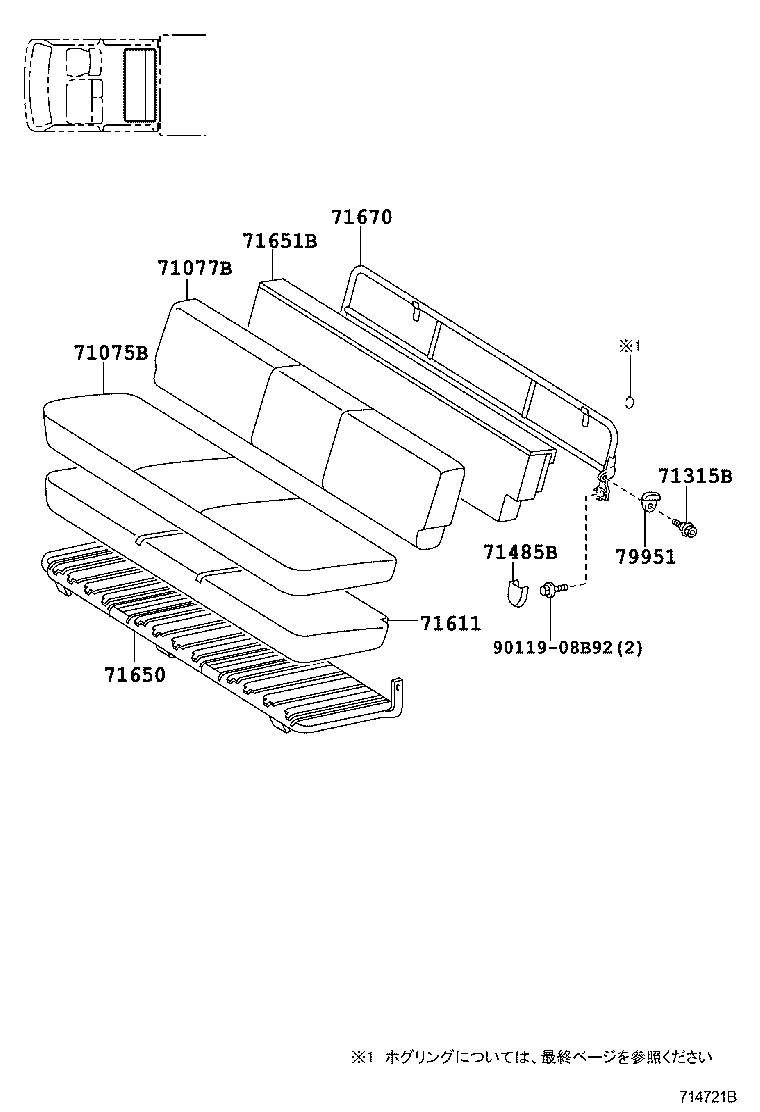

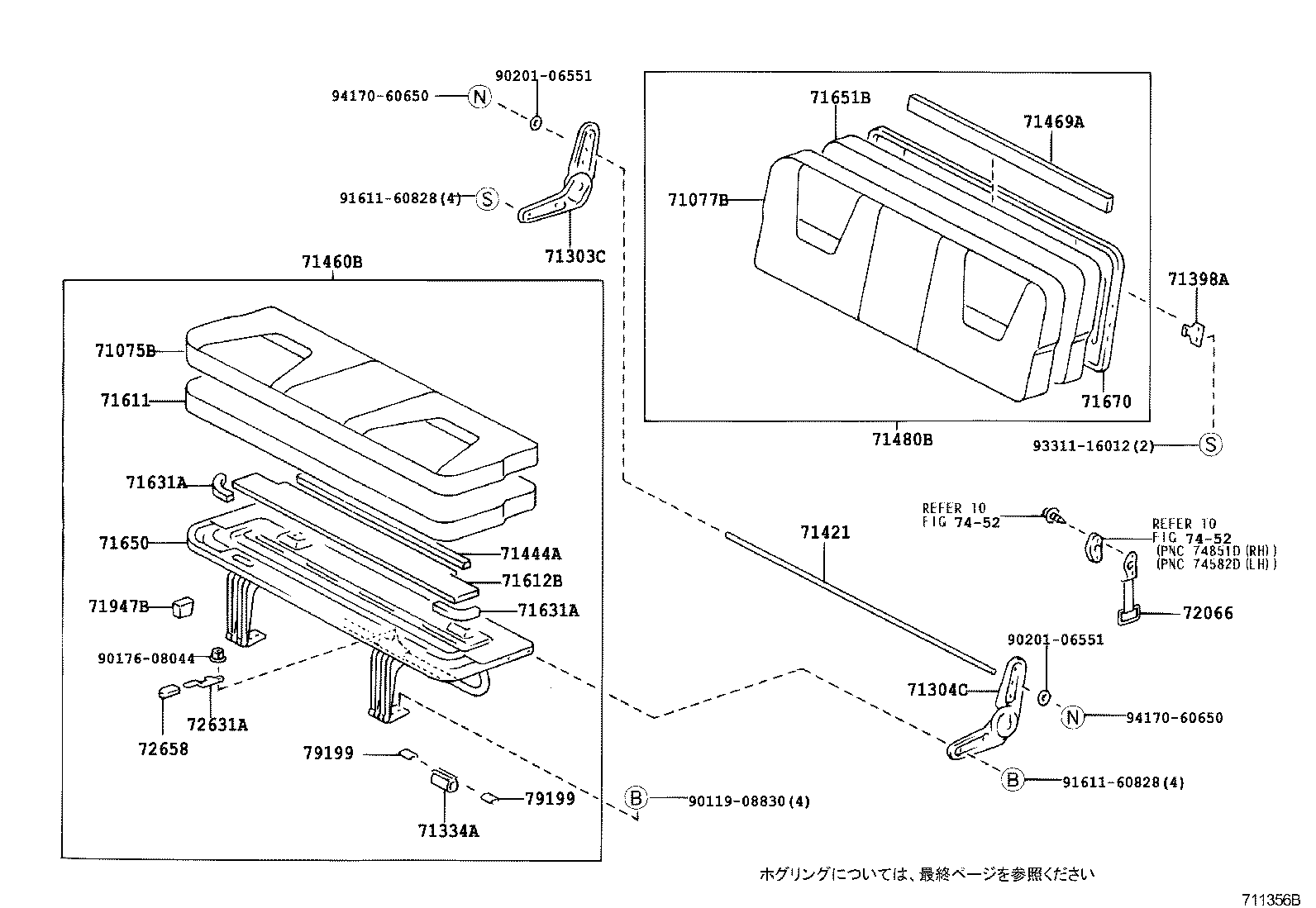

ILLUST NO. 3 OF 3(9905-0406)DCB,VAN

Click highlighted areas on diagram

ﾘﾔｼ-ﾄ (ｺﾃｲｼ-ﾄ)

Part #	Description	Period	Qty
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-37190B1	BU30#,RZU300,XZU307,31#,347,372,382..DCB ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71075-37290B0	XZU301,331,371..DSL..IV4 MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71075-37290B0	XZU301,331..DSLL..IV4 MEDIUM CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-37170B1	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB **,ｼ-ﾄ = TYPE B-104,MEDIUM CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71077-37250B0	XZU301,331,371..DSL..IV4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71077-37230B0	XZU301,331..DSLL..IV4 ｱﾘ(ﾊﾞﾂｸﾊﾟﾈﾙﾎﾞﾂｸｽ) & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71077-37250B0	XZU301,331..DSLL..IV4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71077-37260B0	XZU301,331,371..DSL..IV4 ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ) & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71077-37260B0	XZU301,331..DSLL..IV4 ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ) & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71298 - WIRE, REAR SEAT BACK, LOWER
71298-37010	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
71298-37010	XZU301,331..DSLL..IV4	10/2002 - 06/2004	1
71298-37010	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71315B - PIN, REAR SEAT HINGE
90109-10175	BU30#,XZU307,31#,347,372,382..DCB	05/2000 - 06/2004	2
71315-37020	BU30#,XZU307,31#,347,372,382..DCB	05/1999 - 05/2000	2
90109-10175	XZU301,331..DSLL..IV4	10/2002 - 06/2004	4
71398A - HOLDER, REAR SEAT BACK
71398-95702B1	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
71398-95702B1	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71398-95702B1	XZU301,331..4FC..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-37340B0	XZU301,331..DSLL..IV4 ***,MEDIUM CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71460-37340B0	XZU301,331,371..DSL..IV4 ***,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71460-37230B0	BU30#,RZU300,XZU307,31#,347..DCB **,ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-37250B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71480-37240B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104 & ｱﾘ(ﾊﾞﾂｸﾊﾟﾈﾙﾎﾞﾂｸｽ),MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71480-37250B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71480-37260B0	XZU301,331..DSLL..IV4 **,ﾅｼ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71480-37260B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ﾅｼ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71485B - COVER, REAR SEAT HINGE
71485-37010B0	XZU301,331..4FC..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71485-37010B0	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71485-37010B0	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71611 - PAD, REAR SEAT CUSHION
71611-37030	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71611-37030	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
71611-37030	XZU301,331..DSLL..IV4	10/2002 - 06/2004	1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-37020	BU30#,RZU300,XZU307,31#,347,372,382..DCB	05/1999 - 06/2004	1
71650-37030	XZU301,331..DSLL..IV4	10/2002 - 06/2004	1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-37020	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
71651-37020	XZU301,331..DSLL..IV4	10/2002 - 06/2004	1
71651-37050	XZU301,331..DSLL..IV4 ｼﾖｳﾎﾞｳｼﾖｳ	10/2002 - 06/2004	1
71651-37020	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-37020	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ)	05/1999 - 06/2004	1
71670-37030	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71670-37020	XZU301,331..DSLL..IV4 ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ)	10/2002 - 06/2004	1
71670-37030	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
71670-37020	XZU301,331..4FC..DSLL..IV4 ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ)	05/1999 - 06/2002	1
71670-37050	XZU301,331..DSLL..IV4 ｼﾖｳﾎﾞｳｼﾖｳ	10/2002 - 06/2004	1
71670-37030	XZU301,331..DSLL..IV4	10/2002 - 06/2004	1
71931A - SUPPORT, REAR SEAT HEADREST
71931-28030B8	XZU301,331..DSLL..IV4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71931-28030B8	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ﾛｯｸ無,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71930-28030B8	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ﾛｯｸ付,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71930-28030B8	XZU301,331..4FC..DSLL..IV4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71931-28030B8	XZU301,331..4FC..DSLL..IV4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71930-28030B8	XZU301,331..DSLL..IV4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71931A - SUPPORT, REAR SEAT HEADREST
71931-28030B8	XZU301,331..DSLL..IV4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71931-28030B8	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ﾛｯｸ無,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71930-28030B8	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ﾛｯｸ付,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71930-28030B8	XZU301,331..4FC..DSLL..IV4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71931-28030B8	XZU301,331..4FC..DSLL..IV4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71930-28030B8	XZU301,331..DSLL..IV4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71931A - SUPPORT, REAR SEAT HEADREST
71931-28030B8	XZU301,331..DSLL..IV4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71931-28030B8	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ﾛｯｸ無,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71930-28030B8	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ﾛｯｸ付,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71930-28030B8	XZU301,331..4FC..DSLL..IV4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71931-28030B8	XZU301,331..4FC..DSLL..IV4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71930-28030B8	XZU301,331..DSLL..IV4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71931A - SUPPORT, REAR SEAT HEADREST
71931-28030B8	XZU301,331..DSLL..IV4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71931-28030B8	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ﾛｯｸ無,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71930-28030B8	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ﾛｯｸ付,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71930-28030B8	XZU301,331..4FC..DSLL..IV4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71931-28030B8	XZU301,331..4FC..DSLL..IV4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71930-28030B8	XZU301,331..DSLL..IV4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71940A - HEADREST ASSY, REAR SEAT
71910-95J34B2	XZU301,331..4FC..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71910-95J34B2	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71910-95J34B2	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71940A - HEADREST ASSY, REAR SEAT
71910-95J34B2	XZU301,331..4FC..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71910-95J34B2	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71910-95J34B2	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
72050 - BELT ASSY, REAR SEAT HOOK
72050-37020B0	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
72050-37020B0	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	1
72050-37020B0	XZU301,331..4FC..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
79951 - COVER, NO.1 SEAT CUSHION
79951-37010	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	2
79951-37010	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	2
79951-37010	XZU301,331..DSLL..IV4	10/2002 - 06/2004	4
Common parts
90119-08B92
90149-60056

ILLUST NO. 3 OF 3(9905-0406)DCB,VAN

Click highlighted areas on diagram

ﾘﾔｼ-ﾄ (ｽﾍﾟｰｽｱﾂﾌﾟｼ-ﾄ)

Part #	Description	Period	Qty
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-37190B1	BU30#,RZU300,XZU307,31#,347,372,382..DCB ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71075-37290B0	XZU301,331,371..DSL..IV4 MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71075-37290B0	XZU301,331..DSLL..IV4 MEDIUM CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-37170B1	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB **,ｼ-ﾄ = TYPE B-104,MEDIUM CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71077-37250B0	XZU301,331,371..DSL..IV4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71077-37230B0	XZU301,331..DSLL..IV4 ｱﾘ(ﾊﾞﾂｸﾊﾟﾈﾙﾎﾞﾂｸｽ) & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71077-37250B0	XZU301,331..DSLL..IV4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71077-37260B0	XZU301,331,371..DSL..IV4 ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ) & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71077-37260B0	XZU301,331..DSLL..IV4 ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ) & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71298 - WIRE, REAR SEAT BACK, LOWER
71298-37010	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
71298-37010	XZU301,331..DSLL..IV4	10/2002 - 06/2004	1
71298-37010	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71301C - LINK SUB-ASSY, REAR SEAT CUSHION
71301-37010	BU30#,RZU300,XZU307,31#,347,372,382..DCB	05/1999 - 06/2004	1
71315B - PIN, REAR SEAT HINGE
90109-10175	BU30#,XZU307,31#,347,372,382..DCB	05/2000 - 06/2004	2
71315-37020	BU30#,XZU307,31#,347,372,382..DCB	05/1999 - 05/2000	2
90109-10175	XZU301,331..DSLL..IV4	10/2002 - 06/2004	4
71334A - STOPPER, REAR SEAT LEG
71334-95J01	BU30#,XZU307,31#,347,372,382..DCB	05/1999 - 01/2000	2
71398A - HOLDER, REAR SEAT BACK
71398-95702B1	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
71398-95702B1	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71398-95702B1	XZU301,331..4FC..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-37340B0	XZU301,331..DSLL..IV4 ***,MEDIUM CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71460-37340B0	XZU301,331,371..DSL..IV4 ***,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71460-37230B0	BU30#,RZU300,XZU307,31#,347..DCB **,ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-37250B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71480-37240B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104 & ｱﾘ(ﾊﾞﾂｸﾊﾟﾈﾙﾎﾞﾂｸｽ),MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71480-37250B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71480-37260B0	XZU301,331..DSLL..IV4 **,ﾅｼ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71480-37260B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ﾅｼ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71485B - COVER, REAR SEAT HINGE
71485-37010B0	XZU301,331..4FC..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71485-37010B0	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71485-37010B0	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71611 - PAD, REAR SEAT CUSHION
71611-37030	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71611-37030	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
71611-37030	XZU301,331..DSLL..IV4	10/2002 - 06/2004	1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-37020	BU30#,RZU300,XZU307,31#,347,372,382..DCB	05/1999 - 06/2004	1
71650-37030	XZU301,331..DSLL..IV4	10/2002 - 06/2004	1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-37020	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
71651-37020	XZU301,331..DSLL..IV4	10/2002 - 06/2004	1
71651-37050	XZU301,331..DSLL..IV4 ｼﾖｳﾎﾞｳｼﾖｳ	10/2002 - 06/2004	1
71651-37020	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-37020	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ)	05/1999 - 06/2004	1
71670-37030	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71670-37020	XZU301,331..DSLL..IV4 ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ)	10/2002 - 06/2004	1
71670-37030	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
71670-37020	XZU301,331..4FC..DSLL..IV4 ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ)	05/1999 - 06/2002	1
71670-37050	XZU301,331..DSLL..IV4 ｼﾖｳﾎﾞｳｼﾖｳ	10/2002 - 06/2004	1
71670-37030	XZU301,331..DSLL..IV4	10/2002 - 06/2004	1
71931A - SUPPORT, REAR SEAT HEADREST
71931-28030B8	XZU301,331..DSLL..IV4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71931-28030B8	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ﾛｯｸ無,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71930-28030B8	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ﾛｯｸ付,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71930-28030B8	XZU301,331..4FC..DSLL..IV4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71931-28030B8	XZU301,331..4FC..DSLL..IV4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71930-28030B8	XZU301,331..DSLL..IV4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71931A - SUPPORT, REAR SEAT HEADREST
71931-28030B8	XZU301,331..DSLL..IV4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71931-28030B8	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ﾛｯｸ無,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71930-28030B8	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ﾛｯｸ付,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71930-28030B8	XZU301,331..4FC..DSLL..IV4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71931-28030B8	XZU301,331..4FC..DSLL..IV4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71930-28030B8	XZU301,331..DSLL..IV4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71931A - SUPPORT, REAR SEAT HEADREST
71931-28030B8	XZU301,331..DSLL..IV4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71931-28030B8	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ﾛｯｸ無,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71930-28030B8	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ﾛｯｸ付,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71930-28030B8	XZU301,331..4FC..DSLL..IV4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71931-28030B8	XZU301,331..4FC..DSLL..IV4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71930-28030B8	XZU301,331..DSLL..IV4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71931A - SUPPORT, REAR SEAT HEADREST
71931-28030B8	XZU301,331..DSLL..IV4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71931-28030B8	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ﾛｯｸ無,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71930-28030B8	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ﾛｯｸ付,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71930-28030B8	XZU301,331..4FC..DSLL..IV4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71931-28030B8	XZU301,331..4FC..DSLL..IV4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71930-28030B8	XZU301,331..DSLL..IV4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71940A - HEADREST ASSY, REAR SEAT
71910-95J34B2	XZU301,331..4FC..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71910-95J34B2	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71910-95J34B2	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
71940A - HEADREST ASSY, REAR SEAT
71910-95J34B2	XZU301,331..4FC..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	2
71910-95J34B2	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
71910-95J34B2	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	2
72050 - BELT ASSY, REAR SEAT HOOK
72050-37020B0	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
72050-37020B0	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	1
72050-37020B0	XZU301,331..4FC..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
79191 - SPRING, NO.1 SEAT CUSHION, NO.1
79191-37020	BU30#,XZU307,31#,347,372,382..DCB	05/1999 - 05/2000	2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J01	BU30#,XZU307,31#,347,372,382..DCB	05/1999 - 01/2000	2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J01	BU30#,XZU307,31#,347,372,382..DCB	05/1999 - 01/2000	2
79951 - COVER, NO.1 SEAT CUSHION
79951-37010	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	2
79951-37010	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	2
79951-37010	XZU301,331..DSLL..IV4	10/2002 - 06/2004	4
Common parts
90109-08137
90119-08B92
90149-60056
90206-12035
90523-06017

ILLUST NO. 3 OF 3(9905-0406)DCB,VAN

Click highlighted areas on diagram

ﾘﾔｼ-ﾄ (ｵﾘﾀﾀﾐｼ-ﾄ)

Part #	Description	Period	Qty
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-37190B1	BU30#,RZU300,XZU307,31#,347,372,382..DCB ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71075-37290B0	XZU301,331,371..DSL..IV4 MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71075-37290B0	XZU301,331..DSLL..IV4 MEDIUM CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-37170B1	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB **,ｼ-ﾄ = TYPE B-104,MEDIUM CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71077-37250B0	XZU301,331,371..DSL..IV4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71077-37230B0	XZU301,331..DSLL..IV4 ｱﾘ(ﾊﾞﾂｸﾊﾟﾈﾙﾎﾞﾂｸｽ) & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71077-37250B0	XZU301,331..DSLL..IV4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71077-37260B0	XZU301,331,371..DSL..IV4 ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ) & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71077-37260B0	XZU301,331..DSLL..IV4 ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ) & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71334A - STOPPER, REAR SEAT LEG
71334-95J01	BU30#,XZU307,31#,347,372,382..DCB	05/1999 - 01/2000	2
71398A - HOLDER, REAR SEAT BACK
71398-95702B1	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
71398-95702B1	XZU301,331..DSLL..IV4 MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71398-95702B1	XZU301,331..4FC..DSLL..IV4 MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-37340B0	XZU301,331..DSLL..IV4 ***,MEDIUM CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71460-37340B0	XZU301,331,371..DSL..IV4 ***,MEDIUM CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71460-37230B0	BU30#,RZU300,XZU307,31#,347..DCB **,ｼ-ﾄ = TYPE B-104,MD.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-37250B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71480-37240B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104 & ｱﾘ(ﾊﾞﾂｸﾊﾟﾈﾙﾎﾞﾂｸｽ),MD.CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71480-37250B0	XZU301,331..DSLL..IV4 **,ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71480-37260B0	XZU301,331..DSLL..IV4 **,ﾅｼ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	10/2002 - 06/2004	1
71480-37260B0	BU30#,RZU300,XZU301,307,312,331,347,37#,382..DCB..(DSL,EFI) **,ﾅｼ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ) & ｼ-ﾄ = TYPE B-104,MD. CHARCOAL,TRIM1#	06/2002 - 06/2004	1
71611 - PAD, REAR SEAT CUSHION
71611-37030	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71611-37030	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
71611-37030	XZU301,331..DSLL..IV4	10/2002 - 06/2004	1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-37020	BU30#,RZU300,XZU307,31#,347,372,382..DCB	05/1999 - 06/2004	1
71650-37030	XZU301,331..DSLL..IV4	10/2002 - 06/2004	1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-37020	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
71651-37020	XZU301,331..DSLL..IV4	10/2002 - 06/2004	1
71651-37050	XZU301,331..DSLL..IV4 ｼﾖｳﾎﾞｳｼﾖｳ	10/2002 - 06/2004	1
71651-37020	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-37020	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI) ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ)	05/1999 - 06/2004	1
71670-37030	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
71670-37020	XZU301,331..DSLL..IV4 ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ)	10/2002 - 06/2004	1
71670-37030	XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
71670-37020	XZU301,331..4FC..DSLL..IV4 ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ)	05/1999 - 06/2002	1
71670-37050	XZU301,331..DSLL..IV4 ｼﾖｳﾎﾞｳｼﾖｳ	10/2002 - 06/2004	1
71670-37030	XZU301,331..DSLL..IV4	10/2002 - 06/2004	1
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J01	BU30#,XZU307,31#,347,372,382..DCB	05/1999 - 01/2000	2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J01	BU30#,XZU307,31#,347,372,382..DCB	05/1999 - 01/2000	2
Common parts
90119-08830
90176-08044
90201-06551
91611-60828
93311-16012
94170-60650
Linked diagrams
7452

(9905- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

Part #	Description	Period	Qty	Price
Common parts
90468-16019
90468-18008

ILLUST NO. 1 OF 3(0610- )DCB,SCB

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ

Part #	Description	Period	Qty	Price
Common parts
90119-08134
90119-10229
90119-10825
90167-40044
90179-08149
90179-11010
Linked diagrams
7152

ILLUST NO. 2 OF 3(0610- )DCB,VAN

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ

Part #	Description	Period	Qty	Price
Common parts
90119-08079
90119-08C25
90119-10825
90167-40044
90179-08039
90179-10109
90183-04048
90467-06044
93560-15030
96160-00800
Linked diagrams
5855

ILLUST NO. 3 OF 3(0610- )DCB

Click highlighted areas on diagram

ﾘﾔｼｰﾄ

Part #	Description	Period	Qty	Price
Common parts
90109-08137
90119-08B92
90149-60056
90206-12035
90523-06017

ILLUST NO. 3 OF 3(0610- )IV4

Click highlighted areas on diagram

ﾘﾔｼｰﾄｱﾘ(ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ)

Part #	Description	Period	Qty	Price
Common parts
90119-08B92

(0610- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

Part #	Description	Period	Qty	Price
Common parts
90468-16019
90468-18008

(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
71234-95405
71234-95406
71234-95407
90119-06061
90119-08060
90159-80012
90179-08039
90202-12004
90386-12008
90467-08067
90468-06045
90540-06001
90541-10008
91611-60816
91611-60825
91616-60816
93240-16012
93560-15016
94180-40800
Linked diagrams
8401

(9905-0406)DCB

Click highlighted areas on diagram

ﾌﾛﾝﾄｼ-ﾄ (ｼﾞﾖｼﾕｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)

Part #	Description	Period	Qty	Price
Common parts
90119-08C25
90119-10111
90119-10229
90167-40044
90179-10109
Linked diagrams
5855

(9905-0406)DCB

Click highlighted areas on diagram

ﾘﾔｼ-ﾄ

Part #	Description	Period	Qty	Price
Common parts
90109-08137
90119-08B92
90149-60056
90206-12035
90506-23023
90523-06017

(9905- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

Part #	Description	Period	Qty	Price
Common parts
90468-16019
90468-18008

XZU331-PKPQL4 (2000)

ILLUST NO. 1 OF 3(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 2 OF 3(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 2 OF 3(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 2 OF 3(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 2 OF 3(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 2 OF 3(9905-0406)DCB,VAN

ILLUST NO. 2 OF 3(9905-0406)DCB,VAN

ILLUST NO. 3 OF 3(9905-0406)DCB,VAN

ILLUST NO. 3 OF 3(9905-0406)DCB,VAN

ILLUST NO. 3 OF 3(9905-0406)DCB,VAN

(9905- )

ILLUST NO. 1 OF 3(0610- )DCB,SCB

ILLUST NO. 2 OF 3(0610- )DCB,VAN

ILLUST NO. 3 OF 3(0610- )DCB

ILLUST NO. 3 OF 3(0610- )IV4

(0610- )

(7708- )

(9905-0406)DCB

(9905-0406)DCB

(9905- )

Part Price Details
