XZU331-PKPQL4 (2000)

Toyota Dyna/Toyoace

Production May 2000 - Jun 2004
Engine S05D
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9905-0206)

Click highlighted areas on diagram

diagram 5314528010 58255H 58261C 58808 58811B 58811B 58811D 58811D 58833A 58834A 58840A 58909B 58941A 67787F 9018906018 9054103078 9331356014 9331356014 9331356014 9356054010 9356055016 9356055020
Part # Description Qty Price
58255H - COVER, SHIFT LEVER BOOT
58255-37020B0

XZU302..20T..DSL;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,346,347,351..SCB..(DM2,DM5,DM6,DM7,DM8,T2,T3,T4);BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,350,352..(03S,06S,DM2,DM5,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)

DK.CHARCOAL,TRIM1#

 1
58255-37020B0

XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3

DK.CHARCOAL,TRIM1#

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-07191B0

XZU302..20T..DSL;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,346,347,351..SCB..(DM2,DM5,DM6,DM7,DM8,T2,T3,T4);BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,350,352..(03S,06S,DM2,DM5,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)

DK.CHARCOAL,TRIM1#

 3
90467-07191B0

XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3

DK.CHARCOAL,TRIM1#

 3
58811D - CLIP(FOR CONSOLE BOX)
90467-07191B0

XZU302..20T..DSL;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,346,347,351..SCB..(DM2,DM5,DM6,DM7,DM8,T2,T3,T4);BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,350,352..(03S,06S,DM2,DM5,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)

DK.CHARCOAL,TRIM1#

 3
90467-07191B0

XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3

DK.CHARCOAL,TRIM1#

 3
58833A - COVER, CONSOLE, UPPER
58833-37040B0

BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB

MD.CHARCOAL,TRIM1#

 1
58839-95400B0

XZU301,312,331,371..DCB..DSL

MD.CHARCOAL,TRIM1#

 1
58839-95400B0

XZU301,331..DSLL..IV4

MD.CHARCOAL,TRIM1#

 1
58834A - COVER, CONSOLE, LOWER
58834-37030B0

BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB

MD.CHARCOAL,TRIM1#

 1
58834-25010B0

XZU301,312,331,371..DCB..DSL

MD.CHARCOAL,TRIM1#

 1
58834-25010B0

XZU301,331..DSLL..IV4

MD.CHARCOAL,TRIM1#

 1
58909B - RETAINER SUB-ASSY, CONSOLE COMPARTMENT
58909-37020

XZU362..1NO;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,37#,382..DCB,SCB

 1
58941A - COVER, PARKING BRAKE HOLE
58941-37010B0

XZU302..20T..DSL;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;RZU300,XZU341,342,362..(DSL,DSLL,EFI)..1NO;BZU300,XZU322,346,347,351..SCB..(DM2,DM5,DM6,DM7,DM8,T2,T3,T4);BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,350,352,37#,382..(03S,06S,DM2,DM5,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)

DK.CHARCOAL,TRIM1#

 1
58941-37010B0

XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3

DK.CHARCOAL,TRIM1#

 1
Common parts
53145-28010
90189-06018
90541-03078
93313-56014
93560-54010
93560-55016
93560-55020

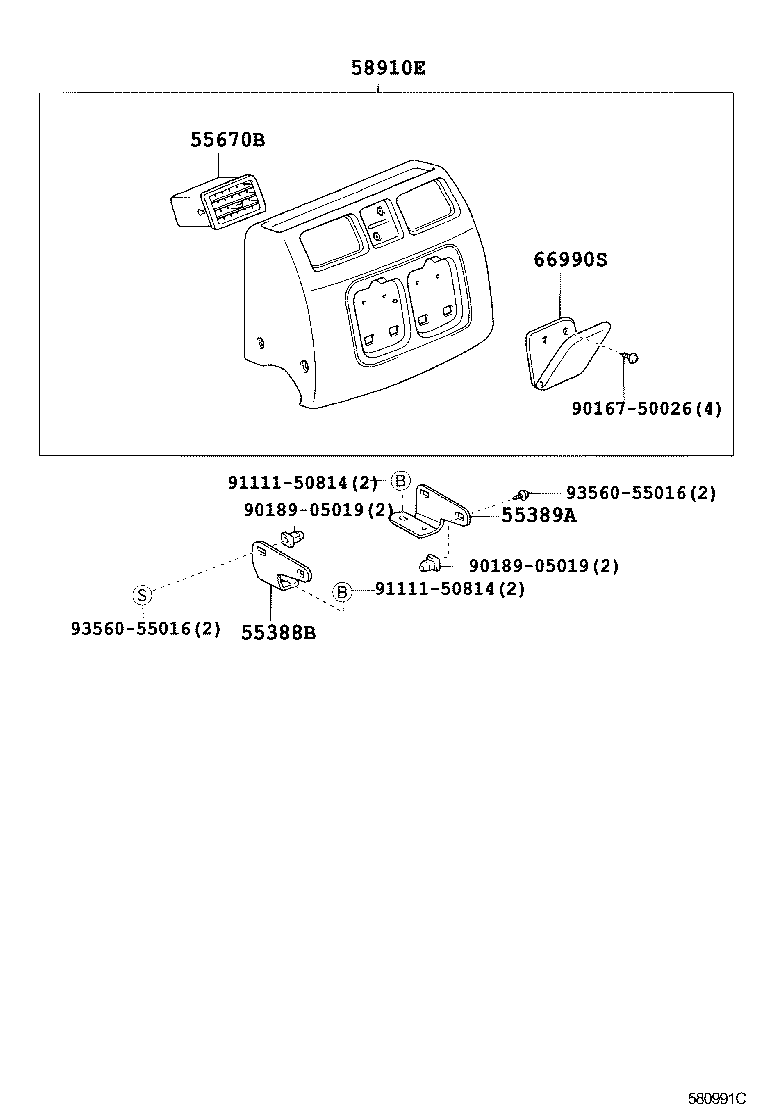

ILLUST NO. 2 OF 2(9905- )DCB

Click highlighted areas on diagram

diagram 55388B 55389A 55670B 58910E 66990S 9016750026 9018905019 9018905019 9111150814 9111150814 9356055016 9356055016
Part # Description Qty Price
Common parts
90167-50026
90189-05019
91111-50814
93560-55016

ILLUST NO. 1 OF 2(0206- )

Click highlighted areas on diagram

diagram 5314528010 58255H 58261C 58808 58811B 58811B 58811D 58811D 58833A 58834A 58840A 58941A 67787F 9018906018 9331356014 9331356014 9331356014 9356055016 9356055025
Part # Description Qty Price
58255H - COVER, SHIFT LEVER BOOT
58255-37020B0

XZU302..20T..DSL;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,346,347,351..SCB..(DM2,DM5,DM6,DM7,DM8,T2,T3,T4);BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,350,352..(03S,06S,DM2,DM5,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)

DK.CHARCOAL,TRIM1#

 1
58255-37020B0

XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3

DK.CHARCOAL,TRIM1#

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-07191B0

XZU302..20T..DSL;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,346,347,351..SCB..(DM2,DM5,DM6,DM7,DM8,T2,T3,T4);BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,350,352..(03S,06S,DM2,DM5,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)

DK.CHARCOAL,TRIM1#

 3
90467-07191B0

XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3

DK.CHARCOAL,TRIM1#

 3
58811D - CLIP(FOR CONSOLE BOX)
90467-07191B0

XZU302..20T..DSL;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,346,347,351..SCB..(DM2,DM5,DM6,DM7,DM8,T2,T3,T4);BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,350,352..(03S,06S,DM2,DM5,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)

DK.CHARCOAL,TRIM1#

 3
90467-07191B0

XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3

DK.CHARCOAL,TRIM1#

 3
58833A - COVER, CONSOLE, UPPER
58833-37040B0

BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB

MD.CHARCOAL,TRIM1#

 1
58839-95400B0

XZU301,312,331,371..DCB..DSL

MD.CHARCOAL,TRIM1#

 1
58839-95400B0

XZU301,331..DSLL..IV4

MD.CHARCOAL,TRIM1#

 1
58834A - COVER, CONSOLE, LOWER
58834-37030B0

BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB

MD.CHARCOAL,TRIM1#

 1
58834-25010B0

XZU301,312,331,371..DCB..DSL

MD.CHARCOAL,TRIM1#

 1
58834-25010B0

XZU301,331..DSLL..IV4

MD.CHARCOAL,TRIM1#

 1
58941A - COVER, PARKING BRAKE HOLE
58941-37010B0

XZU302..20T..DSL;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;RZU300,XZU341,342,362..(DSL,DSLL,EFI)..1NO;BZU300,XZU322,346,347,351..SCB..(DM2,DM5,DM6,DM7,DM8,T2,T3,T4);BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,350,352,37#,382..(03S,06S,DM2,DM5,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)

DK.CHARCOAL,TRIM1#

 1
58941-37010B0

XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3

DK.CHARCOAL,TRIM1#

 1
Common parts
53145-28010
90189-06018
93313-56014
93560-55016
93560-55025

ILLUST NO. 1 OF 2(0610- )

Click highlighted areas on diagram

diagram 5314528010 58255H 58808 58811A 58811B 58811D 58833A 58834A 58902C 58916 58919B 58941A 67787F 7455 9011908190 9018906018 9331356014 9331356014 9331356014 9356055016 9356055025
Part # Description Qty Price
Common parts
53145-28010
90119-08190
90189-06018
93313-56014
93560-55016
93560-55025
Linked diagrams
7455

ILLUST NO. 1 OF 2(9905- )CNG,DCR,DCRL,DSL,DSLL,LPG,TDEFI ; (0610- )MTM..DCRTJ,DCRTK,DCRTL,DCRT

Click highlighted areas on diagram

diagram 58255H 58261C 58808 58811B 58811D 58811D 58833A 58834A 58840A 58909B 58910C 58919B 58941A 9054103078 9331356014 9331356014 9331356014 9356054010 9356055020
Part # Description Qty Price
Common parts
90541-03078
93313-56014
93560-54010
93560-55020
