XZU331-PKPQL4 (2000)

Toyota Dyna/Toyoace

Production May 2000 - Jun 2004
Engine S05D
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )BU30#,RZU300,XZU301,304,306,307,308,311,312,331,334,346,347,378,388..DCB

Click highlighted areas on diagram

diagram 58504C 58504C 58510B 58514B 58515B 58515C 58521D 58581A 58581A 58614A 58614A 58614A 67913 67914 67917A 67918A 73915 8271237070 9018905163 9018905163 9018905163 9053004005P3 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 91631G0618 9356055016 9356055020 9356055020 9356055020
Part # Description Qty Price
58504C - MAT SUB-ASSY, HEADER
58504-37170B1

XZU301,331..DSLL..IV4

ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ),DARK CHARCOAL,TRIM1#

 1
58504-37150B1

XZU301,331..DSLL..IV4

DARK CHARCOAL,TRIM1#

 1
58504C - MAT SUB-ASSY, HEADER
58504-37170B1

XZU301,331..DSLL..IV4

ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ),DARK CHARCOAL,TRIM1#

 1
58504-37150B1

XZU301,331..DSLL..IV4

DARK CHARCOAL,TRIM1#

 1
58510B - MAT, FRONT FLOOR, FRONT
58510-37660B1

XZU301,331..4FC..DSLL..IV4

ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ),DARK CHARCOAL,TRIM1#

 1
58510-37670B1

XZU301,331..4FC..DSLL..IV4

DARK CHARCOAL,TRIM1#

 1
58510-37660B1

XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,XZU307,31#,331,347..(DCB,VAN)..DSL

ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ),DARK CHARCOAL,TRIM1#

 1
58510-37670B1

XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,XZU307,31#,331,347..(DCB,VAN)..DSL

DARK CHARCOAL,TRIM1#

 1
58510-37660B1

XZU301,331..DSLL..IV4

ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ),DARK CHARCOAL,TRIM1#

 1
58510-37670B1

XZU301,331..DSLL..IV4

DARK CHARCOAL,TRIM1#

 1
58514B - MAT, FLOOR, REAR RH
58514-37110B1

XZU301,331..DSLL..IV4

DARK CHARCOAL,TRIM1#

 1
58514-37110B1

XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331,37#,382..DCB..(DSL,EFI)

DARK CHARCOAL,TRIM1#

 1
58515B - MAT, FLOOR, REAR LH
58515-37090B1

XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331,37#,382..(DCB,VAN)..(DSL,EFI)

DARK CHARCOAL,TRIM1#

 1
58515-37090B1

XZU301,331..DSLL..IV4

DARK CHARCOAL,TRIM1#

 1
58515C - MAT, FRONT FLOOR, REAR NO.1
58515-37080B1

XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG

MD.CHARCOAL,TRIM1#

 1
58515-37080B1

XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3

MD.CHARCOAL,TRIM1#

 1
58521D - MAT, ENGINE SERVICE HOLE COVER
58521-37220B1

XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331..DCB..(DSL,EFI)

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),DARK CHARCOAL,TRIM1#

 1
58521-37220B1

XZU301,331..DSLL..IV4

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),DARK CHARCOAL,TRIM1#

 1
58581A - MAT, REAR FLOOR
58581-37310B1

XZU301,331..DSLL..IV4

DARK CHARCOAL,TRIM1#

 1
58581A - MAT, REAR FLOOR
58581-37310B1

XZU301,331..DSLL..IV4

DARK CHARCOAL,TRIM1#

 1
58614A - PLATE, MAT SET, NO.4
58614-37080B0

XZU301,331..DSLL..IV4

ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ),DK.CHARCOAL,TRIM1#

 1
58614-37010B0

XZU301,331..DSLL..IV4

DK.CHARCOAL,TRIM1#

 1
58614-37010B0

XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331..(DCB,VAN)..(DSL,EFI)

DK.CHARCOAL,TRIM1#

 1
58614A - PLATE, MAT SET, NO.4
58614-37080B0

XZU301,331..DSLL..IV4

ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ),DK.CHARCOAL,TRIM1#

 1
58614-37010B0

XZU301,331..DSLL..IV4

DK.CHARCOAL,TRIM1#

 1
58614-37010B0

XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331..(DCB,VAN)..(DSL,EFI)

DK.CHARCOAL,TRIM1#

 1
58614A - PLATE, MAT SET, NO.4
58614-37080B0

XZU301,331..DSLL..IV4

ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ),DK.CHARCOAL,TRIM1#

 1
58614-37010B0

XZU301,331..DSLL..IV4

DK.CHARCOAL,TRIM1#

 1
58614-37010B0

XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331..(DCB,VAN)..(DSL,EFI)

DK.CHARCOAL,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-37010B0

XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3

MD.CHARCOAL,TRIM1#

 1
67913-37010B0

XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG

MD.CHARCOAL,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-37010B0

XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG

MD.CHARCOAL,TRIM1#

 1
67914-37010B0

XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3

MD.CHARCOAL,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-37020B0

XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331,37#,382..DCB..(DSL,EFI)

MD.CHARCOAL,TRIM1#

 1
67917-37020B0

XZU301,331..DSLL..IV4

MD.CHARCOAL,TRIM1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-37010B0

XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU301,307,312,331,37#,382..DCB..(DSL,EFI)

MD.CHARCOAL,TRIM1#

 1
67918-37010B0

XZU301,331..DSLL..IV4

MD.CHARCOAL,TRIM1#

 1
73915 - COVER, SEAT AIR BAG NO.1, RH
73915-37010

XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL

 1
Common parts
82712-37070
90189-05163
90530-04005P3
90530-06001
91631-G0618
93560-55016
93560-55020

(0610- )DCB

Click highlighted areas on diagram

diagram 58504C 58504C 58510B 58514B 58515B 58515C 58521D 58581A 58614A 58614A 58614A 67913 67914 67917A 67918A 73915 8271237070 9018905163 9018905163 9018905163 9053004005P3 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 91631B0618 9356055020 9356055020 9356055020 9356055020
Part # Description Qty Price
Common parts
82712-37070
90189-05163
90530-04005P3
90530-06001
91631-B0618
93560-55020

(7708- )

Click highlighted areas on diagram

diagram 55211 58504A 58505A 58505A 58509A 58511 58520 58521 58521 58521 58521 58521 58528 58551 58563 58572 58572 9053021008 9353044014
Part # Description Qty Price
Common parts
90530-21008
93530-44014

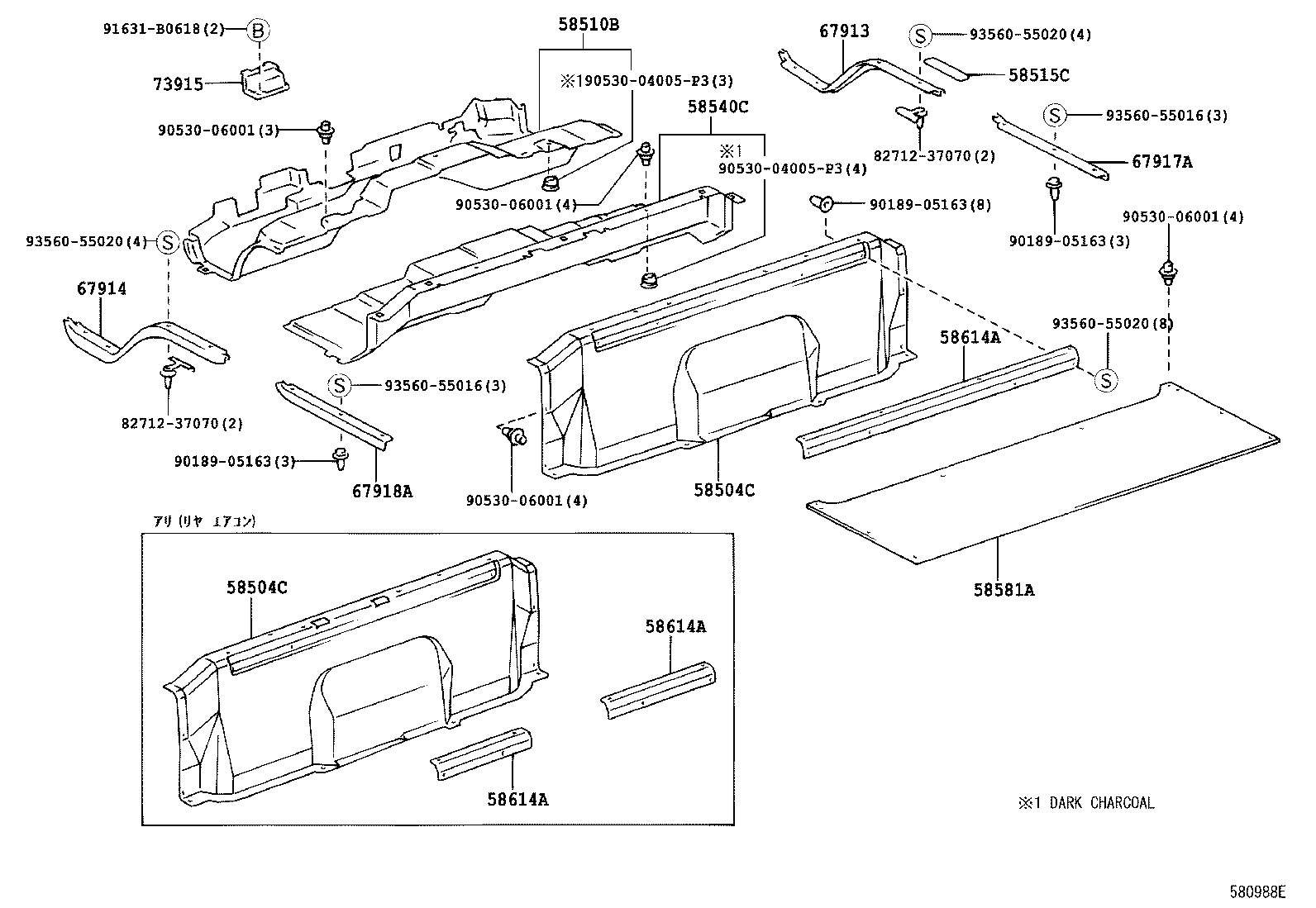

(9905- )DCB

Click highlighted areas on diagram

diagram 58504C 58504C 58510B 58515C 58540C 58581A 58614A 58614A 58614A 67913 67914 67917A 67918A 73915 8271237070 8271237070 9018905163 9018905163 9018905163 9053004005P3 9053004005P3 9053006001 9053006001 9053006001 9053006001 91631B0618 9356055016 9356055016 9356055020 9356055020 9356055020
Part # Description Qty Price
Common parts
82712-37070
90189-05163
90530-04005P3
90530-06001
91631-B0618
93560-55016
93560-55020
