XZU331-PKPQL4 (2000)
Toyota Dyna/Toyoace
(9905-0406)BU30#,RZU300,XZU307,31#,347..DCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47358 - TUBE, BOOSTER TO RESERVOIR, NO.2 | ||||
| 47358-37010 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
1 | ||
| 51711D - BRACKET, CAB FRONT MOUNTING | ||||
| 51701-37100 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU302,307,312,322,337,342,347,352 |
1 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14075 |
XZU306..T4..DSL;XZU347..DCB..5F;RZU300..30T..LPG;XZU302..20T..DSL;XZU306..4FC..DSLL;XZU306..T5..5F..DSL;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;BZU300,XZU346,347..SCB;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM3,T4)..5F..4NO;XZU302..T4..(295T,30T)..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,350,362..(03S,06S,DM5,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG) |
2 | ||
| 90101-14075 |
XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 |
2 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14075 |
XZU306..T4..DSL;XZU347..DCB..5F;RZU300..30T..LPG;XZU302..20T..DSL;XZU306..4FC..DSLL;XZU306..T5..5F..DSL;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;BZU300,XZU346,347..SCB;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM3,T4)..5F..4NO;XZU302..T4..(295T,30T)..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,350,362..(03S,06S,DM5,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG) |
2 | ||
| 90101-14075 |
XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 |
2 | ||
| 51717A - PLATE, BODY SUPPORT BRACKET | ||||
| 51717-37100 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 51722A - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH | ||||
| 51702-37100 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU302,307,312,322,337,342,347,352 |
1 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-37050 |
BU30#,XZU301,307,31#,331,347,37#,382..DCB,VAN |
2 | ||
| 52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER | ||||
| 52204-36011 |
BU30#,XZU307,31#,347..DCB |
2 | ||
| 52205D - CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER | ||||
| 52203-36040 |
BU30#,XZU307,31#,347..DCB |
2 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90109-14011 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352 |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
2 | ||
| 52222A - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-37020 |
BU30#,XZU307,31#,347..DCB NO.1 |
2 | ||
| 52222D - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-36030 |
BU30#,XZU307,31#,347..DCB,VAN |
2 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-37030 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
2 | ||
| 54801 - TUBE SUB-ASSY, TILT CAB, NO.1 | ||||
| 54801-37040 |
BU30#,XZU301,307,31#,331,347,37#,382..DCB,VAN |
1 | ||
| 54801-37042 |
BU30#,XZU301,307,31#,331,347,37#,382..DCB,VAN |
1 | ||
| 57223 - BRACKET, FRONT MOUNTING, RH | ||||
| 57223-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 57224 - BRACKET, FRONT MOUNTING, LH | ||||
| 57224-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
2 | ||
| Common parts | ||||
| 90101-10196 | ||||
| 90101-14072 | ||||
| 90105-12256 | ||||
| 90119-10924 | ||||
| 90173-14012 | ||||
| 90179-14065 | ||||
| 90201-10388 | ||||
| 90201-12006 | ||||
| 90201-13025 | ||||
| 90440-16025 | ||||
| 91619-61230 | ||||
| 94130-01202 | ||||
| 94184-01001 | ||||
| 94184-61201 | ||||
| 94622-41400 | ||||
(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47358 - TUBE, BOOSTER TO RESERVOIR, NO.2 | ||||
| 47358-37010 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
1 | ||
| 51711D - BRACKET, CAB FRONT MOUNTING | ||||
| 51701-37100 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU302,307,312,322,337,342,347,352 |
1 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14075 |
XZU306..T4..DSL;XZU347..DCB..5F;RZU300..30T..LPG;XZU302..20T..DSL;XZU306..4FC..DSLL;XZU306..T5..5F..DSL;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;BZU300,XZU346,347..SCB;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM3,T4)..5F..4NO;XZU302..T4..(295T,30T)..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,350,362..(03S,06S,DM5,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG) |
2 | ||
| 90101-14075 |
XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 |
2 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14075 |
XZU306..T4..DSL;XZU347..DCB..5F;RZU300..30T..LPG;XZU302..20T..DSL;XZU306..4FC..DSLL;XZU306..T5..5F..DSL;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;BZU300,XZU346,347..SCB;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM3,T4)..5F..4NO;XZU302..T4..(295T,30T)..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,350,362..(03S,06S,DM5,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG) |
2 | ||
| 90101-14075 |
XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 |
2 | ||
| 51717A - PLATE, BODY SUPPORT BRACKET | ||||
| 51717-37100 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 51722A - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH | ||||
| 51702-37100 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU302,307,312,322,337,342,347,352 |
1 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-37050 |
BU30#,XZU301,307,31#,331,347,37#,382..DCB,VAN |
2 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90109-14011 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352 |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
2 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-37030 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
2 | ||
| 54801 - TUBE SUB-ASSY, TILT CAB, NO.1 | ||||
| 54801-37040 |
BU30#,XZU301,307,31#,331,347,37#,382..DCB,VAN |
1 | ||
| 54801-37042 |
BU30#,XZU301,307,31#,331,347,37#,382..DCB,VAN |
1 | ||
| 57223 - BRACKET, FRONT MOUNTING, RH | ||||
| 57223-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 57224 - BRACKET, FRONT MOUNTING, LH | ||||
| 57224-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
2 | ||
| Common parts | ||||
| 90101-14071 | ||||
| 90101-14072 | ||||
| 90101-14078 | ||||
| 90105-12191 | ||||
| 90119-10924 | ||||
| 90170-08016 | ||||
| 90170-14030 | ||||
| 90173-14012 | ||||
| 90177-12004 | ||||
| 90179-08026 | ||||
| 90179-14065 | ||||
| 90201-16172 | ||||
| 90468-16032 | ||||
| 91619-61230 | ||||
| 91642-81025 | ||||
| 91642-81030 | ||||
| 91642-81240 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94130-00802 | ||||
| 94130-01202 | ||||
| 94150-80600 | ||||
| 94150-81000 | ||||
| 94612-11001 | ||||
| 94613-10800 | ||||
| 94622-11400 | ||||
| 96150-02000 | ||||
| 96160-00800 | ||||
ILLUST NO. 1 OF 2(9905-0406)XZU301,331..IV4
ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47358 - TUBE, BOOSTER TO RESERVOIR, NO.2 | ||||
| 47358-37010 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
1 | ||
| 51711D - BRACKET, CAB FRONT MOUNTING | ||||
| 51701-37100 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU302,307,312,322,337,342,347,352 |
1 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14075 |
XZU306..T4..DSL;XZU347..DCB..5F;RZU300..30T..LPG;XZU302..20T..DSL;XZU306..4FC..DSLL;XZU306..T5..5F..DSL;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;BZU300,XZU346,347..SCB;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM3,T4)..5F..4NO;XZU302..T4..(295T,30T)..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,350,362..(03S,06S,DM5,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG) |
2 | ||
| 90101-14075 |
XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 |
2 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14075 |
XZU306..T4..DSL;XZU347..DCB..5F;RZU300..30T..LPG;XZU302..20T..DSL;XZU306..4FC..DSLL;XZU306..T5..5F..DSL;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;BZU300,XZU346,347..SCB;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM3,T4)..5F..4NO;XZU302..T4..(295T,30T)..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,350,362..(03S,06S,DM5,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG) |
2 | ||
| 90101-14075 |
XZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3 |
2 | ||
| 51717A - PLATE, BODY SUPPORT BRACKET | ||||
| 51717-37100 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 51722A - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH | ||||
| 51702-37100 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU302,307,312,322,337,342,347,352 |
1 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-37050 |
BU30#,XZU301,307,31#,331,347,37#,382..DCB,VAN |
2 | ||
| 52205D - CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER | ||||
| 52203-36040 |
BU30#,XZU307,31#,347..DCB |
2 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90109-14011 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352 |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
2 | ||
| 52222A - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-37020 |
BU30#,XZU307,31#,347..DCB NO.1 |
2 | ||
| 52222A - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-37020 |
BU30#,XZU307,31#,347..DCB NO.1 |
2 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-37030 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
2 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-37030 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
2 | ||
| 54801 - TUBE SUB-ASSY, TILT CAB, NO.1 | ||||
| 54801-37040 |
BU30#,XZU301,307,31#,331,347,37#,382..DCB,VAN |
1 | ||
| 54801-37042 |
BU30#,XZU301,307,31#,331,347,37#,382..DCB,VAN |
1 | ||
| 54959 - BRACKET, TILT CAB STAY, NO.4 | ||||
| 54959-37090 |
XZU301,331..DSLL..IV4 ｱﾘ(ﾁﾙﾄ ﾊｲﾙ-ﾌ) |
1 | ||
| 54959-37090 |
XZU301,331..DSLL..IV4 ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 54959 - BRACKET, TILT CAB STAY, NO.4 | ||||
| 54959-37090 |
XZU301,331..DSLL..IV4 ｱﾘ(ﾁﾙﾄ ﾊｲﾙ-ﾌ) |
1 | ||
| 54959-37090 |
XZU301,331..DSLL..IV4 ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 57223 - BRACKET, FRONT MOUNTING, RH | ||||
| 57223-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 57224 - BRACKET, FRONT MOUNTING, LH | ||||
| 57224-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
2 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
2 | ||
| Common parts | ||||
| 90101-14072 | ||||
| 90105-08071 | ||||
| 90105-10086 | ||||
| 90105-12064 | ||||
| 90119-10924 | ||||
| 90173-14012 | ||||
| 90179-06347 | ||||
| 90179-14065 | ||||
| 90201-13025 | ||||
| 90201-16172 | ||||
| 90541-10058 | ||||
| 91611-60614 | ||||
| 91611-60814 | ||||
| 91611-B0616 | ||||
| 91619-61230 | ||||
| 91645-80825 | ||||
| 91651-B0822 | ||||
| 94130-00802 | ||||
| 94150-80800 | ||||
| 94184-61201 | ||||
| 94622-41400 | ||||

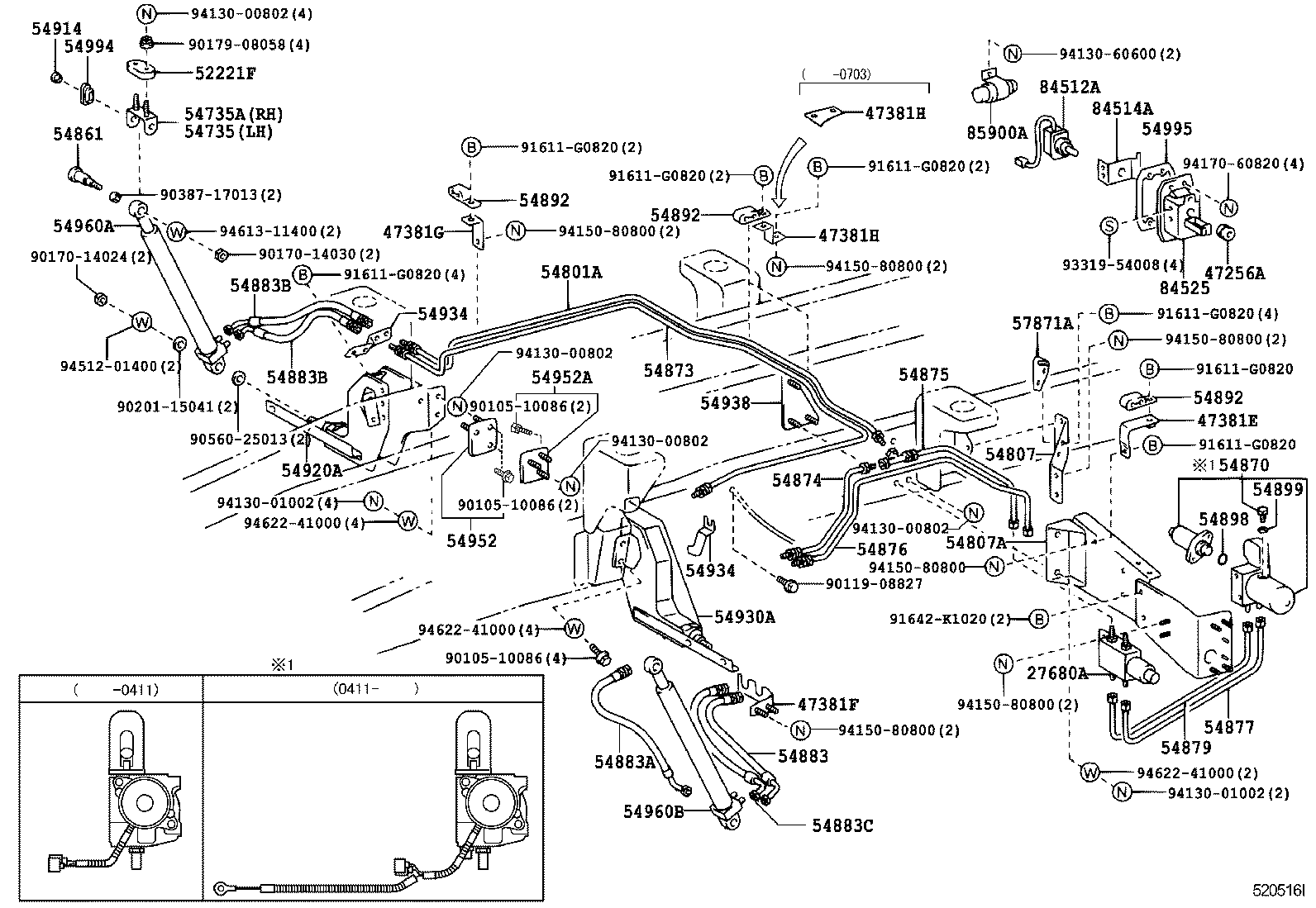

ILLUST NO. 2 OF 2(9905-0406)XZU301,331..IV4
ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27680A - SOLENOID ASSY | ||||
| 27680-78031 |
S05D..XZU301,331..IV4 |
1 | ||
| 54802 - TUBE SUB-ASSY, TILT CAB, NO.2 | ||||
| 54802-37041 |
XZU301,331..DSLL..IV4 |
1 | ||
| 54802-37041 |
XZU301..5F..IV4;XZU331..DSL..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4 |
1 | ||
| 54872 - TUBE, TILT CAB, NO.1 | ||||
| 54801-37120 |
XZU301,331..DSLL..IV4 |
1 | ||
| 54801-37120 |
XZU301..5F..IV4;XZU331..DSL..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4 |
1 | ||
| 54874 - TUBE, TILT CAB, NO.3 | ||||
| 54804-37030 |
XZU301..5F..IV4;XZU331..DSL..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4 |
1 | ||
| 54804-37030 |
XZU301,331..DSLL..IV4 |
1 | ||
| 54875 - TUBE, TILT CAB, NO.4 | ||||
| 54803-37050 |
XZU301..5F..IV4;XZU331..DSL..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4 |
1 | ||
| 54803-37050 |
XZU301,331..DSLL..IV4 |
1 | ||
| 54876 - TUBE, TILT CAB, NO.5 | ||||
| 54804-37050 |
XZU301,331..DSLL..IV4 |
1 | ||
| 54804-37050 |
XZU301..5F..IV4;XZU331..DSL..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4 |
1 | ||
| 54877 - TUBE, TILT CAB, NO.6 | ||||
| 54808-37030 |
XZU301..5F..IV4;XZU331..DSL..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4 |
1 | ||
| 54808-37030 |
XZU301,331..DSLL..IV4 |
1 | ||
| 54878 - TUBE, TILT CAB, NO.7 | ||||
| 54806-37050 |
XZU301..5F..IV4;XZU331..DSL..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4 |
1 | ||
| 54806-37050 |
XZU301,331..DSLL..IV4 |
1 | ||
| 54879 - TUBE, TILT CAB, NO.8 | ||||
| 54802-37050 |
XZU301,331..DSLL..IV4 |
1 | ||
| 54802-37050 |
XZU301..5F..IV4;XZU331..DSL..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4 |
1 | ||
| Common parts | ||||
| 90170-14024 | ||||
| 90170-14030 | ||||
| 90179-08058 | ||||
| 90201-15041 | ||||
| 90387-17012 | ||||
| 90461-10669 | ||||
| 90560-25013 | ||||
| 91611-G0820 | ||||
| 91642-K1020 | ||||
| 93319-54008 | ||||
| 94130-00802 | ||||
| 94130-01002 | ||||
| 94130-60600 | ||||
| 94150-80800 | ||||
| 94170-60820 | ||||
| 94512-01400 | ||||
| 94613-11400 | ||||
| 94622-11400 | ||||
| 94622-41000 | ||||
(0610- )DCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-10196 | ||||
| 90101-14072 | ||||
| 90101-14078 | ||||
| 90119-10924 | ||||
| 90173-14012 | ||||
| 90179-14065 | ||||
| 90201-10388 | ||||
| 90201-13025 | ||||
| 90440-16025 | ||||
| 91619-61230 | ||||
| 91673-G1025 | ||||
| 94184-01001 | ||||
| 94184-61201 | ||||
| 94622-41400 | ||||
ILLUST NO. 1 OF 2(0610- )IV4
ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-14072 | ||||
| 90101-14078 | ||||
| 90105-08071 | ||||
| 90105-10228 | ||||
| 90105-12064 | ||||
| 90119-10924 | ||||
| 90173-14012 | ||||
| 90179-06347 | ||||
| 90179-14065 | ||||
| 90201-13025 | ||||
| 90201-16172 | ||||
| 90541-10058 | ||||
| 91611-G0820 | ||||
| 91619-61235 | ||||
| 91645-80825 | ||||
| 91651-60616 | ||||
| 91651-B0822 | ||||
| 91673-G1025 | ||||
| 94130-00802 | ||||
| 94150-80800 | ||||
| 94184-61201 | ||||
| 94612-11001 | ||||
| 94622-41400 | ||||
| 96150-02000 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
ILLUST NO. 2 OF 2(0610- )IV4
ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10086 | ||||
| 90170-14024 | ||||
| 90170-14030 | ||||
| 90179-08058 | ||||
| 90201-15041 | ||||
| 90387-17012 | ||||
| 90461-10669 | ||||
| 90560-25013 | ||||
| 91611-G0820 | ||||
| 91642-K1020 | ||||
| 93319-54008 | ||||
| 94130-00802 | ||||
| 94130-01002 | ||||
| 94130-60600 | ||||
| 94150-80800 | ||||
| 94170-60820 | ||||
| 94512-01400 | ||||
| 94613-11400 | ||||
| 94622-41000 | ||||
(0610- )IV4
ﾁﾙﾄｷｬﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-14072 | ||||
| 90101-14078 | ||||
| 90105-08071 | ||||
| 90105-10086 | ||||
| 90105-10228 | ||||
| 90105-12064 | ||||
| 90119-10924 | ||||
| 90173-14012 | ||||
| 90179-14065 | ||||
| 90201-08010 | ||||
| 90201-13025 | ||||
| 90201-16172 | ||||
| 91611-G0820 | ||||
| 91619-61235 | ||||
| 91631-60825 | ||||
| 91645-80825 | ||||
| 91673-G1025 | ||||
| 94130-00802 | ||||
| 94130-01002 | ||||
| 94184-61201 | ||||
| 94271-00800 | ||||
| 94612-11001 | ||||
| 94622-41000 | ||||
| 94622-41400 | ||||
| 96150-02000 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
ILLUST NO. 1 OF 2(7708- )HU30,JU20,RU2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-12002 | ||||
| 90119-10065 | ||||
| 90201-12002 | ||||
| 90201-15005 | ||||
| 90240-10009 | ||||
| 90468-16012 | ||||
| 91112-51460 | ||||
| 91161-71230 | ||||
| 94115-51200 | ||||
| 94512-01400 | ||||
| 94611-11001 | ||||
| Linked diagrams | ||||
| 5151 | ||||
ILLUST NO. 1 OF 2(9905-0406)DCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-14072 | ||||
| 90101-14075 | ||||
| 90105-08071 | ||||
| 90105-10086 | ||||
| 90105-10228 | ||||
| 90105-12064 | ||||
| 90119-08830 | ||||
| 90119-10924 | ||||
| 90173-14012 | ||||
| 90179-14065 | ||||
| 90201-13025 | ||||
| 90201-16172 | ||||
| 90250-10232 | ||||
| 90541-10058 | ||||
| 91619-61235 | ||||
| 91651-60616 | ||||
| 94130-00802 | ||||
| 94184-61201 | ||||
| 94622-41400 | ||||
ILLUST NO. 2 OF 2(9905- )DCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10086 | ||||
| 90119-08827 | ||||
| 90170-14024 | ||||
| 90170-14030 | ||||
| 90179-08058 | ||||
| 90201-15041 | ||||
| 90387-17013 | ||||
| 90560-25013 | ||||
| 91611-G0820 | ||||
| 91642-K1020 | ||||
| 93319-54008 | ||||
| 94130-00802 | ||||
| 94130-01002 | ||||
| 94130-60600 | ||||
| 94150-80800 | ||||
| 94170-60820 | ||||
| 94512-01400 | ||||
| 94613-11400 | ||||
| 94622-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
