XZU331-PKPQL4 (2000)

Toyota Dyna/Toyoace

Production May 2000 - Jun 2004

Engine S05D

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9905-0406)XZU331..IV4 ; (9905-0610)XZU354,36# ;(9905-0610)XZU306..5F,6FC..DSL..CB

Click highlighted areas on diagram

ﾕｿｳﾖｳ

diagram

Part #	Description	Period	Qty	Price
51907E - RETAINER SUB-ASSY, SPARE TIRE CARRIER
51912-37010	XZU301..CNG,LPG;XZU301,331..IV4,IV6;XZU302..T5..20T..WT..IV3;XZU300,301,362..T4..DSL..IV3;RZU300,XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU301,302..(DM3,DM6)..(DSL,DSLL)..(CBU,IV3,IV7);BU30#,XZU307,350,371..(DM6,T3,T5)..WT..(IV3,IV4,IV6)	05/1999 - 06/2002	1
51912-37010	XZU301..CNG,LPG;XZU301,331..IV4,IV6;XZU302..T5..20T..WT..IV3;XZU300,301,362..T4..DSL..IV3;RZU300,XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU301,302..(DM3,DM6)..(DSL,DSLL)..(CBU,IV3,IV7);BU30#,XZU307,350,371..(DM6,T3,T5)..WT..(IV3,IV4,IV6)	05/1999 - 06/2002	1
51912-37010	XZU301..CNG,LPG;XZU301,331..IV4,IV6;XZU302..T5..20T..WT..IV3;XZU300,301,362..T4..DSL..IV3;RZU300,XZU302..(T3,T4,T5)..(295T,30T)..IV3;XZU301,302..(DM3,DM6)..(DSL,DSLL)..(CBU,IV3,IV7);BU30#,XZU307,350,371..(DM6,T3,T5)..WT..(IV3,IV4,IV6)	05/1999 - 06/2002	1
51912-37010	XZU362..T4..IV3;XZU301,331..DSL..(IV4,IV6);XZU300,301,302..T4..(295T,30T)..DSL..IV3;XZU301,302..(DM3,DM6)..DSL..(CBU,IV3,IV7);RZU300,XZU301..SCB..(DM6,T3,T4)..(CNG,EFI,LPG)..IV3;BU306,XZU302,307,350,371..(T3,T5)..WT..(IV3,IV4,IV6)	06/2002 - 10/2002	1
51912-37010	XZU362..T4..IV3;XZU301,331..DSL..(IV4,IV6);XZU300,301,302..T4..(295T,30T)..DSL..IV3;XZU301,302..(DM3,DM6)..DSL..(CBU,IV3,IV7);RZU300,XZU301..SCB..(DM6,T3,T4)..(CNG,EFI,LPG)..IV3;BU306,XZU302,307,350,371..(T3,T5)..WT..(IV3,IV4,IV6)	06/2002 - 10/2002	1
51912-37010	XZU362..T4..IV3;XZU301,331..DSL..(IV4,IV6);XZU300,301,302..T4..(295T,30T)..DSL..IV3;XZU301,302..(DM3,DM6)..DSL..(CBU,IV3,IV7);RZU300,XZU301..SCB..(DM6,T3,T4)..(CNG,EFI,LPG)..IV3;BU306,XZU302,307,350,371..(T3,T5)..WT..(IV3,IV4,IV6)	06/2002 - 10/2002	1
51912-37010	XZU301..IV4;XZU302..DM3,DM6;XZU362..T4..IV3;XZU301..20T..IV7;XZU301..DM3..IV3;XZU301..IV6..4NO;XZU301..4FC..30T..IV6;XZU331,350,371..IV4,IV6;XZU301..4FC..20T..(CBU,IV6);XZU301..(DM6,T4)..DSLL..IV3;XZU301..(DM6,T4)..4FC..DSL..IV3;XZU300,302..T4..(295T,30T)..IV3;BU306,XZU302,307..(T3,T5)..WT..IV3	10/2002 - 06/2004	1
51912-37010	XZU301..IV4;XZU302..DM3,DM6;XZU362..T4..IV3;XZU301..20T..IV7;XZU301..DM3..IV3;XZU301..IV6..4NO;XZU301..4FC..30T..IV6;XZU331,350,371..IV4,IV6;XZU301..4FC..20T..(CBU,IV6);XZU301..(DM6,T4)..DSLL..IV3;XZU301..(DM6,T4)..4FC..DSL..IV3;XZU300,302..T4..(295T,30T)..IV3;BU306,XZU302,307..(T3,T5)..WT..IV3	10/2002 - 06/2004	1
51912-37010	XZU301..IV4;XZU302..DM3,DM6;XZU362..T4..IV3;XZU301..20T..IV7;XZU301..DM3..IV3;XZU301..IV6..4NO;XZU301..4FC..30T..IV6;XZU331,350,371..IV4,IV6;XZU301..4FC..20T..(CBU,IV6);XZU301..(DM6,T4)..DSLL..IV3;XZU301..(DM6,T4)..4FC..DSL..IV3;XZU300,302..T4..(295T,30T)..IV3;BU306,XZU302,307..(T3,T5)..WT..IV3	10/2002 - 06/2004	1
Common parts
52233-92300
91162-81245
94130-61200

(9905-0406)BU30#,346,BZU340,RZU301,340,XZU306,307,33#,341,342,344,346,347,382..T3,T

Click highlighted areas on diagram

ﾘﾔ,ｼｬﾘｮｳﾋﾀﾞﾘｶﾞﾜｿｳｻｼﾖｳ

diagram

Part #	Description	Period	Qty	Price
Common parts
91611-G0820
91645-C1032
94150-81000

(0610- )BZU340,TRU300,340,500,XZU308,33#,34#,378,388,50#,538,548..T3,T4..20T,30T

Click highlighted areas on diagram

ﾘﾔ

diagram

Part #	Description	Period	Qty	Price
Common parts
90178-14002
91611-G0820
91672-L1435

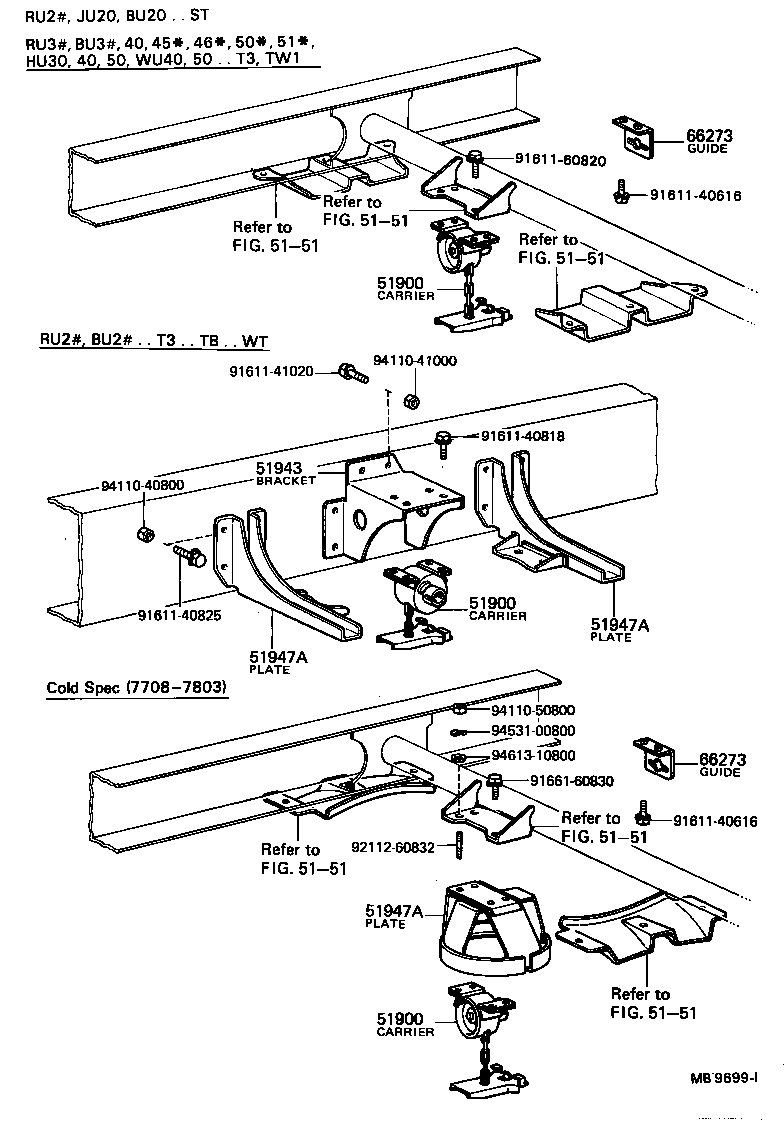

(7708- )SRF,T1,T3,TW1

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
Common parts
91611-40616
91611-40818
91611-40825
91611-41020
91611-60820
91661-60830
92112-60832
94110-40800
94110-41000
94110-50800
94531-00800
94613-10800
Linked diagrams
5151
