XZU331-PKPQL4 (2000)
Toyota Dyna/Toyoace
(9905-0406)J05C,S05#..DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

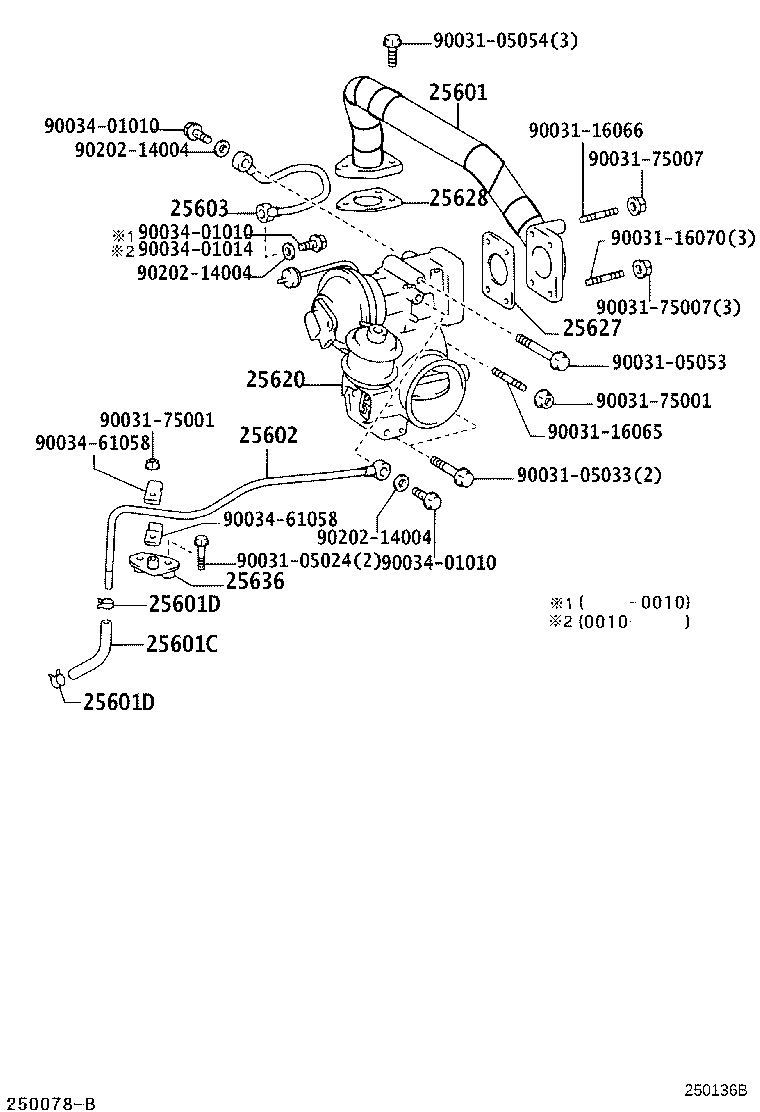

| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25610-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,372,382 |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-78041 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 25620-78040 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 25620-78042 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 25620-78081 |
S05D..XZU301,306,331..DSLL |
1 | ||
| 25620-78080 |
S05D..XZU301,306,331..DSLL |
1 | ||
| 25620-78081 |
S05D..XZU301,306,311,331,341,346,351..DSLL |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 17173-78030 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 90031-05033 | ||||
| 90031-05035 | ||||
| 90031-05053 | ||||
| 90031-05054 | ||||
| 90031-16065 | ||||
| 90031-16066 | ||||
| 90031-16070 | ||||
| 90031-75001 | ||||
| 90031-75007 | ||||
| Linked diagrams | ||||
| 1708 | ||||
(0005-0406)S05D..XZU301,306,311,331,341,346,351..DSLL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25610-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,372,382 |
1 | ||
| 25601C - HOSE(FOR EGR PIPE, NO.1) | ||||
| 23239-78010 |
XZU301,306,311,331,341,346,351..DSLL |
1 | ||
| 16261-78030 |
S05D..XZU301,306,331..DSLL |
1 | ||
| 25601D - CLIP OR CLAMP(FOR EGR PIPE, NO.1) | ||||
| 90034-67023 |
S05D..XZU301,306,331..DSLL |
2 | ||
| 90034-67023 |
S05D..XZU301,306,311,331,341,346,351..DSLL |
2 | ||
| 25601D - CLIP OR CLAMP(FOR EGR PIPE, NO.1) | ||||
| 90034-67023 |
S05D..XZU301,306,331..DSLL |
2 | ||
| 90034-67023 |
S05D..XZU301,306,311,331,341,346,351..DSLL |
2 | ||
| 25602 - PIPE SUB-ASSY, EGR, NO.2 | ||||
| 25601-78020 |
S05D..XZU301,306,311,331,341,346,351..DSLL |
1 | ||
| 25601-78020 |
S05D..XZU301,306,331..DSLL |
1 | ||
| 25603 - PIPE SUB-ASSY, EGR, NO.3 | ||||
| 25601-78050 |
S05D..XZU301,306,331..DSLL |
1 | ||
| 25601-78040 |
S05D..XZU301,306,331..DSLL |
1 | ||
| 25601-78050 |
S05D..XZU301,306,311,331,341,346,351..DSLL |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-78041 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 25620-78040 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 25620-78042 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 25620-78081 |
S05D..XZU301,306,331..DSLL |
1 | ||
| 25620-78080 |
S05D..XZU301,306,331..DSLL |
1 | ||
| 25620-78081 |
S05D..XZU301,306,311,331,341,346,351..DSLL |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 17173-78030 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 25636 - BRACKET, EGR PIPE, NO.2 | ||||
| 25635-78011 |
S05D..XZU301,306,311,331,341,346,351..DSLL |
1 | ||
| 25635-78010 |
S05D..XZU301,306,331..DSLL |
1 | ||
| 25635-78011 |
S05D..XZU301,306,331..DSLL |
1 | ||
| Common parts | ||||
| 90031-05024 | ||||
| 90031-05033 | ||||
| 90031-05053 | ||||
| 90031-05054 | ||||
| 90031-16065 | ||||
| 90031-16066 | ||||
| 90031-16070 | ||||
| 90031-75001 | ||||
| 90031-75007 | ||||
| 90034-01010 | ||||
| 90034-01014 | ||||
| 90034-61058 | ||||
| 90202-14004 | ||||
(9905-0406)J05C,S05#..DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05033 | ||||
| 90031-05035 | ||||
| 90031-05053 | ||||
| 90031-05054 | ||||
| 90031-16065 | ||||
| 90031-16066 | ||||
| 90031-16070 | ||||
| 90031-75001 | ||||
| 90031-75007 | ||||
| Linked diagrams | ||||
| 1708 | ||||
