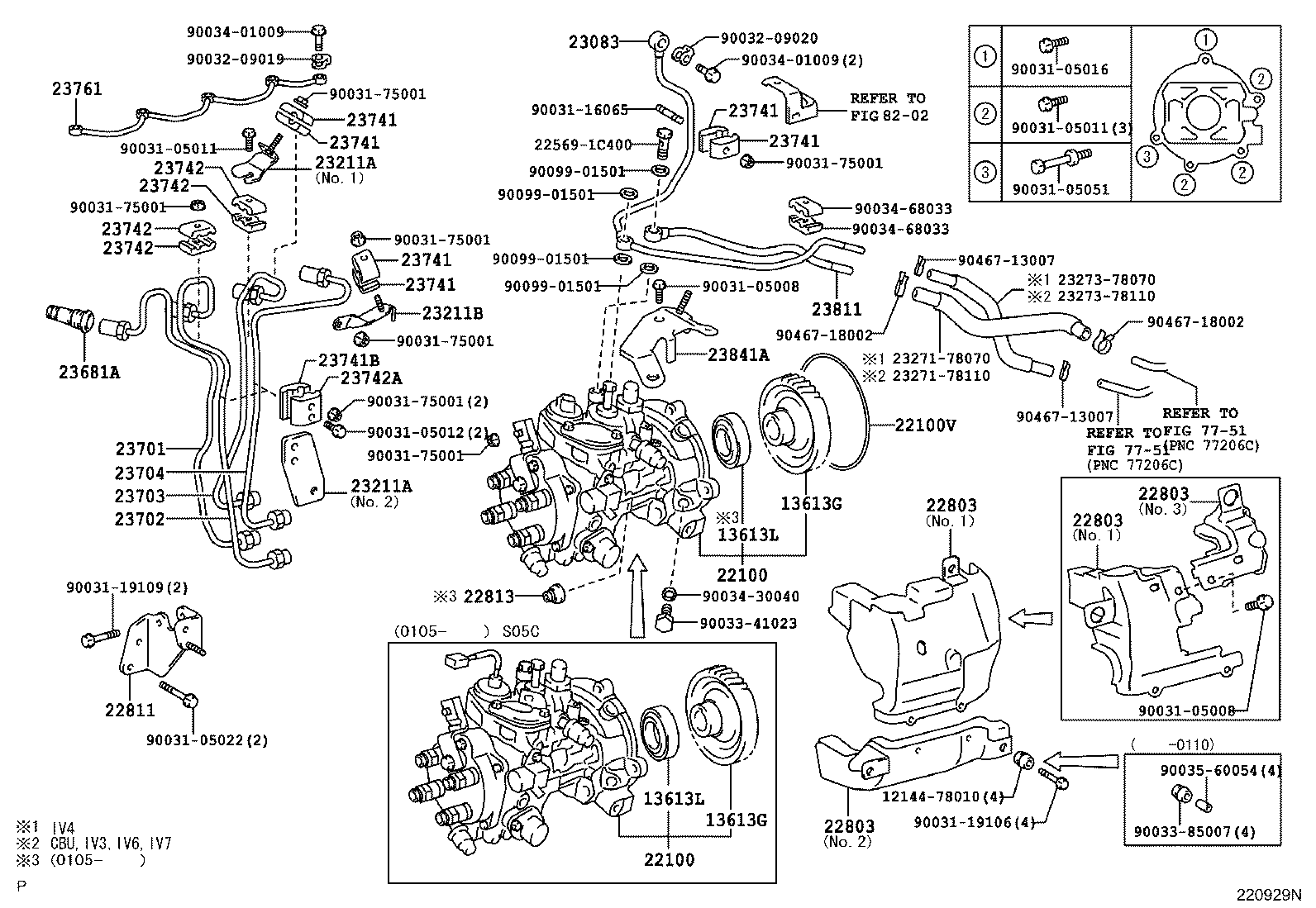

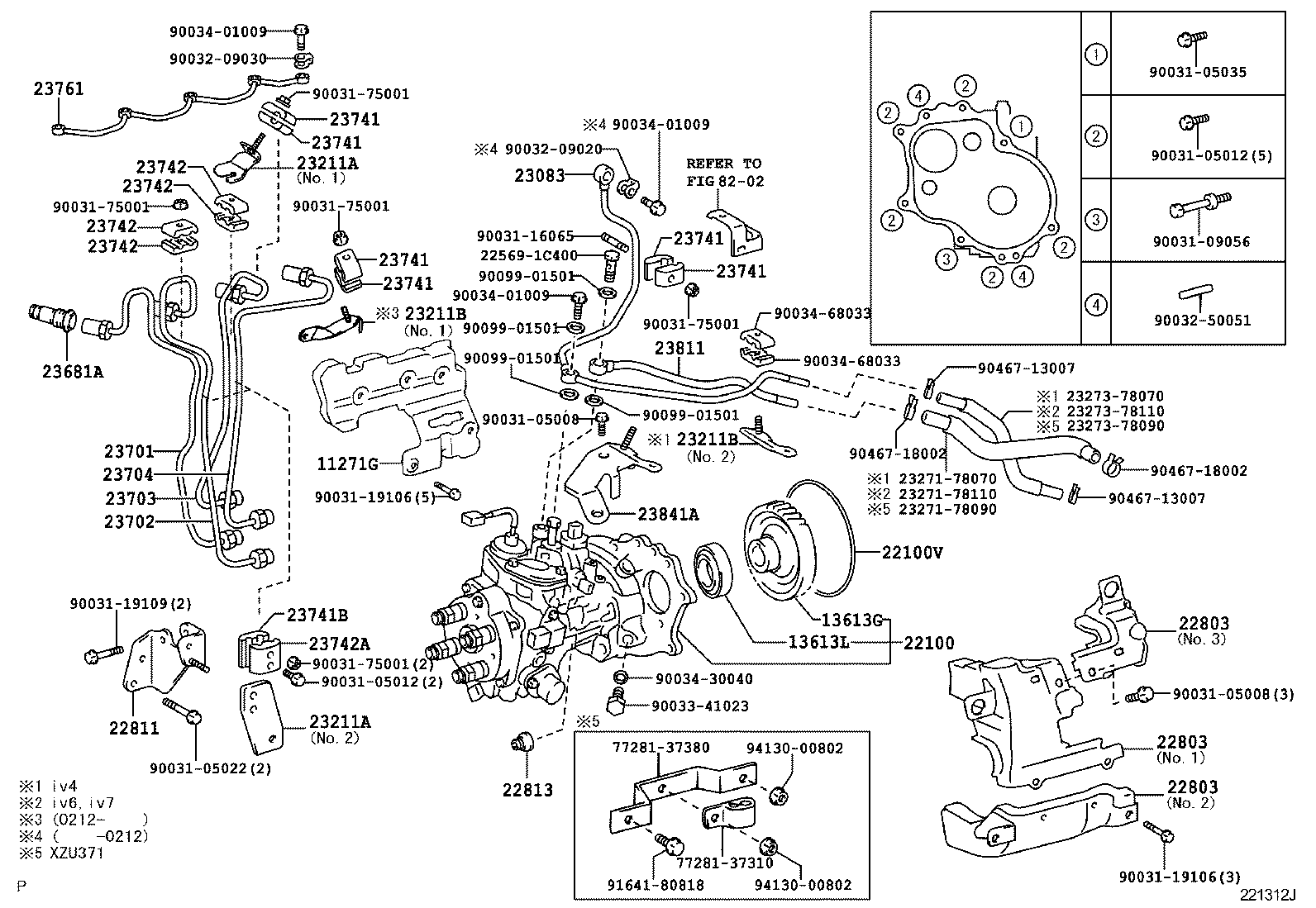

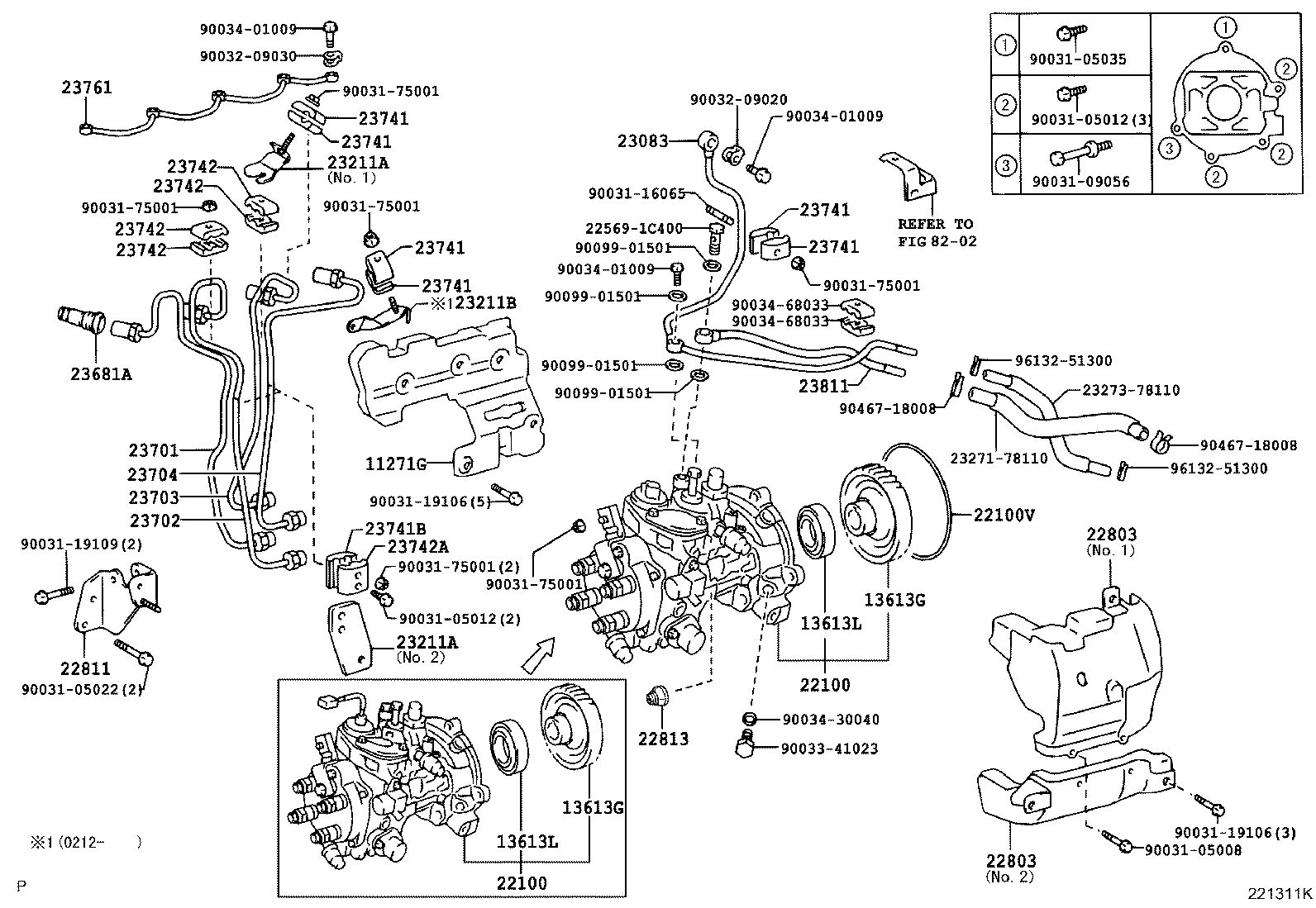

XZU331-PKPQL4 (2000)
Toyota Dyna/Toyoace
(9905-0206)S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13613G - GEAR, INJECTION PUMP DRIVE | ||||
| 13613-78080 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 13613-78080 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 13613-78030 |
S05#..XZU30#,31#,32#,33#,34#,35# |
1 | ||
| 13613G - GEAR, INJECTION PUMP DRIVE | ||||
| 13613-78080 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 13613-78080 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 13613-78030 |
S05#..XZU30#,31#,32#,33#,34#,35# |
1 | ||
| 13613L - BEARING, BALL(FOR INJECTION PUMP DRIVE GEAR) | ||||
| 90033-60020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 13613L - BEARING, BALL(FOR INJECTION PUMP DRIVE GEAR) | ||||
| 90033-60020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-78060 |
S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22100-78170 |
S05D..XZU301,331,371..DSL..(IV4,IV6,IV7) |
1 | ||
| 22100-78110 |
S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22100-78210 |
S05D..XZU301,331..DSLL..IV4 |
1 | ||
| 22100-78062 |
S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-78060 |
S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22100-78170 |
S05D..XZU301,331,371..DSL..(IV4,IV6,IV7) |
1 | ||
| 22100-78110 |
S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22100-78210 |
S05D..XZU301,331..DSLL..IV4 |
1 | ||
| 22100-78062 |
S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22100V - RING, O(FOR INJECTION PUMP) | ||||
| 90033-01059 |
S05#..XZU30#,31#,32#,33#,34#,35# |
1 | ||
| 90033-01063 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) |
1 | ||
| 90033-01063 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22803 - COVER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22803-78060 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6 NO.1 |
1 | ||
| 22803-78040 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78070 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6;S05D..XZU301..T3..5F..30T..IV3 NO.3 |
1 | ||
| 22803-78041 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78042 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
1 | ||
| 22803-78130 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.3 |
1 | ||
| 22803-78110 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.2 |
1 | ||
| 22803-78061 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22803-78130 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.3 |
1 | ||
| 22803-78043 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78110 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22803 - COVER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22803-78060 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6 NO.1 |
1 | ||
| 22803-78040 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78070 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6;S05D..XZU301..T3..5F..30T..IV3 NO.3 |
1 | ||
| 22803-78041 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78042 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
1 | ||
| 22803-78130 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.3 |
1 | ||
| 22803-78110 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.2 |
1 | ||
| 22803-78061 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22803-78130 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.3 |
1 | ||
| 22803-78043 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78110 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22803 - COVER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22803-78060 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6 NO.1 |
1 | ||
| 22803-78040 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78070 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6;S05D..XZU301..T3..5F..30T..IV3 NO.3 |
1 | ||
| 22803-78041 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78042 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
1 | ||
| 22803-78130 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.3 |
1 | ||
| 22803-78110 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.2 |
1 | ||
| 22803-78061 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22803-78130 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.3 |
1 | ||
| 22803-78043 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78110 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22803 - COVER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22803-78060 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6 NO.1 |
1 | ||
| 22803-78040 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78070 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6;S05D..XZU301..T3..5F..30T..IV3 NO.3 |
1 | ||
| 22803-78041 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78042 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
1 | ||
| 22803-78130 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.3 |
1 | ||
| 22803-78110 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.2 |
1 | ||
| 22803-78061 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22803-78130 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.3 |
1 | ||
| 22803-78043 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78110 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22801-78010 |
S05#..XZU30#,31#,32#,33#,34#,35# |
1 | ||
| 22801-78050 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 22801-78050 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 22813 - PROTECTOR, INJECTION PUMP, NO.1 | ||||
| 22813-78010 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 22813-78010 |
S05D..XZU301..CBU,IV4,IV6;S05D..XZU301..T3..4FC..IV3;S05D..XZU301..30T..DSLL..IV3;S05D..XZU301..(20T,295T)..(IV3,IV7);S05D..XZU301..(DM3,T4,T5)..30T..IV3;S05#..XZU302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 22813-78010 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 | ||||
| 23803-78030 |
S05D..XZU331..4FC..IV4;S05D..XZU301,371..DSL..IV4;S05D..XZU331..5F..DSL..IV4;S05D..XZU301..4FC..DSLL..IV4 |
1 | ||
| 23803-78020 |
S05D..XZU301,331..DSLL..IV4 |
1 | ||
| 23803-78120 |
S05D..XZU301,331,371..IV4 |
1 | ||
| 23803-78020 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 23211A - BRACKET(FOR INJECTION PIPE NO.3) | ||||
| 23211-78050 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 23211-78020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 23211A - BRACKET(FOR INJECTION PIPE NO.3) | ||||
| 23211-78050 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 23211-78020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 23211B - BRACKET(FOR INJECTION PIPE NO.4) | ||||
| 23211-78030 |
S05D..XZU301,331,371..IV4 NO.1 |
1 | ||
| 23211-78240 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 23211-78030 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 23211-78240 |
S05D..XZU301,331,371..IV4 NO.2 |
1 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-78040 |
S05#..XZU30#,31#,32#,33#,34#,35# |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-78040 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-78040 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-78040 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23742-78030 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 |
4 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-78020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
2 | ||
| 23761 - PIPE, NOZZLE LEAKAGE, NO.1 | ||||
| 23761-78020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 23761-78020 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 |
1 | ||
| 23761-78020 |
S05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-78030 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 23811-78110 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 23811-78110 |
S05D..XZU301,331,371..IV4 |
1 | ||
| Common parts | ||||
| 12144-78010 | ||||
| 22569-1C400 | ||||
| 23271-78070 | ||||
| 23271-78110 | ||||
| 23273-78070 | ||||
| 23273-78110 | ||||
| 90031-05008 | ||||
| 90031-05011 | ||||
| 90031-05012 | ||||
| 90031-05016 | ||||
| 90031-05022 | ||||
| 90031-05051 | ||||
| 90031-16065 | ||||
| 90031-19106 | ||||
| 90031-19109 | ||||
| 90031-75001 | ||||
| 90032-09019 | ||||
| 90032-09020 | ||||
| 90033-41023 | ||||
| 90033-85007 | ||||
| 90034-01009 | ||||
| 90034-30040 | ||||
| 90034-68033 | ||||
| 90035-60054 | ||||
| 90099-01501 | ||||
| 90467-13007 | ||||
| 90467-18002 | ||||
| Linked diagrams | ||||
| 7751 | ||||
| 8202 | ||||
(0206-0406)S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..CBU,IV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11271G - COVER, CYLINDER BLOCK SIDE | ||||
| 11271-78051 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 11271-78051 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 11271-78052 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 13613G - GEAR, INJECTION PUMP DRIVE | ||||
| 13613-78080 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 13613-78080 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 13613-78030 |
S05#..XZU30#,31#,32#,33#,34#,35# |
1 | ||
| 13613G - GEAR, INJECTION PUMP DRIVE | ||||
| 13613-78080 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 13613-78080 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 13613-78030 |
S05#..XZU30#,31#,32#,33#,34#,35# |
1 | ||
| 13613L - BEARING, BALL(FOR INJECTION PUMP DRIVE GEAR) | ||||
| 90033-60020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 13613L - BEARING, BALL(FOR INJECTION PUMP DRIVE GEAR) | ||||
| 90033-60020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-78060 |
S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22100-78170 |
S05D..XZU301,331,371..DSL..(IV4,IV6,IV7) |
1 | ||
| 22100-78110 |
S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22100-78210 |
S05D..XZU301,331..DSLL..IV4 |
1 | ||
| 22100-78062 |
S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-78060 |
S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22100-78170 |
S05D..XZU301,331,371..DSL..(IV4,IV6,IV7) |
1 | ||
| 22100-78110 |
S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22100-78210 |
S05D..XZU301,331..DSLL..IV4 |
1 | ||
| 22100-78062 |
S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22100V - RING, O(FOR INJECTION PUMP) | ||||
| 90033-01059 |
S05#..XZU30#,31#,32#,33#,34#,35# |
1 | ||
| 90033-01063 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) |
1 | ||
| 90033-01063 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22803 - COVER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22803-78060 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6 NO.1 |
1 | ||
| 22803-78040 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78070 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6;S05D..XZU301..T3..5F..30T..IV3 NO.3 |
1 | ||
| 22803-78041 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78042 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
1 | ||
| 22803-78130 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.3 |
1 | ||
| 22803-78110 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.2 |
1 | ||
| 22803-78061 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22803-78130 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.3 |
1 | ||
| 22803-78043 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78110 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22803 - COVER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22803-78060 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6 NO.1 |
1 | ||
| 22803-78040 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78070 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6;S05D..XZU301..T3..5F..30T..IV3 NO.3 |
1 | ||
| 22803-78041 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78042 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
1 | ||
| 22803-78130 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.3 |
1 | ||
| 22803-78110 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.2 |
1 | ||
| 22803-78061 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22803-78130 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.3 |
1 | ||
| 22803-78043 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78110 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22801-78010 |
S05#..XZU30#,31#,32#,33#,34#,35# |
1 | ||
| 22801-78050 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 22801-78050 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 22813 - PROTECTOR, INJECTION PUMP, NO.1 | ||||
| 22813-78010 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 22813-78010 |
S05D..XZU301..CBU,IV4,IV6;S05D..XZU301..T3..4FC..IV3;S05D..XZU301..30T..DSLL..IV3;S05D..XZU301..(20T,295T)..(IV3,IV7);S05D..XZU301..(DM3,T4,T5)..30T..IV3;S05#..XZU302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 22813-78010 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 | ||||
| 23803-78030 |
S05D..XZU331..4FC..IV4;S05D..XZU301,371..DSL..IV4;S05D..XZU331..5F..DSL..IV4;S05D..XZU301..4FC..DSLL..IV4 |
1 | ||
| 23803-78020 |
S05D..XZU301,331..DSLL..IV4 |
1 | ||
| 23803-78120 |
S05D..XZU301,331,371..IV4 |
1 | ||
| 23803-78020 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 23211A - BRACKET(FOR INJECTION PIPE NO.3) | ||||
| 23211-78050 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 23211-78020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 23211A - BRACKET(FOR INJECTION PIPE NO.3) | ||||
| 23211-78050 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 23211-78020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 23211B - BRACKET(FOR INJECTION PIPE NO.4) | ||||
| 23211-78030 |
S05D..XZU301,331,371..IV4 NO.1 |
1 | ||
| 23211-78240 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 23211-78030 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 23211-78240 |
S05D..XZU301,331,371..IV4 NO.2 |
1 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-78040 |
S05#..XZU30#,31#,32#,33#,34#,35# |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-78040 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-78040 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-78040 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23742-78030 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 |
4 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-78020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
2 | ||
| 23761 - PIPE, NOZZLE LEAKAGE, NO.1 | ||||
| 23761-78020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 23761-78020 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 |
1 | ||
| 23761-78020 |
S05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-78030 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 23811-78110 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 23811-78110 |
S05D..XZU301,331,371..IV4 |
1 | ||
| Common parts | ||||
| 22569-1C400 | ||||
| 23271-78110 | ||||
| 23273-78110 | ||||
| 90031-05008 | ||||
| 90031-05012 | ||||
| 90031-05022 | ||||
| 90031-05035 | ||||
| 90031-09056 | ||||
| 90031-16065 | ||||
| 90031-19106 | ||||
| 90031-19109 | ||||
| 90031-75001 | ||||
| 90032-09020 | ||||
| 90032-09030 | ||||
| 90033-41023 | ||||
| 90034-01009 | ||||
| 90034-30040 | ||||
| 90034-68033 | ||||
| 90099-01501 | ||||
| 90467-18008 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(0206-0406)S05D..XZU301,331,371..IV4,IV6,IV7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11271G - COVER, CYLINDER BLOCK SIDE | ||||
| 11271-78051 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 11271-78051 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 11271-78052 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 13613G - GEAR, INJECTION PUMP DRIVE | ||||
| 13613-78080 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 13613-78080 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 13613-78030 |
S05#..XZU30#,31#,32#,33#,34#,35# |
1 | ||
| 13613L - BEARING, BALL(FOR INJECTION PUMP DRIVE GEAR) | ||||
| 90033-60020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-78060 |
S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22100-78170 |
S05D..XZU301,331,371..DSL..(IV4,IV6,IV7) |
1 | ||
| 22100-78110 |
S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22100-78210 |
S05D..XZU301,331..DSLL..IV4 |
1 | ||
| 22100-78062 |
S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22100V - RING, O(FOR INJECTION PUMP) | ||||
| 90033-01059 |
S05#..XZU30#,31#,32#,33#,34#,35# |
1 | ||
| 90033-01063 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) |
1 | ||
| 90033-01063 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 22803 - COVER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22803-78060 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6 NO.1 |
1 | ||
| 22803-78040 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78070 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6;S05D..XZU301..T3..5F..30T..IV3 NO.3 |
1 | ||
| 22803-78041 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78042 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
1 | ||
| 22803-78130 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.3 |
1 | ||
| 22803-78110 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.2 |
1 | ||
| 22803-78061 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22803-78130 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.3 |
1 | ||
| 22803-78043 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78110 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22803 - COVER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22803-78060 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6 NO.1 |
1 | ||
| 22803-78040 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78070 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6;S05D..XZU301..T3..5F..30T..IV3 NO.3 |
1 | ||
| 22803-78041 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78042 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
1 | ||
| 22803-78130 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.3 |
1 | ||
| 22803-78110 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.2 |
1 | ||
| 22803-78061 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22803-78130 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.3 |
1 | ||
| 22803-78043 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78110 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22803 - COVER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22803-78060 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6 NO.1 |
1 | ||
| 22803-78040 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78070 |
S05C..XZU362,372,382;S05D..XZU301..20T..IV7;S05D..XZU301,331,371..IV4,IV6;S05D..XZU301..T3..5F..30T..IV3 NO.3 |
1 | ||
| 22803-78041 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78042 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
1 | ||
| 22803-78130 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.3 |
1 | ||
| 22803-78110 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.2 |
1 | ||
| 22803-78061 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22803-78130 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.3 |
1 | ||
| 22803-78043 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78110 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 22803-78120 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.1 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22801-78010 |
S05#..XZU30#,31#,32#,33#,34#,35# |
1 | ||
| 22801-78050 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 22801-78050 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 22813 - PROTECTOR, INJECTION PUMP, NO.1 | ||||
| 22813-78010 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 22813-78010 |
S05D..XZU301..CBU,IV4,IV6;S05D..XZU301..T3..4FC..IV3;S05D..XZU301..30T..DSLL..IV3;S05D..XZU301..(20T,295T)..(IV3,IV7);S05D..XZU301..(DM3,T4,T5)..30T..IV3;S05#..XZU302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 22813-78010 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 | ||||
| 23803-78030 |
S05D..XZU331..4FC..IV4;S05D..XZU301,371..DSL..IV4;S05D..XZU331..5F..DSL..IV4;S05D..XZU301..4FC..DSLL..IV4 |
1 | ||
| 23803-78020 |
S05D..XZU301,331..DSLL..IV4 |
1 | ||
| 23803-78120 |
S05D..XZU301,331,371..IV4 |
1 | ||
| 23803-78020 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 23211A - BRACKET(FOR INJECTION PIPE NO.3) | ||||
| 23211-78050 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 23211-78020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 23211A - BRACKET(FOR INJECTION PIPE NO.3) | ||||
| 23211-78050 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 23211-78020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 23211B - BRACKET(FOR INJECTION PIPE NO.4) | ||||
| 23211-78030 |
S05D..XZU301,331,371..IV4 NO.1 |
1 | ||
| 23211-78240 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 23211-78030 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 23211-78240 |
S05D..XZU301,331,371..IV4 NO.2 |
1 | ||
| 23211B - BRACKET(FOR INJECTION PIPE NO.4) | ||||
| 23211-78030 |
S05D..XZU301,331,371..IV4 NO.1 |
1 | ||
| 23211-78240 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 23211-78030 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 23211-78240 |
S05D..XZU301,331,371..IV4 NO.2 |
1 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-78040 |
S05#..XZU30#,31#,32#,33#,34#,35# |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-78040 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-78040 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-78040 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23742-78030 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 |
4 | ||
| 23742-66020 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 |
4 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-78020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
2 | ||
| 23761 - PIPE, NOZZLE LEAKAGE, NO.1 | ||||
| 23761-78020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 23761-78020 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 |
1 | ||
| 23761-78020 |
S05D..XZU301,331..4FC..DSLL;S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3 |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-78030 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 |
1 | ||
| 23811-78110 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 23811-78110 |
S05D..XZU301,331,371..IV4 |
1 | ||
| Common parts | ||||
| 22569-1C400 | ||||
| 23271-78070 | ||||
| 23271-78090 | ||||
| 23271-78110 | ||||
| 23273-78070 | ||||
| 23273-78090 | ||||
| 23273-78110 | ||||
| 77281-37310 | ||||
| 77281-37380 | ||||
| 90031-05008 | ||||
| 90031-05012 | ||||
| 90031-05022 | ||||
| 90031-05035 | ||||
| 90031-09056 | ||||
| 90031-16065 | ||||
| 90031-19106 | ||||
| 90031-19109 | ||||
| 90031-75001 | ||||
| 90032-09020 | ||||
| 90032-09030 | ||||
| 90032-50051 | ||||
| 90033-41023 | ||||
| 90034-01009 | ||||
| 90034-30040 | ||||
| 90034-68033 | ||||
| 90099-01501 | ||||
| 90467-13007 | ||||
| 90467-18002 | ||||
| 91641-80818 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
