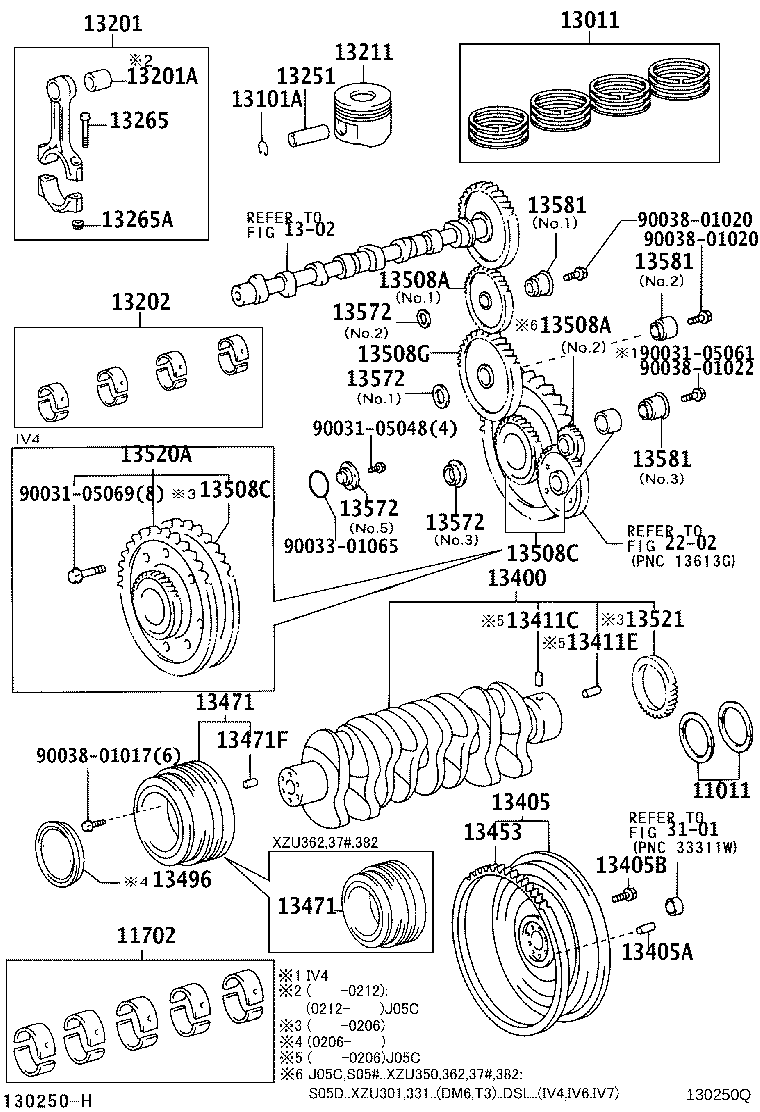

XZU331-PKPQL4 (2000)
Toyota Dyna/Toyoace
(0206-0406)J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,35
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-78020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
1 | ||
| 11011-78020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
1 | ||
| 11013-89104 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 O/S 0.250 |
1 | ||
| 11013-89104 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11701-89104 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
1 | ||
| 11701-89104 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
1 | ||
| 11705-89104 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.50 |
1 | ||
| 11705-89104 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.50 |
1 | ||
| 11706-89103 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.75 |
1 | ||
| 11706-89103 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.75 |
1 | ||
| 11704-89104 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.25 |
1 | ||
| 11704-89104 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.25 |
1 | ||
| 11707-89103 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 1.00 |
1 | ||
| 11707-89103 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 1.00 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-78030 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 STD |
1 | ||
| 13011-78030 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 STD |
1 | ||
| 13011-78031 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
1 | ||
| 13011-78031 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
1 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90035-21020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 90035-21020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13260-78020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,37#,382 |
4 | ||
| 13260-78020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,37#,382 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 13271-89101 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 13271-89101 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13206-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.75 |
1 | ||
| 13206-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.75 |
1 | ||
| 13205-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.50 |
1 | ||
| 13205-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.50 |
1 | ||
| 13207-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 1.00 |
1 | ||
| 13207-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 1.00 |
1 | ||
| 13204-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.25 |
1 | ||
| 13204-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.25 |
1 | ||
| 13041-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
1 | ||
| 13041-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
1 | ||
| 13211 - PISTON | ||||
| 13218-78030 |
S05D..XZU301,306,311,321,331,341,346,351,371 |
4 | ||
| 13218-78030 |
S05D..XZU301,306,311,321,331,341,346,351,371 |
4 | ||
| 13218-78031 |
S05D..XZU301,306,311,321,331,341,346,351,371 |
4 | ||
| 13218-78031 |
S05D..XZU301,306,311,321,331,341,346,351,371 |
4 | ||
| 13251 - PIN, PISTON | ||||
| 13251-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 13251-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-89101 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
8 | ||
| 13265-89101 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 13266-89102 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 13266-89102 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 13400 - CRANKSHAFT ASSY | ||||
| 13400-78050 |
S05D..XZU301,306,311,321,331,341,346,351,371..CBU,IV3,IV4,IV6 |
1 | ||
| 13400-78050 |
S05D..XZU301,306,311,321,331,341,346,351,371..CBU,IV3,IV4,IV6 |
1 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13450-78020 |
S05D..XZU301,331..4FC..DSL;S05#..XZU302,306,307,312,321,322,337,341,347,352..4FC |
1 | ||
| 13450-78020 |
S05D..XZU301,331..4FC..DSL;S05#..XZU302,306,307,312,321,322,337,341,347,352..4FC |
1 | ||
| 13450-78020 |
S05D..XZU301,331..4FC..DSLL |
1 | ||
| 13450-78020 |
S05D..XZU301,331..4FC..DSLL |
1 | ||
| 13450-78020 |
S05D..XZU301,331..4FC..DSLL |
1 | ||
| 13450-78020 |
S05D..XZU301,331..4FC..DSLL |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10008 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 長さ=24,外径=10 |
2 | ||
| 90250-10008 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 長さ=24,外径=10 |
2 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-89102 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 13453-89102 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-78040 |
S05D..XZU311..30T;S05C..XZU352..IV3;J05C,S05#..XZU30#,312,32#,33#,34#,350,351 |
1 | ||
| 13470-78040 |
S05D..XZU311..30T;S05C..XZU352..IV3;J05C,S05#..XZU30#,312,32#,33#,34#,350,351 |
1 | ||
| 13470-78070 |
S05C..XZU307,347..SCB..IV3;J05C,S05#..XZU300,301,302,306,33#,340,341,342,346..(T2,T3,T4,T5)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 13470-78070 |
S05C..XZU307,347..SCB..IV3;J05C,S05#..XZU300,301,302,306,33#,340,341,342,346..(T2,T3,T4,T5)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 13470-78070 |
S05D..XZU301,331..DSL..IV4 |
1 | ||
| 13470-78070 |
S05D..XZU301,331..DSL..IV4 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-78040 |
S05D..XZU311..30T;S05C..XZU352..IV3;J05C,S05#..XZU30#,312,32#,33#,34#,350,351 |
1 | ||
| 13470-78040 |
S05D..XZU311..30T;S05C..XZU352..IV3;J05C,S05#..XZU30#,312,32#,33#,34#,350,351 |
1 | ||
| 13470-78070 |
S05C..XZU307,347..SCB..IV3;J05C,S05#..XZU300,301,302,306,33#,340,341,342,346..(T2,T3,T4,T5)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 13470-78070 |
S05C..XZU307,347..SCB..IV3;J05C,S05#..XZU300,301,302,306,33#,340,341,342,346..(T2,T3,T4,T5)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 13470-78070 |
S05D..XZU301,331..DSL..IV4 |
1 | ||
| 13470-78070 |
S05D..XZU301,331..DSL..IV4 |
1 | ||
| 13471F - PIN, STRAIGHT(FOR CRANKSHAFT PULLEY) | ||||
| 90250-08016 |
S05D..XZU311..30T;S05C..XZU352..IV3;J05C,S05#..XZU30#,312,32#,33#,34#,350,351,362,37#,382 |
1 | ||
| 90250-08016 |
S05D..XZU311..30T;S05C..XZU352..IV3;J05C,S05#..XZU30#,312,32#,33#,34#,350,351,362,37#,382 |
1 | ||
| 90250-08016 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 90250-08016 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 90250-08016 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 90250-08016 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 13496 - COVER, CRANKSHAFT PULLY | ||||
| 13496-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 13496-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 13496-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 13496-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 13508A - GEAR SUB-ASSY, IDLE | ||||
| 13508-78120 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
1 | ||
| 13508-78120 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
1 | ||
| 13508-78030 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 13508-78030 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 13508-78170 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 13508-78170 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 13508-78210 |
S05D..XZU301,306,311,331,341,346,351..DSLL |
1 | ||
| 13508-78210 |
S05D..XZU301,306,311,331,341,346,351..DSLL |
1 | ||
| 13508-78170 |
S05#..XZU362,37#,382;S05D..XZU301..IV6..4NO;S05D..XZU301,331..(DM6,T3)..DSL..(IV4,IV6,IV7) NO.2 |
1 | ||
| 13508-78170 |
S05#..XZU362,37#,382;S05D..XZU301..IV6..4NO;S05D..XZU301,331..(DM6,T3)..DSL..(IV4,IV6,IV7) NO.2 |
1 | ||
| 13508-78120 |
S05D..XZU301,331..DSLL..IV4;S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..CBU,IV3 |
1 | ||
| 13508-78120 |
S05D..XZU301,331..DSLL..IV4;S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..CBU,IV3 |
1 | ||
| 13508A - GEAR SUB-ASSY, IDLE | ||||
| 13508-78120 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
1 | ||
| 13508-78120 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
1 | ||
| 13508-78030 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 13508-78030 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 13508-78170 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 13508-78170 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 13508-78210 |
S05D..XZU301,306,311,331,341,346,351..DSLL |
1 | ||
| 13508-78210 |
S05D..XZU301,306,311,331,341,346,351..DSLL |
1 | ||
| 13508-78170 |
S05#..XZU362,37#,382;S05D..XZU301..IV6..4NO;S05D..XZU301,331..(DM6,T3)..DSL..(IV4,IV6,IV7) NO.2 |
1 | ||
| 13508-78170 |
S05#..XZU362,37#,382;S05D..XZU301..IV6..4NO;S05D..XZU301,331..(DM6,T3)..DSL..(IV4,IV6,IV7) NO.2 |
1 | ||
| 13508-78120 |
S05D..XZU301,331..DSLL..IV4;S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..CBU,IV3 |
1 | ||
| 13508-78120 |
S05D..XZU301,331..DSLL..IV4;S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..CBU,IV3 |
1 | ||
| 13508C - GEAR SUB-ASSY, IDLE, NO.2 | ||||
| 13508-78140 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 13508-78140 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 13508-78140 |
S05D..XZU301,331..DSLL..IV4 |
1 | ||
| 13508-78140 |
S05D..XZU301,331..DSLL..IV4 |
1 | ||
| 13508C - GEAR SUB-ASSY, IDLE, NO.2 | ||||
| 13508-78140 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 13508-78140 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 13508-78140 |
S05D..XZU301,331..DSLL..IV4 |
1 | ||
| 13508-78140 |
S05D..XZU301,331..DSLL..IV4 |
1 | ||
| 13508G - GEAR SUB-ASSY, IDLE, NO.3 | ||||
| 13508-78140 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 13508-78140 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 13508-78140 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 13508-78140 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 13508-89101 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 13508-89101 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 13520A - GEAR ASSY, IDLE | ||||
| 13520-78030 |
S05D..XZU301,331,371..DSL..IV4 歯数=73 |
1 | ||
| 13520-78030 |
S05D..XZU301,331,371..DSL..IV4 歯数=73 |
1 | ||
| 13520-78012 |
S05D..XZU301,331,371..IV4 歯数=73 |
1 | ||
| 13520-78012 |
S05D..XZU301,331,371..IV4 歯数=73 |
1 | ||
| 13520-78021 |
S05D..XZU301,331,371..IV4 歯数=94 |
1 | ||
| 13520-78021 |
S05D..XZU301,331,371..IV4 歯数=94 |
1 | ||
| 13520-78011 |
S05D..XZU301,331,371..IV4 歯数=73 |
1 | ||
| 13520-78011 |
S05D..XZU301,331,371..IV4 歯数=73 |
1 | ||
| 13520-78022 |
S05D..XZU301,331,371..IV4 歯数=94 |
1 | ||
| 13520-78022 |
S05D..XZU301,331,371..IV4 歯数=94 |
1 | ||
| 13520-78030 |
S05D..XZU301,331..DSLL..IV4 歯数=73 |
1 | ||
| 13520-78030 |
S05D..XZU301,331..DSLL..IV4 歯数=73 |
1 | ||
| 13520-78040 |
S05D..XZU301,331,371..DSL..IV4 歯数=94 |
1 | ||
| 13520-78040 |
S05D..XZU301,331,371..DSL..IV4 歯数=94 |
1 | ||
| 13520-78040 |
S05D..XZU301,331..DSLL..IV4 歯数=94 |
1 | ||
| 13520-78040 |
S05D..XZU301,331..DSLL..IV4 歯数=94 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-89102 |
S05D..XZU301,331..DSL..IV4 |
1 | ||
| 13521-89102 |
S05D..XZU301,331..DSL..IV4 |
1 | ||
| 13521-89102 |
S05D..XZU301,331..DSLL;S05D..XZU301..DSL..(CBU,IV3,IV6);S05#..XZU302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,372,382..CBU,IV3 |
1 | ||
| 13521-89102 |
S05D..XZU301,331..DSLL;S05D..XZU301..DSL..(CBU,IV3,IV6);S05#..XZU302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,372,382..CBU,IV3 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-78010 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.1 |
1 | ||
| 13572-78010 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.1 |
1 | ||
| 13572-89104 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL NO.2 |
1 | ||
| 13572-89104 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL NO.2 |
1 | ||
| 13572-89105 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.3 |
1 | ||
| 13572-89105 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.3 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.5 |
1 | ||
| 13572-78010 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.1 |
1 | ||
| 13572-78010 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.1 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..DSLL..IV4 NO.5 |
1 | ||
| 13572-78010 |
S05D..XZU301,331..DSLL..IV4 NO.1 |
1 | ||
| 13572-78010 |
S05D..XZU301,331..DSLL..IV4 NO.1 |
1 | ||
| 13572-89105 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.3 |
1 | ||
| 13572-89104 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 NO.2 |
1 | ||
| 13572-89104 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 NO.2 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-78010 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.1 |
1 | ||
| 13572-78010 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.1 |
1 | ||
| 13572-89104 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL NO.2 |
1 | ||
| 13572-89104 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL NO.2 |
1 | ||
| 13572-89105 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.3 |
1 | ||
| 13572-89105 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.3 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.5 |
1 | ||
| 13572-78010 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.1 |
1 | ||
| 13572-78010 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.1 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..DSLL..IV4 NO.5 |
1 | ||
| 13572-78010 |
S05D..XZU301,331..DSLL..IV4 NO.1 |
1 | ||
| 13572-78010 |
S05D..XZU301,331..DSLL..IV4 NO.1 |
1 | ||
| 13572-89105 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.3 |
1 | ||
| 13572-89104 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 NO.2 |
1 | ||
| 13572-89104 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 NO.2 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-78010 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.1 |
1 | ||
| 13572-78010 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.1 |
1 | ||
| 13572-89104 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL NO.2 |
1 | ||
| 13572-89104 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL NO.2 |
1 | ||
| 13572-89105 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.3 |
1 | ||
| 13572-89105 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.3 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.5 |
1 | ||
| 13572-78010 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.1 |
1 | ||
| 13572-78010 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.1 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..DSLL..IV4 NO.5 |
1 | ||
| 13572-78010 |
S05D..XZU301,331..DSLL..IV4 NO.1 |
1 | ||
| 13572-78010 |
S05D..XZU301,331..DSLL..IV4 NO.1 |
1 | ||
| 13572-89105 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.3 |
1 | ||
| 13572-89104 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 NO.2 |
1 | ||
| 13572-89104 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 NO.2 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-78010 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.1 |
1 | ||
| 13572-78010 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.1 |
1 | ||
| 13572-89104 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL NO.2 |
1 | ||
| 13572-89104 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL NO.2 |
1 | ||
| 13572-89105 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.3 |
1 | ||
| 13572-89105 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.3 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.5 |
1 | ||
| 13572-78010 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.1 |
1 | ||
| 13572-78010 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.1 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..DSLL..IV4 NO.5 |
1 | ||
| 13572-78010 |
S05D..XZU301,331..DSLL..IV4 NO.1 |
1 | ||
| 13572-78010 |
S05D..XZU301,331..DSLL..IV4 NO.1 |
1 | ||
| 13572-89105 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.3 |
1 | ||
| 13572-89104 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 NO.2 |
1 | ||
| 13572-89104 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 NO.2 |
1 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-78061 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.3 |
1 | ||
| 13581-78030 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.2 |
1 | ||
| 13581-78030 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.2 |
1 | ||
| 13581-78061 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13581-78090 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 13581-78090 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 13581-78020 |
S05C..XZU347..T2..4FC;S05D..XZU301,331..DSLL;S05C..XZU347..T2..5F..IV3;S05#..XZU301,347..(DM3,DM6,T3,T4,T5)..DSL..(CBU,IV3);J05C,S05#..XZU300,302,306,307,31#,32#,33#,340,341,342,346,35#..CBU,IV3,IV6 NO.1 |
1 | ||
| 13581-78020 |
S05C..XZU347..T2..4FC;S05D..XZU301,331..DSLL;S05C..XZU347..T2..5F..IV3;S05#..XZU301,347..(DM3,DM6,T3,T4,T5)..DSL..(CBU,IV3);J05C,S05#..XZU300,302,306,307,31#,32#,33#,340,341,342,346,35#..CBU,IV3,IV6 NO.1 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.4 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.4 |
1 | ||
| 13581-78030 |
S05D..XZU301,331..DSLL..IV4 NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301,331..DSLL..IV4 NO.2 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
2 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
2 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-78061 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.3 |
1 | ||
| 13581-78030 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.2 |
1 | ||
| 13581-78030 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.2 |
1 | ||
| 13581-78061 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13581-78090 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 13581-78090 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 13581-78020 |
S05C..XZU347..T2..4FC;S05D..XZU301,331..DSLL;S05C..XZU347..T2..5F..IV3;S05#..XZU301,347..(DM3,DM6,T3,T4,T5)..DSL..(CBU,IV3);J05C,S05#..XZU300,302,306,307,31#,32#,33#,340,341,342,346,35#..CBU,IV3,IV6 NO.1 |
1 | ||
| 13581-78020 |
S05C..XZU347..T2..4FC;S05D..XZU301,331..DSLL;S05C..XZU347..T2..5F..IV3;S05#..XZU301,347..(DM3,DM6,T3,T4,T5)..DSL..(CBU,IV3);J05C,S05#..XZU300,302,306,307,31#,32#,33#,340,341,342,346,35#..CBU,IV3,IV6 NO.1 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.4 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.4 |
1 | ||
| 13581-78030 |
S05D..XZU301,331..DSLL..IV4 NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301,331..DSLL..IV4 NO.2 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
2 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
2 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-78061 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.3 |
1 | ||
| 13581-78030 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.2 |
1 | ||
| 13581-78030 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.2 |
1 | ||
| 13581-78061 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13581-78090 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 13581-78090 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 13581-78020 |
S05C..XZU347..T2..4FC;S05D..XZU301,331..DSLL;S05C..XZU347..T2..5F..IV3;S05#..XZU301,347..(DM3,DM6,T3,T4,T5)..DSL..(CBU,IV3);J05C,S05#..XZU300,302,306,307,31#,32#,33#,340,341,342,346,35#..CBU,IV3,IV6 NO.1 |
1 | ||
| 13581-78020 |
S05C..XZU347..T2..4FC;S05D..XZU301,331..DSLL;S05C..XZU347..T2..5F..IV3;S05#..XZU301,347..(DM3,DM6,T3,T4,T5)..DSL..(CBU,IV3);J05C,S05#..XZU300,302,306,307,31#,32#,33#,340,341,342,346,35#..CBU,IV3,IV6 NO.1 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.4 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.4 |
1 | ||
| 13581-78030 |
S05D..XZU301,331..DSLL..IV4 NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301,331..DSLL..IV4 NO.2 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
2 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
2 | ||
| Common parts | ||||
| 90031-05048 | ||||
| 90031-05061 | ||||
| 90031-05069 | ||||
| 90033-01065 | ||||
| 90038-01017 | ||||
| 90038-01020 | ||||
| 90038-01022 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 2202 | ||||
| 3101 | ||||
(9905-0206)J05C,S05#..XZU30#,31#,32#,33#,34#,351,352,362,37#,382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-78020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
1 | ||
| 11011-78020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
1 | ||
| 11013-89104 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 O/S 0.250 |
1 | ||
| 11013-89104 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11701-89104 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
1 | ||
| 11701-89104 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
1 | ||
| 11705-89104 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.50 |
1 | ||
| 11705-89104 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.50 |
1 | ||
| 11706-89103 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.75 |
1 | ||
| 11706-89103 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.75 |
1 | ||
| 11704-89104 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.25 |
1 | ||
| 11704-89104 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.25 |
1 | ||
| 11707-89103 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 1.00 |
1 | ||
| 11707-89103 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 1.00 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-78030 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 STD |
1 | ||
| 13011-78030 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 STD |
1 | ||
| 13011-78031 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
1 | ||
| 13011-78031 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
1 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90035-21020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 90035-21020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13260-78020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,37#,382 |
4 | ||
| 13260-78020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,37#,382 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 13271-89101 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 13271-89101 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13206-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.75 |
1 | ||
| 13206-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.75 |
1 | ||
| 13205-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.50 |
1 | ||
| 13205-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.50 |
1 | ||
| 13207-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 1.00 |
1 | ||
| 13207-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 1.00 |
1 | ||
| 13204-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.25 |
1 | ||
| 13204-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 U/S 0.25 |
1 | ||
| 13041-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
1 | ||
| 13041-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
1 | ||
| 13211 - PISTON | ||||
| 13218-78030 |
S05D..XZU301,306,311,321,331,341,346,351,371 |
4 | ||
| 13218-78030 |
S05D..XZU301,306,311,321,331,341,346,351,371 |
4 | ||
| 13218-78031 |
S05D..XZU301,306,311,321,331,341,346,351,371 |
4 | ||
| 13218-78031 |
S05D..XZU301,306,311,321,331,341,346,351,371 |
4 | ||
| 13251 - PIN, PISTON | ||||
| 13251-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 13251-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-89101 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
8 | ||
| 13265-89101 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 13266-89102 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 13266-89102 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 13400 - CRANKSHAFT ASSY | ||||
| 13400-78050 |
S05D..XZU301,306,311,321,331,341,346,351,371..CBU,IV3,IV4,IV6 |
1 | ||
| 13400-78050 |
S05D..XZU301,306,311,321,331,341,346,351,371..CBU,IV3,IV4,IV6 |
1 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13450-78020 |
S05D..XZU301,331..4FC..DSL;S05#..XZU302,306,307,312,321,322,337,341,347,352..4FC |
1 | ||
| 13450-78020 |
S05D..XZU301,331..4FC..DSL;S05#..XZU302,306,307,312,321,322,337,341,347,352..4FC |
1 | ||
| 13450-78020 |
S05D..XZU301,331..4FC..DSLL |
1 | ||
| 13450-78020 |
S05D..XZU301,331..4FC..DSLL |
1 | ||
| 13450-78020 |
S05D..XZU301,331..4FC..DSLL |
1 | ||
| 13450-78020 |
S05D..XZU301,331..4FC..DSLL |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10008 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 長さ=24,外径=10 |
2 | ||
| 90250-10008 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 長さ=24,外径=10 |
2 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-89102 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 13453-89102 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-78040 |
S05D..XZU311..30T;S05C..XZU352..IV3;J05C,S05#..XZU30#,312,32#,33#,34#,350,351 |
1 | ||
| 13470-78040 |
S05D..XZU311..30T;S05C..XZU352..IV3;J05C,S05#..XZU30#,312,32#,33#,34#,350,351 |
1 | ||
| 13470-78070 |
S05C..XZU307,347..SCB..IV3;J05C,S05#..XZU300,301,302,306,33#,340,341,342,346..(T2,T3,T4,T5)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 13470-78070 |
S05C..XZU307,347..SCB..IV3;J05C,S05#..XZU300,301,302,306,33#,340,341,342,346..(T2,T3,T4,T5)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 13470-78070 |
S05D..XZU301,331..DSL..IV4 |
1 | ||
| 13470-78070 |
S05D..XZU301,331..DSL..IV4 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-78040 |
S05D..XZU311..30T;S05C..XZU352..IV3;J05C,S05#..XZU30#,312,32#,33#,34#,350,351 |
1 | ||
| 13470-78040 |
S05D..XZU311..30T;S05C..XZU352..IV3;J05C,S05#..XZU30#,312,32#,33#,34#,350,351 |
1 | ||
| 13470-78070 |
S05C..XZU307,347..SCB..IV3;J05C,S05#..XZU300,301,302,306,33#,340,341,342,346..(T2,T3,T4,T5)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 13470-78070 |
S05C..XZU307,347..SCB..IV3;J05C,S05#..XZU300,301,302,306,33#,340,341,342,346..(T2,T3,T4,T5)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 13470-78070 |
S05D..XZU301,331..DSL..IV4 |
1 | ||
| 13470-78070 |
S05D..XZU301,331..DSL..IV4 |
1 | ||
| 13471F - PIN, STRAIGHT(FOR CRANKSHAFT PULLEY) | ||||
| 90250-08016 |
S05D..XZU311..30T;S05C..XZU352..IV3;J05C,S05#..XZU30#,312,32#,33#,34#,350,351,362,37#,382 |
1 | ||
| 90250-08016 |
S05D..XZU311..30T;S05C..XZU352..IV3;J05C,S05#..XZU30#,312,32#,33#,34#,350,351,362,37#,382 |
1 | ||
| 90250-08016 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 90250-08016 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 90250-08016 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 90250-08016 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 13496 - COVER, CRANKSHAFT PULLY | ||||
| 13496-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 13496-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 13496-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 13496-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 13508A - GEAR SUB-ASSY, IDLE | ||||
| 13508-78120 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
1 | ||
| 13508-78120 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
1 | ||
| 13508-78030 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 13508-78030 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 13508-78170 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 13508-78170 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 13508-78210 |
S05D..XZU301,306,311,331,341,346,351..DSLL |
1 | ||
| 13508-78210 |
S05D..XZU301,306,311,331,341,346,351..DSLL |
1 | ||
| 13508-78170 |
S05#..XZU362,37#,382;S05D..XZU301..IV6..4NO;S05D..XZU301,331..(DM6,T3)..DSL..(IV4,IV6,IV7) NO.2 |
1 | ||
| 13508-78170 |
S05#..XZU362,37#,382;S05D..XZU301..IV6..4NO;S05D..XZU301,331..(DM6,T3)..DSL..(IV4,IV6,IV7) NO.2 |
1 | ||
| 13508-78120 |
S05D..XZU301,331..DSLL..IV4;S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..CBU,IV3 |
1 | ||
| 13508-78120 |
S05D..XZU301,331..DSLL..IV4;S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..CBU,IV3 |
1 | ||
| 13508A - GEAR SUB-ASSY, IDLE | ||||
| 13508-78120 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
1 | ||
| 13508-78120 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
1 | ||
| 13508-78030 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 13508-78030 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 13508-78170 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 13508-78170 |
S05C..XZU362,372,382;S05D..XZU301,331,371..IV4,IV6,IV7 NO.2 |
1 | ||
| 13508-78210 |
S05D..XZU301,306,311,331,341,346,351..DSLL |
1 | ||
| 13508-78210 |
S05D..XZU301,306,311,331,341,346,351..DSLL |
1 | ||
| 13508-78170 |
S05#..XZU362,37#,382;S05D..XZU301..IV6..4NO;S05D..XZU301,331..(DM6,T3)..DSL..(IV4,IV6,IV7) NO.2 |
1 | ||
| 13508-78170 |
S05#..XZU362,37#,382;S05D..XZU301..IV6..4NO;S05D..XZU301,331..(DM6,T3)..DSL..(IV4,IV6,IV7) NO.2 |
1 | ||
| 13508-78120 |
S05D..XZU301,331..DSLL..IV4;S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..CBU,IV3 |
1 | ||
| 13508-78120 |
S05D..XZU301,331..DSLL..IV4;S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..CBU,IV3 |
1 | ||
| 13508C - GEAR SUB-ASSY, IDLE, NO.2 | ||||
| 13508-78140 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 13508-78140 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 13508-78140 |
S05D..XZU301,331..DSLL..IV4 |
1 | ||
| 13508-78140 |
S05D..XZU301,331..DSLL..IV4 |
1 | ||
| 13508C - GEAR SUB-ASSY, IDLE, NO.2 | ||||
| 13508-78140 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 13508-78140 |
S05D..XZU301,331,371..DSL..IV4 |
1 | ||
| 13508-78140 |
S05D..XZU301,331..DSLL..IV4 |
1 | ||
| 13508-78140 |
S05D..XZU301,331..DSLL..IV4 |
1 | ||
| 13508G - GEAR SUB-ASSY, IDLE, NO.3 | ||||
| 13508-78140 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 13508-78140 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 13508-78140 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 13508-78140 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 13508-89101 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 13508-89101 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 13520A - GEAR ASSY, IDLE | ||||
| 13520-78030 |
S05D..XZU301,331,371..DSL..IV4 歯数=73 |
1 | ||
| 13520-78030 |
S05D..XZU301,331,371..DSL..IV4 歯数=73 |
1 | ||
| 13520-78012 |
S05D..XZU301,331,371..IV4 歯数=73 |
1 | ||
| 13520-78012 |
S05D..XZU301,331,371..IV4 歯数=73 |
1 | ||
| 13520-78021 |
S05D..XZU301,331,371..IV4 歯数=94 |
1 | ||
| 13520-78021 |
S05D..XZU301,331,371..IV4 歯数=94 |
1 | ||
| 13520-78011 |
S05D..XZU301,331,371..IV4 歯数=73 |
1 | ||
| 13520-78011 |
S05D..XZU301,331,371..IV4 歯数=73 |
1 | ||
| 13520-78022 |
S05D..XZU301,331,371..IV4 歯数=94 |
1 | ||
| 13520-78022 |
S05D..XZU301,331,371..IV4 歯数=94 |
1 | ||
| 13520-78030 |
S05D..XZU301,331..DSLL..IV4 歯数=73 |
1 | ||
| 13520-78030 |
S05D..XZU301,331..DSLL..IV4 歯数=73 |
1 | ||
| 13520-78040 |
S05D..XZU301,331,371..DSL..IV4 歯数=94 |
1 | ||
| 13520-78040 |
S05D..XZU301,331,371..DSL..IV4 歯数=94 |
1 | ||
| 13520-78040 |
S05D..XZU301,331..DSLL..IV4 歯数=94 |
1 | ||
| 13520-78040 |
S05D..XZU301,331..DSLL..IV4 歯数=94 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-89102 |
S05D..XZU301,331..DSL..IV4 |
1 | ||
| 13521-89102 |
S05D..XZU301,331..DSL..IV4 |
1 | ||
| 13521-89102 |
S05D..XZU301,331..DSLL;S05D..XZU301..DSL..(CBU,IV3,IV6);S05#..XZU302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,372,382..CBU,IV3 |
1 | ||
| 13521-89102 |
S05D..XZU301,331..DSLL;S05D..XZU301..DSL..(CBU,IV3,IV6);S05#..XZU302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,372,382..CBU,IV3 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-78010 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.1 |
1 | ||
| 13572-78010 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.1 |
1 | ||
| 13572-89104 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL NO.2 |
1 | ||
| 13572-89104 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL NO.2 |
1 | ||
| 13572-89105 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.3 |
1 | ||
| 13572-89105 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.3 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.5 |
1 | ||
| 13572-78010 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.1 |
1 | ||
| 13572-78010 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.1 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..DSLL..IV4 NO.5 |
1 | ||
| 13572-78010 |
S05D..XZU301,331..DSLL..IV4 NO.1 |
1 | ||
| 13572-78010 |
S05D..XZU301,331..DSLL..IV4 NO.1 |
1 | ||
| 13572-89105 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.3 |
1 | ||
| 13572-89104 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 NO.2 |
1 | ||
| 13572-89104 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 NO.2 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-78010 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.1 |
1 | ||
| 13572-78010 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.1 |
1 | ||
| 13572-89104 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL NO.2 |
1 | ||
| 13572-89104 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL NO.2 |
1 | ||
| 13572-89105 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.3 |
1 | ||
| 13572-89105 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.3 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.5 |
1 | ||
| 13572-78010 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.1 |
1 | ||
| 13572-78010 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.1 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..DSLL..IV4 NO.5 |
1 | ||
| 13572-78010 |
S05D..XZU301,331..DSLL..IV4 NO.1 |
1 | ||
| 13572-78010 |
S05D..XZU301,331..DSLL..IV4 NO.1 |
1 | ||
| 13572-89105 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.3 |
1 | ||
| 13572-89104 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 NO.2 |
1 | ||
| 13572-89104 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 NO.2 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-78010 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.1 |
1 | ||
| 13572-78010 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.1 |
1 | ||
| 13572-89104 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL NO.2 |
1 | ||
| 13572-89104 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL NO.2 |
1 | ||
| 13572-89105 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.3 |
1 | ||
| 13572-89105 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.3 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.5 |
1 | ||
| 13572-78010 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.1 |
1 | ||
| 13572-78010 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.1 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..DSLL..IV4 NO.5 |
1 | ||
| 13572-78010 |
S05D..XZU301,331..DSLL..IV4 NO.1 |
1 | ||
| 13572-78010 |
S05D..XZU301,331..DSLL..IV4 NO.1 |
1 | ||
| 13572-89105 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.3 |
1 | ||
| 13572-89104 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 NO.2 |
1 | ||
| 13572-89104 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 NO.2 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-78010 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.1 |
1 | ||
| 13572-78010 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.1 |
1 | ||
| 13572-89104 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL NO.2 |
1 | ||
| 13572-89104 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL NO.2 |
1 | ||
| 13572-89105 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.3 |
1 | ||
| 13572-89105 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.3 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.5 |
1 | ||
| 13572-78010 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.1 |
1 | ||
| 13572-78010 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.1 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..DSLL..IV4 NO.5 |
1 | ||
| 13572-78041 |
S05D..XZU301,331..DSLL..IV4 NO.5 |
1 | ||
| 13572-78010 |
S05D..XZU301,331..DSLL..IV4 NO.1 |
1 | ||
| 13572-78010 |
S05D..XZU301,331..DSLL..IV4 NO.1 |
1 | ||
| 13572-89105 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.3 |
1 | ||
| 13572-89105 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.3 |
1 | ||
| 13572-89104 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 NO.2 |
1 | ||
| 13572-89104 |
S05D..XZU301,331..DSLL..1NO;S05D..XZU306..5F..DSLL..IV3 NO.2 |
1 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-78061 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.3 |
1 | ||
| 13581-78030 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.2 |
1 | ||
| 13581-78030 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.2 |
1 | ||
| 13581-78061 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13581-78090 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 13581-78090 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 13581-78020 |
S05C..XZU347..T2..4FC;S05D..XZU301,331..DSLL;S05C..XZU347..T2..5F..IV3;S05#..XZU301,347..(DM3,DM6,T3,T4,T5)..DSL..(CBU,IV3);J05C,S05#..XZU300,302,306,307,31#,32#,33#,340,341,342,346,35#..CBU,IV3,IV6 NO.1 |
1 | ||
| 13581-78020 |
S05C..XZU347..T2..4FC;S05D..XZU301,331..DSLL;S05C..XZU347..T2..5F..IV3;S05#..XZU301,347..(DM3,DM6,T3,T4,T5)..DSL..(CBU,IV3);J05C,S05#..XZU300,302,306,307,31#,32#,33#,340,341,342,346,35#..CBU,IV3,IV6 NO.1 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.4 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.4 |
1 | ||
| 13581-78030 |
S05D..XZU301,331..DSLL..IV4 NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301,331..DSLL..IV4 NO.2 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
2 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
2 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-78061 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.3 |
1 | ||
| 13581-78030 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.2 |
1 | ||
| 13581-78030 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.2 |
1 | ||
| 13581-78061 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13581-78090 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 13581-78090 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 13581-78020 |
S05C..XZU347..T2..4FC;S05D..XZU301,331..DSLL;S05C..XZU347..T2..5F..IV3;S05#..XZU301,347..(DM3,DM6,T3,T4,T5)..DSL..(CBU,IV3);J05C,S05#..XZU300,302,306,307,31#,32#,33#,340,341,342,346,35#..CBU,IV3,IV6 NO.1 |
1 | ||
| 13581-78020 |
S05C..XZU347..T2..4FC;S05D..XZU301,331..DSLL;S05C..XZU347..T2..5F..IV3;S05#..XZU301,347..(DM3,DM6,T3,T4,T5)..DSL..(CBU,IV3);J05C,S05#..XZU300,302,306,307,31#,32#,33#,340,341,342,346,35#..CBU,IV3,IV6 NO.1 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.4 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.4 |
1 | ||
| 13581-78030 |
S05D..XZU301,331..DSLL..IV4 NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301,331..DSLL..IV4 NO.2 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
2 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
2 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-78061 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..4FC..DSLL..IV4 NO.3 |
1 | ||
| 13581-78030 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.2 |
1 | ||
| 13581-78030 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU306..T5..5F..DSL;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..DSL;S05D..XZU301,331..4FC..DSLL;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05D..XZU306,321..(DM7,T4)..4NO;S05#..XZU301,322..SCB..(DM3,DM6,T3,T5)..5F;S05#..XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;J05C,S05#..XZU300,307,33#,340,341,342,346,35#,362,372,382..CBU,IV3,IV6 NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301..5F..IV4;S05C..XZU312..SCB..20T;S05D..XZU331..DSL..IV4;S05#..XZU301,302..T4..1NO;S05#..XZU306,322..T5..4FC;S05D..XZU301..DM3..4FC..30T;S05D..XZU311,321..(DM5,DM8)..20T;J05C,S05D..XZU311,320,321,371..1NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU301,347..DCB..T3..4FC..DSL NO.2 |
1 | ||
| 13581-78061 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05D..XZU301,371..5F..IV4;S05D..XZU301..4FC..DSL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13581-78061 |
S05D..XZU301,331..DSLL..IV4 NO.3 |
1 | ||
| 13581-78090 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 13581-78090 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 NO.1 |
1 | ||
| 13581-78020 |
S05C..XZU347..T2..4FC;S05D..XZU301,331..DSLL;S05C..XZU347..T2..5F..IV3;S05#..XZU301,347..(DM3,DM6,T3,T4,T5)..DSL..(CBU,IV3);J05C,S05#..XZU300,302,306,307,31#,32#,33#,340,341,342,346,35#..CBU,IV3,IV6 NO.1 |
1 | ||
| 13581-78020 |
S05C..XZU347..T2..4FC;S05D..XZU301,331..DSLL;S05C..XZU347..T2..5F..IV3;S05#..XZU301,347..(DM3,DM6,T3,T4,T5)..DSL..(CBU,IV3);J05C,S05#..XZU300,302,306,307,31#,32#,33#,340,341,342,346,35#..CBU,IV3,IV6 NO.1 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.4 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.4 |
1 | ||
| 13581-78030 |
S05D..XZU301,331..DSLL..IV4 NO.2 |
1 | ||
| 13581-78030 |
S05D..XZU301,331..DSLL..IV4 NO.2 |
1 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
2 | ||
| 13581-78020 |
S05#..XZU362,37#,382;S05D..XZU301,331..DSL..(IV4,IV6,IV7) NO.1 |
2 | ||
| Common parts | ||||
| 90031-05048 | ||||
| 90031-05061 | ||||
| 90031-05069 | ||||
| 90033-01065 | ||||
| 90038-01017 | ||||
| 90038-01020 | ||||
| 90038-01022 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 2202 | ||||
| 3101 | ||||
(9905-0206)J05C,S05# ; (0206- )S05D..XZU411,421..4FC,6F ; (0206- )S05D..XZU40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90038-01017 | ||||
| 90038-01020 | ||||
| 90038-01022 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 3101 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
