Toyota Dyna/toyoace XZU330 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU330-TKMQS (1999)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

XZU330-TKMQS (1999)

Toyota Dyna/Toyoace

Production Jun 1999 - Jun 2004

Engine J05C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

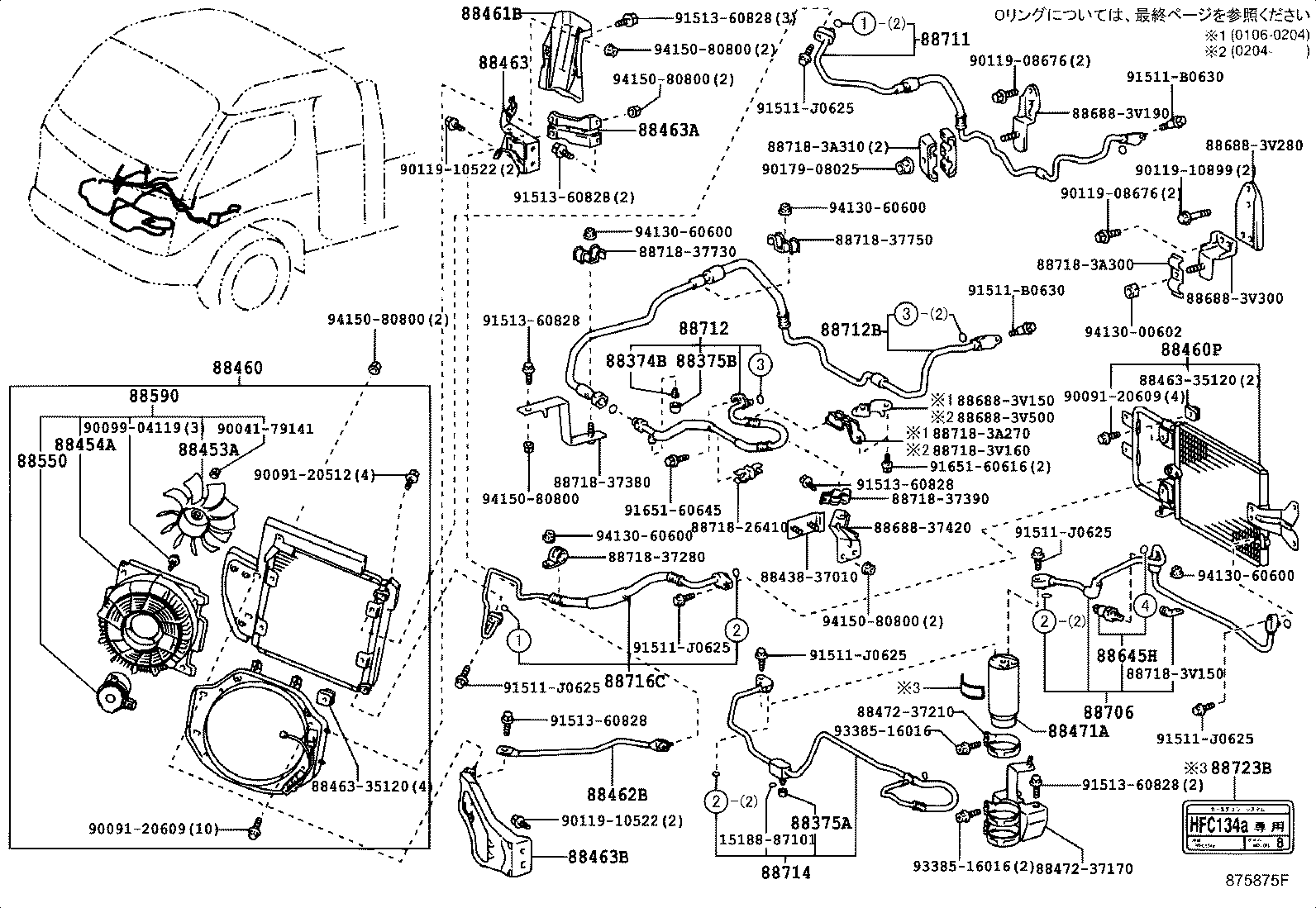

ILLUST NO. 1 OF 2(9905-0106)XZU300,320,330,340,350

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU300,330,340,350	08/2001 - 09/2001	1
88374-30010	XZU301,331..IV4;XZU301,302,341,342..CNG,LPG;BU301,RZU300,340,XZU300,330,340,350..T2,T3,T4	09/2001 - 06/2002	1
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	XZU301..IV6..4NO;XZU341..4FC..295T;XZU300,330,340,35#..DM5,T3,T4	06/2002 - 10/2002	1
88374-30010	XZU300,330,340	06/2001 - 08/2001	1
88374-30010	XZU301..IV6..4NO;XZU341..4FC..295T;XZU301,306,311,331,341,346..(20T,30T)..DSLL;BZU300,340,RZU301,XZU300,330,340,35#..DM5,DM6,T3,T4	10/2002 - 06/2004	1
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	XZU312..DCB;XZU322..DM7,DM8;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,BZU300,340,RZU301,340,XZU300,307,330,337,340,346,347,35#,362..SCB,VAN;BU301,RZU300,XZU341,342,37#,382..(T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL,EFI)	05/1999 - 06/2004	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88453A - FAN, COOLING
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88454A - SHROUD, FAN
88454-37031	XZU31#;XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,32#,330,340,341,342,35#..SCB	05/1999 - 06/2004	1
88460 - CONDENSER ASSY, COOLER
88460-37401	XZU300,320,330,340,350	06/1999 - 06/2001	1
88460-37511	XZU31#,331..DSL;XZU301..4FC..DSL;XZU331..5F..DSLL;XZU301..5F..DSL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);BU30#,346,XZU300,302,306,307,32#,330,337,34#,35#..(SCB,VAN)..(DSL,DSLL)	04/2002 - 06/2002	1
88460-37510	XZU322;XZU301..5F..20T..DSLL;XZU301..30T..(IV6,IV7);BU301,XZU300,320,330,340..1NO;XZU301,302,31#,321,351,352..(DM2,DM3,DM5,DM6,DM7,DM8)..DSL	06/2001 - 04/2002	1
88460-37512	XZU301,331..DSL;XZU301..DSLL..4NO;BU301,XZU300,302,31#,32#,330,340,341,342,35#..(20T,295T,30T,35T,40T)..(DSL,DSLL)	06/2002 - 06/2004	1
88461B - COVER, COOLER CONDENSER
53715-37180	XZU301,312,331..CNG,DSL,LPG;BU301,RZU300,340,XZU300,302,311,32#,330,340,341,342,35#..SCB	06/2002 - 10/2002	1
53715-37180	RZU300..SCB..EFI;RZU300..30T..LPG;XZU301,302,341,342..DSL,DSLL;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#..20T,30T,35T,40T	10/2002 - 06/2004	1
53715-37180	XZU301,31#,331;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#..SCB,VAN	05/1999 - 06/2002	1
88462A - HOLDER, CONDENSER
88462-37070	XZU322..DM7,DM8;XZU321..DM7..4NO;XZU302..20T..DSL;XZU306..T4..5F..IV3;XZU312,347..DCB..5F;XZU306..T4..DSL..CBU;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306..T4..4FC..DSL..IV3;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;RZU300,XZU301..SCB..5F..(DSLL,EFI)..1NO;BU301,XZU307,341,342,351..(03S,DM2,DM5,T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL);BU306,346,BZU300,340,RZU301,340,XZU300,330,337,340,346,347,350,352..(SCB,VAN)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37140	XZU301,312,331..CNG,DSL,LPG;BU301,RZU300,340,XZU300,302,311,32#,330,340,341,342,35#..SCB	06/2002 - 10/2002	1
88463-37140	RZU300..SCB..EFI;RZU300..30T..LPG;XZU301,302,341,342..DSL,DSLL;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#..20T,30T,35T,40T	10/2002 - 06/2004	1
88463-37140	XZU301,31#,331;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#..SCB,VAN	05/1999 - 06/2002	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37150	XZU31#;XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,32#,330,340,341,342,35#..SCB	05/1999 - 06/2004	1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-37050	XZU300,330,340,350	06/1999 - 06/2004	1
88471A - TANK, RECEIVER
88471-34010	RZU300,XZU301,31#,331,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	08/2001 - 02/2002	1
88471-34010	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	05/1999 - 08/2001	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060	XZU301..30T..(IV6,IV7)..1NO;BU301,XZU300,320,330,340..1NO;XZU322,351,352..DM2,DM7,DM8,T5;XZU301,302,31#,321..(DM3,DM5,DM6,DM7,DM8)..DSL	06/2001 - 06/2004	1
88550-37040	XZU300,320,330,340,350	06/1999 - 06/2001	1
88590 - BLOWER ASSY, W/SHROUD
88590-37051	XZU302..DM3..30T;XZU341..4FC..295T;XZU341..30T..DSLL;XZU31#,331..DCB..DSL;XZU301..5F..30T..(IV4,IV6);XZU301,372,382..(T3,T5)..20T;XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..WT..DSL..4NO;XZU301..4FC..30T..DSL..(IV4,IV6);XZU301,31#,321,322..(295T,30T)..(CBU,IV3)..4NO;BU301,XZU300,320,330,340,342,35#,371..(DM5,DM7,T3,T4)..(DSL,DSLL)	06/1999 - 06/2004	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	XZU341..6F..295T;XZU351,352,371..DM2,T3;XZU301..T4..DSL..(CBU,IV3);XZU301..SCB..(DM3,DM6,T3,T5)..DSL;BU30#,XZU307,311,341,347..(SCB,VAN)..(20T,30T)..DSL;BU346,RZU300,340,XZU300,302,306,312,32#,33#,340,342,346,350,362,372,382..(DSL,DSLL,EFI)..(CBU,IV3,IV6)	10/2002 - 06/2004	1
88645-60030	XZU342..DSL;XZU302..CNG,DSL;RZU300,XZU31#,37#,382;BU30#,346,RZU340,XZU300,301,306,307,32#,33#,340,341,346,347,35#,362..SCB,VAN	09/2001 - 06/2002	1
88645-60030	XZU342..DSL;RZU300,XZU301,31#,331,341,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,346,347,35#,362..(SCB,VAN)..(CNG,DSL,DSLL,EFI)	05/1999 - 09/2001	1
88645-60030	XZU341..20T,30T;XZU301..IV6..1NO;XZU341..6F..295T;RZU300,XZU312,342,37#,382..DSL,EFI;XZU301,351,352..(DM2,DM3,DM6,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU30#,346,RZU340,XZU300,302,306,307,311,32#,33#,340,346,347,350,362..(SCB,VAN)..(CNG,DSL,EFI)	06/2002 - 10/2002	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	XZU341..6F..295T;XZU351,352,371..DM2,T3;XZU301..T4..DSL..(CBU,IV3);XZU301..SCB..(DM3,DM6,T3,T5)..DSL;BU30#,XZU307,311,341,347..(SCB,VAN)..(20T,30T)..DSL;BU346,RZU300,340,XZU300,302,306,312,32#,33#,340,342,346,350,362,372,382..(DSL,DSLL,EFI)..(CBU,IV3,IV6)	10/2002 - 06/2004	1
88645-60030	XZU342..DSL;XZU302..CNG,DSL;RZU300,XZU31#,37#,382;BU30#,346,RZU340,XZU300,301,306,307,32#,33#,340,341,346,347,35#,362..SCB,VAN	09/2001 - 06/2002	1
88645-60030	XZU342..DSL;RZU300,XZU301,31#,331,341,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,346,347,35#,362..(SCB,VAN)..(CNG,DSL,DSLL,EFI)	05/1999 - 09/2001	1
88645-60030	XZU341..20T,30T;XZU301..IV6..1NO;XZU341..6F..295T;RZU300,XZU312,342,37#,382..DSL,EFI;XZU301,351,352..(DM2,DM3,DM6,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU30#,346,RZU340,XZU300,302,306,307,311,32#,33#,340,346,347,350,362..(SCB,VAN)..(CNG,DSL,EFI)	06/2002 - 10/2002	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37471	XZU300,330,340,350	01/2001 - 08/2001	1
88711-37470	XZU300,320,330,340,350	06/1999 - 01/2001	1
88711-37471	XZU300,330,340,350	08/2001 - 06/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V270	XZU300,330,340,350	06/1999 - 06/2004	1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-37780	XZU300,320,330,340,350	06/1999 - 01/2001	1
88712-37781	XZU300,320,330,340,350	01/2001 - 06/2002	1
88712-37782	XZU300,330,340,350	06/2002 - 06/2004	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37580	XZU300,330,340,350	06/1999 - 06/2004	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37840	XZU301,31#,331;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#..SCB,VAN	05/1999 - 06/2001	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37840	XZU301,31#,331;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#..SCB,VAN	05/1999 - 06/2001	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88723-20030	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	02/2002 - 03/2002	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
Common parts
88438-37010
88472-37170
88688-37420
88688-3V150
88688-3V190
88688-3V280
88688-3V300
88718-26410
88718-37380
88718-37390
88718-37420
88718-37730
88718-37750
88718-3A270
88718-3A300
88718-3A310
90041-79141
90099-04119
90119-08676
90119-10522
90119-10899
90179-08025
91511-B0630
91511-J0625
91513-60828
91651-60616
91651-60645
93385-16016
94130-00602
94130-60600
94150-80800

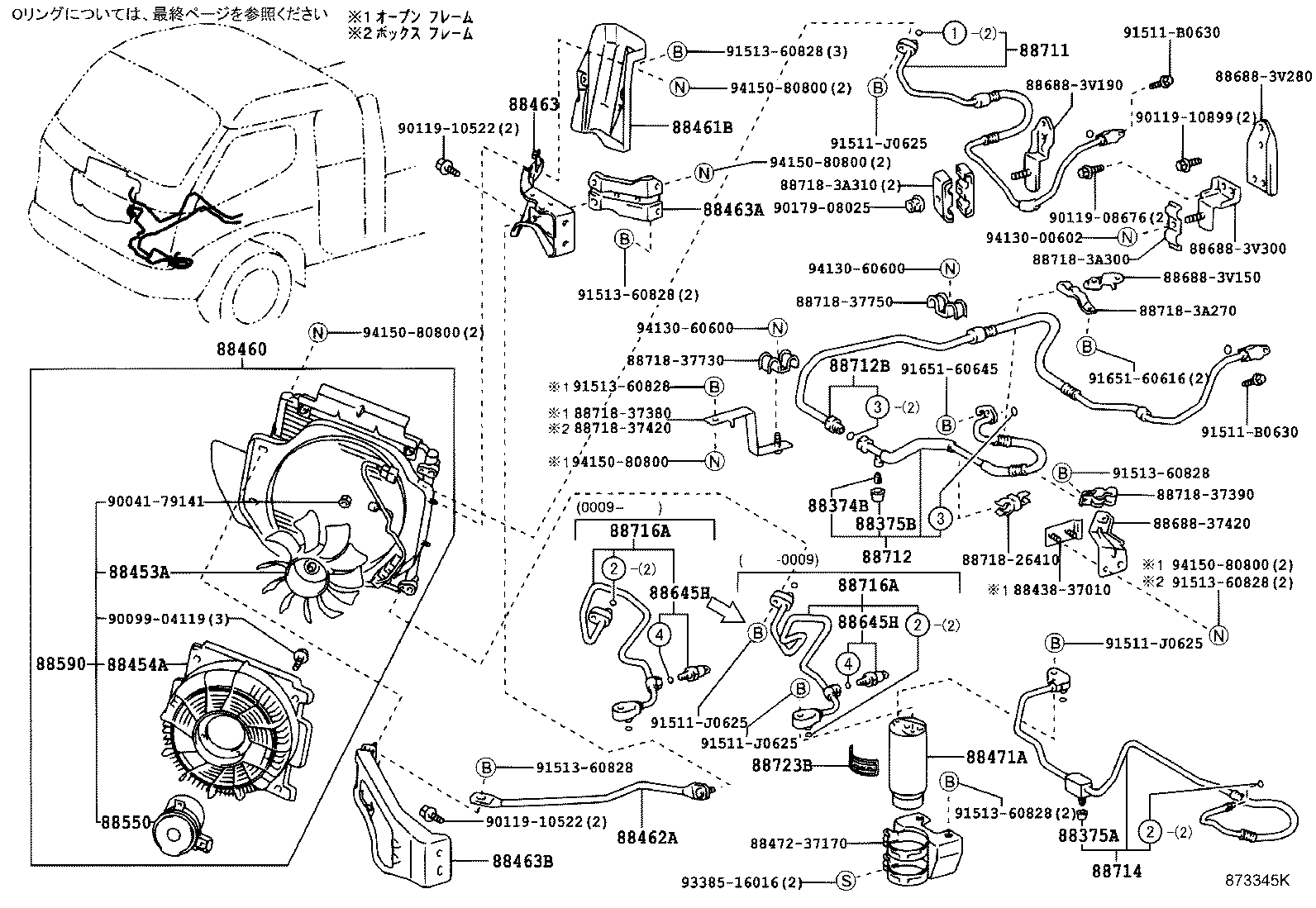

ILLUST NO. 1 OF 2(9905-0406)XZU300,302,306,31#,32#,330,337,340,342,346,347,350,362,37#,382..CNG,DSL,

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU300,330,340,350	08/2001 - 09/2001	1
88374-30010	XZU300,330,340,350	08/2001 - 09/2001	1
88374-30010	XZU300,330,340,350	08/2001 - 09/2001	1
88374-30010	XZU301,331..IV4;XZU301,302,341,342..CNG,LPG;BU301,RZU300,340,XZU300,330,340,350..T2,T3,T4	09/2001 - 06/2002	1
88374-30010	XZU301,331..IV4;XZU301,302,341,342..CNG,LPG;BU301,RZU300,340,XZU300,330,340,350..T2,T3,T4	09/2001 - 06/2002	1
88374-30010	XZU301,331..IV4;XZU301,302,341,342..CNG,LPG;BU301,RZU300,340,XZU300,330,340,350..T2,T3,T4	09/2001 - 06/2002	1
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	XZU301..IV6..4NO;XZU341..4FC..295T;XZU300,330,340,35#..DM5,T3,T4	06/2002 - 10/2002	1
88374-30010	XZU301..IV6..4NO;XZU341..4FC..295T;XZU300,330,340,35#..DM5,T3,T4	06/2002 - 10/2002	1
88374-30010	XZU301..IV6..4NO;XZU341..4FC..295T;XZU300,330,340,35#..DM5,T3,T4	06/2002 - 10/2002	1
88374-30010	XZU300,330,340	06/2001 - 08/2001	1
88374-30010	XZU300,330,340	06/2001 - 08/2001	1
88374-30010	XZU300,330,340	06/2001 - 08/2001	1
88374-30010	XZU301..IV6..4NO;XZU341..4FC..295T;XZU301,306,311,331,341,346..(20T,30T)..DSLL;BZU300,340,RZU301,XZU300,330,340,35#..DM5,DM6,T3,T4	10/2002 - 06/2004	1
88374-30010	XZU301..IV6..4NO;XZU341..4FC..295T;XZU301,306,311,331,341,346..(20T,30T)..DSLL;BZU300,340,RZU301,XZU300,330,340,35#..DM5,DM6,T3,T4	10/2002 - 06/2004	1
88374-30010	XZU301..IV6..4NO;XZU341..4FC..295T;XZU301,306,311,331,341,346..(20T,30T)..DSLL;BZU300,340,RZU301,XZU300,330,340,35#..DM5,DM6,T3,T4	10/2002 - 06/2004	1
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	XZU312..DCB;XZU322..DM7,DM8;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,BZU300,340,RZU301,340,XZU300,307,330,337,340,346,347,35#,362..SCB,VAN;BU301,RZU300,XZU341,342,37#,382..(T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL,EFI)	05/1999 - 06/2004	1
88375-30280	XZU312..DCB;XZU322..DM7,DM8;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,BZU300,340,RZU301,340,XZU300,307,330,337,340,346,347,35#,362..SCB,VAN;BU301,RZU300,XZU341,342,37#,382..(T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL,EFI)	05/1999 - 06/2004	1
88375-30280	XZU312..DCB;XZU322..DM7,DM8;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,BZU300,340,RZU301,340,XZU300,307,330,337,340,346,347,35#,362..SCB,VAN;BU301,RZU300,XZU341,342,37#,382..(T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL,EFI)	05/1999 - 06/2004	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88453A - FAN, COOLING
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88454A - SHROUD, FAN
88454-37031	XZU31#;XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,32#,330,340,341,342,35#..SCB	05/1999 - 06/2004	1
88454-37031	XZU31#;XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,32#,330,340,341,342,35#..SCB	05/1999 - 06/2004	1
88454-37031	XZU31#;XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,32#,330,340,341,342,35#..SCB	05/1999 - 06/2004	1
88460 - CONDENSER ASSY, COOLER
88460-37401	XZU300,320,330,340,350	06/1999 - 06/2001	1
88460-37401	XZU300,320,330,340,350	06/1999 - 06/2001	1
88460-37401	XZU300,320,330,340,350	06/1999 - 06/2001	1
88460-37511	XZU31#,331..DSL;XZU301..4FC..DSL;XZU331..5F..DSLL;XZU301..5F..DSL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);BU30#,346,XZU300,302,306,307,32#,330,337,34#,35#..(SCB,VAN)..(DSL,DSLL)	04/2002 - 06/2002	1
88460-37511	XZU31#,331..DSL;XZU301..4FC..DSL;XZU331..5F..DSLL;XZU301..5F..DSL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);BU30#,346,XZU300,302,306,307,32#,330,337,34#,35#..(SCB,VAN)..(DSL,DSLL)	04/2002 - 06/2002	1
88460-37511	XZU31#,331..DSL;XZU301..4FC..DSL;XZU331..5F..DSLL;XZU301..5F..DSL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);BU30#,346,XZU300,302,306,307,32#,330,337,34#,35#..(SCB,VAN)..(DSL,DSLL)	04/2002 - 06/2002	1
88460-37510	XZU322;XZU301..5F..20T..DSLL;XZU301..30T..(IV6,IV7);BU301,XZU300,320,330,340..1NO;XZU301,302,31#,321,351,352..(DM2,DM3,DM5,DM6,DM7,DM8)..DSL	06/2001 - 04/2002	1
88460-37510	XZU322;XZU301..5F..20T..DSLL;XZU301..30T..(IV6,IV7);BU301,XZU300,320,330,340..1NO;XZU301,302,31#,321,351,352..(DM2,DM3,DM5,DM6,DM7,DM8)..DSL	06/2001 - 04/2002	1
88460-37510	XZU322;XZU301..5F..20T..DSLL;XZU301..30T..(IV6,IV7);BU301,XZU300,320,330,340..1NO;XZU301,302,31#,321,351,352..(DM2,DM3,DM5,DM6,DM7,DM8)..DSL	06/2001 - 04/2002	1
88460-37512	XZU301,331..DSL;XZU301..DSLL..4NO;BU301,XZU300,302,31#,32#,330,340,341,342,35#..(20T,295T,30T,35T,40T)..(DSL,DSLL)	06/2002 - 06/2004	1
88460-37512	XZU301,331..DSL;XZU301..DSLL..4NO;BU301,XZU300,302,31#,32#,330,340,341,342,35#..(20T,295T,30T,35T,40T)..(DSL,DSLL)	06/2002 - 06/2004	1
88460-37512	XZU301,331..DSL;XZU301..DSLL..4NO;BU301,XZU300,302,31#,32#,330,340,341,342,35#..(20T,295T,30T,35T,40T)..(DSL,DSLL)	06/2002 - 06/2004	1
88461B - COVER, COOLER CONDENSER
53715-37180	XZU301,312,331..CNG,DSL,LPG;BU301,RZU300,340,XZU300,302,311,32#,330,340,341,342,35#..SCB	06/2002 - 10/2002	1
53715-37180	XZU301,312,331..CNG,DSL,LPG;BU301,RZU300,340,XZU300,302,311,32#,330,340,341,342,35#..SCB	06/2002 - 10/2002	1
53715-37180	XZU301,312,331..CNG,DSL,LPG;BU301,RZU300,340,XZU300,302,311,32#,330,340,341,342,35#..SCB	06/2002 - 10/2002	1
53715-37180	RZU300..SCB..EFI;RZU300..30T..LPG;XZU301,302,341,342..DSL,DSLL;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#..20T,30T,35T,40T	10/2002 - 06/2004	1
53715-37180	RZU300..SCB..EFI;RZU300..30T..LPG;XZU301,302,341,342..DSL,DSLL;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#..20T,30T,35T,40T	10/2002 - 06/2004	1
53715-37180	RZU300..SCB..EFI;RZU300..30T..LPG;XZU301,302,341,342..DSL,DSLL;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#..20T,30T,35T,40T	10/2002 - 06/2004	1
53715-37180	XZU301,31#,331;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#..SCB,VAN	05/1999 - 06/2002	1
53715-37180	XZU301,31#,331;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#..SCB,VAN	05/1999 - 06/2002	1
53715-37180	XZU301,31#,331;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#..SCB,VAN	05/1999 - 06/2002	1
88462A - HOLDER, CONDENSER
88462-37070	XZU322..DM7,DM8;XZU321..DM7..4NO;XZU302..20T..DSL;XZU306..T4..5F..IV3;XZU312,347..DCB..5F;XZU306..T4..DSL..CBU;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306..T4..4FC..DSL..IV3;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;RZU300,XZU301..SCB..5F..(DSLL,EFI)..1NO;BU301,XZU307,341,342,351..(03S,DM2,DM5,T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL);BU306,346,BZU300,340,RZU301,340,XZU300,330,337,340,346,347,350,352..(SCB,VAN)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
88462-37070	XZU322..DM7,DM8;XZU321..DM7..4NO;XZU302..20T..DSL;XZU306..T4..5F..IV3;XZU312,347..DCB..5F;XZU306..T4..DSL..CBU;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306..T4..4FC..DSL..IV3;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;RZU300,XZU301..SCB..5F..(DSLL,EFI)..1NO;BU301,XZU307,341,342,351..(03S,DM2,DM5,T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL);BU306,346,BZU300,340,RZU301,340,XZU300,330,337,340,346,347,350,352..(SCB,VAN)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
88462-37070	XZU322..DM7,DM8;XZU321..DM7..4NO;XZU302..20T..DSL;XZU306..T4..5F..IV3;XZU312,347..DCB..5F;XZU306..T4..DSL..CBU;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306..T4..4FC..DSL..IV3;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;RZU300,XZU301..SCB..5F..(DSLL,EFI)..1NO;BU301,XZU307,341,342,351..(03S,DM2,DM5,T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL);BU306,346,BZU300,340,RZU301,340,XZU300,330,337,340,346,347,350,352..(SCB,VAN)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37140	XZU301,312,331..CNG,DSL,LPG;BU301,RZU300,340,XZU300,302,311,32#,330,340,341,342,35#..SCB	06/2002 - 10/2002	1
88463-37140	XZU301,312,331..CNG,DSL,LPG;BU301,RZU300,340,XZU300,302,311,32#,330,340,341,342,35#..SCB	06/2002 - 10/2002	1
88463-37140	XZU301,312,331..CNG,DSL,LPG;BU301,RZU300,340,XZU300,302,311,32#,330,340,341,342,35#..SCB	06/2002 - 10/2002	1
88463-37140	RZU300..SCB..EFI;RZU300..30T..LPG;XZU301,302,341,342..DSL,DSLL;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#..20T,30T,35T,40T	10/2002 - 06/2004	1
88463-37140	RZU300..SCB..EFI;RZU300..30T..LPG;XZU301,302,341,342..DSL,DSLL;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#..20T,30T,35T,40T	10/2002 - 06/2004	1
88463-37140	RZU300..SCB..EFI;RZU300..30T..LPG;XZU301,302,341,342..DSL,DSLL;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#..20T,30T,35T,40T	10/2002 - 06/2004	1
88463-37140	XZU301,31#,331;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#..SCB,VAN	05/1999 - 06/2002	1
88463-37140	XZU301,31#,331;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#..SCB,VAN	05/1999 - 06/2002	1
88463-37140	XZU301,31#,331;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#..SCB,VAN	05/1999 - 06/2002	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37150	XZU31#;XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,32#,330,340,341,342,35#..SCB	05/1999 - 06/2004	1
88463-37150	XZU31#;XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,32#,330,340,341,342,35#..SCB	05/1999 - 06/2004	1
88463-37150	XZU31#;XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,32#,330,340,341,342,35#..SCB	05/1999 - 06/2004	1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-37050	XZU300,330,340,350	06/1999 - 06/2004	1
88463-37050	XZU300,330,340,350	06/1999 - 06/2004	1
88463-37050	XZU300,330,340,350	06/1999 - 06/2004	1
88471A - TANK, RECEIVER
88471-34010	RZU300,XZU301,31#,331,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	08/2001 - 02/2002	1
88471-34010	RZU300,XZU301,31#,331,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	08/2001 - 02/2002	1
88471-34010	RZU300,XZU301,31#,331,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	08/2001 - 02/2002	1
88471-34010	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	05/1999 - 08/2001	1
88471-34010	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	05/1999 - 08/2001	1
88471-34010	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	05/1999 - 08/2001	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060	XZU301..30T..(IV6,IV7)..1NO;BU301,XZU300,320,330,340..1NO;XZU322,351,352..DM2,DM7,DM8,T5;XZU301,302,31#,321..(DM3,DM5,DM6,DM7,DM8)..DSL	06/2001 - 06/2004	1
88550-37060	XZU301..30T..(IV6,IV7)..1NO;BU301,XZU300,320,330,340..1NO;XZU322,351,352..DM2,DM7,DM8,T5;XZU301,302,31#,321..(DM3,DM5,DM6,DM7,DM8)..DSL	06/2001 - 06/2004	1
88550-37060	XZU301..30T..(IV6,IV7)..1NO;BU301,XZU300,320,330,340..1NO;XZU322,351,352..DM2,DM7,DM8,T5;XZU301,302,31#,321..(DM3,DM5,DM6,DM7,DM8)..DSL	06/2001 - 06/2004	1
88550-37040	XZU300,320,330,340,350	06/1999 - 06/2001	1
88550-37040	XZU300,320,330,340,350	06/1999 - 06/2001	1
88550-37040	XZU300,320,330,340,350	06/1999 - 06/2001	1
88590 - BLOWER ASSY, W/SHROUD
88590-37051	XZU302..DM3..30T;XZU341..4FC..295T;XZU341..30T..DSLL;XZU31#,331..DCB..DSL;XZU301..5F..30T..(IV4,IV6);XZU301,372,382..(T3,T5)..20T;XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..WT..DSL..4NO;XZU301..4FC..30T..DSL..(IV4,IV6);XZU301,31#,321,322..(295T,30T)..(CBU,IV3)..4NO;BU301,XZU300,320,330,340,342,35#,371..(DM5,DM7,T3,T4)..(DSL,DSLL)	06/1999 - 06/2004	1
88590-37051	XZU302..DM3..30T;XZU341..4FC..295T;XZU341..30T..DSLL;XZU31#,331..DCB..DSL;XZU301..5F..30T..(IV4,IV6);XZU301,372,382..(T3,T5)..20T;XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..WT..DSL..4NO;XZU301..4FC..30T..DSL..(IV4,IV6);XZU301,31#,321,322..(295T,30T)..(CBU,IV3)..4NO;BU301,XZU300,320,330,340,342,35#,371..(DM5,DM7,T3,T4)..(DSL,DSLL)	06/1999 - 06/2004	1
88590-37051	XZU302..DM3..30T;XZU341..4FC..295T;XZU341..30T..DSLL;XZU31#,331..DCB..DSL;XZU301..5F..30T..(IV4,IV6);XZU301,372,382..(T3,T5)..20T;XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..WT..DSL..4NO;XZU301..4FC..30T..DSL..(IV4,IV6);XZU301,31#,321,322..(295T,30T)..(CBU,IV3)..4NO;BU301,XZU300,320,330,340,342,35#,371..(DM5,DM7,T3,T4)..(DSL,DSLL)	06/1999 - 06/2004	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	XZU341..6F..295T;XZU351,352,371..DM2,T3;XZU301..T4..DSL..(CBU,IV3);XZU301..SCB..(DM3,DM6,T3,T5)..DSL;BU30#,XZU307,311,341,347..(SCB,VAN)..(20T,30T)..DSL;BU346,RZU300,340,XZU300,302,306,312,32#,33#,340,342,346,350,362,372,382..(DSL,DSLL,EFI)..(CBU,IV3,IV6)	10/2002 - 06/2004	1
88645-60030	XZU341..6F..295T;XZU351,352,371..DM2,T3;XZU301..T4..DSL..(CBU,IV3);XZU301..SCB..(DM3,DM6,T3,T5)..DSL;BU30#,XZU307,311,341,347..(SCB,VAN)..(20T,30T)..DSL;BU346,RZU300,340,XZU300,302,306,312,32#,33#,340,342,346,350,362,372,382..(DSL,DSLL,EFI)..(CBU,IV3,IV6)	10/2002 - 06/2004	1
88645-60030	XZU341..6F..295T;XZU351,352,371..DM2,T3;XZU301..T4..DSL..(CBU,IV3);XZU301..SCB..(DM3,DM6,T3,T5)..DSL;BU30#,XZU307,311,341,347..(SCB,VAN)..(20T,30T)..DSL;BU346,RZU300,340,XZU300,302,306,312,32#,33#,340,342,346,350,362,372,382..(DSL,DSLL,EFI)..(CBU,IV3,IV6)	10/2002 - 06/2004	1
88645-60030	XZU342..DSL;XZU302..CNG,DSL;RZU300,XZU31#,37#,382;BU30#,346,RZU340,XZU300,301,306,307,32#,33#,340,341,346,347,35#,362..SCB,VAN	09/2001 - 06/2002	1
88645-60030	XZU342..DSL;XZU302..CNG,DSL;RZU300,XZU31#,37#,382;BU30#,346,RZU340,XZU300,301,306,307,32#,33#,340,341,346,347,35#,362..SCB,VAN	09/2001 - 06/2002	1
88645-60030	XZU342..DSL;XZU302..CNG,DSL;RZU300,XZU31#,37#,382;BU30#,346,RZU340,XZU300,301,306,307,32#,33#,340,341,346,347,35#,362..SCB,VAN	09/2001 - 06/2002	1
88645-60030	XZU342..DSL;RZU300,XZU301,31#,331,341,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,346,347,35#,362..(SCB,VAN)..(CNG,DSL,DSLL,EFI)	05/1999 - 09/2001	1
88645-60030	XZU342..DSL;RZU300,XZU301,31#,331,341,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,346,347,35#,362..(SCB,VAN)..(CNG,DSL,DSLL,EFI)	05/1999 - 09/2001	1
88645-60030	XZU342..DSL;RZU300,XZU301,31#,331,341,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,346,347,35#,362..(SCB,VAN)..(CNG,DSL,DSLL,EFI)	05/1999 - 09/2001	1
88645-60030	XZU341..20T,30T;XZU301..IV6..1NO;XZU341..6F..295T;RZU300,XZU312,342,37#,382..DSL,EFI;XZU301,351,352..(DM2,DM3,DM6,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU30#,346,RZU340,XZU300,302,306,307,311,32#,33#,340,346,347,350,362..(SCB,VAN)..(CNG,DSL,EFI)	06/2002 - 10/2002	1
88645-60030	XZU341..20T,30T;XZU301..IV6..1NO;XZU341..6F..295T;RZU300,XZU312,342,37#,382..DSL,EFI;XZU301,351,352..(DM2,DM3,DM6,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU30#,346,RZU340,XZU300,302,306,307,311,32#,33#,340,346,347,350,362..(SCB,VAN)..(CNG,DSL,EFI)	06/2002 - 10/2002	1
88645-60030	XZU341..20T,30T;XZU301..IV6..1NO;XZU341..6F..295T;RZU300,XZU312,342,37#,382..DSL,EFI;XZU301,351,352..(DM2,DM3,DM6,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU30#,346,RZU340,XZU300,302,306,307,311,32#,33#,340,346,347,350,362..(SCB,VAN)..(CNG,DSL,EFI)	06/2002 - 10/2002	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37471	XZU300,330,340,350	01/2001 - 08/2001	1
88711-37471	XZU300,330,340,350	01/2001 - 08/2001	1
88711-37471	XZU300,330,340,350	01/2001 - 08/2001	1
88711-37470	XZU300,320,330,340,350	06/1999 - 01/2001	1
88711-37470	XZU300,320,330,340,350	06/1999 - 01/2001	1
88711-37470	XZU300,320,330,340,350	06/1999 - 01/2001	1
88711-37471	XZU300,330,340,350	08/2001 - 06/2004	1
88711-37471	XZU300,330,340,350	08/2001 - 06/2004	1
88711-37471	XZU300,330,340,350	08/2001 - 06/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V270	XZU300,330,340,350	06/1999 - 06/2004	1
88712-3V270	XZU300,330,340,350	06/1999 - 06/2004	1
88712-3V270	XZU300,330,340,350	06/1999 - 06/2004	1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-37780	XZU300,320,330,340,350	06/1999 - 01/2001	1
88712-37780	XZU300,320,330,340,350	06/1999 - 01/2001	1
88712-37780	XZU300,320,330,340,350	06/1999 - 01/2001	1
88712-37781	XZU300,320,330,340,350	01/2001 - 06/2002	1
88712-37781	XZU300,320,330,340,350	01/2001 - 06/2002	1
88712-37781	XZU300,320,330,340,350	01/2001 - 06/2002	1
88712-37782	XZU300,330,340,350	06/2002 - 06/2004	1
88712-37782	XZU300,330,340,350	06/2002 - 06/2004	1
88712-37782	XZU300,330,340,350	06/2002 - 06/2004	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37580	XZU300,330,340,350	06/1999 - 06/2004	1
88721-37580	XZU300,330,340,350	06/1999 - 06/2004	1
88721-37580	XZU300,330,340,350	06/1999 - 06/2004	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37840	XZU301,31#,331;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#..SCB,VAN	05/1999 - 06/2001	1
88716-37840	XZU301,31#,331;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#..SCB,VAN	05/1999 - 06/2001	1
88716-37840	XZU301,31#,331;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#..SCB,VAN	05/1999 - 06/2001	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88723-20030	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	02/2002 - 03/2002	1
88723-20030	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	02/2002 - 03/2002	1
88723-20030	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	02/2002 - 03/2002	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
Common parts
88438-37010
88463-35120
88472-37170
88688-37420
88688-3V150
88718-26410
88718-37350
88718-37380
88718-37390
88718-37420
88718-37730
88718-37750
88718-3A270
90041-79141
90091-20512
90099-04119
90119-10522
91511-B0630
91511-J0625
91513-60828
91651-60616
91651-60645
91651-60816
93385-16016
94130-60600
94150-80800

ILLUST NO. 1 OF 2(0106-0406)XZU300,330,340,350

Click highlighted areas on diagram

ｵ-ﾌﾟﾝﾌﾚ-ﾑ

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU300,330,340,350	08/2001 - 09/2001	1
88374-30010	XZU301,331..IV4;XZU301,302,341,342..CNG,LPG;BU301,RZU300,340,XZU300,330,340,350..T2,T3,T4	09/2001 - 06/2002	1
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	XZU301..IV6..4NO;XZU341..4FC..295T;XZU300,330,340,35#..DM5,T3,T4	06/2002 - 10/2002	1
88374-30010	XZU300,330,340	06/2001 - 08/2001	1
88374-30010	XZU301..IV6..4NO;XZU341..4FC..295T;XZU301,306,311,331,341,346..(20T,30T)..DSLL;BZU300,340,RZU301,XZU300,330,340,35#..DM5,DM6,T3,T4	10/2002 - 06/2004	1
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	XZU312..DCB;XZU322..DM7,DM8;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,BZU300,340,RZU301,340,XZU300,307,330,337,340,346,347,35#,362..SCB,VAN;BU301,RZU300,XZU341,342,37#,382..(T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL,EFI)	05/1999 - 06/2004	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88453A - FAN, COOLING
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88454A - SHROUD, FAN
88454-37031	XZU31#;XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,32#,330,340,341,342,35#..SCB	05/1999 - 06/2004	1
88460 - CONDENSER ASSY, COOLER
88460-37401	XZU300,320,330,340,350	06/1999 - 06/2001	1
88460-37511	XZU31#,331..DSL;XZU301..4FC..DSL;XZU331..5F..DSLL;XZU301..5F..DSL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);BU30#,346,XZU300,302,306,307,32#,330,337,34#,35#..(SCB,VAN)..(DSL,DSLL)	04/2002 - 06/2002	1
88460-37510	XZU322;XZU301..5F..20T..DSLL;XZU301..30T..(IV6,IV7);BU301,XZU300,320,330,340..1NO;XZU301,302,31#,321,351,352..(DM2,DM3,DM5,DM6,DM7,DM8)..DSL	06/2001 - 04/2002	1
88460-37512	XZU301,331..DSL;XZU301..DSLL..4NO;BU301,XZU300,302,31#,32#,330,340,341,342,35#..(20T,295T,30T,35T,40T)..(DSL,DSLL)	06/2002 - 06/2004	1
88460P - CONDENSER ASSY, COOLER NO.2
88460-37500	XZU301..30T..(IV6,IV7)..1NO;BU301,XZU300,320,330,340..1NO;XZU322,351,352..DM2,DM7,DM8,T5;XZU301,302,31#,321..(DM3,DM5,DM6,DM7,DM8)..(CNG,DSL,LPG)	06/2001 - 06/2004	1
88461B - COVER, COOLER CONDENSER
53715-37180	XZU301,312,331..CNG,DSL,LPG;BU301,RZU300,340,XZU300,302,311,32#,330,340,341,342,35#..SCB	06/2002 - 10/2002	1
53715-37180	RZU300..SCB..EFI;RZU300..30T..LPG;XZU301,302,341,342..DSL,DSLL;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#..20T,30T,35T,40T	10/2002 - 06/2004	1
53715-37180	XZU301,31#,331;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#..SCB,VAN	05/1999 - 06/2002	1
88462B - HOLDER, CONDENSER, NO.2
88462-37070	XZU300,330,340,350	06/2001 - 06/2004	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37140	XZU301,312,331..CNG,DSL,LPG;BU301,RZU300,340,XZU300,302,311,32#,330,340,341,342,35#..SCB	06/2002 - 10/2002	1
88463-37140	RZU300..SCB..EFI;RZU300..30T..LPG;XZU301,302,341,342..DSL,DSLL;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#..20T,30T,35T,40T	10/2002 - 06/2004	1
88463-37140	XZU301,31#,331;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#..SCB,VAN	05/1999 - 06/2002	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37150	XZU31#;XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,32#,330,340,341,342,35#..SCB	05/1999 - 06/2004	1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-37050	XZU300,330,340,350	06/1999 - 06/2004	1
88471A - TANK, RECEIVER
88471-34010	RZU300,XZU301,31#,331,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	08/2001 - 02/2002	1
88471-34010	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	05/1999 - 08/2001	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060	XZU301..30T..(IV6,IV7)..1NO;BU301,XZU300,320,330,340..1NO;XZU322,351,352..DM2,DM7,DM8,T5;XZU301,302,31#,321..(DM3,DM5,DM6,DM7,DM8)..DSL	06/2001 - 06/2004	1
88550-37040	XZU300,320,330,340,350	06/1999 - 06/2001	1
88590 - BLOWER ASSY, W/SHROUD
88590-37051	XZU302..DM3..30T;XZU341..4FC..295T;XZU341..30T..DSLL;XZU31#,331..DCB..DSL;XZU301..5F..30T..(IV4,IV6);XZU301,372,382..(T3,T5)..20T;XZU306,331..(T3,T5)..5F..DSLL;XZU302..(T4,T5)..WT..DSL..4NO;XZU301..4FC..30T..DSL..(IV4,IV6);XZU301,31#,321,322..(295T,30T)..(CBU,IV3)..4NO;BU301,XZU300,320,330,340,342,35#,371..(DM5,DM7,T3,T4)..(DSL,DSLL)	06/1999 - 06/2004	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	XZU342..DSL;RZU300,XZU301,31#,331,341,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,346,347,35#,362..(SCB,VAN)..(CNG,DSL,DSLL,EFI)	05/1999 - 09/2001	1
88645-60030	XZU341..6F..295T;XZU351,352,371..DM2,T3;XZU301..T4..DSL..(CBU,IV3);XZU301..SCB..(DM3,DM6,T3,T5)..DSL;BU30#,XZU307,311,341,347..(SCB,VAN)..(20T,30T)..DSL;BU346,RZU300,340,XZU300,302,306,312,32#,33#,340,342,346,350,362,372,382..(DSL,DSLL,EFI)..(CBU,IV3,IV6)	10/2002 - 06/2004	1
88645-60030	XZU342..DSL;XZU302..CNG,DSL;RZU300,XZU31#,37#,382;BU30#,346,RZU340,XZU300,301,306,307,32#,33#,340,341,346,347,35#,362..SCB,VAN	09/2001 - 06/2002	1
88645-60030	XZU341..20T,30T;XZU301..IV6..1NO;XZU341..6F..295T;RZU300,XZU312,342,37#,382..DSL,EFI;XZU301,351,352..(DM2,DM3,DM6,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU30#,346,RZU340,XZU300,302,306,307,311,32#,33#,340,346,347,350,362..(SCB,VAN)..(CNG,DSL,EFI)	06/2002 - 10/2002	1
88706 - PIPE SUB-ASSY, LIQUID
88706-37050	XZU300,330,340	06/2001 - 08/2001	1
88706-37050	XZU300,330,340,350	08/2001 - 06/2002	1
88706-37150	XZU307..03S;XZU301..DSLL..4NO;BU306,XZU347..DCB,VAN;XZU301,331..CNG,DSL,LPG;BU301,BZU300,340,RZU30#,XZU300,302,31#,32#,330,340,341,342,35#..CNG,DSL,DSLL,LPG	06/2002 - 06/2004	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37471	XZU300,330,340,350	01/2001 - 08/2001	1
88711-37470	XZU300,320,330,340,350	06/1999 - 01/2001	1
88711-37471	XZU300,330,340,350	08/2001 - 06/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V270	XZU300,330,340,350	06/1999 - 06/2004	1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-37780	XZU300,320,330,340,350	06/1999 - 01/2001	1
88712-37781	XZU300,320,330,340,350	01/2001 - 06/2002	1
88712-37782	XZU300,330,340,350	06/2002 - 06/2004	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37580	XZU300,330,340,350	06/1999 - 06/2004	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88721-37600	XZU322;XZU301..5F..20T..DSLL;XZU301..30T..(IV6,IV7);BU301,XZU300,320,330,340..1NO;XZU301,302,31#,321,351,352..(DM2,DM3,DM5,DM6,DM7,DM8)..(CNG,DSL,LPG)	06/2001 - 06/2002	1
88721-37660	XZU301..DSLL..4NO;XZU301,331..CNG,DSL,LPG;BU301,BZU300,340,RZU30#,XZU300,302,31#,32#,330,340,341,342,35#..(20T,295T,30T,35T,40T)..(CNG,DSL,DSLL,LPG)	06/2002 - 06/2004	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88723-20030	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	02/2002 - 03/2002	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
Common parts
15188-87101
88438-37010
88463-35120
88472-37170
88472-37210
88688-37420
88688-3V150
88688-3V190
88688-3V280
88688-3V300
88688-3V500
88718-26410
88718-37280
88718-37380
88718-37390
88718-37730
88718-37750
88718-3A270
88718-3A300
88718-3A310
88718-3V150
88718-3V160
90041-79141
90091-20512
90091-20609
90099-04119
90119-08676
90119-10522
90119-10899
90179-08025
91511-B0630
91511-J0625
91513-60828
91651-60616
91651-60645
93385-16016
94130-00602
94130-60600
94150-80800

XZU330-TKMQS (1999)

ILLUST NO. 1 OF 2(9905-0106)XZU300,320,330,340,350

ILLUST NO. 1 OF 2(9905-0406)XZU300,302,306,31#,32#,330,337,340,342,346,347,350,362,37#,382..CNG,DSL,

ILLUST NO. 1 OF 2(0106-0406)XZU300,330,340,350

Part Price Details
