XZU330-TKMQS (1999)
Toyota Dyna/Toyoace

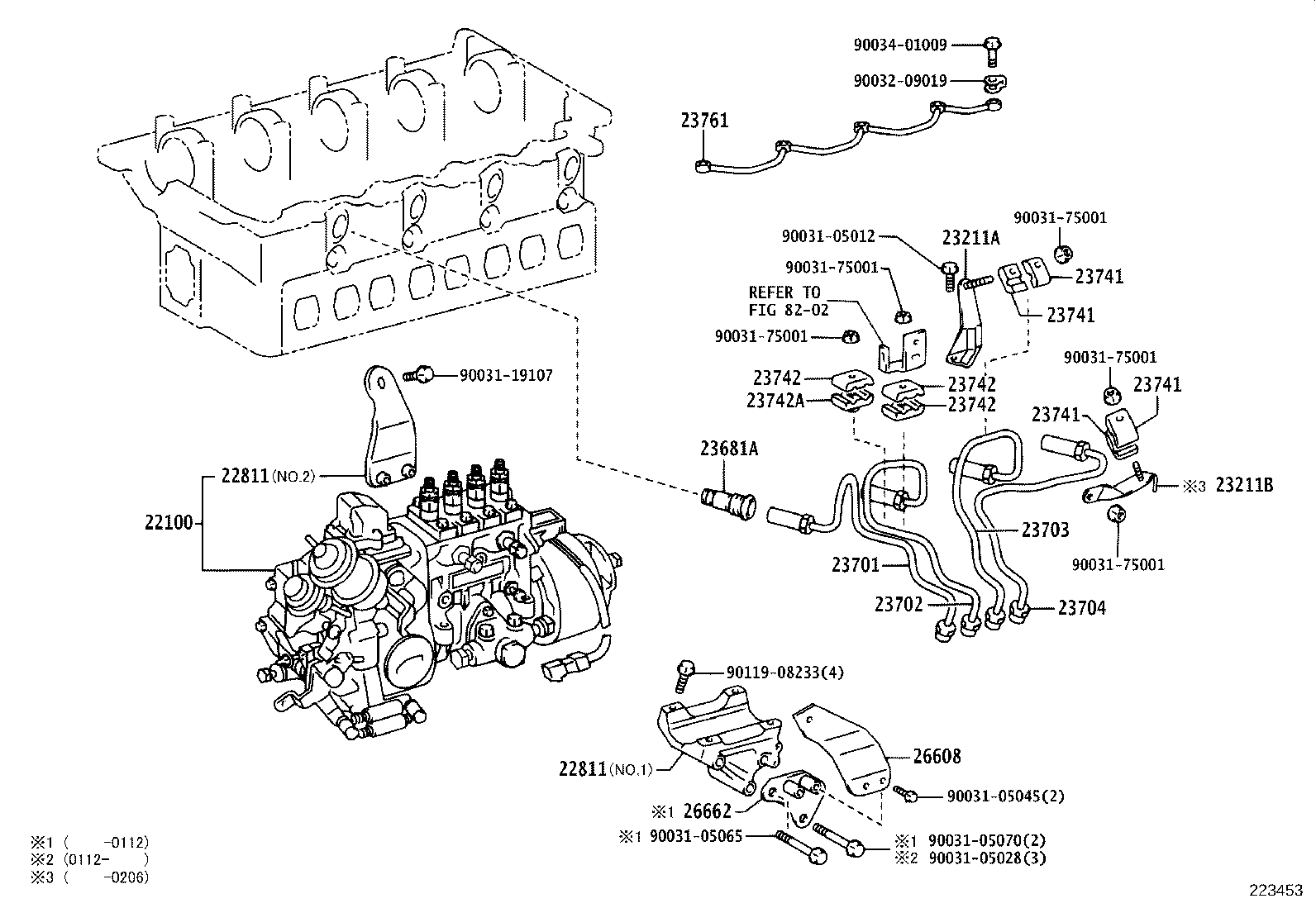

ILLUST NO. 1 OF 2(9905-0406)J05C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22010-78231 |
J05C..XZU300,320,330,340,350 ｱﾘ(ｱｲﾄﾞﾙｱﾂﾌﾟ ﾂｷ ﾌﾛﾝﾄ ﾋ-ﾀ) |
1 | ||
| 22010-78230 |
J05C..XZU300,320,330,340,350 ｱﾘ(ｱｲﾄﾞﾙｱﾂﾌﾟ ﾂｷ ﾌﾛﾝﾄ ﾋ-ﾀ) |
1 | ||
| 22010-78220 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 22010-78232 |
J05C..XZU300,320,330,340,350 ｱﾘ(ｱｲﾄﾞﾙｱﾂﾌﾟ ﾂｷ ﾌﾛﾝﾄ ﾋ-ﾀ) |
1 | ||
| 22010-78221 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 22010-78222 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 22010-78270 |
J05C..XZU300,320,330,340,350 ｱﾘ(ｱｲﾄﾞﾙｱﾂﾌﾟ ﾂｷ ﾌﾛﾝﾄ ﾋ-ﾀ) |
1 | ||
| 22010-78261 |
J05C..XZU300,330,340,350 |
1 | ||
| 22010-78271 |
J05C..XZU300,330,340,350 ｱﾘ(ｱｲﾄﾞﾙｱﾂﾌﾟ ﾂｷ ﾌﾛﾝﾄ ﾋ-ﾀ) |
1 | ||
| 22010-78260 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-78030 |
J05C..XZU300,320,330,340,350 NO.2 |
1 | ||
| 22811-78070 |
J05C..XZU300,320,330,350 NO.1 |
1 | ||
| 22811-78020 |
J05C..XZU300,320,330,350 NO.1 |
1 | ||
| 22811-78070 |
J05C..XZU300,330,340,350 NO.1 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-78030 |
J05C..XZU300,320,330,340,350 NO.2 |
1 | ||
| 22811-78070 |
J05C..XZU300,320,330,350 NO.1 |
1 | ||
| 22811-78020 |
J05C..XZU300,320,330,350 NO.1 |
1 | ||
| 22811-78070 |
J05C..XZU300,330,340,350 NO.1 |
1 | ||
| 23211A - BRACKET(FOR INJECTION PIPE NO.3) | ||||
| 23211-78040 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 23211B - BRACKET(FOR INJECTION PIPE NO.4) | ||||
| 23211-78030 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-78030 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-78030 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-78030 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-78030 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
6 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-78040 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 23761 - PIPE, NOZZLE LEAKAGE, NO.1 | ||||
| 23761-78020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 26608 - BRACKET SUB-ASSY, ACCELERATOR WIRE | ||||
| 26608-78030 |
J05C..XZU320..IV3;J05C..XZU300,330,340,350 |
1 | ||
| 26662 - BRACKET, ACCELERATOR WIRE | ||||
| 26662-78010 |
J05C..XZU300,320,330,350 |
1 | ||
| Common parts | ||||
| 90031-05012 | ||||
| 90031-05028 | ||||
| 90031-05045 | ||||
| 90031-05065 | ||||
| 90031-05070 | ||||
| 90031-19107 | ||||
| 90031-75001 | ||||
| 90032-09019 | ||||
| 90034-01009 | ||||
| 90119-08233 | ||||
| Linked diagrams | ||||
| 8202 | ||||

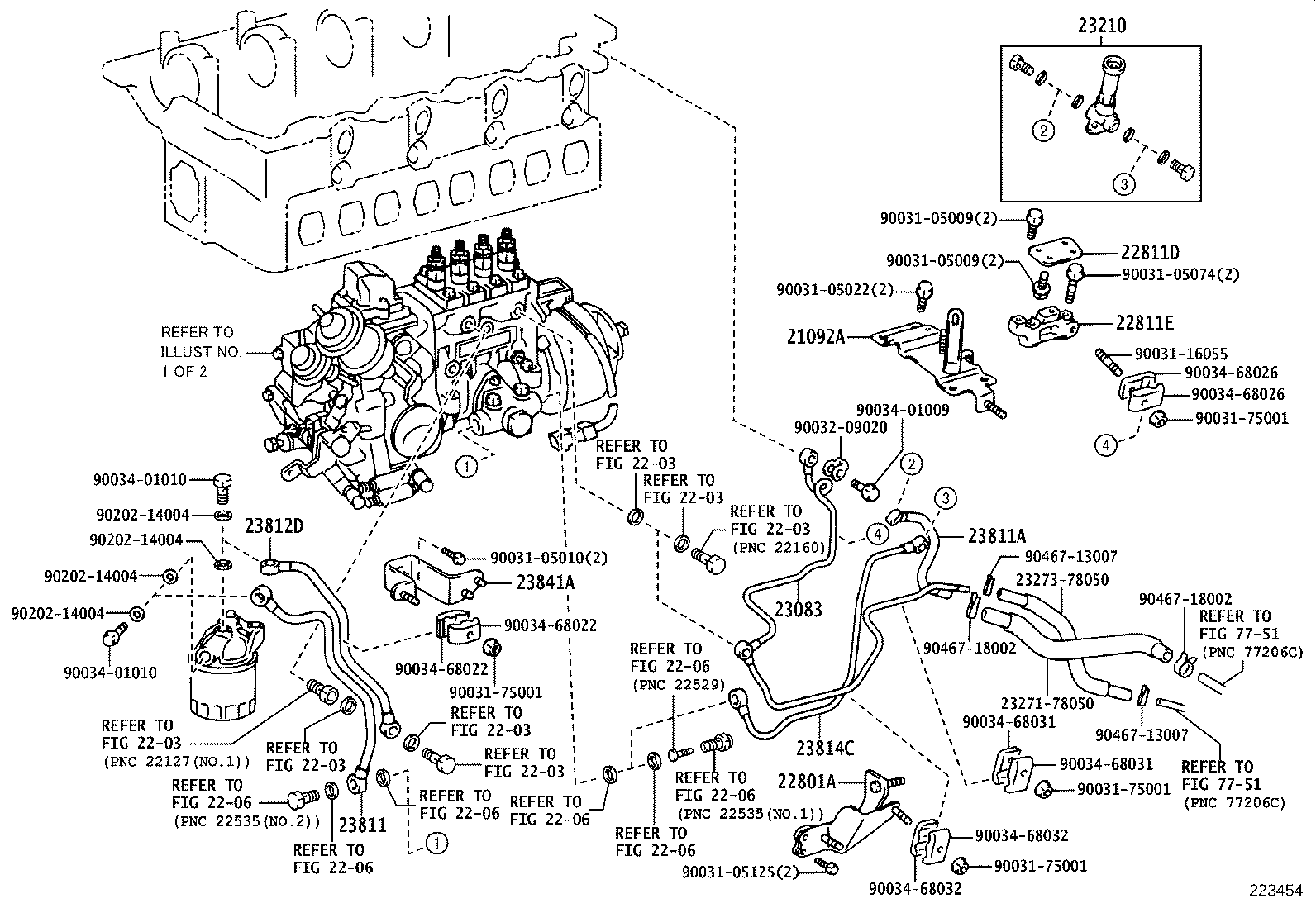

ILLUST NO. 2 OF 2(9905-0406)J05C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21092A - BRACKET SUB-ASSY, SOLENOID VALVE | ||||
| 21092-78010 |
J05C..XZU300,320,330,340 |
1 | ||
| 22801A - BRACKET SUB-ASSY, INJECTION PUMP | ||||
| 22801-78041 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 22801-78030 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 22801-78040 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 22811D - STAY, INJECTION PUMP, NO.2 | ||||
| 22811-78040 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 22811E - STAY, INJECTION PUMP, NO.3 | ||||
| 22811-78050 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 23210 - PUMP ASSY, FUEL(FOR DIESEL) | ||||
| 23210-78010 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-78010 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 23811A - PIPE, FUEL, NO.2(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-78050 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 23812D - PIPE, FUEL, NO.2 | ||||
| 23812-78010 |
J05C..XZU300,320,330,340,350 |
1 | ||
| 23814C - PIPE, FUEL DELIVERY | ||||
| 23814-78020 |
J05C..XZU300,320,330,340 |
1 | ||
| 23841A - CLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP) | ||||
| 23841-78010 |
J05C..XZU300,320,330,340,350 |
1 | ||
| Common parts | ||||
| 23271-78050 | ||||
| 23273-78050 | ||||
| 90031-05009 | ||||
| 90031-05010 | ||||
| 90031-05022 | ||||
| 90031-05074 | ||||
| 90031-05125 | ||||
| 90031-16055 | ||||
| 90031-75001 | ||||
| 90032-09020 | ||||
| 90034-01009 | ||||
| 90034-01010 | ||||
| 90034-68022 | ||||
| 90034-68026 | ||||
| 90034-68031 | ||||
| 90034-68032 | ||||
| 90202-14004 | ||||
| 90467-13007 | ||||
| 90467-18002 | ||||
| Linked diagrams | ||||
| 2203 | ||||
| 2206 | ||||
| 7751 | ||||
ILLUST NO. 1 OF 2(9905-0406)J05C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05028 | ||||
| 90031-05045 | ||||
| 90031-05065 | ||||
| 90031-05070 | ||||
| 90031-05126 | ||||
| 90031-19107 | ||||
| 90031-75001 | ||||
| 90032-09019 | ||||
| 90034-01009 | ||||
| 90119-08233 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(9905-0406)J05C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23271-78050 | ||||
| 23273-78050 | ||||
| 90031-05074 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05125 | ||||
| 90031-05141 | ||||
| 90031-16055 | ||||
| 90031-75001 | ||||
| 90032-09020 | ||||
| 90034-01009 | ||||
| 90034-01010 | ||||
| 90034-68022 | ||||
| 90034-68026 | ||||
| 90034-68031 | ||||
| 90034-68032 | ||||
| 90202-14004 | ||||
| 90467-18008 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2203 | ||||
| 2206 | ||||
| 7751 | ||||
