XZU324D-TMMQB3 (2006)
Toyota Dyna/Toyoace

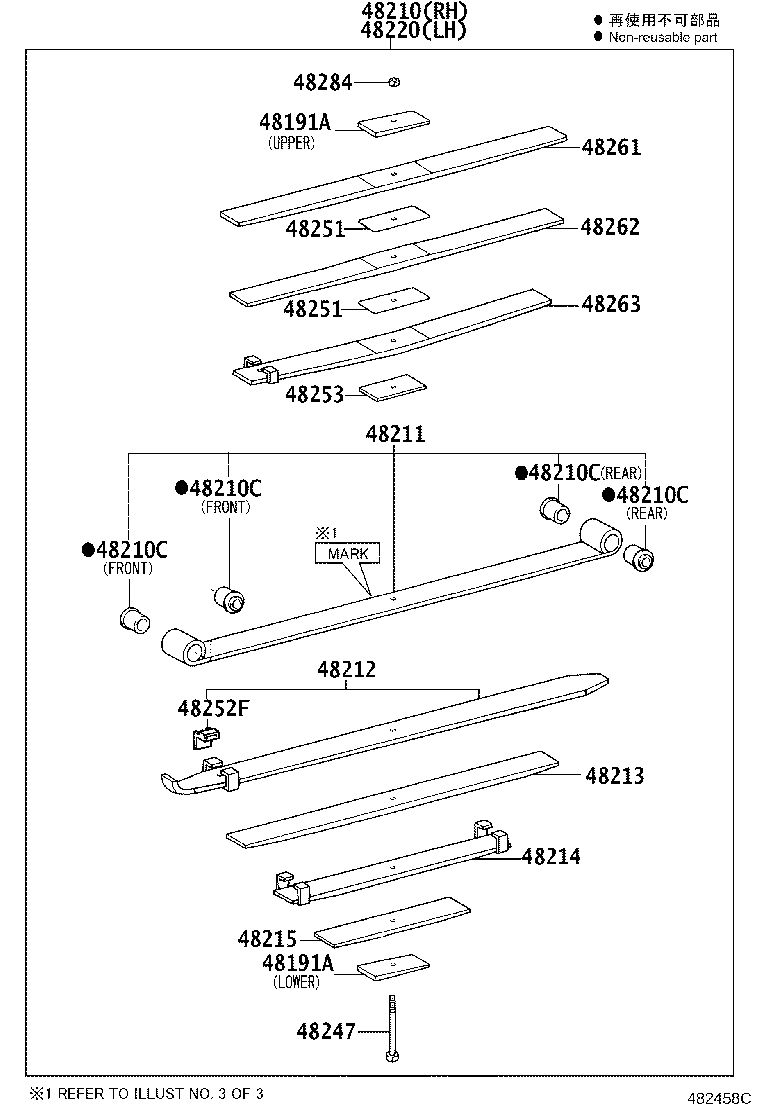

ILLUST NO. 2 OF 3(0610- )XZU324..30T
MAIN 5+HELPER 3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37040 |
XZU324,524 下側 |
2 | ||
| 48192-37020 |
XZU324,524 上側 |
2 | ||
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37040 |
XZU324,524 下側 |
2 | ||
| 48192-37020 |
XZU324,524 上側 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V420 |
XZU324..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,厚さ=130.0 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU304..DM3,DM6;TRU300..SCB..(DM5,T4);BZU300,XZU304,368..(T4,T5)..30T;BZU300,XZU314,324,504,524..DM5,DM6,DM7,T5 ﾘﾔ |
4 | ||
| 90389-16024 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU304..DM3,DM6;TRU300..SCB..(DM5,T4);BZU300,XZU304,368..(T4,T5)..30T;BZU300,XZU314,324,504,524..DM5,DM6,DM7,T5 ﾘﾔ |
4 | ||
| 90389-16024 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU304..DM3,DM6;TRU300..SCB..(DM5,T4);BZU300,XZU304,368..(T4,T5)..30T;BZU300,XZU314,324,504,524..DM5,DM6,DM7,T5 ﾘﾔ |
4 | ||
| 90389-16024 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU304..DM3,DM6;TRU300..SCB..(DM5,T4);BZU300,XZU304,368..(T4,T5)..30T;BZU300,XZU314,324,504,524..DM5,DM6,DM7,T5 ﾘﾔ |
4 | ||
| 90389-16024 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 ﾌﾛﾝﾄ |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V420 |
XZU324..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3V420 |
XZU324..30T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-3V420 |
XZU324..30T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-3V420 |
XZU324..30T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3V420 |
XZU324..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V420 |
XZU324..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,厚さ=130.0 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37780 |
XZU324..30T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
XZU368;XZU324..30T;XZU308..5F..DCRUE;BZU340,TRU340,XZU34#,378,388,548,568..20T;BZU300,XZU304,354,508,554..03S,06S,DM5,DM6 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
XZU368;XZU324..30T;XZU308..5F..DCRUE;BZU340,TRU340,XZU34#,378,388,548,568..20T;BZU300,XZU304,354,508,554..03S,06S,DM5,DM6 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU324..30T;XZU304..T4..30T..DCRUE..IV3 |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-25670 |
XZU324..30T;BZU300,TRU300,500,XZU30#,338,50#,538..(T2,T4,T5)..20T..WT |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-3V420 |
XZU324..30T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48217-3V420 |
XZU324..30T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3V420 |
XZU324..30T |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-27620 |
XZU324..30T;BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
ILLUST NO. 1 OF 3(0610- )XZU324,524
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37140 |
XZU324;XZU524..DCRUE |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16040 |
XZU324..30T 長さ=320 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16040 |
XZU324..30T 長さ=320 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-37140 |
XZU324;XZU524..DCRUE |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37230 |
XZU324,524 |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37010 |
XZU324,524 |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37010 |
XZU324,524 |
4 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37060 |
XZU324;XZU524..DCRUE |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80746 |
XZU324,524 ﾏｰｸ 48531−37230 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH | ||||
| 48522-37030 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 |
1 | ||
| 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH | ||||
| 48522-37030 |
BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80746 |
XZU324,524 ﾏｰｸ 48531−37230 |
1 | ||
| Common parts | ||||
| 90105-16021 | ||||
| 90105-16075 | ||||
| 90119-08336 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91645-C1032 | ||||
| 94130-61600 | ||||
| 94184-61001 | ||||
ILLUST NO. 3 OF 3(0610- )
